hello everyone



first of all , big thanks to @MaLd0n for a lot of help and all the people in the community :wink_anim:



My Spec:



Motherboard: Gigabyte Z590 Vision D (bios F5d latest)

Cpu: Intel Core i7-10700K

Ram: Corsair 32GB DDR4 3000MHz

SSD: Samsung Evo 980Pro 512GB , for Big Sur

          WD Black 720 500GB , for Windows

          Seagate 4TB Barracuda - for Data

GPU: Sapphire Pulse RX580 8GB

Cooler : Gigabyte Aorus 240 Liquid

Case : Corsair ICUE 220T RGB Airflow Mid Tower

Power Supply : CORSAIR CX Series RGB White 750 Watt 80 plus

ThunderBolt: Built-in Thunderbolt 4 , with custom SSDT from @MaLd0n , GC-AlpineRidge Thunderbolt 3 V2 , with custom Mac Firmware From KGB ( I flash it with raspberry pi)

Display:Cooler Master 34 Inch Curved 1Ms 144Hz VA

Network: Fenvi FV T919 Hackintosh WiFi Bluetooth Broadcom BCM94360CD



Mapped USB port , DSDT from @MaLd0n , after installing GC-Alpine got acpi error

so for now I don't use SSDT

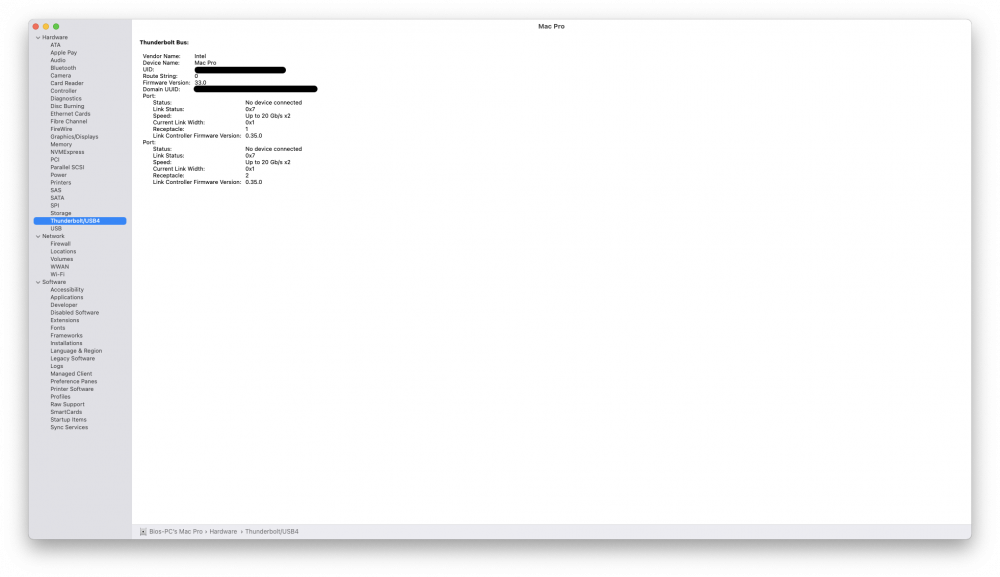

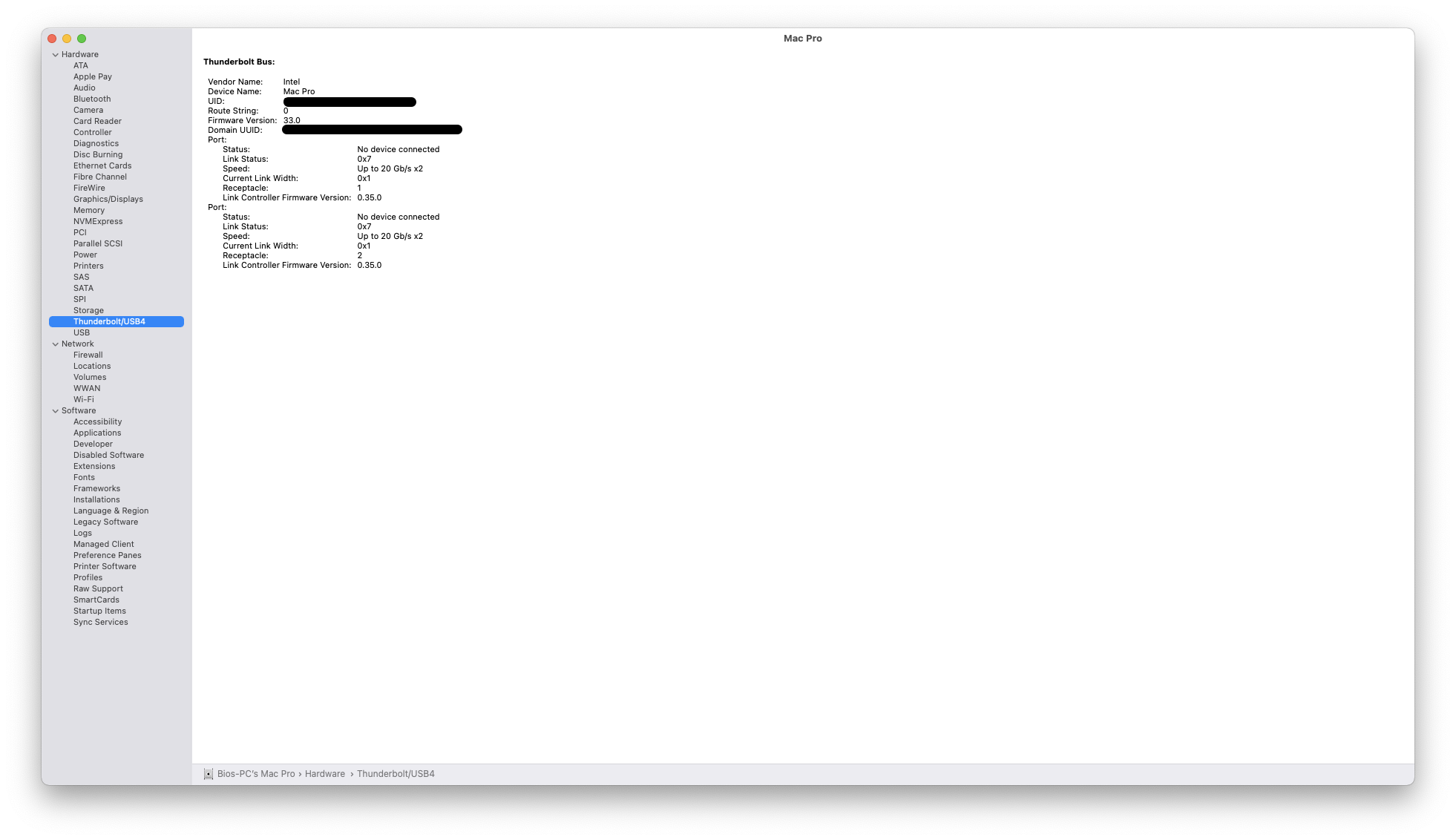

Screen Shot 2021-05-26 at 19.06.09.png

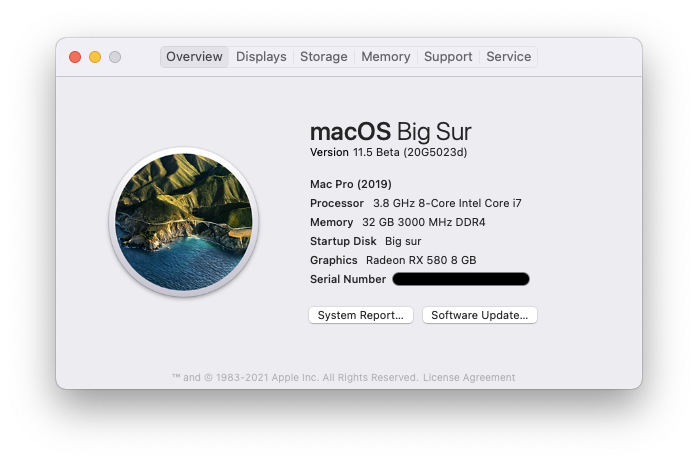

Screen Shot 2021-05-26 at 21.35.41.png

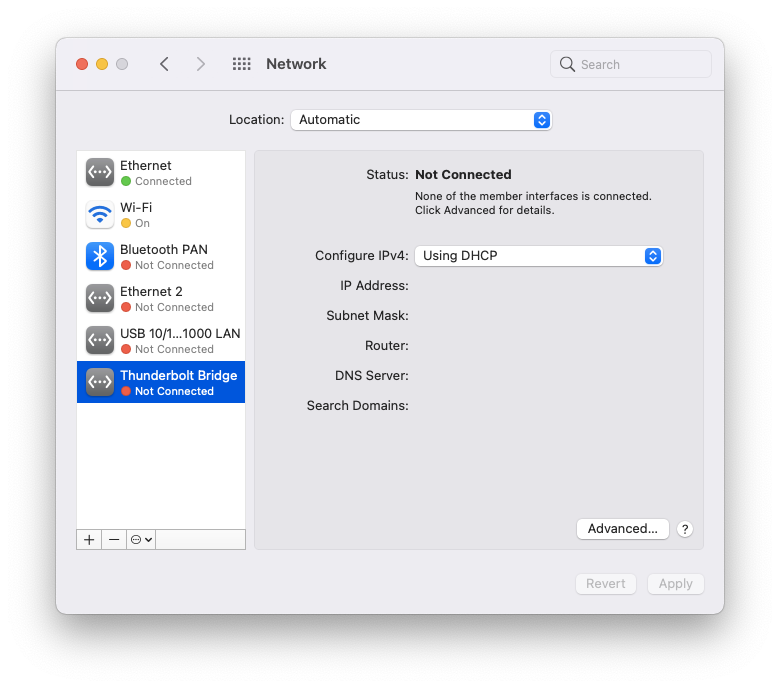

Screen Shot 2021-05-27 at 12.41.16.png



Update 25/06/2021

problem with usb , map USB port , even less than 15 port , still losing usb connection after some hours sometime after 10 minute

@MaLd0n try to figure what the problem didn't find  , me also .

with custom DSDT from @MaLd0n , I was loosing in short time , without DSDT I was loosing after some hours

even if nothing connected to usb else BCM4360 for bluetooth .

the thunderbolt card not loose usb connection so if I connect usb keyboard and mouse it worked.



After a struggle with usb issue , I found solution don't ask me why because I don't know what was the problem .

HS12 is 2 port in motherboard , one connected the BCM4360 and the other connected Liquid cooler Aorus 240.

I buy 9 pin Male to External USB A , I connect  the BCM4360 for bluetooth to regular USB port in the back . and now everything work like a charm



don't know if the problem with just series 500 or this motherboard



but now I'm so happy that everything work and got my hack to work perfect and again a lot of thanks to @MaLd0n and the community

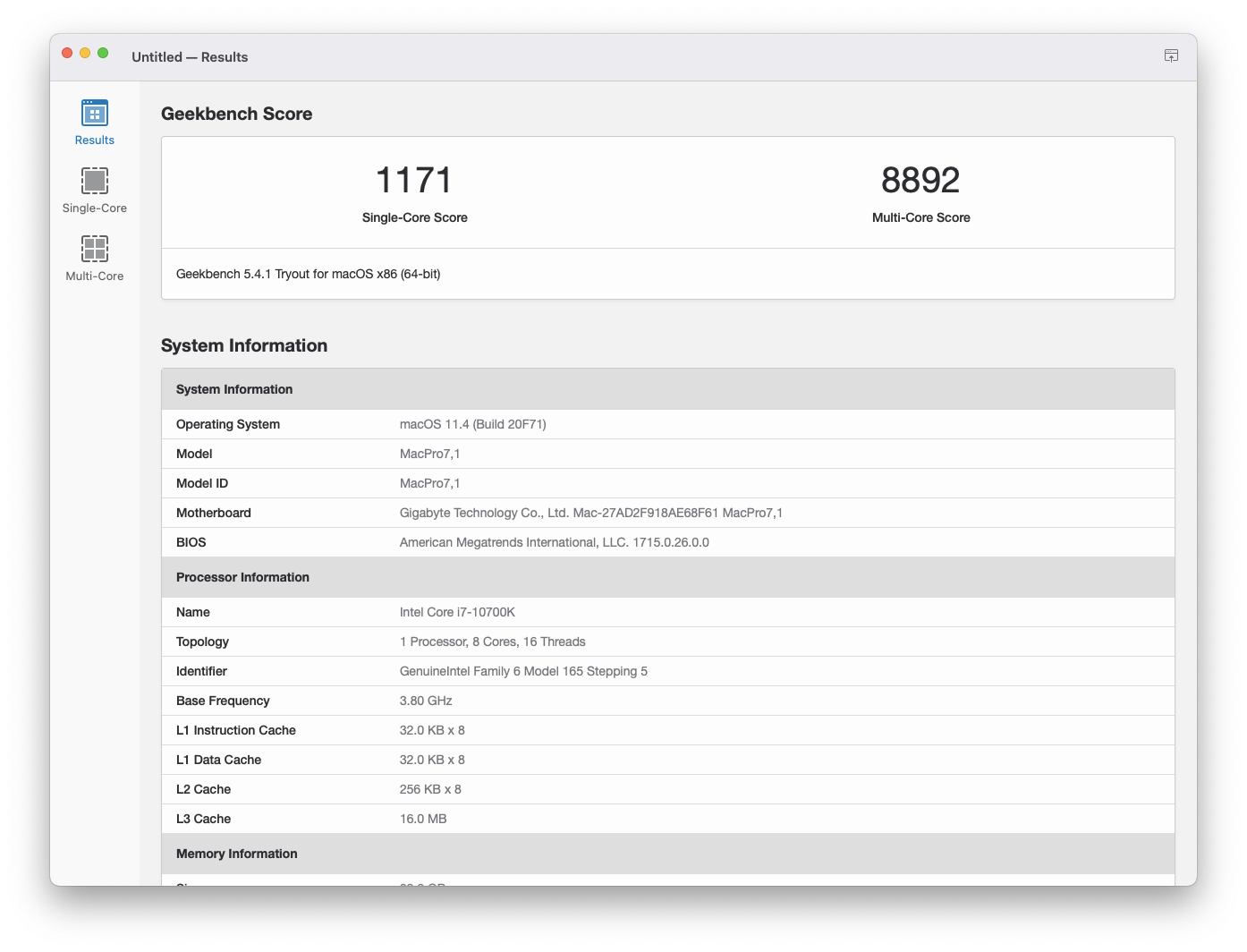

Screen Shot 2021-06-19 at 18.46.17.png

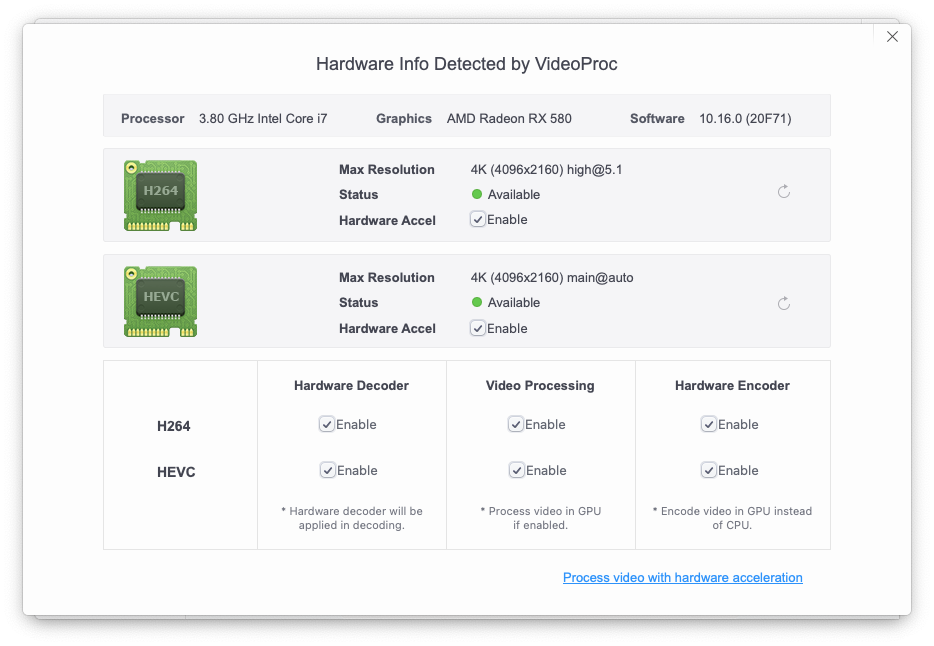

Screen Shot 2021-06-19 at 18.51.20.png

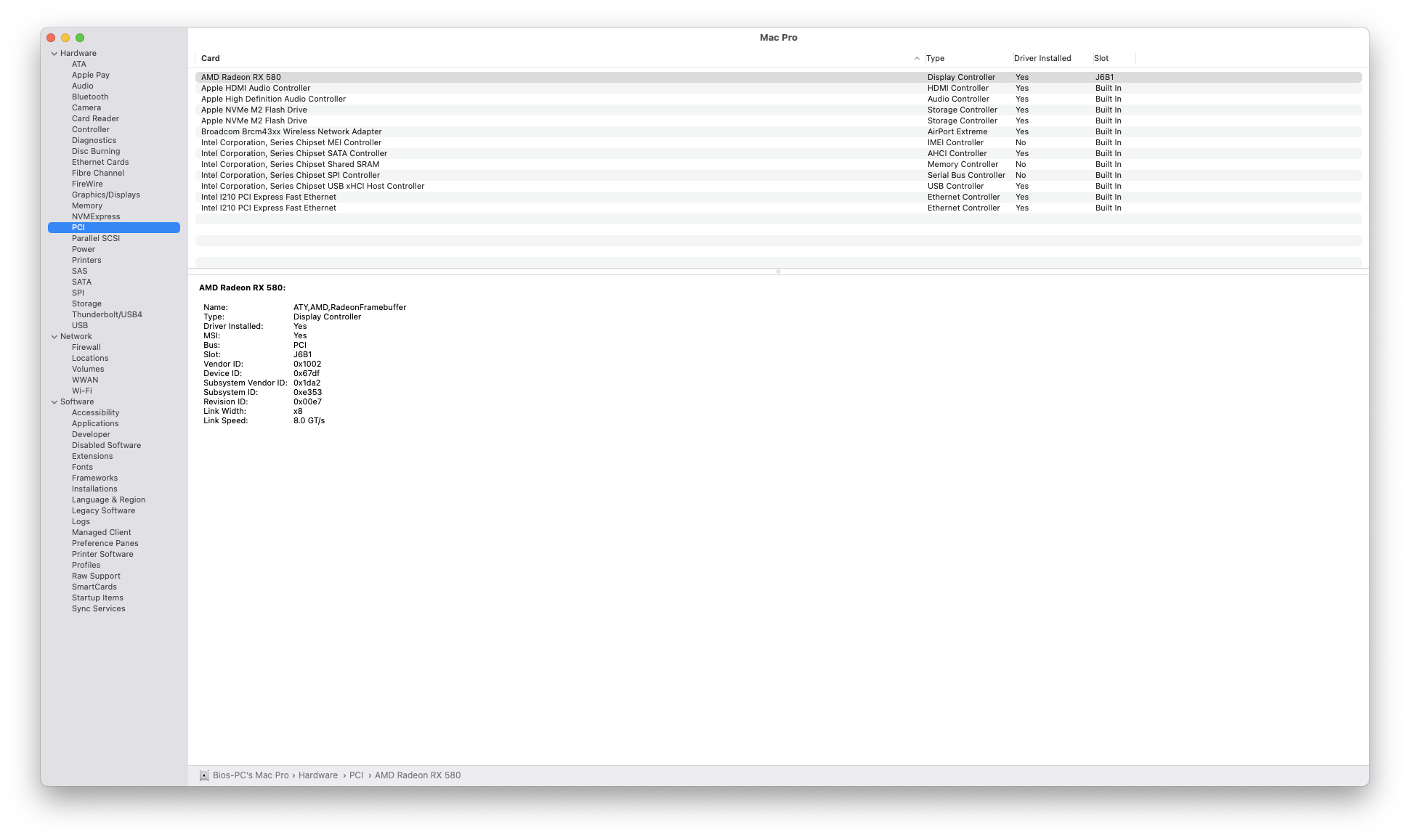

Screen Shot 2021-06-25 at 19.21.47.png

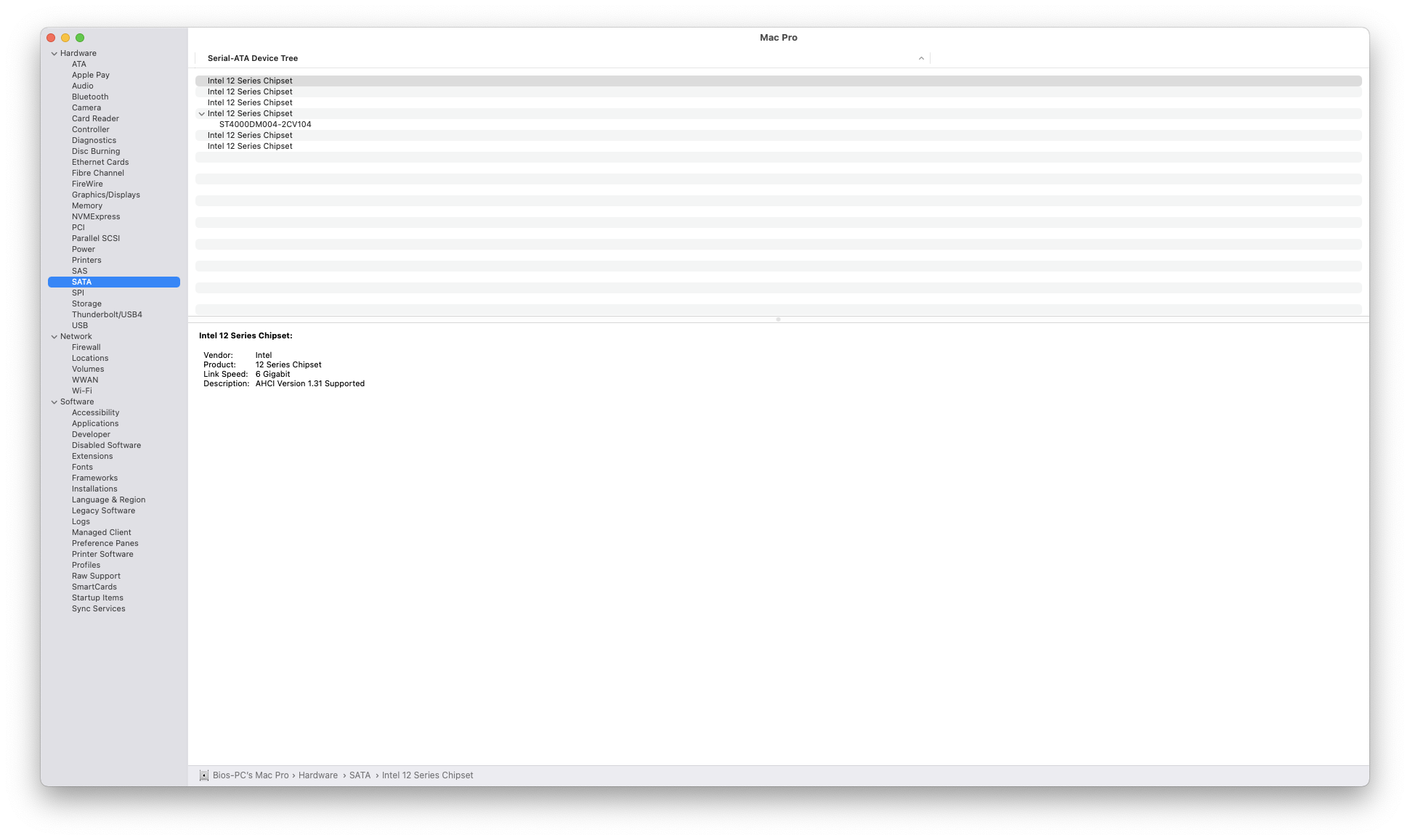

Screen Shot 2021-06-25 at 19.22.04.png

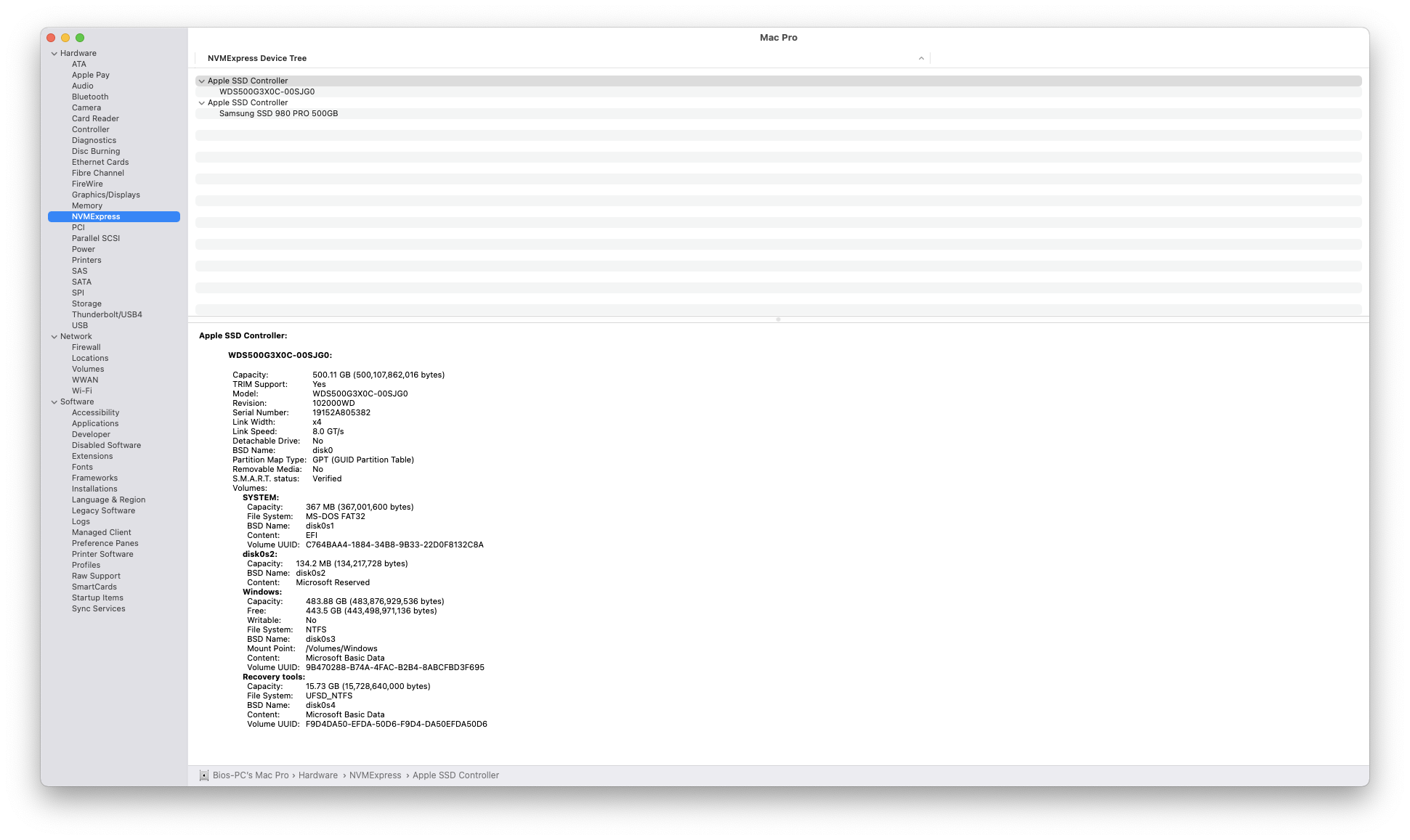

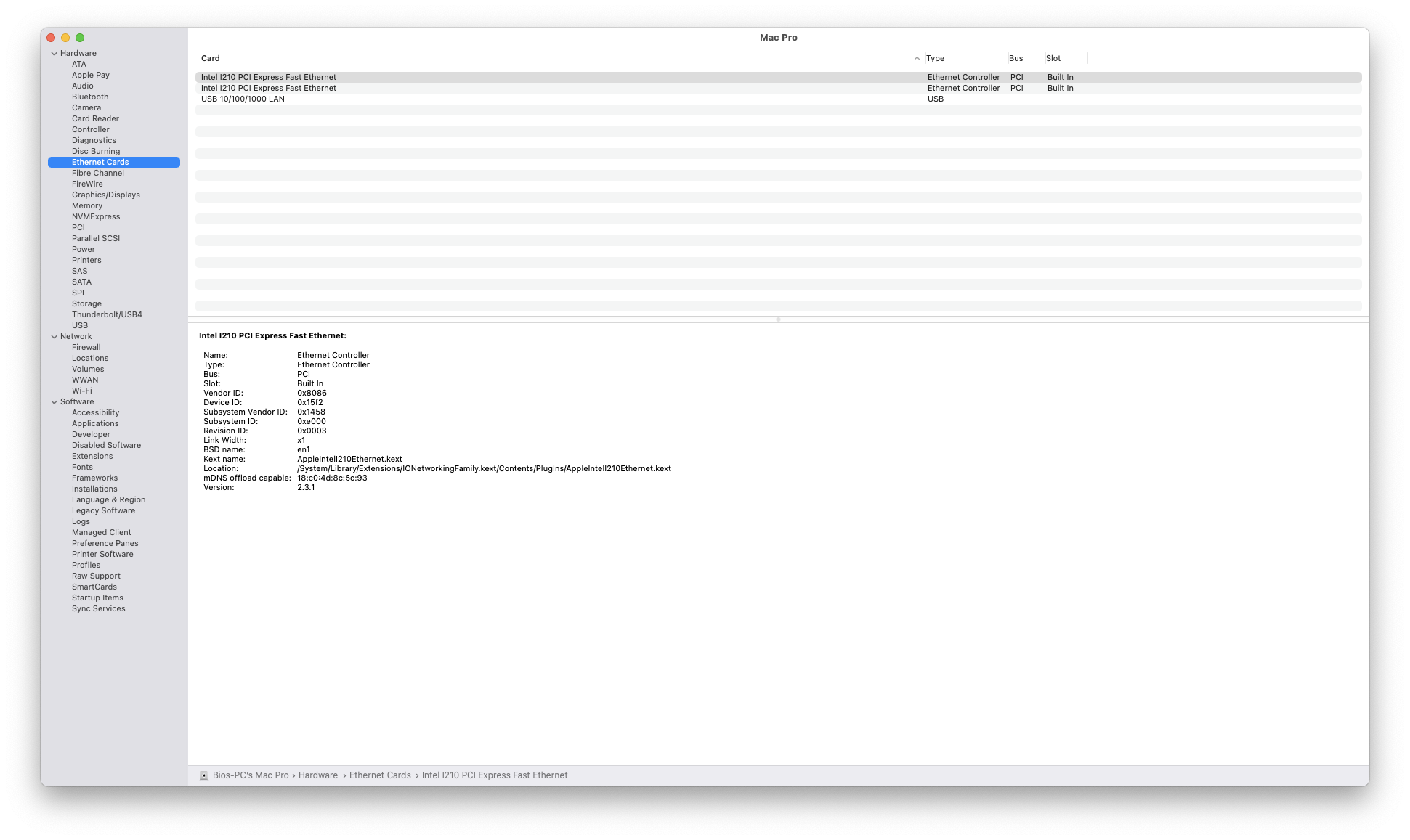

Screen Shot 2021-06-25 at 19.22.09.png

Screen Shot 2021-06-25 at 19.22.21.png


Edited by Bios-PC
  • Like 3
  • Thanks 1
Link to comment
Share on other sites

@Bios-PC

Thanks for the info. I add a question to @Allan. I see 2 Ethernet and 1 USB LAN. All of them are working? I suppose that USB LAN and 1 Eth work fine but comment something about this.

And please fill in your signature (user > profile) as per forum rules.

Edited by miliuco
  • Thanks 1
Link to comment
Share on other sites

2 hours ago, Bios-PC said:

My Spec:



Motherboard: Gigabyte Z590 Vision D (bios F5d latest)

Cpu: Intel Core i7-10700K

Ram: Corsair 32GB DDR4 3000MHz

SSD: Samsung Evo 980Pro 512GB , for Big Sur

          WD Black 720 500GB , for Windows

          Seagate 4TB Barracuda - for Data

GPU: Sapphire Pulse RX580 8GB

Cooler : Gigabyte Aorus 240 Liquid

Case : Corsair ICUE 220T RGB Airflow Mid Tower

Power Supply : CORSAIR CX Series RGB White 750 Watt 80 plus

ThunderBolt: Built-in Thunderbolt 4 , with custom SSDT from @MaLd0n , GC-AlpineRidge Thunderbolt 3 V2 , with custom Mac Firmware From KGB ( I flash it with raspberry pi)

Display:Cooler Master 34 Inch Curved 1Ms 144Hz VA

Network: Fenvi FV T919 Hackintosh WiFi Bluetooth Broadcom BCM94360CD



Link to comment
Share on other sites

1 hour ago, Allan said:

Nice!



And the Thunderbolt is fully working?

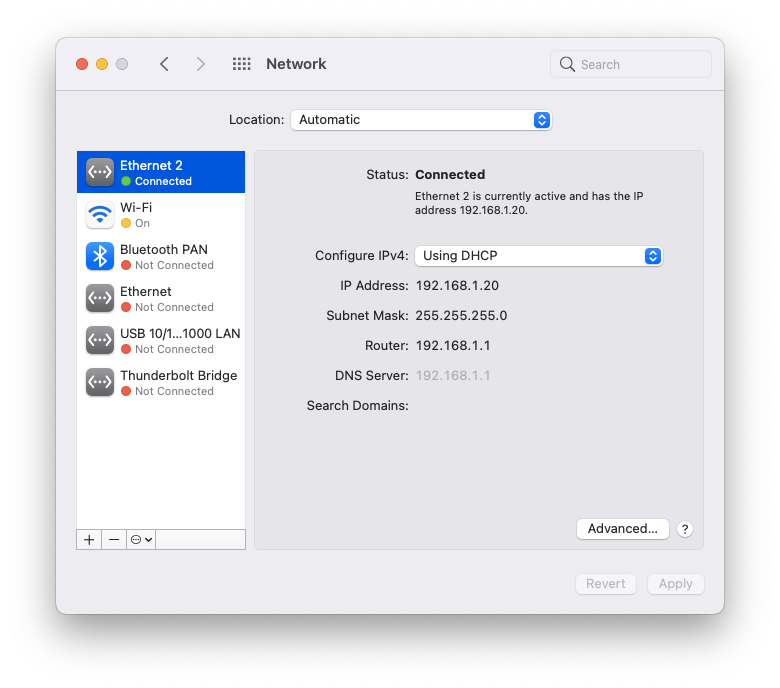

@Allan  yes , thunderbolt fully working , @miliuco  all network adapter is working , 2 ethernet adapter intel i225-v 2.5gb , usb network from docking station connected to usb-c at the alpineridge thunderbolt

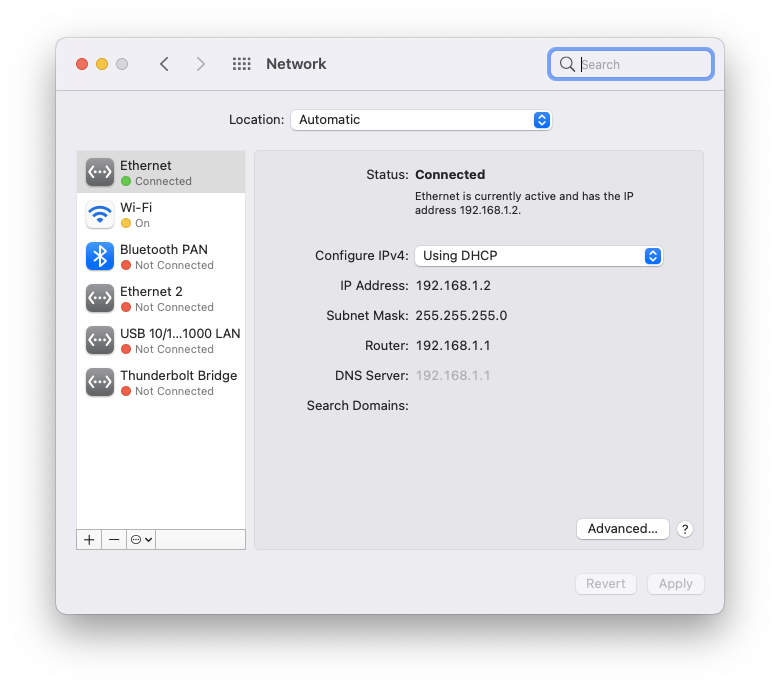

Screen Shot 2021-05-27 at 21.18.44.png

Screen Shot 2021-05-27 at 21.19.17.png

Screen Shot 2021-05-27 at 21.19.43.png

  • Like 4
Link to comment
Share on other sites

@Bios-PC

Great signature :thumbsup_anim:



Eth 2,5 Gb are working at 2,5 or at 1gb? How have you installed them, DeviceProperties in config.plist, @MaLd0n DSDT or any method?

I see you have ALC4080 audio code, is it working well with AppleALC?

You see that this new hardware raises a lot of questions especially if the user says that macOS works well on it.
If you have time, you can post a more detailed how to.
The RX 580 dGPU works great, right? Many of us are using it and we are very happy with how it works.

  • Like 1
Link to comment
Share on other sites

1 hour ago, miliuco said:

@Bios-PC

Great signature :thumbsup_anim:



Eth 2,5 Gb are working at 2,5 or at 1gb? How have you installed them, DeviceProperties in config.plist, @MaLd0n DSDT or any method?

I see you have ALC4080 audio code, is it working well with AppleALC?

You see that this new hardware raises a lot of questions especially if the user says that macOS works well on it.
If you have time, you can post a more detailed how to.
The RX 580 dGPU works great, right? Many of us are using it and we are very happy with how it works.



I don't have router that can give me 2.5Gbit , It works on 1gb with my router and I got full speed internet 1000mb/100mb fiber

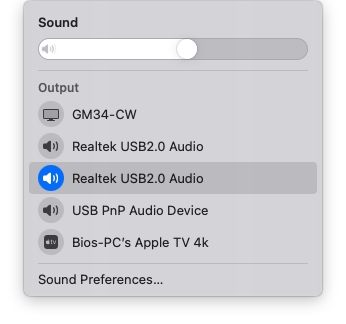

ALC4080 work perfect without any kext or injections because its usb onboard sound card

for ethernet card I use FakePCIID.kext and FakePCIID_Intel_I225-V.kext with DeviceProperties  device-id F2150000



before rx580 I use gigabyte rx5700xt and before that I use gigabyte rx580 OC , both make some trouble of freezing sometimes

but with sapphire its work without any problem



so here is my EFI folder for install and post install



EFI.zip



for installation use Oralia ssdt , post install use dsdt by @MaLd0n

I don't use DSDT for now because I got ACPI error after installing GC-alpineridge with Mac firmware



don't forgot to disable cfg-lock on bios

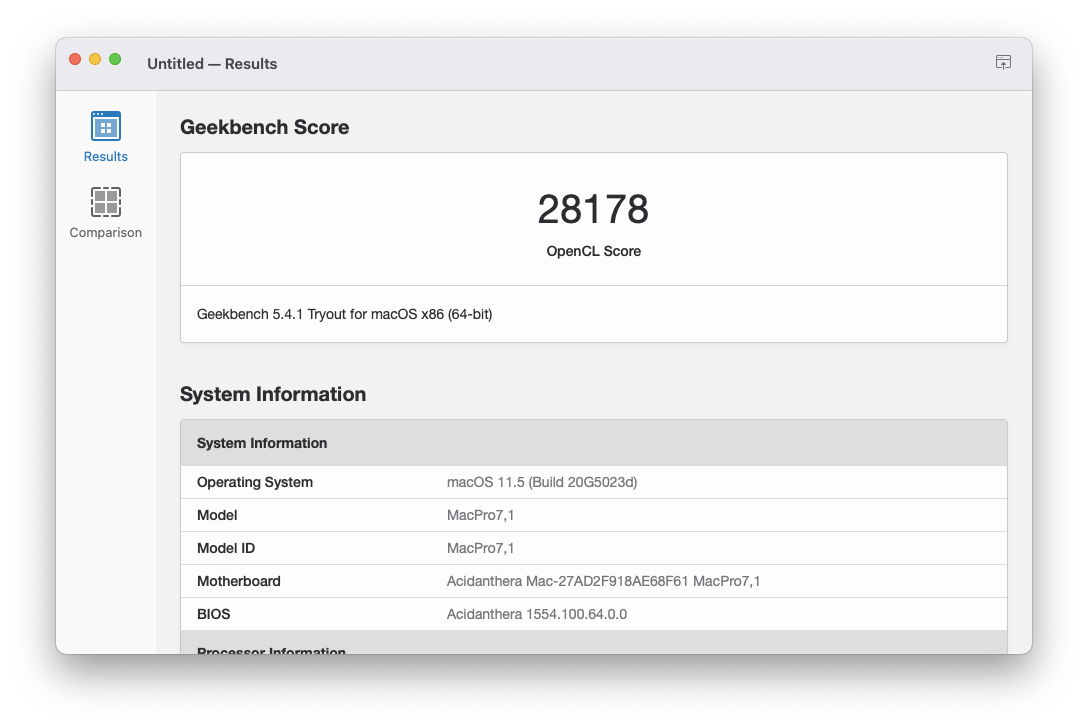

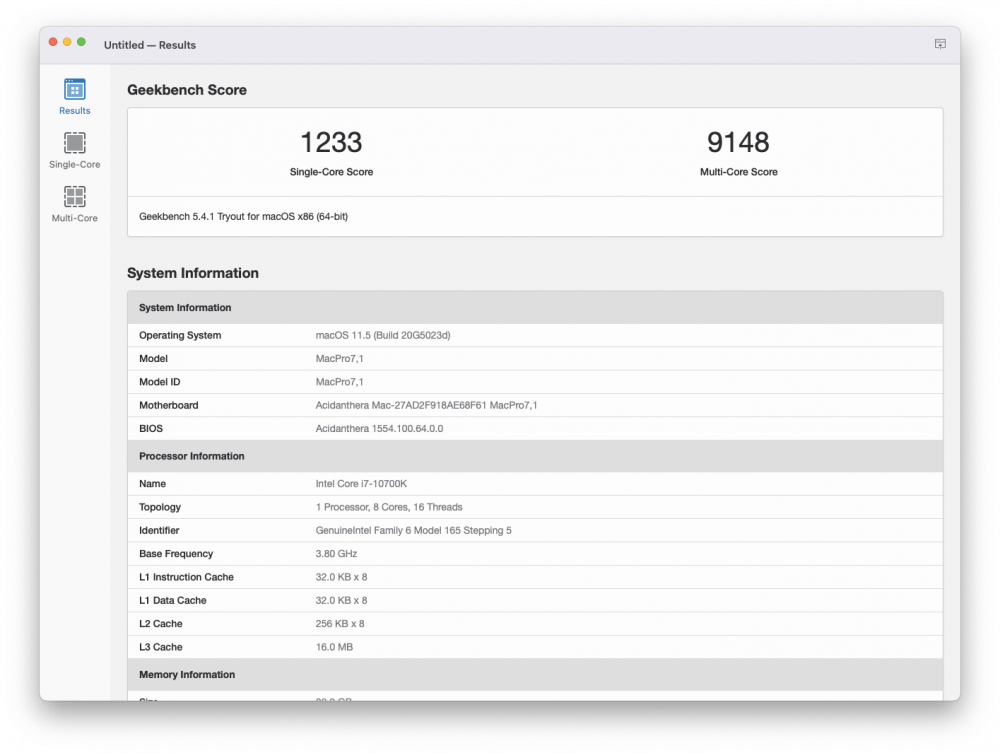

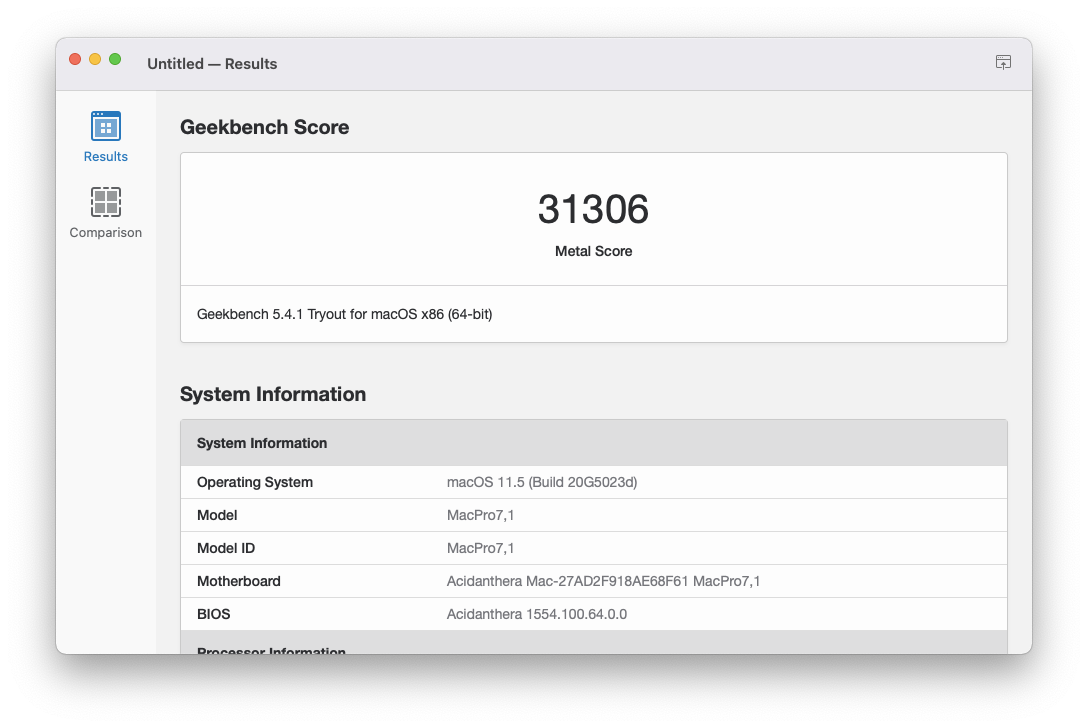

enjoy192928254_ScreenShot2021-05-27at23_38_54.thumb.png.c848b2d63104823aaa06115ff0e762a4.png1507575481_ScreenShot2021-05-27at23_38_08.thumb.png.55598fb6dc9236058ef31e1a0bae06fd.png438079996_ScreenShot2021-05-27at23_39_45.thumb.png.c0712ddaf110995e6181efb9576219e3.png



Screen Shot 2021-05-27 at 23.41.51.png

Edited by Bios-PC
  • Like 3
Link to comment
Share on other sites

Thank you. All is well explained.

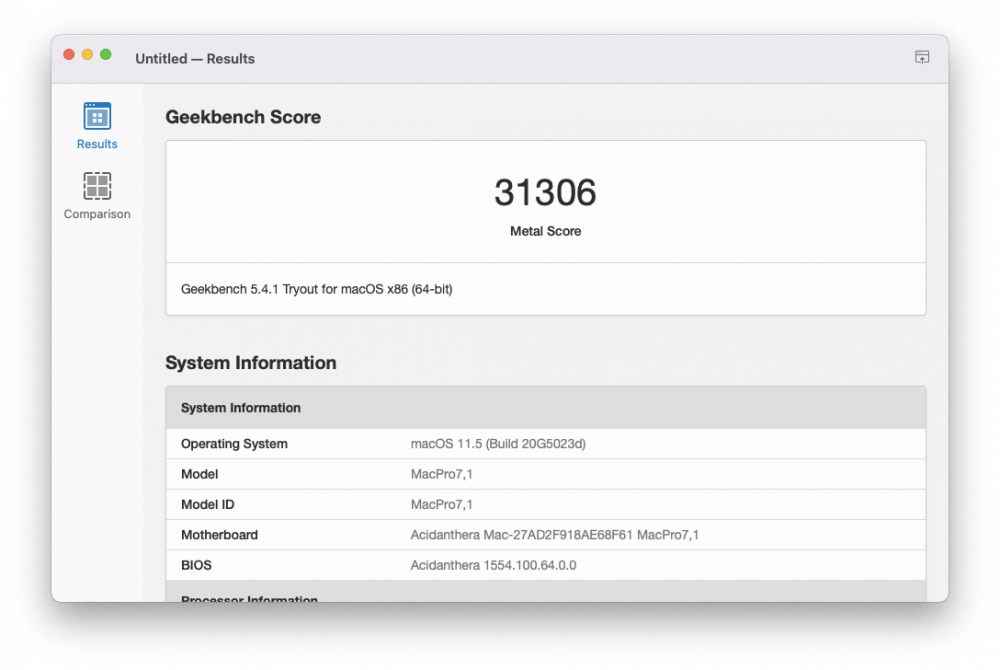

One comment. I see 31306 as score for RX 580 Metal and MacPro7,1 SMBIOS. Imo GeekBench 5 has a behaviour, at least with RX 580, so the score is high (48000 - 50000) only when the graphics card is below 35-40º, which only happens shortly after starting. When the RX 580 is above 45º (its operating temperature in my case is around 50º) GeekBench 5 drops to approx. 30000.
I say that it is a particularity of GeekBench 5 because if I use other Benchmarks (Black Magic RAW Speedtest, Unigine Valley, etc.) the scores are the same when the dGPU is cold and when it is more than 50º.
For the rest I congratulate you, you have a very good machine, enjoy it.

  • Like 3
Link to comment
Share on other sites

  • 3 months later...

I decided to buy the Fenvi FV T919 for the motherboard Gigabyte Z590 Vision-G. What is the mystery of the configuration of this hardware in the BIOS? Which PCIe is best to install it? What is the relationship with M.2? Sorry for the amateur issue but after so many attempts I was without alternatives.
Thanks!

Link to comment
Share on other sites

14 hours ago, MacWill said:

I decided to buy the Fenvi FV T919 for the motherboard Gigabyte Z590 Vision-G. What is the mystery of the configuration of this hardware in the BIOS? Which PCIe is best to install it? What is the relationship with M.2? Sorry for the amateur issue but after so many attempts I was without alternatives.
Thanks!

stay with bios;uefi in default, just disable csm if need

use this efi folder and start a fine tune

https://tinyurl.com/2ur3vc56

  • Thanks 1
Link to comment
Share on other sites

  • 1 month later...

There is chipset incompatibility between the Fenvi T919 wireless card and the Z390 and Z590 motherboards. In some cases it doesn't recognize and even doesn't start the machine. The solution is to use Fenvi HB1200.

Link to comment
Share on other sites

  • 1 month later...
  • 1 month later...
On 5/27/2021 at 4:07 PM, Bios-PC said:

Mapped USB port , DSDT from @MaLd0n , after installing GC-Alpine got acpi error

so for now I don't use SSDT

Hello! Firstly I to thank you for your effort man!

Second, would you elaborate about ssdt and dsdt? Because in your config.plist you disabled dsdt but you wrote that you dont use ssdt, strange because in config.plist all ssdt are enabled. Or you just mean you deleted the ssdt form the folder?Asking all this because I have some usb related problems, like audio or mouse lagging after minutes or hours, sometimes never.

Thank you again!
