Error Catalina 10.5.6 Install on HP 800 G1 SFF Haswell

2 posts in this topic

Recommended Posts

Posted (edited)

Hi,

I'm getting an error when i try to install Catalina 10.5.6 Install on HP 800 G1 SFF Haswell.

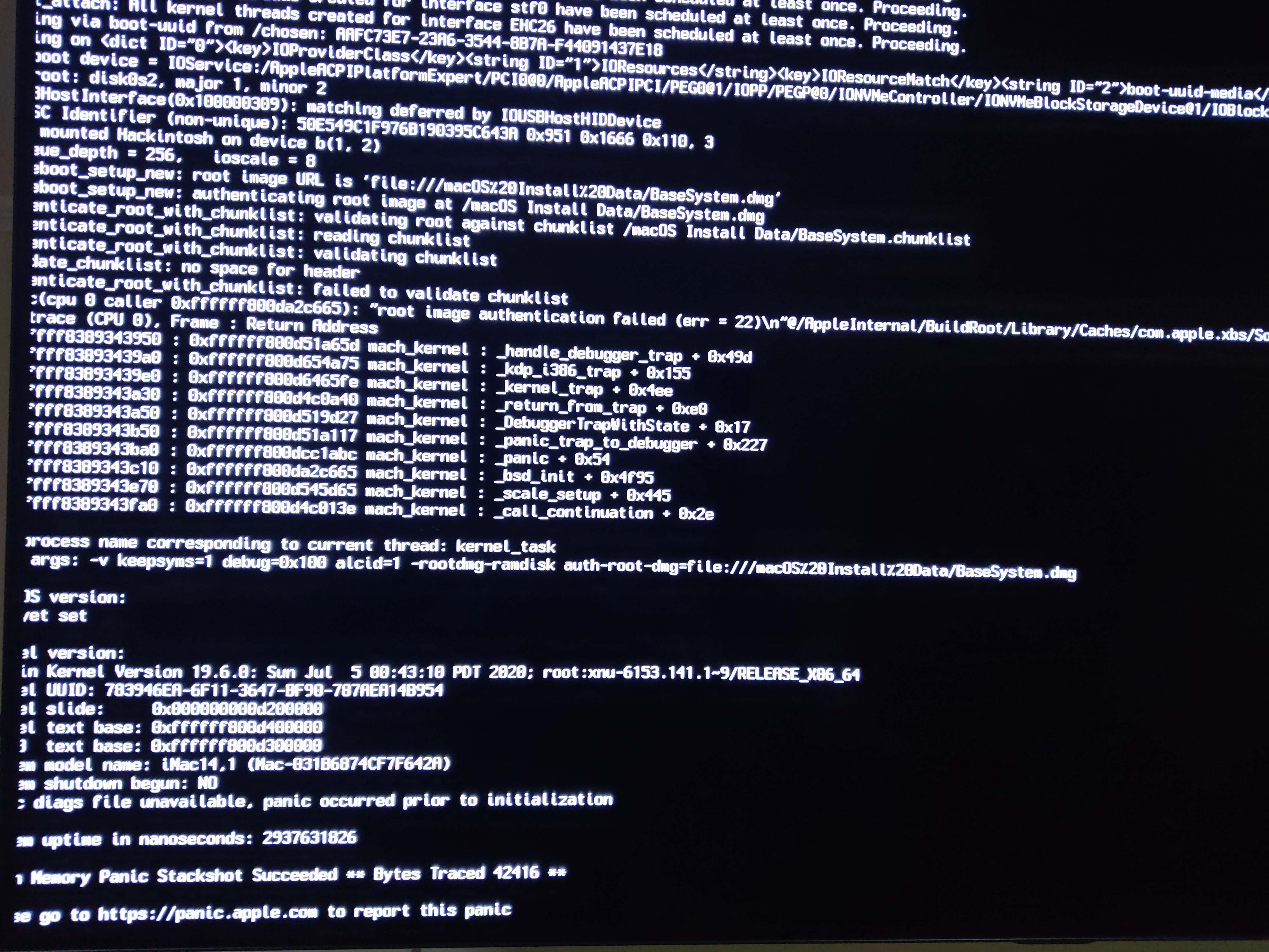

This happens on the first reboot after installing MacOS (see atached image).

I'm using Opencore 0.6.0.

config.plist checked with opencore.slowgeek.com



HP 800 G1 SFF

i7 4785t Haswell

Intel hd4600 (using just iGPU)



I attached EFI, log error opencore, error capture.



Anything help will be gratefull!!!













EFI.rar

opencore-2020-08-11-025646.txt

opencore-2020-08-11-030700.txt

config.plist


Edited by jlvlnzl
