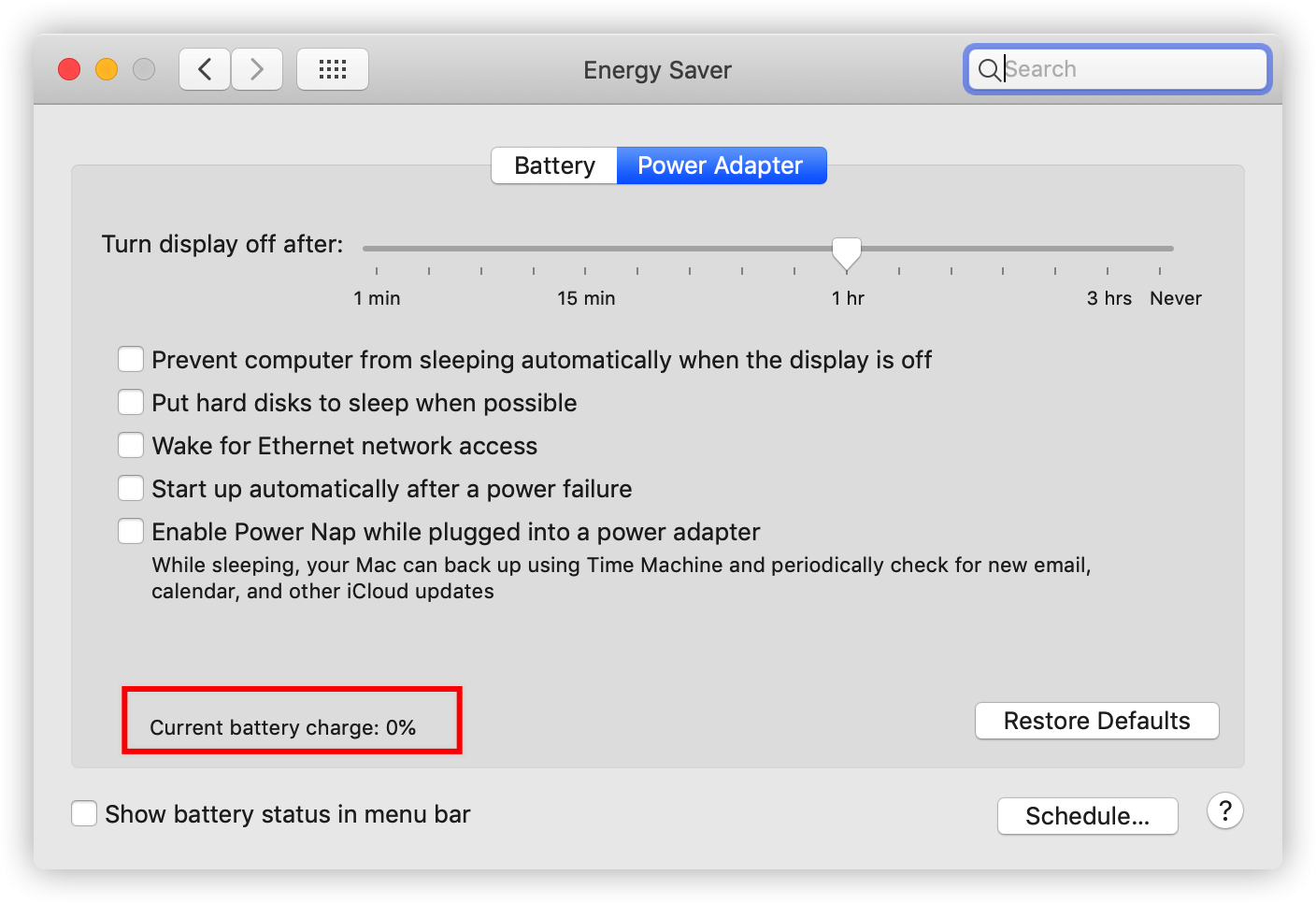

wowood Posted July 25, 2020 Share Posted July 25, 2020 I build a HackMini with GB-BRi5H-8250, follow the https://dortania.github.io guide, everything work fine, except 2 tiny problems. hope someone can help me，thanks very much. system info - macOS 10.14.6 - OpenCore 0.5.9 - SMBios iMac19,1 problems - my device is a desktop, but get a battery tab in Energy Saver. - hdmi audio not work after startup. It work fine after I plug and unplug the hdmi cable or toggle the display power button. OC.zip Quote Link to comment Share on other sites More sharing options...
jeffbellamy Posted October 10, 2020 Share Posted October 10, 2020 There is a battery on the board to maintain your CMOS. Here is a link to instructions on getting to your battery: https://www.joinfu.com/2018/06/how-to-reset-cmos-on-gigabyte-brix/ Quote Link to comment Share on other sites More sharing options...
1Revenger1 Posted October 10, 2020 Share Posted October 10, 2020 (edited) 27 minutes ago, jeffbellamy said: There is a battery on the board to maintain your CMOS. Here is a link to instructions on getting to your battery: https://www.joinfu.com/2018/06/how-to-reset-cmos-on-gigabyte-brix/ macOS doesn't see that It's likely the vendor accidentally left in a Battery device in ACPI or something dumb. Would need to see the DSDT/ACPI dump to tell Edit: This post is several months old as well - It's likely already been solved or there won't be a response Edited October 10, 2020 by 1Revenger1 Quote Link to comment Share on other sites More sharing options...

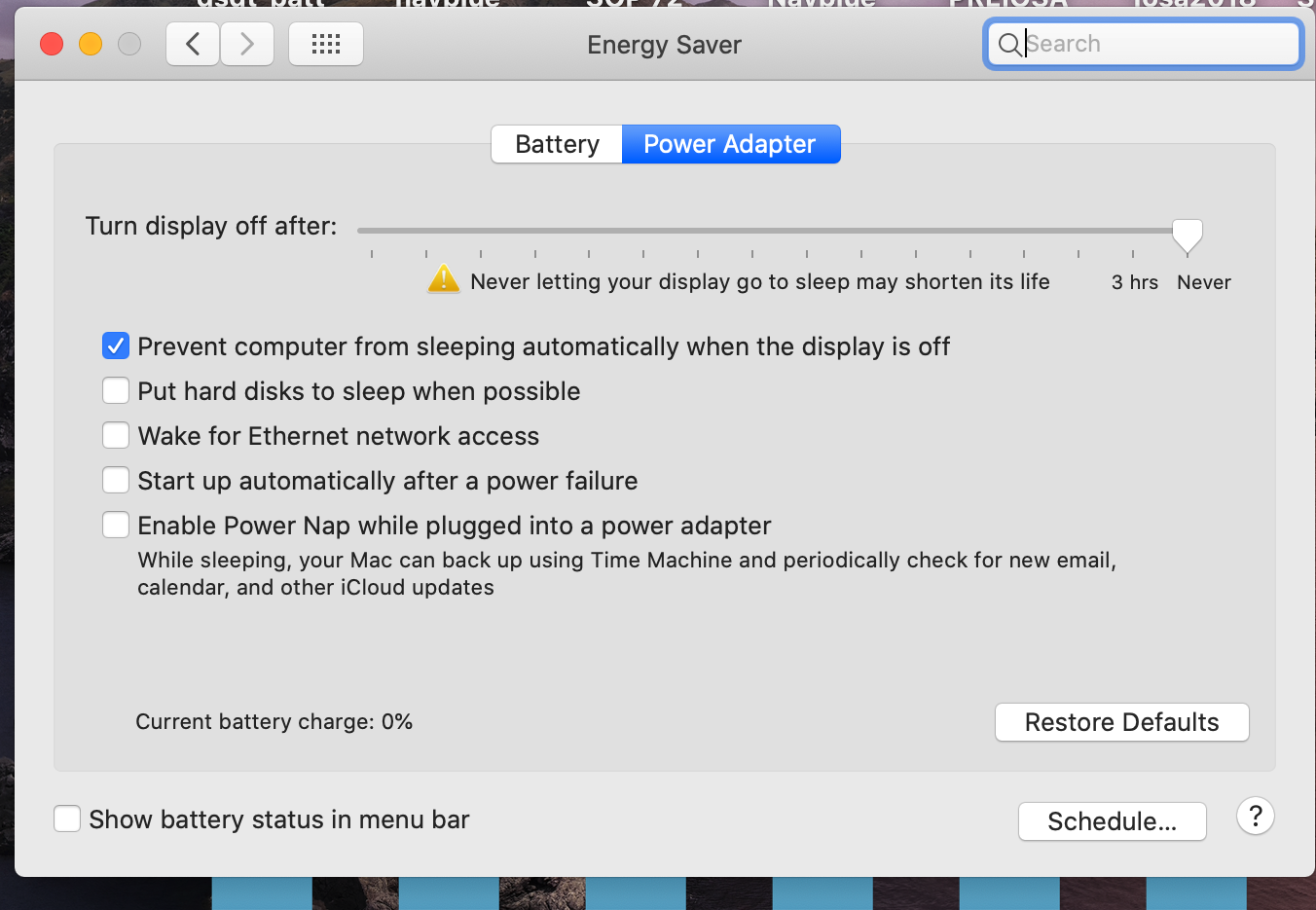

Brengos Posted October 12, 2020 Share Posted October 12, 2020 (edited) I have this problem too since using opencore as bootloader, in GB-i5BSHA-6200. Any help woudl be apreciated Edited October 12, 2020 by Brengos My system Gigabyte Brix GB-BSi5HA-6200 Quote Link to comment Share on other sites More sharing options...
vokhotnikov Posted October 12, 2020 Share Posted October 12, 2020 IMHO, the presence of a battery (from the OS point of view) can be affected by: a) selected SMBIOS, but the OP mentioned iMac19,1 which is a desktop one b) DSDT contents. I would start with searching DSDT for a device like BAT0 or some such. If you find one can - you can rename it with bootloader patching, or supply a custom compiled DSDT.aml without it - at least to check if it would help. Quote Link to comment Share on other sites More sharing options...
Streets Posted October 12, 2020 Share Posted October 12, 2020 Same motherboard for desktop have original DSDT with BAT Quote Link to comment Share on other sites More sharing options...
Brengos Posted October 27, 2020 Share Posted October 27, 2020 (edited) But it’s only happened with opencore not clover Edit : Solved now Edited February 14, 2021 by Brengos Quote Link to comment Share on other sites More sharing options...
