sapnupuas69

Intel HD 530 shows as Display 7MB - Catalina

3 posts in this topic

Recommended Posts

Posted (edited)

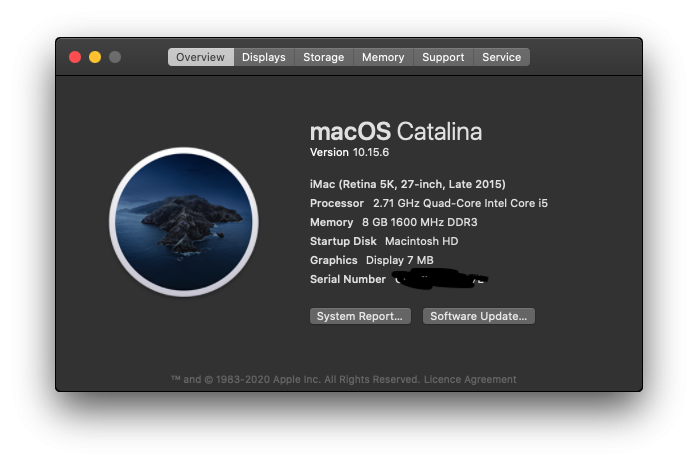

hello everyone, so my Intel HD 530 is not getting recognised by macOS. In the about my mac section, it shows as 'Display 7mb'
Im using HDMI connected to motherboard. I can only boot into os with 0x12345678 or 0x193b0005 as Fake Id and 0x19120000 as platform id with Mac17,1 as smbios. I do have the latest version of Lilu and WhateverGreen installed in boot loader and in L/E too.

I have looked through many forum posts, and have not found a solution yet.



732346967_Screenshot2020-07-21at3_48_32AM.png.2d151bb79b38c2f46199b1bf2327f0e7.png651656002_Screenshot2020-07-22at7_37_50PM.thumb.png.44b6e3f5d6fb1e9517d41bd77212fd99.png

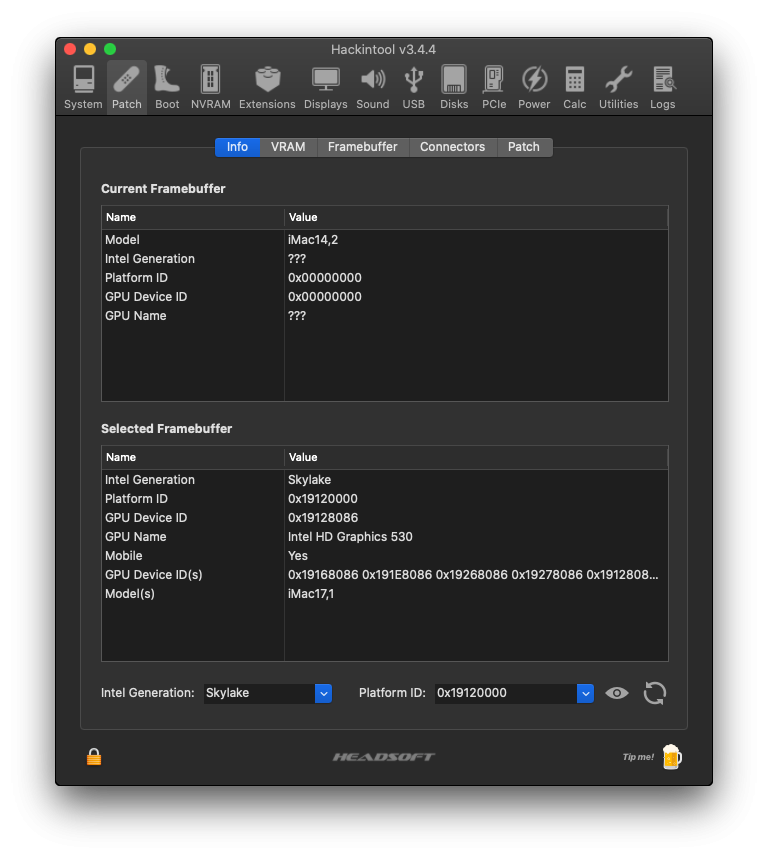

edit: i forgot to change the smbios in the picture, I tried changing to 17,1 and restart, still no luck

EFI.zip

Edited by sapnupuas69
smbios showing 14,2

Share this post


Link to post
Share on other sites
Advertisement
4 hours ago, sapnupuas69 said:

hello everyone, so my Intel HD 530 is not getting recognised by macOS. In the about my mac section, it shows as 'Display 7mb'
Im using HDMI connected to motherboard. I can only boot into os with 0x12345678 or 0x193b0005 as Fake Id and 0x19120000 as platform id with Mac17,1 as smbios. I do have the latest version of Lilu and WhateverGreen installed in boot loader and in L/E too.

I have looked through many forum posts, and have not found a solution yet.



732346967_Screenshot2020-07-21at3_48_32AM.png.2d151bb79b38c2f46199b1bf2327f0e7.png651656002_Screenshot2020-07-22at7_37_50PM.thumb.png.44b6e3f5d6fb1e9517d41bd77212fd99.png

edit: i forgot to change the smbios in the picture, I tried changing to 17,1 and restart, still no luck

EFI.zip



download and start the RunMe.app from "MaLd0n", the app generates the missing information from your hardware and creates a folder with all important files (Ioreg files, DSDT etc.) on your desktop. At the end upload this folder so that someone can help you.





RunMe.app.zip

Share this post


Link to post
Share on other sites
Posted (edited)
10 hours ago, spakk said:



download and start the RunMe.app from "MaLd0n", the app generates the missing information from your hardware and creates a folder with all important files (Ioreg files, DSDT etc.) on your desktop. At the end upload this folder so that someone can help you.





RunMe.app.zip



I have uploaded the file, it would be nice if anyone could check what am I doing wrong. Thanks.

Send me iMac.zip

Edited by sapnupuas69

Share this post


Link to post
Share on other sites
