Anyone got the HD4600 from a Intel Core i7 4770K (Haswell) running on a Gigabyte GA-Z87X-UD5H working on Catalina?

droida · July 11, 2020

I got a Catalina 10.15.5 installation running on a Gigabyte GA-Z87X-UD5H with the Intel Core i7 4770K using its Intel HD4600 iGPU. Since Catalina I can't get it working with hardware acceleration. I'm only getting 8MB of video memory.

Has someone of you got this iGPU working on this specific board with this specific CPU?

I'm looking forward for any hints.

Cyberdevs · July 11, 2020

5 minutes ago, droida said:

I got a Catalina 10.15.5 installation running on a Gigabyte GA-Z87X-UD5H with the Intel Core i7 4770K using its Intel HD4600 iGPU. Since Catalina I can't get it working with hardware acceleration. I'm only getting 8MB of video memory.

Has someone of you got this iGPU working on this specific board with this specific CPU?

I'm looking forward for any hints.

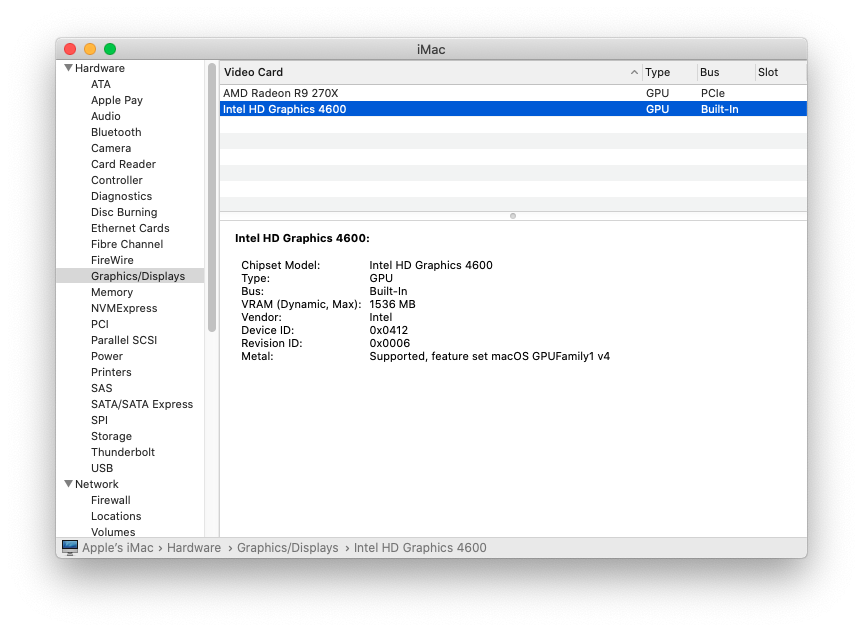

it is working on my Haswell rig, are you using Clover or OC?

droida · July 11, 2020

Hi @Cyberdevs,

I'm using Clover@5119. I'm tyring to get it working with Lilu+WEG and device properties for the platform and device id. As soon as I'm trying to use these I'm getting a kernel panic when reaching the gIOScreenLockState.

When I'm simply trying to use the Intel Inject combined with the platform ID "0x0D220003" I'm getting a kernel panic as well. (which worked for years now on the older macOS versions)

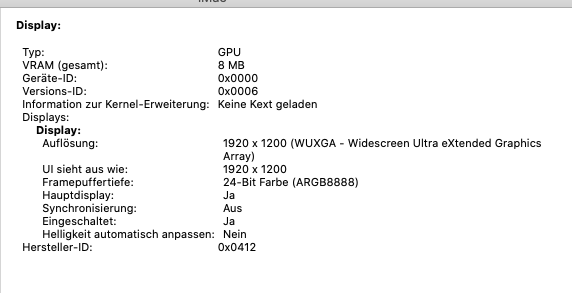

When I'm adding the fake id "0x0412" I'm getting through the boot but only with 8MBs of video memory.

Edited July 11, 2020 by droida

Cyberdevs · July 11, 2020

6 minutes ago, droida said:

Hi @Cyberdevs,

I'm using Clover@5119. I'm tyring to get it working with Lilu+WEG and device properties for the platform and device id. As soon as I'm trying to use these I'm getting a kernel panic when reaching the gIOScreenLockState.

When I'm simply trying to use the Intel Inject combined with the platform ID "0x0D220003" I'm getting a kernel panic as well. When I'm adding the fake id "0x0412" I'm getting through the boot but only with 8MBs of video memory.

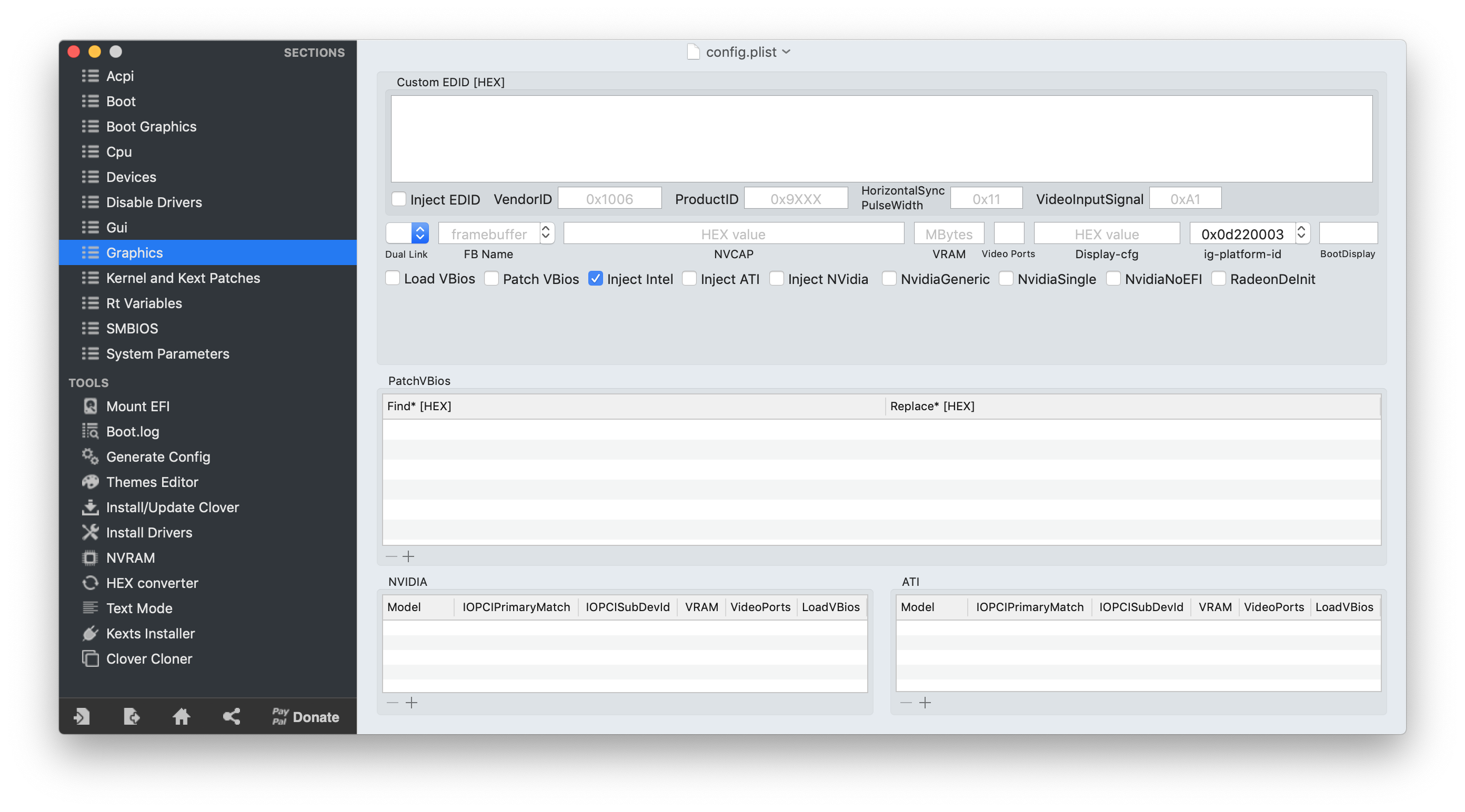

You don't need a fake ID, this is how my Graphics section looks like, no other settings is required, you can even remove Inject Intel, WEG will take care of it.

droida · July 11, 2020

Mmmh ok. After reading through the WEG documentation I did exactly that. And I've tried this setup but no luck. As soon as I reach the gIOScreenLockState I'm getting a kernel panic. Is the ig-platform-id required? (I got it just interested if it is required to work)

Cyberdevs · July 11, 2020

24 minutes ago, droida said:

Mmmh ok. After reading through the WEG documentation I did exactly that. And I've tried this setup but no luck. As soon as I reach the gIOScreenLockState I'm getting a kernel panic. Is the ig-platform-id required? (I got it just interested if it is required to work)

I stand corrected, without the Inject Intel and the ig-platform-id system won't recognize Intel HD so they are both needed. check for other misconfigurations in your config.plist

I do have a discreet GPU though but with both intel inject = true and ig-platform-id I have intel HD as well as my R9 GPU

droida · July 11, 2020

With this setup I'm getting the following kernel panic:

panic(cpu 0 caller 0xffffff801ee4aa3a): Kernel trap at 0xffffff7fa0298009, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000027a4, CR3: 0x0000000429c9a04b, CR4: 0x00000000001626e0
RAX: 0xffffff8044a5ea80, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0x0000000000000000
RSP: 0xffffff81e1b9ae80, RBP: 0xffffff81e1b9aeb0, RSI: 0x00000000000007d4, RDI: 0x00000000000007d3
R8:  0x0000000090000129, R9:  0x0000000000000000, R10: 0x0000000000000000, R11: 0x0000000000000000
R12: 0x0000000000000002, R13: 0x0000000000000000, R14: 0xffffff8044a7b000, R15: 0x0000000000000000
RFL: 0x0000000000010002, RIP: 0xffffff7fa0298009, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00000000000027a4, Error code: 0x0000000000000002, Fault CPU: 0x0, PL: 2, VF: 5

Backtrace (CPU 0), Frame : Return Address
0xffffff81e1b9a8e0 : 0xffffff801ed1f5cd
0xffffff81e1b9a930 : 0xffffff801ee58b05
0xffffff81e1b9a970 : 0xffffff801ee4a68e
0xffffff81e1b9a9c0 : 0xffffff801ecc5a40
0xffffff81e1b9a9e0 : 0xffffff801ed1ec97
0xffffff81e1b9aae0 : 0xffffff801ed1f087
0xffffff81e1b9ab30 : 0xffffff801f4c27cc
0xffffff81e1b9aba0 : 0xffffff801ee4aa3a
0xffffff81e1b9ad20 : 0xffffff801ee4a738
0xffffff81e1b9ad70 : 0xffffff801ecc5a40
0xffffff81e1b9ad90 : 0xffffff7fa0298009
0xffffff81e1b9aeb0 : 0xffffff7fa0288a3f
0xffffff81e1b9aed0 : 0xffffff801f431e46
0xffffff81e1b9af00 : 0xffffff7f9f751052
0xffffff81e1b9af50 : 0xffffff7fa111088c
0xffffff81e1b9af60 : 0xffffff7fa1119547
0xffffff81e1b9af80 : 0xffffff801ee49edd
0xffffff81e1b9afd0 : 0xffffff801ecc5bed
0xffffff8211803970 : 0xffffff801ed1a47c
0xffffff8211803990 : 0xffffff7fa0266f2c
0xffffff82118039f0 : 0xffffff7fa02673d2
0xffffff8211803aa0 : 0xffffff7fa0269885
0xffffff8211803ae0 : 0xffffff7fa0271b92
0xffffff8211803b10 : 0xffffff7fa0274a4f
0xffffff8211803b90 : 0xffffff7fa013b16c
0xffffff8211803c10 : 0xffffff7fa01319ac
0xffffff8211803ca0 : 0xffffff801f401e49
0xffffff8211803d00 : 0xffffff801f45ccf9
0xffffff8211803d60 : 0xffffff801ee07d71
0xffffff8211803db0 : 0xffffff801ed25328
0xffffff8211803e10 : 0xffffff801ecfbcc5
0xffffff8211803e70 : 0xffffff801ed12aa2
0xffffff8211803f00 : 0xffffff801ee30d05
0xffffff8211803fa0 : 0xffffff801ecc6226
      Kernel Extensions in backtrace:
         com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f9f731000->0xffffff7f9f769fff
         com.apple.driver.AppleACPIPlatform(6.1)[3A6D8ECD-C39E-39C8-984A-2CC417488A56]@0xffffff7fa1109000->0xffffff7fa11a3fff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[0A7D7382-66FE-391B-9F93-97A996256C25]@0xffffff7f9fe45000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f9f731000
            dependency: com.apple.driver.AppleSMC(3.1.9)[4589419D-7CCC-39A9-9E2F-F73FE42DD902]@0xffffff7f9fe57000
         com.apple.iokit.IOGraphicsFamily(576.1)[B1C0006F-E1F5-37D9-9548-5F918E92B422]@0xffffff7fa0122000->0xffffff7fa0172fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f9f731000
         com.apple.driver.AppleIntelFramebufferAzul(14.0.6)[FD5181EE-AA60-35EC-A6FA-73C7E58CD519]@0xffffff7fa0266000->0xffffff7fa03cafff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f9f731000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[0A7D7382-66FE-391B-9F93-97A996256C25]@0xffffff7f9fe45000
            dependency: com.apple.iokit.IOAcceleratorFamily2(438.5.4)[D695D9DA-7C20-35D6-910F-E7A332A0F515]@0xffffff7fa0181000
            dependency: com.apple.iokit.IOReportFamily(47)[1FB49168-0280-3F04-A99A-F830C915E994]@0xffffff7f9facc000
            dependency: com.apple.AppleGraphicsDeviceControl(5.2.4)[CD6E2942-2A23-3CE8-9BCA-D5A772667EB8]@0xffffff7fa025a000
            dependency: com.apple.iokit.IOGraphicsFamily(576.1)[B1C0006F-E1F5-37D9-9548-5F918E92B422]@0xffffff7fa0122000

BSD process name corresponding to current thread: WindowServer
Boot args: dart=0

Mac OS version:
19F101

Kernel version:
Darwin Kernel Version 19.5.0: Tue May 26 20:41:44 PDT 2020; root:xnu-6153.121.2~2/RELEASE_X86_64
Kernel UUID: 54F1A78D-6F41-32BD-BFED-4381F9F6E2EF
Kernel slide:     0x000000001ea00000
Kernel text base: 0xffffff801ec00000
__HIB  text base: 0xffffff801eb00000
System model name: iMac14,2 (Mac-27ADBB7B4CEE8E61)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 9098208785
last loaded kext at 8816570798: @fileutil	20.036.15 (addr 0xffffff7fa0430000, size 114688)
loaded kexts:
as.vit9696.VirtualSMC	1.1.4
as.vit9696.WhateverGreen	1.4.0
as.vit9696.!AALC	1.5.0
as.vit9696.Lilu	1.4.5
@fileutil	20.036.15
@filesystems.autofs	3.0
>!AUpstreamUserClient	3.6.8
>!AMCCSControl	1.14
>!AHDAHardwareConfigDriver	283.15
>!AHDA	283.15
>!AGraphicsDevicePolicy	5.2.4
>!A!IHD5000Graphics	14.0.6
>!AFWOHCI	5.6.2
>!A16X50ACPI	3.2
>eficheck	1
@AGDCPluginDisplayMetrics	5.2.4
>ACPI_SMC_PlatformPlugin	1.0.0
>!AHV	1
|IOUserEthernet	1.0.1
|IO!BSerialManager	7.0.5f6
>pmtelemetry	1
@Dont_Steal_Mac_OS_X	7.0.0
>!ALPC	3.1
>!A!IFramebufferAzul	14.0.6
>!A!ISlowAdaptiveClocking	4.0.0
>!AFIVRDriver	4.1.0
@private.KextAudit	1.0
|SCSITaskUserClient	422.120.3
>!AFileSystemDriver	3.0.1
@filesystems.apfs	1412.120.2
>!AVirtIO	1.0
@filesystems.hfs.kext	522.100.5
@!AFSCompression.!AFSCompressionTypeDataless	1.0.0d1
@BootCache	40
@!AFSCompression.!AFSCompressionTypeZlib	1.0.0
>!A!II210Ethernet	2.3.1
>!AAHCIPort	341.0.2
>!AACPIButtons	6.1
>!AHPET	1.8
>!ARTC	2.0
>!ASMBIOS	2.1
>!AAPIC	1.7
$!AImage4	1
@nke.applicationfirewall	303
$TMSafetyNet	8
@!ASystemPolicy	2.0.0
|EndpointSecurity	1
@kext.triggers	1.0
|IOAVB!F	850.1
@plugin.IOgPTPPlugin	840.3
>!AHIDKeyboard	209
|IOFireWireIP	2.3.0
>!ASMBus!C	1.0.18d1
|IOSMBus!F	1.1
>DspFuncLib	283.15
@kext.OSvKernDSPLib	529
>!AGraphicsControl	5.2.4
|IOFireWire!F	4.7.5
>!A16X50Serial	3.2
>!ASMBusPCI	1.0.14d1
>!AHDA!C	283.15
|IOHDA!F	283.15
|IONDRVSupport	576.1
>IOPlatformPluginLegacy	1.0.0
>!ASSE	1.0
|IO!B!F	7.0.5f6
|IO!BPacketLogger	7.0.5f6
>IOPlatformPlugin!F	6.0.0d8
|IOAccelerator!F2	438.5.4
@!AGPUWrangler	5.2.4
@!AGraphicsDeviceControl	5.2.4
|IOGraphics!F	576.1
|IOSlowAdaptiveClocking!F	1.0.0
>usb.IOUSBHostHIDDevice	1.2
>!UAudio	323.1
>usb.cdc	5.0.0
>usb.networking	5.0.0
>usb.!UHostCompositeDevice	1.2
>usb.!UHub	1.2
|IOSCSIMultimediaCommandsDevice	422.120.3
|IOBD!S!F	1.8
|IODVD!S!F	1.8
|IOCD!S!F	1.8
|IOAudio!F	300.2
@vecLib.kext	1.2.0
|IOSerial!F	11
>!AXsanScheme	3
|IOSurface	269.11
@filesystems.hfs.encodings.kext	1
|IOAHCISerialATAPI	268
|IOAHCIBlock!S	316.100.5
|IOEthernetAVB!C	1.1.0
>mDNSOffloadUserClient	1.0.1b8
>usb.!UHostPacketFilter	1.0
|IOUSB!F	900.4.2
|IOSkywalk!F	1
>usb.!UEHCIPCI	1.2
>usb.!UEHCI	1.2
>usb.!UXHCIPCI	1.2
>usb.!UXHCI	1.2
>!AEFINVRAM	2.1
|IOAHCI!F	290.0.1
>!A!ILpssGspi	3.0.60
>!AEFIRuntime	2.1
|IOHID!F	2.0.0
$quarantine	4
$sandbox	300.0
@kext.!AMatch	1.0.0d1
>DiskImages	493.0.0
>!AFDEKeyStore	28.30
>!AEffaceable!S	1.0
>!AKeyStore	2
>!UTDM	489.120.1
|IOSCSIBlockCommandsDevice	422.120.3
>!ACredentialManager	1.0
>KernelRelayHost	1
>!ASEPManager	1.0.1
>IOSlaveProcessor	1
|IOUSBMass!SDriver	157.121.1
|IOSCSIArchitectureModel!F	422.120.3
|IO!S!F	2.1
|IOUSBHost!F	1.2
>!UHostMergeProperties	1.2
>usb.!UCommon	1.0
>!ABusPower!C	1.0
|CoreAnalytics!F	1
>!AMobileFileIntegrity	1.0.5
@kext.CoreTrust	1
|IOTimeSync!F	840.3
|IONetworking!F	3.4
|IOReport!F	47
>!AACPIPlatform	6.1
>!ASMC	3.1.9
>watchdog	1
|IOPCI!F	2.9
|IOACPI!F	1.4
@kec.pthread	1
@kec.corecrypto	1.0
@kec.Libm	1

I then have to add the fake id in the clover boot screen options to get Catalina to boot.

I've added the config but I don't think that I find the error there.

config.plist

Cyberdevs · July 11, 2020

try this

config.plist.zip

droida · July 11, 2020

54 minutes ago, Cyberdevs said:

try this

config.plist.zip

Thank you very much but still the same behavior.

panic(cpu 0 caller 0xffffff8007e4aa3a): Kernel trap at 0xffffff7f89298009, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000027a4, CR3: 0x0000000429df002b, CR4: 0x00000000001626e0
RAX: 0xffffff802c85d660, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0x0000000000000000
RSP: 0xffffff81caaafe80, RBP: 0xffffff81caaafeb0, RSI: 0x000000000000074e, RDI: 0x000000000000074d
R8:  0x0000000090000129, R9:  0x0000000000000000, R10: 0x0000000000000000, R11: 0x0000000000000000
R12: 0x0000000000000002, R13: 0x0000000000000000, R14: 0xffffff802cf20000, R15: 0x0000000000000000
RFL: 0x0000000000010002, RIP: 0xffffff7f89298009, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00000000000027a4, Error code: 0x0000000000000002, Fault CPU: 0x0, PL: 2, VF: 5

Backtrace (CPU 0), Frame : Return Address
0xffffff81caaaf8e0 : 0xffffff8007d1f5cd
0xffffff81caaaf930 : 0xffffff8007e58b05
0xffffff81caaaf970 : 0xffffff8007e4a68e
0xffffff81caaaf9c0 : 0xffffff8007cc5a40
0xffffff81caaaf9e0 : 0xffffff8007d1ec97
0xffffff81caaafae0 : 0xffffff8007d1f087
0xffffff81caaafb30 : 0xffffff80084c27cc
0xffffff81caaafba0 : 0xffffff8007e4aa3a
0xffffff81caaafd20 : 0xffffff8007e4a738
0xffffff81caaafd70 : 0xffffff8007cc5a40
0xffffff81caaafd90 : 0xffffff7f89298009
0xffffff81caaafeb0 : 0xffffff7f89288a3f
0xffffff81caaafed0 : 0xffffff8008431e46
0xffffff81caaaff00 : 0xffffff7f88751052
0xffffff81caaaff50 : 0xffffff7f8a11088c
0xffffff81caaaff60 : 0xffffff7f8a119547
0xffffff81caaaff80 : 0xffffff8007e49edd
0xffffff81caaaffd0 : 0xffffff8007cc5bed
0xffffff81eb003970 : 0xffffff8007d1a47c
0xffffff81eb003990 : 0xffffff7f89266f2c
0xffffff81eb0039f0 : 0xffffff7f892673d2
0xffffff81eb003aa0 : 0xffffff7f89269885
0xffffff81eb003ae0 : 0xffffff7f89271b92
0xffffff81eb003b10 : 0xffffff7f89274a4f
0xffffff81eb003b90 : 0xffffff7f8913b16c
0xffffff81eb003c10 : 0xffffff7f891319ac
0xffffff81eb003ca0 : 0xffffff8008401e49
0xffffff81eb003d00 : 0xffffff800845ccf9
0xffffff81eb003d60 : 0xffffff8007e07d71
0xffffff81eb003db0 : 0xffffff8007d25328
0xffffff81eb003e10 : 0xffffff8007cfbcc5
0xffffff81eb003e70 : 0xffffff8007d12aa2
0xffffff81eb003f00 : 0xffffff8007e30d05
0xffffff81eb003fa0 : 0xffffff8007cc6226
      Kernel Extensions in backtrace:
         com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f88731000->0xffffff7f88769fff
         com.apple.driver.AppleACPIPlatform(6.1)[3A6D8ECD-C39E-39C8-984A-2CC417488A56]@0xffffff7f8a109000->0xffffff7f8a1a3fff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[0A7D7382-66FE-391B-9F93-97A996256C25]@0xffffff7f88e45000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f88731000
            dependency: com.apple.driver.AppleSMC(3.1.9)[4589419D-7CCC-39A9-9E2F-F73FE42DD902]@0xffffff7f88e57000
         com.apple.iokit.IOGraphicsFamily(576.1)[B1C0006F-E1F5-37D9-9548-5F918E92B422]@0xffffff7f89122000->0xffffff7f89172fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f88731000
         com.apple.driver.AppleIntelFramebufferAzul(14.0.6)[FD5181EE-AA60-35EC-A6FA-73C7E58CD519]@0xffffff7f89266000->0xffffff7f893cafff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[BE052F4D-9B80-3FCD-B36D-BACB7DEE0DF2]@0xffffff7f88731000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[0A7D7382-66FE-391B-9F93-97A996256C25]@0xffffff7f88e45000
            dependency: com.apple.iokit.IOAcceleratorFamily2(438.5.4)[D695D9DA-7C20-35D6-910F-E7A332A0F515]@0xffffff7f89181000
            dependency: com.apple.iokit.IOReportFamily(47)[1FB49168-0280-3F04-A99A-F830C915E994]@0xffffff7f88acc000
            dependency: com.apple.AppleGraphicsDeviceControl(5.2.4)[CD6E2942-2A23-3CE8-9BCA-D5A772667EB8]@0xffffff7f8925a000
            dependency: com.apple.iokit.IOGraphicsFamily(576.1)[B1C0006F-E1F5-37D9-9548-5F918E92B422]@0xffffff7f89122000

BSD process name corresponding to current thread: WindowServer
Boot args: dart=0

Mac OS version:
19F101

Kernel version:
Darwin Kernel Version 19.5.0: Tue May 26 20:41:44 PDT 2020; root:xnu-6153.121.2~2/RELEASE_X86_64
Kernel UUID: 54F1A78D-6F41-32BD-BFED-4381F9F6E2EF
Kernel slide:     0x0000000007a00000
Kernel text base: 0xffffff8007c00000
__HIB  text base: 0xffffff8007b00000
System model name: iMac15,1 (Mac-42FD25EABCABB274)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 9072467347
last loaded kext at 8639015029: @fileutil	20.036.15 (addr 0xffffff7f89430000, size 114688)
loaded kexts:
as.vit9696.VirtualSMC	1.1.4
as.vit9696.WhateverGreen	1.4.0
as.vit9696.!AALC	1.5.0
as.vit9696.Lilu	1.4.5
@fileutil	20.036.15
@filesystems.autofs	3.0
>!AUpstreamUserClient	3.6.8
>!AMCCSControl	1.14
>!AHDAHardwareConfigDriver	283.15
>!AHDA	283.15
>!A!IHD5000Graphics	14.0.6
>!AGraphicsDevicePolicy	5.2.4
@AGDCPluginDisplayMetrics	5.2.4
>!AHV	1
|IOUserEthernet	1.0.1
|IO!BSerialManager	7.0.5f6
>pmtelemetry	1
>eficheck	1
>!A!IFramebufferAzul	14.0.6
>!A16X50ACPI	3.2
@Dont_Steal_Mac_OS_X	7.0.0
>!AFWOHCI	5.6.2
>!ALPC	3.1
>!A!ISlowAdaptiveClocking	4.0.0
>ACPI_SMC_PlatformPlugin	1.0.0
>!AFIVRDriver	4.1.0
@private.KextAudit	1.0
|SCSITaskUserClient	422.120.3
>!AFileSystemDriver	3.0.1
>!AVirtIO	1.0
@filesystems.hfs.kext	522.100.5
@!AFSCompression.!AFSCompressionTypeDataless	1.0.0d1
@BootCache	40
@!AFSCompression.!AFSCompressionTypeZlib	1.0.0
@filesystems.apfs	1412.120.2
>!A!II210Ethernet	2.3.1
>!AAHCIPort	341.0.2
>!AACPIButtons	6.1
>!ARTC	2.0
>!AHPET	1.8
>!ASMBIOS	2.1
>!AAPIC	1.7
$!AImage4	1
@nke.applicationfirewall	303
$TMSafetyNet	8
@!ASystemPolicy	2.0.0
|EndpointSecurity	1
@kext.triggers	1.0
>!AHIDKeyboard	209
|IOFireWireIP	2.3.0
>!ASMBus!C	1.0.18d1
|IOSMBus!F	1.1
>DspFuncLib	283.15
@kext.OSvKernDSPLib	529
>!AGraphicsControl	5.2.4
|IONDRVSupport	576.1
>!AHDA!C	283.15
|IOHDA!F	283.15
>!ASSE	1.0
|IO!B!F	7.0.5f6
|IO!BPacketLogger	7.0.5f6
|IOAccelerator!F2	438.5.4
>!A16X50Serial	3.2
|IOFireWire!F	4.7.5
>!ASMBusPCI	1.0.14d1
@!AGPUWrangler	5.2.4
@!AGraphicsDeviceControl	5.2.4
|IOGraphics!F	576.1
|IOSlowAdaptiveClocking!F	1.0.0
>IOPlatformPluginLegacy	1.0.0
>IOPlatformPlugin!F	6.0.0d8
>usb.IOUSBHostHIDDevice	1.2
>!UAudio	323.1
>usb.cdc	5.0.0
>usb.networking	5.0.0
>usb.!UHostCompositeDevice	1.2
>usb.!UHub	1.2
|IOSCSIMultimediaCommandsDevice	422.120.3
|IOBD!S!F	1.8
|IODVD!S!F	1.8
|IOCD!S!F	1.8
|IOAudio!F	300.2
@vecLib.kext	1.2.0
|IOSerial!F	11
|IOSurface	269.11
@filesystems.hfs.encodings.kext	1
>!AXsanScheme	3
|IOAHCISerialATAPI	268
|IOAHCIBlock!S	316.100.5
|IOEthernetAVB!C	1.1.0
>mDNSOffloadUserClient	1.0.1b8
|IOAHCI!F	290.0.1
>usb.!UEHCIPCI	1.2
>usb.!UEHCI	1.2
>!A!ILpssGspi	3.0.60
|IOSkywalk!F	1
>usb.!UXHCIPCI	1.2
>usb.!UXHCI	1.2
>usb.!UHostPacketFilter	1.0
|IOUSB!F	900.4.2
>!AEFINVRAM	2.1
>!AEFIRuntime	2.1
|IOHID!F	2.0.0
$quarantine	4
$sandbox	300.0
@kext.!AMatch	1.0.0d1
>DiskImages	493.0.0
>!AFDEKeyStore	28.30
>!AEffaceable!S	1.0
>!AKeyStore	2
>!UTDM	489.120.1
|IOSCSIBlockCommandsDevice	422.120.3
>!ACredentialManager	1.0
>KernelRelayHost	1
>!ASEPManager	1.0.1
>IOSlaveProcessor	1
|IOUSBMass!SDriver	157.121.1
|IOSCSIArchitectureModel!F	422.120.3
|IO!S!F	2.1
|IOUSBHost!F	1.2
>!UHostMergeProperties	1.2
>usb.!UCommon	1.0
>!ABusPower!C	1.0
|CoreAnalytics!F	1
>!AMobileFileIntegrity	1.0.5
@kext.CoreTrust	1
|IOTimeSync!F	840.3
|IONetworking!F	3.4
|IOReport!F	47
>!AACPIPlatform	6.1
>!ASMC	3.1.9
>watchdog	1
|IOPCI!F	2.9
|IOACPI!F	1.4
@kec.pthread	1
@kec.corecrypto	1.0
@kec.Libm	1

Panic on the same step. When I add the fake id in the clover boot options manually it boots up but still 8MB of v memory.

Are there more logs to track the problem down? Or is it just the bit that macOS shows after restart?

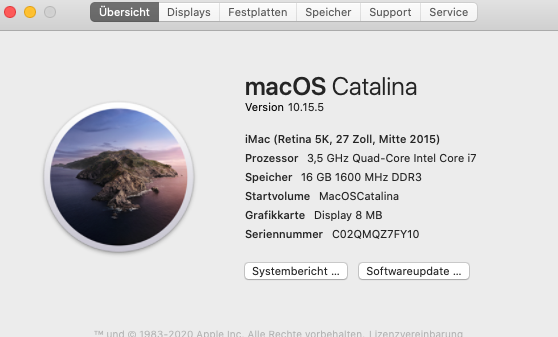

Here are some more images:

886718992_Bildschirmfoto2020-07-11um17_38_31.png.8775e89e0e3fa264c53cfa32936c537e.png 436809253_Bildschirmfoto2020-07-11um17_38_21.png.8bed0ecae3dc3d7140f878baf8234bdd.png

Edited July 11, 2020 by droida

Cyberdevs · July 11, 2020

1 hour ago, droida said:

Thank you very much but still the same behavior.

Panic on the same step. When I add the fake id in the clover boot options manually it boots up but still 8MB of v memory.

Post the whole EFI

droida · July 11, 2020

47 minutes ago, Cyberdevs said:

Post the whole EFI

Here we go.

EFI.zip

July 11, 2020

For my P4600 I had to use FakeID 0x04128086 with platform ID 0x0d220003 otherwise I would also get a Kernel Panic.

Edited July 11, 2020 by ricoc90

droida · July 11, 2020

Oh nice I will try that one out immediately.

droida · July 11, 2020

@ricoc90

Mmmh tried that one out but didn't work. Kernel panic again. As soon as I switched to 0x0412 it booted but 8MB.

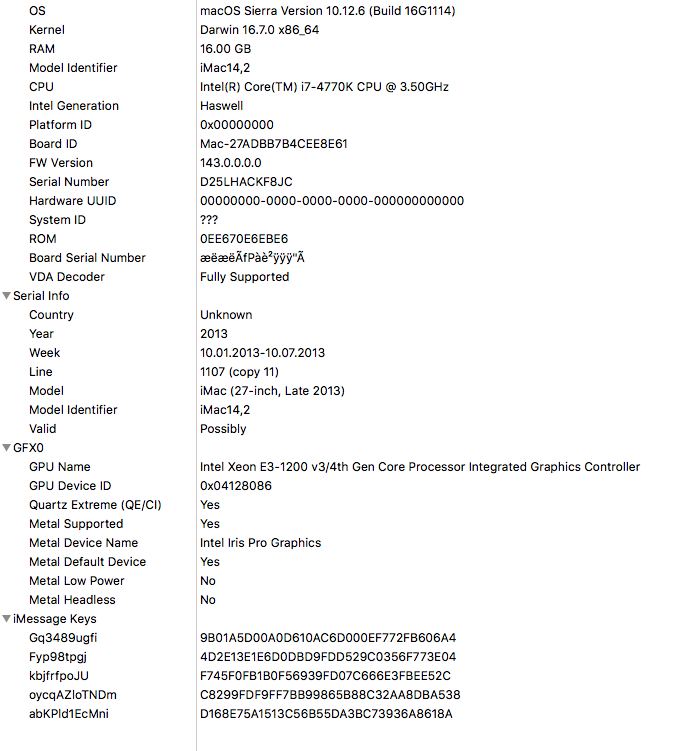

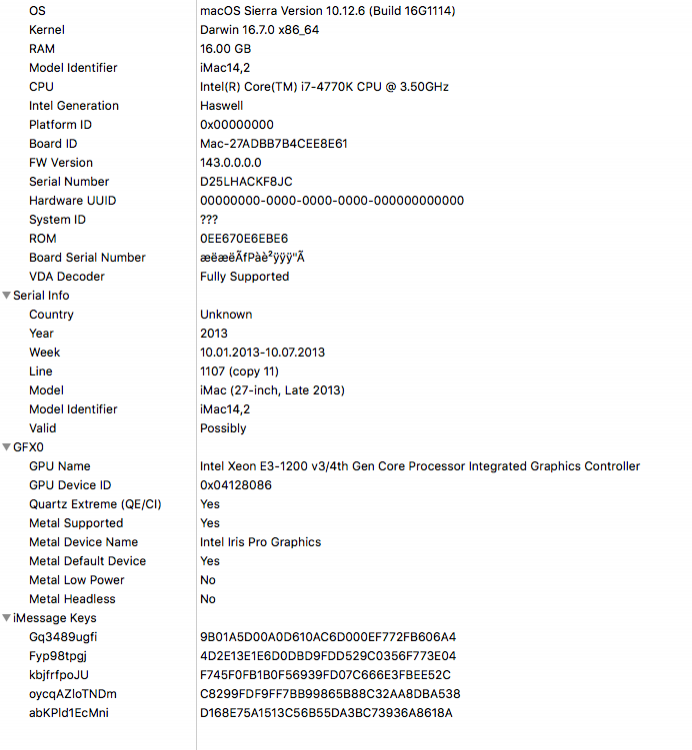

I looked at my working 10.12 which got me in Hackintool:

So in 10.12 it worked excactly with the device id you mentioned.

Mmmm I got no more idea what is going on.

droida · July 11, 2020

Ok I took a step back and tried to configure WEG with the correct platform id and device id in the Properties section like:

		<key>Properties</key>
		<dict>
			<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
			<dict>
				<key>AAPL,ig-platform-id</key>
				<data>AwAiDQ==</data>
				<key>device-id</key>
				<data>hoASBA==</data>
			</dict>
		</dict>

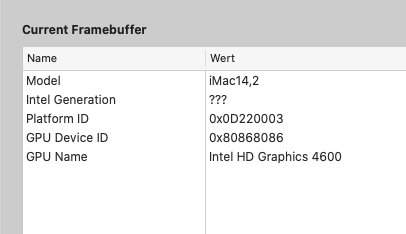

This does indeed boot but still 8MB but somehow it does now detect the HD4600:

109606897_Bildschirmfoto2020-07-11um21_33_39.png.d5a0f10f37a38d6b82b7f91f91c57ad2.png 820751413_Bildschirmfoto2020-07-11um21_33_47.png.230cf5d29278e7c42ea4c0d0918c6386.png 385081115_Bildschirmfoto2020-07-11um21_34_06.png.fc827e794400ca6fa54be9a3dc7c40d7.png

So the current framebuffer does show me the correct platform id but an incorrect device id. But OSX does show me the correct device id. (somehow) So it goes in the right direction but I'm not sure what is wrong. I dropped the whole "Inject Intel, platform id, and fake id" in the clover config and replaced it with the Properties.

Have you got any ideas?

Cyberdevs · July 11, 2020

what are the BIOS settings?

droida · July 11, 2020

@Cyberdevs

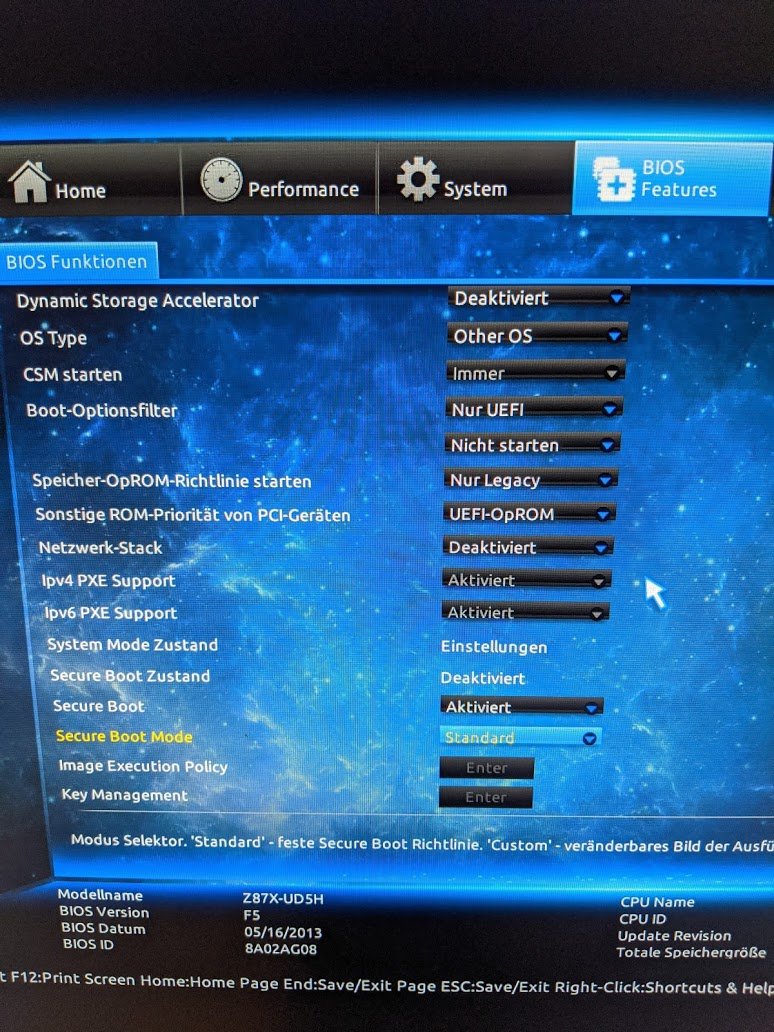

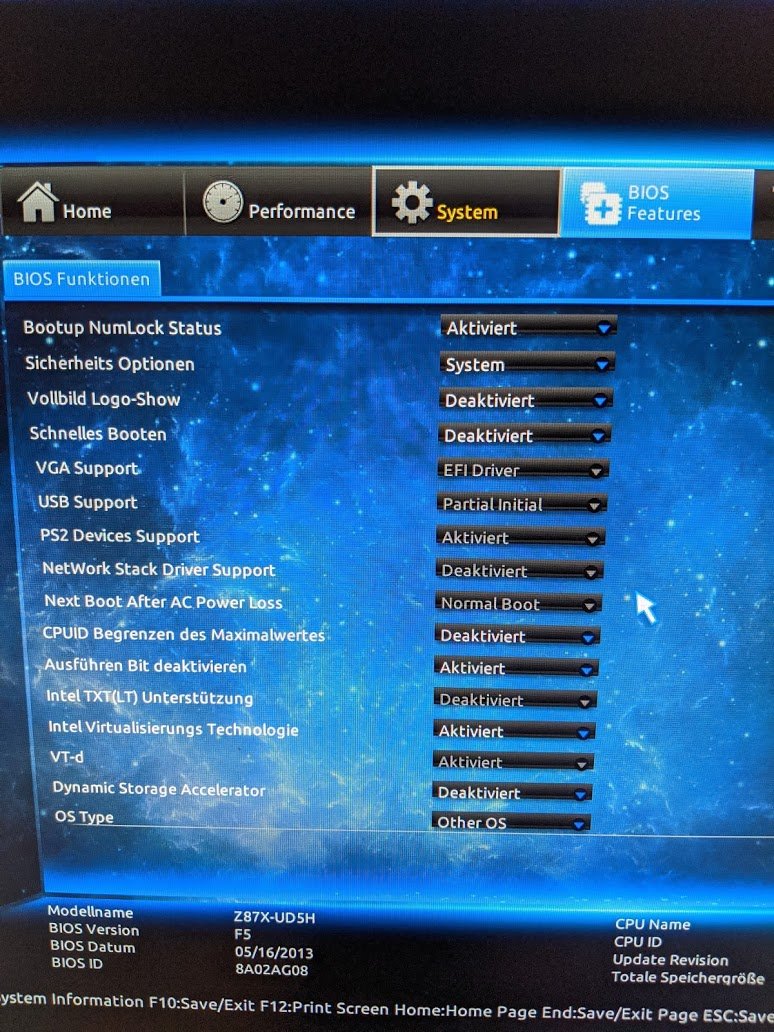

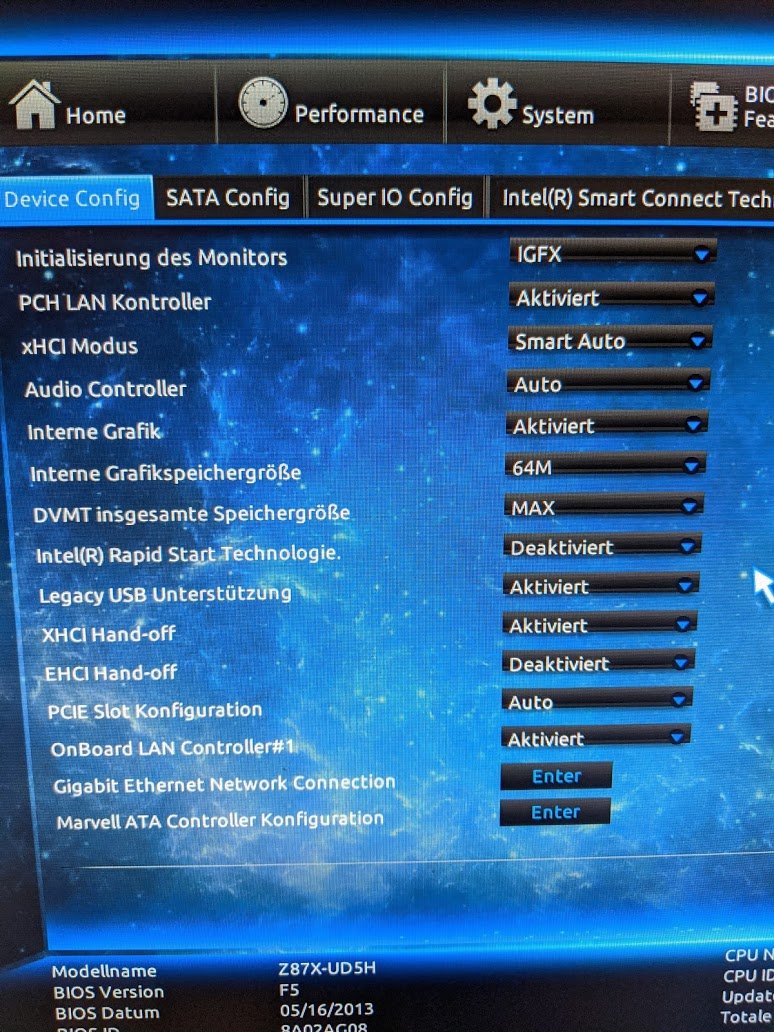

Here are the bios settings:

And I have attached a darwin dumper zip.

DarwinDumper_3.1.1_2020.07.11_22.37.17_iMac15,1_AMI_X64_5119_(HEAD,_commit_0f5da727e)_Catalina_19F101.zip

Cyberdevs · July 11, 2020

@droida

The only difference is that my graphic memory is set to 128 but I'm not sure if that's the issue.

droida · July 11, 2020

Mmmh yeah I will try that one out tomorrow. I had it set to 128M in the past but that was during the kernel panics. So without the kernel panic it could be another try. On 10.12 it ran definitely with 64M. But I'll give it a try. I searched through the DarwinDump Logs but to be honest I have no idea what to search for in detail.

Cyberdevs · July 11, 2020

when you use a FakeID for the GPU you also need to select FixDisplay under the ACPI fixes otherwise it won't work, have you done that when you used FakeID 0x04128086?

I just booted my system with your efi without changing anything and it recognized the iGPU correctly.

droida · July 11, 2020

22 minutes ago, Cyberdevs said:

when you use a FakeID for the GPU you also need to select FixDisplay under the ACPI fixes otherwise it won't work, have you done that when you used FakeID 0x04128086?

I just booted my system with your efi without changing anything and it recognized the iGPU correctly.

Ok this was something I didn't do. I will try that tomorrow morning. I assume that this is also needed when using the properties for configuration of the device and platform id. Right? Thank you very much for today you helped me out a lot!

Edited July 11, 2020 by droida

Cyberdevs · July 11, 2020

6 minutes ago, droida said:

Ok this was something I didn't do. I will try that tomorrow morning. I assume that this is also needed when using the properties for configuration of the device and platform id. Right? Thank you very much for today you helped me out a lot!

FixDisplay is needed when you use a FakeID and I hope tomorrow you have better luck on getting things sorted out and you're welcome.

I came across an EFI folder form a similar rig and you can give it a try later and see if it helps.

CLOVER.zip

droida · July 12, 2020

Ok FixDisplay in combination with the Intel inject and correct id's didn't work either. As soon as I switch to device ID 0x04128086 there is a kernel panic.

I've tried the patches from the clover you linked me but they have no affect. Are there any logs that show in more detail what is going wrong?

Cyberdevs · July 12, 2020

9 minutes ago, droida said:

Ok FixDisplay in combination with the Intel inject and correct id's didn't work either. As soon as I switch to device ID 0x04128086 there is a kernel panic.

I've tried the patches from the clover you linked me but they have no affect. Are there any logs that show in more detail what is going wrong?

Have you tried booting with the last EFI itself?

droida · July 12, 2020

1 minute ago, Cyberdevs said:

Have you tried booting with the last EFI itself?

That's what I'm going to try now.

Anyone got the HD4600 from a Intel Core i7 4770K (Haswell) running on a Gigabyte GA-Z87X-UD5H working on Catalina?

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
