Converting a working CLOVER to OpenCore

6 posts in this topic

Recommended Posts

Hi, I wanted to transpose my CLOVER installation to OpenCore for future updates.



I followed this guide and after some googling

https://github.com/dortania/vanilla-laptop-guide

I've fixed the LOG: EXITBS error (RANDOM SEED like error).

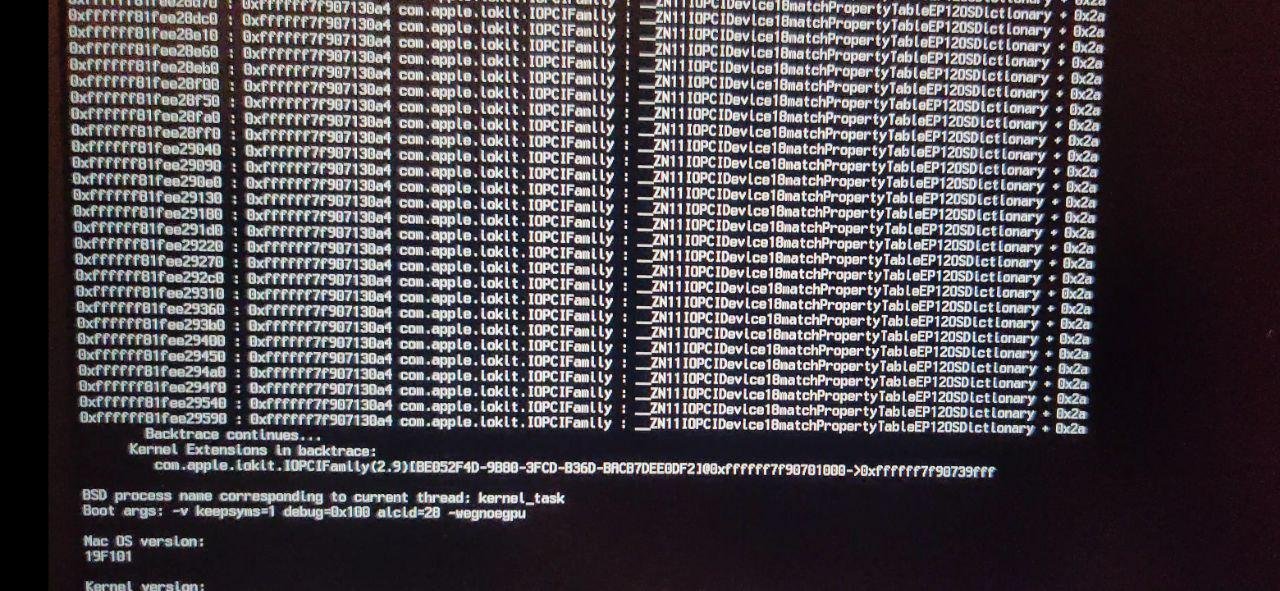

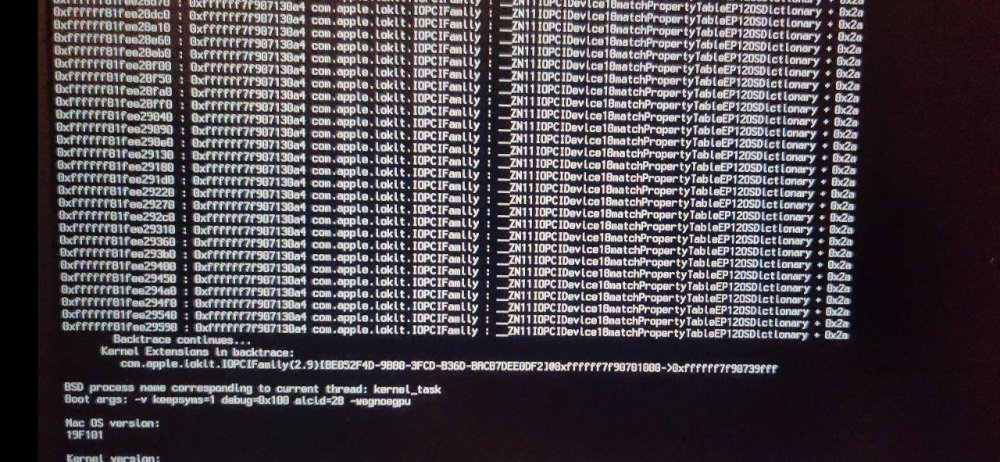

Now I still receiving the IOPCI error (kernel_task kernel panic).



My CLOVER is fully working.

- Backlight and Monitor

- Trackpad

- i7-7700HQ

- Battery Patch

- Camera and Audio (B&O)

- Keyboard

- dGPU GTX 1050 is turned off



On OpenCore I translated everything except the battery (I just need to apply the If statement in ACPI), but I want first to boot on Mac OS using the OpenCore.



HP Pavilion Power 15





config.plist


Share this post


Link to post
Share on other sites
Advertisement

I'm going to retry today, or maybe tomorrow.

I tried to clean NVRAM and BIOS settings already tho. I'm gonna update if there's new info asap.

Share this post


Link to post
Share on other sites

Update:
I tried to recreate the Config.plist reading even the Configuration.pdf.
I have no clue about this problem...



Even reading the clover conversion.



Share this post


Link to post
Share on other sites

Other update:

Still no success even after trying https://dortania.github.io/OpenCore-Desktop-to fix Guide/troubleshooting/troubleshooting.html#kernel-panic-on-invalid-frame-pointer


There's an interesting result by using a pre configured OpenCore 0.5.9 from a Spanish Site starting with "Ora" (I hope you get what I mean) that doesn't crash but it hangs in:

dlil_init: all the created dlil kernel threads have been scheduled at least once.



My 4th iteration sanity check: https://opencore.slowgeek.com/?file=kabylake059snMotL&rs=kabylake059

The few yellow part are because of the conversion from Clover to OpenCore and for HP.



RebuildAppleMemoryMap is set to no to bypass the RANDOMSEED START hangs problem.



I started thinking about WhitelistMMio but I have no clue about that.

Share this post


Link to post
Share on other sites
