hungdv

Beginner need help!!!

5 posts in this topic

Recommended Posts

Hello guys,

I was try to install MacOS Mojave on my new machine but no luck. Can anyone show me which guide to fit my system, please?please?please?

+ Mobo: GIGABYTE Z390 AORUS ELITE LGA1151v2

+ CPU: Intel Core i5-9600K 3.7GHz

+ iGPU: Sapphire RX 580 Pulse 8GB

+ Drives: SSD Samsung 970 Pro PCIe NVMe V-NAND M.2 2280 512GB

+ Ram: Crucial Ballistix Sport LT 2x8GB Bus 2666 DDR4

+ PSU: Corsair RM650 80 Plus GOLD

+ Case: Corsair 220T White RGB Airflow Tempered Glass

+ Cooler: Cooler Master HYPER 212 BLACK EDTION

Dual Band Network Card Broadcom Bcm94360 867Mbps.

Share this post


Link to post
Share on other sites
Advertisement

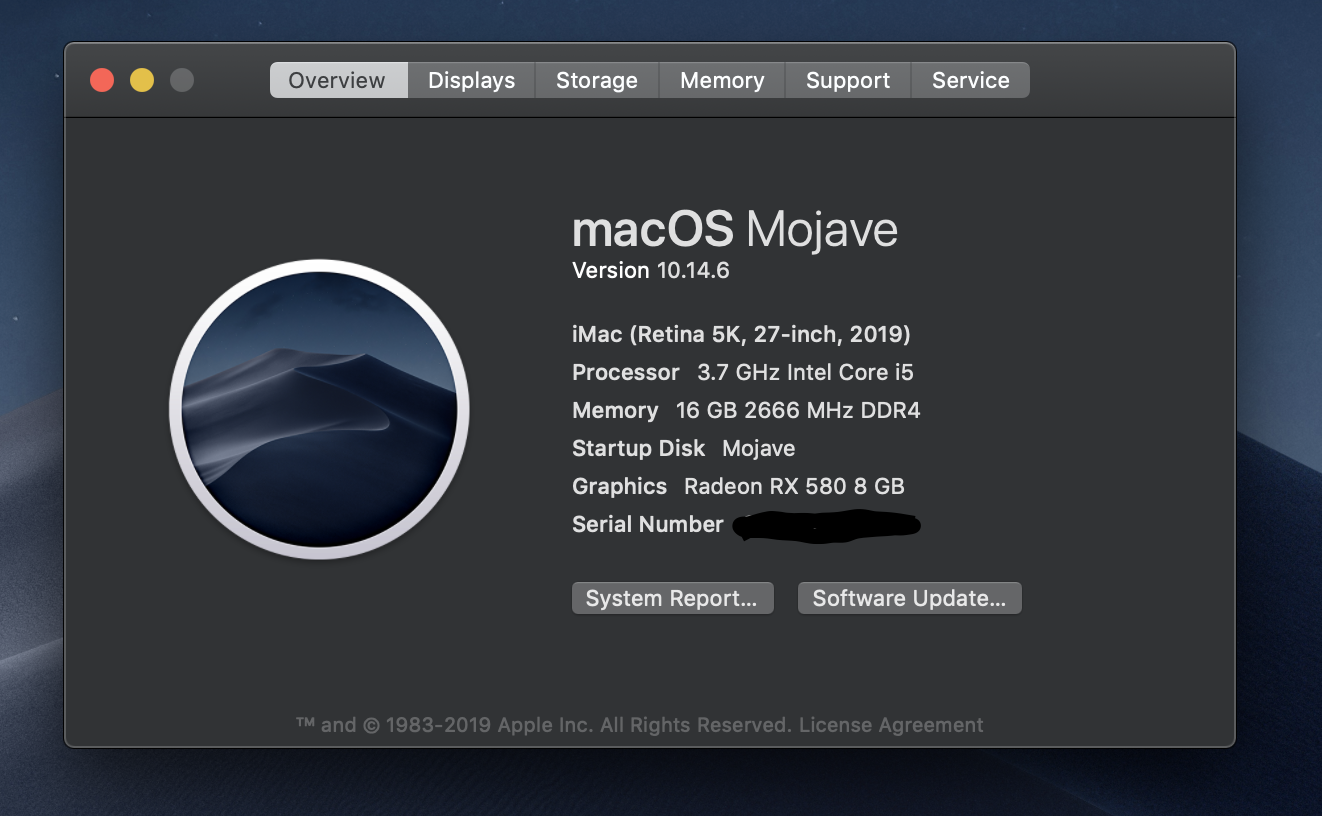

After 3 hours to follow Glasgood's guide, here is my result:



What Works

  • Sleep, Wake, Reboot, Shutdown.
  • WiFi and Bluetooth using the BCM94360 card with a PCIe x1 adapter.
  • Handoff, Continuity, AirDrop.
  • iMessage, FaceTime, App Store, iTunes Store.
  • The onboard gigabit Ethernet ports.

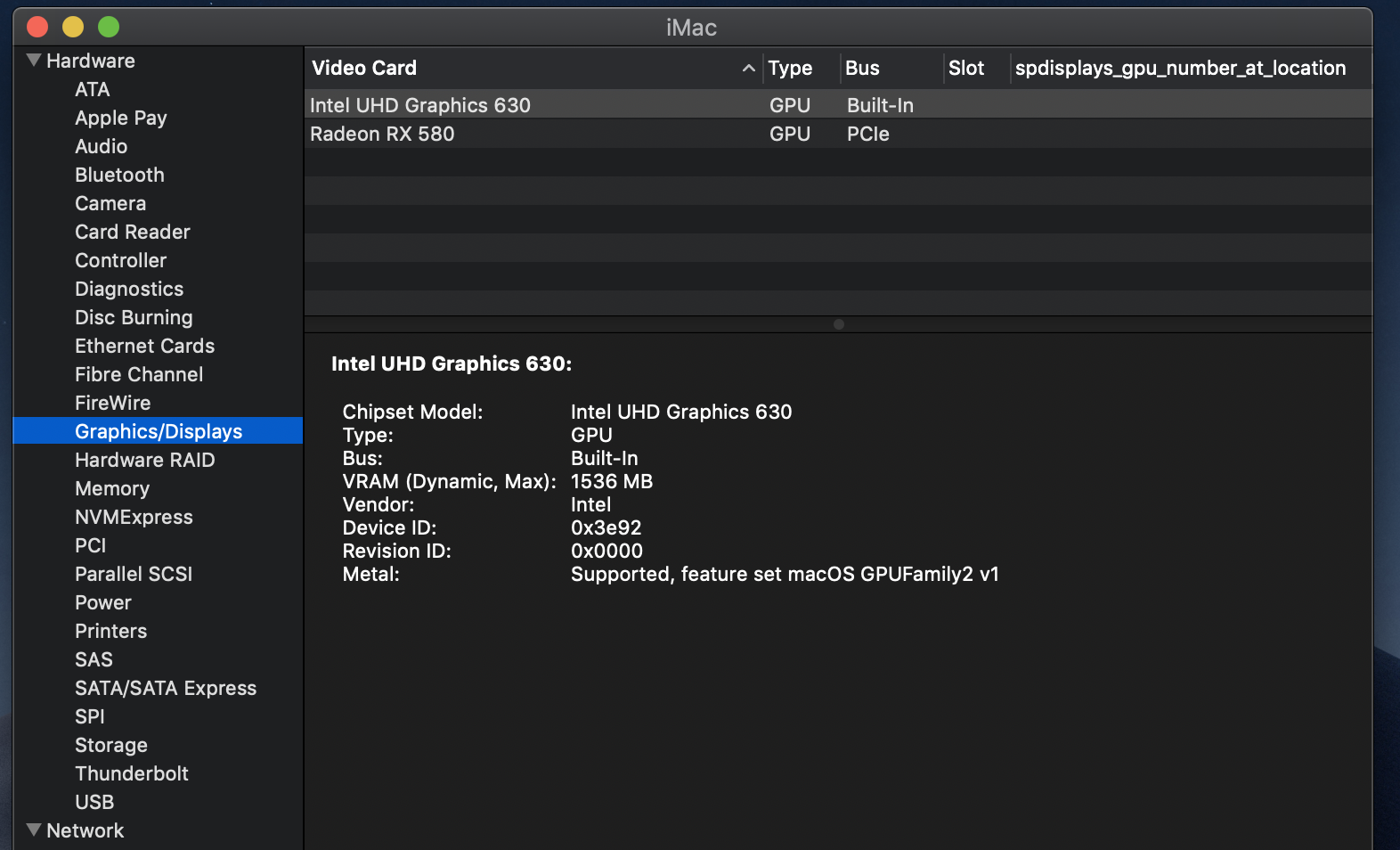

  • Fully accelerated video from the RX 580, which is natively supported.
  • On-board audio based on the Realtek ALC.
  • TRIM is enabled on NVMe without any patches.

Issues:

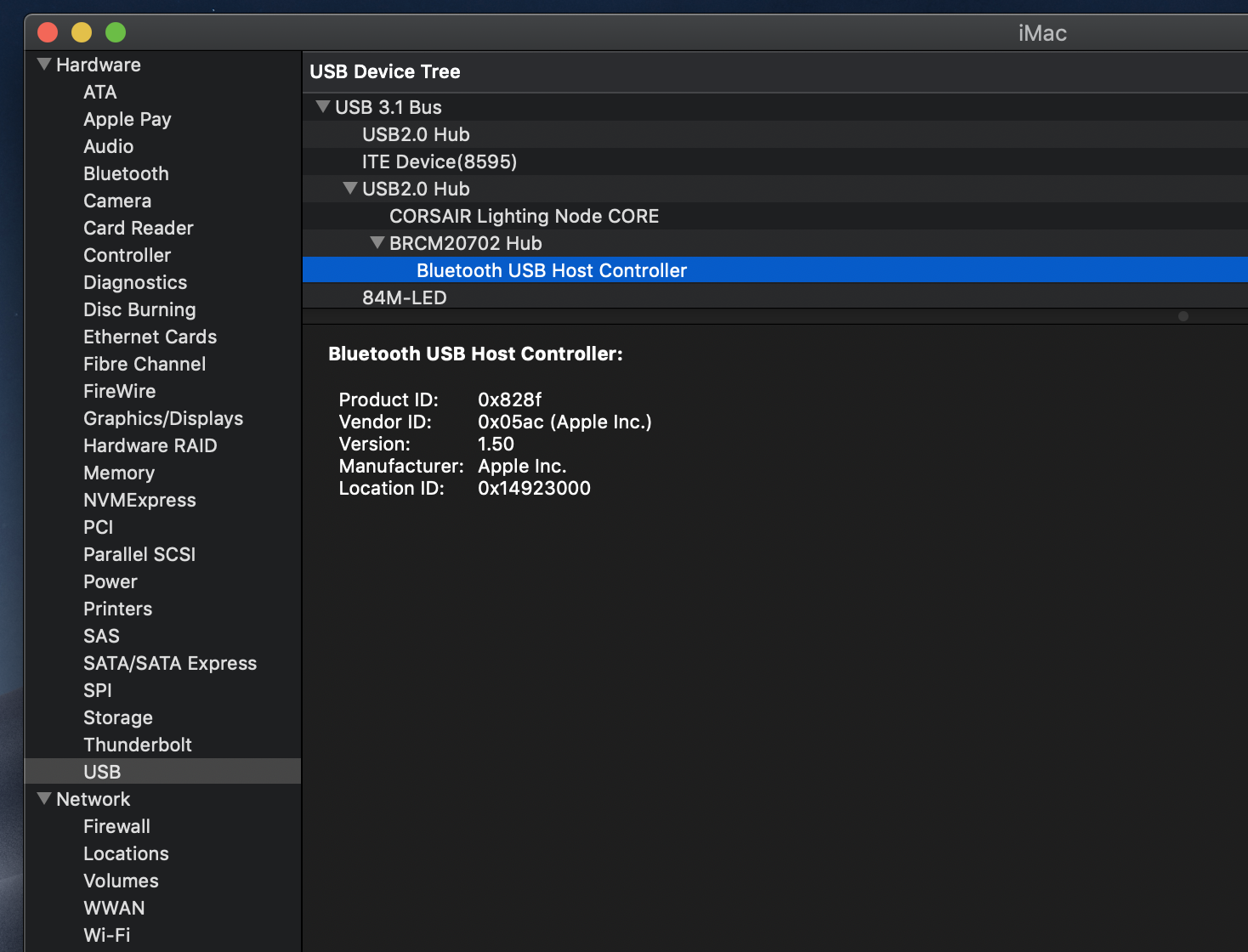

Bluetooth connect via powerbeats earphones, poor signal:cry:





32121259_ScreenShot2019-10-11at10_49_33PM.thumb.png.37a169f3ce8c9602c894b5440a92f8e2.png332201576_ScreenShot2019-10-11at10_53_00PM.thumb.png.47a908cbbca50e05e25c6b11d12395af.png2085988961_ScreenShot2019-10-11at10_53_51PM.thumb.png.9fca0ee1be367f4b436dc685c7dfdf3f.png

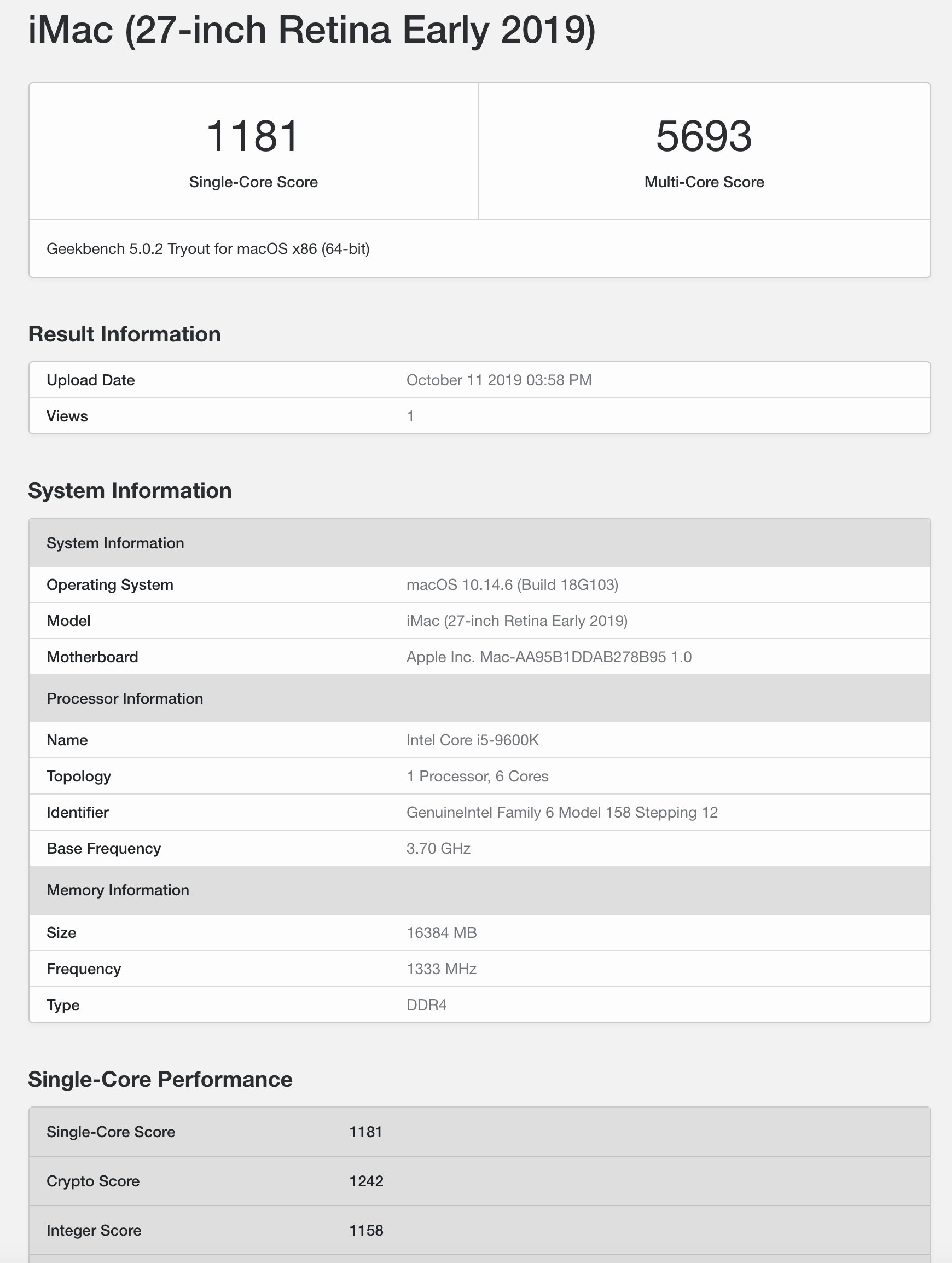

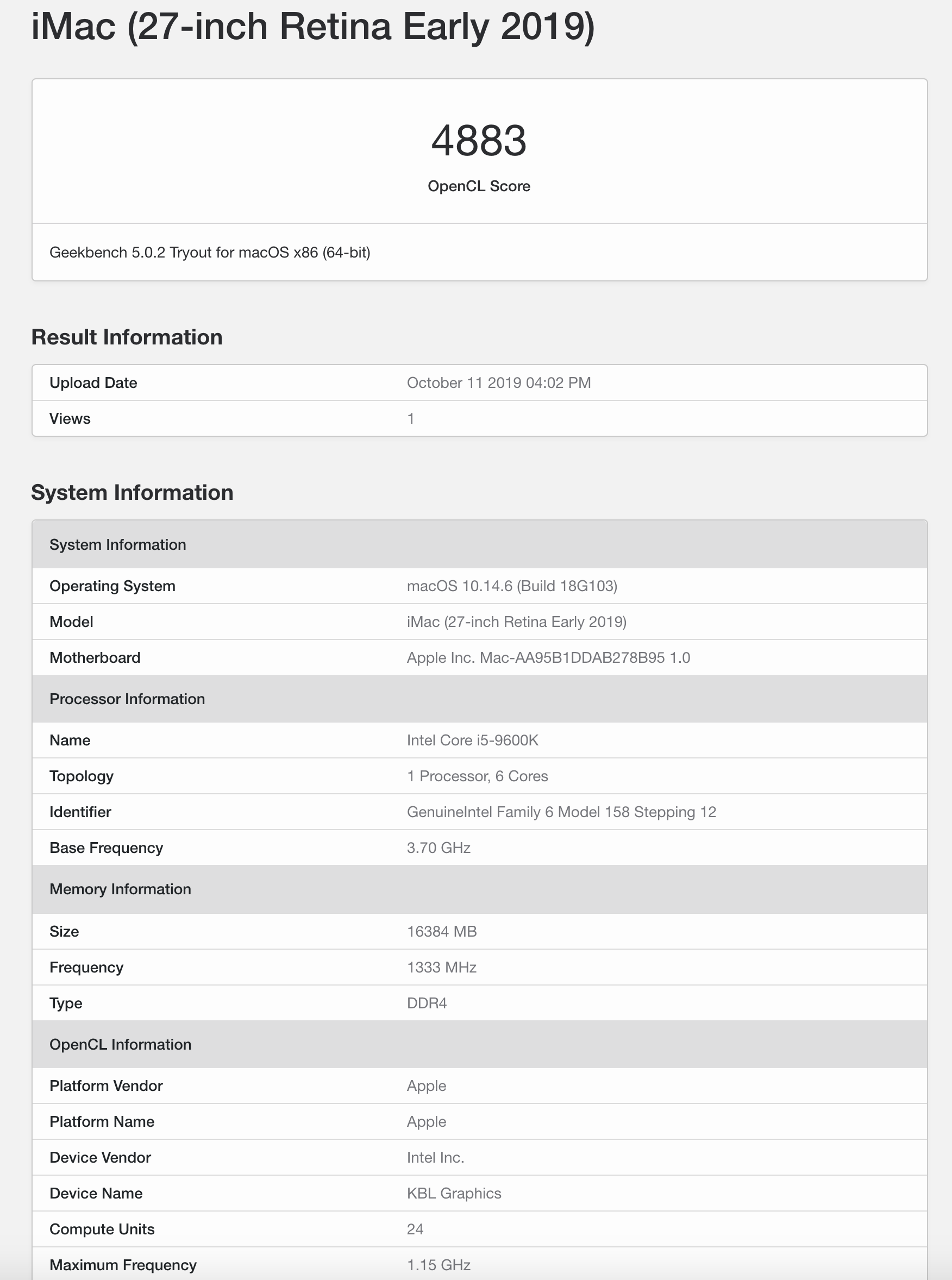

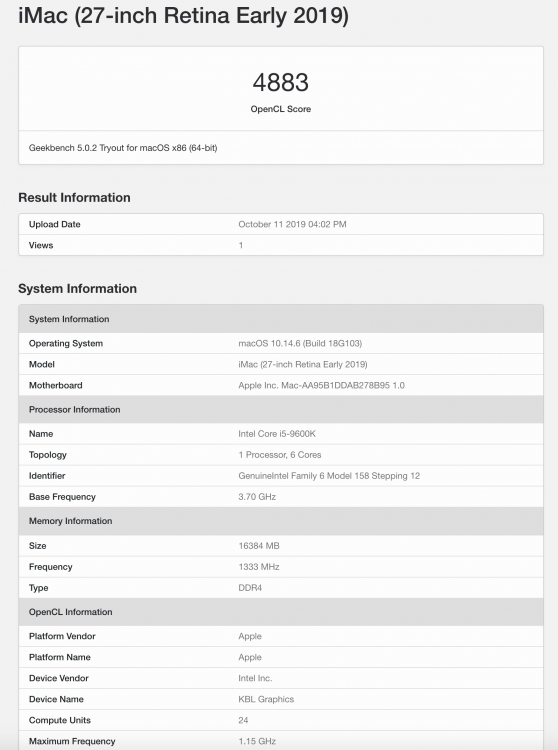

Geekbench:

989553827_ScreenShot2019-10-11at11_00_20PM.thumb.png.5e9d218e9439b35797d2d113b3e8a2ff.png871097293_ScreenShot2019-10-11at11_02_38PM.thumb.png.e23319362dd768dfbb8497be9d03b1bb.png



Cheers:lol:

EFI 2.zip

Share this post


Link to post
Share on other sites

Ok, after exchange two PIN connection between bluetooth and wifi on the broadcom chip. Bluetooth signal return stronger.

Now i have the everything work. Time to move on macOS Catalina:lol:

Share this post


Link to post
Share on other sites
