Sadly Harry

Kernel Panic. Need help in diagnosis!

11 posts in this topic

Recommended Posts

Hi Forumers!

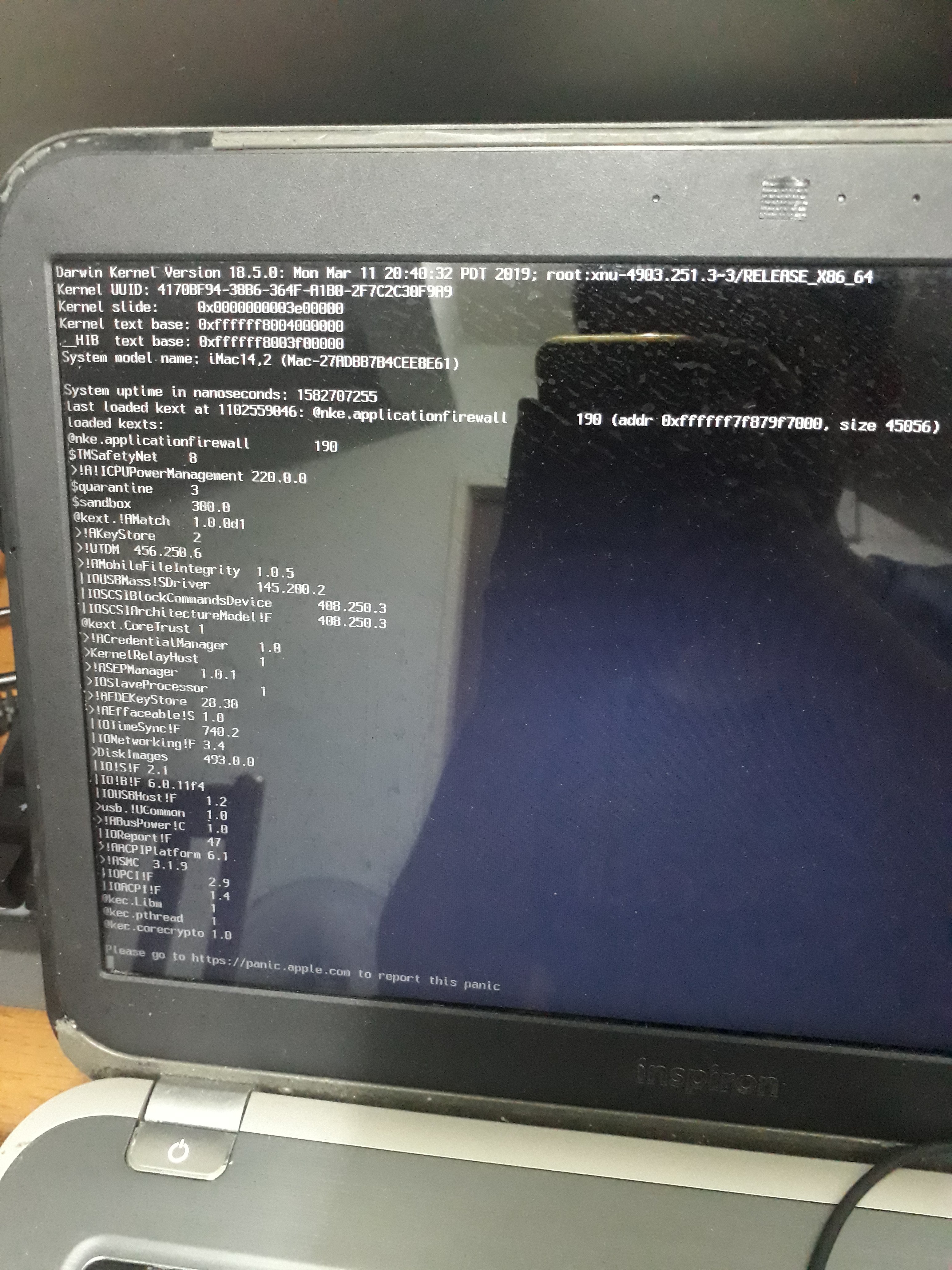

I just started InsanelyMac today so please correct me wherever I am wrong in this forum.  I just tried to dual boot Mojave and Windows via Clover and met a kernel panic while booting Mojave from Clover. I need help to determine the cause of kernel panic and would like to know what to look out for to diagnose kernel panic myself next time. If necessary, I will research on how to retrieve KP logs from clover. 20190503_235848.thumb.jpg.9c3256e40fdc7382582d0f815d87ff4b.jpg

Share this post


Link to post
Share on other sites
Advertisement

Hi @Sadly Harry and welcome to InsanelyMac.com :)



Please update your signature as explained in the following topic so people can help you easier.

It would also be good if you provide some background information on how did you create the installer.

Share this post


Link to post
Share on other sites
  1. Specify your Inspiron model and specs (CPU, GPU, LAN, audio, etc.).
  2. Post a zipped copy of your Clover EFI folder.



Posted picture shows that you're using iMac14,2 SMBIOS which is inappropriate for a laptop. You should be using MacBook or MacBookPro SMBIOS. We can't say more under the present conditions until you post the required information.

Share this post


Link to post
Share on other sites
Posted (edited)

I don't know if it is allowed to post links on this forum thread so correct me if I am wrong.

I followed the guide and relevant links on the website that guides me to dual boot Mojave with clover. https://hackintosher.com/guides/mac-os-mojave-hackintosh-clover-walkthrough-10-14-install/

One of its guide recommended setting to imac 14,2 to solve problem with ivy bridge Hd4000. I am currently away from my computer so I will post my clover efi later. My inspiron model is Dell Inspiron 14z 5423. Cpu:I7-3537u Gpu:AMD HD7570M and Intel Hd4000. No info on lan and audio because away from laptop. Will update info in a few hours.

Thanks in advance for all your help

Edited by Sadly Harry

Share this post


Link to post
Share on other sites
Posted (edited)

That guide is just a general/overall process and not sufficiently detailed to be applicable "as is" to all PCs... By definition, Hackintoshes require specific tuning to fit the underlying model. Did you consult OSXLatitude forum for guidance?



  1. Use an MacBookPro9,x or MacBookPro10,x SMBIOS
  2. Generate your CPU-specific power management SSDT with Pike R Alpha's well-known generator script and place the resulting SSDT.aml file in Clover ACPI/patched folder. Google for it if necessary
  3. Make sure to select AppleIntelCPUPM patch in Clover patch section
  4. Use Clover Configurator app to configure Clover
Edited by Hervé

Share this post


Link to post
Share on other sites
18 hours ago, Hervé said:
  1. Specify your Inspiron model and specs (CPU, GPU, LAN, audio, etc.).
  2. Post a zipped copy of your Clover EFI folder.



Posted picture shows that you're using iMac14,2 SMBIOS which is inappropriate for a laptop. You should be using MacBook or MacBookPro SMBIOS. We can't say more under the present conditions until you post the required information.



My Clover file is as attached. I have not consult the forums about this issue as this thread is my first. I will follow the suggestions you have listed and will report my findings. Thanks a lot.



https://1drv.ms/f/s!AiwDRaem-fKsgfxTuEFS_98ezA5o4g

I am apologise if I am not allowed to post external download links. The maximum upload limit here is 10 MB but my Clover file is 14 MB.

Share this post


Link to post
Share on other sites

Ok, I have attempted all the three suggestions as stated above. Now there isn't a kernel panic but the following error. I have researched that it is a less serious error and I believe I am nearly a stable boot. Attached is the Clover file after all edits.

CLOVER.zip

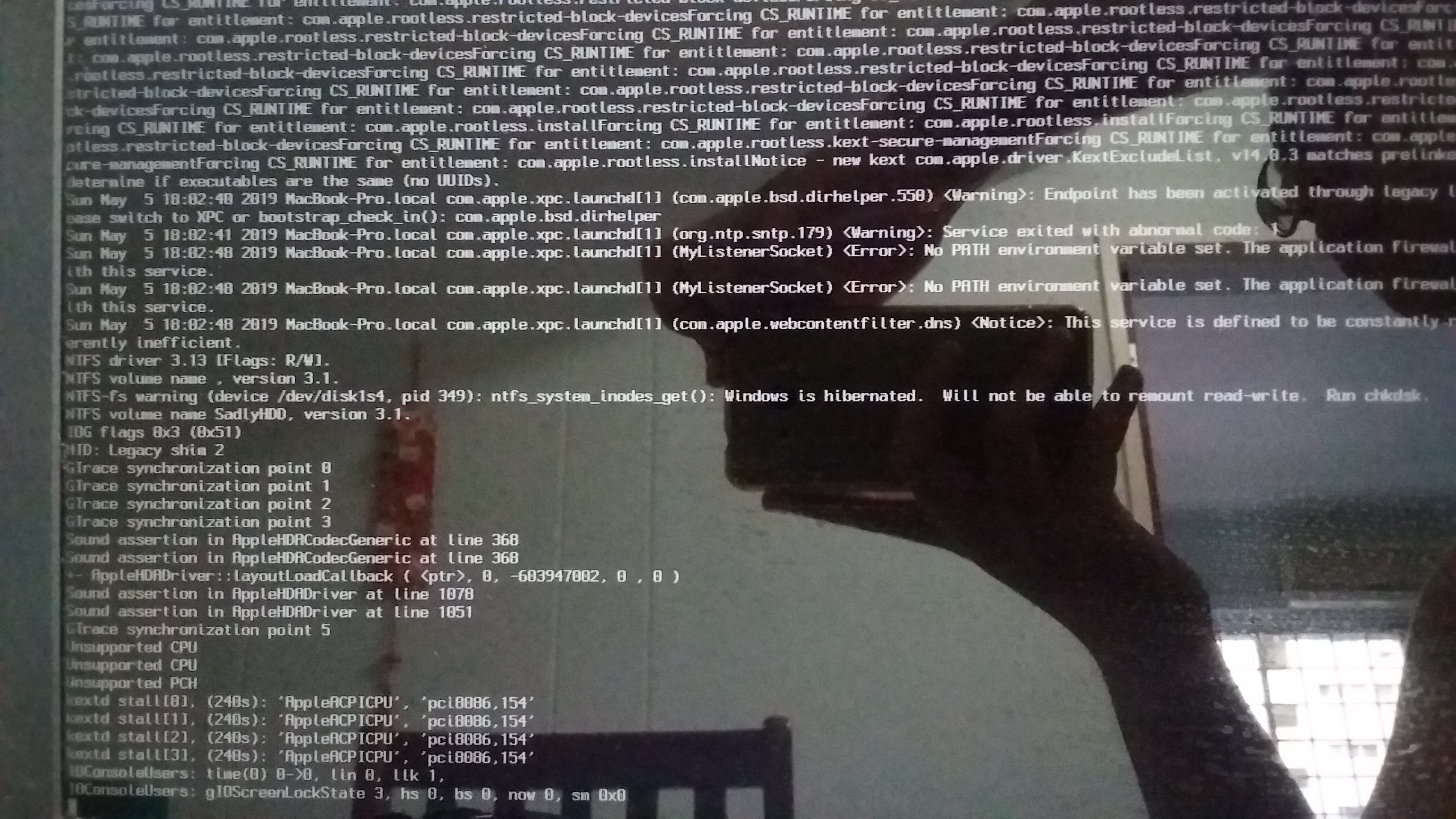

Further attached is a photo of the screen after it was stuck. I Googled and i found out that AppleACPICPU could be due to the absence of FakeSMC.kext. However, it is there in clover so this was not the case. Maybe it is due to my dual gpu that vause the last line problem. Any ideas on how to proceed?


Share this post


Link to post
Share on other sites
Posted (edited)

Graphics are not initializing and since dual-GPU is not supported on Hackintohs laptops, you probably have to run on the HD4000 iGPU only...



On checking your Clover setup, I notice that:

  1. you're not using latest versions of Lilu + WEG kexts. Please do so.
  2. you've generated your CPU-specific SSDT.aml file but have not setup Clover ACPI section properly:
    1. uncheck the PlugInType that you selected
    2. drop SSDT CpuPm + SSDT Cpu0Ist
    3. you can probably remove those DMAR and MATS drops you opted for
  3. you've not injected your SMBIOS properly. Again, please use latest version of Clover Configurator to that effect.



Lastly, make sure you use the latest Clover version.



If, despite all this, you still did not reach Mojave's desktop, add the following in the Graphics section of your Clover config (using CC):

  • InjectIntel
  • set ig-platform-id to 0x01660003 or 0x01660004 according to your built-in LCD screen resolution
Edited by Hervé

Share this post


Link to post
Share on other sites

Thanks Herves for the continued guidance.

I have tried the above three suggestions but was still stuck at the black screen. I was stuck at the UNSUPPORTED CPU UNSUPPORTED CPU UNSUPPORTED PCH but I was impatient and power off my laptop, thinking it would not successfully booted. Tomorrow, from my time zone, I will work on the last two suggestions and attached is my clover file.

CLOVER.zip

Share this post


Link to post
Share on other sites

Latest updates: I have done the two suggestions and it worked! I got Mojave installation screen to appear, (although it takes very long per boot due to the kexts stalling for 3 minutes thrice). As I wish to dual boot Windows and MacOS, I partitioned a 50gb space for Mojave and formatted it to pure APFS. (I also preemptively expand my Efi partition from 100mb to 200mb). However, when I attempted to Install MacOS Mojave, the laptop will reboot suddenly when there is " 2 minutes remaining" and 75% progress bar. I tried this twice and it rebooted and the same spot. About 6gb of space is taken up after the second time of installation (I don't know about the first). While I do my personal research, I would massively appreciate if anyone could help me out. Thanks in advance.

Share this post


Link to post
Share on other sites
