How to configure HWP through clover


14 posts in this topic

Recommended Posts

My system: Majove 10.14.1, SMBIOS: macmini8,1, cpu:8700

I inject plugintype and select plugin type as 1 in Clover, by doing this HWP is enabled.
However, I get this:
IA32_HWP_REQUEST................(0x774) : 0x202E2E08

This configuration sets the performance level at 20 (first two bit), which prefers performance more.
I want to change 20 to 80 (i.e., 0x802E2E08) to reduce performance and save power.

How can I achieve this goal? Could anyone help me? Thank you.

3 hours ago, Hervé said:

Have you tried this?




Thank you. I have tried this. It did not work.

I find that if I inject the plugintype, the HWP will be enabled, but the HWPValue will not work.

Do not know the reason.

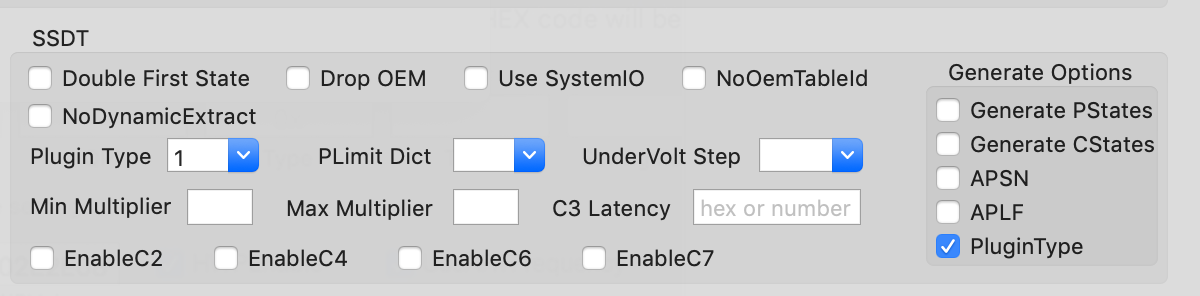

948364099_ScreenShot2018-11-23at08_23_45.thumb.png.51164985e3ba5f12792ce38034a5f8c6.png

Edited by emeee
17 hours ago, Hervé said:

The thing is why do you want to reduce performance and save power on a desktop computer? It's not as if you'd be interested in extending battery life...



The reason is that my Alienware desktop do not allow to set fan speed in BIOS, and the default fan strategy is strange.

Though the CPU temp is only 35 c, the fan will increase the speed when the CPU frequency increases.

For example, when I open a website or an application, the transient CPU frequency increases to around 4.3 Ghz immediately, then the fan will suddenly run in a high speed with high loud.



10 hours ago, styrian said:



With newer version of Clover, it works in a different way, HWP can be enabled by simply injecting plugintype and select plugin type as 1.
However, by doing this you get:
IA32_HWP_REQUEST................(0x774) : 0x202E2E08

This configuration sets the performance level at 20 (first two bit), which prefers performance more.
My question is how to to change 20 to 80 (i.e., 0x802E2E08).

  • 2 weeks later...
On 11/25/2018 at 8:46 AM, emeee said:



With newer version of Clover, it works in a different way, HWP can be enabled by simply injecting plugintype and select plugin type as 1.
However, by doing this you get:
IA32_HWP_REQUEST................(0x774) : 0x202E2E08

This configuration sets the performance level at 20 (first two bit), which prefers performance more.
My question is how to to change 20 to 80 (i.e., 0x802E2E08).



Have you tried what Herve sent you and uncheck the Plugin and type?

×
×
