ACER ASPIRE Intel HD GRAPHICS 5500 WITH MOJAVE - SOLVED - RESOLVIDO

94 posts in this topic

Recommended Posts

Good evening, friends of InsanelyMac.

I have an Acer Aspire E5-571 notebook with Intel processor and Intel Graphics 5500 hd graphics card. When I was using the Sierra, the video card was recognized without problems. Now that I'm using Mojave I can not get the acceleration to work.

I've been researching something about having to use Lilu.kext and whatevergreen.kext but I do not have enough knowledge to solve this problem.

I need the help of someone who can explain to me how to solve this acceleration problem. I'm sure it will be of great value to other users like me.

Thank you very much.

Captura de Tela 2018-10-22 às 21.51.50.png

Edited by EduardoMenezes
Problem Solved

Share this post


Link to post
Share on other sites
Advertisement
Good Morning.

Could anyone help me solve this problem with my video card? I can not get graphic acceleration. Nothing is right.

Does anyone have a step-by-step?



Captura de Tela 2018-10-31 às 10.41.51.png

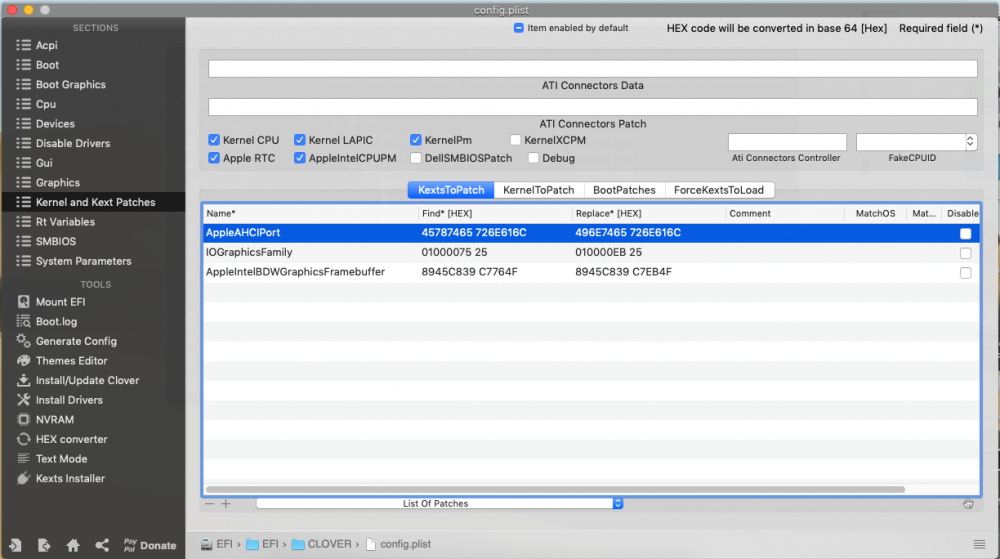

Captura de Tela 2018-10-31 às 10.43.27.png

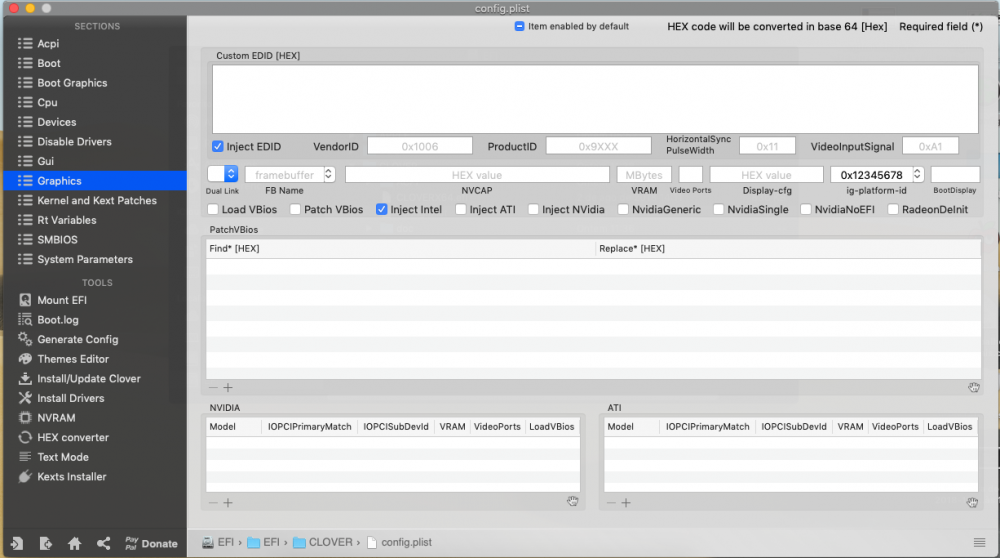

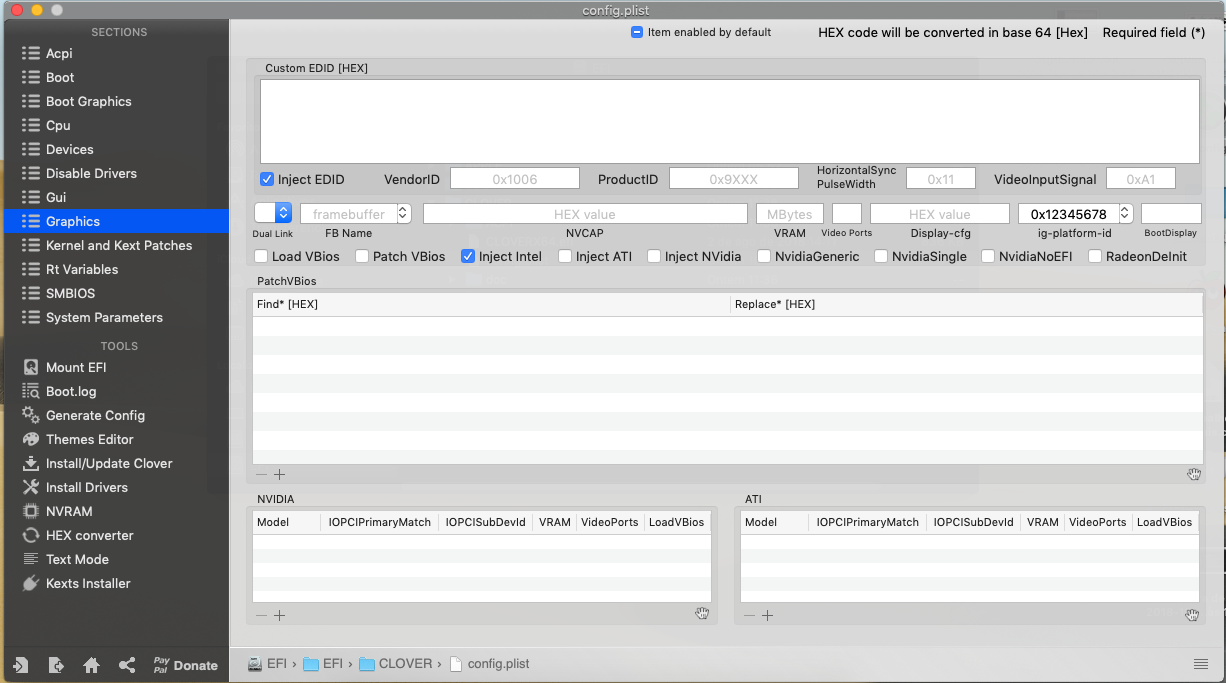

Captura de Tela 2018-10-31 às 10.43.09.png

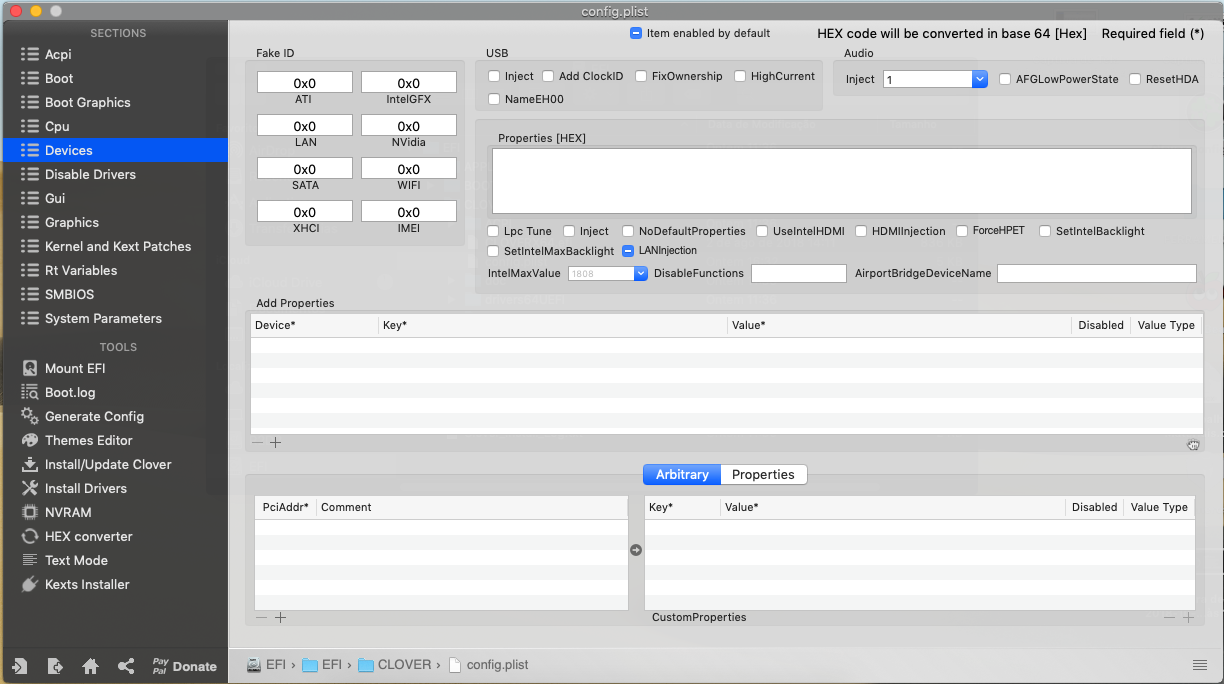

Captura de Tela 2018-10-31 às 10.42.55.png

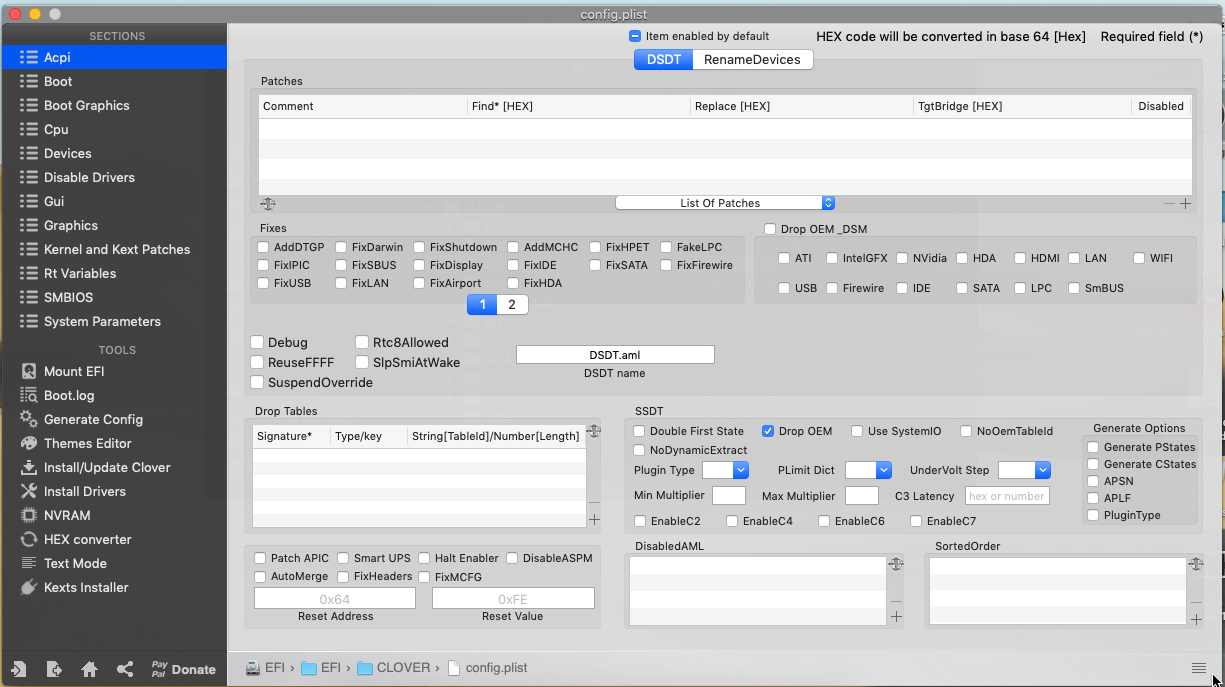

Captura de Tela 2018-10-31 às 10.42.43.png

Share this post


Link to post
Share on other sites
On 10/31/2018 at 8:49 PM, EduardoMenezes said:

Good Morning.

Could anyone help me solve this problem with my video card? I can not get graphic acceleration. Nothing is right.

Does anyone have a step-by-step?



Captura de Tela 2018-10-31 às 10.41.51.png

Captura de Tela 2018-10-31 às 10.43.27.png

Captura de Tela 2018-10-31 às 10.43.09.png

Captura de Tela 2018-10-31 às 10.42.55.png

Captura de Tela 2018-10-31 às 10.42.43.png



ig-platform-id for IHD 5500 is 0x16260006 not 0x12345678

Share this post


Link to post
Share on other sites
Hello Hervé and Andres Zerocross. I fully agree that you should use ig-platform-id = 0x16260006. The problem is that with Intel Inject = on the notebook resets at boot time. I can only load if I turn off Inject Intel or if I use ig-platform-id = 0x12345678.

This is missing some other configuration.
Edited by EduardoMenezes

Share this post


Link to post
Share on other sites
13 hours ago, EduardoMenezes said:

Hello Hervé and Andres Zerocross. I fully agree that you should use ig-platform-id = 0x16260006. The problem is that with Intel Inject = on the notebook resets at boot time. I can only load if I turn off Inject Intel or if I use ig-platform-id = 0x12345678.

This is missing some other configuration.



Then you need to patch min stolen patch, just use latest Lilu.kext and Whatevergreen, and use patch of mem stolen at your config.plist

Share this post


Link to post
Share on other sites
On 11/1/2018 at 5:59 PM, Hervé said:

Try this one.

config.plist



Please post your patched tables or, better, your entire Clover EFI folder so that we know what you use...



Good evening, Hervé. I'm attaching the zipped EFI folder with whatever you asked for. On the ACPI tab on SSDT I unchecked OEM Droop because the notebook resets during boot. It's not panic. It resets.

Another friend Andres Zerocross commented on Lilu.kext and Whatever.Kext but I'm doubtful how to proceed. I already put it in the S/L/E folder without result.

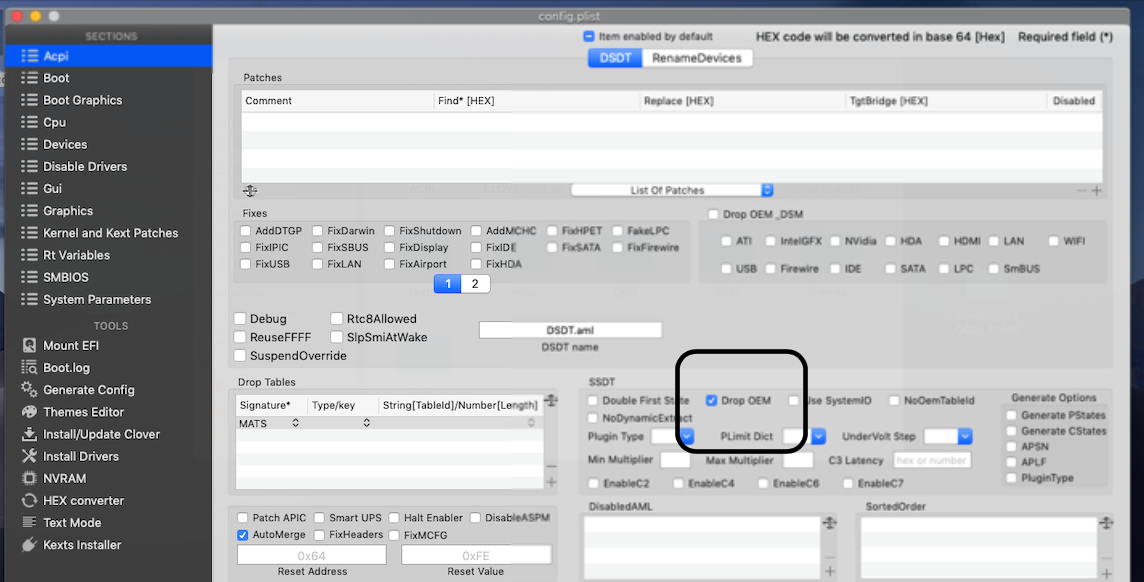

Captura de Tela 2018-11-04 às 20.04.28.png

CLOVER.zip

Share this post


Link to post
Share on other sites

Good evening, Hervé. I'm attaching the zipped EFI folder with whatever you asked for. On the ACPI tab on SSDT I unchecked OEM Droop because the notebook resets during boot. It's not panic. It resets.
Another friend Andres Zerocross commented on Lilu.kext and Whatever.Kext but I'm doubtful how to proceed. I already put it in the S/L/E folder without result.



203441639_CapturadeTela2018-11-04s20_04_28.thumb.png.16b9b0540389cbee8f18b8e9ee9e26d4.png
CLOVER.zip
After use lilu.kext and whatevergreen.kext then you still need to set fb-min stolen patch at your device properties inside config.plist. or whatevergeen won't work.

Sent from my Mi Note 2 using Tapatalk

Share this post


Link to post
Share on other sites
On 11/5/2018 at 2:55 PM, Andres ZeroCross said:

After use lilu.kext and whatevergreen.kext then you still need to set fb-min stolen patch at your device properties inside config.plist. or whatevergeen won't work.

Sent from my Mi Note 2 using Tapatalk




Friends, I know that something is missing but I do not know how to do it.

Could someone tell me "get it" and put it in the abc folder, then mark it, then uncheck it, then write that in the xpto field ... type a step by step. I'm not a programmer. I'm just a user.



I need to know if I need to use lilu and whatevergreem or another kext and where to put these files. In Clover, what should be filled.



I say this because I honestly do not know how to solve it.



Share this post


Link to post
Share on other sites


Friends, I know that something is missing but I do not know how to do it.

Could someone tell me "get it" and put it in the abc folder, then mark it, then uncheck it, then write that in the xpto field ... type a step by step. I'm not a programmer. I'm just a user.



I need to know if I need to use lilu and whatevergreem or another kext and where to put these files. In Clover, what should be filled.



I say this because I honestly do not know how to solve it.



Ok, don't put any kext to System/library/extensions or Library/kext. Just put the kexts at EFI/Clover/kexts/others. After that upload your clover folder here. I will help

Sent from my Mi Note 2 using Tapatalk

Share this post


Link to post
Share on other sites

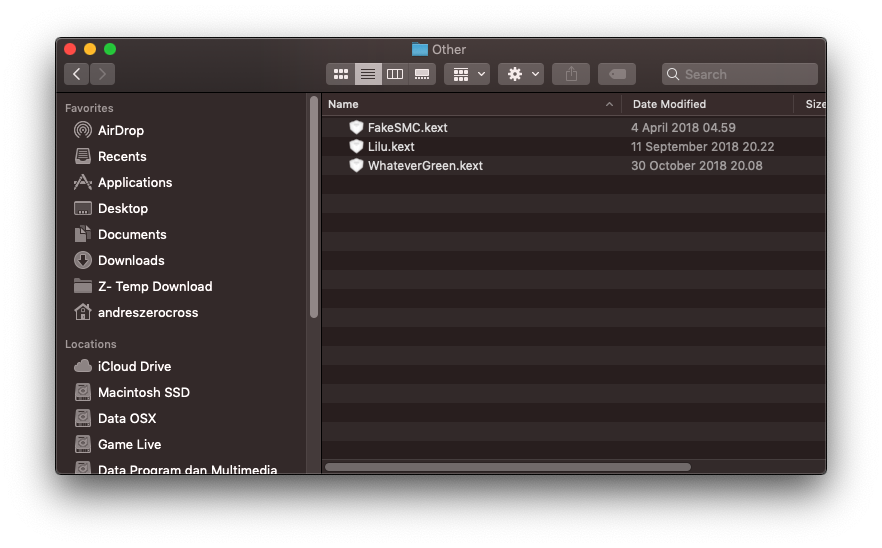

1. Make sure you remove all 3rd party kext like FakeSMC.kext, Lilu.kext, WhateverGreen.kext and other add on kext from System/Library/Extensions or in Library/Extensions. After that rebuild Kext Cache with Kext Utility I repeat make sure there is no add on kext from S/L/E or L/E. Use this step to avoid duplicate kext and "unpredicted problems".

2. After that,, mount your EFI partition,, then Delete your Entire CLOVER folder inside EFI folder. And replace with mine (i upload the new Clover folder for your).

The configuration include your DSDT and SSDT (brightness fix, minstolen patch fix, usb fix, ehc1 and ehc2 fix and many important patch for your system). I assume your device use RTL8168 Ethernet, so i use RTL8111.kext for your Ethernet. And i don't what is your wifi card (we can face it later).

Try it and give report as soon as possible.

CLOVER.zip

Share this post


Link to post
Share on other sites
2 hours ago, Andres ZeroCross said:

1. Make sure you remove all 3rd party kext like FakeSMC.kext, Lilu.kext, WhateverGreen.kext and other add on kext from System/Library/Extensions or in Library/Extensions. After that rebuild Kext Cache with Kext Utility I repeat make sure there is no add on kext from S/L/E or L/E. Use this step to avoid duplicate kext and "unpredicted problems".

2. After that,, mount your EFI partition,, then Delete your Entire CLOVER folder inside EFI folder. And replace with mine (i upload the new Clover folder for your).

The configuration include your DSDT and SSDT (brightness fix, minstolen patch fix, usb fix, ehc1 and ehc2 fix and many important patch for your system). I assume your device use RTL8168 Ethernet, so i use RTL8111.kext for your Ethernet. And i don't what is your wifi card (we can face it later).

Try it and give report as soon as possible.

CLOVER.zip



Good evening.



Following his script and replacing my Clover folder with his own, he caused the notebook to restart during boot.



I captured an image before resetting.





So I returned to my Clover folder and I am attaching, as per your previous message.


meu arquivo CLOVER.zip

Share this post


Link to post
Share on other sites



Good evening.



Following his script and replacing my Clover folder with his own, he caused the notebook to restart during boot.



I captured an image before resetting.





So I returned to my Clover folder and I am attaching, as per your previous message.

meu arquivo CLOVER.zip
Open terminal and type "sudo kextcache -i /" and press enter, then input the pasword and press enter.

Copy the log and paste it here

Sent from my Mi Note 2 using Tapatalk

Share this post


Link to post
Share on other sites




Are you sure that you only use 3 add on kexts??? No VoodooPS2Controller.kext and another kexts???



Now DELETE all of your CLOVER folder,, and and use mine (i attached it), i make mistake before,, forgot to patch minstolen patch at ssdt-0.aml (sorry). Now try it again, and give me report as soon as possible.

CLOVER.zip

Edited by Andres ZeroCross
Make it simple

Share this post


Link to post
Share on other sites
8 hours ago, Andres ZeroCross said:




Are you sure that you only use 3 add on kexts??? No VoodooPS2Controller.kext and another kexts???



Now DELETE all of your CLOVER folder,, and and use mine (i attached it), i make mistake before,, forgot to patch minstolen patch at ssdt-0.aml (sorry). Now try it again, and give me report as soon as possible.

CLOVER.zip



Good Morning.



I downloaded this last your Clover folder that you attached and I used the command "sudo kextcache -i /" in the terminal.



Restart the notebook but it continues to reset during boot.



I am attaching the command log "sudo kextcache -i /" to you as per request.



I had to go back to my clover folder to use the notebook.



If you want you can access the notebook remotely. After all if we can solve this, I can share the solution with other people in Brazil.

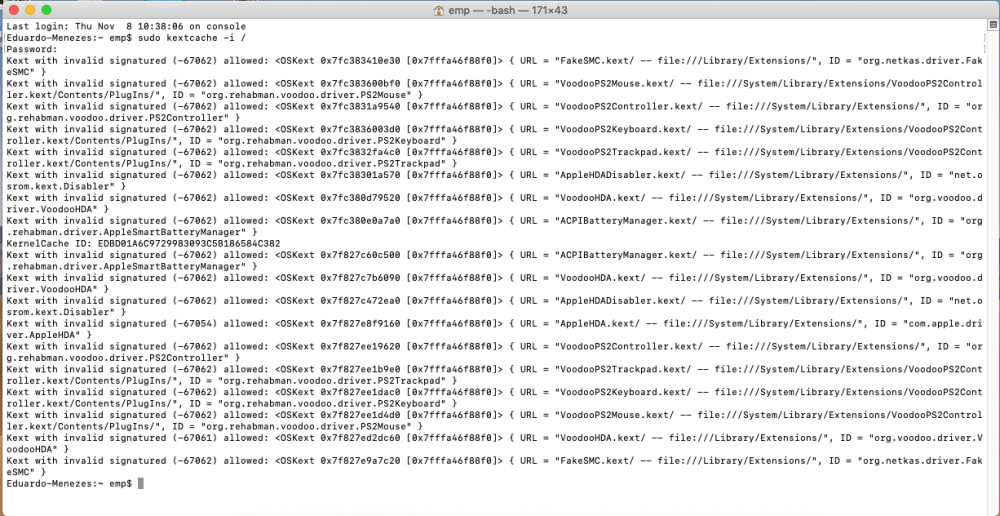

Captura de Tela 2018-11-08 às 10.57.58.png

Share this post


Link to post
Share on other sites
4 minutes ago, EduardoMenezes said:



Good Morning.



I downloaded this last your Clover folder that you attached and I used the command "sudo kextcache -i /" in the terminal.



Restart the notebook but it continues to reset during boot.



I am attaching the command log "sudo kextcache -i /" to you as per request.



I had to go back to my clover folder to use the notebook.



If you want you can access the notebook remotely. After all if we can solve this, I can share the solution with other people in Brazil.

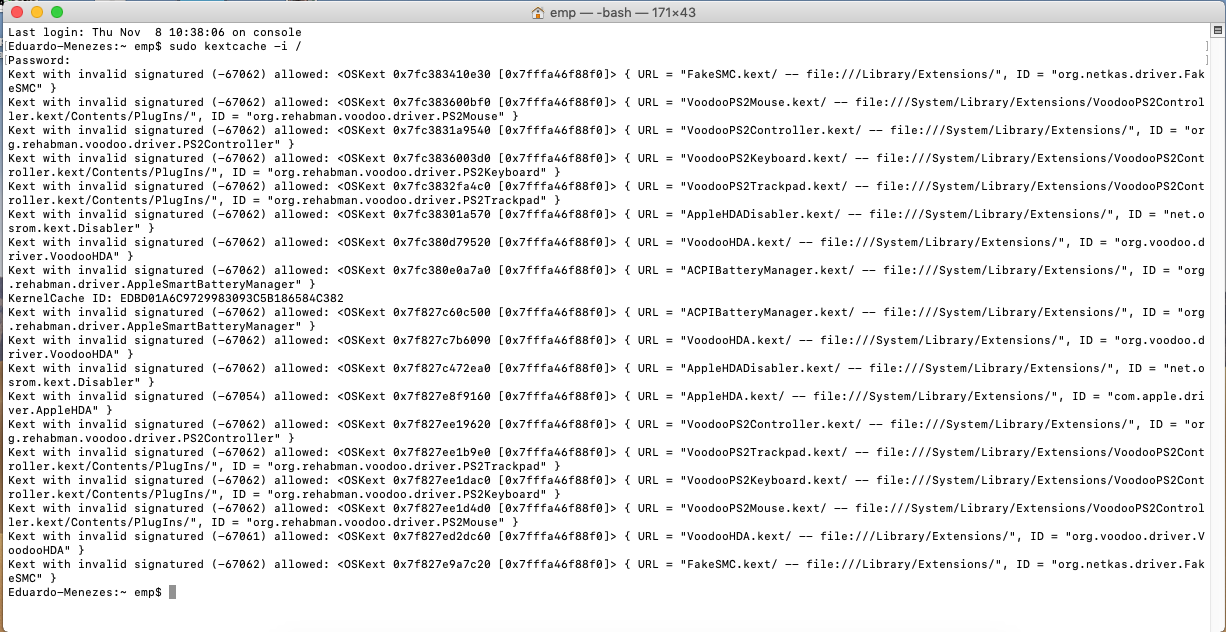

Captura de Tela 2018-11-08 às 10.57.58.png





As you can see, you did wrong about my instructions. I already tell you "REMOVE ALL 3rd party kext from Library/Extensions and System/Library/Extensions". But as per log i can see FakeSMC. VoodooPS2Controller.kext, VoodooHDA.kext, AppleHDADisabler.kext, ACPIBatteryManager.kext are still at Library/Extensions and System/Library/Extensions. Did you read my comment above????

Edited by Andres ZeroCross

Share this post


Link to post
Share on other sites
2 minutes ago, Andres ZeroCross said:





As you can see, you did wrong about my instructions. I already tell you "REMOVE ALL 3rd party kext from Library/Extensions and System/Library/Extensions". But as per log i can see FakeSMC. VoodooPS2Controller.kext, VoodooHDA.kext, AppleHDADisabler.kext, ACPIBatteryManager.kext are still at Library/Extensions and System/Library/Extensions. Did you read my comment above????

I understand. I'll redo and return information.



Share this post


Link to post
Share on other sites
9 minutes ago, Andres ZeroCross said:

How about it???

Sent from my Mi Note 2 using Tapatalk




Really those kexts needed to be removed. but during boot the screen dims and the notebook restarts.

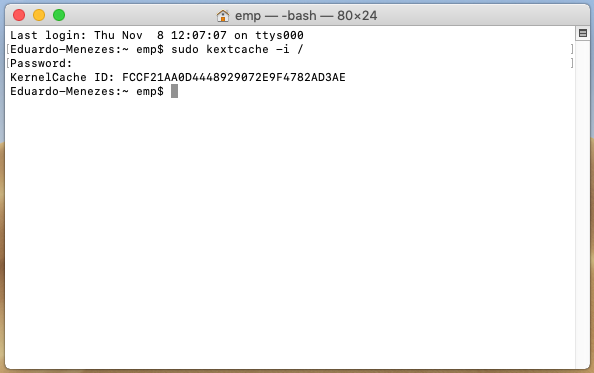

Captura de Tela 2018-11-08 às 12.13.43.png

Share this post


Link to post
Share on other sites


Really those kexts needed to be removed. but during boot the screen dims and the notebook restarts.





Correct, remove it. And use my Clover folder. If problem still persist, can you take video?? I need to see the log.

Sent from my Mi Note 2 using Tapatalk

Share this post


Link to post
Share on other sites
1 hour ago, Andres ZeroCross said:

Correct, remove it. And use my Clover folder. If problem still persist, can you take video?? I need to see the log.

Sent from my Mi Note 2 using Tapatalk




Yes, I'm using your Clover folder. Follow the video link.

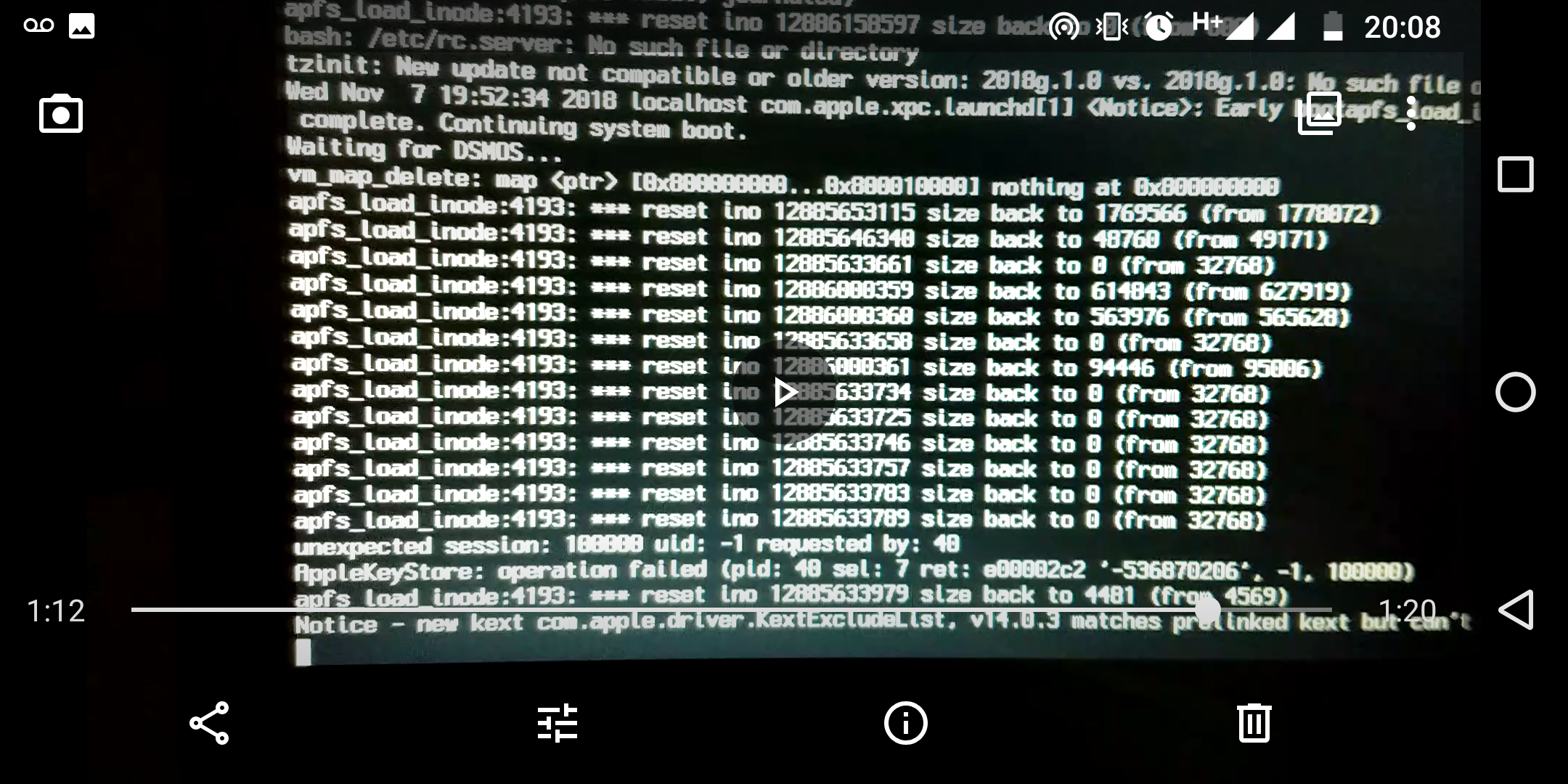

https://drive.google.com/file/d/1UfXCdAalnHEE4-Xyih4hIbadAdJ60oCf/view?usp=sharing

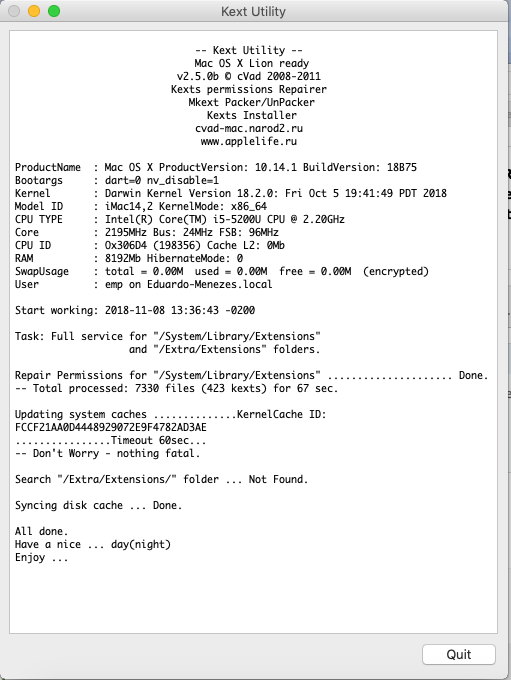

Captura de Tela 2018-11-08 às 13.40.38.png

Captura de Tela 2018-11-08 às 12.13.43.png

Share this post


Link to post
Share on other sites
6 minutes ago, EduardoMenezes said:


Yes, I'm using your Clover folder. Follow the video link.



https://drive.google.com/file/d/1UfXCdAalnHEE4-Xyih4hIbadAdJ60oCf/view?usp=sharing

It's still related to graphics. Can you fast response?? You take too long to reply

Sent from my Mi Note 2 using Tapatalk


Just tell me when you can make fast reply to this forum,, there is too many configurations that i must reply (i joint many forums and group). So it make me no focus if you reply the forum discussion for so long.

Edited by Andres ZeroCross

Share this post


Link to post
Share on other sites
3 minutes ago, Andres ZeroCross said:

It's still related to graphics. Can you fast response?? You take too long to reply

Sent from my Mi Note 2 using Tapatalk


I just have to translate some things. I'm learning English now, sorry.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Bikash
      Hello..
      I am trying to install macOS Mojave in my laptop but the is very slow.. I tried different methods and tutorials but all have same result.

      Install of High Sierra, Sierra and El capitan is fast and have no issue.

      Specifications:
      hp notebook v5d75pa#acj
      i5-4210u
      Intel HD 4400
      4gb ram ddr3
    • By TorqueX86
      Hi guys,

      I'm at my wit's end. I really need a hand here.
      I found only one clover setup for my motherboard, and works absolutely flawlessly for Mojave.

      Today I added an Asus Thunderbolt EX3 card, and that won't even let me boot my Mojave installation.

      My config.plist in attachment. Let's solve at least the Thunderbolt issue for now.

      There are also other issues, but let's solve this one first.

      Asus WS Z390 PRO + i9 9900K
      32GB 3200
      Nvidia 2080Ti for Windows and AMD RX480 for MacOS.
      Samsung NVME 950PRO
      config.plist
    • By arsradu
      Hi guys,

      So, this little tutorial is meant to help people fix a new issue with Mojave: opening jpg files (looks like it happens with larger files, not so much with smaller ones) using Quick Look (on spacebar key pressed) or Preview app, using the dedicated GPUs.
      The issue is that, when trying to open jpg files (for some reason, it doesn't occur with pngs), the pop-up window would remain in an endless loop. And from that point forward, any other app trying to open the same file will either become unresponsive (in the case of the Preview app) or just stay in endless loop (in case of Quick Look)

      As a workaround, in case the tutorial below doesn't work for you, you can use Grab (built-in app in MacOS) to open said files.

      This issue DOES NOT occur using the iGPU. So...if you're comfortable using the iGPU, just switch to that and you should be good to go. You don't need this tutorial.

      This tutorial is based on @Cyberdevs' research and testing on this topic (especially useful if you're using an RX series AMD video card), and my own very limited time testing this on my rig. I just thought it would be useful to create a new thread for it so that people can discuss this particular issue here.


      With that being said, I'll just move on to the actual tutorial.

      New (probably better) method.

      Switch your SMBIOS in Clover config in regards to the dedicated GPU you're using, instead of the CPU. Take a look here and choose the corresponding SMBIOS closest to your hardware.
      Yeah, that's it.

      In case you lose CPU PM with this method, there are multiple ways to fix that, and they do not make the object of this thread.  It worked perfectly fine for me though and I didn't need to change anything else.

      Alternatively, you can also try one of the MacPro SMBIOSes, such as MacPro5,1 or MacPro6,1. It was tested multiple times and it showed good results.
      Keep in mind that choosing these will most likely not show you an iGPU in System Report, since those machines generally (probably all of them) use Xeon CPUs with no iGPUs either.

      /!\NOTE: There have been reports saying that using this method (switching SMBIOS to a MacPro one) with newer versions of MacOS may cause iTunes to crash.
      So...keep that in mind and better try some of the other methods mentioned here.

      A simple Lilu plugin

      Thanks to vulgo for the plugin and @Matgen84 for sharing and testing it, we now have yet another possible solution to this issue. It's a Lilu plugin (which means that it requires Lilu.kext in order to work) it's called NoVPAJpeg, and it can be downloaded from here.
      You use it as a regular kext, alongside Lilu. I prefer (and recommend) using it within the EFI folder, in Clover/kexts/Other. But if you want to use it in S/L/E, that should work just fine.

      More info can be found in this post here.

      UPDATE:

      According to Vulgo, NoVPAJpeg.kext is now deprecated.
      In case its functionality is needed, use WhateverGreen.kext (alongside Lilu.kext) and add the following boot arguments:
      shikigva=32 shiki-id=Mac-7BA5B2D9E42DDD94 In case you wanna try alternative medicine  ...

      The main thing we need to do is actually very simple: we need to enable the iGPU (integrated GPU) by default, in BIOS, while actually being connected to the dedicated GPU.

      For ATI GPUs (curtesy of @Cyberdevs' post here).

      The discreet GPU should be set as primary in BIOS and your displays should be connected to your discreet GPU
      The iGD/iGPU/iGFX must be enabled in BIOS/UEFI as the secondary GPU.

      I removed the DSDT Reconfigured the config.plist to and removed some flags which weren't needed because of the DSDT added the InjectATI + Ornioco Framebuffer (I removed the Orinoco framebuffer because of some weird glitches but it might be useful for other AMD GPUs if you inject the correct framebuffer according to your GPU. No need to inject anything for nVidia GPUs unless your GPU needs it) Added the InjectIntel + ig-platform-id for my intel HD530 (for intel HD 530 I use the 0x19120001 ig-platform-id)
      Steps 5 to 7 might not be necessary I just did them anyway, if anyone succeeded to get quicklook working without those steps let me know so I can exclude those steps.

           Also confirmed to work with AMD R9 270X on a SandyBridge rig (without an iGPU) using WhateverGreen + Lilu kexts, which also helped to solve the transparency issue along with the Quick Look problem, it also resolved the buggy Screen Capture (Command+Shift+5) issue as well.

          Also, do:
      nvram cleanup kextcache & prelinked kernel rebuild reboot  More info on that here.


      For NVIDIA GPUs (tested on my old MSi GTX 650)

      This is what I needed for my NVIDIA GPU and the MSI motherboard in the signature (*since then, I upgraded my GPU to my current RX 580). Your milage may vary, depending on your hardware. But, the idea should be the same regardless.

         For MSi motherboads (check out my motherboard details in the signature)

      Set your BIOS to use PEG (dedicated GPU) so you can boot.
      Since you're reading this, chances are that you're already connected to the dedicated GPU and the BIOS is set to PEG. So just go into BIOS and see if you're using the iGPU or the dedicated (PEG) graphics device by default.
      If you're already using this, skip to Step 3 (the part AFTER Reboot). Reboot (I think you don't necessarily need to boot into the OS...but you do need to reboot at least until Clover UI) Reboot back into BIOS and set it from PEG to IGD (integrated graphics) WITHOUT removing the cable. Save Reboot again.
         The result should be that the OS is tricked into thinking you're booting with the IGPU when in fact you're using the dedicated GPU.

         For Gigabyte motherboards

         Set:
      Peripherals -> Initial Display Output -> iGFX Chipset -> Internal Graphics -> Enabled
           DVMT Pre-Allocation -> default 64M.
           DVMT Total Gfx Mem -> default 256M Save Reboot
         You should do this with the cable connected to the dedicated GPU.

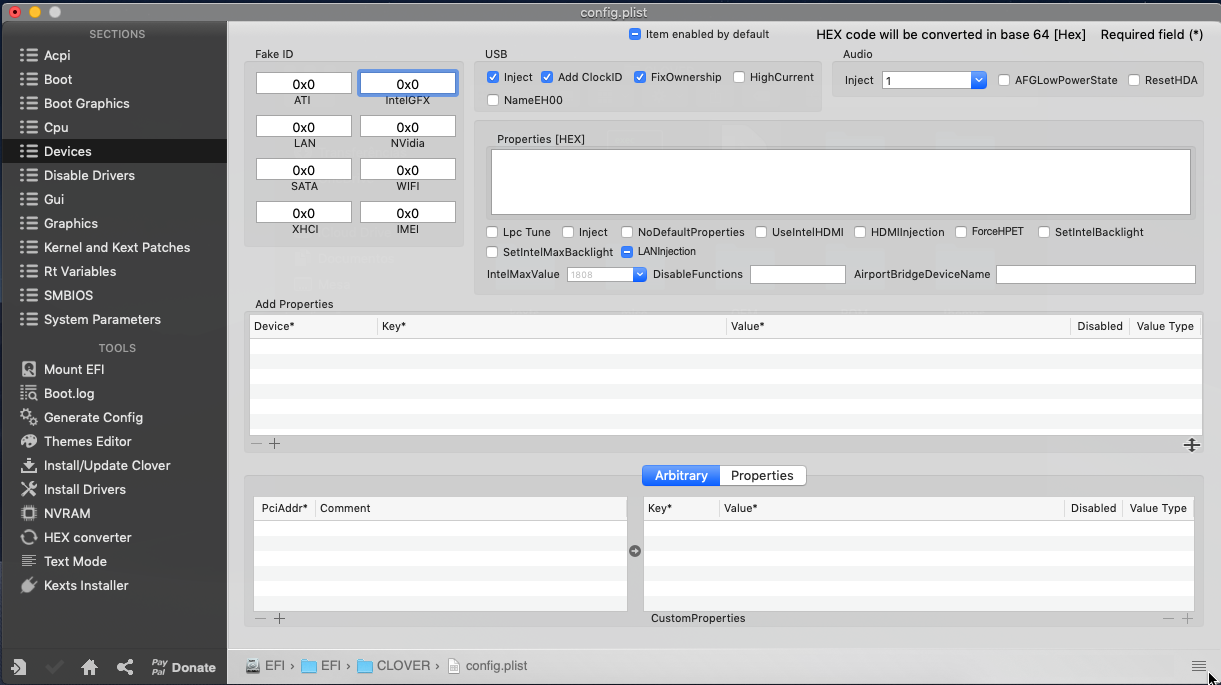

      You will also need to patch the iGPU from Clover config.
      1. Graphics -> Inject Intel (UNCHECK Inject Nvidia or ATI if it's checked).
      2. ig-platform-id (in my case for Intel HD 4600 Desktop) it was: 0x0d220003

      And use IntelGraphicsFixup.kext (now included into WhateverGreen.kext) in Clover/kexts/Other. In my particular case, without the kext, I would get freezes in Safari.

      Another way to activate the iGPU while having the dGPU set as primary is by going into BIOS/SAG/Graphics Configuration/iGPU and setting Multi-Monitor to [Enabled], all the rest remains on [Auto], and set Inject/Intel to [True] in Clover config.*.

      Thanks to @gjw for the tip.

      *Motherboard dependent. But the multi-monitor option might be the same regardless of manufacturer.


      This might be a bug with Mojave and it could be fixed by Apple in the future. but in the meantime, feel free to use this if it helps you fix the issue.

      For HP motherboards (including laptops), so far no solution, unless the BIOS somehow allows to switch from dGPU to iGPU and vice-versa.

      Cheers!
    • By tlefko
      Now updated for 10.13.6+ Designed for i7 Skylake, QHD+, 256/8GB memory
      https://github.com/tlefko/OSX-XPS13-9350
      INSTALL
      you may want to disable Configure BIOS settings for EFI Booting. Disable RAID, enable AHCI, virtualization, make sure VRAM is over 32. and you should be set. also disable secure boot and enable UEFI booting You should create an EFI folder onto the USB and copy the contents of the USB onto the drive Boot off the usb using external mouse/keyboard (if required) and follow the installer prompts boot off the MAC HDD NOTES
      You may want to remove the DSDT patches if you have an issue. and manually repatch. however if you have the same model it should not be an issue. POST INSTALL
      Copy the folders from the root of the USB onto the computer efi folder. NOTES
      Some sleep bugs Tested with 10.13.6, not with 10.14 DSDT patches may have an issues if not the same model, you can remove them if there is an issue. CREDITS
      @Rehabman @maz-1 @syscl @darkvoid SUPPORT
      feel free to ask questions / open answers, you can also check out my other repository covering a previous mac version for the same model for other files for that / information on this topic Files.zip
    • By eraser0
      Hi Happy new YEAR

      My laptop doesn't sleep at all

      sometime it sleeps with darkwake=0,1,2 but leads to shutdown
      other arguments the screen just turns off and it keeps running

      this is my conflig plist if anyone would help me


      config2.plist
×
