Haive_Music

Need some help with DSDT and SSDT with hotplug and weird characters

7 posts in this topic

Recommended Posts

Hey guys,



I'm really hoping someone has the experience and ability to help me iron out the last remaining issue on my build.



The motherboard is: Gigabyte Z370 Aorus Gaming 7 and I'm running a Alpine Ridge thunderbolt card (Revision 2).   I've gotten everything working for the most part with the exception of Thunderbolt hotplug.  This is the last piece of the puzzle.  I've tried so many different DSDT/SSDT's, cable plugged in, and unplugged, without any luck at all.

I've managed to get my Focusrite Clarett 8Pre Thunderbolt working and it's showing up under the PCI section.  It works great, until I shut the device off and turn it back on.  I'd really like to try to get this hotplug issue sorted out, but I've had absolutely no luck so far.



I've managed to get the Alpine Ridge NHI and USB controllers showing up in the PCI section too, but for some reason, the USB lists a bunch of ',,,,,,,,' after the name.





I'll be the first to admit - I don't really know a whole lot about what I'm doing with this stuff, but I've attached relevant files in hopes someone more experienced and knowledable can help me get this working.



Thanks guys!

config.plist

DSDT.aml

John’s iMac.iojones

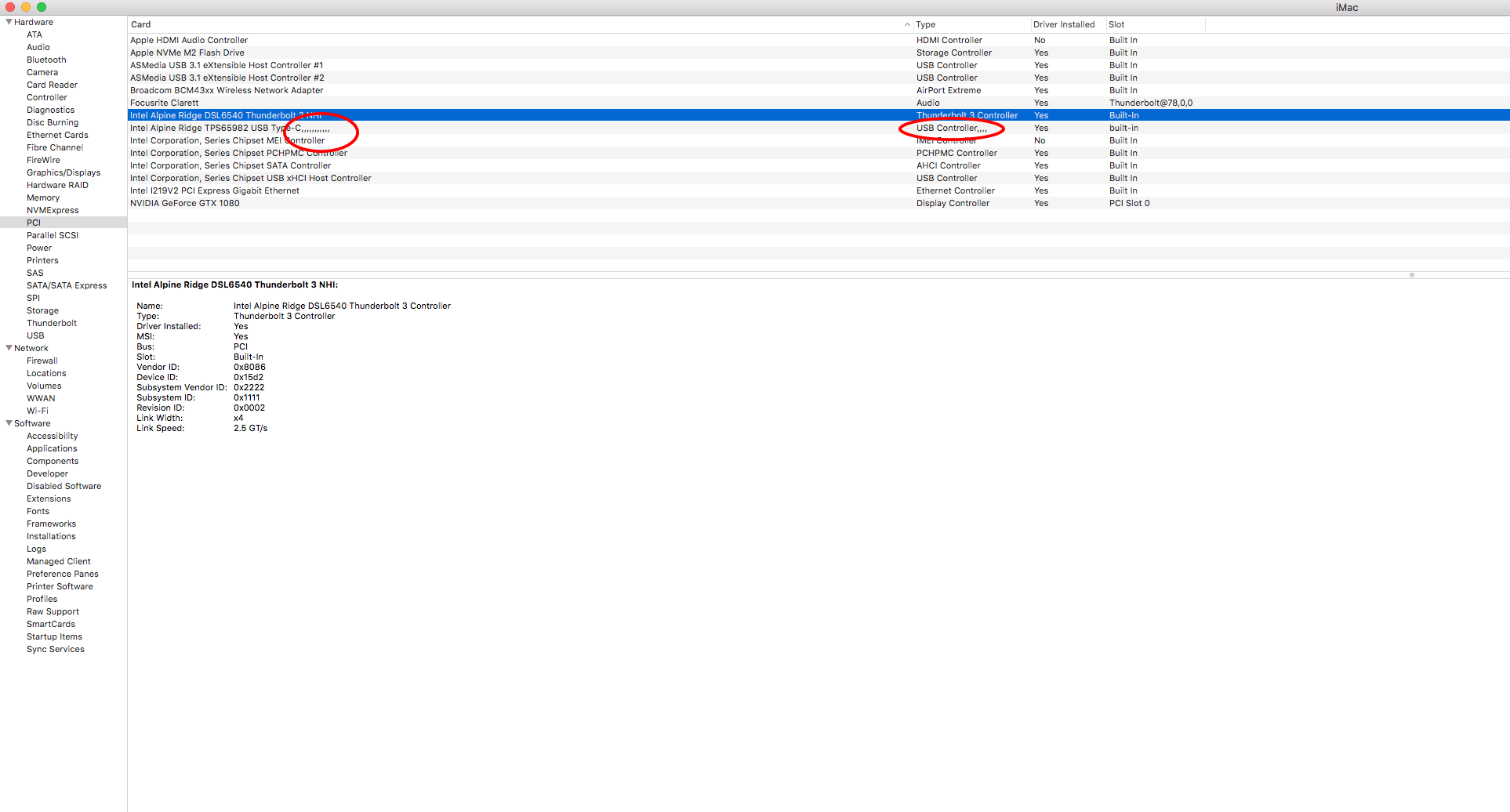

Screen Shot 2018-10-09 at 2.39.16 PM copy.png

SSDT-TB3.aml

Edited by Haive_Music

Share this post


Link to post
Share on other sites
Advertisement

Hey Foskvs.  Thanks for the reply.  I do understand that, but I still feel it's at least an indication of the system being configured and working properly.



A perfect example of this was the many SSDT's I tried in an attempt to get thunderbolt hotplug to work, and my Focusrite was being detected as an 'unknown multimedia device' and I had an icon in the upper right hand tray that had an 'Eject multimedia card'.  Once I messed around with the SSDT (again, I have no idea what I'm doing with it, just randomly trying things), that tray icon went away, and my Focusrite interface was recognized and behaving correctly.





In either case, I'm far less concerned about the ',,,,,,,' in the name.  My main goal is to find someone who knows what they're doing when it comes to getting thunderbolt hotplug to work.  I've tried everything I could on my end, and have failed.

Share this post


Link to post
Share on other sites

I’m afraid to tell you that your feeling is wrong...

Look at real Macs. PCI is empty, but the system is configured correctly.

SSDTs don’t inject only PCI properties.

By the way to change those properties, you need to edit _DSM Methods related to the device.

Share this post


Link to post
Share on other sites

Foskvs - The PCI section aside, the behavior of the system changed when I messed around with this SSDT.  I do not get a 'Eject Media Card' tray icon now, where as before I did.  Obviously, since that's literally the only change that has been made, and it changed the behavior of how the device operates and is recognized under OSX then yes - there's more to it than 'your feeling is wrong'.  Again, I completely understand that the PCI section is purely cosmetic - I'm not saying that it isn't, but I'm saying that there's a distinct correlation between the SSDT and how the system is recognizing and interacting with the device.  Perhaps that was simply a side effect of the SSDT having a more appropriate configuration for my device?  I don't know - but again - it changed the behavior of the device under OSX: plain and simple.   Maybe that SSDT changed the _DSM methods then? I don't know?  Again... just as I said multiple times now, I have no idea what I'm doing with them and am trying to learn and gain an understanding of it on my own (which I'm not having much luck doing), and thus here I am inquiring and asking people who have more experience and expertise than myself here for their aid and help.  In either case, cosmetic section aside - I'm truly after getting thunderbolt hotplug to work, and I feel like we're getting hung up on trivial/meaningless/irrelevant tangent here that's completely unrelated to the core of the issue.







Mald0n - Sorry man.  I appreciate your response, but... I have no idea here how how to put that in to the SSDT.  Is that to help get hotplug working?



Edited by Haive_Music

Share this post


Link to post
Share on other sites

Hey there Haive_Music, I have a build where a Presonus Quantum 2 interface is shown as unknown device, I think similarly to your problem. Any idea what you might have fiddled with in the SSDT?

Share this post


Link to post
Share on other sites
