lakyman Posted June 25, 2018 Share Posted June 25, 2018 I have a z77x chipset and an intel hd 4000 and i can't find a solution that works with me ! The one an only problem is the intel hd 4000 not working well and has only 4mb ! i did try intel inject with ig platform 0x01620005 and intelgraphicfixup and lilu.kext nothing works ! I'm nearly going mad it's been almost a week that i've tried any solution but either i'm doing something wrong ! Either i missed somthing ! Please help me !!! Link to comment Share on other sites More sharing options...
Allan Posted June 25, 2018 Share Posted June 25, 2018 Run this app, and upload the file result here. RunMe Are you injecting Intel? https://clover-wiki.zetam.org/Configuration/Graphics#graphics_inject_inject-intel Link to comment Share on other sites More sharing options...
VCH888 Posted June 26, 2018 Share Posted June 26, 2018 Z77X-UP5 TH The zip file may help you fix it out. My CPU is i3770K + nVidia GPU. P.S. could not upload files in the post. Link to comment Share on other sites More sharing options...
lakyman Posted June 26, 2018 Author Share Posted June 26, 2018 (edited) 9 hours ago, Allan said: Run this app, and upload the file result here.RunMe Are you injecting Intel? https://clover-wiki.zetam.org/Configuration/Graphics#graphics_inject_inject-intel I'm not sure but I think I've done it ! Here is the link of the file generated by your app ! If it could Give you an idea just to boot the setup I have to put a fake id if I don't you can see the picture on the screen is just at third good ! Thanks for your help ! https://drive.google.com/open?id=1skljVd93k79RNj_cBLSwS029tEbifGl5 2 hours ago, VCH888 said: Z77X-UP5 TH The zip file may help you fix it out. My CPU is i3770K + nVidia GPU. P.S. could not upload files in the post. Thanks I will try it but do you have the intel hd 4000 working good ? cause I don't have an Nvidia gpu ! thanks Edited June 26, 2018 by lakyman Link to comment Share on other sites More sharing options...
lakyman Posted June 26, 2018 Author Share Posted June 26, 2018 I selected the clover option inject EDID now it works but I have 2 screens instead of one ! I want to remove the build in display and let just my main display work ! thanks Link to comment Share on other sites More sharing options...

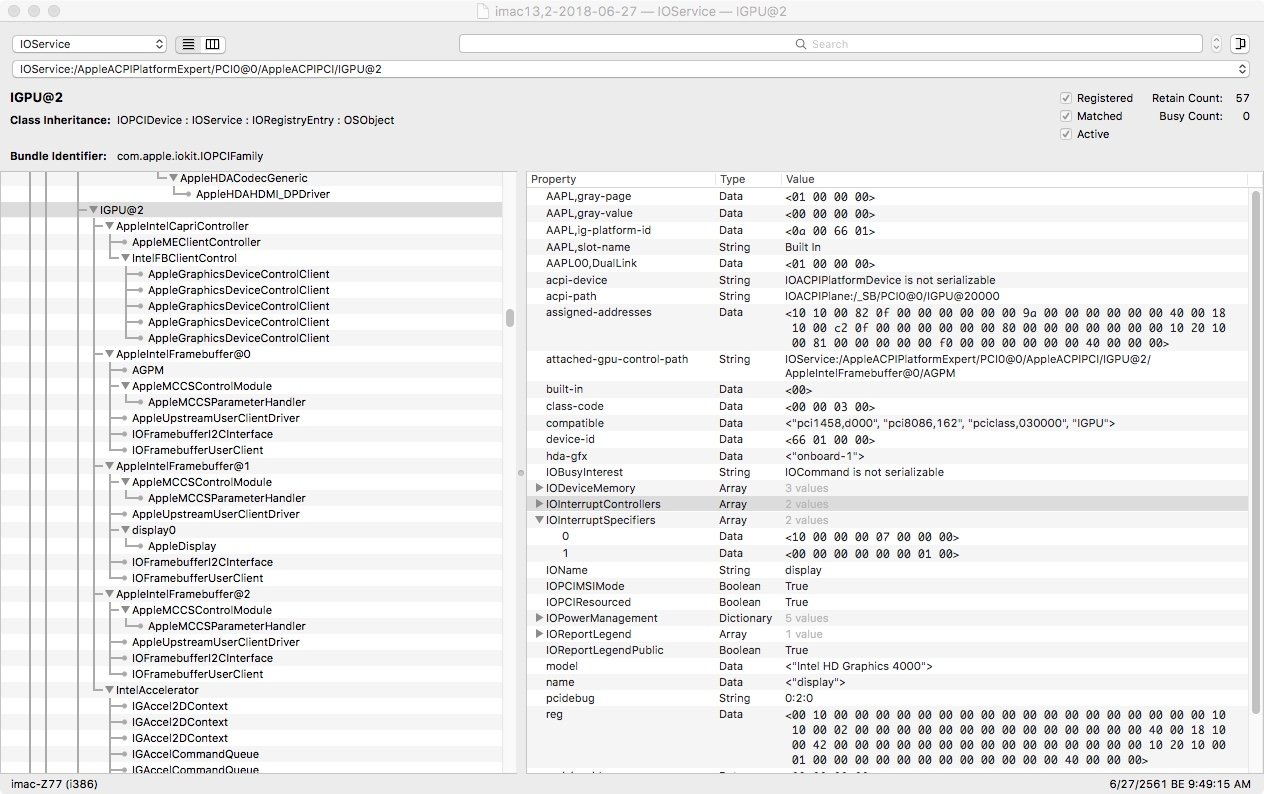

VCH888 Posted June 27, 2018 Share Posted June 27, 2018 My Intel HD4000 is working fine, also HDMI audio is working with patching kext. Spoiler Intel HD Graphics 4000: Chipset Model: Intel HD Graphics 4000 Type: GPU Bus: Built-In Slot: Built In VRAM (Dynamic, Max): 1536 MB Vendor: Intel Device ID: 0x0166 Revision ID: 0x0009 Metal: spdisplays_metalfeaturesetfamily13 Displays: SA300/SA350: Resolution: 1920 x 1080 @ 60 Hz Pixel Depth: 32-Bit Color (ARGB8888) Display Serial Number: HMAB###### Mirror: Off Online: Yes Rotation: Supported Automatically Adjust Brightness: No spdisplays_pixelresolution: 1920 x 1080 @ 60Hz (1080p) Spoiler I think we have the same devices, and you may try my dsdt.aml and ssdt-#.aml in /ACPI/patched/ folder. ssdt.aml is for my Intel CPU i3770K. For audio id, you may need to edit layout-id of HDEF to 0x01, 0x00, 0x00, 0x00 in ssdt-1.dsl and then compile it to ssdt-1.aml. Editing config.plist to match your requirement. Link to comment Share on other sites More sharing options...
lakyman Posted June 28, 2018 Author Share Posted June 28, 2018 On 6/27/2018 at 5:56 AM, VCH888 said: My Intel HD4000 is working fine, also HDMI audio is working with patching kext. Hide contents Intel HD Graphics 4000: Chipset Model: Intel HD Graphics 4000 Type: GPU Bus: Built-In Slot: Built In VRAM (Dynamic, Max): 1536 MB Vendor: Intel Device ID: 0x0166 Revision ID: 0x0009 Metal: spdisplays_metalfeaturesetfamily13 Displays: SA300/SA350: Resolution: 1920 x 1080 @ 60 Hz Pixel Depth: 32-Bit Color (ARGB8888) Display Serial Number: HMAB###### Mirror: Off Online: Yes Rotation: Supported Automatically Adjust Brightness: No spdisplays_pixelresolution: 1920 x 1080 @ 60Hz (1080p) Hide contents I think we have the same devices, and you may try my dsdt.aml and ssdt-#.aml in /ACPI/patched/ folder. ssdt.aml is for my Intel CPU i3770K. For audio id, you may need to edit layout-id of HDEF to 0x01, 0x00, 0x00, 0x00 in ssdt-1.dsl and then compile it to ssdt-1.aml. Editing config.plist to match your requirement. Thanks ! I'll try it but why is injecting an edid duplicate displays ? How can i edit it to matche my setup ! By the way i have 34" inch display with a 3440x1440 resolution ! Can you please tell me how to do it to modify this ioreg or do i have to pass by clover configurator ? thanks Link to comment Share on other sites More sharing options...
VCH888 Posted June 29, 2018 Share Posted June 29, 2018 Do you get AppleIntelHD-kext loaded properly yet? And then post the result of RunMe.app again. Maybe someone else could help you. Sorry, I have no idea how to get such the higher resolution since I don't have any monitor or LED TV which is higher than 1080. Link to comment Share on other sites More sharing options...
