demos41 Posted June 11, 2018 Share Posted June 11, 2018 cannot install clover on ssd, cannot even mount the refi partition from ssd it does not show at the bottom to mount in clover configurator. any help? Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) 13 minutes ago, Hervé said: Which Clover version? r4522 stays blocked at random seed, disc does not appear to mount efi.. Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 Upload your EFI folder and post you system specs Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 2 minutes ago, xtddd said: hi,,quadro 1000m can be supported on macos 10.14? This question should be in in a topic of its on, under the graphics section. 1 Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 2 minutes ago, demos41 said: this efi is in my Mojave ssd but cannot see it in clover configurator to mount hp elitedesk 800 G2 i3 6100 hd 530, in the acpi folder from prods 600 g1, when I boot with usb pen I get to mojave, other wise unable stops at random seed BOOTX64.efi config_origin.plist config1.plist config_check.plist DumpLog.txt XSDT.aml FPDT.aml SSDT-10x.aml SSDT-3-Sata0Ide.aml HPET.aml UEFI.aml SSDT-11x.aml SSDT-x5_1-ApIst.aml ASF!.aml RSDT.aml SSDT-x5_6-HwpLvt.aml SSDT-6x.aml SSDT-7x.aml SSDT-1-SaSsdt.aml RSDP.aml DSDT-pa2.aml DSDT.aml DSDT-pa0.aml MSDM.aml SSDT-x5_5-ApHwp.aml BGRT.aml SSDT-4-PtidDevc.aml SSDT-x5_3-ApCst.aml DSDT-pa1.aml SSDT-8x.aml SSDT-0-ShmTable.aml SSDT-x5_4-Cpu0Hwp.aml FACS.aml SSDT-2-PerfTune.aml FACP.aml SSDT-5-CpuSsdt.aml SSDT-9x.aml DSDT-or.aml SSDT-5.aml SSDT-4.aml SSDT-12x.aml SLIC.aml MCFG.aml SSDT-x5_2-Cpu0Cst.aml SSDT-3.aml SSDT-2.aml SSDT-0.aml SSDT-1.aml APIC.aml SSDT-x5_0-Cpu0Ist.aml DumpLog.txt XSDT.aml FPDT.aml SSDT-10x.aml SSDT-3-Sata0Ide.aml HPET.aml UEFI.aml SSDT-11x.aml SSDT-x5_1-ApIst.aml ASF!.aml RSDT.aml SSDT-x5_6-HwpLvt.aml SSDT-6x.aml SSDT-7x.aml SSDT-1-SaSsdt.aml RSDP.aml DSDT-pa2.aml DSDT.aml DSDT-pa0.aml MSDM.aml SSDT-x5_5-ApHwp.aml BGRT.aml SSDT-4-PtidDevc.aml SSDT-x5_3-ApCst.aml DSDT-pa1.aml SSDT-8x.aml SSDT-0-ShmTable.aml SSDT-x5_4-Cpu0Hwp.aml FACS.aml SSDT-2-PerfTune.aml FACP.aml SSDT-5-CpuSsdt.aml SSDT-9x.aml DSDT-or.aml SSDT-5.aml SSDT-4.aml SSDT-12x.aml SLIC.aml MCFG.aml SSDT-x5_2-Cpu0Cst.aml SSDT-3.aml SSDT-2.aml SSDT-0.aml SSDT-1.aml APIC.aml SSDT-x5_0-Cpu0Ist.aml Shell64.efi bdmesg.efi Shell64U.efi Shell.inf OsxFatBinaryDrv-64.efi AppleImageCodec-64.efi AppleUITheme-64.efi DataHubDxe-64.efi AppleKeyAggregator-64.efi apfs.efi OsxAptioFix2Drv-64.efi VBoxHfs-64.efi FSInject-64.efi FirmwareVolume-64.efi SMCHelper-64.efi OsxAptioFixDrv-64.efi UsbMouseDxe-64.efi AppleImageCodec-64.efi AppleUITheme-64.efi AppleKeyAggregator-64.efi FSInject-64.efi FirmwareVolume-64.efi SMCHelper-64.efi Ps2MouseDxe-64.efi DirectHW Info.plist Info.plist VoodooPS2Trackpad Info.plist Info.plist SuperVIAATA Info.plist VoodooPS2Keyboard Info.plist Info.plist Info.plist AppleNForceATA Info.plist CodeResources NullCPUPowerManagement InfoPlist.strings Info.plist ApplePCIIDE InfoPlist.strings Readme.rtf Info.plist USBInjectAll Info.plist Info.plist Info.plist VoodooPS2Mouse Info.plist VoodooPS2Controller VoodooPS2Trackpad Info.plist VoodooPS2Keyboard Info.plist VoodooPS2Mouse Info.plist Info.plist IntelGraphicsFixup ISSUE_TEMPLATE.md IntelFramebuffer.bt Info.plist FakeSMC InfoPlist.strings License.txt Info.plist config_debug.plist config.plist config.plist config_working.plist config.plist theme.plist os_debian.icns os_gentoo.icns os_centos.icns os_recovery.icns os_redhat.icns os_freebsd.icns tool_rescue.icns os_kubuntu.icns os_leo.icns os_chrome.icns os_win.icns vol_mac.icns pointer.icns os_ubuntu.icns os_clover.icns vol_linux.icns vol_optical.icns os_lion.icns vol_internal_ntfs.icns os_hsierra.icns os_remix.icns os_linux.icns os_mac.icns vol_win.icns os_mav.icns os_cougar.icns vol_external.icns os_arch.icns os_kali.icns vol_internal.icns os_legacy.icns vol_recovery.icns os_freedos.icns os_yos.icns os_unknown.icns os_vista.icns os_manjaro.icns os_sierra.icns vol_firewire.icns os_snow.icns tool_shell.icns os_cap.icns vol_clover.icns os_mint.icns config_uefi.plist CLOVERX64.efi What in god green earth is this? When I asked for you to upload your EFI folder I meant a whole folder as a zip, not links to another website. SO I am gonna ask again, please zip your entire EFI folder and upload it to this site in the reply. Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) 41 minutes ago, Pavo said: Upload your EFI folder and post you system specs this efi is in my Mojave ssd but cannot see it in clover configurator to mount hp elitedesk 800 G2 i3 6100 hd 530, in the acpi folder is the ddst sorry, zipped now EFI.zip Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 6 minutes ago, Hervé said: Can a moderator please sanitise this thread? sorry for the unzipped upload, Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 (edited) 14 minutes ago, demos41 said: this efi is in my Mojave ssd but cannot see it in clover configurator to mount hp elitedesk 800 G2 i3 6100 hd 530, in the api folder is the ddst sorry, zipped now EFI.zip Thats better thank you, now with that being said, I have been doing hackintoshes for over a decade now and have never in my life seen someone have this amount of mistakes in their EFI folder. You simply do not take your original ACIP dump and just throw them into the patched DSDT/SSDT area of Clover, also which config.plist are you actually using because there is so.... many to choose from. Finally never ever ever ever....... use NullCPU unless absolutely knowing that you have to. I will see what I can do to clean this up. This is gonna take awhile. Edited June 11, 2018 by Pavo Link to comment Share on other sites More sharing options...

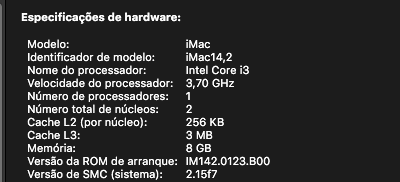

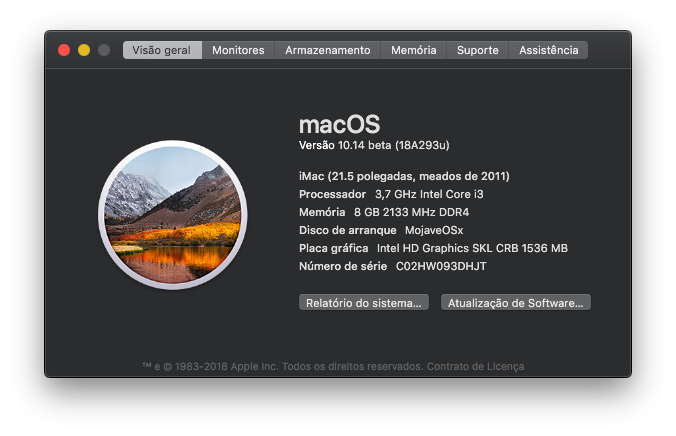

demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) thanks for the info, only did high Sierra, now updated to Mojave with all apps with the install. can only boot from pen with the config in origin selected that gives me 14.2 Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 10 minutes ago, demos41 said: thanks for the info, only did high Sierra, now updated to Mojave with all apps with the install. can only boot from pen with the config in origin selected that gives me 14.2 Well try this EFI but seriously don't even know how you can boot anything with this EFI that you uploaded. EFI.zip Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 tried this efi with the clover no go, with pen it boots the same, somehow I think that clover is not installed on ssd, although I did instal it there. I am almost sure if I remove the efi it still boots, going to try Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 4 minutes ago, demos41 said: tried this efi with the clover no go, with pen it boots the same, somehow I think that clover is not installed on ssd, although I did instal it there. I am almost sure if I remove the efi it still boots, going to try What do you mean by no go? Post pics of issues please. Link to comment Share on other sites More sharing options...

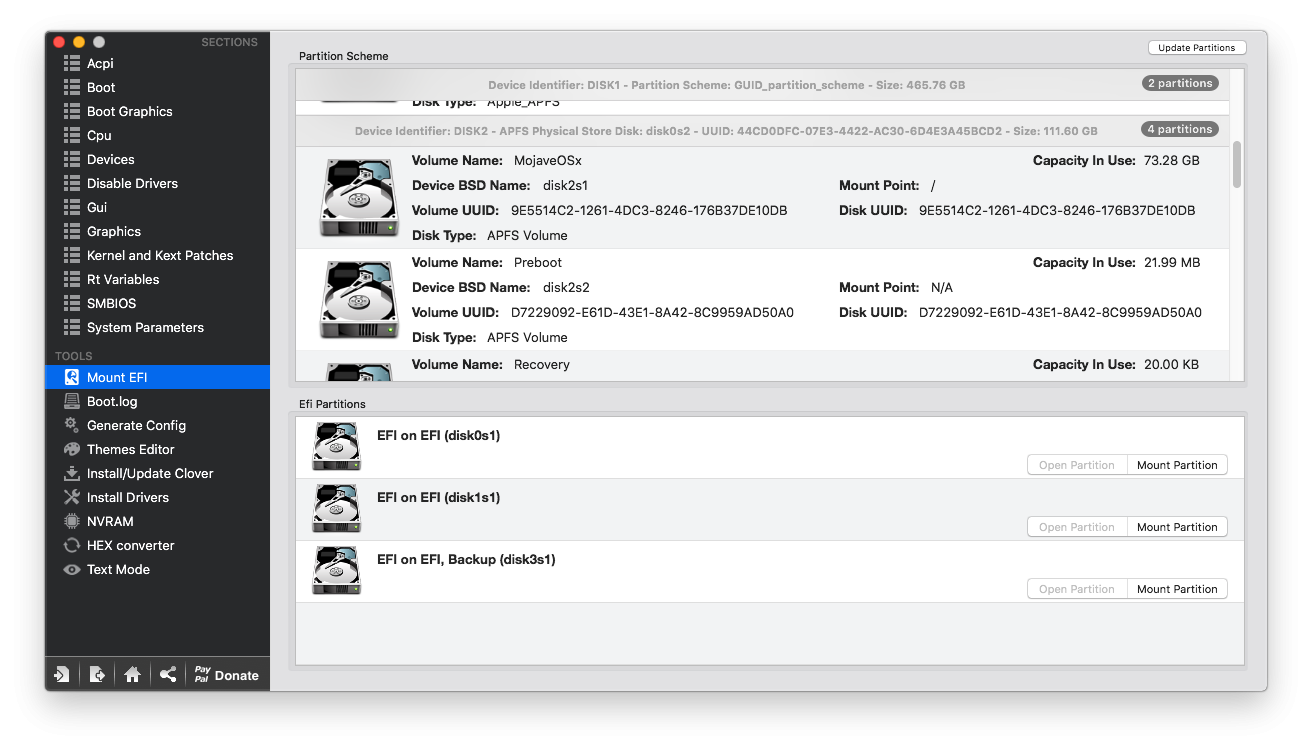

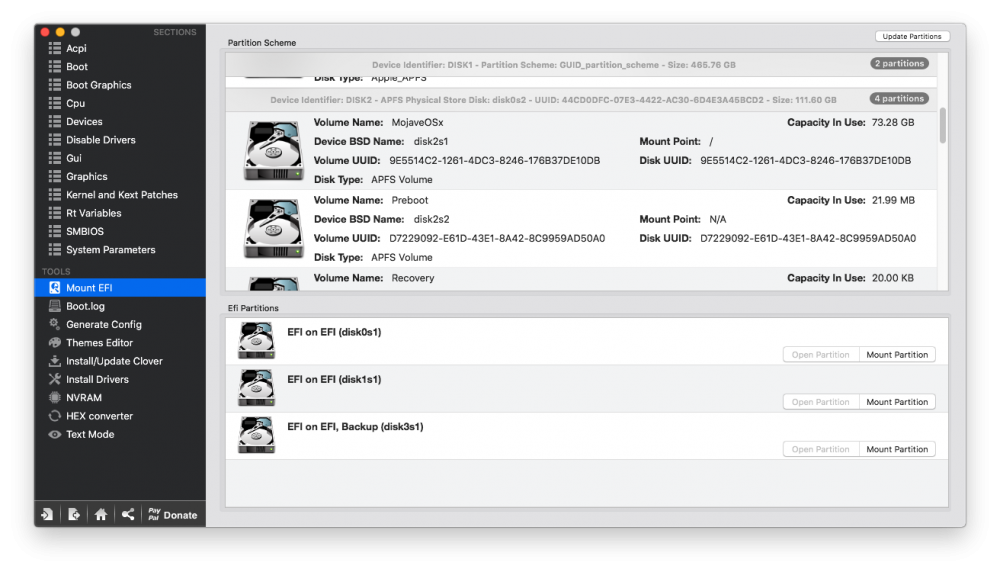

demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 as you can see I cannot mount mojaveosx ssd no option, have a preeboot partition that does not show when pc is turned on, I think the would help Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 16 minutes ago, demos41 said: as you can see I cannot mount mojaveosx ssd no option, have a preeboot partition that does not show when pc is turned on, I think the would help Oh...... this is probably because there were no ESP built on disk2 it looks like. More than likely its a result of installing the OS while other HDDs were connected and the ESP was created on a different drive. This is not a booting issue, this is simply a mounting issue correct? Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) thanks, seems correct to me, don't know much but that is how I installed Mojave over high Sierra, all apps office photoshop etc all is there with the install. all disks where present even backup disk, full acceleration for hd530 too Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...
Pavo Posted June 11, 2018 Share Posted June 11, 2018 6 minutes ago, demos41 said: thanks, seems correct to me, don't know much but that is how I installed Mojave over high Sierra, all apps office photoshop etc all is there with the install. all disks where present even backup disk, full acceleration for hd530 too Yeah you need too just figure out what drive to use to boot from, that is where your EFI folder will go. You don't have to install Clover on every drive, just the drive you select as boot drive in bios settings. Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) 4 minutes ago, Pavo said: Yeah you need too just figure out what drive to use to boot from, that is where your EFI folder will go. You don't have to install Clover on every drive, just the drive you select as boot drive in bios settings. when I press boot option and boot from the ssd nothing happens, all dark, with high Sierra had it was as boot disk when I selected the ssd it would boot, now installed latest clover to that drive ssd and nothing, did not want to take the pc apart to disconnect disks if I could make the ssd to boot would add second monitor, did it for high Sierra, lol did it all but now it seem more puzzled Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...

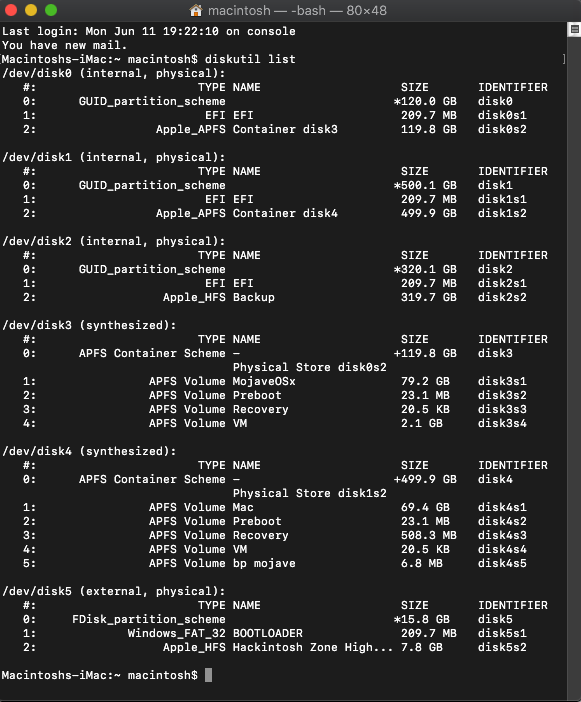

demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) what can I do? disk0 and disk3 are the same one Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...
Gigamaxx Posted June 11, 2018 Share Posted June 11, 2018 3 hours ago, demos41 said: when I press boot option and boot from the ssd nothing happens, all dark, with high Sierra had it was as boot disk when I selected the ssd it would boot, now installed latest clover to that drive ssd and nothing, did not want to take the pc apart to disconnect disks if I could make the ssd to boot would add second monitor, did it for high Sierra, lol did it all but now it seem more puzzled I had the same issue with a disk with CC I was able to use EFIMoiunter to access the EFI folder. Google it and see if you can find it. I was able to boot with the disk I just could not mount using CC but it works with EFImounter. Link to comment Share on other sites More sharing options...

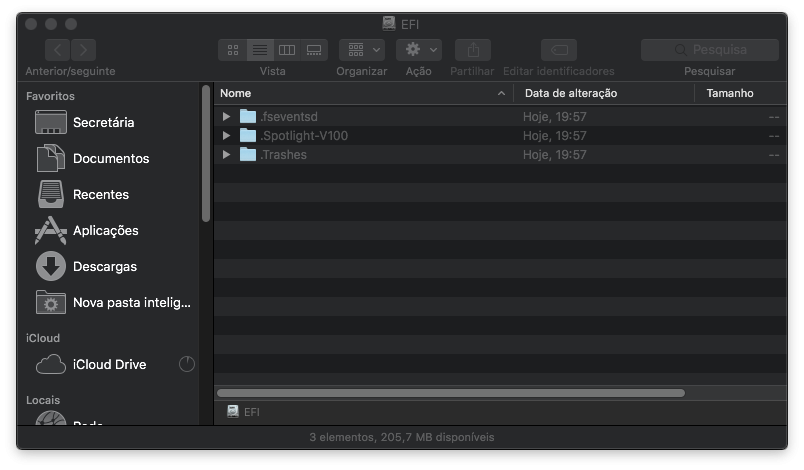

demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 4 minutes ago, Gigamaxx said: I had the same issue with a disk with CC I was able to use EFIMoiunter to access the EFI folder. Google it and see if you can find it. I was able to boot with the disk I just could not mount using CC but it works with EFImounter. yes the efi I mounted is empty what do I do? Link to comment Share on other sites More sharing options...
Gigamaxx Posted June 11, 2018 Share Posted June 11, 2018 8 minutes ago, demos41 said: yes the efi I mounted is empty what do I do? You can drag and drop (copy) your USB EFI folder to it. Link to comment Share on other sites More sharing options...
DACDParis Posted June 11, 2018 Share Posted June 11, 2018 https://github.com/Dids/clover-builder/releases/download/v2.4k_r4515/Clover_v2.4k_r4515.pkg Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 (edited) switched other drives off. managed to boot now from ssd, after some work. but only loads if I choose origin in the config. the config file does not boot edited the config file as origin, now it boots from ssd, no graphics inject, and boot with full acceleration on HD530 skl, trying to add a second monitor, added the kext patch in config, does it work without selection of intel graphics selection in config. I remember using lilu and agdp fix, worked on high Sierra. something else in efi, in kext I only have other folder nothing else Edited June 11, 2018 by demos41 Link to comment Share on other sites More sharing options...
demos41 Posted June 11, 2018 Author Share Posted June 11, 2018 2 hours ago, Gigamaxx said: I had the same issue with a disk with CC I was able to use EFIMoiunter to access the EFI folder. Google it and see if you can find it. I was able to boot with the disk I just could not mount using CC but it works with EFImounter. Thanks a lot, this idea and access made me be able to get it working. EFImounter saved the situation, now all I need is dual display and Mojave complete 1 Link to comment Share on other sites More sharing options...
