hideki Posted February 14, 2018 Share Posted February 14, 2018 Hello I installed sierra on my laptop but i cant fix a problem. HDMI dont work. if i put on, the lcd and monitor start to blink. If i close laptop and open, monitor ok but lcd stay brigness 0. i cant seee nothing. I add a video for see the problem. Thank you. EDIT: The problem was with the tipe of connector. It put me connector-type <00 04 00 00> but I need <00 08 00 00>. Im try to patch via CLOVER but dont work ... debug_14911.zip Link to comment https://www.insanelymac.com/forum/topic/332665-help-asus-k551lb-on-sierra-posinstall/ Share on other sites More sharing options...
hideki Posted February 14, 2018 Author Share Posted February 14, 2018 Ok I patched AppleIntelFramebufferAzul.kext and now worked perfect. Thank you. Link to comment https://www.insanelymac.com/forum/topic/332665-help-asus-k551lb-on-sierra-posinstall/#findComment-2592146 Share on other sites More sharing options...

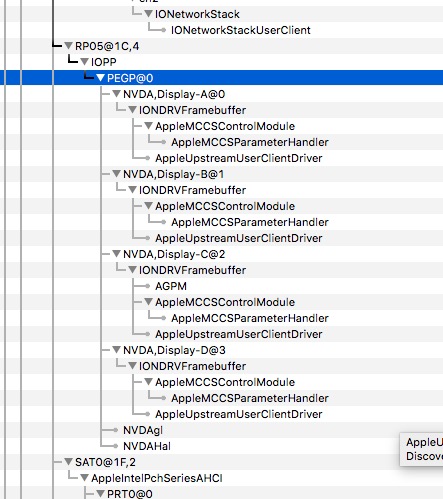

MaLd0n Posted February 14, 2018 Share Posted February 14, 2018 ur Nvidia is disable? appears in ioreg loaded 1 Link to comment https://www.insanelymac.com/forum/topic/332665-help-asus-k551lb-on-sierra-posinstall/#findComment-2592154 Share on other sites More sharing options...
hideki Posted February 14, 2018 Author Share Posted February 14, 2018 ur Nvidia is disable? appears in ioreg loaded MaLd0n 2018-02-14 às 18.02.36.jpg Hello, I don't know... I apply patch to ssdt and dsdt to disable it. I generate new debugs files, becouse i edit dsdt and ssdt files recently. In my ioreg now don't appear.... i think my lastest parchest working. With framebuffer patch work, but randomly.... i don't know what happends .... Thank you. debug_19295.zip 1 Link to comment https://www.insanelymac.com/forum/topic/332665-help-asus-k551lb-on-sierra-posinstall/#findComment-2592179 Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Share Posted February 14, 2018 Hello, I don't know... I apply patch to ssdt and dsdt to disable it. I generate new debugs files, becouse i edit dsdt and ssdt files recently. In my ioreg now don't appear.... i think my lastest parchest working. With framebuffer patch work, but randomly.... i don't know what happends .... Thank you. ye work Link to comment https://www.insanelymac.com/forum/topic/332665-help-asus-k551lb-on-sierra-posinstall/#findComment-2592199 Share on other sites More sharing options...
hideki Posted February 16, 2018 Author Share Posted February 16, 2018 Now, im trying to up my internal card reader. It's usb i think, it's say this in config and ioreg. USB2.0-CRW: ID del producto: 0x0139 ID del fabricante: 0x0bda (Realtek Semiconductor Corp.) Versión: 39.60 Número de serie: 20100201396000000 Velocidad: Hasta 480 Mb/s Fabricante: Generic ID de la ubicación: 0x1d180000 / 3 Corriente disponible (mA): 500 Corriente operativa adicional (mA): 0 Appear but dont work. I insert a card, and ioreg don't say nothing .... Im search but nothing help me in sierra... all guides are too old... Any help about this? Any check or try ? Thank you. Link to comment https://www.insanelymac.com/forum/topic/332665-help-asus-k551lb-on-sierra-posinstall/#findComment-2593351 Share on other sites More sharing options...
