i5-8600k/z370m-d3h with a GTX1060/6GB troubles

YoYelloW · December 28, 2017

So, after many years i updated my system with some new hardware.

I allready had a GTX1060/6GB which worked fine with my earlier build.

Now i am trying to get it to work with my new hardware:

i5-8600k on a Z370m-d3h board from Gigabyte.

All seems well, the stuff boots. but i cant get the graphics card to work properly. Because it needs the webdrivers i checked this in clover configurator, but this results in a reboot loop as soon as the graphics driver is loaded during boot.

I have tried with disablding or enabling the intel GFX part but no change..

Right now i have no idea where to go next. any ideas will be very helpfull...

If more info is needed i can profide ofc.

spakk · December 28, 2017

was "NvidiaWeb" activated in config.plist?
was Nvidiawebdriver installed?

did you also install these two drivers?
Lilu.kext
NvidiaGraphicsFixup.kext

The drivers can be found above under download

if it does not work, then restart your system and enter this code into the terminal:

kextstat | grep -v apple

and then paste the content here in your thread

Edited December 28, 2017 by spakk

YoYelloW · December 28, 2017

Hi, yes all those kexts are installed and also the webdriver was installed.

This installation worked with my previous motherboar and CPU (i5 4570K on a Z87m-d3h) together with the 1060..

spakk · December 28, 2017

Then go to the next step and enter the code

and upload your config.plist

MaLd0n · December 28, 2017

Check here

http://www.insanelymac.com/forum/topic/321872-guide-sierra-high-sierra-on-mobos-serie-100200300-skylake-kabylake-coffeelake-dsdt/

post files there

YoYelloW · December 28, 2017

Thanks so much for helping.

Heres the result from the command:

HCK:~ yoyellow$ kextstat | grep -v apple
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
   38    3 0xffffff7f83dd3000 0x19000    0x19000    as.vit9696.Lilu (1.2.1) 556769C6-DA78-33EB-977F-C39420638467 <7 5 4 3 2 1>
   39    4 0xffffff7f83dec000 0x11000    0x11000    org.netkas.driver.FakeSMC (1765) 9EEC6103-EEBA-34B3-B9AF-8FE333C43E90 <11 7 5 4 3 1>
   40    0 0xffffff7f83dfd000 0xbe000    0xbe000    as.vit9696.AppleALC (1.2.1) 8F814EF4-A74D-3289-BB62-FCD1016E5AE9 <38 7 5 4 3 2 1>
   41    0 0xffffff7f83ebb000 0x6000     0x6000     as.lvs1974.NvidiaGraphicsFixup (1.2.1) B191B66C-7FBD-3ADF-BE62-8F39E06A9583 <38 7 5 4 3 2 1>
   42    0 0xffffff7f83ec1000 0x4000     0x4000     as.lvs1974.IntelGraphicsFixup (1.2.1) 2215A8E4-EC1F-3E23-9D90-EC501F4C838D <38 7 5 4 3 2 1>
   43    0 0xffffff7f83ec5000 0x5000     0x5000     org.hwsensors.driver.CPUSensors (1765) AB5DE333-8AC8-3549-86E5-C5647AACA61F <39 7 5 4 3>
   55    0 0xffffff7f83ecb000 0x8000     0x8000     org.hwsensors.driver.ACPISensors (1765) FA4DF6C0-0D3A-3CE2-8569-0AB2C84053E7 <39 11 7 5 4 3>
   61    0 0xffffff7f83ed5000 0xd000     0xd000     org.hwsensors.driver.LPCSensors (1765) 93417250-FFB4-39DA-8B25-F164DE72E120 <39 12 11 7 5 4 3>
   62    0 0xffffff7f83ee2000 0x12000    0x12000    org.hwsensors.driver.GPUSensors (1765) 714EA7DC-0CED-3374-AC08-B1D6EC33D53B <39 12 11 7 5 4 3>
   64    0 0xffffff7f83ef7000 0x14000    0x14000    com.insanelymac.IntelMausiEthernet (2.2.0) 3A6046E0-A8B1-32C2-9532-1EBF16AEB28B <16 12 5 4 3 1>
   92    0 0xffffff7f8198a000 0x6000     0x6000     com.logitech.driver.LogiWheelDriver (1) 356E62A4-AB78-39C1-8C7E-9EB80D899CB1 <91 71 52 4 3>
  105    0 0xffffff7f81597000 0x4000     0x4000     com.intel.driver.EnergyDriver (2.0) 022F8549-A28A-37B3-B85B-D4F175F07971 <7 5 4 3>
  106    0 0xffffff7f81467000 0x5000     0x5000     com.driver.LogJoystick (2.0) B02191E1-23F0-3B9B-BD97-F6173C3C2BD4 <52 5 4 3>
  111    0 0xffffff7f81c21000 0x3000     0x3000     com.nvidia.NVDAStartupWeb (10.2.9) 1F9F1C91-73DC-3C76-AEB8-96D15E24D548 <12 4 3>
  121    0 0xffffff7f81c30000 0x58000    0x58000    com.paragon-software.kext.VDMounter (36.1) 4B6F7959-6EA4-3DE2-9D09-43894E6E6E1A <26 5 4 3 1>
  122    0 0xffffff7f81c25000 0x6000     0x6000     com.valvesoftware.SteamInput (3083.39.62) DED4413E-CD8E-3E56-B0AB-7B3B20ECE4BF <52 5 4 3>
  123    0 0xffffff7f81807000 0x7000     0x7000     com.kairos.driver.DuetDisplay (2) 992536FB-2CEA-33DA-8EAE-1955B546A589 <101 5 4 3>
  124    0 0xffffff7f81cc2000 0x4000     0x4000     com.logitech.driver.LogiGamingMouseFilter (1) C5809EB7-6B3C-3F8E-AFDA-297F0B4AFB83 <52 4 3>
  137    0 0xffffff7f83ef4000 0x2000     0x2000     com.radiosilenceapp.nke.PrivateEye (1) FDAB41BA-9C78-32F3-AA43-53E5AD6FE09A <4 1>
  148    3 0xffffff7f83f4a000 0x61000    0x61000    org.virtualbox.kext.VBoxDrv (5.1.10) E4C40D1D-4754-3857-98EE-7EED4123C4B0 <7 5 4 3 1>
  152    0 0xffffff7f83fab000 0x8000     0x8000     org.virtualbox.kext.VBoxUSB (5.1.10) EFB503A1-5CC3-3092-922A-E752434D418E <151 148 71 7 5 4 3 1>
  153    0 0xffffff7f83fb3000 0x5000     0x5000     org.virtualbox.kext.VBoxNetFlt (5.1.10) 15F3A6B7-6264-3CBC-ADF7-003CC07FC43D <148 7 5 4 3 1>
  154    0 0xffffff7f83fb8000 0x6000     0x6000     org.virtualbox.kext.VBoxNetAdp (5.1.10) 7749D835-967A-3F1A-95E2-1A842DDEF80A <148 5 4 1>

Attached are my clover folder and ioreg/etc dumps.

I tried so many different configs that i now use some basic one that doesnt enable the webdrivers because that doesnt work..

spakk · December 28, 2017

I'm out of house, I'll take look it later. But follow the advice of mald0n

Oh that only referred to the creation of the ioreg and dsdt.aml. No problem this is also okay. See you later.

YoYelloW · December 28, 2017

So, i have made some steps.

Right now im using the attached config. I somehow needed to reinstall the nvidia web drivers and add nvda_drv=1 to the config.

At this point i want to get rid of useless code in the config. im not 100% sure what i can delete..

Also i would like to enable the intelGFX, i've seen other people being able to use this togehter with their nvidia cards

Id also like to know if its wise to change to a newer imac (like 18.x or newer)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>FixDisplay</key>
				<true/>
				<key>FixHPET</key>
				<true/>
				<key>FixShutdown</key>
				<true/>
				<key>FixUSB</key>
				<true/>
				<key>FixWAK</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>change HDAS to HDEF</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					SERBUw==
					</data>
					<key>Replace</key>
					<data>
					SERFRg==
					</data>
				</dict>
			</array>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>MATS</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>dart=0</string>
		<key>Debug</key>
		<false/>
		<key>DefaultVolume</key>
		<string>Mac SSD</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>'Preboot'</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<string>First</string>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>ScreenResolution</key>
		<string>2560x1440</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleIntelCPUPM</key>
		<false/>
		<key>AppleRTC</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>DellSMBIOSPatch</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KernelXCPM</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Enable TRIM for SSD</string>
				<key>Disabled</key>
				<true/>
				<key>Find</key>
				<data>
				AEFQUExFIFNTRAA=
				</data>
				<key>Name</key>
				<string>com.apple.iokit.IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAA=
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x03</string>
		<key>ROM</key>
		<data>
		lN6AflFi
		</data>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/03/2013</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM142.88Z.0118.B00.1309031249</string>
		<key>Board-ID</key>
		<string>Mac-27ADBB7B4CEE8E61</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>ProductName</key>
		<string>iMac14,2</string>
		<key>SerialNumber</key>
		<string>C02MDTCIFLHH</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>CustomUUID</key>
		<string>9402DE03-8004-7E05-5106-620700080009</string>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
		<key>NvidiaWeb</key>
		<true/>
	</dict>
</dict>
</plist>

MaLd0n · December 28, 2017

replace full folder, dont change nothing, install web driver, reboot, send me new ioreg

CLOVER.zip

AppleAlc for audio onboard, Voodoohda for full audio in Pascal

Dont need SSDTs, only DSDT

YoYelloW · December 28, 2017

@MaLd0n i did just that. i noticed that sound doesnt work as before (my previous settigns were working) but the rest seems to work.

attached are the ioregs.

~~Right now i notice that i (still) have the issues were itunes does not work, hangs during use.~~ sorted by enabling intelGFX in bios

Also i get artifacts after wake from sleep.

MaLd0n · December 28, 2017

what audio id in use in clover in previous config?

hdmi work?

YoYelloW · December 28, 2017

ID 1 was used. audio over DP works, but is called HDMI. and there are 4 digital-out HDMI channels.

The garbled graphics on wake issue persists

also wake only works when pressing the power button, not on keyboard. (seems that all usb devices are disconnected on sleep)

MaLd0n · December 28, 2017

ID 1 was used. audio over DP works, but is called HDMI. and there are 4 digital-out HDMI channels.

The garbled graphics on wake issue persists

also wake only works when pressing the power button, not on keyboard. (seems that all usb devices are disconnected on sleep)

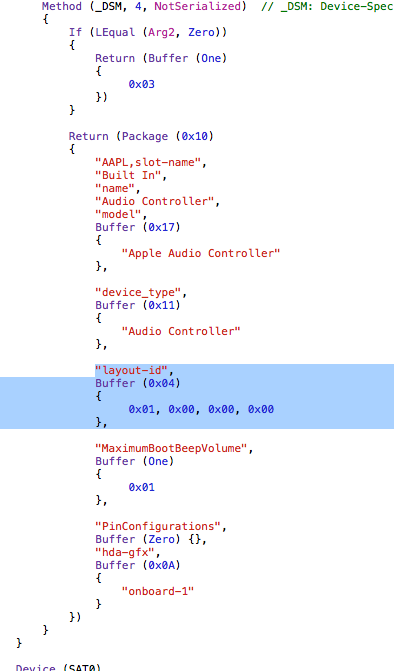

id 1 is done into DSDT, just use applealc+Lilu+DSDT

Voodoohda activate all audio in GPU, if work, just use, ye, create more outputs

use power button for wake, i kill usb wake, if u can, i apply wake from mouse/keyboard again, but to avoid problem, the best is kill it

ye, disconnect and connect again, fast, is common problem, no solution now, we need read datasheet chipset for check in new chipsets

YoYelloW · December 28, 2017

Thank you Maldon for the work you put into this. i have changed my Audio to the previous setup, and this works fine (with hdmi/DP audio)

For now i have fixed the sleep/wake issue by powering off and on my monitor.

If USB isnt disconnected during sleep, what problems might that give? And how can i change this if i want to test this..?

MaLd0n · December 28, 2017

send me ur last clover folder and new ioreg

the disconect problem USB, i have in my x99 setup too, i dont have any problem with it, but we need fix it

test wake from mouse/keyboard

DSDT._PRW.zip

YoYelloW · December 29, 2017

With this new dsdt everything seems to work apart from the wake issue that is related to the gfx card.

one thing i noticed is that i get around 22k score in geekbench, which seems a tad low for this CPU... can this be anything setting related?

attached is the clover folder and ioreg dump.

MaLd0n · December 29, 2017

one thing i noticed is that i get around 22k score in geekbench, which seems a tad low for this CPU... can this be anything setting related?

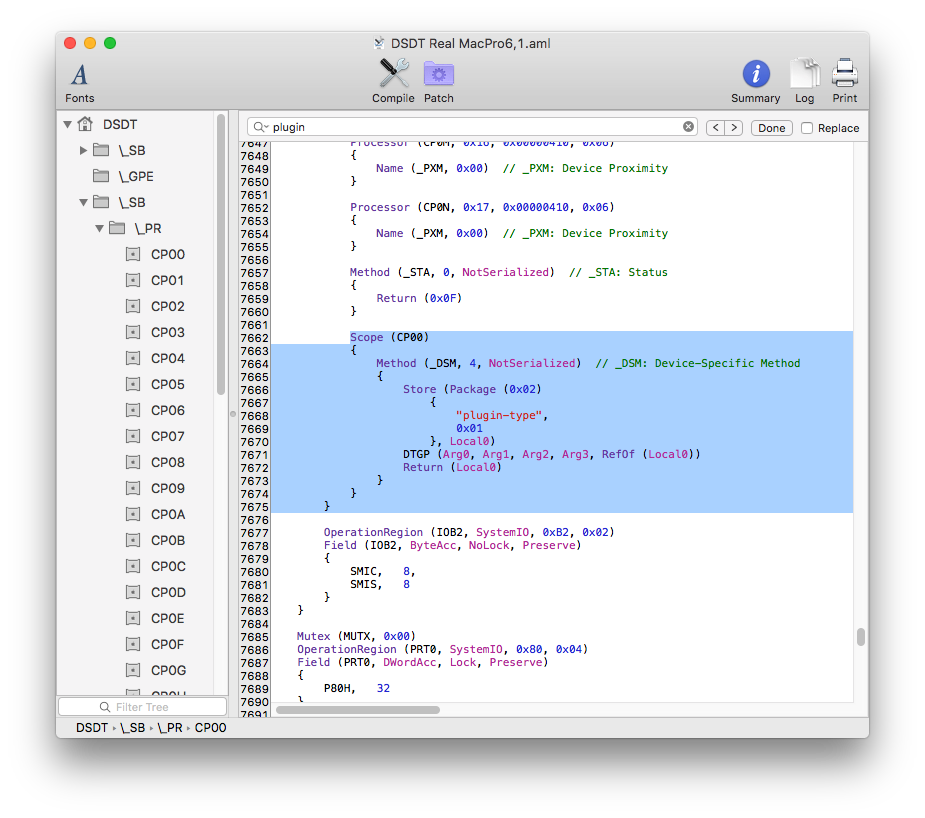

i think is good, if u can test, Generate SSDT with Pike script

YoYelloW · December 29, 2017

Im supposed to dump the *.aml files in the ACPI folder right?

Pike doesnt have the coffeelake CPU's yet, getting:

Error: Unknown processor model ...
       Visit http://ark.intel.com to gather the required data:
       Processor Number
       TDP
       Low Frequency Mode (use AppleIntelInfo.kext)
       Base Frequency
       Max Turbo Frequency
       Cores
       Threads

Edit: I used this: http://hackintosher.com/guides/generating-coffee-lake-ssdt-hackintosh/which seemed to create something.. whats the best way to test?

YoYelloW · December 30, 2017

I created an ssdt with the script i found above.

the result is:

CPU Ratio Info:
------------------------------------
CPU Low Frequency Mode.............: 800 MHz
CPU Maximum non-Turbo Frequency....: 3600 MHz
CPU Maximum Turbo Frequency........: 4300 MHz
CPU P-States [ 34 (42) ]
CPU C3-Cores [ 2 3 4 ]
CPU C6-Cores [ 0 1 3 5 ]
CPU P-States [ 34 36 (41) 42 ]
CPU C3-Cores [ 0 2 3 4 5 ]
CPU C6-Cores [ 0 1 2 3 5 ]
CPU P-States [ 33 34 36 (41) 42 ]
CPU C3-Cores [ 0 1 2 3 4 5 ]
CPU P-States [ (8) 33 34 36 39 41 42 ]
CPU P-States [ 8 33 34 36 39 40 (41) 42 ]
CPU C6-Cores [ 0 1 2 3 4 5 ]
CPU P-States [ 8 29 33 34 36 39 40 (41) 42 ]

Thou if i do not use this but instead use "PluginType" method in clover config i get:

CPU Ratio Info:
------------------------------------
CPU Low Frequency Mode.............: 800 MHz
CPU Maximum non-Turbo Frequency....: 3600 MHz
CPU Maximum Turbo Frequency........: 4300 MHz
CPU P-States [ 40 (42) ]
CPU C3-Cores [ 0 3 4 ]
CPU C6-Cores [ 0 2 4 5 ]
CPU P-States [ (36) 40 41 42 ]
CPU C3-Cores [ 0 1 2 3 4 5 ]
CPU C6-Cores [ 0 1 2 3 4 5 ]
CPU P-States [ 34 36 40 41 (42) ]

This is a smaller list, thou i dont know how to read this to see whats better...

MaLd0n · December 30, 2017

load kext and run log command many times, u need wait a time for load all

YoYelloW · December 30, 2017

Aha, yes that gives a lot more info:

CPU Ratio Info:
------------------------------------
CPU Low Frequency Mode.............: 800 MHz
CPU Maximum non-Turbo Frequency....: 3600 MHz
CPU Maximum Turbo Frequency........: 4300 MHz
CPU P-States [ 40 (42) ]
CPU C3-Cores [ 0 3 4 ]
CPU C6-Cores [ 0 2 4 5 ]
CPU P-States [ (36) 40 41 42 ]
CPU C3-Cores [ 0 1 2 3 4 5 ]
CPU C6-Cores [ 0 1 2 3 4 5 ]
CPU P-States [ 34 36 40 41 (42) ]
CPU P-States [ (8) 24 34 36 40 41 42 ]
CPU P-States [ (8) 24 32 34 36 40 41 42 ]
CPU P-States [ 8 24 32 33 34 36 40 41 (42) ]
CPU P-States [ (8) 24 31 32 33 34 36 40 41 42 ]
CPU P-States [ (8) 24 31 32 33 34 36 37 40 41 42 ]
CPU P-States [ 8 24 31 32 33 34 36 37 39 40 41 (42) ]
CPU P-States [ (8) 24 31 32 33 34 36 37 38 39 40 41 42 ]
CPU P-States [ 8 24 31 32 33 34 36 37 38 39 40 41 42 (43) ]
CPU P-States [ 8 24 31 32 33 34 35 (36) 37 38 39 40 41 42 43 ]
CPU P-States [ 8 24 29 31 32 33 34 35 36 37 38 39 40 (41) 42 43 ]
CPU P-States [ (8) 24 27 29 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 22 24 27 29 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 22 24 27 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 22 24 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ 8 22 24 25 27 28 29 30 31 32 33 34 35 (36) 37 38 39 40 41 42 43 ]
CPU P-States [ 8 21 22 24 25 27 28 29 30 31 32 33 34 35 (36) 37 38 39 40 41 42 43 ]
CPU P-States [ 8 21 22 23 24 25 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 (42) 43 ]
CPU P-States [ (8) 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 17 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 17 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 17 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 12 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 11 12 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 11 12 13 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]

Guess its working as intended then. IS there any other significant difference between these two methods? Does using the ssdt bring anything else?

MaLd0n · December 30, 2017

Aha, yes that gives a lot more info:

CPU Ratio Info:
------------------------------------
CPU Low Frequency Mode.............: 800 MHz
CPU Maximum non-Turbo Frequency....: 3600 MHz
CPU Maximum Turbo Frequency........: 4300 MHz
CPU P-States [ 40 (42) ]
CPU C3-Cores [ 0 3 4 ]
CPU C6-Cores [ 0 2 4 5 ]
CPU P-States [ (36) 40 41 42 ]
CPU C3-Cores [ 0 1 2 3 4 5 ]
CPU C6-Cores [ 0 1 2 3 4 5 ]
CPU P-States [ 34 36 40 41 (42) ]
CPU P-States [ (8) 24 34 36 40 41 42 ]
CPU P-States [ (8) 24 32 34 36 40 41 42 ]
CPU P-States [ 8 24 32 33 34 36 40 41 (42) ]
CPU P-States [ (8) 24 31 32 33 34 36 40 41 42 ]
CPU P-States [ (8) 24 31 32 33 34 36 37 40 41 42 ]
CPU P-States [ 8 24 31 32 33 34 36 37 39 40 41 (42) ]
CPU P-States [ (8) 24 31 32 33 34 36 37 38 39 40 41 42 ]
CPU P-States [ 8 24 31 32 33 34 36 37 38 39 40 41 42 (43) ]
CPU P-States [ 8 24 31 32 33 34 35 (36) 37 38 39 40 41 42 43 ]
CPU P-States [ 8 24 29 31 32 33 34 35 36 37 38 39 40 (41) 42 43 ]
CPU P-States [ (8) 24 27 29 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 22 24 27 29 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 22 24 27 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 22 24 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ 8 22 24 25 27 28 29 30 31 32 33 34 35 (36) 37 38 39 40 41 42 43 ]
CPU P-States [ 8 21 22 24 25 27 28 29 30 31 32 33 34 35 (36) 37 38 39 40 41 42 43 ]
CPU P-States [ 8 21 22 23 24 25 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 (42) 43 ]
CPU P-States [ (8) 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 17 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 17 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 17 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 12 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 11 12 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 11 12 13 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ (8) 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]

Guess its working as intended then. IS there any other significant difference between these two methods? Does using the ssdt bring anything else?

No!

Check ur PStates

CPU P-States [ (8) 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]

first, 8 is a 800mhz(minimal processor clock)

last, 43 is a 4300(maximum clock processor)

PlugIn type is a patch from real MacPro6,1 DSDT

Check

DSDT Real MacPro6,1.aml.zip

YoYelloW · December 30, 2017

Im not sure what u mean with your last post. i now used the ssdt i made and it gives the same results after some minutes. with 43 as max. im not sure what i should do with this.

MaLd0n · December 30, 2017

dont need SSDT, just use DSDT, have all patches there

i5-8600k/z370m-d3h with a GTX1060/6GB troubles

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
