battery and audio fix

[vickiozi]

Try with this config.plist

still not working

[foskvs]

still not working

Do you have linux or windows on that pc to check the codec id?

[vickiozi]

Do you have linux or windows on that pc to check the codec id?

nope(only mac) , btw should i try your config on different layouts ? also just a tip , when i used 12.2 sierra , i fixed audio with this http://www.insanelymac.com/forum/topic/322764-fix-ethernet-and-audio-controller/but now its not working(12.6)

[foskvs]

Realtek ALC255 is supported by AppleALC with these layouts: 3, 13, 17, 27, 28. Try them.

[vickiozi]

Realtek ALC255 is supported by AppleALC with these layouts: 3, 13, 17, 27, 28. Try them.

its not working ... , what about AppleHDa on s/l/e should i do smth with it

[foskvs]

its not working ... , what about AppleHDa on s/l/e should i do smth with it

In order to get audio working with AppleALC, it must be original.

[vickiozi]

In order to get audio working with AppleALC, it must be original.

what should i try next ? btw i didnt patch AppleHDa

[foskvs]

what should i try next ?

Run this on terminal,

sudo touch /System/Library/Extensions && sudo kextcache -u /

then reboot. After the reboot open terminal and write

kextstat | grep -i hda
kextstat | grep -i alc
kextstat | grep -i lilu

[vickiozi]



Run this on terminal,

sudo touch /System/Library/Extensions && sudo kextcache -u /

then reboot. After the reboot open terminal and write

kextstat | grep -i hda
kextstat | grep -i alc
kextstat | grep -i lilu

[foskvs]





Run this on terminal,

sudo touch /System/Library/Extensions && sudo kextcache -u /

then reboot. After the reboot open terminal and write

kextstat | grep -i hda
kextstat | grep -i alc
kextstat | grep -i lilu

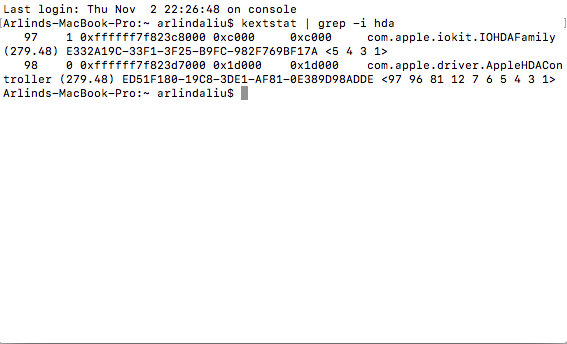

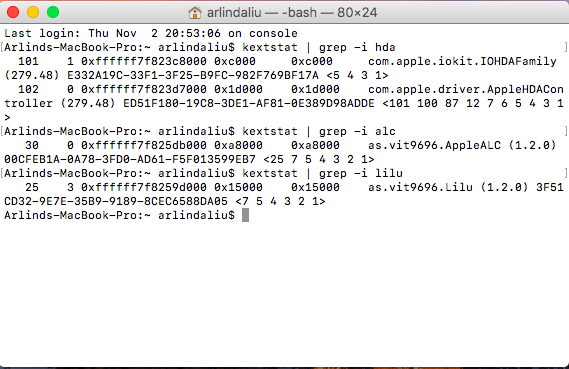

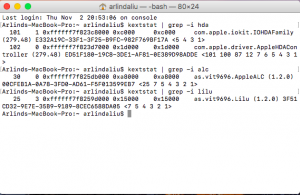

Screen Shot 2017-11-02 at 8.56.05 PM.png



Open terminal and write

sudo touch /Library/Extensions && sudo kextcache -u /

Reboot and, from terminal, write

kextstat | grep -i hda

Post the output.

[vickiozi]

Open terminal and write

sudo touch /Library/Extensions && sudo kextcache -u /

Reboot and, from terminal, write

kextstat | grep -i hda

Post the output.

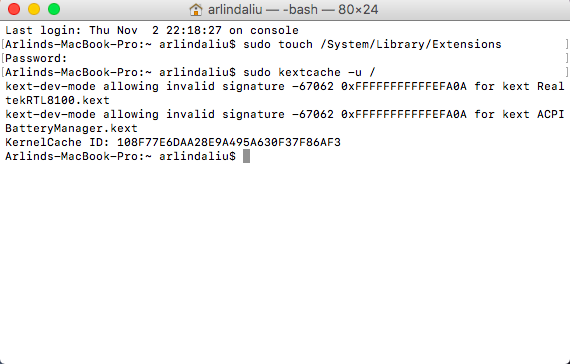

kextcache  ,

after reboot :

Open terminal and write

sudo touch /Library/Extensions && sudo kextcache -u /

Reboot and, from terminal, write

kextstat | grep -i hda

Post the output.



[foskvs]

/Library/Extensions, not /System/Library/Extensions

Replace your config.plist with this one.

config.plist.zip

[vickiozi]

/Library/Extensions, not /System/Library/Extensions

Replace your config.plist with this one.

Ow... sorry my mistake , kext :  and after reboot :  , I also used your config in (3,13,17,27,28) layouts but not working ...

[foskvs]

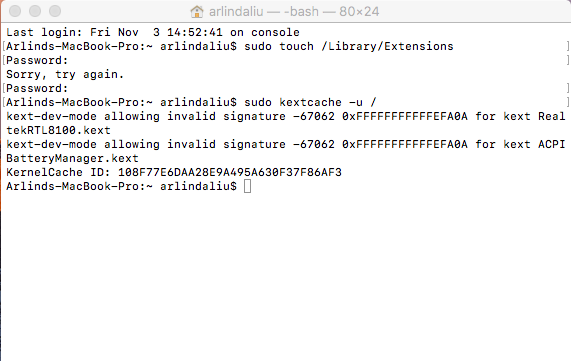

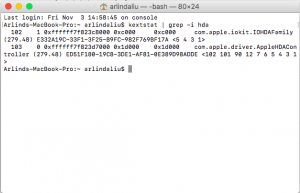

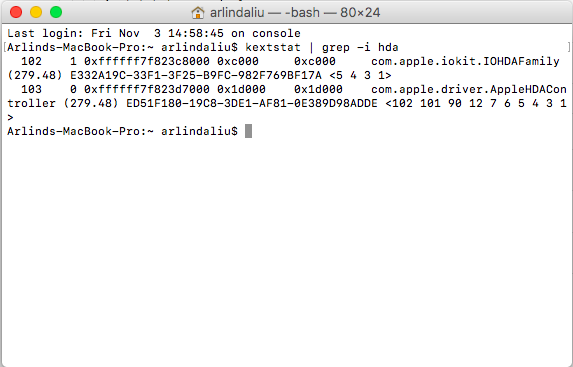

Ow... sorry my mistake , kext : kextcache.png and after reboot : Screen Shot 2017-11-03 at 3.00.52 PM.png , I also used your config in (3,13,17,27,28) layouts but not working ...

It seems that your layout is not compatible with AppleALC. Very strange...

[vickiozi]

It seems that your layout is not compatible with AppleALC. Very strange...

yep strange ... i got help in 12.2 check http://www.insanelymac.com/forum/topic/322764-fix-ethernet-and-audio-controller/, why it didnt work in 12.6 ? idk

[foskvs]

yep strange ... i got help in 12.2 check http://www.insanelymac.com/forum/topic/322764-fix-ethernet-and-audio-controller/, why it didnt work in 12.6 ? idk

That is a patched AppleHDA. I'm not sure, but you probably need a few other patches on your config.plist. If you want to try, remove AppleALC, install this kext in S/L/E and post your config.plist

[vickiozi]

That is a patched AppleHDA. I'm not sure, but you probably need a few other patches on your config.plist. If you want to try, remove AppleALC, install this kext in S/L/E and post your config.plist

should i use the original applehda or patched

[foskvs]

should i use the original applehda or patched

AppleHDA should be original. Place that kext with a different name (like AppleHDA_ALC255.kext). The system will load the patched AppleHDA.

[vickiozi]

AppleHDA should be original. Place that kext with a different name (like AppleHDA_ALC255.kext). The system will load the patched AppleHDA.

Ok,... , so i installed alc255 , and here is my config config.plist.zip .

[foskvs]

Try this one

config.plist.zip

[vickiozi]

Try this one

not working. ok now in s/l/e are applehda and applehda_alc255 but still..

[foskvs]

If you add to config.plist the patches listed in the link at post #40? Does audio work?

[vickiozi]

If you add to config.plist the patches listed in the link at post #40? Does audio work?



If you add to config.plist the patches listed in the link at post #40? Does audio work?

i didnt try , even when i used that link in in po #40 i got the config unpatched(maybe they patch the other things in proportion with my config.plist) with those moves ... ? at that time i only patched applehda s/l/e and and dsdt also alongside installed   ALC255 + CodecCommander kexts.

[foskvs]

You should have added those patches in your config.plist (in kext to patch section):

As stated here:

If you don't know how to do it, i will explain you how to patch kexts "on the fly".

[vickiozi]

You should have added those patches in your config.plist (in kext to patch section):

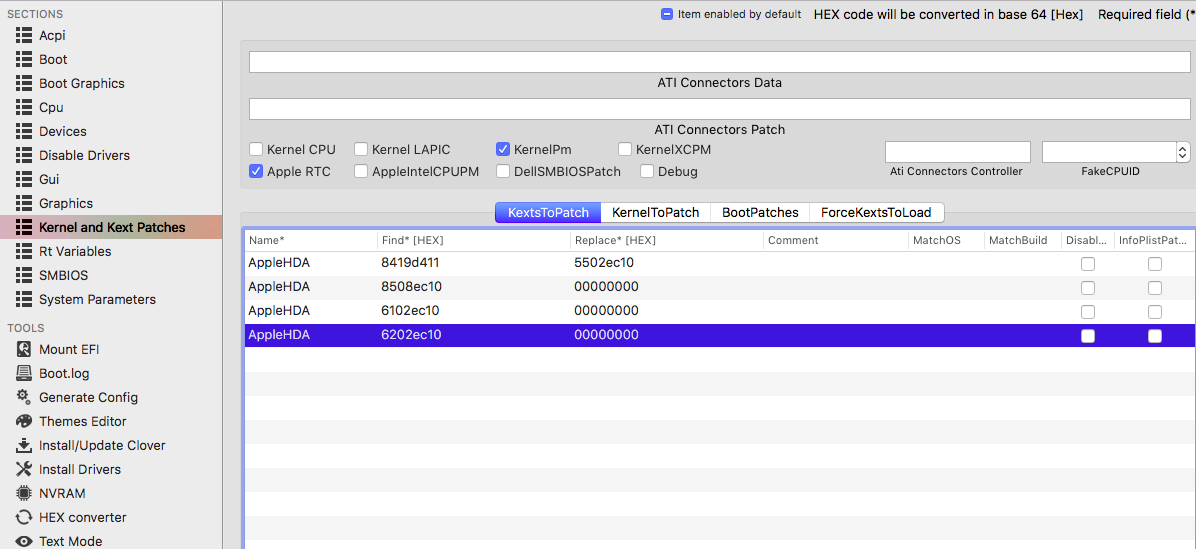

Schermata 2017-11-04 alle 19.30.32.png

As stated here:

Schermata 2017-11-04 alle 19.30.54.png

If you don't know how to do it, i will explain you how to patch kexts "on the fly".

So i patched applehda from clover config  , not working , and what about patched dsdt and codex kext should i used it , in that link it says it is must to use it (4 dsd i mean), also i got Sound assertion  AppleHDAcontroller in line 569 , AppleHDAcontroller 424 on verbose.



Till now i got ur alc255 installed applehda patched from config , also im not using Audio layout(3,13,17,27,28) , should i use it
