CyCLoBoT Posted September 28, 2017 Share Posted September 28, 2017 I'm trying to do a direct update from Sierra. When I run the installer, it prompts for a restart and when it does, I don't see the option to boot into the installer in Clover. It's only showing Sierra disk and the recovery partitions. What could be causing the installer from not showing up? I am using the latest version of Clover (4220). How quickly is the installer supposed to configure when you run it from the Desktop? Mine runs through in couple of seconds and then prompts me to restart. Here's the installer log when I run the High Sierra installer: Sep 27 22:14:49 iMac InstallAssistant[635]: Hardware: iMac15,1 @ 4.00 GHz (x 8), 32768 MB RAM Sep 27 22:14:49 iMac InstallAssistant[635]: Running OS Build: Mac OS X 10.12.6 (16G29) Sep 27 22:14:49 iMac InstallAssistant[635]: Env: TMPDIR=/var/folders/_r/ssd6fc89437_y48csr8p5hh80000gn/T/ Sep 27 22:14:49 iMac InstallAssistant[635]: Env: __CF_USER_TEXT_ENCODING=0x1F5:0x0:0x52 Sep 27 22:14:49 iMac InstallAssistant[635]: Env: SHELL=/bin/bash Sep 27 22:14:49 iMac InstallAssistant[635]: Env: HOME=/Users/cyclobot Sep 27 22:14:49 iMac InstallAssistant[635]: Env: Apple_PubSub_Socket_Render=/private/tmp/com.apple.launchd.1SAufkAKGQ/Render Sep 27 22:14:49 iMac InstallAssistant[635]: Env: SSH_AUTH_SOCK=/private/tmp/com.apple.launchd.gLUC9AK4Ar/Listeners Sep 27 22:14:49 iMac InstallAssistant[635]: Env: PATH=/usr/bin:/bin:/usr/sbin:/sbin Sep 27 22:14:49 iMac InstallAssistant[635]: Env: LOGNAME=cyclobot Sep 27 22:14:49 iMac InstallAssistant[635]: Env: XPC_SERVICE_NAME=com.apple.InstallAssistant.HighSierra.17364 Sep 27 22:14:49 iMac InstallAssistant[635]: Env: USER=cyclobot Sep 27 22:14:49 iMac InstallAssistant[635]: Env: XPC_FLAGS=0x0 Sep 27 22:14:50 iMac osinstallersetupd[638]: OSISChunkedDownload loaded... Sep 27 22:14:50 iMac osinstallersetupd[638]: OSISSoftwareUpdateController: Using catalog (source: GM Default): https://swscan.apple.com/content/catalogs/others/index-10.13-10.12-10.11-10.10-10.9-mountainlion-lion-snowleopard-leopard.merged-1.sucatalog Sep 27 22:14:50 iMac osinstallersetupd[638]: mountDiskImageWithPath: /Applications/Install macOS High Sierra.app/Contents/SharedSupport/InstallESD.dmg Sep 27 22:14:51 iMac osinstallersetupd[638]: OSISSoftwareUpdateController: Loaded catalog https://swscan.apple.com/content/catalogs/others/index-10.13-10.12-10.11-10.10-10.9-mountainlion-lion-snowleopard-leopard.merged-1.sucatalog (531 products) Sep 27 22:14:54 iMac osinstallersetupd[638]: Mounting disk image complete, results dict = { "system-entities" = ( { "content-hint" = EFI; "dev-entry" = "/dev/disk4s1"; "potentially-mountable" = 1; "unmapped-content-hint" = "C12A7328-F81F-11D2-BA4B-00A0C93EC93B"; "volume-kind" = msdos; }, { "content-hint" = "Apple_HFS"; "dev-entry" = "/dev/disk4s2"; "mount-point" = "/Volumes/InstallESD"; "potentially-mountable" = 1; "unmapped-content-hint" = "48465300-0000-11AA-AA11-00306543ECAC"; "volume-kind" = hfs; }, { "content-hint" = "GUID_partition_scheme"; "dev-entry" = "/dev/disk4"; "potentially-mountable" = 0; "unmapped-content-hint" = "GUID_partition_scheme"; } ); } Sep 27 22:14:54 iMac osinstallersetupd[638]: Mount point /Volumes/InstallESD Sep 27 22:14:54 iMac osinstallersetupd[638]: Using product <OSISSharedSupportProduct: 0x7fed97fe22b0> at distance 10 Sep 27 22:14:54 iMac osinstallersetupd[638]: Using product <OSISInstallMediaProduct> based on media at /Volumes/InstallESD at distance 5 Sep 27 22:14:54 iMac osinstallersetupd[638]: Failed to load BridgeOSInstall.framework: dlopen(/System/Library/PrivateFrameworks/BridgeOSInstall.framework/BridgeOSInstall, 1): image not found Sep 27 22:14:54 iMac osinstallersetupd[638]: Current version of BridgeOSInstall.framework doesn't have the latest API, assuming machine does not have bridgeOS Sep 27 22:14:54 iMac osinstallersetupd[638]: osinstallersetupd registered client Sep 27 22:14:54 iMac osinstallersetupd[638]: Is solid state disk returned: -69808 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac InstallAssistant[635]: DM ..F-[DMManager(PrivateMethods) clientConforms:error:]: currentThread=50219=0xc42b expectedThread=775=0x307 Sep 27 22:14:54 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/Core.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.Core"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:14:54 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/EmbeddedOSFirmware.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.EmbeddedOSFirmware"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:14:54 iMac osinstallersetupd[638]: No available package ref for compatibility update. Ignoring. Sep 27 22:14:54 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/Core.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.Core"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:14:54 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/EmbeddedOSFirmware.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.EmbeddedOSFirmware"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:14:54 iMac osinstallersetupd[638]: No available package ref for compatibility update. Ignoring. Sep 27 22:14:54 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/Core.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.Core"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:14:54 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/EmbeddedOSFirmware.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.EmbeddedOSFirmware"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:14:54 iMac osinstallersetupd[638]: No available package ref for compatibility update. Ignoring. Sep 27 22:14:54 iMac InstallAssistant[635]: diskAppeared: disk4s1 Sep 27 22:14:54 iMac InstallAssistant[635]: Ignoring non-user-visible disk IADisk_10_6: disk4s1 EFI as target Sep 27 22:14:54 iMac InstallAssistant[635]: diskAppeared: disk4s2 Sep 27 22:14:54 iMac InstallAssistant[635]: Ignoring non-user-visible disk IADisk_10_6: disk4s2 InstallESD as target Sep 27 22:14:54 iMac InstallAssistant[635]: diskAppeared: disk4 Sep 27 22:14:54 iMac InstallAssistant[635]: Ignoring non-user-visible disk IADisk_10_6: disk4 (null) as target Sep 27 22:14:54 iMac InstallAssistant[635]: diskMounted: disk4s2 Sep 27 22:14:54 iMac InstallAssistant[635]: Ignoring non-user-visible disk IADisk_10_6: disk4s2 InstallESD as target Sep 27 22:16:17 iMac osinstallersetupd[638]: mountDiskImageWithPath: /Applications/Install macOS High Sierra.app/Contents/SharedSupport/InstallESD.dmg Sep 27 22:16:18 iMac osinstallersetupd[638]: Mounting disk image complete, results dict = { "system-entities" = ( { "content-hint" = "GUID_partition_scheme"; "dev-entry" = "/dev/disk4"; "potentially-mountable" = 0; "unmapped-content-hint" = "GUID_partition_scheme"; }, { "content-hint" = EFI; "dev-entry" = "/dev/disk4s1"; "potentially-mountable" = 1; "unmapped-content-hint" = "C12A7328-F81F-11D2-BA4B-00A0C93EC93B"; "volume-kind" = msdos; }, { "content-hint" = "Apple_HFS"; "dev-entry" = "/dev/disk4s2"; "mount-point" = "/Volumes/InstallESD"; "potentially-mountable" = 1; "unmapped-content-hint" = "48465300-0000-11AA-AA11-00306543ECAC"; "volume-kind" = hfs; } ); } Sep 27 22:16:18 iMac osinstallersetupd[638]: Mount point /Volumes/InstallESD Sep 27 22:16:18 iMac osinstallersetupd[638]: Got and processed license agreement message Sep 27 22:16:53 iMac osinstallersetupd[638]: Using product <OSISCollectionInstallProduct: 0x7fed97f26520> at distance 10 Sep 27 22:16:53 iMac osinstallersetupd[638]: Helper tool loaded Sep 27 22:16:53 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/Core.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.Core"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:16:53 iMac osinstallersetupd[638]: Specifier (<PKPackageSpecifier>: { URL = "file:///Volumes/InstallESD/Packages/EmbeddedOSFirmware.pkg"; authLevel = 2; displayName = macOS; identifier = "com.apple.pkg.EmbeddedOSFirmware"; options = 16; version = "10.13.0.1.1.1505969314"; }) missing reference. Sep 27 22:16:53 iMac osinstallersetupd[638]: No available package ref for compatibility update. Ignoring. Sep 27 22:16:53 iMac osinstallersetupd[638]: Required package references: ( "<PKDistributionPackageReference com.apple.pkg.Core>", "<PKDistributionPackageReference com.apple.pkg.EmbeddedOSFirmware>", "{\n Identifier = \"com.apple.dmg.BaseSystem\";\n MD5 = \"\";\n Size = 490961728;\n URL = \"BaseSystem.dmg\";\n Version = \"10.13\";\n}", "{\n Identifier = \"com.apple.chunklist.BaseSystem\";\n MD5 = \"\";\n Size = 4096;\n URL = \"BaseSystem.chunklist\";\n Version = \"10.13\";\n}", "{\n Identifier = \"com.apple.dmg.AppleDiagnostics\";\n MD5 = \"\";\n Size = 490961728;\n URL = \"AppleDiagnostics.dmg\";\n Version = \"10.13\";\n}", "{\n Identifier = \"com.apple.chunklist.AppleDiagnostics\";\n MD5 = \"\";\n Size = 4096;\n URL = \"AppleDiagnostics.chunklist\";\n Version = \"10.13\";\n}", "{\n Identifier = \"com.apple.dmg.InstallESD\";\n MD5 = \"\";\n Size = 4668317536;\n URL = \"InstallESD.dmg\";\n Version = \"10.13\";\n}", "{\n Identifier = \"com.apple.pkg.CompatibilityUpdate\";\n MD5 = \"\";\n Size = 0;\n URL = \"\";\n Version = \"10.13\";\n}", "{\n Identifier = \"com.apple.plist.InstallInfo\";\n MD5 = \"\";\n Size = 1380;\n URL = \"linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/InstallInfo.plist\";\n Version = \"10.13\";\n}" ) Sep 27 22:16:53 iMac osinstallersetupd[638]: No available package ref for compatibility update. Ignoring. Sep 27 22:16:53 iMac osinstallersetupd[638]: Unable to get fs for (null) Sep 27 22:16:53 iMac osinstallersetupd[638]: Unable to get fs for (null) Sep 27 22:16:53 iMac osinstallersetupd[638]: Unable to get fs for (null) Sep 27 22:16:53 iMac osinstallersetupd[638]: Unable to get fs for (null) Sep 27 22:16:53 iMac osinstallersetupd[638]: Unable to get fs for (null) Sep 27 22:16:53 iMac osinstallersetupd[638]: Unable to get fs for (null) Sep 27 22:16:53 iMac osinstallersetupd[638]: OSISDownloadOperation: totalEstimate=393.000000, significantDownload=1 Sep 27 22:16:53 iMac osinstallersetupd[638]: Operation queue started Sep 27 22:16:53 iMac osishelperd[684]: Privileged helper tool loaded. Sep 27 22:16:53 iMac osinstallersetupd[638]: Using product PKSecureNetEnabledProduct <file:///macOS%20Install%20Data/> at distance 5 Sep 27 22:16:54 iMac osinstallersetupd[638]: Using product <MSUProduct: key=091-05077, name="(unknown)", evaluated=NO, installable=NO, staged=NO> at distance 25 Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieving 7 packages (0.000 GB) Sep 27 22:16:54 iMac osinstallersetupd[638]: No native mechanism to verify AppleDiagnostics.dmg Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.dmg.AppleDiagnostics (linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/AppleDiagnostics.dmg) Sep 27 22:16:54 iMac osinstallersetupd[638]: Installing timeout for incompatible app list Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.pkg.CompatibilityUpdate (http://swcdn.apple.com/content/downloads/62/30/091-05077/8243xxpqrcv69hakbdhxdlw1iiffa9yi18/OSX_10_13_IncompatibleAppList.pkg) Sep 27 22:16:54 iMac osinstallersetupd[638]: No native mechanism to verify InstallInfo.plist Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.plist.InstallInfo (linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/InstallInfo.plist) Sep 27 22:16:54 iMac osinstallersetupd[638]: No native mechanism to verify BaseSystem.chunklist Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.chunklist.BaseSystem (linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.chunklist) Sep 27 22:16:54 iMac osinstallersetupd[638]: No native mechanism to verify AppleDiagnostics.chunklist Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.chunklist.AppleDiagnostics (linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/AppleDiagnostics.chunklist) Sep 27 22:16:54 iMac osinstallersetupd[638]: No native mechanism to verify BaseSystem.dmg Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.dmg.BaseSystem (linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.dmg) Sep 27 22:16:54 iMac osinstallersetupd[638]: No native mechanism to verify InstallESD.dmg Sep 27 22:16:54 iMac osinstallersetupd[638]: Retrieved package com.apple.dmg.InstallESD (linkfile:///Applications/Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/InstallESD.dmg) Sep 27 22:16:54 iMac osinstallersetupd[638]: Skipping preflighting since we're not on supported hardware Sep 27 22:16:54 iMac osinstallersetupd[638]: Starting personalization Sep 27 22:16:54 iMac osinstallersetupd[638]: Skipping personalization because OSPersonalization.framework doesn't exist on the boot volume Sep 27 22:16:54 iMac osinstallersetupd[638]: Skipping bridgeOS update because BridgeOSInstall.framework doesn't exist on the boot volume Sep 27 22:16:54 iMac osinstallersetupd[638]: Operation queue succeeded Sep 27 22:16:54 iMac InstallAssistant[635]: Finished operation queue Link to comment Share on other sites More sharing options...
critic81 Posted September 28, 2017 Share Posted September 28, 2017 I am getting the same issue. No Install partition to choose in Clover 4220. Link to comment Share on other sites More sharing options...
TheRacerMaster Posted September 28, 2017 Share Posted September 28, 2017 Clover seems to have trouble locating the installer if it's on a Core Storage volume. Try disabling Core Storage (sudo diskutil cs revert <UUID>). Link to comment Share on other sites More sharing options...
critic81 Posted September 28, 2017 Share Posted September 28, 2017 Clover seems to have trouble locating the installer if it's on a Core Storage volume. Try disabling Core Storage (sudo diskutil cs revert). thanks for the tip. I'll try that later. Mine is on a Core Storage volume. Link to comment Share on other sites More sharing options...
critic81 Posted September 29, 2017 Share Posted September 29, 2017 Just wanted to report that sudo diskutil cs revert <UUID> fixed it for me. I'm now typing this from High Sierra! Thanks TheRacerMaster! Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 29, 2017 Share Posted September 29, 2017 Nice, TheRacerMaster. Thanks! I'm having this issue ever since HS DP1. What worked for me was creating a custom boot entry for the installer, but this is a better solution I suppose Link to comment Share on other sites More sharing options...
DaffyDuck Posted September 29, 2017 Share Posted September 29, 2017 Nice, TheRacerMaster. Thanks! I'm having this issue ever since HS DP1. What worked for me was creating a custom boot entry for the installer, but this is a better solution I suppose Can you elaborate further how you'd this? I have a Fusion drive setup, so disabling CoreStorage isn't really an option for me, or is it? Link to comment Share on other sites More sharing options...

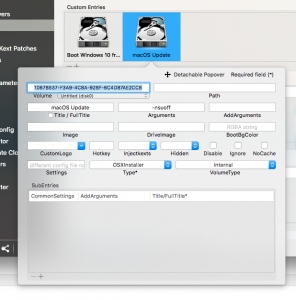

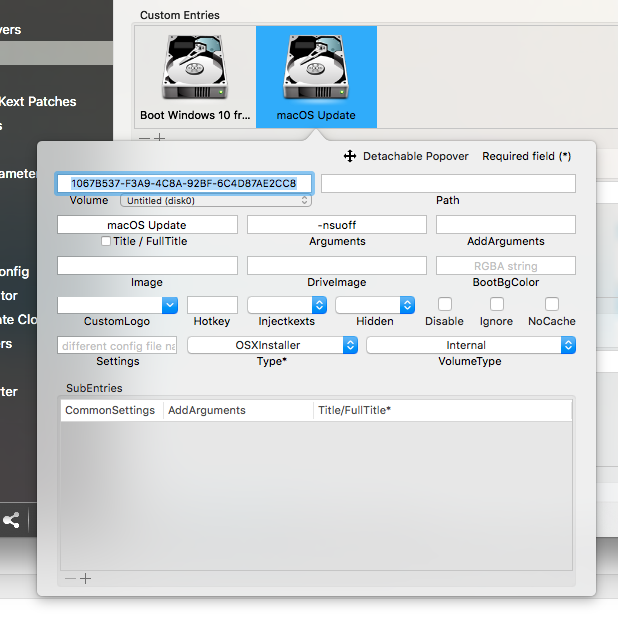

Guest ricoc90 Posted September 29, 2017 Share Posted September 29, 2017 Can you elaborate further how you'd this? I have a Fusion drive setup, so disabling CoreStorage isn't really an option for me, or is it? Clover Configurator -> Gui -> Custom entries: Link to comment Share on other sites More sharing options...
TheRacerMaster Posted September 29, 2017 Share Posted September 29, 2017 It looks like Clover r4225 should fix the missing installer entry (no need to disable CoreStorage). 1 Link to comment Share on other sites More sharing options...
CyCLoBoT Posted September 30, 2017 Author Share Posted September 30, 2017 I ended up using the same revert command to get the installer working. Good to know that Clover will fix this going forward. Is there any disadvantage of disabling CoreStorage? If so, how do I enable it again? Link to comment Share on other sites More sharing options...
daniyo Posted October 1, 2017 Share Posted October 1, 2017 I’m still having the same issue despite updating to Clover r4228 and r4233. Fusion Drive makes me unable to disable CoreStorage. Adding a drive in Clover Configurator > GUI doesn’t show up in Clover either... any ideas? Link to comment Share on other sites More sharing options...
Vinicius P. Miranda Posted October 6, 2017 Share Posted October 6, 2017 I also have the problem. I've cloned another partition for Fusion Drive and got into the HS, but Apple released an update on October 5th, and now I have the same problem. Link to comment Share on other sites More sharing options...
alenchev Posted November 2, 2017 Share Posted November 2, 2017 I have solution for this problem. Start install. After first reboot you have "Boot macOS Installer" not show in Clover. Reboot to install flash (need cp, mkdir, rm skill) or to working system (install OS to flash or external disk). You must put files from com.apple.boot.* folder to other. Your Boot OS X disk must look like: Boot OS X |_com.apple.boot.* |_ Library -> Preferences -> SystemConfiguration -> com.apple.Boot.plist (key and sting about kernel cache in this plist must be deleted) |_ System -> Library -> PrelinkedKernels -> prelinkedkernel |_ usr -> standalone -> i386 -> EfiLoginUI -> Lucida13.efires, disk_passwordUI.efires, recoveryUI.efires, Lucida13White.efires, flag_picker.efires, recovery_user.efires, appleLogo.efires, guest_userUI.efires, sound.efires, battery.efires, loginui.efires, unknown_userUI.efires |_System |_Library -> CoreServices -> .disk_label, .disk_label_2x, .disk_label.contentDetails, .root_uuid, PlatformSupport.plist, SystemVersion.plist, boot.efi After do this - reboot. PS Same {censored} for update. Link to comment Share on other sites More sharing options...
nabeelmoeen Posted December 29, 2017 Share Posted December 29, 2017 I’m still having the same issue despite updating to Clover r4228 and r4233. Fusion Drive makes me unable to disable CoreStorage. Adding a drive in Clover Configurator > GUI doesn’t show up in Clover either... any ideas? hi Daniyo, were you able to resolve this? I'm facing the same issue, I have tried creating the USB installer using the createinstallmedia command and also Pandora's box. and also tried adding the custom boot option in config.plist -> GUI. none of these solutions have worked for me, I am unable to see the High Sierra installation volume on boot. Link to comment Share on other sites More sharing options...
