Intel HD 5500 - Sierra (PANIC EVEN AFTER PATCH!)

[alexteste]

Hey Guys!



I really stuck after 2 days trying to fix the Intel graphics problem. I'm an Desktop with Intel core i5 5500u + Intel Graphics HD 5500 using MacOS Sierra Instalation using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url].



I followed those 2 topics



http://www.insanelymac.com/forum/topic/312579-patch-dvmt-allocation-intel-hd5500-broadwell-not-found-at-sierra

http://www.insanelymac.com/forum/topic/315118-intel-hd-5500-bios-lock-dvmt-kernel-panic-at-sierra-gm/



Made everything and I keep getting this Kernel Panic!

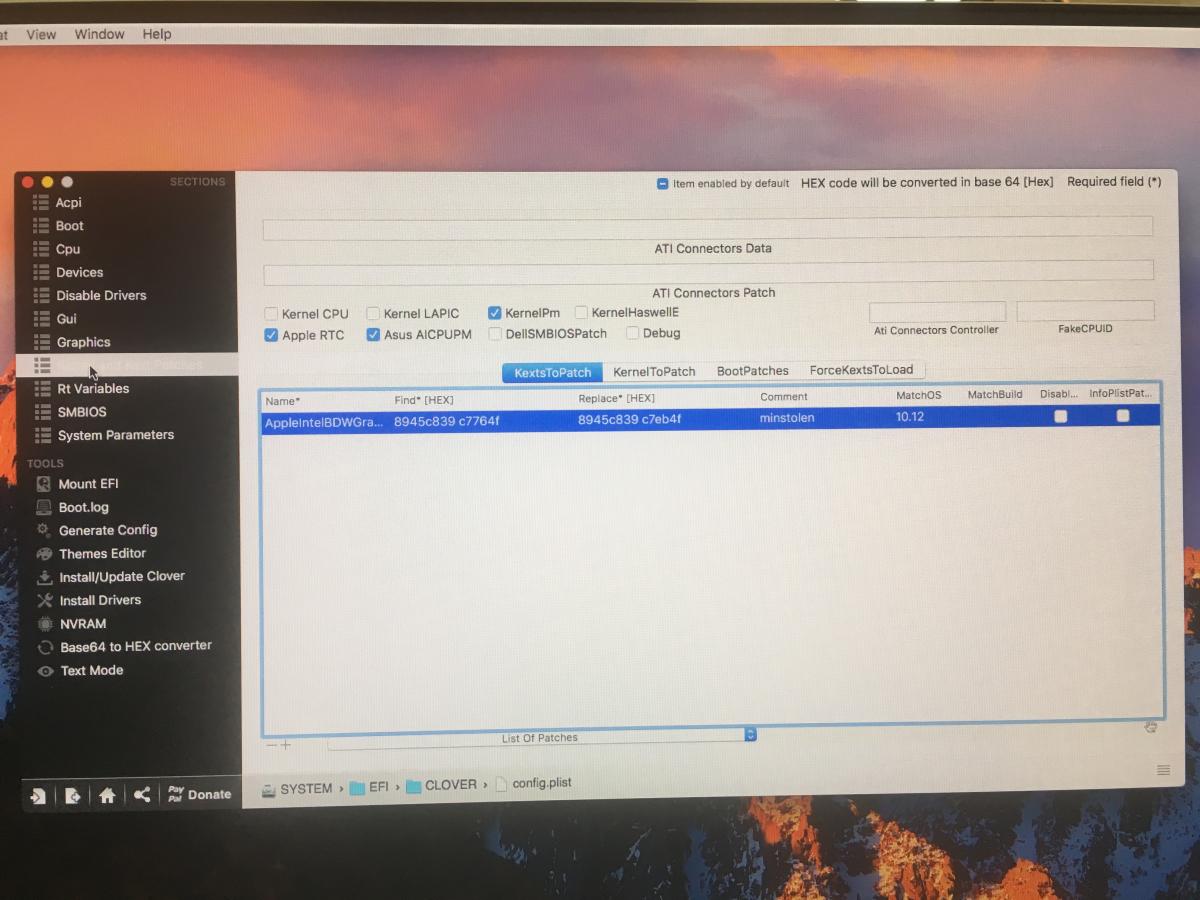

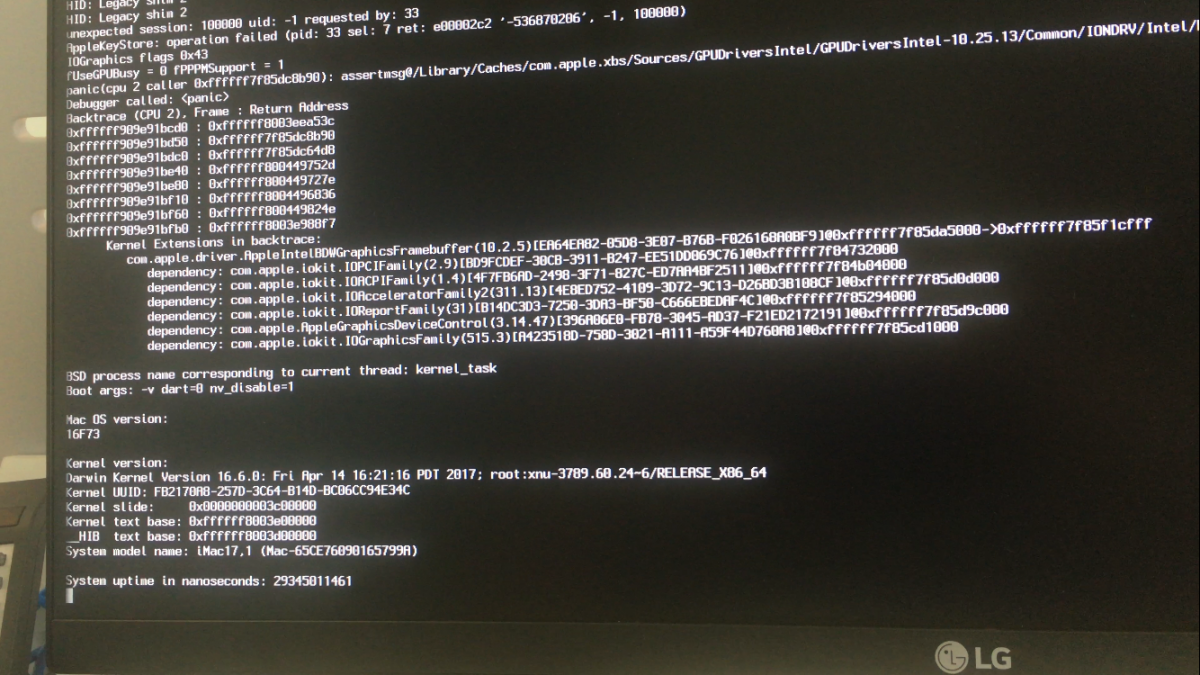

Attached my clover configuration and the image of kernel panic.



Please, help me, I need the PC up to start work



Thank you guys!



[Allan]

Hi, and welcome to InsanelyMac



FYI we don't give support for Tonymac tools:

• VERY IMPORTANT: PLEASE READ! (ABOUT TONYMACX86 AND iATKOS M / Y / EC / SR)
• Why InsanelyMac does not support tonymacx86

Tip for your issue: This IGPlatform value, is for Mobiles, maybe you need find a value for Desktops. In IvyBridge CPUs we have these differences, don't know if in the lines above remains the same.

[fivos1996]

You have a desktop with a laptop CPU. Your ig-platform-id is correct. Try this patch too:



Kext name: com.apple.driver.AppleIntelBDWGraphicsFramebuffer

Find: 00002002 00005001

Replace: 00003001 00009000

MatchOS: 10.12.x



Please note that it's a better idea to change the DVMT pre-allocated memory to 96MB istead of patching the framebuffer.
