macOS Sierra seems to run quite well on these components, with Clover botloader, and also with Cameleon. All seems to work well except USB Type C, and graphics, which is a GTX 1080, since no support from Apple Pascal does not work. I opened this topic, in the hopes that those, with same hardware as mine or like to give their opinion about this build here, about a potential fuctionalitate and rectifications.

CLOVER.zip


  • Like 2
Link to comment
Share on other sites
iTTT
iTTT
Posted
Posted

macOS Sierra seems to run quite well on these components, with Clover botloader, and also with Cameleon. All seems to work well except USB Type C, and graphics, which is a GTX 1080, since no support from Apple Pascal does not work. I opened this topic, in the hopes that those, with same hardware as mine or like to give their opinion about this build here, about a potential fuctionalitate and rectifications.





wow, well done man.



i do want to build the same as yours. could you pls more specify you hardware list?



also does this build sleep and wake up well ?



thanks

Link to comment
Share on other sites
Sygey02
Sygey02
Posted
  • Author
Posted

http://www.fractal-design.com/home/product/cases/define-series/define-r5-black-window



http://www.gigabyte.com/Motherboard/GA-X99-Ultra-Gaming-rev-10#ov



http://www.gigabyte.com.ro/Graphics-Card/GV-N1080G1-GAMING-8GD#kf



http://www.corsair.com/en/dominator-platinum-series-32gb-2-x-16gb-ddr4-dram-3000mhz-c15-memory-kit-cmd32gx4m2b3000c15



http://www.samsung.com/uk/memory-storage/950-pro-nvme-m-2-ssd/MZ-V5P256BW/



http://www.seagate.com/gb/en/support/internal-hard-drives/desktop-hard-drives/desktop-solid-state-hybrid-drive/#specs



https://seasonic.com/product/snow-silent-1050/



http://www.corsair.com/en/hydro-series-h115i-280mm-extreme-performance-liquid-cpu-cooler



http://www.logitech.com/en-us/product/wireless-illuminated-keyboard-k800



http://www.logitech.com/en-us/product/mx-master?crid=7







First of all I,m not  so familiar with hackintosh, so I made this with some help from nmano, he patched my dsdt file.

And the rest of files and kext, from some research on internet.

My problem is that I do not know how to patch or edit DSDT, SSDT, for better functioning.

But I am quite sure that this build could work perfectly, if I had more knowledge.
I easily installed Apple OS.
Without any patch in config plist, you really need fakecpuid.

Graphics card will not work because there is no support for pascal
Sleep does not function properly, do not know how to make it work.
USB all works but are not recognized correctly. I saw on the forums that can make it work correctly, but I do not know.


  • Like 1
Link to comment
Share on other sites
  • 1 month later...
  • 2 weeks later...
Sygey02
Sygey02
Posted
  • Author
Posted

Hi,



Any news on the sleep/wake front? I'm really interested in that.



Thanks.



Hi! The Machine goes to sleep but after 5 sec it wake up automatically, but no issues after wake.



i realy not ded enyting about sleep cause it dosen,t meter to me.

Link to comment
Share on other sites
Sygey02
Sygey02
Posted
  • Author
Posted

This Guide Its just a Quick Guide for Users with the same Hardware ( U can use all files completely just replace EFI)





First of all let's not forget to thank all those who are involved in these projects, which give us the chance to run macOS on PC. Thank you once again for everything!







1) BIOS configuration ---- a--Load Optimized Defaults

b---overclock your pc to XMP profil 1 4,2

After you install later you can revert back


2.) Create Bootable USB --- Download the latest version of MacOS Sierra by performing the following actions:

a) Delete any version of the MacOS Sierra installer from your "Applications" folder if older versions of the installer exist.
B) Go to the App-Store, and download Sierra.


--- Prepare an USB thumb drive with Disk Utility with the following options:

a) GUID Partition Table
B) Mac OS Extended (Journaled)
c) Use the name “USB”


---Type in a Terminal the following command:

sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ macOS\ Sierra.app --no interaction

USB mean your tumb drive name

This will take some time

4.) Download and install the latest Clover distribution on your USB-DISK by verifying the proper Install-location (USB-DISK) and customizing (dont press "Install" but "Customize" instead) the following options:

a) Install for UEFI booting only
B) Install Clover in the ESP
c) Select the Bootloader Themes you want to install
e) Only select EmuVariableUefi-64.efi in the Drivers64UEFI menu!


During installation, Clover will automatically create and mount the EFI partion drive of the USB installation.



3.) When Clover Installation completes, download extract and copy the "USBInstallEFI.zip" file and replace entire EFI Folder of your USB installation drive.



4.) Boot the USB Installation drive . Install MacOS Sierra onto your system.


5.) Now perform the Post-Installation procedure described below. After finish boot again with USB and select your new instaled hard drive with sierra and finish the process.


---  Download and install the latest Clover distribution on your Sierra system disk by verifying the proper Install-Location (Sierra System Disk) and customizing (don't press "Install" but "Customize" instead) the following options:

a) Install for UEFI booting only
B) Install Clover in the ESP
c) Select the Bootloader Themes you want to install
d) Enable Install RC scripts on target volume
e) Only select EmuVariableUefi-64.efi in the Drivers64UEFI menu!
f) Select Install RC scripts on target volume
g) Select Install Clover Preference Pane


During installation, Clover will automatically create and mount the EFI drive of your Sierra system.


6.)Download my ( PostinstallEFI.zip) extract and replace entyre EFI folder from your Sierra hard drive.



7.) Download and run Piker-Alpha's freqVectorsEdit.sh to add missing FrequencyVectors. Clone download chose zip

after download, drag the freqVectorsEdit.sh-master folder to your desktop, run terminal and type sudo (space) after this drag

the freqVectorsEdit.sh from folder freqVectorsEdit.sh-master in to terminal, hit Enter, flow steps below.




--- To do so, you have to choose some other plist-file from the drop-list, like e.g.

Code (Text):

[26] Mac-DB15BD556843C820.plist (iMac17,1)

which does have frequencies already defined.


Result:

Code (Text):

freqVectorsEdit.sh v3.1 Copyright © 2013-2017 by Pike R. Alpha.
-----------------------------------------------------------------
Available resource files (plists) with FrequencyVectors:

[ 1 ] Mac-031B6874CF7F642A.plist (iMac14,1)
[ 2 ] Mac-06F11F11946D27C5.plist (MacBookPro11,5)
[ 3 ] Mac-06F11FD93F0323C5.plist (MacBookPro11,4)
[ 4 ] Mac-189A3D4F975D5FFC.plist (MacBookPro11,1)
[ 5 ] Mac-27ADBB7B4CEE8E61.plist (iMac14,2)
[ 6 ] Mac-2BD1B31983FE1663.plist (MacBookPro11,3)
[ 7 ] Mac-35C1E88140C3E6CF.plist (MacBookAir6,1)
[ 8 ] Mac-35C5E08120C7EEAF.plist (Macmini7,1 @ 2700)
[ 9 ] Mac-3CBD00234E554E41.plist (MacBookPro11,2)
[ 10 ] Mac-42FD25EABCABB274.plist (iMac15,1)
[ 11 ] Mac-473D31EABEB93F9B.plist (MacBookPro13,1 @ 3100 HWP/3400 HWP)
[ 12 ] Mac-4BFBC784B845591E.plist (Unknown Model)
[ 13 ] Mac-50619A408DB004DA.plist (Unknown Model)
[ 14 ] Mac-65CE76090165799A.plist (iMac17,1)
[ 15 ] Mac-66E35819EE2D0D05.plist (MacBookPro13,2 @ 3300 HWP/3500 HWP/3600 HWP)
[ 16 ] Mac-77EB7D7DAF985301.plist (iMac14,3)
[ 17 ] Mac-7DF21CB3ED6977E5.plist (MacBookAir6,2)
[ 18 ] Mac-81E3E92DD6088272.plist (iMac14,4)
[ 19 ] Mac-937CB26E2E02BB01.plist (MacBookAir7,2 @ 2700/3200)
[ 20 ] Mac-9AE82516C7C6B903.plist (MacBook9,1 @ 2200 HWP/2700 HWP/3100 HWP)
[ 21 ] Mac-9F18E312C5C2BF0B.plist (MacBookAir7,1 @ 2700/3200)
[ 22 ] Mac-A369DDC4E67F1C45.plist (iMac16,1)
[ 23 ] Mac-A5C67F76ED83108C.plist (MacBookPro13,3 @ 3500 HWP/3600 HWP/3800 HWP)
[ 24 ] Mac-B809C3757DA9BB8D.plist (iMac17,1)
[ 25 ] Mac-BE0E8AC46FE800CC.plist (MacBook8,1 @ 2400/2600/2900)
[ 26 ] Mac-DB15BD556843C820.plist (iMac17,1)
[ 27 ] Mac-E43C1C25D4880AD6.plist (MacBookPro12,1)
[ 28 ] Mac-F305150B0C7DEEEF.plist (Unknown Model @ 2400/2600/2900)
[ 29 ] Mac-F60DEB81FF30ACF6.plist (MacPro6,1)
[ 30 ] Mac-FA842E06C61E91C5.plist (iMac15,1)
[ 31 ] Mac-FFE5EF870D7BA81A.plist (iMac16,2)

Please choose the desired plist for your hardware (Exit/1-31) ? 26
in your case maybe imack17,1 well be another number
Triggering a kernelcache refresh ...

Do you want to open Mac-F60DEB81FF30ACF6.plist (y/n)? type n
Do you want to reboot now? (y/n) dont type enytyng just wait


don’t type y to reboot just leve as it is opened because you ned to install nvidia webdriver .


8.) Download and install the latest NVIDIA Web-drivers and reboot as requested.


9) Download and apply the AGDPfix. just run wait for message ok and wait to confirmation.


10) Now Reboot

11) boot back in sierra hard drive, download and install Latest Version: CUDA 8.0.81 driver for MAC from nvidia

12) i well atash HWMonitor app, just copy to applications and set to start wen mac starts.

USBInstallEFI.zip

HWMonitor.zip

Postinstall CLOVER.zip

  • Like 2
Link to comment
Share on other sites
  • 2 weeks later...
  • 4 months later...
Sygey02
Sygey02
Posted
  • Author
Posted

Hey bro,i have the same build.

Please let me now if working all USB ports and how,

and if u try to install High Sierra.



i have successful installation on both but i have some problem with Usb's.



Thanks.

I wel install High sierra today and I let u now wat working.

  • Like 1
Link to comment
Share on other sites
Sygey02
Sygey02
Posted
  • Author
Posted

Hey bro,i have the same build.

Please let me now if working all USB ports and how,

and if u try to install High Sierra.



i have successful installation on both but i have some problem with Usb's.



Thanks.

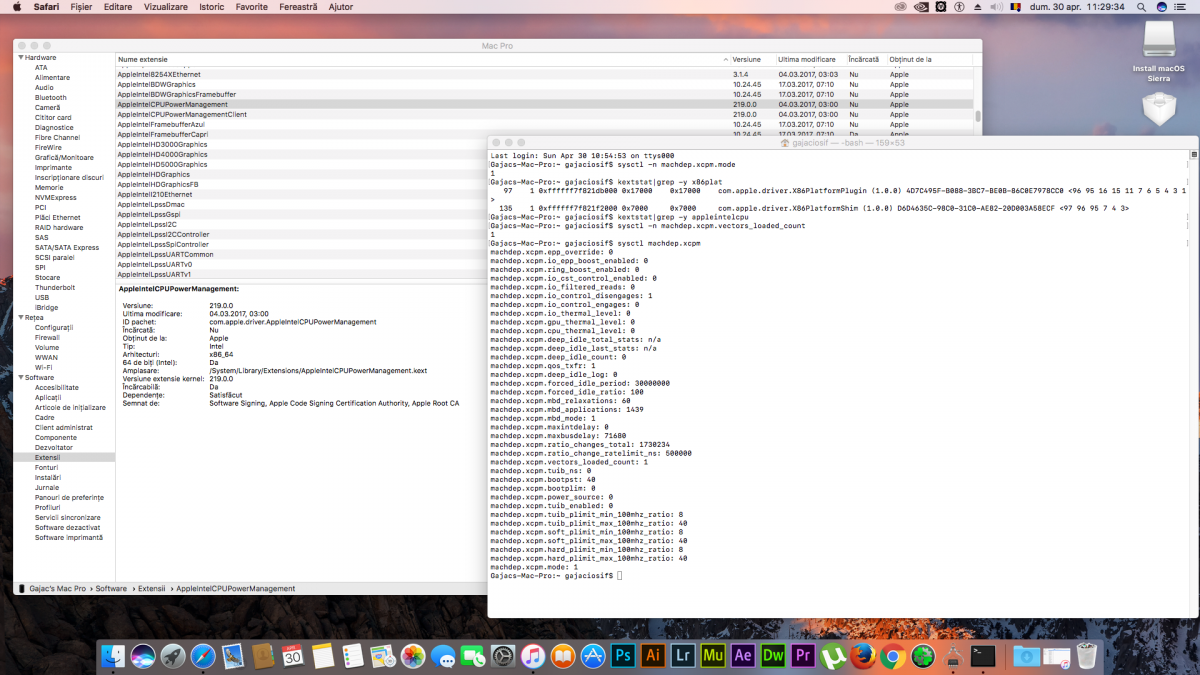

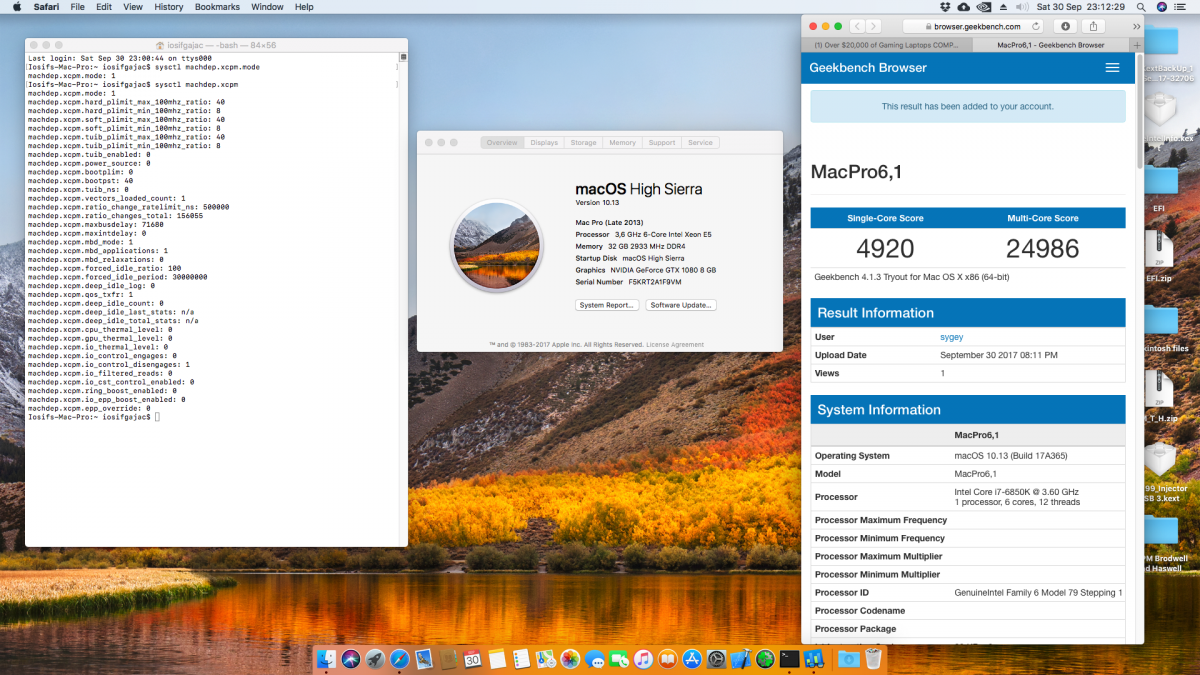

I installed High Sierra without any problems and xcpm works!

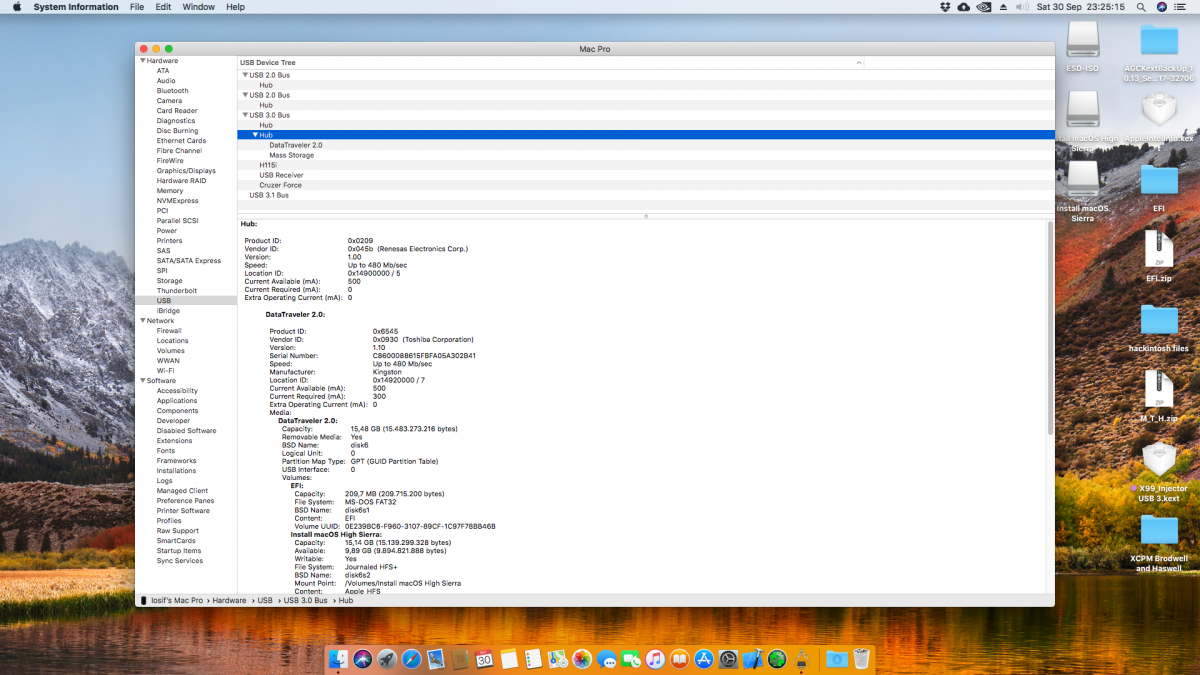

All USB ports works but I'm pretty shore that not full . I mean I think it works just as usb 2.

I not tested!

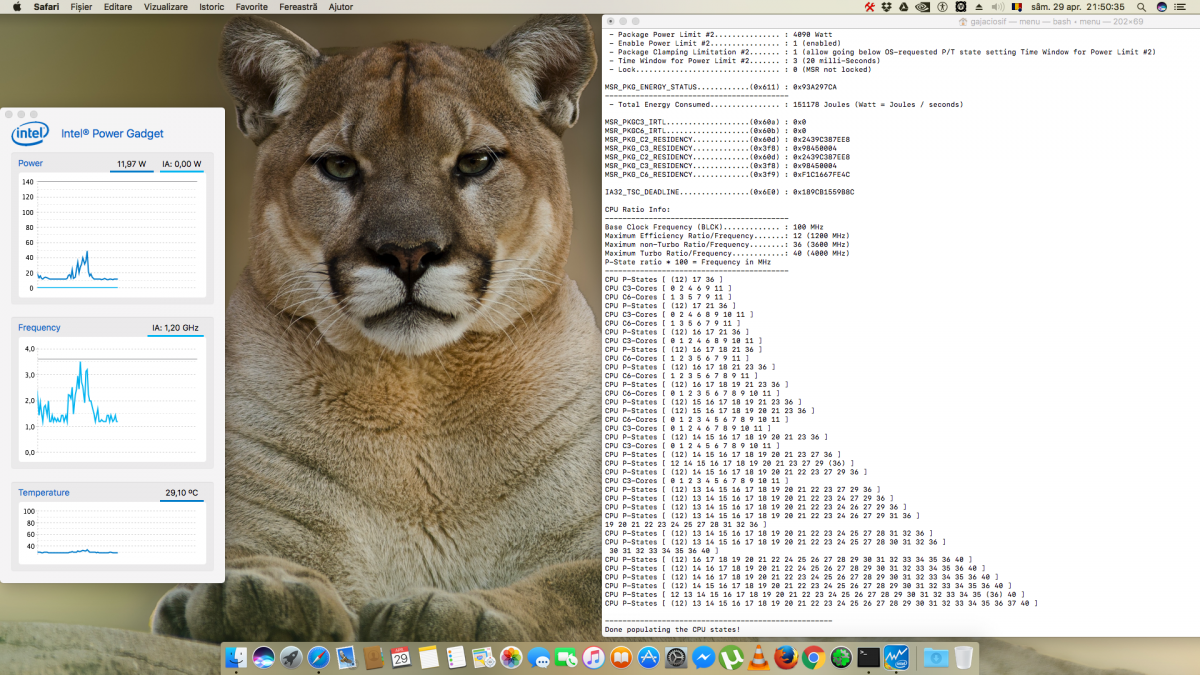

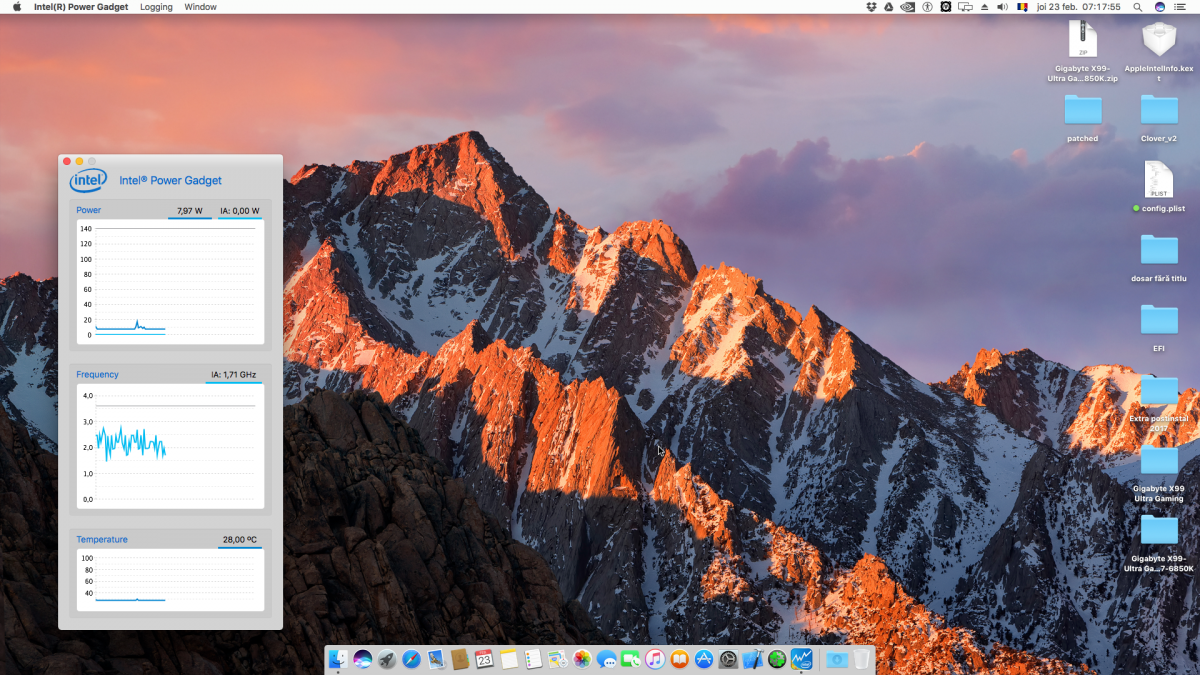

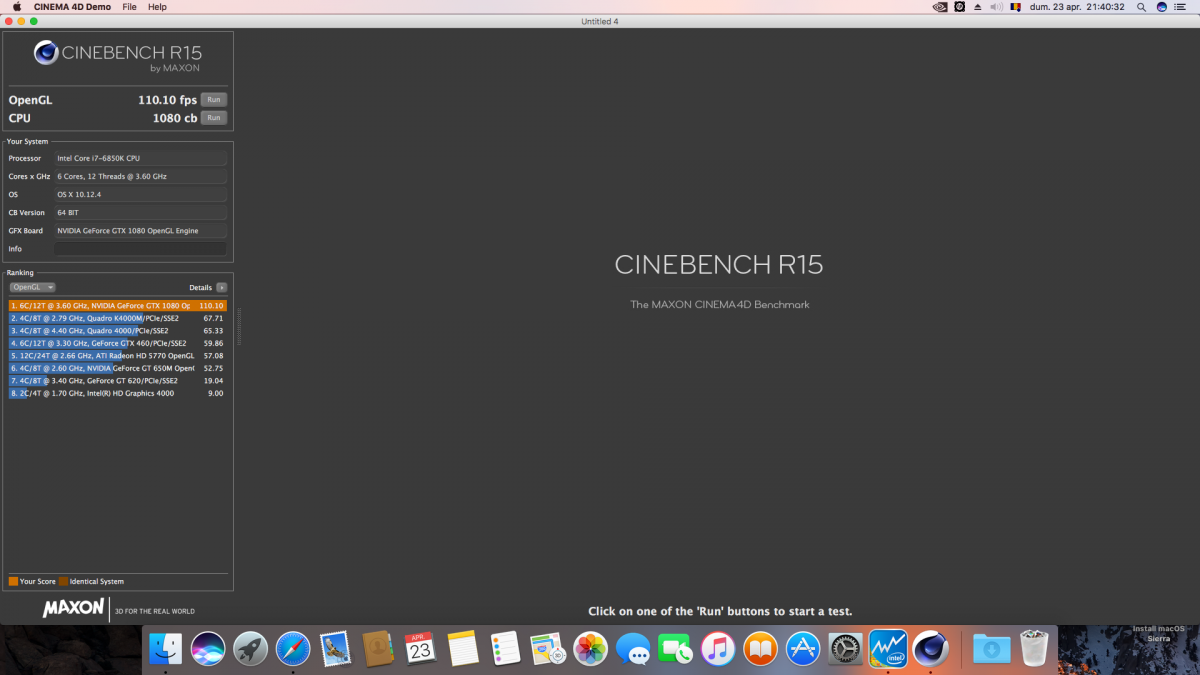

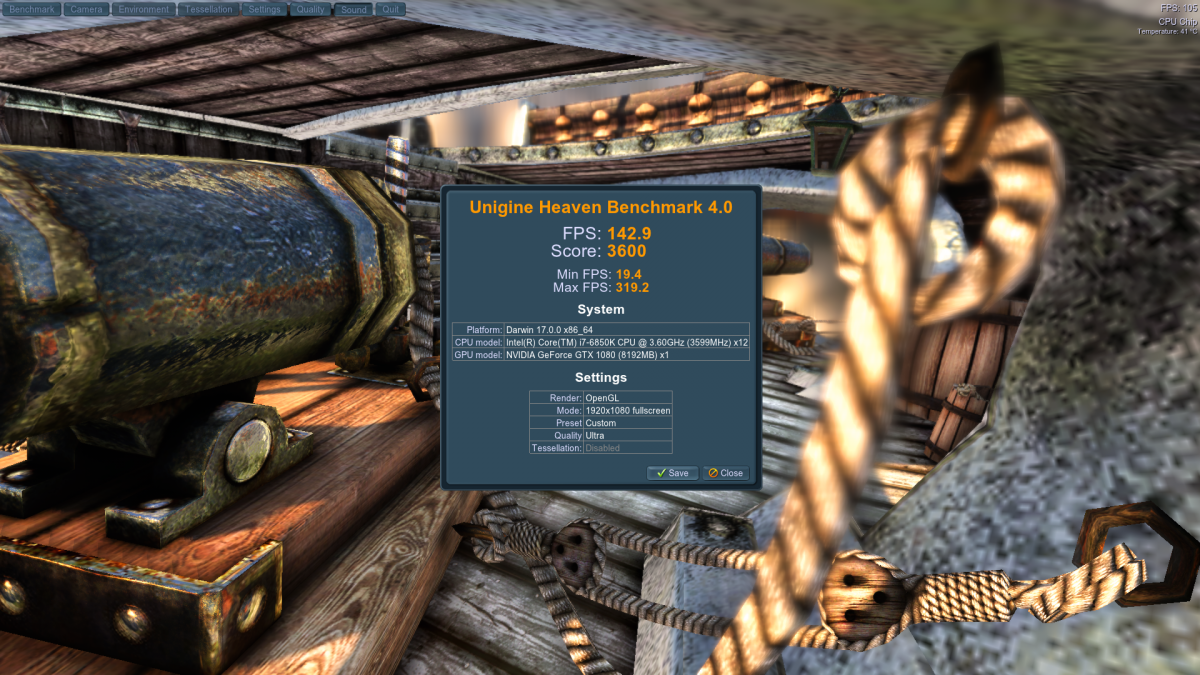

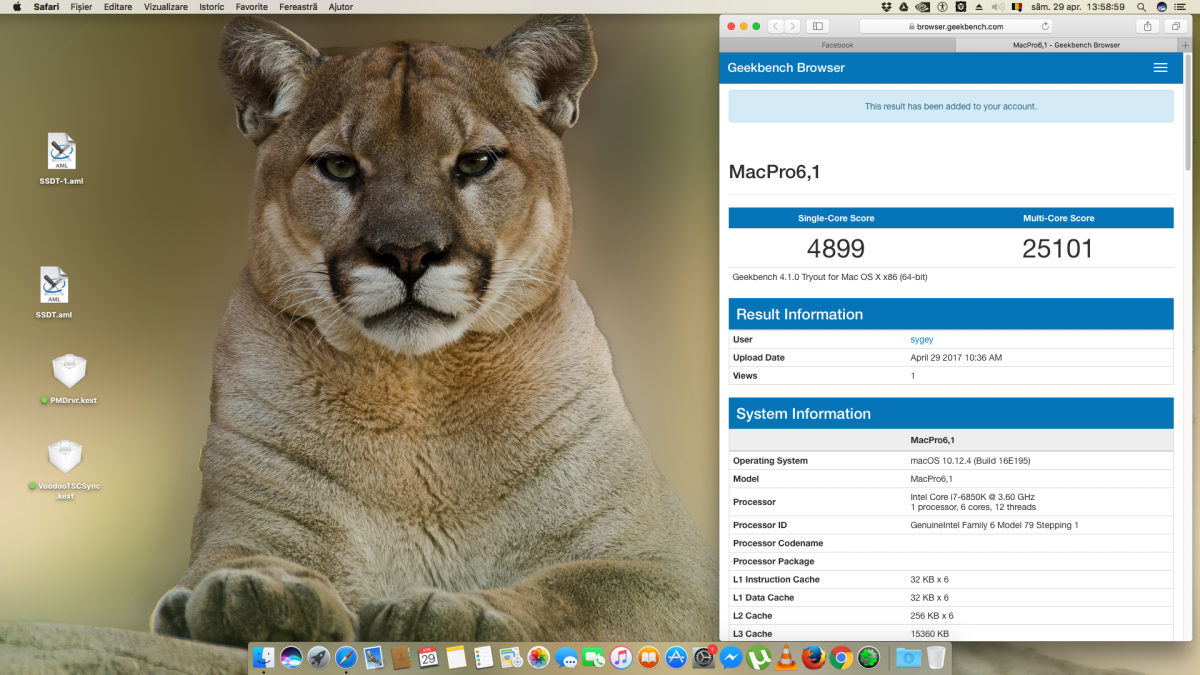

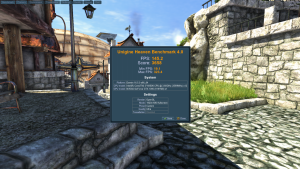

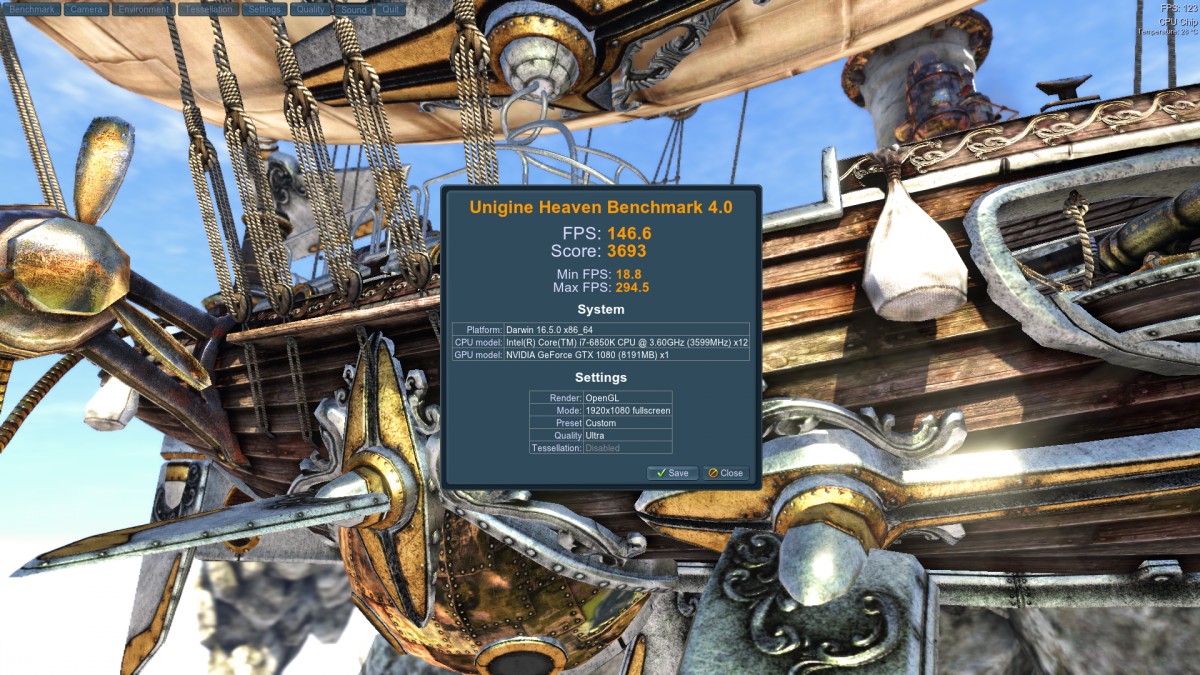

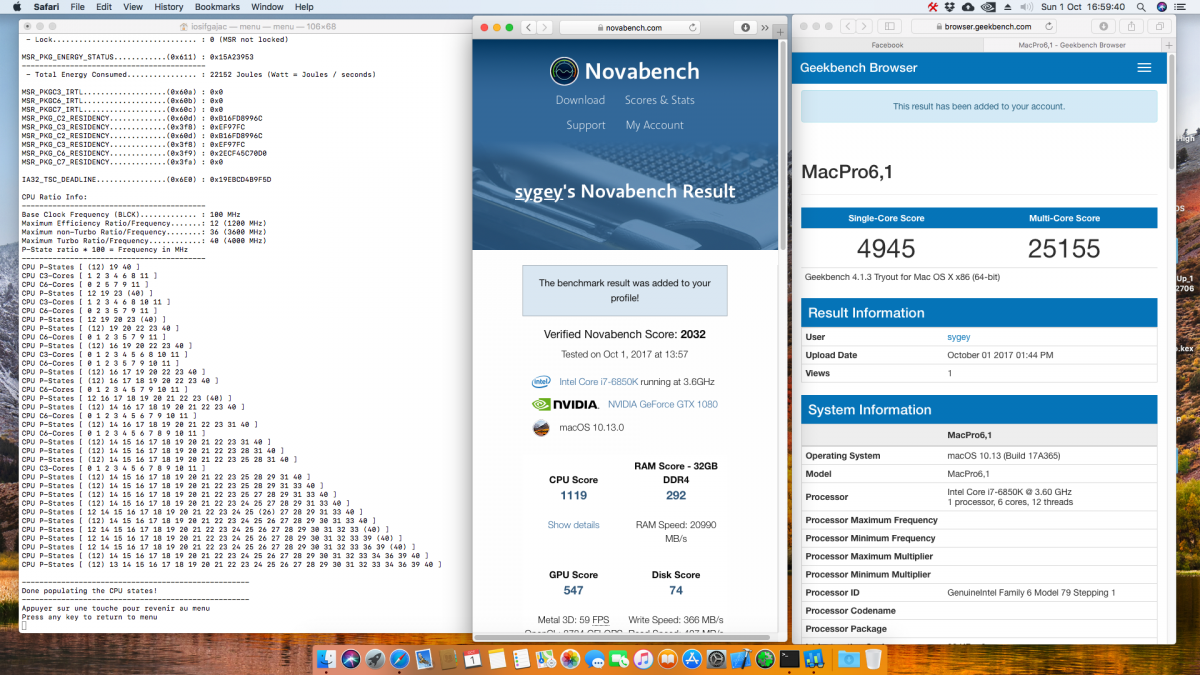

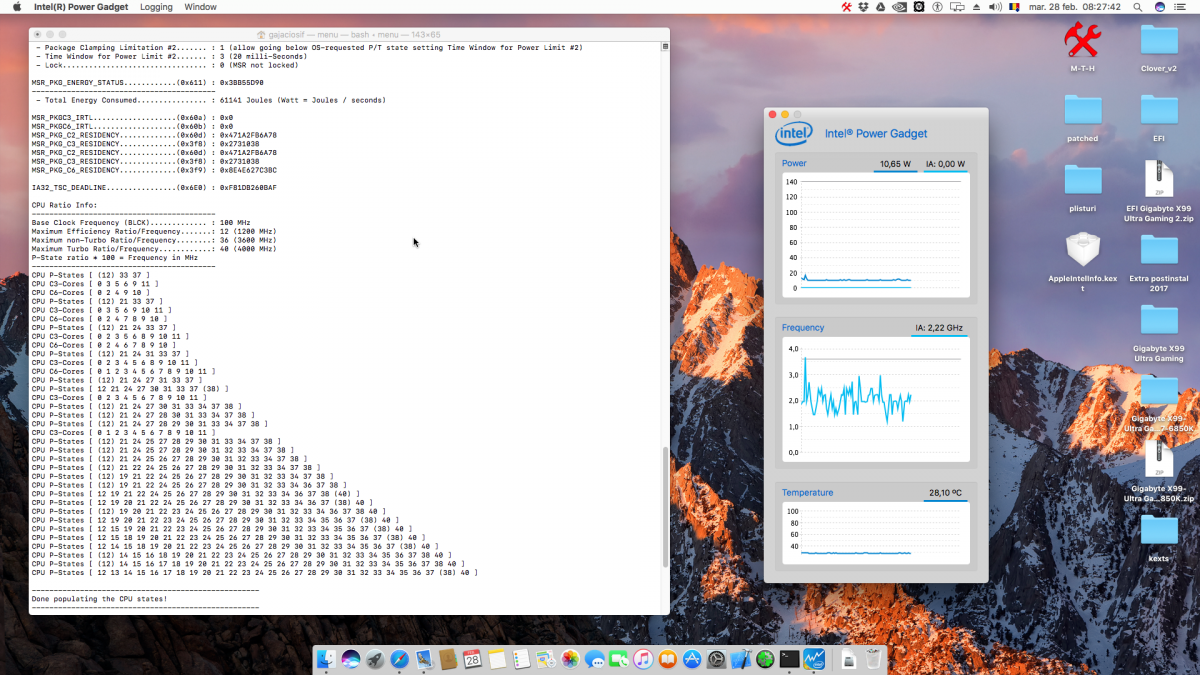

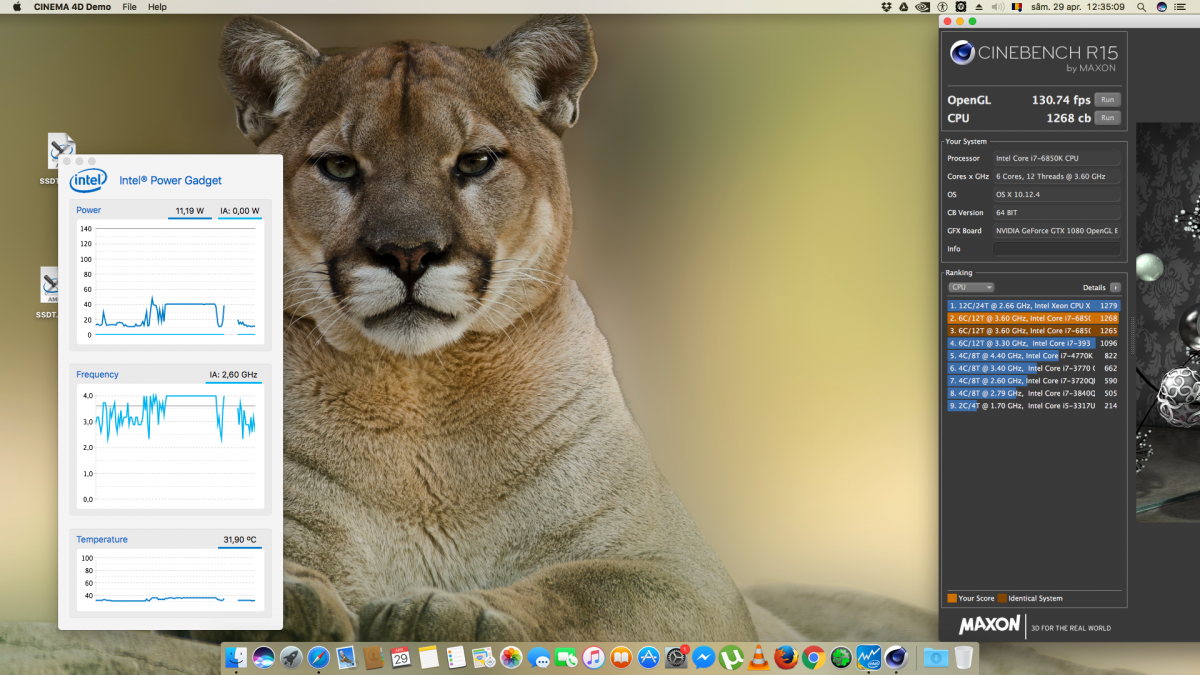

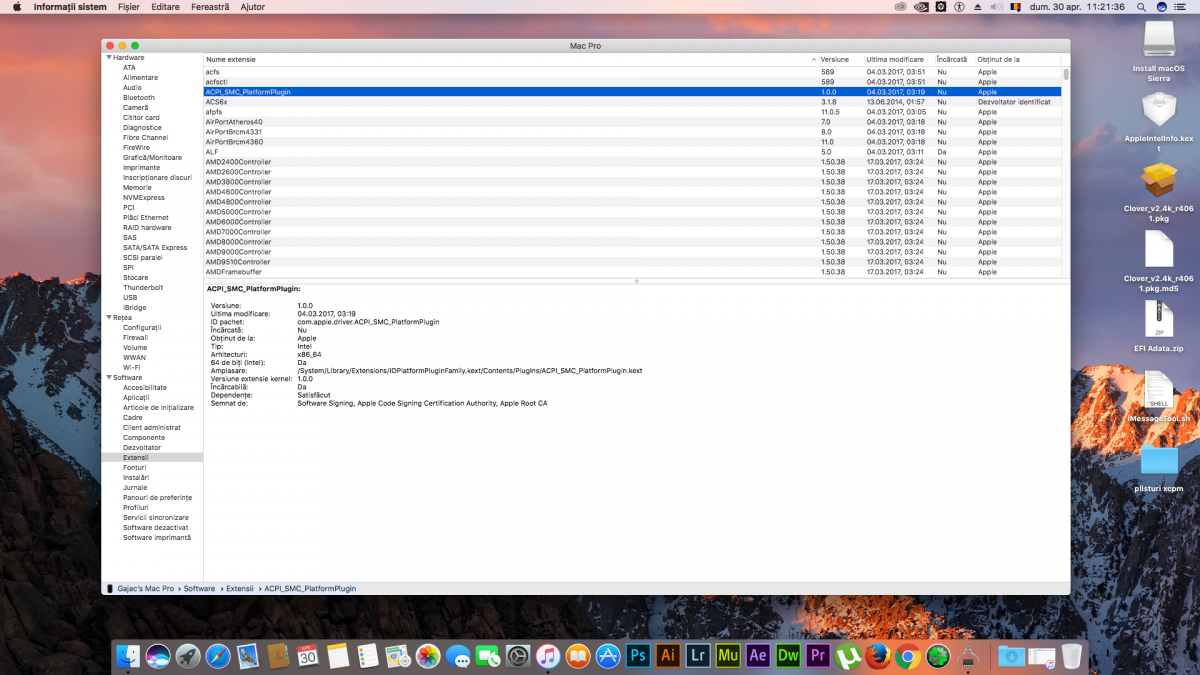

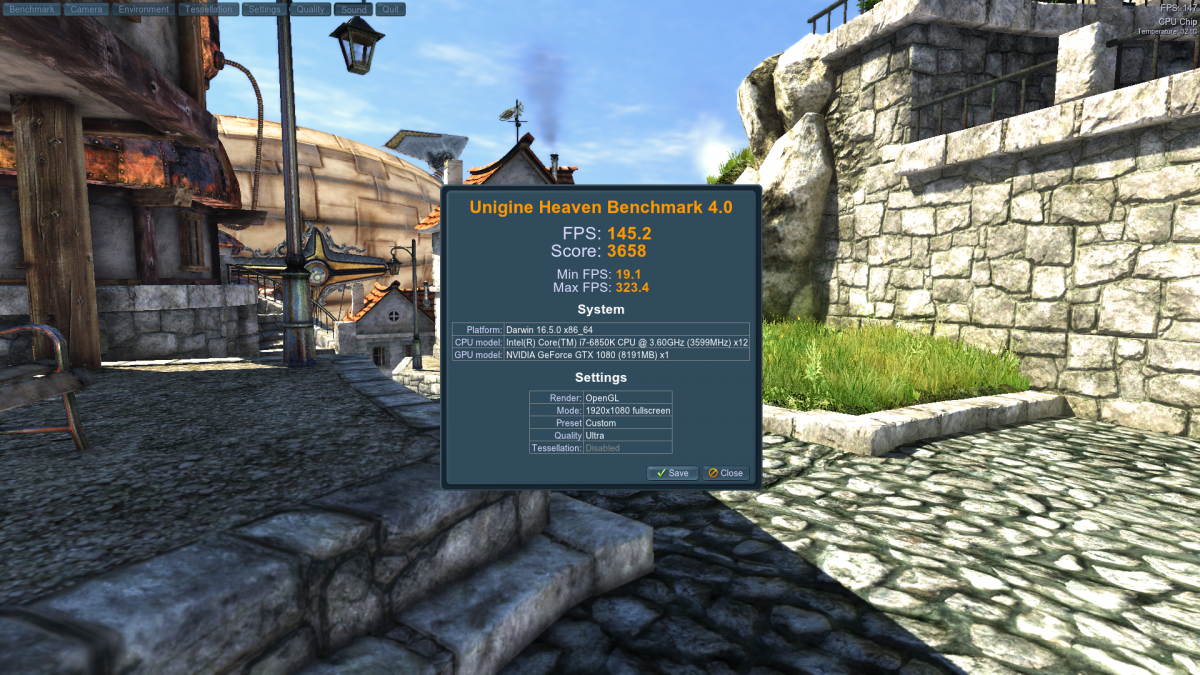

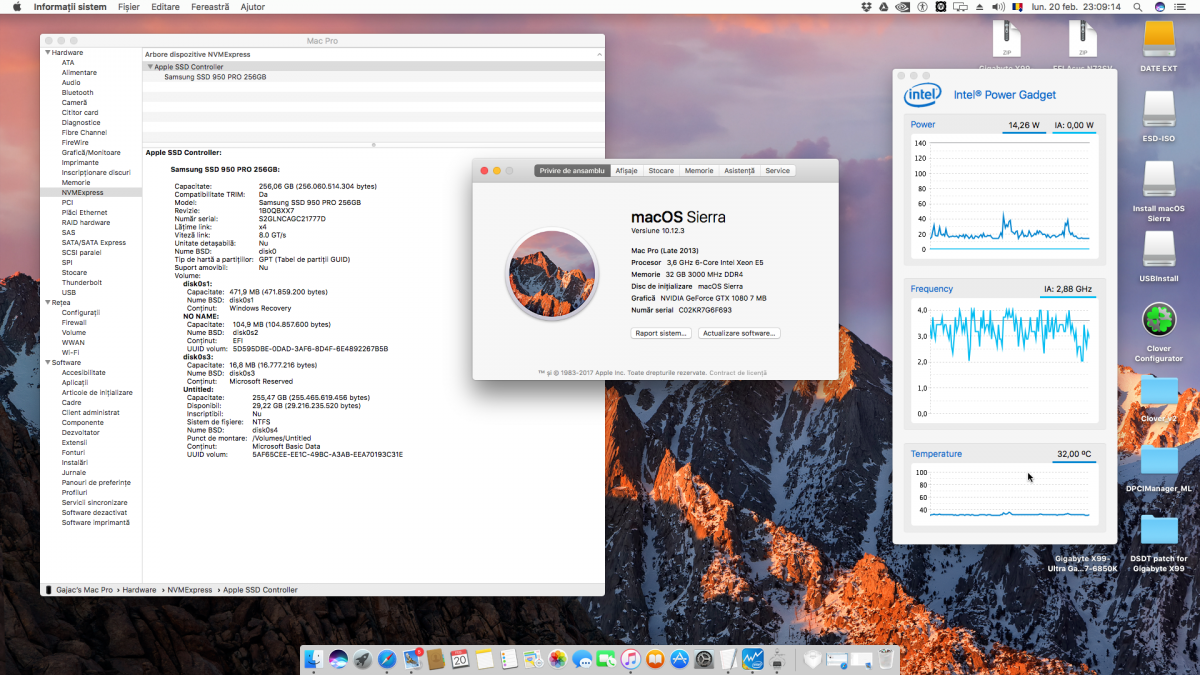

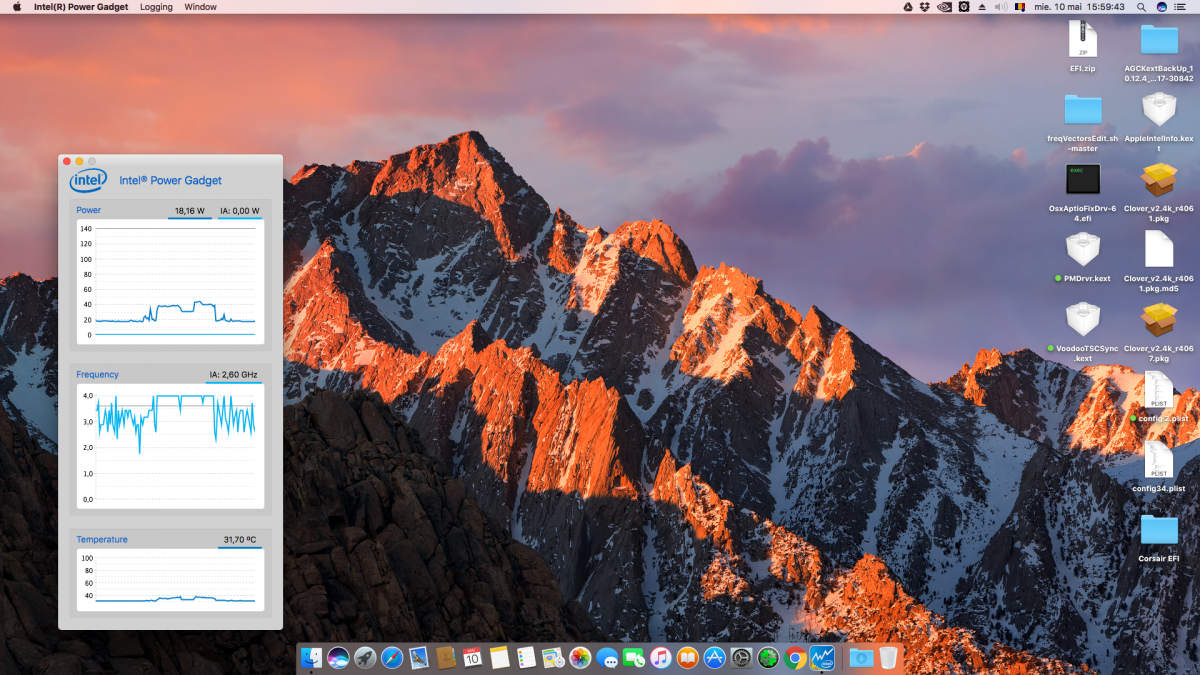

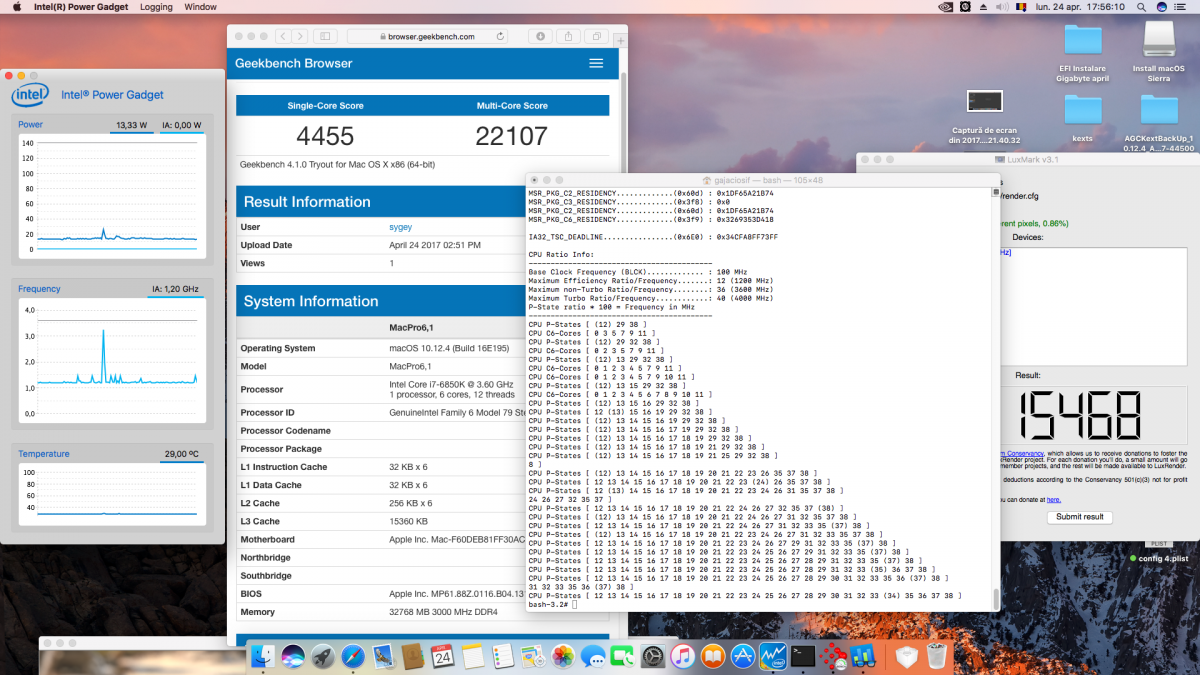

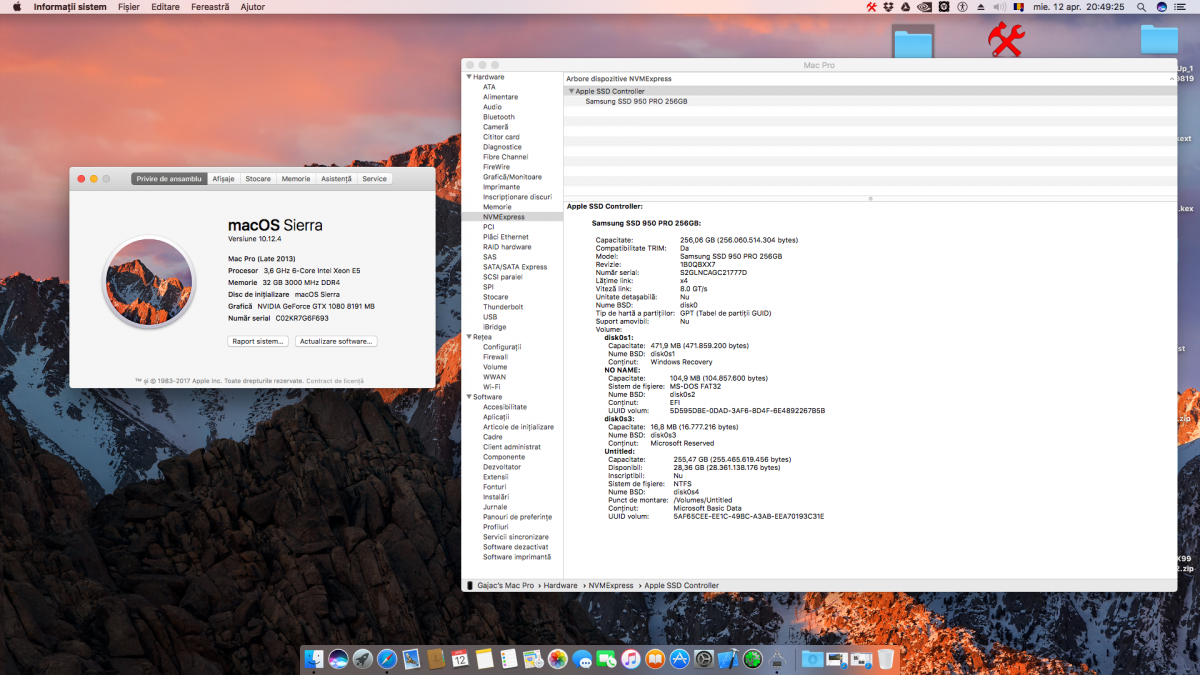

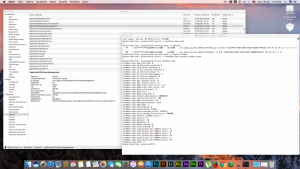

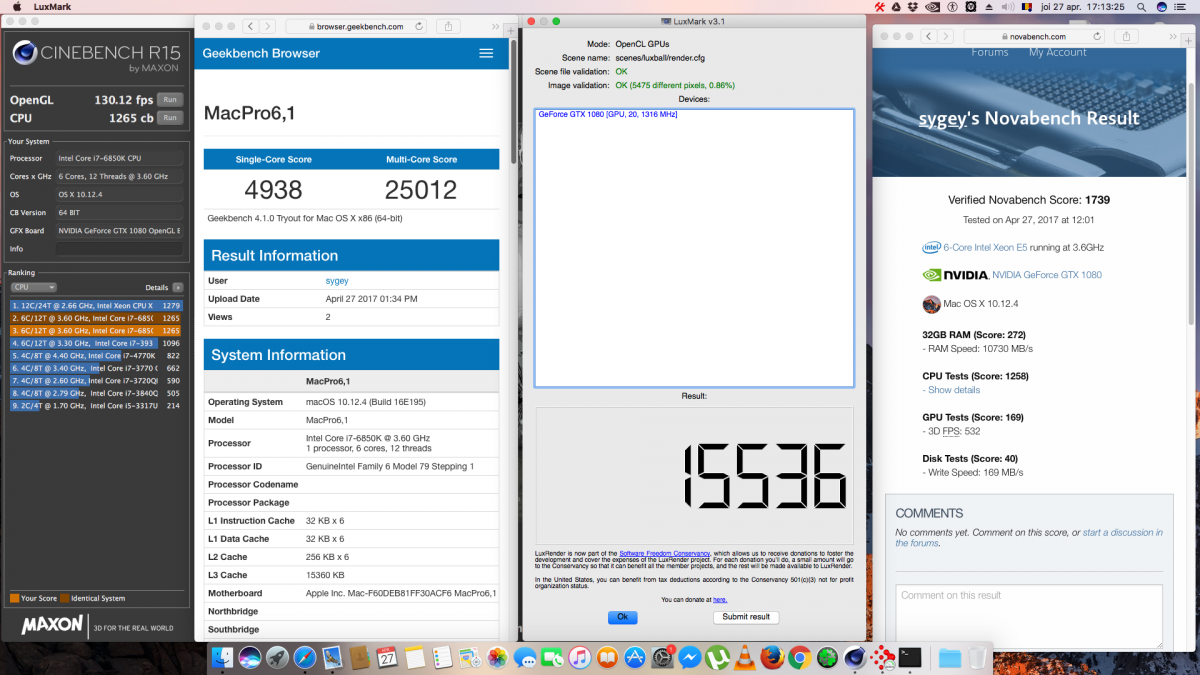

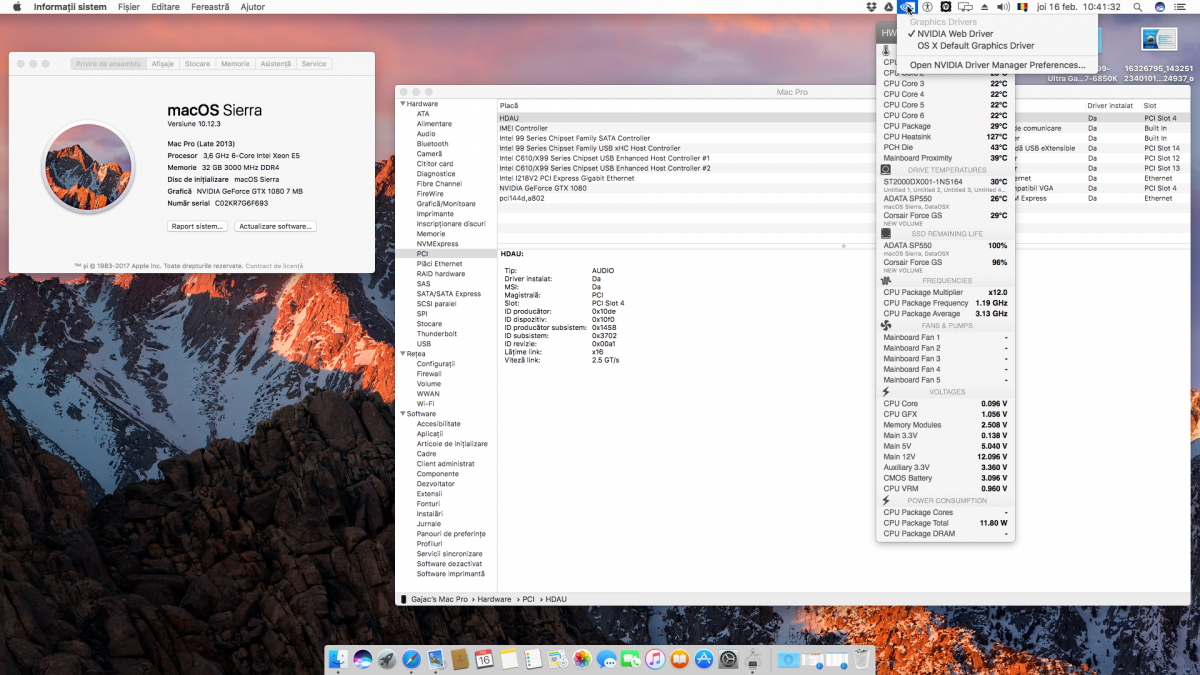

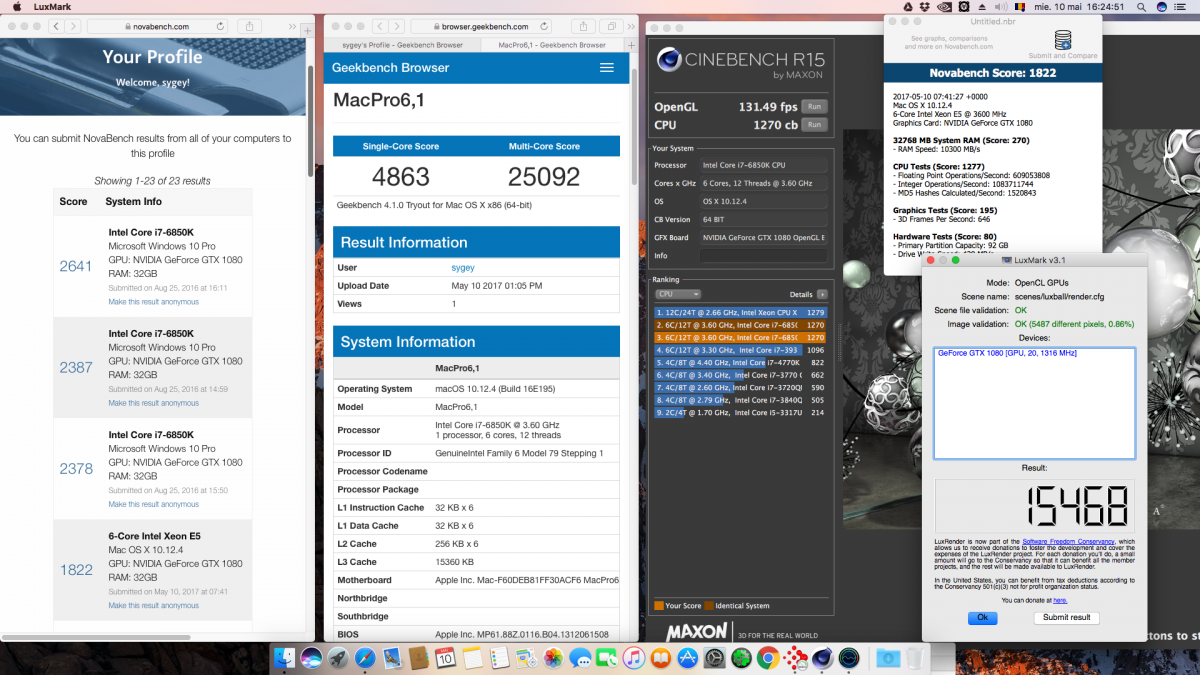

Here are some screens an the files updated!





CLOVER.zip

  • Like 1
Link to comment
Share on other sites
apfelnico
apfelnico
Posted
Posted

Use the HEX Converter in Clover Configurator and enter the values in DSDT patches (Acpi).



My Kext also works, assumes two things ahead:

1. Name of the USB3 device = XHCI (standard in the DSDT)
2. SMBIOS is MacPro6.1
  • Like 1
Link to comment
Share on other sites
  • 1 year later...
Scath
Scath
Posted
Posted

Someone help me out here. I can't get this to install any version of Mac.

HARDWARE

Gigabyte X99 Ultra CF
gtx 1060 6gb by MSI
i7-6800k

BIOS
Load Optimized Defaults
XMP Profile1
Other OS set
Legacy Set where needed

I keep seeing people share clover files. I ONLY HAVE A WINDOWS LAPTOP to work off, and my desktop is currently DOWN. Need some help here guys.

  • Like 1
Link to comment
Share on other sites
  • 1 month later...
sygey
sygey
Posted
Posted
On 12/18/2018 at 4:21 PM, Scath said:

Someone help me out here. I can't get this to install any version of Mac.

HARDWARE

Gigabyte X99 Ultra CF
gtx 1060 6gb by MSI
i7-6800k

BIOS
Load Optimized Defaults
XMP Profile1
Other OS set
Legacy Set where needed

I keep seeing people share clover files. I ONLY HAVE A WINDOWS LAPTOP to work off, and my desktop is currently DOWN. Need some help here guys.



Hi Scath..!  Try This EFI, for High Sierra, replace completly your files!



https://www.dropbox.com/s/zzl3c58dsix1zxv/EFI USB INSTALL HIGH SIERRA X99.zip?dl=0



This Files for MOJAVE!



https://www.dropbox.com/s/nzcao089d989uty/EFI USB Install Mojave december 2018.zip?dl=0
