[HELP]Installing OS X 10.11 with Clover, but always BLACK SCREEN

5 posts in this topic

Recommended Posts

My laptop is HP ProBook 4411s.
Recently, I had tried to install OS X 10.11 with Clover(latest version). But when I chose the installing disk, screen had been BLACK.
The following is my laptop's infomation:
CPU: Intel Core2 Duo CPU T6570 @ 2.10GHz
Graphics: ATI Mobility Radeon HD 4330


The following is my installing steps:
STEP1: Find a 8GB USB disk
STEP2: Partition the USB disk into two partition with "BOOTICEx64". One is 200MB called A, the other is used for making OS X intalling disk called B.
STEP3: Mount the USB disk into my MacBook Air(I have a MacBook Air). Open Clover installation, and install Clover into A.
STEP4: Mount the USB disk into my laptop(HP ProBook 4411s with Windows 7). Open "TransMac", and restore with disk image(OS X 10.11.dmg file) into B.
STEP5: Config the config.plist file as following:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>ACPI</key>
    <dict>
        <key>DSDT</key>
        <dict>
            <key>Debug</key>
            <false/>
            <key>DropOEM_DSM</key>
            <false/>
            <key>ReuseFFFF</key>
            <false/>
        </dict>
        <key>SSDT</key>
        <dict>
            <key>DropOem</key>
            <false/>
            <key>Generate</key>
            <false/>
        </dict>
    </dict>
    <key>Boot</key>
    <dict>
        <key>Arguments</key>
        <string>-v dart=0 npci=0x2000 kext-dev-mode=1</string>
        <key>Debug</key>
        <true/>
        <key>DefaultVolume</key>
        <string>Install OS X El Capitan</string>
        <key>Legacy</key>
        <string>PBR</string>
        <key>NoEarlyProgress</key>
        <true/>
        <key>Secure</key>
        <false/>
        <key>Timeout</key>
        <integer>5</integer>
        <key>XMPDetection</key>
        <string>Yes</string>
    </dict>
    <key>CPU</key>
    <dict>
        <key>UseARTFrequency</key>
        <false/>
    </dict>
    <key>Devices</key>
    <dict>
        <key>FakeID</key>
        <dict>
            <key>ATI</key>
            <string>0x95521002</string>
        </dict>
        <key>USB</key>
        <dict>
            <key>AddClockID</key>
            <true/>
            <key>FixOwnership</key>
            <false/>
            <key>Inject</key>
            <true/>
        </dict>
    </dict>
    <key>GUI</key>
    <dict>
        <key>Hide</key>
        <array>
            <string>\EFI\BOOT\BOOTX64.EFI</string>
        </array>
        <key>Language</key>
        <string>en:0</string>
        <key>Mouse</key>
        <dict>
            <key>DoubleClick</key>
            <integer>500</integer>
            <key>Enabled</key>
            <false/>
            <key>Mirror</key>
            <false/>
            <key>Speed</key>
            <integer>8</integer>
        </dict>
        <key>Scan</key>
        <dict>
            <key>Entries</key>
            <true/>
            <key>Legacy</key>
            <false/>
            <key>Linux</key>
            <false/>
            <key>Tool</key>
            <true/>
        </dict>
        <key>ScreenResolution</key>
        <string>1024x768</string>
        <key>Theme</key>
        <string>black_green</string>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>CustomEDID</key>
        <data>
        AP///////wBMo0I4AAAAAAASAQOAHxF4CoWVmVdPjyYhUFQAAAABAQEBAQEB
        AQEBAQEBAQEBEhtWclAADDAwICUANa4QAAAZAAAADwAAAAAAAAAAAB60AnQA
        AAAA/gBTQU1TVU5HCiAgICAgAAAA/gAxNDBBVDA3LUgwMQogAMQ=
        </data>
        <key>Inject</key>
        <dict>
            <key>ATI</key>
            <true/>
            <key>Intel</key>
            <false/>
            <key>NVidia</key>
            <false/>
        </dict>
        <key>InjectEDID</key>
        <true/>
        <key>LoadVBios</key>
        <true/>
        <key>PatchVBios</key>
        <true/>
        <key>FBName</key>
        <string>Shrike</string>
        <key>VideoPorts</key>
        <integer>3</integer>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>AppleRTC</key>
        <true/>
        <key>AsusAICPUPM</key>
        <true/>
        <key>Debug</key>
        <true/>
        <key>KernelCpu</key>
        <false/>
        <key>KernelHaswellE</key>
        <false/>
        <key>KernelLapic</key>
        <false/>
        <key>KernelPm</key>
        <true/>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>BooterConfig</key>
        <string>0x49</string>
        <key>CsrActiveConfig</key>
        <string>0x13</string>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>Trust</key>
        <false/>
    </dict>
</dict>
</plist>

STEP6: Restart the laptop

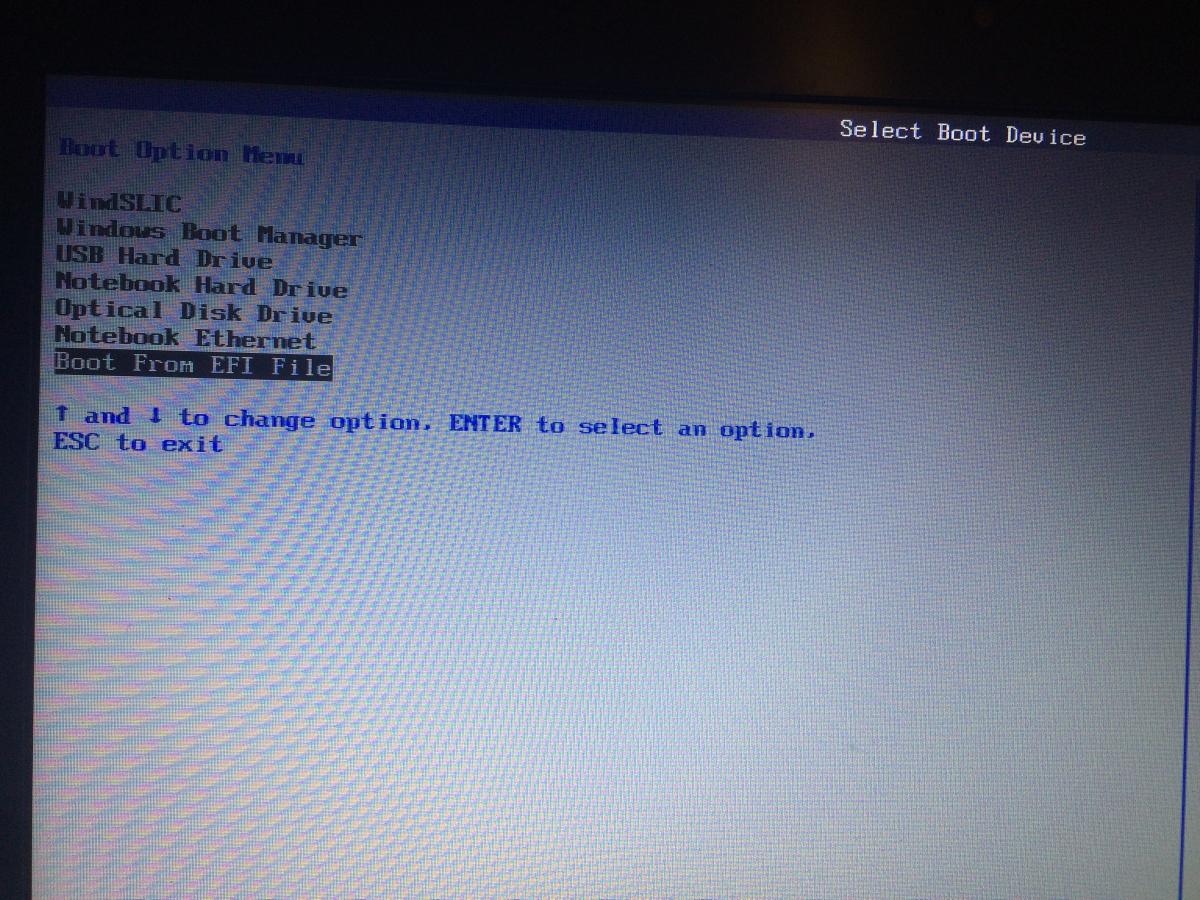

STEP7: Press F9, then choose "Boot From EFI File" as following:

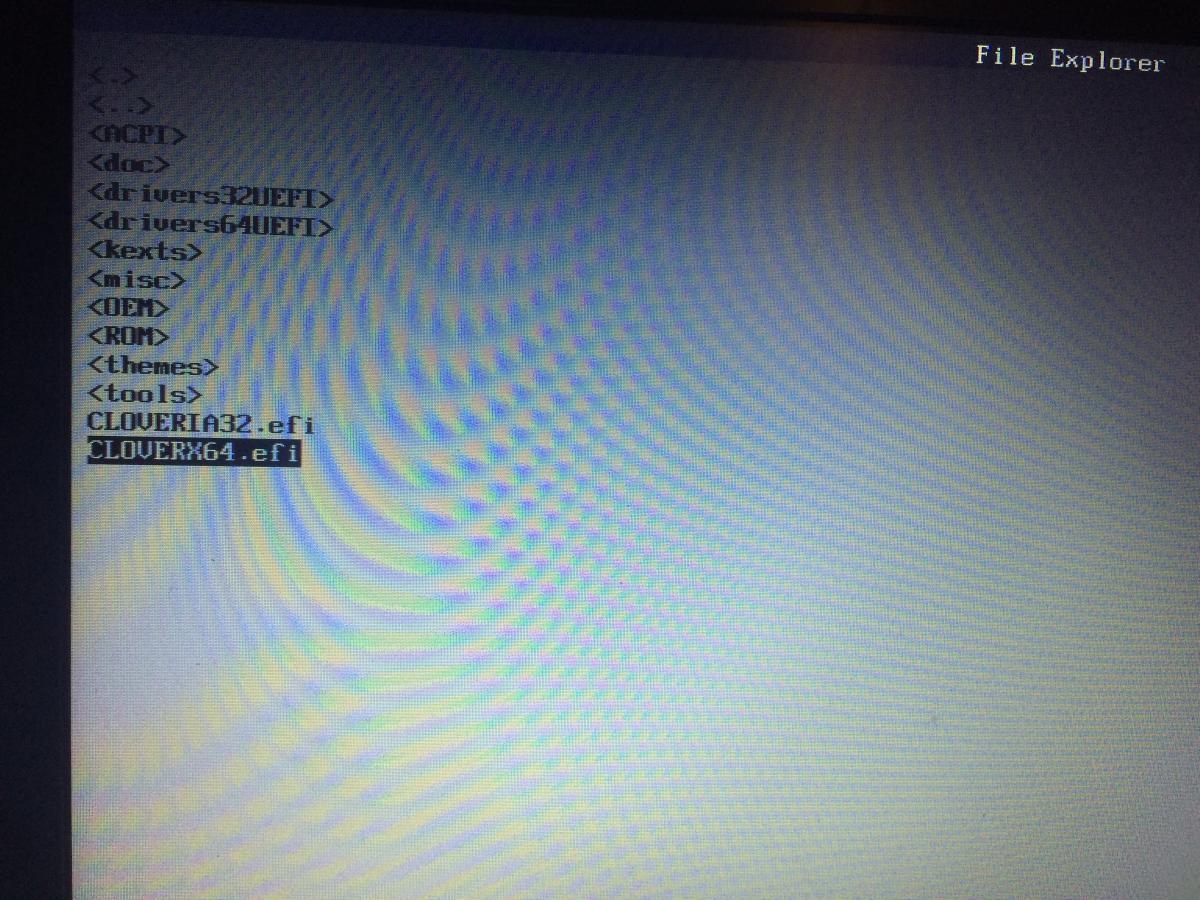

STEP8: Choose USB disk->EFI->Clover->CLOVERX64.efi as following:

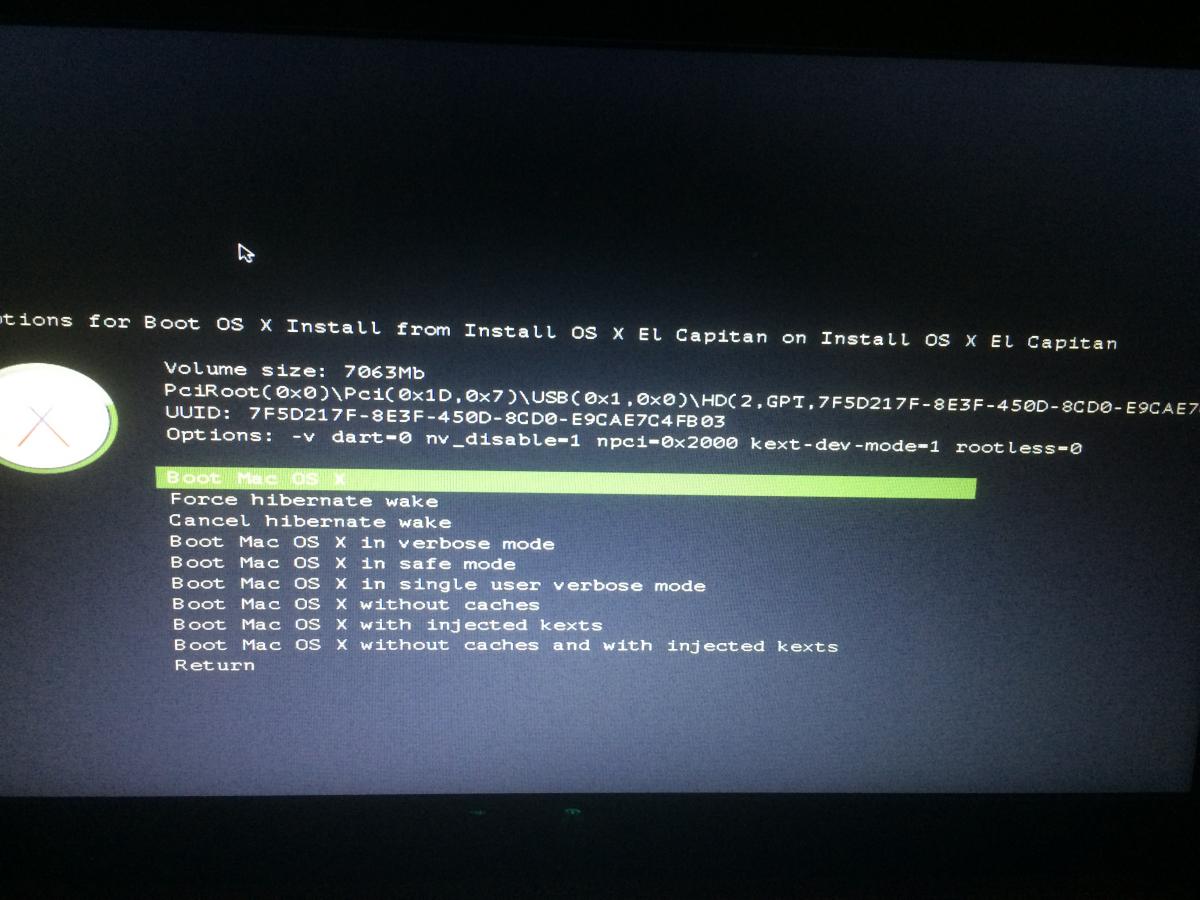

STEP9: Get into Clover successfully! Then choose the USB disk partition B(the OS X installation disk)

Whichever I chose the following choice, the screen always is black!



The following is booting log:

0:100  0:100  MemLog inited, TSC freq: 2094750406
0:100  0:000
0:100  0:000  Now is 30.8.2016,  21:19:42 (GMT)
0:100  0:000  Starting Clover rev 3642 on INTEL EFI
0:100  0:000  Build with: [Args: ./ebuild.sh -D NO_GRUB_DRIVERS_EMBEDDED | Command: build -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.11.6 | XCODE: 7.3.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x0,0x0)\HD(1,GPT,262E9842-F37F-498A-A0BD-EDE3DF905832,0x28,0x64000) @7CE2E518
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  Total Memory Slots Count = 2
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 Top
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 800MHz
0:100  0:000  SmbiosTable.Type17->Size = 2048MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 Bottom
0:100  0:000  SmbiosTable.Type17->Vendor = Samsung
0:100  0:000  SmbiosTable.Type17->SerialNumber = 9372D3
0:100  0:000  SmbiosTable.Type17->PartNumber = M471B5673EH1-CH9
0:100  0:000  Boot status=0
0:100  0:000  Clover revision: 3642  running on HP ProBook 4411s
0:100  0:000  ... with board 3074
0:100  0:000  CPU Vendor = 756E6547 Model=1067A
0:100  0:000  got cores from CPUID_1 = 2
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM)2 Duo CPU     T6570  @ 2.10GHz
0:100  0:000  MSR dumps:
0:100  0:000          @0x00CD=1A2
0:100  0:000          @0x0198=6114A2306004A23
0:100  0:000  FSBFrequency=200MHz DMIvalue=200000kHz
0:100  0:000  Corrected FSBFrequency=200MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x17/0xA
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 10.5/6
0:100  0:000  Turbo: 11/0/0/0
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 2
0:100  0:000  Cores: 2
0:100  0:000  FSB: 200 MHz
0:100  0:000  CPU: 2100 MHz
0:100  0:000  TSC: 2100 MHz
0:100  0:000  PIS: 800 MHz
0:100  0:000  PCI (00|00:00.00) : 8086 2A40 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 2A41 class=060400
0:100  0:000  PCI (00|01:00.00) : 1002 9552 class=030000
0:100  0:000  Found Radeon model=ATI Mobility Radeon HD 4330
0:100  0:000  PCI (00|01:00.01) : 1002 AA38 class=040300
0:100  0:000  PCI (00|00:1A.00) : 8086 2937 class=0C0300
0:100  0:000  PCI (00|00:1A.01) : 8086 2938 class=0C0300
0:100  0:000  PCI (00|00:1A.02) : 8086 2939 class=0C0300
0:100  0:000  PCI (00|00:1A.07) : 8086 293C class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 293E class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 2940 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 2942 class=060400
0:100  0:000  PCI (00|03:00.00) : 8086 0084 class=028000
0:100  0:000  PCI (00|00:1C.02) : 8086 2944 class=060400
0:100  0:000  PCI (00|00:1C.04) : 8086 2948 class=060400
0:100  0:000  PCI (00|00:1C.05) : 8086 294A class=060400
0:100  0:000  PCI (00|86:00.00) : 11AB 436C class=020000
0:100  0:000  LAN 0, Vendor=11AB, MMIO=90100000
0:100  0:000  PCI (00|00:1D.00) : 8086 2934 class=0C0300
0:100  0:000  PCI (00|00:1D.01) : 8086 2935 class=0C0300
0:100  0:000  PCI (00|00:1D.02) : 8086 2936 class=0C0300
0:100  0:000  PCI (00|00:1D.07) : 8086 293A class=0C0320
0:100  0:000  PCI (00|00:1E.00) : 8086 2448 class=060401
0:100  0:000  PCI (00|00:1F.00) : 8086 2919 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 2929 class=010601
0:100  0:000  Clover load options size = 0 bytes
0:104  0:003  Using OEM config.plist at path: EFI\CLOVER\config.plist
0:104  0:000  EFI\CLOVER\config.plist loaded: Success
0:126  0:022  Found theme directory: black_green
0:152  0:025  Found theme directory: Yosemite
0:172  0:019  Found theme directory: applestyle
0:200  0:028  Found theme directory: BGM
0:234  0:033  Found theme directory: BGM256
0:259  0:024  Found theme directory: bluemac
0:274  0:015  Found theme directory: bootcamp
0:286  0:012  Found theme directory: chrome
0:298  0:012  Found theme directory: CloverX
0:308  0:009  Found theme directory: dawn
0:323  0:015  Found theme directory: gold_clover
0:335  0:012  Found theme directory: iclover
0:341  0:006  Found theme directory: ios7
0:364  0:022  Found theme directory: magnifico
0:374  0:010  Found theme directory: metal
0:389  0:015  Found theme directory: orange
0:396  0:006  Found theme directory: os_box
0:402  0:005  Found theme directory: os_one
0:428  0:026  Found theme directory: Shield
0:482  0:053  Found theme directory: sketched
0:496  0:014  Found theme directory: Space
0:511  0:014  Found theme directory: steampunkblack
0:522  0:011  Found theme directory: thinkpad
0:533  0:011  Loading early settings
0:533  0:000  timeout set to 5
0:533  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:851  0:317  Default theme: black_green
0:932  0:081  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
0:987  0:054  CustomEDID ok
1:042  0:054  LoadDrivers() start
1:105  0:063  Loading CsmVideoDxe-64.efi  status=Success
1:292  0:186   - driver needs connecting
1:347  0:054  Loading DataHubDxe-64.efi  status=Success
1:534  0:187  Loading EmuVariableUefi-64.efi  status=Success
1:708  0:173  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
1:954  0:245  Loading FSInject-64.efi  status=Success
2:133  0:179  Loading HFSPlus-64.efi  status=Success
2:317  0:184   - driver needs connecting
2:374  0:056  Loading NTFS.efi  status=Success
2:570  0:195   - driver needs connecting
2:627  0:056  Loading OsxFatBinaryDrv-64.efi  status=Success
2:809  0:182  Loading PartitionDxe-64.efi  status=Success
2:989  0:179   - driver needs connecting
3:045  0:056  Loading OsxAptioFix2Drv-64.efi  status=Success
3:421  0:375  4 drivers needs connecting ...
3:505  0:084  PlatformDriverOverrideProtocol not found. Installing ... Success
3:614  0:108  Partition driver loaded: CD disconnect Success
3:779  0:164  HFS+ driver loaded
3:834  0:054  Video driver loaded: disconnect Success
4:078  0:244  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
4:202  0:124  CsmVideoDriverBindingStart
4:259  0:056  Controller is [030000]
4:314  0:055  Check for VBE
0:100  0:100  MemLog inited, TSC freq: 2094749704
0:100  0:000
0:100  0:000  Now is 30.8.2016,  21:21:57 (GMT)
0:100  0:000  Starting Clover rev 3642 on INTEL EFI
0:100  0:000  Build with: [Args: ./ebuild.sh -D NO_GRUB_DRIVERS_EMBEDDED | Command: build -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.11.6 | XCODE: 7.3.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)\HD(1,GPT,262E9842-F37F-498A-A0BD-EDE3DF905832,0x28,0x64000) @7CE2E418
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  Total Memory Slots Count = 2
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 Top
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 800MHz
0:100  0:000  SmbiosTable.Type17->Size = 2048MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 Bottom
0:100  0:000  SmbiosTable.Type17->Vendor = Samsung
0:100  0:000  SmbiosTable.Type17->SerialNumber = 9372D3
0:100  0:000  SmbiosTable.Type17->PartNumber = M471B5673EH1-CH9
0:100  0:000  Boot status=0
0:100  0:000  Clover revision: 3642  running on HP ProBook 4411s
0:100  0:000  ... with board 3074
0:100  0:000  CPU Vendor = 756E6547 Model=1067A
0:100  0:000  got cores from CPUID_1 = 2
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM)2 Duo CPU     T6570  @ 2.10GHz
0:100  0:000  MSR dumps:
0:100  0:000          @0x00CD=1A2
0:100  0:000          @0x0198=6114A2306004A23
0:100  0:000  FSBFrequency=200MHz DMIvalue=200000kHz
0:100  0:000  Corrected FSBFrequency=200MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x17/0xA
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 10.5/6
0:100  0:000  Turbo: 11/0/0/0
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 2
0:100  0:000  Cores: 2
0:100  0:000  FSB: 200 MHz
0:100  0:000  CPU: 2100 MHz
0:100  0:000  TSC: 2100 MHz
0:100  0:000  PIS: 800 MHz
0:100  0:000  PCI (00|00:00.00) : 8086 2A40 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 2A41 class=060400
0:100  0:000  PCI (00|01:00.00) : 1002 9552 class=030000
0:100  0:000  Found Radeon model=ATI Mobility Radeon HD 4330
0:100  0:000  PCI (00|01:00.01) : 1002 AA38 class=040300
0:100  0:000  PCI (00|00:1A.00) : 8086 2937 class=0C0300
0:100  0:000  PCI (00|00:1A.01) : 8086 2938 class=0C0300
0:100  0:000  PCI (00|00:1A.02) : 8086 2939 class=0C0300
0:100  0:000  PCI (00|00:1A.07) : 8086 293C class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 293E class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 2940 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 2942 class=060400
0:100  0:000  PCI (00|03:00.00) : 8086 0084 class=028000
0:100  0:000  PCI (00|00:1C.02) : 8086 2944 class=060400
0:100  0:000  PCI (00|00:1C.04) : 8086 2948 class=060400
0:100  0:000  PCI (00|00:1C.05) : 8086 294A class=060400
0:100  0:000  PCI (00|86:00.00) : 11AB 436C class=020000
0:100  0:000  LAN 0, Vendor=11AB, MMIO=90100000
0:100  0:000  PCI (00|00:1D.00) : 8086 2934 class=0C0300
0:100  0:000  PCI (00|00:1D.01) : 8086 2935 class=0C0300
0:100  0:000  PCI (00|00:1D.02) : 8086 2936 class=0C0300
0:100  0:000  PCI (00|00:1D.07) : 8086 293A class=0C0320
0:100  0:000  PCI (00|00:1E.00) : 8086 2448 class=060401
0:100  0:000  PCI (00|00:1F.00) : 8086 2919 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 2929 class=010601
0:100  0:000  Clover load options size = 0 bytes
0:104  0:003  Using OEM config.plist at path: EFI\CLOVER\config.plist
0:104  0:000  EFI\CLOVER\config.plist loaded: Success
0:126  0:022  Found theme directory: black_green
0:149  0:023  Found theme directory: Yosemite
0:169  0:019  Found theme directory: applestyle
0:197  0:027  Found theme directory: BGM
0:231  0:033  Found theme directory: BGM256
0:256  0:024  Found theme directory: bluemac
0:271  0:015  Found theme directory: bootcamp
0:283  0:012  Found theme directory: chrome
0:295  0:012  Found theme directory: CloverX
0:305  0:009  Found theme directory: dawn
0:320  0:015  Found theme directory: gold_clover
0:333  0:012  Found theme directory: iclover
0:339  0:006  Found theme directory: ios7
0:361  0:022  Found theme directory: magnifico
0:371  0:009  Found theme directory: metal
0:386  0:015  Found theme directory: orange
0:393  0:006  Found theme directory: os_box
0:399  0:005  Found theme directory: os_one
0:424  0:025  Found theme directory: Shield
0:478  0:053  Found theme directory: sketched
0:493  0:014  Found theme directory: Space
0:508  0:014  Found theme directory: steampunkblack
0:519  0:011  Found theme directory: thinkpad
0:530  0:011  Loading early settings
0:530  0:000  timeout set to 5
0:530  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:847  0:317  Default theme: black_green
0:902  0:054  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
0:983  0:081  CustomEDID ok
1:038  0:055  LoadDrivers() start
1:101  0:063  Loading DataHubDxe-64.efi  status=Success
1:292  0:190  Loading EmuVariableUefi-64.efi  status=Success
1:473  0:180  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
1:693  0:219  Loading FSInject-64.efi  status=Success
1:871  0:178  Loading HFSPlus-64.efi  status=Success
2:055  0:183   - driver needs connecting
2:112  0:056  Loading NTFS.efi  status=Success
2:341  0:229   - driver needs connecting
2:398  0:056  Loading _CsmVideoDxe-64.efi  status=Success
2:578  0:180   - driver needs connecting
2:634  0:056  Loading OsxFatBinaryDrv-64.efi  status=Success
3:026  0:392  Loading PartitionDxe-64.efi  status=Success
3:212  0:185   - driver needs connecting
3:275  0:062  Loading OsxAptioFix2Drv-64.efi  status=Success
3:463  0:187  4 drivers needs connecting ...
3:526  0:063  PlatformDriverOverrideProtocol not found. Installing ... Success
3:663  0:136  Partition driver loaded: CD disconnect Success
3:827  0:164  HFS+ driver loaded
3:881  0:054  Video driver loaded: disconnect Success
4:132  0:250  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
4:256  0:124  CsmVideoDriverBindingStart
4:312  0:056  Controller is [030000]
4:367  0:055  Check for VBE
0:100  0:100  MemLog inited, TSC freq: 2094749931
0:100  0:000
0:100  0:000  Now is 30.8.2016,  21:24:51 (GMT)
0:100  0:000  Starting Clover rev 3642 on INTEL EFI
0:100  0:000  Build with: [Args: ./ebuild.sh -D NO_GRUB_DRIVERS_EMBEDDED | Command: build -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.11.6 | XCODE: 7.3.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)\HD(1,GPT,262E9842-F37F-498A-A0BD-EDE3DF905832,0x28,0x64000) @7CE2E418
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  Total Memory Slots Count = 2
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 Top
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 800MHz
0:100  0:000  SmbiosTable.Type17->Size = 2048MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 Bottom
0:100  0:000  SmbiosTable.Type17->Vendor = Samsung
0:100  0:000  SmbiosTable.Type17->SerialNumber = 9372D3
0:100  0:000  SmbiosTable.Type17->PartNumber = M471B5673EH1-CH9
0:100  0:000  Boot status=0
0:100  0:000  Clover revision: 3642  running on HP ProBook 4411s
0:100  0:000  ... with board 3074
0:100  0:000  CPU Vendor = 756E6547 Model=1067A
0:100  0:000  got cores from CPUID_1 = 2
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM)2 Duo CPU     T6570  @ 2.10GHz
0:100  0:000  MSR dumps:
0:100  0:000          @0x00CD=1A2
0:100  0:000          @0x0198=6114A2306004A23
0:100  0:000  FSBFrequency=200MHz DMIvalue=200000kHz
0:100  0:000  Corrected FSBFrequency=200MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x17/0xA
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 10.5/6
0:100  0:000  Turbo: 11/0/0/0
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 2
0:100  0:000  Cores: 2
0:100  0:000  FSB: 200 MHz
0:100  0:000  CPU: 2100 MHz
0:100  0:000  TSC: 2100 MHz
0:100  0:000  PIS: 800 MHz
0:100  0:000  PCI (00|00:00.00) : 8086 2A40 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 2A41 class=060400
0:100  0:000  PCI (00|01:00.00) : 1002 9552 class=030000
0:100  0:000  Found Radeon model=ATI Mobility Radeon HD 4330
0:100  0:000  PCI (00|01:00.01) : 1002 AA38 class=040300
0:100  0:000  PCI (00|00:1A.00) : 8086 2937 class=0C0300
0:100  0:000  PCI (00|00:1A.01) : 8086 2938 class=0C0300
0:100  0:000  PCI (00|00:1A.02) : 8086 2939 class=0C0300
0:100  0:000  PCI (00|00:1A.07) : 8086 293C class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 293E class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 2940 class=060400
0:100  0:000  PCI (00|00:1C.01) : 8086 2942 class=060400
0:100  0:000  PCI (00|03:00.00) : 8086 0084 class=028000
0:100  0:000  PCI (00|00:1C.02) : 8086 2944 class=060400
0:100  0:000  PCI (00|00:1C.04) : 8086 2948 class=060400
0:100  0:000  PCI (00|00:1C.05) : 8086 294A class=060400
0:100  0:000  PCI (00|86:00.00) : 11AB 436C class=020000
0:100  0:000  LAN 0, Vendor=11AB, MMIO=90100000
0:100  0:000  PCI (00|00:1D.00) : 8086 2934 class=0C0300
0:100  0:000  PCI (00|00:1D.01) : 8086 2935 class=0C0300
0:100  0:000  PCI (00|00:1D.02) : 8086 2936 class=0C0300
0:100  0:000  PCI (00|00:1D.07) : 8086 293A class=0C0320
0:100  0:000  PCI (00|00:1E.00) : 8086 2448 class=060401
0:100  0:000  PCI (00|00:1F.00) : 8086 2919 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 2929 class=010601
0:100  0:000  Clover load options size = 0 bytes
0:104  0:003  Using OEM config.plist at path: EFI\CLOVER\config.plist
0:104  0:000  EFI\CLOVER\config.plist loaded: Success
0:126  0:022  Found theme directory: black_green
0:149  0:023  Found theme directory: Yosemite
0:169  0:020  Found theme directory: applestyle
0:198  0:028  Found theme directory: BGM
0:232  0:034  Found theme directory: BGM256
0:256  0:024  Found theme directory: bluemac
0:271  0:015  Found theme directory: bootcamp
0:284  0:012  Found theme directory: chrome
0:296  0:012  Found theme directory: CloverX
0:305  0:009  Found theme directory: dawn
0:321  0:015  Found theme directory: gold_clover
0:333  0:012  Found theme directory: iclover
0:339  0:006  Found theme directory: ios7
0:361  0:022  Found theme directory: magnifico
0:371  0:010  Found theme directory: metal
0:387  0:015  Found theme directory: orange
0:393  0:006  Found theme directory: os_box
0:399  0:005  Found theme directory: os_one
0:425  0:025  Found theme directory: Shield
0:479  0:054  Found theme directory: sketched
0:494  0:014  Found theme directory: Space
0:508  0:014  Found theme directory: steampunkblack
0:520  0:011  Found theme directory: thinkpad
0:531  0:010  Loading early settings
0:531  0:000  timeout set to 5
0:531  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
1:948  1:417  Default theme: black_green
2:002  0:054  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
2:057  0:054  CustomEDID ok
2:112  0:054  LoadDrivers() start
2:202  0:089  Loading DataHubDxe-64.efi  status=Success
2:392  0:190  Loading EmuVariableUefi-64.efi  status=Success
2:573  0:180  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
2:793  0:220  Loading FSInject-64.efi  status=Success
2:972  0:179  Loading HFSPlus-64.efi  status=Success
3:157  0:185   - driver needs connecting
3:214  0:056  Loading NTFS.efi  status=Success
3:410  0:195   - driver needs connecting
4:844  1:433  Loading OsxFatBinaryDrv-64.efi  status=Success
5:026  0:182  Loading PartitionDxe-64.efi  status=Success
5:207  0:180   - driver needs connecting
5:264  0:057  Loading OsxAptioFix2Drv-64.efi  status=Success
5:441  0:176  3 drivers needs connecting ...
5:498  0:057  PlatformDriverOverrideProtocol not found. Installing ... Success
5:609  0:110  Partition driver loaded: CD disconnect Success
5:774  0:165  HFS+ driver loaded
5:829  0:055  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
6:802  0:973  LoadDrivers() end
7:060  0:257  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
7:391  0:330  SetScreenResolution: 1024x768 - already set
7:501  0:110  Console modes reported: 3, available modes:
7:556  0:055    Mode 1: 80x25
7:611  0:055    Mode 2: 120x36
7:666  0:055    Mode 3: 128x40 (current mode)
7:721  0:054  SetScreenResolution: 1024x768 - already set
7:932  0:210  reinit: self device path=PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)\HD(1,GPT,262E9842-F37F-498A-A0BD-EDE3DF905832,0x28,0x64000)
7:987  0:055  ScanSPD() start
8:043  0:055  ScanSPD() end
8:098  0:055  Get Acpi Tables List from RSDT:
8:208  0:110   Found table: FACP  3074     len=244
8:263  0:055   Found table: HPET  3074     len=56
8:319  0:055   Found table: APIC  3074     len=132
8:374  0:055   Found table: MCFG  3074     len=60
8:429  0:055   Found table: ASF!  3074     len=160
8:511  0:082   Found table: SSDT  SataAhci len=733
8:566  0:055   Found table: SLIC  SLIC-MPC len=374
8:621  0:054   Found table: DMAR  len=152
8:676  0:055   Found table: SSDT  CpuPm len=1644
8:731  0:055   Found table: SSDT  Cpu0Tst len=648
8:787  0:055   Found table: SSDT  ApTst len=549
8:842  0:055  Calibrated TSC frequency =2094749931 =2094MHz
8:897  0:055  Loading main settings
8:952  0:055  found 10 volumes with blockIO
9:007  0:055   0. Volume:
9:062  0:055    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)
9:163  0:101   1. Volume:
9:218  0:055    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(1,GPT,E790F6FD-CCB1-4830-BB10-A2407EA68F6F,0x800,0x32000)
9:275  0:056    Result of bootcode detection: bootable Windows (vista,win)
9:330  0:055   2. Volume:
9:386  0:055    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(2,GPT,1E48E3B0-F0CA-4263-98E6-DE13B5C9231A,0x32800,0x40000)
9:479  0:092   3. Volume:
9:533  0:054    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(3,GPT,FA633F77-270E-43B6-8C27-FA948DC0ED78,0x72800,0x778E000)
9:681  0:147    Result of bootcode detection: bootable Windows (vista,win)
9:736  0:054   4. Volume:
9:791  0:054    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(4,GPT,0AF17498-5641-4840-86F3-AA589696A19B,0x7800800,0xC800000)
9:847  0:055    Result of bootcode detection: bootable Windows (vista,win)
9:902  0:054   5. Volume:
9:957  0:055    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)\HD(5,GPT,0D8A190D-46F6-4E41-9AF6-5E6583873750,0x14000800,0x1400000)
10:012  0:055   6. Volume:
10:067  0:055    PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)
10:150  0:083    USB volume
10:205  0:054   7. Volume:
10:260  0:055    PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)\HD(1,GPT,262E9842-F37F-498A-A0BD-EDE3DF905832,0x28,0x64000)
10:317  0:056    Result of bootcode detection: bootable unknown (legacy)
11:687  1:370    USB volume
13:086  1:398    This is SelfVolume !!
13:141  0:055   8. Volume:
13:196  0:054    PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)\HD(2,GPT,B4BDDC22-9A63-42DB-B424-D545852B5BFD,0x64028,0xDC89B0)
13:280  0:083    USB volume
13:335  0:054   9. Volume:
13:588  0:253    PciRoot(0x0)\Pci(0x1F,0x2)\Ata(0x0)
13:643  0:054    found optical drive
13:730  0:087  PutNvramPlistToRtVars: nvram.plist not found
13:795  0:065  Using theme 'black_green' (EFI\CLOVER\themes\black_green)
13:850  0:054  OS main and drive as badge
13:918  0:068  Choosing theme black_green
13:976  0:057  Custom entries start
14:031  0:055  Custom entries finish
14:086  0:054  Scanning loaders...
14:141  0:054   0: 'Whole Disc Boot' no file system
14:277  0:136   1: '系统保留'
14:407  0:129      AddLoaderEntry for Volume Name=系统保留
14:515  0:108   2: 'Legacy HD2' no file system
14:628  0:113   3: ''
14:745  0:117   4: ''
14:882  0:136   5: 'install'
15:007  0:124      AddLoaderEntry for Volume Name=install
15:064  0:057      Check if volume Is Hibernated:
15:119  0:054      Check sleep image 'by signature':
15:195  0:075      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found
15:276  0:081      using default sleep image name = \private\var\vm\sleepimage
15:350  0:074      sleepimage not found -> Not Found
15:405  0:055       hibernated: no - sign
15:471  0:066    Icon 17 (icons\vol_internal_hfs.icns) not found
15:529  0:057    Theme path EFI\CLOVER\themes\black_green, ThemeDir=7C98D120
15:591  0:061   6: 'Whole Disc Boot' no file system
15:704  0:112   7: 'EFI'
15:860  0:156      AddLoaderEntry for Volume Name=EFI
15:939  0:078   8: 'Install OS X El Capitan'
16:079  0:139      AddLoaderEntry for Volume Name=Install OS X El Capitan
16:140  0:061   9: 'Whole Disc Boot' no file system
16:460  0:319  Custom legacy start
16:515  0:055  Custom legacy end
16:570  0:054  Custom tool start
16:625  0:054  Custom tool end
16:693  0:068  found tool \EFI\CLOVER\tools\Shell64U.efi
16:751  0:057  Checking EFI partition Volume 1 for Clover
16:816  0:065  EmuVariable InstallEmulation: EFI_ALREADY_STARTED
16:935  0:118  GetEfiBootDeviceFromNvram: efi-boot-device-data not found
17:072  0:136  EfiBootVolume not found
17:126  0:054   found entry 3. 'Boot OS X Install from Install OS X El Capitan', Volume 'Install OS X El Capitan', DevicePath 'PciRoot(0x0)\Pci(0x1D,0x7)\USB(0x1,0x0)\HD(2,GPT,B4BDDC22-9A63-42DB-B424-D545852B5BFD,0x64028,0xDC89B0)\.IABootFiles\boot.efi'
17:181  0:055  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
17:351  0:169  DefaultIndex=3 and MainMenu.EntryCount=9
17:406  0:055  Use anime=Anim_1_Logo_IntroOutro frames=381
17:761  0:355  InitScroll: MaxIndex=8, FirstVisible=0, MaxVisible=3, MaxFirstVisible=0
17:831  0:069  UpdateScroll on 6
19:120  1:288  GUI ready
21:063  1:942  UpdateScroll on 0
21:542  0:479  UpdateScroll on 0
21:893  0:350  UpdateScroll on 0
22:467  0:574  UpdateScroll on 1
23:248  0:781  UpdateScroll on 1
23:472  0:223  UpdateScroll on 1
23:662  0:190  UpdateScroll on 1
23:862  0:200  UpdateScroll on 1
25:051  1:188  InitScroll: MaxIndex=15, FirstVisible=0, MaxVisible=15, MaxFirstVisible=0
25:144  0:093  UpdateScroll on 6
26:102  0:957  UpdateScroll on 1
26:386  0:283  UpdateScroll on 1
26:596  0:210  UpdateScroll on 1
26:867  0:270  UpdateScroll on 1
27:147  0:280  UpdateScroll on 1
27:360  0:213  UpdateScroll on 1
27:661  0:300  UpdateScroll on 1
28:001  0:340  UpdateScroll on 1
29:464  1:462  InitScroll: MaxIndex=32, FirstVisible=0, MaxVisible=19, MaxFirstVisible=13
30:636  1:171  UpdateScroll on 1
31:137  0:500  UpdateScroll on 1
31:237  0:100  UpdateScroll on 1
31:341  0:104  UpdateScroll on 1
31:441  0:100  UpdateScroll on 1
31:541  0:100  UpdateScroll on 1
31:642  0:100  UpdateScroll on 1
31:742  0:100  UpdateScroll on 1
31:842  0:100  UpdateScroll on 1
31:942  0:100  UpdateScroll on 1
32:042  0:100  UpdateScroll on 1
32:142  0:100  UpdateScroll on 1
32:243  0:100  UpdateScroll on 1
32:346  0:103  UpdateScroll on 1
33:733  1:386  UpdateScroll on 1
35:111  1:377  UpdateScroll on 1
35:170  0:059  UpdateScroll on 1
35:230  0:059  UpdateScroll on 1
35:316  0:086  UpdateScroll on 1
35:376  0:059  UpdateScroll on 1
35:466  0:089  UpdateScroll on 1
35:558  0:091  UpdateScroll on 1
35:648  0:089  UpdateScroll on 1
35:739  0:091  UpdateScroll on 1
35:829  0:089  UpdateScroll on 1
35:919  0:089  UpdateScroll on 1
36:009  0:089  UpdateScroll on 1
36:103  0:094  UpdateScroll on 1
36:198  0:095  UpdateScroll on 1
36:293  0:095  UpdateScroll on 1
36:388  0:094  UpdateScroll on 1
36:482  0:094  UpdateScroll on 1
36:579  0:097  UpdateScroll on 1
36:670  0:091  UpdateScroll on 1
36:776  0:106  UpdateScroll on 1
37:725  0:948  InitScroll: MaxIndex=15, FirstVisible=0, MaxVisible=15, MaxFirstVisible=0
37:782  0:057  UpdateScroll on 6
38:416  0:634  UpdateScroll on 1
39:400  0:983  UpdateScroll on 1
39:600  0:200  UpdateScroll on 1
39:868  0:267  UpdateScroll on 1
40:674  0:806  InitScroll: MaxIndex=9, FirstVisible=0, MaxVisible=9, MaxFirstVisible=0
42:331  1:656  UpdateScroll on 1
42:524  0:193  UpdateScroll on 1
42:724  0:200  UpdateScroll on 1
52:405  9:680  EDITED: 0x95521002
53:015  0:610  UpdateScroll on 1
53:195  0:180  UpdateScroll on 1
53:356  0:160  UpdateScroll on 1
53:539  0:183  UpdateScroll on 1
53:739  0:200  UpdateScroll on 1
53:950  0:210  UpdateScroll on 1
57:708  3:758  InitScroll: MaxIndex=15, FirstVisible=0, MaxVisible=15, MaxFirstVisible=0
57:769  0:060  UpdateScroll on 6
58:502  0:733  UpdateScroll on 1
58:663  0:160  UpdateScroll on 1
58:863  0:200  UpdateScroll on 1
59:365  0:501  InitScroll: MaxIndex=8, FirstVisible=0, MaxVisible=3, MaxFirstVisible=0
59:449  0:084  UpdateScroll on 6
60:682  1:233  UpdateScroll on 0
60:973  0:290  UpdateScroll on 0
62:661  1:688  UpdateScroll on 1
62:822  0:160  UpdateScroll on 1
64:520  1:698  InitScroll: MaxIndex=9, FirstVisible=0, MaxVisible=9, MaxFirstVisible=0
67:836  3:316  UpdateScroll on 1
68:721  0:884  UpdateScroll on 1
68:892  0:171  UpdateScroll on 1
69:072  0:180  UpdateScroll on 1
69:263  0:190  UpdateScroll on 1
69:446  0:183  UpdateScroll on 1
69:636  0:190  UpdateScroll on 1
69:847  0:210  UpdateScroll on 1
71:060  1:212  BootOption of the entry is empty
71:114  0:054  StartLoader() start
71:170  0:055  Finally: Bus=199499kHz CPU=2095MHz
71:225  0:054  Loading boot.efi  status=Success
71:473  0:247  GetOSVersion: 10.11
71:789  0:316  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
72:122  0:332  insert table 9 for dev 0:0
72:203  0:081  insert table 9 for dev 0:1
72:258  0:054  insert table 9 for dev 0:0
72:313  0:055  insert table 9 for dev 0:0
72:369  0:055  Trusting SMBIOS...
72:424  0:055  Channels: 1
72:479  0:055  Interleave: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
76:784  4:304  SMBIOS Type 17 Index = 0 => 0 0:
76:839  0:054  BANK0 DIMM0 EMPTY
76:894  0:055   partNum=M471B5673EH1-CH9
76:949  0:055  SMBIOS Type 17 Index = 1 => 1 1:
77:004  0:055  BANK0 DIMM1 800MHz 2048MB
77:059  0:055  mTotalSystemMemory = 2048
77:141  0:081  NumberOfMemoryDevices = 2
77:196  0:055  Type20[0]->End = 0x1FFFFF, Type17[1] = 0x800
77:251  0:054  RSDT 0x7FDFE0AC
77:306  0:054  FADT from RSDT: 0x7FDFC000
77:361  0:055  XSDT 0x7FDFE120
77:416  0:055  FADT from XSDT: 0x7FDFC000
77:471  0:055  Xsdt reallocation done
77:526  0:055  old FADT length=F4
77:582  0:055  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
77:653  0:071  Apply DsdtFixMask=0x00000000 old way
77:708  0:054     drop _DSM mask=0x0000
77:789  0:081  ========= Auto patch DSDT Starting ========
77:844  0:054  VideoCard devID=0x95521002
77:899  0:055  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
77:954  0:054  USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
78:009  0:055  USBADR[1] = 0x1A0001 and PCIe = 0xFFFE
78:065  0:055  USBADR[2] = 0x1A0002 and PCIe = 0xFFFE
78:120  0:054  USBADR[3] = 0x1A0007 and PCIe = 0xFFFE
78:185  0:065  USBADR[4] = 0x1D0000 and PCIe = 0xFFFE
78:240  0:054  USBADR[5] = 0x1D0001 and PCIe = 0xFFFE
78:322  0:081  USBADR[6] = 0x1D0002 and PCIe = 0xFFFE
78:377  0:054  USBADR[7] = 0x1D0007 and PCIe = 0xFFFE
78:432  0:054  first CPU found at 745F offset 7462
78:487  0:055  score candidate at 745B
78:542  0:055  score inserted in acpi_cpu_score _PR_
78:597  0:055  Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
  within the score: _PR_
79:093  0:495  Found PCIROOTUID = 0
79:148  0:055  ========= Auto patch DSDT Finished ========
79:402  0:254  Patch table: SSDT  SataAhci
79:484  0:081   SSDT len = 0x2DD
79:539  0:055  Patch table: SSDT  CpuPm
79:594  0:055   SSDT len = 0x66C
79:649  0:055  Patch table: SSDT  Cpu0Tst
79:704  0:054   SSDT len = 0x288
79:759  0:054  Patch table: SSDT  ApTst
79:814  0:054   SSDT len = 0x225
79:869  0:055  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
79:924  0:054   Xsdt has tables count=11
79:979  0:055  corrected XSDT length=124
80:034  0:055  Start: Processing Patched AML(s): Unsorted
80:144  0:109  Inserting ssdt.aml from EFI\CLOVER\ACPI\patched ... Success
80:281  0:137  End: Processing Patched AML(s)
80:336  0:055   CPUBase=0 and ApicCPUBase=0 ApicCPUNum=4
80:391  0:055  Framebuffer @0x80000000  MMIO @0x98400000        I/O Port @0x00000000 ROM Addr @0xFFFE0000
80:447  0:055  ATI card POSTed,
80:557  0:110  ATI: get_vram_size returned 0x20000000
80:612  0:055  ATI Mobile Radeon
80:667  0:055  Framebuffer set to device's default: Shrike
80:722  0:055   N ports defaults to 3
80:777  0:054  (AtiPorts) Nr of ports set to: 3
80:859  0:081  ATI RV710 ATI Mobility Radeon HD 4330 512MB (Shrike) [1002:9552] (subsys [103C:3074]):: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)
80:914  0:054  USB Controller [8086:2937] :: PciRoot(0x0)\Pci(0x1A,0x0)
80:969  0:055  USB Controller [8086:2938] :: PciRoot(0x0)\Pci(0x1A,0x1)
81:024  0:055  USB Controller [8086:2939] :: PciRoot(0x0)\Pci(0x1A,0x2)
81:079  0:055  USB Controller [8086:293C] :: PciRoot(0x0)\Pci(0x1A,0x7)
81:134  0:054  HDA Controller [8086:293E] :: PciRoot(0x0)\Pci(0x1B,0x0) => codec not detected
81:282  0:147  LAN Controller [11AB:436C] :: PciRoot(0x0)\Pci(0x1C,0x5)\Pci(0x0,0x0)
81:337  0:055  USB Controller [8086:2934] :: PciRoot(0x0)\Pci(0x1D,0x0)
81:392  0:055  USB Controller [8086:2935] :: PciRoot(0x0)\Pci(0x1D,0x1)
81:447  0:054  USB Controller [8086:2936] :: PciRoot(0x0)\Pci(0x1D,0x2)
81:502  0:054  USB Controller [8086:293A] :: PciRoot(0x0)\Pci(0x1D,0x7)
81:557  0:055   RCBA access disabled; trying to enable
81:612  0:054  stringlength = 7666
81:694  0:082  CurrentMode: Width=1024 Height=768
81:955  0:260  Beginning FSInjection
82:010  0:055  Blocking kext caches
82:532  0:521  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
82:602  0:070  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11
82:662  0:059    Extra kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext
82:742  0:080      Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\ACPISensors.kext
82:803  0:061      Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\CPUSensors.kext
82:891  0:087      Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\GPUSensors.kext
82:969  0:077      Extra PlugIn kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext\Contents\PlugIns\LPCSensors.kext
83:045  0:075    Extra kext: EFI\CLOVER\kexts\10.11\AppleACPIPS2Nub.kext
83:117  0:072    Extra kext: EFI\CLOVER\kexts\10.11\ApplePS2Trackpad.kext
83:195  0:077    Extra kext: EFI\CLOVER\kexts\10.11\lspcidrv.kext
83:299  0:104    Extra kext: EFI\CLOVER\kexts\10.11\NullCPUPowerManagement.kext
83:360  0:061    Extra kext: EFI\CLOVER\kexts\10.11\Patched_10.7_AppleRTC.kext
83:427  0:066    Extra kext: EFI\CLOVER\kexts\10.11\VoodooPS2Controller.kext
86:176  2:749      Extra PlugIn kext: EFI\CLOVER\kexts\10.11\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Keyboard.kext
86:249  0:072      Extra PlugIn kext: EFI\CLOVER\kexts\10.11\VoodooPS2Controller.kext\Contents\PlugIns\VoodooPS2Mouse.kext
86:388  0:139  Removed efi-boot-device-data variable: Not Found
86:495  0:107  Custom boot screen not used because entry has unset use graphics
86:577  0:081  Closing log

In the end of the booting log, it says "Custom boot screen not used because entry has unset use graphics". I know there are some problem with the graphics card, but I don't know how to fix it.

PLEASE HELP ME! THANKS A LOT!

Share this post


Link to post
Share on other sites
Advertisement

you are missing rootless=0 flag and i think you should inject your card and boot in verbose mode

All right. I will try that. Thanks.

Share this post


Link to post
Share on other sites

rootless=0 and kext-dev-mode=1 is obsolete for El Capitan.



Set this as false:

<key>KernelPm</key>
<false/>

Your native resolution is 1024x768?

Share this post


Link to post
Share on other sites

rootless=0 and kext-dev-mode=1 is obsolete for El Capitan.



Set this as false:

<key>KernelPm</key>
<false/>

Your native resolution is 1024x768?

Thanks!

My native resolution is 1366x768. Set like this?

<key>ScreenResolution</key>
<string>1366x768</string>

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Slice
      Now I want to add vector graphics support in Clover. See rev 4560 and later.
      It is not working yet but designers may begin to create Vector Themes.
      It supposed to consist of SVG elements and has design size. It will be rendered to any screen size scaled from design size.

    • By fusion71au
      Clover r4542 ISO compiled with GCC and minimal config.plist compatible for use in VMWare Workstation.

      Tested with unlocked Workstation 14 running OSX 10.9 -->10.14 guest in Windows X64 host.

      Installation
      1. Download and unzip "EFI_Clover_r4542 for VMware.zip". Mount Clover-v2.4k-4542-X64.iso by double clicking on it.
      2. Mount your VM's EFI System Partition eg in terminal
      sudo diskutil mount disk0s1   3. Copy EFI folder from step 1 into the EFI partition
      4. Shutdown the VM, add bios.bootDelay = "3000" to your VM's vmx file
      5. Reboot your VM, press <F2> to access the VMware Boot Manager and add CLOVERX64.efi to the boot menu.

      Substitute your own unique and valid MLB and ROM variables in the /EFI/CLOVER/config.plist (Rt Variables section) to activate iMessage/Facetime on your VM.
    • By MaLd0n
      First... If you need DSDT edits for SkyLake, KabyLake or CoffeeLake... -Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen) -Run it, post files generated in your desktop RunMe.app  Installation   --Create a bootable copy of macOS Sierra Check out the link http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/   --Create a bootable copy of macOS HighSierra Check out the link http://diskmakerx.com/   --Install Clover in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/   --Replace with my Clover folder  CLOVER.zip   --Install Sierra/High Sierra and boot into system!   Post Installation   --Install Clover in HDD/SSD and replace with my folder CLOVER.zip   --Reboot and activate video!   -Nvidia WebDriver Sierra http://www.insanelymac.com/forum/topic/312525-nvidia-web-driver-updates-for-macos-sierra-update-07212017/ -Nvidia WebDriver High Sierra http://www.insanelymac.com/forum/topic/324195-nvidia-web-driver-updates-for-macos-high-sierra-update-10162017/ -Cuda http://www.insanelymac.com/forum/topic/302795-cuda-90214-is-out-update-10162017/   --DSDT My DSDT with patches for Skylake DSDT.MaLd0n ASUS Z170M PLUS.zip   Patches -FIX ERRORS AND WARNINGS -HPET -SATA -SLPB -DMAC -DARWIN -LPC -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -EC -IMEI -PNLF -HDMI --FakeSMC
      http://www.hwsensors.com/releases   --Audio https://github.com/vit9696/AppleALC   --USB https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads   --LAN https://github.com/Mieze/IntelMausiEthernet   -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!   Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others!   We're all here to have fun and learn from each other!   ENJOY!
    • By zebity
      Hi Hypervisors,

      EDITED - 9 JUNE 2018 - as all other issues resolved but am now stuck with QEMU Error: "PFLASH: Possible BUG - Write Block Confirm" details on testing lower in thread (to follow).

      I have been working to move my Late 2009 Xserve MacOS Server onto Ubuntu 18.04 LTS QEMU/KVM based virtual machine using OVMF and Clover.

      After much effort and testing based on the following information from: Kraxel's, Kholia, Gordon Turner and Clover site:
      https://www.kraxel.org/blog/2017/09/running-macos-as-guest-in-kvm/
      https://github.com/kholia/OSX-KVM
      https://gist.github.com/gordonturner/2a2e5ecde5e7860b52e2
      https://clover-wiki.zetam.org/Home

      I have now managed to get OVMF/Clover boot and install of MacOS Sierra.

      I started with Ubuntu 16.04 initially but this required download and compile of QEMU to get update of machines to: pc-q35-2.9 or better, so I moved to Ubuntu 18.04, which has pc-q35.2.11 available as standard.

      So I am now working with standard Ubuntu 18.04 LTS based systems with following packages: kvm/qemu/libvirt/bridge-utils/ovmf/virt-manager

      As I want to use PCIe Passthrough for a number of PCIe card currently installed in the server (SmallTree 10GbE & Areca ARC-1883 SAS RAID) I set up my machine with linux kernel boot configuration (/etc/default/grub) of:
      GRUB_CMDLINE_LINUX_DEFAULT="iommu=1 intel_iommu=on" (as my machine is intel VT-d based HW virtualisation)

      This resulted in creation of a number of iommu groups (see /sys/kernel/iommu_group directory for this and this posting for information: https://forum.level1techs.com/t/ubuntu-17-04-vfio-pcie-passthrough-kernel-update-4-14-rc1/119639 , noting that Ubuntu 18.04 LTS has kernel version: 4.15.0-22-generic so there is no need to do kernel update for iommu to work).

      Using bare minimal Clover config.plist:


      And following Clover UEFI drivers:

      I can boot MacOS, but it is very very slow... it sits on the apple boot logo for over a minutes before finally moving onto the progress bar.
      The other problem I have is that no PCI or Network devices appear in the "About This Mac" System Information Report and I cannot get any network connectivity from bridged E1000 network device.

      Here is my virtlib.xml dump for the virtual machine:


      Can any one advise of whether I need to update the CLOVER config.plist to add extra items in to allow network and PCI Passthrough to work.

      Thank you.

      Regards,

      Zebity

    • By gengik84
      Ciro82==>>Thanks
      Uno dei tre Requisiti:
      Hack funzionante Mac vero Macchina virtuale Impostazioni Bios per il boot:
      Cercate una voce  del tipo “Sata Mode”e settatela  in AHCI
      Secure Boot: disabilitare o altri sistemi operativi
      CSM: UEFI o LEGACY, oppure a secondo del tipo di installazione
      VT-x / VT-d disable
      *Nota: Secure boot e csm valido solo per bios UEFI
      Materiale Occorrente
      "OS X (Versione App.Store)”
      USB 8GB  *nota: nel caso di usb superiori dovrà essere partizionata, in modo da avere una partizione su cui "lavoreremo,di questa dimensione
      ShowAllfiles
      kext Wizard
      Bootloader Clover_2.3k_r xxx:                   http: //sourceforge.n.../cloverefiboot/
      Clover Configurator:                                    http: //mackie100proj...a.org/download/
      FakeSmc.kext:                                            https://github.com/kozlek/HWSensors/releases
      In allegato,a fondo pagina troverete un "pacchetto" contenente : ShowAllfiles, Kext Wizard, FakeSmc.kext:
      App alternative:
      ESP Mounter Pro: per montare la partizione EFI
      Vi illustrerò tre metodi per creare la usb, ma sono ben distinti… quindi usatene soltanto uno
      Metodo 1: “Install Mac_OS_X.command” Metodo 2: “Create Install Media di Apple” Metodo 3:  Metodo Manuale Alla fine delle preparazione dell’installer, tutti i metodi necessitano l’installazione del Bootloader Clover sulla a vostra USB.
      “CONDIZIONI OBBLIGATORIE”
      PUNTO 1: che la vostra usb sia stata preventivamente nominata USB (caratteri maiuscoli) Tabella di partizione GUID e la formattazione in  Mac esteso Journaled.
      PUNTO 2: che l’installer di OSX si trovi in Applicazioni
      Utility Disco
      Selezionate la pendrive, andate su “partizione”, selezionate “1 partizione”, impostate Mac OS esteso journaled e date il nome USB, poi in basso cliccate su opzioni e scegliete Tabella partizione (GUID), poi “applica”.
      Immagine
      Riporto nuovamente l’operazione sopra citata adoperando dal nuovo Utility Disco introdotto su El Capitan.
      Rimane ovviamente invariato nome della usb in ==>> USB (maiuscolo), la formattazione in Mac esteso Journaled e sia la mappa partizione in GUID
      Da utility disco selezionate la usb, cliccate su inizializza.
      dal menù a tendina scegliete la relative impostazioni
      Immagine
      Procedura effettua da High Sierra è la stessa della precedente, l'unica attenzione e operazione da aggiungere in primis  è cliccare nel menù a tendina in alto sulla sinistra di utility disco e selezionare "mostra tutti i dispositivi"
      Immagine

      =====================
        METODO 1: "Install_Mac_OS_X.Command" Lo script che trovate allegato in fondo alla guida permette la creazione dell’installer in maniera automatica
      Include la possibilità di scelta di tre versioni di osx
      Yosemite El Capitan Sierra Il risultato finale è come quello del metodo "manuale" descritto nella guida, per cui l'installazione avverrà in un solo passaggio, non in due come con il metodo createinstallmedia.
      Offre inoltre la possibilità di inserire un kernel patchato, utile, per esempio, per chi usa AMD.
      Rimane invariato il nome dato alla usb in USB, mappa partizione e tipo di formattazione
      Se la vostra usb non sarà rinominata nel modo corretto, verrete avvisati dal terminale, quindi non dovrete far altro che apportare la relativa modifica e rilanciare nuovamente lo script
      Esempio
      ===========================
      Metodo 2
      L'intento è quello di usare la procedura fornitaci direttamente da Apple, "createinstallmedia", introdotta  con Mavericks.
      Tale metodo prevede l’uso del terminale che via via se ne sta perdendo il “valore e l’uso”
      Inizialmente per i neofiti potrà sembrare problematico ma alla fine non è così.
      Durante il post installazione alcune operazioni ne richiedono l’ uso.
      Perciò mi sono chiesto perchè, qualora uno volesse, non far conoscere da subito un po’ questo “strumento”???
      Per favorirvi vi ho allegato i comandi già  “pronti”, i quali li potrete copiare ed incollare sul terminale.
      A questo punto aprite il terminale, copiate ed incollate il comando sottostante e premete invio, digitate la vostra password e premete nuovamente invio.
      Comando per creare USB con Yosemite:
      sudo /Applications/Install\ OS\ X\ Yosemite.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ Yosemite.app --nointeraction
      Comando per creare USB con El Capitan
      sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app --nointeraction Comando per creare USB con Sierra
      sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ macOS\ Sierra.app/ --nointeraction Per creare USB con Hight Sierra o Mojave usate --> C_I_M (aggiornato per 10.14)

      Funziona con il drag & drop sul terminale, in questo caso non vi è necessità che la usb sia nominata in un determinato modo ed essendo basato su create install media ovviamente funziona da 10.9 a 10.13....
      BENE…IL PROCESSO DI CREAZIONE E’ INIZIATO…
      AVREMO CIRCA 20/30 MINUTI DI TEMPO LIBERO A CUI DEDICARSI A CIO’ CHE VOGLIAMO………………………………………..
      COLGO L’OCCASIONE PER FARVI NOTARE LA VELOCITA’ E LA SICUREZZA DI QUESTO METODO
      CONFRONTATE QUESTO CON IL TERZO METODO E NOTERETE CHE CON UN SOLO PASSAGGIO, OSSIA IL COMANDO DATO AL TERMINALE, FACCIAMO IN UNA SINGOLA OPERAZIONE TUTTI I VARI STEP DESCRITTI SULL’ ALTRO METODO.
      DETTO QUESTO, MOLTO IMPORTANTE E’ SOTTOLINEARE CHE COSI’ FACENDO EVITEREMO ERRORI  DI DISTRAZIONE RIGUARDO AI PASSAGGI O FRAINTENDIMENTI.
      Immagine
      Potete adesso passare ad installare il bootloader Clover sulla vostra usb.
      *NOTA*:
      Avendo usato questo metodo l'installazione si dividerà in due fasi, perciò dopo il primo riavvio e necessario far partire nuovamente l'installer, selezionare lo stesso disco senza formattarlo.
      Finita questa ulteriore fase , l'installazione sarà terminata
      =========================
      METODO "MANUALE"....  (lascio per futura memoria-Compatibile fino a 10.12)
      ==========================
      Bootloader
      **Nota:** Installazione in UEFI  dipenderà dalla scheda madre in vostro possesso, quindi se non supporta tale opzione , il bootloader dovrà essere installato in  modalità Legacy.
       Vi invito, qualora non sapeste questa informazione, a recarvi nel sito ufficiale del produttore e controllare le informazioni a riguardo
      Fatto questo dobbiamo installare  Clover sulla usb.
      A seconda del tipo di Bios o al tipo di installazione che vogliamo fare UEFI o Legacy avremo ovviamente configurazioni diverse in questa fase.
      Lanciate il pkg.
      Immagine


      Cambiate la destinazione di installazione ad USB oppure Install Mac_OS_X (a secondo del tipo di creazione eseguita)
      Successivamente clicchiamo su "Ad Hoc"
      Per Installazione UEFI
      Mettete i flag   : Installazione solo per avvio UEFI
                               : installare Clover nella ESP
                               : Driver64UEFI  selezionate OsxAptioFixDrv-64
                             *  :Se nel vostro sistema è presente una scheda grafica (discreta) della serie 9xx nVidia selezionate OsxAptioFix2Drv-64 al posto di  OsxAptioFixDrv-64 *
      ** OsxAptioFix2Drv :E' necessario per poter impostare CsrActiveConfig= 0x3 **
      ***OsxAptioFix3Drv oppure AptioMemory --> (consigliato) devono essere usati su hardware Skylake o successivi perché permettono alla nvram di lavorare correttamente
           (mi raccomando o uno o l'altro)
      Proseguite con l’installazione.
      Immagine
      ** Ricordate che avrete accesso a questa cartella dopo aver montato la partizione EFI**
      ===========================
      Per installazione Legacy
      Immagine
      ===========================
      Impostazione per config.plist:
      Con clover configurator “montate” la partizione EFI della usb.
      1) Per fare questo nel menù di sinistra, cliccate su “Mount EFI”
      2) individuate la partizione relativa alla vostra usb, a questo punto montiamo la relativa partizione EFI  selezionando l’apposito pulsante “Mount Partition”
      Immagine
      3) Successivamente cliccate su “Open Partition”.. recatevi in EFI/Clover ed aprite il config.plist
      4) Sezione ACPI: Disabilitate tutti i fix sia del menù 1 che del menù 2
      Immagine
      5) Sezione BOOT: Sole se si sta installando Yosemite mettete il flag su kext-dev-mode=1
      Immagine
      6) Sezione RT Variables: Se si sta installando El Capitan oppure Sierra, aggiungere i valori: BooterConfig= 0x28, CsrActiveConfig= 0x67
      Immagine
      7) Sezione System Parameters: Su inject kext mettete YES
      Immagine
      ===========================
      Nota: Su El Capitan, è stato introdotto SIP (System Integrity Protection)
      Info:
      ===========================
      Recatevi in EFI/Clover/kext/10.x
      X= alla versione di osx che state installando. Per esempio se installerete Yosemite dovrete recarvi nella cartella 10.10, con El Capitan in 10.11….ecc
      Se non ci fosse tale cartella, createla e nominatela voi a “modo”.
      Copiatevi all’interno FakeSmc.kext
      *Nota se venite già da altre vostre configurazioni, oltre kext sopra citato ,potete mettere gli altri necessari per il vostro hardware
      Stessa cosa se avete DSDT e/o SSDT potete copiarli in EFI/Clover/Acpi/Patched
      Immagine

      Per High Sierra:
      Scaricare il driver apfs.efi a fine guida, collocarlo:
          --> EFI/clover/Driver64UEFI se stiamo usando UEFI
      --> EFI/Clover/Driver64 se stiamo usando Legacy

      Per chi volesse continuare ad usare HFS vi rimando a questo post:
        Come installare High Sierra in HFS direttamente dalla usb
      Utenti Laptop:  Nel 99% è obbligatorio disattivare la grafica discreta Nvidia/Amd per installare questo nuovo osx
                                     Quindi aggiungete --> SSDT-Disable_DGPU.aml.zip
                                     in EFI/Clover/acpi/Patched della usb
      --------------------------------------------------------------------
      Per Mojave:
      Scaricare il driver apfs.efi per 10.14 a fine guida, collocarlo:
          --> EFI/clover/Driver64UEFI se stiamo usando UEFI
      --> EFI/Clover/Driver64 se stiamo usando Legacy
      Versione di clover non antecedente a V_4015



      Fatto questo avrete la vostra USB bootable per installare OSX.
      ………Non scordatevi Fakesmc.kext da mettere nella relativa cartella…. senza il quale non farete mai il Boot......
      *NOTA: se usato il terminale per la creazione della usb, l'installazione si dividerà in due fasi, perciò dopo il primo riavvio e necessario far partire nuovamente l'installer, selezionare lo stesso disco senza formattarlo.
      Finita questa ulteriore fase , l'installazione sarà terminata
      **NOTA** Se avete processori Broadwell,Skylake o Kabylake...usate FakeSmc.kext e relativi sensors che trovate all'interno del secondo pacchetto.. (potete usarlo anche sui precedenti senza problemi, essendo una versione più aggiornata ha ulteriore supporto per le cpu più recenti)
      Update: Fakesmc e sensors versione 6.26
      Post installazione... post #2
       Buon Hack…..
      Aggiornamento:Install_Mac_OS_X.command.zip (compatibile da 10.10 a 10.12)
      le info le trovate a questo post
      Ringrazio @Ciro82 che mi ha aiutato nel preparare questa guida.
      Pacchetto.zip
      Pacchetto-2.zip
      apfs.efi-10.13-NoLog.zip
      Pacchetto-Fake+Sensors 6.26.1440.zip
      apfs.efi-10.13.1-No_LOG.zip
      apfs.efi-10.13.2_No_Log.zip
      apfs.efi-10.13.3-No_Log.zip
      apfs.efi-10.13.4-No_Log.zip
      apfs.efi-10.13.5_No_Log.zip
      C_I_M.zip

      apfs.efi-10.14-beta1_No_Log.zip
×
