@oSxFr33k,



Can you boot the installer in safe mode with MacPro4,1 SMBIOS?



Maybe create the installer by the "restore BaseSystem.dmg method", remove AppleTyMCEDriver from the installer's /S/L/E and rebuild kernelcache as described in this thread for the El Capitan Installer (should still work for Sierra).



Good Luck!





I was thinking of doing it that way to but in the end it may be easier to just install onto an SSD from another PC and do all the edits I will need on that PC while booted to its native SSD and manipulate the SSD with the fresh Sierra install with whatever edits I need either remove that kext or try the SSD patch again.



Loosing all USB ports throws me for a loop when I choose one of the iMac system definitions although I am not really completely modifying the SMBIos only changing it at clover boot so maybe that is why I am loosing all the USB ports, because parts of the SMBios are still from the MacPro3,1?  I will try again modifying the SMBios complete while in Clover Configurator and then try iMac12,1 and iMac13,1 again.



I appreciate that information which would be yet another way to get around the installer!



Edited 6-30-17



I took the route I mentioned installing Sierra onto the SSD that was placed in a Sierra Supported PC, inserted the drive and works perfectly.   I removed the EC Ram Kext for MacPro AppleTyMCEDriver for SEL.



Thanks!

Link to comment
Share on other sites

  • 1 month later...

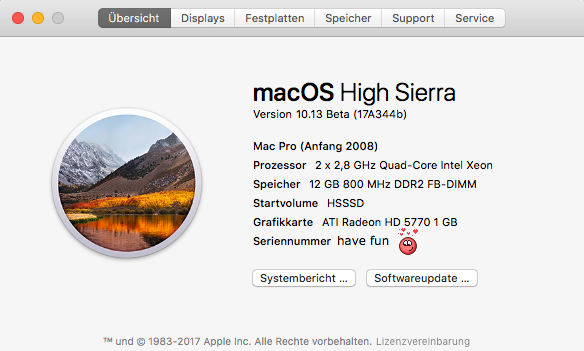

News for HighSierra:

DP Beta 3 still worked very well ...

DP Beta 4 does not work (Errors, no boot possible) ...

DP Beta 5 not tried ...

DP Beta 6 works again with the MacPro3,1 without problems (SSD with HFS +) ...




Link to comment
Share on other sites

  • 4 months later...

SIP: Not necessarily.

My HD5770 needs a kext rollback from the Sierra.
For that I need "csrutil enable --without kexts".
Probably not with the Nvidia, right?

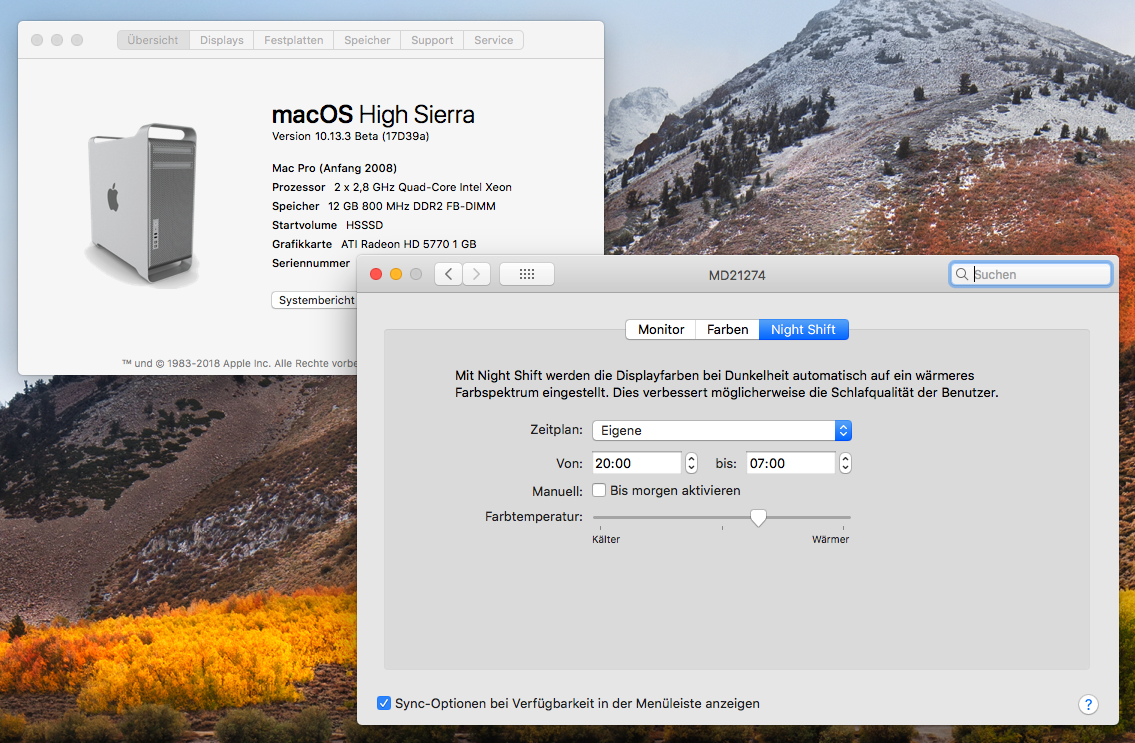

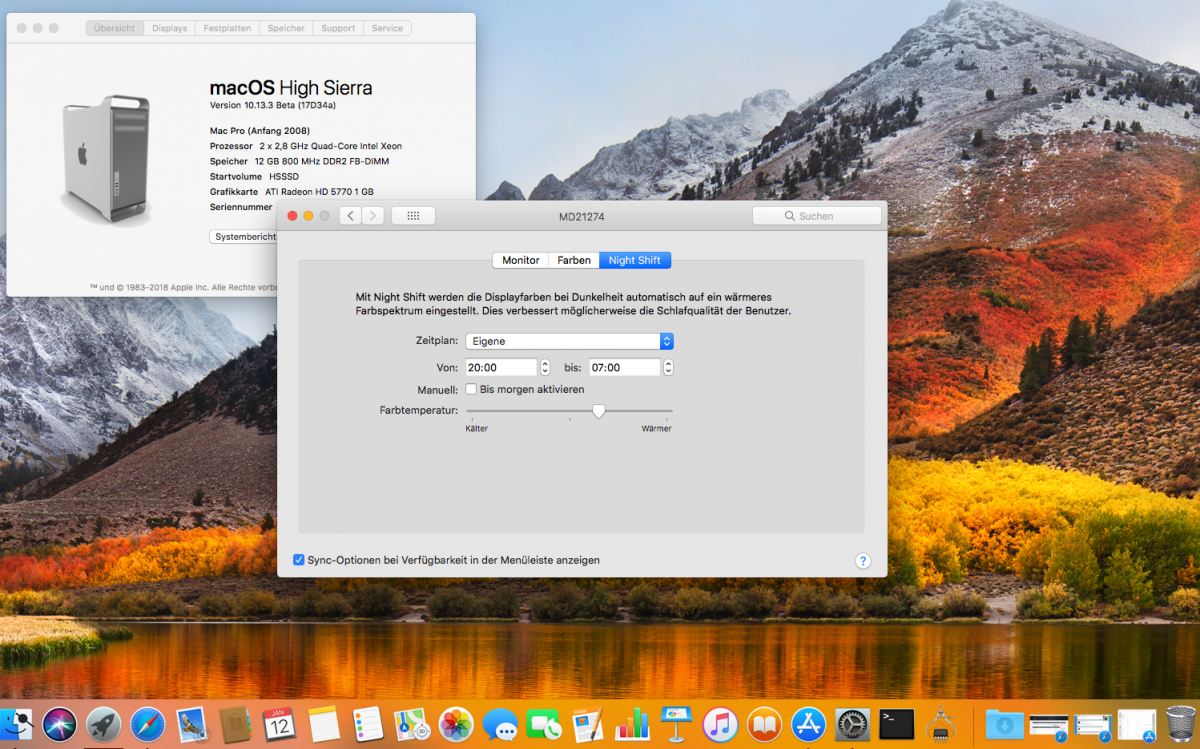

Here's the patched framework for NightShift High Sierra for you.
change this to /System/Library/PrivateFrameworks/


  • Like 1
Link to comment
Share on other sites

It works without Clover.



Flags: added here
/Library/Preferences/SystemConfiguration/com.apple.Boot.plist

SIP:
recovery boot -> Terminal -> csrutil disable -> SIP off

Kext's:
I'm using EasyKext Pro for install and cache rebuild

everything works fine without Clover

USB3:
try GenericUSBXHCI.kext
Link to comment
Share on other sites

correct

Boot recovery needs to be mounted first and the PlatformSupport.plist replaced.

@millusions, which USB3 card do you have?
I still have a free PCIe slot.
The HD5770 occupies two slots.
Third slot with Wi-Fi: TP-Link TL-WDN4800 N900 dual-band adapter (PCIe, 450 Mbps) - works OOB
A slot would still be free for USB3.


edit:
also the latest beta works very well
