[GUIDE] Run OS X El Capitan on a Dell Latitude E6320

[pepto]

Updated 20 October 2015
-Added Troubleshooting section.
-Updated PDF File v1.1 20 october 2015

Run OS X El Capitan on a Dell Latitude E6320
This tutorial will describe the steps to install OS X El Capitan on a Dell Latitude E6320 i5 2520M.
If you find any mistakes or have something to improve then please send me a PM and i will update the tutorial.

A special thanks goes to Brian from Tech Erra, Jake Lo from OSX Latitude.com and Morpheousman for using parts of their tutorial

I am from The Netherlands so sorry for my bad English.


1. Credits/Sources
Everything OSx86-related is a collaborative effort amongst people who enjoy doing these things, as well as those of us who enjoy tweaking and experimenting with things. Below are a list of sources used to compile this guide:

• Tech Erra
• OSX86 Wiki
• InsanelyMac
• Forum member Jake Lo from OSX Latitude.com for helping me out with installing
• Morpheousman and Polyzargon from Insanelymac who helping me with my other topics. (Dell 780)
• MacPeet, Chris1111 and all other forum members who helping out the community.

2. Requirements
Here are the requirements:

• A Dell Latitude E6320 i5 2520M – This is necessary to install OS X El Capitan for this tutorial
• A copy of Mac OS X – This can be in the form of an existing hackintosh, a virtual machine within Windows or Linux, or even a regular Mac. If you don’t have any of these things, then find someone who can help you out for a while. I prefer using a hackintosh with OS X Yosemite.
  Using an already working copy of Mac OS X either in a VM or a native hackintosh install is HIGHLY recommended.
• A 8GB USB flash drive (or larger) – We’ll be copying the files to the drive appropriately, so make sure that you have a flash drive with enough storage space (8GB or larger).
• A copy of OS X El Capitan – The method used by this guide requires that you have a copy of the OS X El Capitan Installation app, wich is available for free from the Mac App Store.
• 30-60 minutes of time – Depending on how tech-savvy you are, this may be quick, or it may take a while.
• An SSD or HDD to install 10.9 to – For me, I used a 250GB partition to install 10.9 to.
• An Wireless N Nano USB Adaptor – For use with wifi Highly recommended. I use a TP-LINK TL-WN725N adaptor.
• E6320.zip – This ZIP file contains everything that you need to get your flash drive properly prepared.

3. My Specs
My installation was successfully done on an Dell Latitude E6320 i5 2520M Laptop computer with the following specs.
NOTE: A Wireless N Nano USB Adaptor is recommended to use the full potential of OS Mavericks because the on board wifi doesn't work.

• - Intel Core i5-2520M @ 2.5GHz, 3MB cache, Dual Core
• - 4GB DDR3 1333Mhz RAM
• - Western Digital 250GB HDD
• - INTEL HD3000 Video
• - Intel 825xx onboard network
• - Bluetooth radio onboard (works OOB)
• - IDT 92HDxxx HD audio onboard
• - TL-WN725N Wireless N Nano USB Adaptor
• - Apple Magic Trackpad (only @home)
• - Apple Wireless Keyboard US (only @home)
• - Apple Magic Mouse

4. Download OS X El Capitan
Start OS X Yosemite on a exsisting Mac or Hackintosh, to prepare your USB Flash drive.
Make sure to backup the files that are already on your USB Flash drive thru disk Utility in Mac OS X.

• Open Mac App Store.
• Login with your Apple ID.
• Download OS X El Capitan
• Done!

The application INSTALL OS X El Capitan will appear in /Applications.
5. Prepare Bootable USB Installer
Now, we need to prepare the USB Drive so that it will properly bootup on your PC.
I recommend using Chris1111'S app for creating your USB Installer. It is a great timesaver!

• Download App Here[/url
• Follow the instructions in the first Post for creating USB Installer.
• Select Installer OS X El Capitan and Install in ESP (see image below)
• Select Install. This step may take some time, good time to get a drink.
• After App is finished, you will see a EFI Partition of USB installer on your desktop.
• Open EFI Partition, then open EFI folder, copy and paste the Clover folder from the zip file, to the EFI folder, choose replace folder.
• Download the latest version of Clover Bootloader and copy it to the root of your USB installer.
• USB Installer is Done!

6. Bios Settings Dell Latitude E6320
Before we boot from the Dell Latitude we need to optimize the bios for OS X El Capitan.

• Start your Dell Latitude and press F2 to get into the Bios.
• In the main screen click on "Load Defaults", the bios will be reset to default settings.
• Go to General - Boot Sequence and choose on the right for USB Device and click the up arrow so that the USB Device is on top, click on apply to make the setting.
• Go then to System Configuration - SATA Operation and choose on the right for AHCI click again on apply and choose exit, now the Bios is ready for installing OS X El Capitan.

7. Installing OS X El Capitan from your USB drive
Time for the fun stuff! We’ll now boot from your USB drive and install OS X El Capitan onto the Hard Drive.
Using a USB 4G flash drive will help things out quite a bit.

• Power on unit while tapping F12 Key to choose boot device, select USB device.
• When Clover boot screen is visible, choose boot "Mac OS X from El Capitan USB Installer".
• The system will then boot into OS X installer
• For a new installation of OS X, you must erase and format the destination drive according to the following steps before continuing.
  • If you are upgrading from Lion, Mountain Lion, Mavericks or Yosemite and you want to keep your files and apps, skip steps a-j.
  • A. Choose Disk Utility
  • B. Highlight your target drive for El Capitan installation in the left column.
  • C. Click Partition tab
  • D. Click Current and choose 1Partition
  • E. Click Options....
  • F. Choose GUID Partition Table.
  • G. Under name: Type El Capitan (you can change it later if desired).
  • H. Under Format: Choose Mac OS Extended (Journaled).
  • I. Click Apply the Partition.
  • J. Close Disk Utility.
• When the installer asks you where to install, choose El Capitan Hard Drive.
• Upon completion, system will restart a 1st time.
• Press F12 key to choose the boot device.
• When the Clover Boot screen is visible, Choose your El Capitan Hard Drive.
• You will eventually get to the setup screens for OS X El Capitan. Go through the setup process to setup OS X El Capitan.
• Choose at "How do i connect to the internet " ..."My Computer Does Not Connect to the Internet", we will fix this later, go further with the setup process.
• The setup process will take about 3 minutes.
• Done!

8. Adjust some settings in OS X 10.11

• Once in 10.11 go to finder – preferences – General and choose in "show these items on the desktop" for
  • Hard Disk
  • External Disk
  • CD
• Go also to System Preferences – Security& Privacy click on the lock icon in the lower left corner and type your password.
• Choose by “Allow applications downloaded from": click on "Anywhere"
• Close system preferences.

9. Installing The Clover Bootloader on Your Hackintosh
The following instructions may appear a bit oversimplified, but we are trying to keep it simple for first-time Clover Bootloaders users.

• Copy the Clover Installer from the root of your El Capitan USB Installer to your desktop.
• Open Clover Package installer.
• Hit Continue, Continue, Change Install Location...
• Choose your HD, now called El Capitan and press Continue (see images below)
• Hit Customize and install clover with the following Custom Install settings (see images below)
• After installation of the Clover Bootloader, the EFI Partition of your El Capitan Hard Drive should be mounted on your desktop.
• Copy the Clover folder from the zip file into your El Capitan EFI Partition > EFI Folder. Make sure to choose to Replace the Clover folder.
• In Tools Folder of the zip file, Open Clover Configurator.
• Click File, Open File and select config.plist in EFI/EFI/Clover.
• Click on SMBIOS in left side pane and create your new SMBIOS (iMac 8.1) with Random Serial Number.
• Close Clover Configurator and save changes.
• Finished! Now remove the USB Installer and reboot into OS X El Capitan.

10. Install Wlan driver for the TL-WN725N
The wireless lan on the Dell E6320 doesn’t work, therefore I use a Wireless N USB Nano Adaptor from TP-LINK.
The software is straight forward and installs without problems, the only thing is that after login the wireless
app starts up and you have must close it every time, therefore I have made a script to launch the program
after login and close it after 5 seconds.

• For installing the driver go to the folder “E6320 – Wlan_TP-LINK”.
• Launch the Installer.pkg and install the software, after install you will get the message to restart.
• Choose restart to restart you laptop.
• After restart the software will start the Wireless App.
• Choose you desired network and add it to your profile.
• Now we can install the login script.
• Go to “System Preferences – Users & Groups”, go to tab Login Items.
• Choose the + sign and browse to the folder “Install_E6320 - Wlan_TP-LINK” and choose “Wireless App2”.
• Close System Preferences.

11. iMessage & FaceTime Fix
You will need MLB and Rom numbers from a legit Mac device that is onthe mac server.
Run iMessage debug on a iMac, Macbook, etc and make a copy and paste of the Terminal output.

• Open Clover Configurator.
• Mount EFI Partition.
• Import config.plist from EFI/EFI/Clover (File , import configuration, browse to config.plist and select).
• In Clover Configurator Click on RT Variables, Enter Rom and MLB Values from iMessage output from valid iMac device.
• Save changes to config.plist.
• Reboot, Sign into iMessage

iMessage and FacTime should now both be working.
12. What's working?
Just about everything.
13. Finished!
You’ve successfully installed OS X El Capitan onto your Dell Latitude E6320.
TROUBLESHOOTING
14. BOOT 0 ERROR
If you are using a 4k HDD you can get boot:0 error, to solve this issue do the following

• Reboot system back into El Capitan installer (USB)FLASH DRIVE).
• Run Disk Utility find the Disk Identifier (eg. disk0s2).
• Unmount the drive you installed Mavericks on
• Launch Terminal and execute the following command:
• dd if=/usr/standalone/i386/boot1h of=/dev/disk0s2 .
• Exit Terminal
• Boot Normally

15. 16 Message "attempted to boot into EFI while legacy is on".
Sometimes the above message will appear after formatting HDD and installing OS X.

• Reboot system back into El Capitan installer (USB)FLASH DRIVE).
• Run Terminal.
• Launch Terminal and execute the following command:
• sudo diskutil corestorage revert /
• When prompt type your password.
• Exit Terminal
• Boot with your USB to El Capitan
• Launch Terminal again and execute the following command to format EFI partition:
• sudo newfs_msdos -V EFI -F 32 /dev/rdisk0s1
• After that install Clover to your HDD see chapter 10 "Installing The Clover Bootloader on Your Hackintosh"
• Done !

run os x el capitan 10.11 E6320.pdf

[GigaSonic]

this will working on a dell e6220 too? thanks

[GigaSonic]

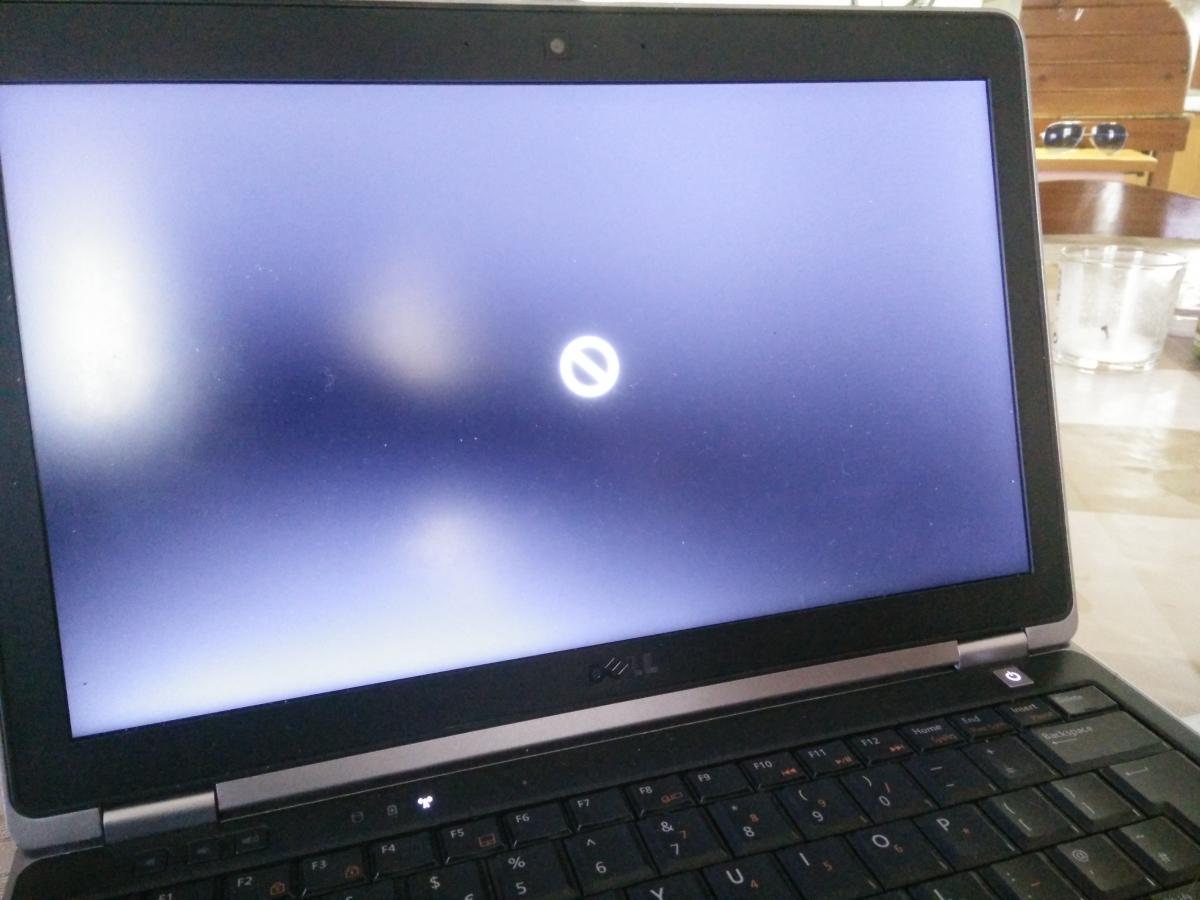

tryed on a dell 6220... i choose install from the usb and at 3/4 of the charge bar with the apple logo appears le simbol "proibition" for installer... any help? i've installed on usb with options "esp"

[pepto]

tryed on a dell 6220... i choose install from the usb and at 3/4 of the charge bar with the apple logo appears le simbol "proibition" for installer... any help? i've installed on usb with options "esp"

Maybe it have to do with the DSDT and SSDT in folder acpi/patched remove it and start again with the USB to end in the installer. Are the specs of the 6220 the same as my specs writen in the guide !.

[GigaSonic]

My dell has

Intel Core i7 vPro-2620M 2.70GHz



Memory 8GB DDR3 (4GB + 4GB)



128GB SSD (solid state drive)



The dsdt file is where are written the hardware of PC? (Sorry, i'm new on Mac world) and because my specs are little different the installer does't start? Can you share a dsdt file with my specs? Thanks



Ps: i have mount a "Broadcom BCM43225HMB WIFI + BLUETOOTH" cause in the Yosemite guide was written to replace the default WiFi card with this One because the default was incompatible with mac osx

[GigaSonic]

removed dsdt patched... nothing changed.

[ssprod]

Hello, thanks for this guide. Will this method work for an E6420 (Low Resolution)?

Thanks. ssprod

[pepto]

ssprod, on 21 Oct 2015 - 04:17 AM, said:

Hello, thanks for this guide. Will this method work for an E6420 (Low Resolution)?

Thanks. ssprod

Give it a try but first Always backup your files

[Kbeni]

Hi, what's up with 10.11.1 update?

[pepto]

Kbeni, on 23 Oct 2015 - 11:13 AM, said:

Hi, what's up with 10.11.1 update?

Nothing just download the combo update and install

[murr4y]

Just followed the instructions and installed El Capitan to my E6320.

However when I downloaded El Capitan from the store it was 10.11.1.

Now when I want to install Clover or the Wifi drivers I get an error that the version is not compatible with my system.

Do I have to wait for new versions or can I force it somehow? The installation always fails



//edit:

I got it working by disabling SIP.

2 problems left. I can't install clover to the HDD. I followed the instructions but the EFI partition ends up empty. When I copy the folders manually it doesn't work either.

And does sleep work for anyone?

[GigaSonic]

at the end i succesfully installed osx el captain on my 6220 with everyting working... i have some issue

sleep mode work for short times.. if i put in sleep mode for a while and after a pair of minuts i wake up works.. if i leave for more time (more than 5 minuts) i need to shut down and on clover i have to force boot without wake.. any tips to solve this?



if i update to 10.11.1 i have to reinstall clover on efi partition? any way to try to update and if don't work proprely go back to 10.11? thanks

[GigaSonic]

Thnx for help...

[jakeyg1]

hey in the 5th section it says see images below for chris111's app but there is no images so what options do i select.

[jakeyg1]

I've installed el capitan but now I'm stuck on a problem where clover will not install on the el capitan hard drive it says install has encountered an error

[jakeyg1]

I sorted it out by disabling SIP but for some reason clover installs into the el capitan partition instead of the EFI partition does anybody know why

[jakeyg1]

Finally finished it all i had to remove harddrive from laptop and plug it into my mac through a sata to usb adapter and install clover from the mac to the laptop harddrive then I put the harddrive back into the laptop and it all worked BUT THE WEBCAM AND SD CARD READER does not work which I think you forgot to mention so just saying as a heads up haha and thanks for great guide wouldn't of done it without it

[bebong2k]

I did successfully install 10.10 Yosemite on my Dell 6220. In case you want to try 10.11 El Capitan with DSDT/SSDT, you can extract them from the attached file.

E6220-Yosemite.zip

[jakeyg1]

Did you get webcam working bebong2k

[iraton]

Same here installed but booting from usb, guess we will have to wait for a clover update or this is something else?

[iraton]

Have anybody fixed the installing clover error?

[morpheousman]

Finally finished it all i had to remove harddrive from laptop and plug it into my mac through a sata to usb adapter and install clover from the mac to the laptop harddrive then I put the harddrive back into the laptop and it all worked BUT THE WEBCAM AND SD CARD READER does not work which I think you forgot to mention so just saying as a heads up haha and thanks for great guide wouldn't of done it without it



Works on sd card reader on my e6420. Maybe worth a try.

VoodooSDHC.kext.zip

[morpheousman]

I did successfully install 10.10 Yosemite on my Dell 6220. In case you want to try 10.11 El Capitan with DSDT/SSDT, you can extract them from the attached file.





SSDT needs to for exact same CPU. You do not state the CPU it was extracted for.

[GigaSonic]

i am on el captain 10.11 i want to upgrade to 10.11.2 any things to do or i have just to upgrade? is there any program to make an image of my actually hdd and then restore it if something goes wrong? thanks

[GeneLander]

at the end i succesfully installed osx el captain on my 6220 with everyting working... i have some issue

sleep mode work for short times.. if i put in sleep mode for a while and after a pair of minuts i wake up works.. if i leave for more time (more than 5 minuts) i need to shut down and on clover i have to force boot without wake.. any tips to solve this?



if i update to 10.11.1 i have to reinstall clover on efi partition? any way to try to update and if don't work proprely go back to 10.11? thanks

Gigasonic: I am having the same exact problem you described with the installer.  The Apple logo appears in center of screen, the progress bar gets to about 3/4 completed, then the screen blanks and shows only a "prohibited" logo (circle with a slash through it) in the center of the screen.  I see you had the same problem but had to change some files DSDT/SSDT?  I have no idea how to do this or where the files are.  Can you provide some additional directions?





I have Dell Latitude E6320

i7-2620M

2.7 GHz

128 GB HDD

Intel HD Graphics 3000

1366 x 768 native resolution
