krs360 Posted July 5, 2015 Share Posted July 5, 2015 Hi everyone, Looking for some help with getting my audio working on 10.10. I'm using an MSI gaming 7 x99s board which has the ALC1150 Realtek. Upon boot into Yosemite, there's no devices and therefore no sound. Could someone point me in the right direction as to how to tackle this problem? I would think its fairly common - everything else works like a treat but having no sound sucks a bit! If you need me to post cfgs from anything, let me know. Thanks in advance. Link to comment Share on other sites More sharing options...
Allan Posted July 5, 2015 Share Posted July 5, 2015 Read this: http://www.insanelymac.com/forum/topic/298819-yosemite-audio-realtek-alc-applehda/ Link to comment Share on other sites More sharing options...
krs360 Posted July 6, 2015 Author Share Posted July 6, 2015 Thanks for the reply, will give it a shot tonight. Do I need to follow the v3.1 - 11/15/2014: x99 audio, see Post #237, Haswell-E mach_kernel patch (5960X, 5830K and 5820K) or just ignore that and pick one of the methods below? I installed via clover. Link to comment Share on other sites More sharing options...
Allan Posted July 6, 2015 Share Posted July 6, 2015 v3.1 - 11/15/2014: x99 audio, see Post #237, Haswell-E mach_kernel patch (5960X, 5830K and 5820K) Follow the appropriate method for you. Link to comment Share on other sites More sharing options...
krs360 Posted July 6, 2015 Author Share Posted July 6, 2015 Clover Installation (4 steps) Audio_ID Injection (select one method) Clover Injection Download/config-audio_cloverALC-x99.plist.zip Add config.plist/ACPI/DSDT/Patches/Rename ALZA to HDEF ssdt/x99/onboard and HDMI audio SSDT-1.aml.zip 433bytes 85 downloads RampageDev X99.dmg/ssdt.aml.dmg audio instructions are not current RestartVerify IOReg/HDEF/layout-id/<01 00 00 00>No HDEF/Wrong layout-id, Audio_ID injection failed. Try Audio_ID Injection same/different method See Problem Reporting, below Codec PatchcloverALC/Clover patched Download/config-audio_cloverALC-x99.plist.zip (same as above)Add config.plist/KernelAndKextPatches/KextsToPatch/10.9.4-10.10-/x99 ALC Onboard Audio Download/Double Click/audio_cloverALC-100.command.zip Restart Okay so I'm having a bit of trouble (quite possibly me being an idiot today) following this guide. Add config.plist/ACPI/DSDT/Patches/Rename ALZA to HDEF Does that mean to copy the downloaded config.plist to folder /ACPI/DSDT/Patches/Rename ALZA to HDEF or /CLOVER/ACPI/DSDT/Patches/Rename ALZA to HDEF on the EFI partition? Where does SSDT-1.aml.zip get put once unzipped? And finally, Add config.plist/KernelAndKextPatches/KextsToPatch/10.9.4-10.10-/x99 ALC Onboard Audio Again, not 100% sure on where this plist should be placed? Link to comment Share on other sites More sharing options...
Allan Posted July 6, 2015 Share Posted July 6, 2015 I can't download these files right now, because i'm in my job. When i get home i can help you little more. Link to comment Share on other sites More sharing options...
krs360 Posted July 6, 2015 Author Share Posted July 6, 2015 Really appreciate it - if we can get it working I'll throw a little donation your way as it's the last hurdle in my hackintosh being 100% functional Or not sure if it just means to add the downloaded text into the /EFI/CLOVER/config.plist Link to comment Share on other sites More sharing options...
Allan Posted July 6, 2015 Share Posted July 6, 2015 1 - Add this in your config.plist, and make a test: <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Patches</key> <array> <dict> <key>Comment</key> <string>Rename ALZA to HDEF</string> <key>Find</key> <data> QUxaQQ== </data> <key>Replace</key> <data> SERFRg== </data> </dict> If you want send me your config.plist. Like @toleda says, you need choose one method. Clover or ACPI tables. Link to comment Share on other sites More sharing options...
krs360 Posted July 7, 2015 Author Share Posted July 7, 2015 Hi, I think I messed my config.plist up, I'm thinking I'm going to remove it and reinstall clover tonight. The only changes I had made to the original was a fake ID of 0x67B01002 in the ATI box to make sure my R9 290x works correctly. When I installed Clover I used this guide https://www.youtube.com/watch?v=CjMXkB2wMWE and followed it exactly. The boot flags I use are -v npci=0x2000 kext-dev-mode=1 I've attached a link to the one I made a mess of https://drive.google.com/file/d/0B5JPP-vBxaYiOTRtYldQeVRVdDQ/view?usp=sharing I'm not sure how easily you could open clover config and save a new .plist (with my boot flags) and the additions. I don't have access to a MAC at work so can't do it unfortunately . I notice when I boot I get messages about sound assertions. I really do appreciate the help and as I said will throw a donation your way for your time. Hardware is 5820k MSI Gaming 7 X99S board AMD R9 290 TRi-X 16GB DDR4 2600mhz Link to comment Share on other sites More sharing options...
Allan Posted July 7, 2015 Share Posted July 7, 2015 Dont worry, i'll help you. But now i'm in my job, and i can't make some changes in your config.plist right now. In my home is more easy. Link to comment Share on other sites More sharing options...
Allan Posted July 7, 2015 Share Posted July 7, 2015 Try this: config.plist.zip Link to comment Share on other sites More sharing options...

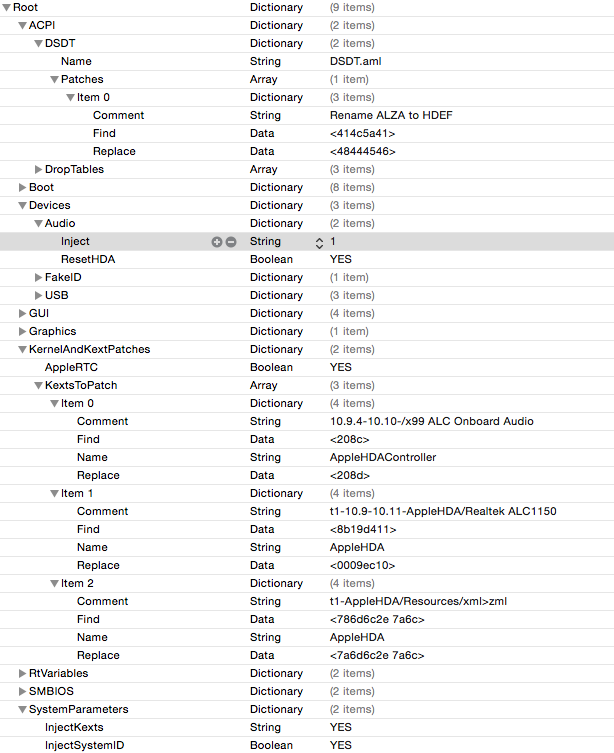

toleda Posted July 8, 2015 Share Posted July 8, 2015 Try this: Edits required KextsToPatch: Add 10.9.4-10.10-/x99 ALC Onboard Audio as shown t1-10.9-10.11-AppleHDA/Realtek ALC1150 is not correct, the script will fix Run audio_cloverALC...command to fix config.plist and install required 1150 files Correct x99 audio config.plist 1 Link to comment Share on other sites More sharing options...
Allan Posted July 8, 2015 Share Posted July 8, 2015 I don't removed this patch, because i don't understand why he put this there, strange huh? Done, here is the correct config.plist: Removed Thanks @toleda @krs360, this is with you: Run audio_cloverALC...command to fix config.plist and install required 1150 files Correct x99 audio config.plist Link to comment Share on other sites More sharing options...
krs360 Posted July 8, 2015 Author Share Posted July 8, 2015 Many thanks for your replies, I should get the time tonight to attempt to implement these. I'm editing the .plists via a text editor - you seem to have a nice tool to the editing @Toleda ? I've bought a new SSD today especially for my hackintosh so I'll have a fresh install along with a totally clean config.plist to make the adjustments to. Again, I appreciate all of the help provided, I've managed to get wireless and ethernet working but audio is busting my balls! Link to comment Share on other sites More sharing options...
Allan Posted July 8, 2015 Share Posted July 8, 2015 The best editor for .plist Property List Editor (free) Or PlistEditor Pro ($29) Link to comment Share on other sites More sharing options...
krs360 Posted July 8, 2015 Author Share Posted July 8, 2015 Many thanks for all of your replies. I picked up a USB audio adapter which works out of the box, the Realtek thing was really annoying me! 1 Link to comment Share on other sites More sharing options...
