USB only works if device is plugged in on boot, and USB stops working when all devices unplugged with Clover UEFI

ryanch94

By ryanch94,
in OSx86 10.8 (Mountain Lion)

 Share
5 posts in this topic

Recommended Posts

ryanch94
ryanch94
Posted
Posted

So I've got my hackintosh laptop (Asus K55A-253sa) almost completely working, the only problem is with my USB ports. This laptop has 2 USB3.0 ports and 1 USB 2 port. If I boot the system with no USB devices plugged in, USB doesn't work at all in the OS itself (it doesn't even seem to send power to the devices), if I start the system with a USB device plugged in, all the ports work fine, but if I unplug every USB device while the system is booted the ports stop working again.



I've tried every combination of USB relevant flags in my Clover config (Inject USB, Fix ownership, FixUSB, etc.) but nothing seems to fix it. It worked fine when I was using Chameleon.



Any ideas?



Thanks.



My Clover config.plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddHDMI_8000000</key>
				<true/>
				<key>AddIMEI_80000</key>
				<true/>
				<key>AddPNLF_1000000</key>
				<true/>
				<key>DeleteUnused_400000</key>
				<true/>
				<key>FIX_ACST_4000000</key>
				<true/>
				<key>FIX_ADP1_800000</key>
				<true/>
				<key>FIX_INTELGFX_100000</key>
				<true/>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FIX_S3D_2000000</key>
				<true/>
				<key>FixAirport_4000</key>
				<true/>
				<key>FixDarwin_0002</key>
				<true/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<true/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIPIC_0040</key>
				<true/>
				<key>FixLAN_2000</key>
				<true/>
				<key>FixRegions_10000000</key>
				<true/>
				<key>FixSBUS_0080</key>
				<true/>
				<key>FixShutdown_0004</key>
				<true/>
				<key>FixUSB_1000</key>
				<true/>
				<key>NewWay_80000000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<true/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>kext-dev-mode=1</string>
		<key>Debug</key>
		<false/>
		<key>DefaultLoader</key>
		<string>boot.efi</string>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<true/>
		<key>ScreenResolution</key>
		<string>1366x768</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>ig-platform-id</key>
		<string>0x01660003</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>C02032109R5DC771H</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>21/03/12</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>MBP91.88Z.00D3.B00.1203211536</string>
		<key>Board-ID</key>
		<string>Mac-6F01561E16C75D06</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>MacBook-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>08</string>
		<key>Family</key>
		<string>MacBook Pro</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<true/>
		<key>ProductName</key>
		<string>MacBookPro9,2</string>
		<key>SerialNumber</key>
		<string>C02KX348DTY3</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>
ryanch94
ryanch94
Posted
  • Author
Posted

hello



u need dsdt patch for that check here



usb_7-series-multiplex.txt



good hack



Hi,



I tried the DSDT patch (used the usb_7-series.txt patch in the same repo instead of the one you linked as my chipset is HM76) and it didn't work, still the same problem. Any ideas?



Thanks for the help.

ryanch94
ryanch94
Posted
  • Author
Posted

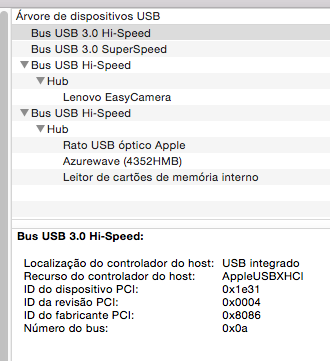

hello



is also my chipset ..



attachicon.gifnull



and is working .. sorry no ideas



good hack



Okay, I'll try to reinstall and see if it works then. Thanks for trying to help anyway :)
