sistoelemento Posted March 21, 2015 Share Posted March 21, 2015 I was getting full graphics accelaration on mountain lion using this card. I indected edid to my display-717 file inside s/l/displays/overrides/ And set the framebuffer to hoolock. But these settings seems not to be working on yosemite. Can anyone out here provide with a solution. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/ Share on other sites More sharing options...
artur_pt Posted March 21, 2015 Share Posted March 21, 2015 hello use clover and set it <key>Inject</key> <dict> <key>ATI</key> <true/> </dict> <key>LoadVBios</key> <true/> <key>InjectEDID</key> <true/> <key>FBName</key> <string>Hoolock</string> good hack Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2121947 Share on other sites More sharing options...

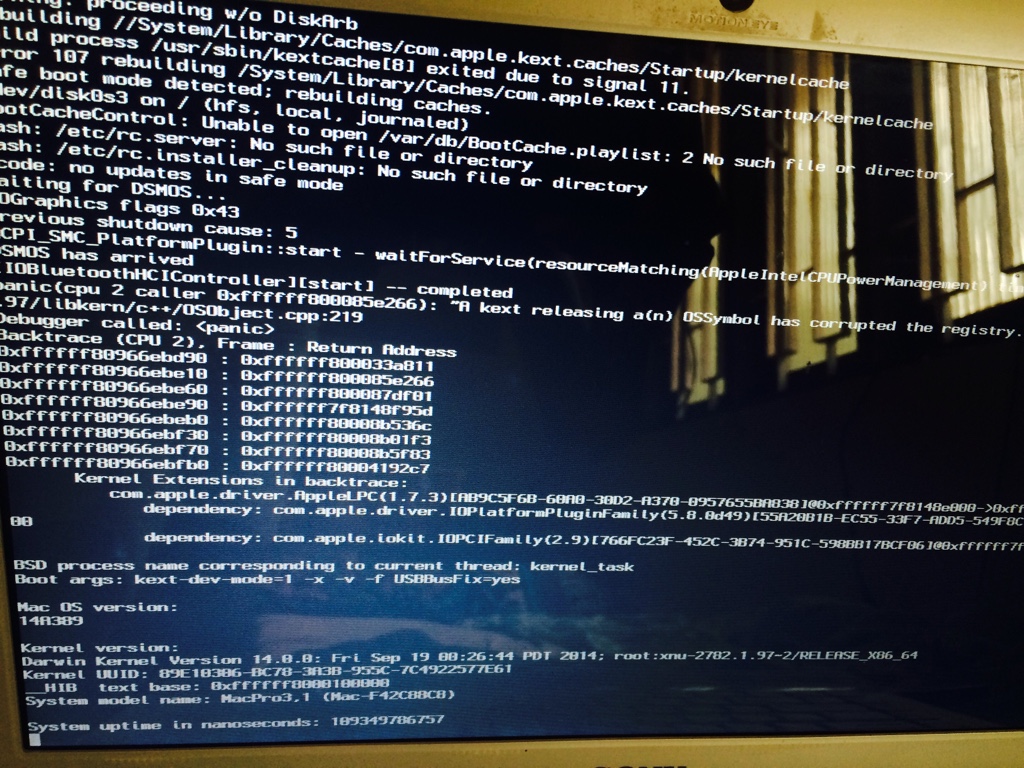

sistoelemento Posted March 22, 2015 Author Share Posted March 22, 2015 Actually i made wifi working last time and on the fly i installed some kexts and got a kernel panic. So i reinstalled yosemite and now when i boot using the usb installer to my yosemite installation i get a kp, scereenshot is attached i used the flags when i first installed yosemite and succesfully went to welcome screen. But now its not working. I think im getting the same kernel panic which forced me to reinstall yosemite. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122052 Share on other sites More sharing options...
sistoelemento Posted March 23, 2015 Author Share Posted March 23, 2015 Can anyone take a look ? Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122262 Share on other sites More sharing options...
sistoelemento Posted March 24, 2015 Author Share Posted March 24, 2015 hello use clover and set it <key>Inject</key> <dict> <key>ATI</key> <true/> </dict> <key>LoadVBios</key> <true/> <key>InjectEDID</key> <true/> <key>FBName</key> <string>Hoolock</string> good hack can you please see the picture of verbose attached Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122547 Share on other sites More sharing options...
artur_pt Posted March 24, 2015 Share Posted March 24, 2015 hello first u have wrong smbios .. should be macbookpro6,1 or 6,2 then u have problems in lpc have u a proper edited dsdt ? and should use the stock kext i have a lappy with same graphics .. is in my sig and run yose with that clover set for the graphics without problems good hack Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122549 Share on other sites More sharing options...
sistoelemento Posted March 24, 2015 Author Share Posted March 24, 2015 So i should replace the smbios in my usb drive which im using? Am i correct ? Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122590 Share on other sites More sharing options...
sistoelemento Posted March 24, 2015 Author Share Posted March 24, 2015 hello first u have wrong smbios .. should be macbookpro6,1 or 6,2 then u have problems in lpc have u a proper edited dsdt ? and should use the stock kext i have a lappy with same graphics .. is in my sig and run yose with that clover set for the graphics without problems good hack I changed my smbios to macbookpro 6,1 , but im still getting a kernel panic on lpc Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122609 Share on other sites More sharing options...
sistoelemento Posted March 25, 2015 Author Share Posted March 25, 2015 hello first u have wrong smbios .. should be macbookpro6,1 or 6,2 then u have problems in lpc have u a proper edited dsdt ? and should use the stock kext i have a lappy with same graphics .. is in my sig and run yose with that clover set for the graphics without problems good hack Update :problem solved It was because of the dsdt in extra folder of USB Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122783 Share on other sites More sharing options...
sistoelemento Posted March 25, 2015 Author Share Posted March 25, 2015 hello use clover and set it <key>Inject</key><dict><key>ATI</key><true/></dict><key>LoadVBios</key><true/><key>InjectEDID</key><true/><key>FBName</key><string>Hoolock</string>good hackShould i copy paste my edid inside clover configurator ? I have already forced edid by replacing the s/l/displays/overides with my edited display-717 file. , and i know it is working because the display prefpane is showing Internal Lcd forced edid. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122789 Share on other sites More sharing options...
sistoelemento Posted March 25, 2015 Author Share Posted March 25, 2015 hello use clover and set it <key>Inject</key> <dict> <key>ATI</key> <true/> </dict> <key>LoadVBios</key> <true/> <key>InjectEDID</key> <true/> <key>FBName</key> <string>Hoolock</string>good hack When i install clover it directly boots to windows. I have used mbr patch for yosemite while installation and my drive contains win 8.1 Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2122913 Share on other sites More sharing options...
artur_pt Posted March 25, 2015 Share Posted March 25, 2015 hello u must install clover for legacy boot .. like chameleon .. u don't have uefi bios so must install clover 2 options boot0md or bootss that u will see help info in clover installer.. and should know ? what partition table u use .. GPT or MBR good hack Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123122 Share on other sites More sharing options...
sistoelemento Posted March 26, 2015 Author Share Posted March 26, 2015 hello u must install clover for legacy boot .. like chameleon .. u don't have uefi bios so must install clover 2 options boot0md or bootss that u will see help info in clover installer.. and should know ? what partition table u use .. GPT or MBR good hack I use mbr partition table Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123156 Share on other sites More sharing options...
sistoelemento Posted March 26, 2015 Author Share Posted March 26, 2015 hello u must install clover for legacy boot .. like chameleon .. u don't have uefi bios so must install clover 2 options boot0md or bootss that u will see help info in clover installer.. and should know ? what partition table u use .. GPT or MBR good hack I tried both methods but both are loading windows directly. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123215 Share on other sites More sharing options...
sistoelemento Posted March 26, 2015 Author Share Posted March 26, 2015 hello use clover and set it <key>Inject</key> <dict> <key>ATI</key> <true/> </dict> <key>LoadVBios</key> <true/> <key>InjectEDID</key> <true/> <key>FBName</key> <string>Hoolock</string>good hack Ati 5470 wont work on yosemite with chameleon ? Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123262 Share on other sites More sharing options...

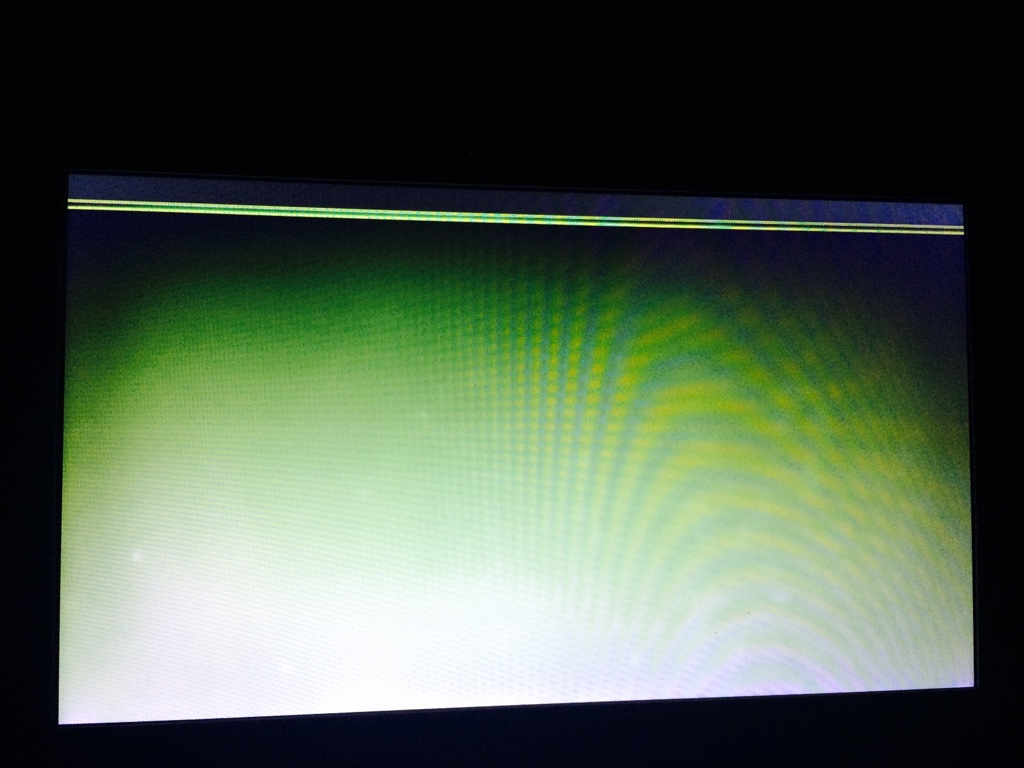

sistoelemento Posted March 26, 2015 Author Share Posted March 26, 2015 hello use clover and set it <key>Inject</key> <dict> <key>ATI</key> <true/> </dict> <key>LoadVBios</key> <true/> <key>InjectEDID</key> <true/> <key>FBName</key> <string>Hoolock</string>good hack Im getting this screen after setting these options. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123361 Share on other sites More sharing options...
artur_pt Posted March 26, 2015 Share Posted March 26, 2015 hello u are using stock kext ? good hack Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123363 Share on other sites More sharing options...
sistoelemento Posted March 27, 2015 Author Share Posted March 27, 2015 hello u are using stock kext ? good hack Yes im using untouched stock Yosemite kexts. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123462 Share on other sites More sharing options...
artur_pt Posted March 27, 2015 Share Posted March 27, 2015 hello really don't see why .. u must have something wrong in ur config.plist like i say mine works without any problem good hack Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2123695 Share on other sites More sharing options...
sistoelemento Posted March 30, 2015 Author Share Posted March 30, 2015 hello really don't see why .. u must have something wrong in ur config.plist like i say mine works without any problem good hack According to your config my edid should be on my config.plist. Not in the displays folder ! Am i correct ? Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2124194 Share on other sites More sharing options...
sistoelemento Posted March 30, 2015 Author Share Posted March 30, 2015 hello really don't see why .. u must have something wrong in ur config.plist like i say mine works without any problem good hack is there a need to set custom edid in clover. ?Or inject edid is fine ? I think the lcd of my laptop is causing the trouble. Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2124210 Share on other sites More sharing options...
artur_pt Posted March 30, 2015 Share Posted March 30, 2015 hello http://clover-wiki.zetam.org/Configuration/Graphics#CustomEDID good hack Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2124221 Share on other sites More sharing options...
sistoelemento Posted March 30, 2015 Author Share Posted March 30, 2015 hello http://clover-wiki.zetam.org/Configuration/Graphics#CustomEDID good hack Still not working . i Got this same error with Eulemur framebuffer in Mountai lion and when i change it to Hoolock i got full qe/ci but in this case both does not work ! Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2124265 Share on other sites More sharing options...
sistoelemento Posted March 30, 2015 Author Share Posted March 30, 2015 hello http://clover-wiki.zetam.org/Configuration/Graphics#CustomEDID good hack Update: i used my ml kexts using which this card worked before. Now the display has proper resolution but black color and it shows mouse updates and keypresses See attached. I think im nearing success And when i enable ati injector and disable load vbios and set fb to hoolock im getting display. and here is the dpci screenshot Link to comment https://www.insanelymac.com/forum/topic/305238-qeci-on-ati-mobility-5470-radeon-512-mb/#findComment-2124270 Share on other sites More sharing options...
