Fido79 Posted February 24, 2016 Share Posted February 24, 2016 Hi guys, as a first I would like to thank you for this effort to bring this solution to ordinary x86 machines I was following this manual step-by-step with no issues. But when i try to boot for the first time from USB flash I see Apple bite and progress bar. It take like 1 hour for progress bar being completed and sinec that time nothing is happening for past 24 hours. Just apple and progress bar on 100%. Personally only problem I can see is that i have just 2GB RAM. But if needed i beleive i can extend it with no issues... It's T410 Intel HD 2GB RAM 500GB HDD 7200 RPM Core i5 Thanks for any info bye Jerry Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2218125 Share on other sites More sharing options...
ol@fson Posted February 25, 2016 Share Posted February 25, 2016 Hi guys, as a first I would like to thank you for this effort to bring this solution to ordinary x86 machines I was following this manual step-by-step with no issues. But when i try to boot for the first time from USB flash I see Apple bite and progress bar. It take like 1 hour for progress bar being completed and sinec that time nothing is happening for past 24 hours. Just apple and progress bar on 100%. Personally only problem I can see is that i have just 2GB RAM. But if needed i beleive i can extend it with no issues... It's T410 Intel HD 2GB RAM 500GB HDD 7200 RPM Core i5 Thanks for any info bye Jerry Most likely an issue with the graphics driver not loaded. 1st gen Intel HD is a pain in the ass hackintosh-wise 1 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2218172 Share on other sites More sharing options...
Pistooli Posted February 28, 2016 Share Posted February 28, 2016 Big thanks for the guide! I have installed (following the detailed guide) El Capitan 10.11.3 on my Lenovo ThinkPad T510. Everything appears to be working just fine. Only sleep/wake up needs some fine-tuning. EDIT: While it is slightly off-topic (because I have a T510), but sleep now works perfectly with this DSDT: http://www.insanelymac.com/forum/topic/274218-guide-lenovo-thinkpad-t510510i-plus-t410-and-w510-106-107-108-109-all-working-ok-20131112-update/page-25?do=findComment&comment=2198792 Thanks all! 1 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2219347 Share on other sites More sharing options...
yangzh Posted March 1, 2016 Share Posted March 1, 2016 Hi. I successfully get everything working under your guide. But on my laptop, the thinkpad trackpoint is moving VERY fast, while the trackpad is moving at the comfortable speed. If I adjust the "moving speed" in the preference panel, this two speeds would be adjusted simultaneously. So my question is, is there any way to slow down the speed of trackpoint, while not influencing the speed of trackpad? (I think the magic may be inside the VoodooPS2Controller.kext) Thank you!! Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2219677 Share on other sites More sharing options...
ol@fson Posted March 1, 2016 Share Posted March 1, 2016 Hi. I successfully get everything working under your guide. But on my laptop, the thinkpad trackpoint is moving VERY fast, while the trackpad is moving at the comfortable speed. If I adjust the "moving speed" in the preference panel, this two speeds would be adjusted simultaneously. So my question is, is there any way to slow down the speed of trackpoint, while not influencing the speed of trackpad? (I think the magic may be inside the VoodooPS2Controller.kext) Thank you!! I have the same issue .. I tried with a newer Voodoo kext but then the trackpoint doesn't work at all. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2219690 Share on other sites More sharing options...
Pistooli Posted March 2, 2016 Share Posted March 2, 2016 I have the same issue .. I tried with a newer Voodoo kext but then the trackpoint doesn't work at all. I concur... but since I use the Trackpoint very seldom, it is a nice to have option for me really. Touchpad works fine though. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2219983 Share on other sites More sharing options...
yangzh Posted March 5, 2016 Share Posted March 5, 2016 I have the same issue .. I tried with a newer Voodoo kext but then the trackpoint doesn't work at all. I concur... but since I use the Trackpoint very seldom, it is a nice to have option for me really. Touchpad works fine though. Hi guys! I found out the solution! See https://github.com/RehabMan/OS-X-Voodoo-PS2-Controller/issues/59 Change the MouseMultiplierX and MouseMultiplierY to a much lower integer (I changed it from 20 to 4!) The file is VoodooPS2Controller.kext/Contents/PlugIns/VoodooPS2Trackpad.kext/Contents/Info.plist 3 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2220715 Share on other sites More sharing options...
Pistooli Posted March 5, 2016 Share Posted March 5, 2016 Hi guys! I found out the solution! See https://github.com/RehabMan/OS-X-Voodoo-PS2-Controller/issues/59 Change the MouseMultiplierX and MouseMultiplierY to a much lower integer (I changed it from 20 to 4!) The file is VoodooPS2Controller.kext/Contents/PlugIns/VoodooPS2Trackpad.kext/Contents/Info.plist Yes, indeed it does work and now the TrackPoint works as it should. Good one and thanks to you and RehabMan as well. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2220755 Share on other sites More sharing options...
LatinMcG Posted March 10, 2016 Share Posted March 10, 2016 success! usb wake working on my T410 INTEL HD! Config> USB set to Off the usb always on! the fix for video in dsdt seems to work nice now.. compare it HasPanel seems to make video work! my IntelHDGraphics Clover folder for Capitan and Yosemite .. fix serial http://www.insanelymac.com/forum/topic/274218-guide-lenovo-thinkpad-t510510i-plus-t410-and-w510-106-107-108-109-all-working-ok-20131112-update/?p=2222345 will be fixing the Firewire error soon. edit: seems sleep works in 10.10 not 10.11 for me. power button on and fan on. 1 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2222346 Share on other sites More sharing options...
ol@fson Posted March 17, 2016 Share Posted March 17, 2016 success! usb wake working! Config> USB set to Off the usb always on! Doesn't work with the DSDT from OP with NVidia ... USB still dead after wakeup. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2224507 Share on other sites More sharing options...
Pistooli Posted March 20, 2016 Share Posted March 20, 2016 Doesn't work with the DSDT from OP with NVidia ... USB still dead after wakeup. Same on my laptop with the OP DSDT, no USB after wakeup. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2225247 Share on other sites More sharing options...
Pistooli Posted March 27, 2016 Share Posted March 27, 2016 Upgraded to 10.11.4 from AppStore without any problems. UPDATE 30/05/2016. Updates to 10.11.5 from AppStore 1 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2227733 Share on other sites More sharing options...
DADAAA Posted May 21, 2016 Share Posted May 21, 2016 Hi! Thank you all for the work! I am searching for a *working* AppleHDA solution (i.e. include working mic). And want to use the actual Yosemite HDA kext and not any kext from previous OSes... Any hint...? Greets. Have fun! Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2239555 Share on other sites More sharing options...

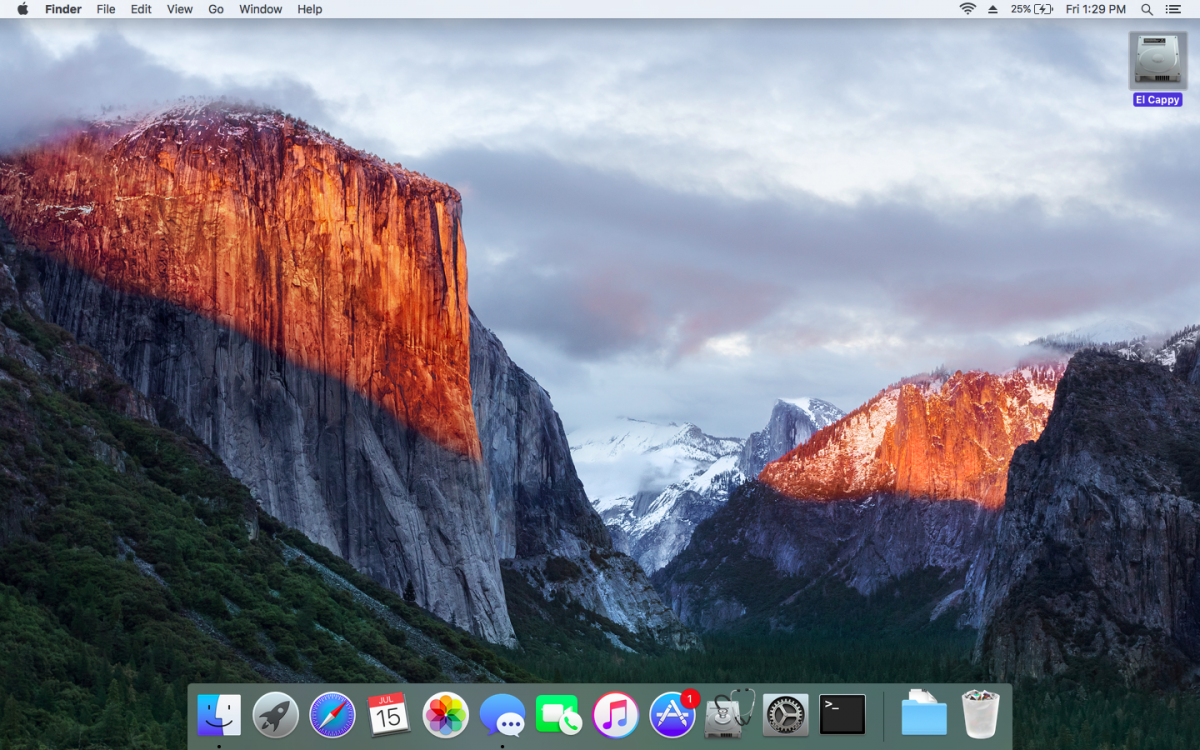

mrmightymoron Posted July 15, 2016 Share Posted July 15, 2016 It worked. Thanks so much for your tutorial. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2253148 Share on other sites More sharing options...
klincharov Posted August 21, 2016 Share Posted August 21, 2016 I deleted me previous post, bеcause i had messed up the clover, everything boots fine now. I still have some problems tho: * TrackPoint doesn't work from time to time, when works it has super high sensitivity - can't find related settings in the kext ?? * Brightness doesn't work * Sound - I fixed it for a second time now, but don't know for how long * Sleep doesn't work Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2268335 Share on other sites More sharing options...
joransrb Posted September 6, 2016 Share Posted September 6, 2016 awesome guide, thanks up and running on my T410, just waiting for my new replacement wifi card Got one question tho, it reports only 256 in Nvidia mem, but it should be 512, any suggestions on how to fix that ? Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2274342 Share on other sites More sharing options...
joransrb Posted September 21, 2016 Share Posted September 21, 2016 so now that Sierra is out, will this guide be updated ? probably the same process, but as far as i know, we need to change system definition to something higher. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2281209 Share on other sites More sharing options...
tomchr Posted September 24, 2016 Share Posted September 24, 2016 The current config.plist identifies the T410 as a MacBook Pro 6.2, which should be OK. However, MacOS Sierra probably needs some adjustments. For example, there is a new method for enabling Nvidia Web Drivers in Clover. I hope Codinger is able to update this guide to cover macOS Sierra 10.12. 1 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2284516 Share on other sites More sharing options...
Pistooli Posted September 25, 2016 Share Posted September 25, 2016 The current config.plist identifies the T410 as a MacBook Pro 6.2, which should be OK. However, MacOS Sierra probably needs some adjustments. For example, there is a new method for enabling Nvidia Web Drivers in Clover. I hope Codinger is able to update this guide to cover macOS Sierra 10.12. I am also looking forward to the Sierra guide... Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2284785 Share on other sites More sharing options...
tomchr Posted September 26, 2016 Share Posted September 26, 2016 Hello everyone, Here is a condensed updated install guide for macOS Sierra 10.12 on the Thinkpad T410 with Nvidia NVS 3100M card. The only prerequisite is a working OSX 10.1X system. Prepare USB Make sure that 'Install macOS Sierra app' program is at /Applications Erase your USB device using Disk Utility (Name: USB, Format: OS X Extended Journaled, Scheme: GUID) Open Terminal and use the following command: sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --applicationpath /Applications/Install\ macOS\ Sierra.app --no interaction Use Clover Configurator to mount the EFI partition on your USB device Install Clover EFI bootloader v2.3K_r3763 and select your USB device. Clover options: ESP, boot0af, CloverEFI 64bit SATA, Install RC Scripts Extract files from Codinger's zips called "T410_Extensions.zip" and "T410_Clover_Config_EC.zip" Move "config.plist" to "/EFI/CLOVER/" and "DSDT.aml" to "/EFI/CLOVER/ACPI/patched" Move "T410_Extensions" to "/EFI/CLOVER/kexts/other/" (Skip AppleHDA.kext) Boot your USB device and install macOS Sierra Post Install After macOS installation, boot macOS Sierra using Clover on your USB device as your boot device Open Terminal and use the following command: sudo spctl --master-disable Use kext Utility and drag the the AppleHDA.kext from Codinger's "T410_Extensions.zip" Use Clover Configurator to mount the EFI partition on your USB device AND your macOS Sierra installation Copy all files from the USB device EFI partition to the macOS Sierra EFI partition Now your macOS Sierra installation is bootable on its own. Enjoy macOS on your T410 1 Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2285910 Share on other sites More sharing options...
slig Posted July 14, 2017 Share Posted July 14, 2017 The files are deleted. Can you reupload it, please? Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2462740 Share on other sites More sharing options...
Tetonne Posted July 14, 2017 Share Posted July 14, 2017 could be great to update first post with post 120 (sierra Guide) and with re-uploaded stuff Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2462846 Share on other sites More sharing options...
osxtp Posted November 13, 2017 Share Posted November 13, 2017 Does anybody by chance happen to still have these files? I got El Capitan running on one of these machines and would really like to get sleep, battery etc. working Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2534186 Share on other sites More sharing options...
gappy2k Posted December 8, 2017 Share Posted December 8, 2017 Does anybody by chance happen to still have these files? I got El Capitan running on one of these machines and would really like to get sleep, battery etc. working I'm running Sierra 10.12 on the T410i but I think sleep is not really running as the USB ports will be disabled after wake up, and I didn't find a solution till now. My problem at the moment is to do a good keyboard remap for "fn" keys and the German board layout as is. Another problem ist that the touchpad not recognises a touch action, I have to press the touch mouse key. 3rd. my mousestick is too fast I'm running with dedicated Nvidia graphics just fine. Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2546531 Share on other sites More sharing options...
tfggor Posted July 20, 2018 Share Posted July 20, 2018 Hi. Anyone have those files (T410_Clover_Config_EC, T410_Modded_Bios, T410_Extensions)? Can you share? Link to comment https://www.insanelymac.com/forum/topic/304814-guide-install-osx-101x-on-lenovo-t410-step-by-step/page/5/#findComment-2626660 Share on other sites More sharing options...
