I am modding a GA-B85M-D3H bios with the help of your guide, thank you for making it!  :)



I encountered some problems with Ozmosis and was able to solve it. I can select in the bios my #1 Boot Volume but when i save the settings and reboot, previous boot option is selected again. So bios do not keep my boot settings anymore!

My solution was to leave only my boot drive connected and to do a PRAM reset in ozmosis so my boot drive became automatically  the #1 boot volume and only after it to connect the rest of my drives.



As far everything is working perfect!



Now I would like to inject the ethernet kext and there is no space anymore, do you know which modules can be deleted safely without the risk to brick the board? I want to use UEFI only booting for OS X and to keep the option to install Windows in UEFI mode later. I know that i can put it in EFI partition or to install it in /S/L/E but i really want it to have in bios!



The compressed RealtekRTL8111.ffs is 85kb. Here is my report:

+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          Non-FFS FV           |   00500000   |  020000   |    001    |
|  01  |          Non-FFS FV           |   00550000   |  1E0000   |    003    |
|  02  |          Nested FV            |   00000000   |  750000   |    186    |
|  03  |          Boot Block FV        |   00730000   |  0D0000   |    054    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information       	      |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 00       |   750000  |    186    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  500000  |
| NCB No : 1                         Location :  00520000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00500000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00500048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00550000   Length :  1E0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |AE717C2F-1A42-4F2B-8861-78B79CA07E07|00550048|1BD865|FV  |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|0070D8C8|010418|RAW |
|002|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|0071DCE0|00211C|PEIM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 010218 ( 64 KB)    Bytes Used       : 1CFDE8 (1855 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  750000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|IntelSaGopDriver|5C266089-E103-4D43-9AB5-12D7095BE2AF|00000048|001215|DRVR|
|001|IntelGopDriver |5BBA83E6-F027-4CA7-BFD0-16358CC9E123|0000125D|00D45E|DRVR|
|002|FvOnFv2Thunk   |5007A40E-A5E0-44F7-86AE-662F9A91DA26|0000E6BB|000ACD|DRVR|
|003|               |17088572-377F-44EF-8F4E-B09FFF46A070|0000F188|005018|RAW |
|004|CpuDxe         |E03ABADF-E536-4E88-B3A0-B77F78EB34FE|000141A0|0046A1|DRVR|
|005|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|00018841|0135E5|FRFM|
|006|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|0002BE26|00097D|FRFM|
|007|CORE_DXE       |5AE3F37E-4EAE-41AE-8240-35465B5E81EB|0002C7A3|18D839|DXEC|
|008|Runtime        |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001B9FDC|0119A1|DRVR|
|009|ReFlash        |70E1A818-0BE1-4449-BFD4-9EF68C7F02A8|001CB97D|0054CD|DRVR|
|010|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|001D0E4A|00DA59|DRVR|
|011|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|001DE8A3|00DEAF|DRVR|
|012|EBC            |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|001EC752|0037D9|DRVR|
|013|It8728SmmFeatur|078485F1-0C1F-4B1B-AFB3-4A09C0EF87A1|001EFF2B|001F69|DRVR|
|014|IT8728SioAcBack|AA893E19-A641-4819-AD23-011B7C24250D|001F1E94|0013AD|DRVR|
|015|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|001F3241|00D6A1|DRVR|
|016|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|002008E2|000B1C|FRFM|
|017|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|002013FE|004F45|DRVR|
|018|PowerMgmtS3    |8F0B5301-C79B-44F1-8FD3-26D73E316700|00206343|0017AD|DRVR|
|019|CpuPolicyDxe   |15B9B6DA-00A9-4DE7-B8E8-ED7AFB88F16E|00207AF0|001C5D|DRVR|
|020|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|0020974D|002159|DRVR|
|021|TxtOneTouchDxe |67791E00-0C05-4AE7-A921-FC4057221653|0020B8A6|001A11|DRVR|
|022|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|0020D2B7|004B81|DRVR|
|023|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|00211E38|0017F5|DRVR|
|024|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|0021362D|001455|DRVR|
|025|SBDXE          |B7D19491-E55A-470D-8508-85A5DFA41974|00214A82|00AF75|DRVR|
|026|SBRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|0021F9F7|0025DD|DRVR|
|027|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|00221FD4|00020D|FRFM|
|028|SmmChildDispatc|753630C9-FAE5-47A9-BBBF-88D621CD7282|002221E1|002FD9|DRVR|
|029|               |E53734A3-E594-4C25-B1A2-081445650F7F|002251BA|004C61|    |
|030|               |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|00229E1B|002461|    |
|031|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|0022C27C|002FD5|DRVR|
|032|SBSMI          |7B8DB049-C7C7-4D3B-809F-926DEE47CCA2|0022F251|003861|DRVR|
|033|PchSpiWrap     |B716A6F8-F3A1-4B8E-8582-5A303F1CDD64|00232AB2|000E29|DRVR|
|034|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|002338DB|0010D5|DRVR|
|035|SataDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|002349B0|02EE99|DRVR|
|036|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|00263849|000B49|DRVR|
|037|IoTrap         |2374EDDF-F203-4FC0-A20E-61BAD73089D6|00264392|001F61|DRVR|
|038|IntelLegacyInte|C1C418F9-591D-461C-82A2-B9CD96DFEA86|002662F3|000655|DRVR|
|039|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|00266948|01188D|DRVR|
|040|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|002781D5|007235|DRVR|
|041|PchPcieSmm     |ACAEAA7A-C039-4424-88DA-F42212EA0E55|0027F40A|003FE1|DRVR|
|042|PchReset       |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|002833EB|0027A5|DRVR|
|043|PchS3Peim      |271DD6F2-54CB-45E6-8585-8C923C1AC706|00285B90|00213C|PEIM|
|044|PchS3Support   |08F2C63B-08DE-4CCD-8670-ACFE644A1C48|00287CCC|001105|DRVR|
|045|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|00288DD1|001C49|DRVR|
|046|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|0028AA1A|00106D|DRVR|
|047|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|0028BA87|000A09|DRVR|
|048|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|0028C490|001C39|DRVR|
|049|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|0028E0C9|0016A9|DRVR|
|050|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|0028F772|0029B9|DRVR|
|051|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|0029212B|0035CD|DRVR|
|052|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|002956F8|001A39|DRVR|
|053|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|00297131|000C61|DRVR|
|054|PchLateInitSmm |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|00297D92|0028D5|DRVR|
|055|NBDXE          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|0029A667|0087A1|DRVR|
|056|NBSMI          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|002A2E08|0028FD|DRVR|
|057|MiscSubclassDxe|16271FCA-55D9-4A33-93FC-5A3EB128DE21|002A5705|000FC5|DRVR|
|058|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|002A66CA|001B29|DRVR|
|059|LegacyRegion2  |FE6F8ACD-55A6-4C6B-B448-64E659DE94B3|002A81F3|000C3D|DRVR|
|060|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|002A8E30|002BAD|DRVR|
|061|SmBiosMemory   |EDA39402-F375-4496-92D3-83B43CB8A76A|002AB9DD|003255|DRVR|
|062|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|002AEC32|000D35|DRVR|
|063|               |27E569D5-0AFC-4D8F-8C90-783AC4A318AB|002AF967|0001D0|FRFM|
|064|               |AAA99A23-13B6-4C31-BB8B-299E8EC04FA4|002AFB37|0034FD|FRFM|
|065|SaInitDxe      |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|002B3034|00E535|DRVR|
|066|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|002C1569|007BE1|DRVR|
|067|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|002C914A|0009C9|DRVR|
|068|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|002C9B13|001218|RAW |
|069|PciTestAdapter |3F79BEE2-6B14-4B5E-916B-101D8F7E15BE|002CAD2B|0013B1|DRVR|
|070|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|002CC0DC|00998D|DRVR|
|071|               |26A2481E-4424-46A2-9943-CC4039EAD8F8|002D5A69|0032C9|    |
|072|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|002D8D32|00211C|PEIM|
|073|AHCI           |8F5A2E02-538C-4D59-B920-C4786ACBC552|002DAE4E|006F75|DRVR|
|074|AINT13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|002E1DC3|001D31|DRVR|
|075|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|002E3AF4|0029B1|DRVR|
|076|CmosManagerSmm |6869C5B3-AC8D-4973-8B37-E354DBF34ADD|002E64A5|0034A1|DRVR|
|077|CryptoDxe      |20D8FFFE-15C3-4EA9-9D28-CFE2745D78F3|002E9946|0111D5|DRVR|
|078|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|002FAB1B|001BB9|DRVR|
|079|CppcDxe        |C07A1EB5-5C04-4100-817B-0A11BB5F15DC|002FC6D4|001145|DRVR|
|080|               |60E31DE1-03EC-492A-9598-65A3C50E0F6B|002FD819|000373|FRFM|
|081|               |60AC3A8F-4D66-4CD4-895A-C3F06E6665EE|002FDB8C|0000D6|FRFM|
|082|RapidStartDxe  |B6B9295F-CABF-4CEC-BB14-FE4246F2173A|002FDC62|0025E9|DRVR|
|083|RapidStartSmm  |43172851-CF7E-4345-9FE0-D7012BB17B88|0030024B|002151|DRVR|
|084|DxeFfsGfxDriver|6FD1DCC5-B5B9-4A82-8728-8D854428A4A3|0030239C|000B89|DRVR|
|085|RapidStartDxePo|DDB412A6-E3F3-4E9E-90A3-2A991270219C|00302F25|0015F1|DRVR|
|086|               |FA2DDC38-3F19-4218-B53E-D9D79D626767|00304516|0002D6|FRFM|
|087|IsctAcpi       |4839023B-4C12-4EB2-B2B8-C91B42D878A0|003047EC|000DF9|DRVR|
|088|IsctSmm        |DBD5B6BA-6734-4C5D-BF53-2C210D93A012|003055E5|0015B5|DRVR|
|089|MERecoveryDxe  |F1FCD66F-8966-441E-909C-77F211AB9C3E|00306B9A|003F2D|DRVR|
|090|               |821D110C-D0A3-4CF7-AEF3-E28088491704|0030AAC7|080025|FRFM|
|091|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|0038AAEC|004049|DRVR|
|092|OnboardControll|1601E050-BE0C-41B7-8F96-9F48F72B7E26|0038EB35|00273D|DRVR|
|093|RtkUndiDxe     |2851E234-20FD-4D1E-9041-DCB8F3025CAE|00391272|0173C9|DRVR|
|094|BDRDXE         |5E06E249-3A4C-49B5-8A37-02058CC12691|003A863B|0033D1|DRVR|
|095|BDRSMM         |ACA87EA5-D839-4F41-BCCE-9E19E9F2C2AD|003ABA0C|003515|DRVR|
|096|DualBiosDxe    |C74D1B0B-91B1-484A-A038-FE7A0847AA07|003AEF21|004C69|DRVR|
|097|DualBiosSMM    |88B468B3-A48B-4B87-ABE2-8E56DFFDAF8D|003B3B8A|0002DD|DRVR|
|098|Slp10          |8E477676-55FD-48CF-9210-15A99B27D740|003B3E67|000EA9|DRVR|
|099|SlpSupport     |952821AA-EACD-465B-B478-5429DFC9A747|003B4D10|0014D9|DRVR|
|100|CSMCORE        |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|003B61E9|042C01|DRVR|
|101|               |A08276EC-A0FE-4E06-8670-385336C7D093|003F8DEA|000435|FRFM|
|102|BIOSBLKIO      |25ACF158-DD61-4E64-9A49-55851E9A26C7|003F921F|0033F5|DRVR|
|103|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|003FC614|004775|DRVR|
|104|HeciDxe        |55E76644-78A5-4A82-A900-7126A5798892|00400D89|004CA1|DRVR|
|105|HeciSmm        |921CD783-3E22-4579-A71F-00D74197FCC8|00405A2A|002095|DRVR|
|106|PlatformReset  |9A9A912B-5F53-4586-8820-704485A29D21|00407ABF|000B3D|DRVR|
|107|MdesStatusCodeD|DF5CD25A-8E55-46BA-8CDA-BC7DB7BF9C64|004085FC|000DF5|DRVR|
|108|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|004093F1|001221|DRVR|
|109|MePlatformPolicy|BA67550C-3628-4137-A53E-42660E081604|0040A612|0013ED|DRVR|
|110|MePciPlatform  |459C70C3-9344-4484-9F93-7822530D0D11|0040B9FF|00058D|DRVR|
|111|IccPlatform    |14257B56-BDA2-4FAF-8E4F-C885DF75583C|0040BF8C|00210D|DRVR|
|112|IccOverClocking|5BBA83E5-F027-4CA7-BFD0-16358CC9E123|0040E099|00ABC5|DRVR|
|113|IccOverClocking|8E68E3C5-FC59-4280-8467-3800D31A8162|00418C5E|00ABCD|DRVR|
|114|Smbios131      |2B341C7B-0B32-4A65-9D46-E1B3ABD4C25C|0042382B|000CE5|DRVR|
|115|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|00424510|00007C|FRFM|
|116|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|0042458C|001385|DRVR|
|117|               |76D5CF91-0C55-434E-97C2-D2825C82E610|00425911|001C25|    |
|118|AcpiPlatform   |8B5FBABD-F51F-4942-BF16-16AAA38AE52B|00427536|0055E1|DRVR|
|119|PlatformInfo   |1314216C-CB8D-421C-B854-06231386E642|0042CB17|0011ED|DRVR|
|120|AcpiFvi        |D7E31ECB-0A17-4529-9B84-C529DE8E1C0E|0042DD04|000C31|DRVR|
|121|               |94AB6AED-9719-48EF-831C-2E9C29758C33|0042E935|0000C2|FRFM|
|122|               |95DFCAE5-BB28-4D6B-B1E2-3AF3A6BF434F|0042E9F7|000643|FRFM|
|123|               |7FFC3536-0A8A-448B-95F4-39F5B9F09ADD|0042F03A|000B32|FRFM|
|124|SMBIOSUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0042FB6C|000825|DRVR|
|125|               |9DD795EB-41E8-4591-8E63-5EF4AA33B908|00430391|0000B0|FRFM|
|126|FastBootOption |A58C5D1D-C22B-4845-90BC-8C94FCE96457|00430441|001BE1|DRVR|
|127|OFBD           |57E56594-CE95-46AD-9531-3C49310CA7CE|00432022|001411|DRVR|
|128|SecureBootMod  |A95C1D60-CB9F-4BD8-A030-3F1C4A185156|00433433|001A3D|DRVR|
|129|               |FBF95065-427F-47B3-8077-D13C60710998|00434E70|001159|FRFM|
|130|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|00435FC9|00064D|FRFM|
|131|SmmDispatcher  |4A37320B-3FB3-4365-9730-9E89C600395D|00436616|0058CD|    |
|132|               |D2596F82-F0E1-49FA-95BC-62012C795728|0043BEE3|0003B9|FRFM|
|133|SmmBase        |D0632C90-AFD7-4492-B186-257C63143C61|0043C29C|003F59|DRVR|
|134|AMITSE         |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|004401F5|09B999|DRVR|
|135|               |A59A0056-3341-44B5-9C9C-6D76F7673817|004DBB8E|0000A8|FRFM|
|136|               |63819805-67BB-46EF-AA8D-1524A19A01E4|004DBC36|004EBD|FRFM|
|137|               |EFCB2FDB-0662-4A59-A5D7-03033EA97CAE|004E0AF3|0104C9|FRFM|
|138|SMBiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|004F0FBC|001DC9|DRVR|
|139|SMBios64       |B13EDD38-684C-41ED-A305-D7B7E32497DF|004F2D85|0066C9|DRVR|
|140|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|004F944E|000F2D|DRVR|
|141|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|004FA37B|0019ED|FRFM|
|142|SmbiosDMIEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|004FBD68|0036C5|DRVR|
|143|SMIFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|004FF42D|0050B9|DRVR|
|144|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|005044E6|0014D1|DRVR|
|145|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|005059B7|0057B5|DRVR|
|146|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|0050B16C|000F81|DRVR|
|147|TCGSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|0050C0ED|001941|DRVR|
|148|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|0050DA2E|001725|DRVR|
|149|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|0050F153|00AD1D|DRVR|
|150|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|00519E70|002CB5|FRFM|
|151|               |142204E2-C7B1-4AF9-A729-923758D96D03|0051CB25|000B75|FRFM|
|152|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|0051D69A|000635|FRFM|
|153|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|0051DCCF|001849|DRVR|
|154|DpcDxe         |399CF3A7-82C7-4D9B-9123-DB11842986D3|0051F518|0008B9|DRVR|
|155|ArpDxe         |8DD91798-EE87-4F0E-8A84-3F998311F930|0051FDD1|002F59|DRVR|
|156|SnpDxe         |3DD7A87B-D5BD-44AF-986F-2E13DB5D274C|00522D2A|0037F9|DRVR|
|157|MnpDxe         |C30B94E3-C8F2-4AB0-91AB-FA8DF621B1C9|00526523|004B59|DRVR|
|158|UefiPxeBcDxe   |0EF8A3B1-388A-4B62-8BE6-C7877D50AEDF|0052B07C|00D3A5|DRVR|
|159|NetworkStackSet|0029DE6A-E024-4EB8-A91D-9F23AA1F4E92|00538421|000C19|DRVR|
|160|UHCD           |580DD900-385D-11D7-883A-00500473D4EB|0053903A|00DCD1|DRVR|
|161|               |04EAAAA1-29A1-11D7-8838-00500473D4EB|00546D0B|0192E1|    |
|162|USBINT13       |4C006CD9-19BA-4617-8483-609194A1ACFC|0055FFEC|001BC5|DRVR|
|163|GenericComponen|199FD111-0785-4132-A9B3-1F66573F0060|00561BB1|03951D|DRVR|
|164|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|0059B0CE|001B69|DRVR|
|165|QFlash         |132EC73B-3025-4FBF-B193-8ACB50EFBD89|0059CC37|0073B9|DRVR|
|166|EzFileBrowser  |56B70419-7103-4D0E-83F4-F3546BD21E40|005A3FF0|00400D|DRVR|
|167|SmmRuntime     |A56897A1-A77F-4600-84DB-22B0A801FA9A|005A7FFD|0014B9|DRVR|
|168|GbtCustomizeBut|4DCBF9BA-DEC1-42B0-8A09-01555694F6CF|005A94B6|00124D|DRVR|
|169|RTCWakeup      |534A6A34-CF78-4A56-BEDB-CB49A8D8060C|005AA703|0015D9|DRVR|
|170|SmartFanCtrlDXE|D8AAB432-93CC-48D2-9F34-3496CAF92185|005ABCDC|001401|DRVR|
|171|OemLOGO        |7D1686A9-1EE3-446C-825C-5A26F449CE52|005AD0DD|001061|DRVR|
|172|MyOemLogo1     |86EE84E1-3375-41A1-AFBA-847BD29663AA|005AE13E|001C92|FRFM|
|173|MyOemLogo2     |86EE84E2-3375-41A1-AFBA-847BD29663AA|005AFDD0|000234|FRFM|
|174|OEMDXE         |BFE205C9-5B17-4F8F-9375-89614AF8E199|005B0004|001455|DRVR|
|175|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|005B1459|1015A5|DRVR|
|176|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|006B29FE|044C8D|FRFM|
|177|CRBDXE         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|006F768B|000B51|DRVR|
|178|CRBSMI         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|006F81DC|001241|DRVR|
|179|CspLibDxe      |CD84562C-6864-40A3-A081-C8D35E82B920|006F941D|000275|DRVR|
|180|Ozmosis        |AAE65279-0761-41D1-BA13-4A3C1383603F|006F9692|02FDF5|DRVR|
|181|HfsPlus        |4CF484CD-135F-4FDC-BAFB-1AA104B48D36|00729487|003712|DRVR|
|182|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|0072CB99|00343A|DRVR|
|183|SmcEmulatorKext|DADE1001-1B31-4FE4-8557-26FCEFC78275|0072FFD3|01146F|FRFM|
|184|OzmosisDefaults|99F2839C-57C3-411E-ABC3-ADE5267D960D|00741442|000350|FRFM|
|185|CpuSensorsKext |DADE1006-1B31-4FE4-8557-26FCEFC78275|00741792|0068D7|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007F97 ( 31 KB)    Bytes Used       : 748069 (7456 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00730000   Length :  0D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|TxtPei         |CA9D8617-D652-403B-B6C5-BA47570116AD|00730048|0019BA|PEIM|
|001|MemoryInit     |3B42EF57-16D3-44CB-8632-9FDB06B41451|00731A08|028B56|PEIM|
|002|               |17088572-377F-44EF-8F4E-B09FFF46A070|0075A578|010418|RAW |
|003|UsbBotPeim     |8401A046-6F70-4505-8471-7015B40355E3|0076A990|001968|PEIM|
|004|Recovery       |E008B434-0E73-440C-8612-A143F6A07BCB|0076C2F8|00335D|PEIM|
|005|CRBPEI         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|0076F658|00129A|PEIM|
|006|WdtPei         |1D88C542-9DF7-424A-AA90-02B61F286938|007708F8|000876|PEIM|
|007|CORE_PEI       |92685943-D810-47FF-A112-CC8490776A1F|00771170|039352|PEIC|
|008|IT8728SioAcBack|F5042177-1D29-45C5-BA4D-4D0EB2E88575|007AA4C8|0002A3|PEIM|
|009|CpuInitPei     |01359D99-9446-456D-ADA4-50A711C03ADA|007AA770|001C8E|PEIM|
|010|CpuS3Peim      |C866BD71-7C79-4BF1-A93B-066B830D8F9A|007AC400|001950|PEIM|
|011|CpuPolicyPei   |0AC2D35D-1C77-1033-A6F8-7CA55DF7D0AA|007ADD50|000CF2|PEIM|
|012|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|007AEFE8|00F258|RAW |
|013|CpuPeiBeforeMem|1555ACF3-BD07-4685-B668-A86945A4124D|007BE240|000B00|PEIM|
|014|CpuPei         |2BB5AFA9-FF33-417B-8497-CB773C2B93BF|007BED40|00176E|PEIM|
|015|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|007C04B0|000394|PEIM|
|016|AmiCpuS3Pei    |F7D22BCA-1BCA-5591-CC8B-1CA98F2890FE|007C0848|000B88|PEIM|
|017|SBPEI          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|007C13D0|005478|PEIM|
|018|SmBusPei       |9EA28D33-0175-4788-BEA8-6950516030A5|007C6848|0011CA|PEIM|
|019|WdtAppPei      |0F69F6D7-0E4B-43A6-BFC2-6871694369B0|007C7A18|00042C|PEIM|
|020|PchInitPeim    |FD236AE7-0791-48C4-B29E-29BDEEE1A838|007C7E48|005780|PEIM|
|021|PchResetPeim   |FF259F16-18D1-4298-8DD2-BD87FF2894A9|007CD5C8|000B22|PEIM|
|022|PchSmbusArpDisa|643DF777-F312-42ED-81CC-1B1F57E18AD6|007CE0F0|000D00|PEIM|
|023|PeiSmmControl  |FF456B9C-0DC7-4682-9E92-0DE84B6E4067|007CEDF0|0005C4|PEIM|
|024|PchSpiPeim     |AA652CB9-2D52-4624-9FAE-D4E58B67CA46|007CF3B8|00153E|PEIM|
|025|PchUsb         |6B4FDBD2-47E1-4A09-BA8E-8E041F208B95|007D08F8|0004C7|PEIM|
|026|NBPEI          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|007D0DC0|004598|PEIM|
|027|SmmAccessPeim  |6ECFCE51-5724-450C-A38A-58553E954422|007D5358|000904|PEIM|
|028|SaInitPeim     |FD236AE7-0791-48C4-B29E-29BDEEE1A811|007D5C60|007D76|PEIM|
|029|CryptoPei      |D6D2FBA6-EF60-4C38-A83E-6769814D23B0|007DD9D8|002ABE|PEIM|
|030|RapidStartPei  |53F019E9-BB0C-424B-870A-1FAF10B1CB4C|007E0498|003B7C|PEIM|
|031|PeiGfxDriver   |B9846521-FF99-4953-8FA2-85C9ADCCE5AF|007E4018|007E42|PEIM|
|032|IsctWakeReason |0C3B7B59-28E5-4C99-85E5-D0116DBFAAF2|007EBE60|0009C6|PEIM|
|033|Capsule        |FAC2EFAD-8511-4E34-9CAE-16A257BA9488|007EC828|000930|PEIM|
|034|BDRPEI         |90E9D266-C229-4474-8D18-AAF3745F3EAA|007ED158|000686|PEIM|
|035|               |56E14F88-234B-4C34-B204-299670447247|007ED7E0|00046C|FRFM|
|036|               |0B71D630-2BAD-4797-ABD6-088E95D0DE47|007EDC50|00101C|FRFM|
|037|DualBiosPei    |97BB442B-F9FE-45E3-8A28-439EEDCD1813|007EEC70|000420|PEIM|
|038|HeciPei        |9CF30325-DC5C-4556-A8B0-74215C5F7FC4|007EF090|000C78|PEIM|
|039|PchMeUma       |8C376010-2400-4D7D-B47B-9D851DF3C9D1|007EFD08|000A4E|PEIM|
|040|MePeiPolicyInit|12C67BE1-AD2E-4F13-A95F-6EDC2C4392DE|007F0758|0004D8|PEIM|
|041|PeiRamBoot     |08EFD15D-EC55-4023-B648-7BA40DF7D05D|007F0C30|000F02|PEIM|
|042|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|007F1B38|0004A5|FRFM|
|043|               |9FE7DE69-0AEA-470A-B50A-139813649189|007F1FE0|00092C|FRFM|
|044|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|007F2910|000828|FRFM|
|045|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|007F3138|00066C|PEIM|
|046|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|007F37A8|0021F6|PEIM|
|047|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|007F59A0|000416|PEIM|
|048|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|007F5DB8|000FF2|PEIM|
|049|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|007F6DB0|000DAE|PEIM|
|050|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|007F7B60|0000A4|FRFM|
|051|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|007F7C08|0000A4|FRFM|
|052|               |D1E59F50-E8C3-4545-BF61-11F002233C97|007FEFE8|000128|RAW |
|053|               |1BA0062E-C779-4582-8566-336AE8F78F09|007FF1A0|000E60|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007980 ( 30 KB)    Bytes Used       : 0C8680 (801 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 017B98 (  94 KB)   Total Bytes Used : 7E8468 (8097 KB)   |
+-----------------------------------------------------------------------------+

Thanks for your help!

Link to comment
Share on other sites

Thanks crushers, but i am happy with my self modded rom :)

I just wanna know how i can free even more space to put my ethernet kext inside BIOS... any ideas?

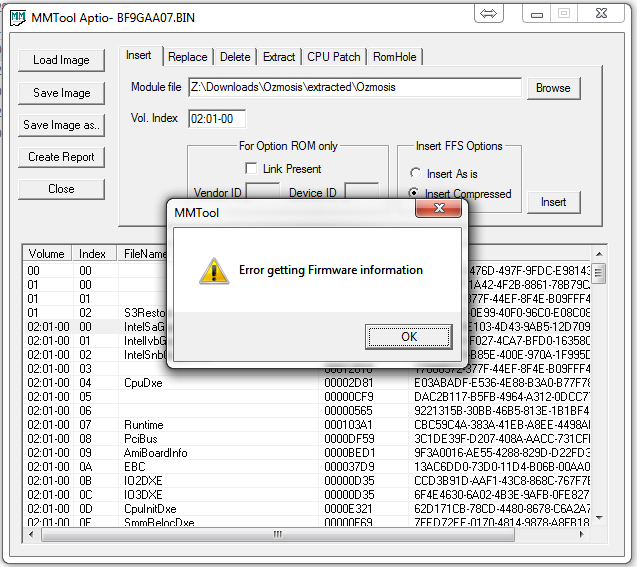

I delete ethernet DXE from your bios ROM. Open my ROM with MMTool and create report and you see what I did.

Like this!!!But this is picture of my Bios ROM!!!! :)


+-----------------------------------------------------------------------------+
| MMTOOL  4.50.0023                                                           |
| Copyright (c)2010 American Megatrends, Inc.                                 |
+-----------------------------------------------------------------------------+
| Firmware Image Information                                                  |
+-----------------------------------------------------------------------------+
| Image Size : 800000                                                         |
+------+-------------------------------+--------------+-----------+-----------+
|  FV  |            FV TYPE            |   Location   |   Length  |    FFSs   |
+------+-------------------------------+--------------+-----------+-----------+
|  00  |          Non-FFS FV           |   00500000   |  020000   |    001    |
|  01  |          Non-FFS FV           |   00550000   |  1E0000   |    003    |
|  02  |          Nested FV            |   00000000   |  750000   |    186    |
|  03  |          Boot Block FV        |   00730000   |  0D0000   |    054    |
+------+-------------------------------+--------------+-----------+-----------+
| Nested Firmware Volume Information                                          |
+-----------------------------------------------------------------------------+
|  FV  |            Nesting Information       	      |   Length  |    FFSs   |
+-----------------------------------------------------------------------------+
|  02  |  Parent Fv : 01        Parent FFS : 00       |   750000  |    186    |
+------+-------------------------------+--------------+-----------+-----------+
| NCB Information                                                             |
+-----------------------------------------------------------------------------+
| NCB No : 0                         Location :  00000000   Length :  500000  |
| NCB No : 1                         Location :  00520000   Length :  030000  |
+-----------------------------------------------------------------------------+
| Driver Information                                                          |
+-----------------------------------------------------------------------------+
| Firmware Volume : 00               Location :  00500000   Length :  020000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |CEF5B9A3-476D-497F-9FDC-E98143E0422C|00500048|01FFB8|RAW |
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 000000 (  0 KB)    Bytes Used       : 020000 (128 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 01               Location :  00550000   Length :  1E0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|               |AE717C2F-1A42-4F2B-8861-78B79CA07E07|00550048|1BB40B|FV  |
|001|               |17088572-377F-44EF-8F4E-B09FFF46A070|0070B458|010418|RAW |
|002|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|0071B870|00211C|PEIM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 012670 ( 73 KB)    Bytes Used       : 1CD990 (1846 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 02               Location :  00000000   Length :  750000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|IntelSaGopDriver|5C266089-E103-4D43-9AB5-12D7095BE2AF|00000048|001215|DRVR|
|001|IntelGopDriver |5BBA83E6-F027-4CA7-BFD0-16358CC9E123|0000125D|00D45E|DRVR|
|002|FvOnFv2Thunk   |5007A40E-A5E0-44F7-86AE-662F9A91DA26|0000E6BB|000ACD|DRVR|
|003|               |17088572-377F-44EF-8F4E-B09FFF46A070|0000F188|005018|RAW |
|004|CpuDxe         |E03ABADF-E536-4E88-B3A0-B77F78EB34FE|000141A0|0046A1|DRVR|
|005|               |DAC2B117-B5FB-4964-A312-0DCC77061B9B|00018841|0135E5|FRFM|
|006|               |9221315B-30BB-46B5-813E-1B1BF4712BD3|0002BE26|00097D|FRFM|
|007|CORE_DXE       |5AE3F37E-4EAE-41AE-8240-35465B5E81EB|0002C7A3|18D839|DXEC|
|008|Runtime        |CBC59C4A-383A-41EB-A8EE-4498AEA567E4|001B9FDC|0119A1|DRVR|
|009|ReFlash        |70E1A818-0BE1-4449-BFD4-9EF68C7F02A8|001CB97D|0054CD|DRVR|
|010|PciBus         |3C1DE39F-D207-408A-AACC-731CFB7F1DD7|001D0E4A|00DA59|DRVR|
|011|AmiBoardInfo   |9F3A0016-AE55-4288-829D-D22FD344C347|001DE8A3|00E071|DRVR|
|012|EBC            |13AC6DD0-73D0-11D4-B06B-00AA00BD6DE7|001EC914|0037D9|DRVR|
|013|It8728SmmFeatur|078485F1-0C1F-4B1B-AFB3-4A09C0EF87A1|001F00ED|001F69|DRVR|
|014|IT8728SioAcBack|AA893E19-A641-4819-AD23-011B7C24250D|001F2056|0013AD|DRVR|
|015|CpuInitDxe     |62D171CB-78CD-4480-8678-C6A2A797A8DE|001F3403|00D6A1|DRVR|
|016|               |299141BB-211A-48A5-92C0-6F9A0A3A006E|00200AA4|000B1C|FRFM|
|017|PowerMgmtDxe   |F7731B4C-58A2-4DF4-8980-5645D39ECE58|002015C0|004F45|DRVR|
|018|PowerMgmtS3    |8F0B5301-C79B-44F1-8FD3-26D73E316700|00206505|0017AD|DRVR|
|019|CpuPolicyDxe   |15B9B6DA-00A9-4DE7-B8E8-ED7AFB88F16E|00207CB2|001C5D|DRVR|
|020|TxtDxe         |FF917E22-A228-448D-BDAA-68EFCCDDA5D3|0020990F|002159|DRVR|
|021|TxtOneTouchDxe |67791E00-0C05-4AE7-A921-FC4057221653|0020BA68|001A11|DRVR|
|022|MicrocodeUpdate|F3331DE6-4A55-44E4-B767-7453F7A1A021|0020D479|004B81|DRVR|
|023|CpuSpSMI       |116E1ACF-2533-4CC2-820A-BBC10A2AB07C|00211FFA|0017F5|DRVR|
|024|AmiTxtDxe      |87D402CD-8B07-4B93-B38B-F8799F28B033|002137EF|001455|DRVR|
|025|SBDXE          |B7D19491-E55A-470D-8508-85A5DFA41974|00214C44|00AF75|DRVR|
|026|SBRun          |E23F86E1-056E-4888-B685-CFCD67C179D4|0021FBB9|0025DD|DRVR|
|027|               |22046D50-F390-498C-92E5-5BA4F8E7F8B6|00222196|00020D|FRFM|
|028|SmmChildDispatc|753630C9-FAE5-47A9-BBBF-88D621CD7282|002223A3|002FD9|DRVR|
|029|               |E53734A3-E594-4C25-B1A2-081445650F7F|0022537C|004C61|    |
|030|               |750890A6-7ACF-4F4F-81BD-B400C2BEA95A|00229FDD|002461|    |
|031|SleepSmi       |6298FE18-D5EF-42B7-BB0C-2953283F5704|0022C43E|002FD5|DRVR|
|032|SBSMI          |7B8DB049-C7C7-4D3B-809F-926DEE47CCA2|0022F413|003861|DRVR|
|033|PchSpiWrap     |B716A6F8-F3A1-4B8E-8582-5A303F1CDD64|00232C74|000E29|DRVR|
|034|WdtAppDxe      |CE366D33-B057-4C03-8561-CAF17738B66F|00233A9D|0010D5|DRVR|
|035|SataDriver     |91B4D9C1-141C-4824-8D02-3C298E36EB3F|00234B72|02EE99|DRVR|
|036|ActiveBios     |BFD59D42-FE0F-4251-B772-4B098A1AEC85|00263A0B|000B49|DRVR|
|037|IoTrap         |2374EDDF-F203-4FC0-A20E-61BAD73089D6|00264554|001F61|DRVR|
|038|IntelLegacyInte|C1C418F9-591D-461C-82A2-B9CD96DFEA86|002664B5|000655|DRVR|
|039|PchInitDxe     |DE23ACEE-CF55-4FB6-AA77-984AB53DE823|00266B0A|01188D|DRVR|
|040|PchSmiDispatcher|B0D6ED53-B844-43F5-BD2F-61095264E77E|00278397|007235|DRVR|
|041|PchPcieSmm     |ACAEAA7A-C039-4424-88DA-F42212EA0E55|0027F5CC|003FE1|DRVR|
|042|PchReset       |BB1FBD4F-2E30-4793-9BED-74F672BC8FFE|002835AD|0027A5|DRVR|
|043|PchS3Peim      |271DD6F2-54CB-45E6-8585-8C923C1AC706|00285D52|00213C|PEIM|
|044|PchS3Support   |08F2C63B-08DE-4CCD-8670-ACFE644A1C48|00287E8E|001105|DRVR|
|045|SataController |BB65942B-521F-4EC3-BAF9-A92540CF60D2|00288F93|001C49|DRVR|
|046|PchSerialGpio  |FC1B7640-3466-4C06-B1CC-1C935394B5C2|0028ABDC|00106D|DRVR|
|047|SmartTimer     |90CB75DB-71FC-489D-AACF-943477EC7212|0028BC49|000A09|DRVR|
|048|PchSmbusDxe    |E052D8A6-224A-4C32-8D37-2E0AE162364D|0028C652|001C39|DRVR|
|049|SmmControl     |A0BAD9F7-AB78-491B-B583-C52B7F84B9E0|0028E28B|0016A9|DRVR|
|050|PchSpiSmm      |27F4917B-A707-4AAD-9676-26DF168CBF0D|0028F934|0029B9|DRVR|
|051|PchSpiRuntime  |C194C6EA-B68C-4981-B64B-9BD271474B20|002922ED|0035CD|DRVR|
|052|PchSmbusSmm    |59287178-59B2-49CA-BC63-532B12EA2C53|002958BA|001A39|DRVR|
|053|WdtDxe         |5AAB83E5-F027-4CA7-BFD0-16358CC9E453|002972F3|000C61|DRVR|
|054|PchLateInitSmm |D7B10D4E-67E6-4C74-83E9-F9AF0ACC33CC|00297F54|0028D5|DRVR|
|055|NBDXE          |E4ECD0B2-E277-4F2B-BECB-E4D75C9A812E|0029A829|0087A1|DRVR|
|056|NBSMI          |D933DEDE-0260-4E76-A7D9-2F9F2440E5A5|002A2FCA|0028FD|DRVR|
|057|MiscSubclassDxe|16271FCA-55D9-4A33-93FC-5A3EB128DE21|002A58C7|000FC5|DRVR|
|058|UpdateMemoryRec|24CCD374-3DF6-4181-86F6-E3C66920A145|002A688C|001B29|DRVR|
|059|LegacyRegion2  |FE6F8ACD-55A6-4C6B-B448-64E659DE94B3|002A83B5|000C3D|DRVR|
|060|PciHostBridge  |8D6756B9-E55E-4D6A-A3A5-5E4D72DDF772|002A8FF2|002BAD|DRVR|
|061|SmBiosMemory   |EDA39402-F375-4496-92D3-83B43CB8A76A|002ABB9F|003255|DRVR|
|062|SmmAccess      |1323C7F8-DAD5-4126-A54B-7A05FBF41515|002AEDF4|000D35|DRVR|
|063|               |27E569D5-0AFC-4D8F-8C90-783AC4A318AB|002AFB29|0001D0|FRFM|
|064|               |AAA99A23-13B6-4C31-BB8B-299E8EC04FA4|002AFCF9|0034FD|FRFM|
|065|SaInitDxe      |DE23ACEE-CF55-4FB6-AA77-984AB53DE811|002B31F6|00E535|DRVR|
|066|SaLateInitSmm  |2D1E361C-7B3F-4D15-8B1F-66E551FABDC7|002C172B|007BE1|DRVR|
|067|BdatAccessHandl|6DB9486F-6AF6-4090-984D-238482CE3EA4|002C930C|0009C9|DRVR|
|068|               |878AC2CC-5343-46F2-B563-51F89DAF56BA|002C9CD5|001218|RAW |
|069|PciTestAdapter |3F79BEE2-6B14-4B5E-916B-101D8F7E15BE|002CAEED|0013B1|DRVR|
|070|ACPI           |16D0A23E-C09C-407D-A14A-AD058FDD0CA1|002CC29E|00998D|DRVR|
|071|               |26A2481E-4424-46A2-9943-CC4039EAD8F8|002D5C2B|0032C9|    |
|072|S3Restore      |EFD652CC-0E99-40F0-96C0-E08C089070FC|002D8EF4|00211C|PEIM|
|073|AHCI           |8F5A2E02-538C-4D59-B920-C4786ACBC552|002DB010|006F75|DRVR|
|074|AINT13         |67820532-7613-4DD3-9ED7-3D9BE3A7DA63|002E1F85|001D31|DRVR|
|075|AhciSmm        |BC3245BD-B982-4F55-9F79-056AD7E987C5|002E3CB6|0029B1|DRVR|
|076|CmosManagerSmm |6869C5B3-AC8D-4973-8B37-E354DBF34ADD|002E6667|0034A1|DRVR|
|077|CryptoDxe      |20D8FFFE-15C3-4EA9-9D28-CFE2745D78F3|002E9B08|0111D5|DRVR|
|078|HardwareSignatu|B7EE4835-84CE-4B15-BF52-2D11574CE470|002FACDD|001BB9|DRVR|
|079|CppcDxe        |C07A1EB5-5C04-4100-817B-0A11BB5F15DC|002FC896|001145|DRVR|
|080|               |60E31DE1-03EC-492A-9598-65A3C50E0F6B|002FD9DB|000373|FRFM|
|081|               |60AC3A8F-4D66-4CD4-895A-C3F06E6665EE|002FDD4E|0000D6|FRFM|
|082|RapidStartDxe  |B6B9295F-CABF-4CEC-BB14-FE4246F2173A|002FDE24|0025E9|DRVR|
|083|RapidStartSmm  |43172851-CF7E-4345-9FE0-D7012BB17B88|0030040D|002151|DRVR|
|084|DxeFfsGfxDriver|6FD1DCC5-B5B9-4A82-8728-8D854428A4A3|0030255E|000B89|DRVR|
|085|RapidStartDxePo|DDB412A6-E3F3-4E9E-90A3-2A991270219C|003030E7|0015F1|DRVR|
|086|               |FA2DDC38-3F19-4218-B53E-D9D79D626767|003046D8|0002D6|FRFM|
|087|IsctAcpi       |4839023B-4C12-4EB2-B2B8-C91B42D878A0|003049AE|000DF9|DRVR|
|088|IsctSmm        |DBD5B6BA-6734-4C5D-BF53-2C210D93A012|003057A7|0015B5|DRVR|
|089|MERecoveryDxe  |F1FCD66F-8966-441E-909C-77F211AB9C3E|00306D5C|003F2D|DRVR|
|090|               |821D110C-D0A3-4CF7-AEF3-E28088491704|0030AC89|080025|FRFM|
|091|MouseDriver    |C7A7030C-C3D8-45EE-BED9-5D9E76762953|0038ACAE|004049|DRVR|
|092|OnboardControll|1601E050-BE0C-41B7-8F96-9F48F72B7E26|0038ECF7|00273D|DRVR|
|093|RtkUndiDxe     |2851E234-20FD-4D1E-9041-DCB8F3025CAE|00391434|0173C9|DRVR|
|094|BDRDXE         |5E06E249-3A4C-49B5-8A37-02058CC12691|003A87FD|0033D1|DRVR|
|095|BDRSMM         |ACA87EA5-D839-4F41-BCCE-9E19E9F2C2AD|003ABBCE|003515|DRVR|
|096|DualBiosDxe    |C74D1B0B-91B1-484A-A038-FE7A0847AA07|003AF0E3|004C69|DRVR|
|097|DualBiosSMM    |88B468B3-A48B-4B87-ABE2-8E56DFFDAF8D|003B3D4C|0002DD|DRVR|
|098|Slp10          |8E477676-55FD-48CF-9210-15A99B27D740|003B4029|000EA9|DRVR|
|099|SlpSupport     |952821AA-EACD-465B-B478-5429DFC9A747|003B4ED2|0014D9|DRVR|
|100|CSMCORE        |A062CF1F-8473-4AA3-8793-600BC4FFE9A8|003B63AB|042C01|DRVR|
|101|               |A08276EC-A0FE-4E06-8670-385336C7D093|003F8FAC|000435|FRFM|
|102|BIOSBLKIO      |25ACF158-DD61-4E64-9A49-55851E9A26C7|003F93E1|0033F5|DRVR|
|103|CsmVideo       |29CF55F8-B675-4F5D-8F2F-B87A3ECFD063|003FC7D6|004775|DRVR|
|104|HeciDxe        |55E76644-78A5-4A82-A900-7126A5798892|00400F4B|004CA1|DRVR|
|105|HeciSmm        |921CD783-3E22-4579-A71F-00D74197FCC8|00405BEC|002095|DRVR|
|106|PlatformReset  |9A9A912B-5F53-4586-8820-704485A29D21|00407C81|000B3D|DRVR|
|107|MdesStatusCodeD|DF5CD25A-8E55-46BA-8CDA-BC7DB7BF9C64|004087BE|000DF5|DRVR|
|108|MeFwDowngrade  |5820EEB4-C135-4854-9D2A-AA9EFC4475E9|004095B3|001221|DRVR|
|109|MePlatformPolicy|BA67550C-3628-4137-A53E-42660E081604|0040A7D4|0013ED|DRVR|
|110|MePciPlatform  |459C70C3-9344-4484-9F93-7822530D0D11|0040BBC1|00058D|DRVR|
|111|IccPlatform    |14257B56-BDA2-4FAF-8E4F-C885DF75583C|0040C14E|00210D|DRVR|
|112|IccOverClocking|5BBA83E5-F027-4CA7-BFD0-16358CC9E123|0040E25B|00ABC5|DRVR|
|113|IccOverClocking|8E68E3C5-FC59-4280-8467-3800D31A8162|00418E20|00ABCD|DRVR|
|114|Smbios131      |2B341C7B-0B32-4A65-9D46-E1B3ABD4C25C|004239ED|000CE5|DRVR|
|115|               |9A8F82D5-39B1-48DA-92DC-A22DA8834DF6|004246D2|00007C|FRFM|
|116|OpalSecurity   |59AF16B0-661D-4865-A381-38DE68385D8D|0042474E|001385|DRVR|
|117|               |76D5CF91-0C55-434E-97C2-D2825C82E610|00425AD3|001C25|    |
|118|AcpiPlatform   |8B5FBABD-F51F-4942-BF16-16AAA38AE52B|004276F8|0055E1|DRVR|
|119|PlatformInfo   |1314216C-CB8D-421C-B854-06231386E642|0042CCD9|0011ED|DRVR|
|120|AcpiFvi        |D7E31ECB-0A17-4529-9B84-C529DE8E1C0E|0042DEC6|000C31|DRVR|
|121|               |94AB6AED-9719-48EF-831C-2E9C29758C33|0042EAF7|0000C2|FRFM|
|122|               |95DFCAE5-BB28-4D6B-B1E2-3AF3A6BF434F|0042EBB9|000643|FRFM|
|123|               |7FFC3536-0A8A-448B-95F4-39F5B9F09ADD|0042F1FC|000B32|FRFM|
|124|SMBIOSUpdateData|B98999A4-E96F-475A-99FC-762126F50F5A|0042FD2E|000825|DRVR|
|125|               |9DD795EB-41E8-4591-8E63-5EF4AA33B908|00430553|0000B0|FRFM|
|126|FastBootOption |A58C5D1D-C22B-4845-90BC-8C94FCE96457|00430603|001BE1|DRVR|
|127|OFBD           |57E56594-CE95-46AD-9531-3C49310CA7CE|004321E4|001411|DRVR|
|128|SecureBootMod  |A95C1D60-CB9F-4BD8-A030-3F1C4A185156|004335F5|001A3D|DRVR|
|129|               |FBF95065-427F-47B3-8077-D13C60710998|00435032|001159|FRFM|
|130|               |9D7A05E9-F740-44C3-858B-75586A8F9C8E|0043618B|00064D|FRFM|
|131|SmmDispatcher  |4A37320B-3FB3-4365-9730-9E89C600395D|004367D8|0058CD|    |
|132|               |D2596F82-F0E1-49FA-95BC-62012C795728|0043C0A5|0003B9|FRFM|
|133|SmmBase        |D0632C90-AFD7-4492-B186-257C63143C61|0043C45E|003F59|DRVR|
|134|AMITSE         |B1DA0ADF-4F77-4070-A88E-BFFE1C60529A|004403B7|09B999|DRVR|
|135|               |A59A0056-3341-44B5-9C9C-6D76F7673817|004DBD50|0000A8|FRFM|
|136|               |63819805-67BB-46EF-AA8D-1524A19A01E4|004DBDF8|004EBD|FRFM|
|137|               |EFCB2FDB-0662-4A59-A5D7-03033EA97CAE|004E0CB5|0104C9|FRFM|
|138|SMBiosBoard    |CEF68C66-06AB-4FB3-A3ED-5FFA885B5725|004F117E|001DC9|DRVR|
|139|SMBios64       |B13EDD38-684C-41ED-A305-D7B7E32497DF|004F2F47|0066C9|DRVR|
|140|SmbiosGetFlashD|DED7956D-7E20-4F20-91A1-190439B04D5B|004F9610|000F2D|DRVR|
|141|               |DAF4BF89-CE71-4917-B522-C89D32FBC59F|004FA53D|0019ED|FRFM|
|142|SmbiosDMIEdit  |E2A74738-8934-48F5-8412-99E948C8DC1B|004FBF2A|0036C5|DRVR|
|143|SMIFlash       |BC327DBD-B982-4F55-9F79-056AD7E987C5|004FF5EF|0050B9|DRVR|
|144|TcgPlatformSetu|196CA3D8-9A5A-4735-B328-8FFC1D93D188|005046A8|0014D1|DRVR|
|145|TcgDxe         |5E9CABA3-F2B1-497A-ADAC-24F575E9CDE9|00505B79|0057B5|DRVR|
|146|TcgDxeplatform |2688B232-9C02-4C12-BE1F-857C0FF2AAE3|0050B32E|000F81|DRVR|
|147|TCGSmm         |FD93F9E1-3C73-46E0-B7B8-2BBA3F718F6C|0050C2AF|001941|DRVR|
|148|TcgLegacy      |858EBE6F-360F-415B-B7DC-463AAEB03412|0050DBF0|001725|DRVR|
|149|AmiTcgPlatformD|A29A63E3-E4E7-495F-8A6A-07738300CBB3|0050F315|00AD1D|DRVR|
|150|               |0AA31BC6-3379-41E8-825A-53F82CC0F254|0051A032|002CB5|FRFM|
|151|               |142204E2-C7B1-4AF9-A729-923758D96D03|0051CCE7|000B75|FRFM|
|152|               |7D113AA9-6280-48C6-BACE-DFE7668E8307|0051D85C|000635|FRFM|
|153|AmiTcgNvflagSam|50F6096D-7C98-4C78-9A1D-C5A1833B6A88|0051DE91|001849|DRVR|
|154|DpcDxe         |399CF3A7-82C7-4D9B-9123-DB11842986D3|0051F6DA|0008B9|DRVR|
|155|ArpDxe         |8DD91798-EE87-4F0E-8A84-3F998311F930|0051FF93|002F59|DRVR|
|156|SnpDxe         |3DD7A87B-D5BD-44AF-986F-2E13DB5D274C|00522EEC|0037F9|DRVR|
|157|MnpDxe         |C30B94E3-C8F2-4AB0-91AB-FA8DF621B1C9|005266E5|004B59|DRVR|
|158|UefiPxeBcDxe   |0EF8A3B1-388A-4B62-8BE6-C7877D50AEDF|0052B23E|00D3A5|DRVR|
|159|NetworkStackSet|0029DE6A-E024-4EB8-A91D-9F23AA1F4E92|005385E3|000C19|DRVR|
|160|UHCD           |580DD900-385D-11D7-883A-00500473D4EB|005391FC|00DCD1|DRVR|
|161|               |04EAAAA1-29A1-11D7-8838-00500473D4EB|00546ECD|0192E1|    |
|162|USBINT13       |4C006CD9-19BA-4617-8483-609194A1ACFC|005601AE|001BC5|DRVR|
|163|GenericComponen|199FD111-0785-4132-A9B3-1F66573F0060|00561D73|03951D|DRVR|
|164|SmiVariable    |BE216BA8-38C4-4535-A6CA-5DCA5B43ADDF|0059B290|001B69|DRVR|
|165|QFlash         |132EC73B-3025-4FBF-B193-8ACB50EFBD89|0059CDF9|0073B9|DRVR|
|166|EzFileBrowser  |56B70419-7103-4D0E-83F4-F3546BD21E40|005A41B2|00400D|DRVR|
|167|SmmRuntime     |A56897A1-A77F-4600-84DB-22B0A801FA9A|005A81BF|0014B9|DRVR|
|168|GbtCustomizeBut|4DCBF9BA-DEC1-42B0-8A09-01555694F6CF|005A9678|00124D|DRVR|
|169|RTCWakeup      |534A6A34-CF78-4A56-BEDB-CB49A8D8060C|005AA8C5|0015D9|DRVR|
|170|SmartFanCtrlDXE|D8AAB432-93CC-48D2-9F34-3496CAF92185|005ABE9E|001401|DRVR|
|171|OemLOGO        |7D1686A9-1EE3-446C-825C-5A26F449CE52|005AD29F|001061|DRVR|
|172|MyOemLogo1     |86EE84E1-3375-41A1-AFBA-847BD29663AA|005AE300|001C92|FRFM|
|173|MyOemLogo2     |86EE84E2-3375-41A1-AFBA-847BD29663AA|005AFF92|000234|FRFM|
|174|OEMDXE         |BFE205C9-5B17-4F8F-9375-89614AF8E199|005B01C6|001455|DRVR|
|175|Setup          |899407D7-99FE-43D8-9A21-79EC328CAC21|005B161B|1015A5|DRVR|
|176|               |7BB28B99-61BB-11D5-9A5D-0090273FC14D|006B2BC0|044C8D|FRFM|
|177|CRBDXE         |16271FCA-55D9-4A33-93FC-5A3EB128DEB6|006F784D|000B51|DRVR|
|178|CRBSMI         |221F1D4F-034C-4BEA-B2BB-B7A9672B06D7|006F839E|001241|DRVR|
|179|CspLibDxe      |CD84562C-6864-40A3-A081-C8D35E82B920|006F95DF|000275|DRVR|
|180|PartitionDxe   |1FA1F39E-FEFF-4AAE-BD7B-38A070A3B609|006F9854|0018CC|DRVR|
|181|HfsPlus        |4CF484CD-135F-4FDC-BAFB-1AA104B48D36|006FB120|00379C|DRVR|
|182|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|006FE8BC|003451|DRVR|
|183|OzmosisDefaults|99F2839C-57C3-411E-ABC3-ADE5267D960D|00701D0D|0002BE|FRFM|
|184|Ozmosis        |AAE65279-0761-41D1-BA13-4A3C1383603F|00701FCB|030B56|DRVR|
|185|SmcEmulatorKext|DADE1001-1B31-4FE4-8557-26FCEFC78275|00732B21|0133A3|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 00A13C ( 40 KB)    Bytes Used       : 745EC4 (7447 KB)    |
+-----------------------------------------------------------------------------+
| Firmware Volume : 03               Location :  00730000   Length :  0D0000  |
+---+---------------+------------------------------------+--------+------+----+
|NO |    FileName   |               GUID                 |Location| Size |Type|
+---+---------------+------------------------------------+--------+------+----+
|000|TxtPei         |CA9D8617-D652-403B-B6C5-BA47570116AD|00730048|0019BA|PEIM|
|001|MemoryInit     |3B42EF57-16D3-44CB-8632-9FDB06B41451|00731A08|028B56|PEIM|
|002|               |17088572-377F-44EF-8F4E-B09FFF46A070|0075A578|010418|RAW |
|003|UsbBotPeim     |8401A046-6F70-4505-8471-7015B40355E3|0076A990|001968|PEIM|
|004|Recovery       |E008B434-0E73-440C-8612-A143F6A07BCB|0076C2F8|00335D|PEIM|
|005|CRBPEI         |0D1ED2F7-E92B-4562-92DD-5C82EC917EAE|0076F658|00129A|PEIM|
|006|WdtPei         |1D88C542-9DF7-424A-AA90-02B61F286938|007708F8|000876|PEIM|
|007|CORE_PEI       |92685943-D810-47FF-A112-CC8490776A1F|00771170|039352|PEIC|
|008|IT8728SioAcBack|F5042177-1D29-45C5-BA4D-4D0EB2E88575|007AA4C8|0002A3|PEIM|
|009|CpuInitPei     |01359D99-9446-456D-ADA4-50A711C03ADA|007AA770|001C8E|PEIM|
|010|CpuS3Peim      |C866BD71-7C79-4BF1-A93B-066B830D8F9A|007AC400|001950|PEIM|
|011|CpuPolicyPei   |0AC2D35D-1C77-1033-A6F8-7CA55DF7D0AA|007ADD50|000CF2|PEIM|
|012|               |2D27C618-7DCD-41F5-BB10-21166BE7E143|007AEFE8|00F258|RAW |
|013|CpuPeiBeforeMem|1555ACF3-BD07-4685-B668-A86945A4124D|007BE240|000B00|PEIM|
|014|CpuPei         |2BB5AFA9-FF33-417B-8497-CB773C2B93BF|007BED40|00176E|PEIM|
|015|AmiTxtPei      |C7D4BBCF-EB0A-4C91-BD8B-FCA99F28B011|007C04B0|000394|PEIM|
|016|AmiCpuS3Pei    |F7D22BCA-1BCA-5591-CC8B-1CA98F2890FE|007C0848|000B88|PEIM|
|017|SBPEI          |C1FBD624-27EA-40D1-AA48-94C3DC5C7E0D|007C13D0|005478|PEIM|
|018|SmBusPei       |9EA28D33-0175-4788-BEA8-6950516030A5|007C6848|0011CA|PEIM|
|019|WdtAppPei      |0F69F6D7-0E4B-43A6-BFC2-6871694369B0|007C7A18|00042C|PEIM|
|020|PchInitPeim    |FD236AE7-0791-48C4-B29E-29BDEEE1A838|007C7E48|005780|PEIM|
|021|PchResetPeim   |FF259F16-18D1-4298-8DD2-BD87FF2894A9|007CD5C8|000B22|PEIM|
|022|PchSmbusArpDisa|643DF777-F312-42ED-81CC-1B1F57E18AD6|007CE0F0|000D00|PEIM|
|023|PeiSmmControl  |FF456B9C-0DC7-4682-9E92-0DE84B6E4067|007CEDF0|0005C4|PEIM|
|024|PchSpiPeim     |AA652CB9-2D52-4624-9FAE-D4E58B67CA46|007CF3B8|00153E|PEIM|
|025|PchUsb         |6B4FDBD2-47E1-4A09-BA8E-8E041F208B95|007D08F8|0004C7|PEIM|
|026|NBPEI          |79AA6086-035A-4AD9-A89A-A6D5AA27F0E2|007D0DC0|004598|PEIM|
|027|SmmAccessPeim  |6ECFCE51-5724-450C-A38A-58553E954422|007D5358|000904|PEIM|
|028|SaInitPeim     |FD236AE7-0791-48C4-B29E-29BDEEE1A811|007D5C60|007D76|PEIM|
|029|CryptoPei      |D6D2FBA6-EF60-4C38-A83E-6769814D23B0|007DD9D8|002ABE|PEIM|
|030|RapidStartPei  |53F019E9-BB0C-424B-870A-1FAF10B1CB4C|007E0498|003B7C|PEIM|
|031|PeiGfxDriver   |B9846521-FF99-4953-8FA2-85C9ADCCE5AF|007E4018|007E42|PEIM|
|032|IsctWakeReason |0C3B7B59-28E5-4C99-85E5-D0116DBFAAF2|007EBE60|0009C6|PEIM|
|033|Capsule        |FAC2EFAD-8511-4E34-9CAE-16A257BA9488|007EC828|000930|PEIM|
|034|BDRPEI         |90E9D266-C229-4474-8D18-AAF3745F3EAA|007ED158|000686|PEIM|
|035|               |56E14F88-234B-4C34-B204-299670447247|007ED7E0|00046C|FRFM|
|036|               |0B71D630-2BAD-4797-ABD6-088E95D0DE47|007EDC50|00101C|FRFM|
|037|DualBiosPei    |97BB442B-F9FE-45E3-8A28-439EEDCD1813|007EEC70|000420|PEIM|
|038|HeciPei        |9CF30325-DC5C-4556-A8B0-74215C5F7FC4|007EF090|000C78|PEIM|
|039|PchMeUma       |8C376010-2400-4D7D-B47B-9D851DF3C9D1|007EFD08|000A4E|PEIM|
|040|MePeiPolicyInit|12C67BE1-AD2E-4F13-A95F-6EDC2C4392DE|007F0758|0004D8|PEIM|
|041|PeiRamBoot     |08EFD15D-EC55-4023-B648-7BA40DF7D05D|007F0C30|000F02|PEIM|
|042|               |CC0F8A3F-3DEA-4376-9679-5426BA0A907E|007F1B38|0004A5|FRFM|
|043|               |9FE7DE69-0AEA-470A-B50A-139813649189|007F1FE0|00092C|FRFM|
|044|               |FD44820B-F1AB-41C0-AE4E-0C55556EB9BD|007F2910|000828|FRFM|
|045|TcgPlatformSetu|0FE9DA53-043D-4265-A94D-FD77FEDE2EB4|007F3138|00066C|PEIM|
|046|TcgPei         |34989D8E-930A-4A95-AB04-2E6CFDFF6631|007F37A8|0021F6|PEIM|
|047|TcgPeiplatform |6B844C5B-6B75-42CA-8E8E-1CB94412B59B|007F59A0|000416|PEIM|
|048|AmiTcgPlatformP|9B3F28D5-10A6-46C8-BA72-BD40B847A71A|007F5DB8|000FF2|PEIM|
|049|AmiTcgPlatformP|E9312938-E56B-4614-A252-CF7D2F377E26|007F6DB0|000DAE|PEIM|
|050|               |0DCA793A-EA96-42D8-BD7B-DC7F684E38C1|007F7B60|0000A4|FRFM|
|051|               |3FD1D3A2-99F7-420B-BC69-8BB1D492A332|007F7C08|0000A4|FRFM|
|052|               |D1E59F50-E8C3-4545-BF61-11F002233C97|007FEFE8|000128|RAW |
|053|               |1BA0062E-C779-4582-8566-336AE8F78F09|007FF1A0|000E60|SECC|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 007980 ( 30 KB)    Bytes Used       : 0C8680 (801 KB)    |
+-----------------------------------------------------------------------------+
| Total Bytes Free : 019FF0 ( 103 KB)   Total Bytes Used : 7E6010 (8088 KB)   |
+-----------------------------------------------------------------------------+

This is your ROM

Link to comment
Share on other sites

  • 2 weeks later...

Hi,

Assuming you have an existing chameleon install how do you convert over to oz? Also the guide says oz creates an efi partition automatically on first boot on the first drive and if you have a windows install on another drive would it kill it? I suppose you have to make sure drive #0 is set aside for OS X and have some alternate way to boot up in case of a plist config error?



Thanks!

Hi,

Assuming you have an existing chameleon install how do you convert over to oz? Also the guide says oz creates an efi partition automatically on first boot on the first drive and if you have a windows install on another drive would it kill it? I suppose you have to make sure drive #0 is set aside for OS X and have some alternate way to boot up in case of a plist config error?



Thanks!

Link to comment
Share on other sites

Hey Guys,



I really screwed up. I forgot to turn the dual bios switch the other way and corrupted both copies of dual bios. All I can do is get into the efi shell.



Any options? Screwed?



Thanks



Edit: I am happy to say that I was able to recover. I found out pressing 'End' runs the flash utility which worked even after I spent an hour trying to get AfuEfi flash utility to work which was a bust but alls well that ends well. Exhausted.

Link to comment
Share on other sites

  • 1 month later...

Hi,



Im trying to patch an UEFI Bios for the Jetway NF9G-QM77 board



I followed the guide on the page 1 but no matter how I tried I always hit an error when I trying to insert the Ozmosis file into the Volume.

I made sure to follow the steps exactly, even clicked the "Insert Compressed" before inserting but made no difference.



Update:

I tried to insert the files in various sequence and noticed that after initially inserting the CORE_DXE the free space remains above 1200Kb and I can insert all of the files fine, except the following 3:

Ozmosis

VoodooHdaKext

HermitShellx64



When I try to insert any of these, the MMTool throws an error (possibly indicating the lack of space on the volume, but the report pulled just before inserting any of the files shows plenty of space). After this if I try to insert an other file the tool freezes and quits.



Could you please let me know if this is a known issue, or if I'm doing something wrong?



I have uploaded the vanilla bios file and the one into which I managed to insert the "most" additional files. (and also the reports before and after just in case it helps to determine what is going on here. The reports are just a "randomly picked" before and after the error message. The output is the exactly the same every time this occurs)



Thanks





BF9GAA07_modified.BIN.zip

Reports - BF9GAA07.zip

BF9GAA07.zip


Link to comment
Share on other sites

Hi,



Im trying to patch an UEFI Bios for the Jetway NF9G-QM77 board



I followed the guide on the page 1 but no matter how I tried I always hit an error when I trying to insert the Ozmosis file into the Volume.

I made sure to follow the steps exactly, even clicked the "Insert Compressed" before inserting but made no difference.



Update:

I tried to insert the files in various sequence and noticed that after initially inserting the CORE_DXE the free space remains above 1200Kb and I can insert all of the files fine, except the following 3:

Ozmosis

VoodooHdaKext

HermitShellx64



When I try to insert any of these, the MMTool throws an error (possibly indicating the lack of space on the volume, but the report pulled just before inserting any of the files shows plenty of space). After this if I try to insert an other file the tool freezes and quits.



Could you please let me know if this is a known issue, or if I'm doing something wrong?



I have uploaded the vanilla bios file and the one into which I managed to insert the "most" additional files. (and also the reports before and after just in case it helps to determine what is going on here. The reports are just a "randomly picked" before and after the error message. The output is the exactly the same every time this occurs)



Thanks

This is a not typical UEFI type of firmware, it is extremely small and doesn't allow for any insertion.

Link to comment
Share on other sites

This is a not typical UEFI type of firmware, it is extremely small and doesn't allow for any insertion.



Thanks for the quick response.

Does this mean that you would advise more against the BIOS mod for this board?

Link to comment
Share on other sites

Here you go... :)

This is your Ozmosis rom.

This is report:


|284|PartitionDxe   |1FA1F39E-FEFF-4AAE-BD7B-38A070A3B609|00E2C880|0018CC|DRVR|
|285|HfsPlus        |4CF484CD-135F-4FDC-BAFB-1AA104B48D36|00E2E150|00379C|DRVR|
|286|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|00E318F0|003451|DRVR|
|287|OzmosisDefaults|99F2839C-57C3-411E-ABC3-ADE5267D960D|00E34D48|000944|DRVR|
|288|Ozmosis        |AAE65279-0761-41D1-BA13-4A3C1383603F|00E35690|030B56|DRVR|
|289|OzmosisBlackThe|AC255206-DCF9-4837-8353-72BBBC0AC849|00E661E8|02F692|FRFM|
|290|SmcEmulatorKext|DADE1001-1B31-4FE4-8557-26FCEFC78275|00E95880|0133A3|FRFM|
|291|VoodooHdaKext  |DADE1009-1B31-4FE4-8557-26FCEFC78275|00EA8C28|02780C|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 00FBE0 ( 62 KB)    Bytes Used       : 500420 (5121 KB)    |
+-----------------------------------------------------------------------------+


MSI-H97-Gaming3



Link to comment
Share on other sites

Thanks for the quick response.

Does this mean that you would advise more against the BIOS mod for this board?

Yes I would advise against using this board for Ozmosis

it has as to insert osmosis   (zotac nano id68 plus), already I have installed yosemite 100% ok







Bios

Umm say again, completely do not understand this question or statement

Link to comment
Share on other sites

taga, on 19 May 2015 - 3:58 PM, said:snapback.png

it has as to insert osmosis   (zotac nano id68 plus), already I have installed yosemite 100% ok







Bios

Umm say again, completely do not understand this question or statement









I do not know as to insert ozmosis, somebody can insert.

Link to comment
Share on other sites



taga, on 19 May 2015 - 3:58 PM, said:snapback.png

Umm say again, completely do not understand this question or statement









I do not know as to insert ozmosis, somebody can insert.



What motherboard?

Link to comment
Share on other sites

Ok. I modded your but 894M version .







|159|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|00564EE8|003451|DRVR|
|160|ExtFs          |B34E5765-2E04-4DAF-867F-7F40BE6FC33D|00568339|0022D7|DRVR|
|161|HfsPlus        |4CF484CD-135F-4FDC-BAFB-1AA104B48D36|0056A610|00379C|DRVR|
|162|Ozmosis        |AAE65279-0761-41D1-BA13-4A3C1383603F|0056DDAC|01D4E8|DRVR|
|163|OzmosisDefaults|99F2839C-57C3-411E-ABC3-ADE5267D960D|0058B294|0000FC|FRFM|
|164|PartitionDxe   |1FA1F39E-FEFF-4AAE-BD7B-38A070A3B609|0058B390|0018CC|DRVR|
|165|SmcEmulatorKext|DADE1001-1B31-4FE4-8557-26FCEFC78275|0058CC5C|00859B|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 025E09 (151 KB)    Bytes Used       : 5951F7 (5716 KB)    |

Link to comment
Share on other sites



Ok i modded bios for you. You now see which file in your bios. This is 1479 version

Good luck.





|159|PartitionDxe   |1FA1F39E-FEFF-4AAE-BD7B-38A070A3B609|00564EE8|0018CC|DRVR|
|160|HfsPlus        |4CF484CD-135F-4FDC-BAFB-1AA104B48D36|005667B4|00379C|DRVR|
|161|EnhancedFat    |961578FE-B6B7-44C3-AF35-6BC705CD2B1F|00569F50|003451|DRVR|
|162|OzmosisDefaults|99F2839C-57C3-411E-ABC3-ADE5267D960D|0056D3A1|000944|DRVR|
|163|Ozmosis        |AAE65279-0761-41D1-BA13-4A3C1383603F|0056DCE5|030B56|DRVR|
|164|SmcEmulatorKext|DADE1001-1B31-4FE4-8557-26FCEFC78275|0059E83B|0133A3|FRFM|
+---+---------------+------------------------------------+--------+------+----+
| Bytes Free       : 009422 ( 37 KB)    Bytes Used       : 5B1BDE (5830 KB)    |
+-----------------------------------------------------------------------------+
Link to comment
Share on other sites

 Share

×
×
  • Create New...
