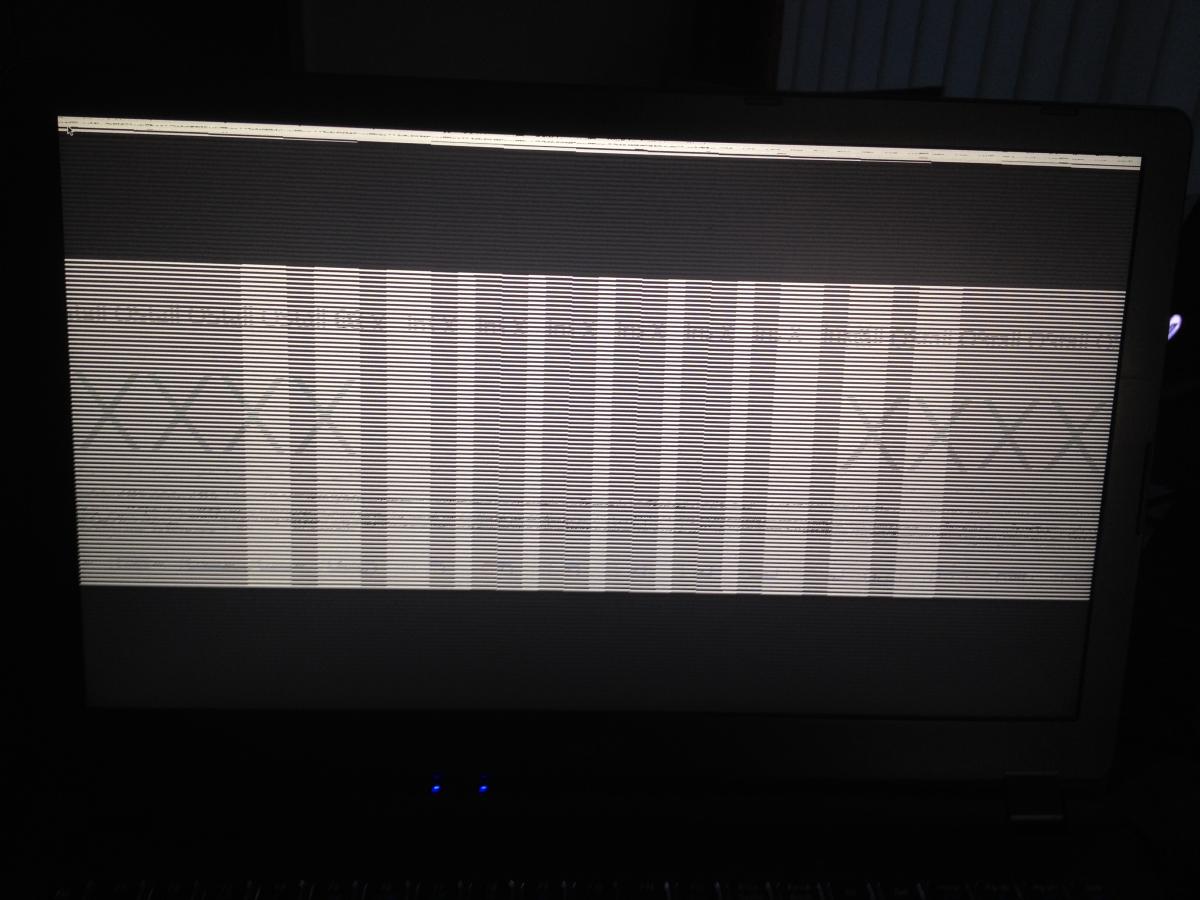

PieterBu Posted July 30, 2014 Share Posted July 30, 2014 I'm having an issue with the installation of mavericks on my Acer V5-573g laptop. As I boot into the installation my screen looks like the photo i've attached. Does anybody have a clue how to fix this? Laptop Specs: Processor Intel Core i5-4200U 1.6 GHz :: Mainboard Intel Lynx Point-LP :: Memory 8192 MB, DDR3 1600 MHz (dual channel), 2 slots occupied :: Graphics adapter Intel HD4400 NVIDIA GeForce GT 750M - 4096 MB, Core: 967 MHz, Memory: 900 MHz, DDR3, 311.41, Optimus :: Display 15.6 inch 16:9, 1920x1080 pixel, AUO12ED, IPS, glossy: no :: Harddisk Samsung Evo 250GB m-sata Seagate Momentus Thin ST500LT0 12-9WS142, 500 GB 5400 rpm :: Soundcard Realtek ALC268 HD Audio :: Connections 2 USB 2.0, 1 USB 3.0, 1 HDMI, 1 Kensington Lock, Audio Connections: 1x 3.5 mm stereo jack, Card Reader: SD, Sensors: Acer Converter port, Acer Converter Port (CP) :: Networking Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Azurewave Wifi + BT DSDT and kext from Kaijun https://github.com/Kaijun/Acer-V5-573G-Hackintosh Link to comment Share on other sites More sharing options...
Pimentel Posted July 31, 2014 Share Posted July 31, 2014 Hello Welcome What method did you use to install OSX? What bootloader??? Try boot withou this DSDT Link to comment Share on other sites More sharing options...
PieterBu Posted July 31, 2014 Author Share Posted July 31, 2014 Hello Welcome What method did you use to install OSX? What bootloader??? Try boot withou this DSDT Thanx, I use Clover 2774, which comes with Bootdisk utility. The only bootflag I use is verbose mode. I created the osx install partition on a osx mavericks virtual machine. Link to comment Share on other sites More sharing options...
Pimentel Posted July 31, 2014 Share Posted July 31, 2014 Hello Can you put your config.plist in here for edit??? Thanks Link to comment Share on other sites More sharing options...
PieterBu Posted July 31, 2014 Author Share Posted July 31, 2014 <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>DropOEM_DSM</key> <false/> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>SSDT</key> <dict> <key>DropOem</key> <true/> <key>Generate</key> <dict> <key>CStates</key> <false/> <key>PStates</key> <false/> </dict> </dict> </dict> <key>Boot</key> <dict> <key>Arguments</key> <string>-v</string> <key>DefaultVolume</key> <string>MacHDD</string> <key>Legacy</key> <string>PBR</string> <key>Log</key> <false/> <key>Secure</key> <false/> <key>Timeout</key> <integer>5</integer> <key>XMPDetection</key> <string>Yes</string> </dict> <key>Devices</key> <dict> <key>FakeID</key> <dict> <key>ATI</key> <string>0x0</string> <key>IMEI</key> <string>0x0</string> <key>IntelGFX</key> <string>0x0</string> <key>LAN</key> <string>0x0</string> <key>NVidia</key> <string>0x0</string> <key>SATA</key> <string>0x0</string> <key>WIFI</key> <string>0x0</string> <key>XHCI</key> <string>0x0</string> </dict> <key>USB</key> <dict> <key>FixOwnership</key> <false/> <key>Inject</key> <false/> </dict> </dict> <key>DisableDrivers</key> <array> <string>Nothing</string> </array> <key>GUI</key> <dict> <key>Hide</key> <array> <string>Windows</string> <string>BOOTX64.EFI</string> </array> <key>Language</key> <string>en:0</string> <key>Mouse</key> <dict> <key>Enabled</key> <false/> <key>Mirror</key> <false/> <key>Speed</key> <integer>8</integer> </dict> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <true/> <key>Tool</key> <true/> </dict> <key>Theme</key> <string>bluemac</string> </dict> <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <false/> <key>NVidia</key> <false/> </dict> </dict> <key>KernelAndKextPatches</key> <dict> <key>AppleRTC</key> <false/> <key>AsusAICPUPM</key> <true/> <key>KernelPm</key> <true/> <key>KextsToPatch</key> <array> <dict> <key>Find</key> <data> PYUI7BA= </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> PQAAAAA= </data> </dict> <dict> <key>Find</key> <data> PYQZ1BE= </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> PYIC7BA= </data> </dict> <dict> <key>Find</key> <data> PYQI7BA= </data> <key>Name</key> <string>AppleHDA</string> <key>Replace</key> <data> PQAAAAA= </data> </dict> <dict> <key>Comment</key> <string>External icons patch</string> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>AppleAHCIPort</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> </array> </dict> <key>RtVariables</key> <dict> <key>LogEveryBoot</key> <string>10</string> <key>LogLineCount</key> <integer>3000</integer> <key>MountEFI</key> <string>Yes</string> </dict> <key>SMBIOS</key> <dict> <key>BiosReleaseDate</key> <string>05/24/13</string> <key>BiosVendor</key> <string>Apple Computer, Inc.</string> <key>BiosVersion</key> <string>MBA61.88Z.0099.B04.1305241529</string> <key>Board-ID</key> <string>Mac-7DF21CB3ED6977E5</string> <key>BoardManufacturer</key> <string>Apple Computer, Inc.</string> <key>BoardType</key> <integer>10</integer> <key>ChassisAssetTag</key> <string>Air-Enclosure</string> <key>ChassisManufacturer</key> <string>Apple Computer, Inc.</string> <key>ChassisType</key> <string>10</string> <key>Family</key> <string>MacBook Air</string> <key>Manufacturer</key> <string>Apple Computer, Inc.</string> <key>Mobile</key> <true/> <key>ProductName</key> <string>MacBookAir6,2</string> <key>SerialNumber</key> <string>C02KR42AF5V8</string> <key>Trust</key> <false/> <key>Version</key> <string>1.0</string> </dict> <key>SystemParameters</key> <dict> <key>InjectKexts</key> <string>Detect</string> <key>InjectSystemID</key> <true/> </dict> </dict> </plist> This way or should i upload a file? Link to comment Share on other sites More sharing options...
Allan Posted July 31, 2014 Share Posted July 31, 2014 Please upload the file: How to upload files or kexts. Link to comment Share on other sites More sharing options...
PieterBu Posted July 31, 2014 Author Share Posted July 31, 2014 It is compressed to a .rar because I couldn't upload the .plist file config.rar Link to comment Share on other sites More sharing options...
Allan Posted July 31, 2014 Share Posted July 31, 2014 Before i edit your config.plist, try boot with this flag: -f -v GraphicsEnabler=Yes IntelAzulFB=12 And back with the results. Link to comment Share on other sites More sharing options...
PieterBu Posted July 31, 2014 Author Share Posted July 31, 2014 I forgot to mention that, found it allready on the forum and has the same result as the picture in the first post. Link to comment Share on other sites More sharing options...
Pimentel Posted July 31, 2014 Share Posted July 31, 2014 Hello Try this one: config.plist.zip Put in EFI/Clover/ Link to comment Share on other sites More sharing options...
PieterBu Posted July 31, 2014 Author Share Posted July 31, 2014 Had no effect, I have also tried with ig-platform-id 0x0a260005 and 0x0a260006 but no solution, Link to comment Share on other sites More sharing options...
Allan Posted July 31, 2014 Share Posted July 31, 2014 Delete the Nvidia kexts: How to delete kexts for enable video. Link to comment Share on other sites More sharing options...
PieterBu Posted July 31, 2014 Author Share Posted July 31, 2014 My keyboard doesn't work in verbose single user mode. But the bootflag nv_disable=1 didn't work either. Link to comment Share on other sites More sharing options...
Allan Posted July 31, 2014 Share Posted July 31, 2014 try use USB keyboard. Link to comment Share on other sites More sharing options...
Pimentel Posted July 31, 2014 Share Posted July 31, 2014 Hello You can use usb installer terminal to delete them... Steps cd /Volumes/usbinstallername/System/Library/Extensions rm -rf NVDA* Geforce* or if your keyboard is USB, but don't work try inject FixOwnership... in Clover screen press [O] and Choose PCI(something like that)and enabler it I hope it help Link to comment Share on other sites More sharing options...
PieterBu Posted August 4, 2014 Author Share Posted August 4, 2014 Removed the NVDA and Geforce kexts in a virtual machine, using terminal. Now got a Mach_Kernel error while booting the installer. Link to comment Share on other sites More sharing options...
yurchik92 Posted August 19, 2014 Share Posted August 19, 2014 could you please write how you have install os x on acer v5? Link to comment Share on other sites More sharing options...
