Slice Posted November 23, 2018 Author Share Posted November 23, 2018 Just now, vector sigma said: is the same inside the app? I am at work now can't check the app. Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649314 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 Just now, Slice said: I am at work now can't check the app. ok, please check that later. This is the code: case .temperature: var t: Int = 0 bcopy((data as NSData).bytes, &t, 2) if t > -15 && t < 150 { /* -10 min temp + 5 to ensure no one start a pc this way. 150 (110 °C it is enough) to ensure reading is correct */ sensor.stringValue = "\(t)" sensor.doubleValue = Double(t) valid = true } if I have to consider 0x27 should be 39º Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649316 Share on other sites More sharing options...
Slice Posted November 23, 2018 Author Share Posted November 23, 2018 Yes, should be 39. Did you commit latest sources? Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649318 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 6 minutes ago, Slice said: Yes, should be 39. Probably wrong endianess Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649319 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 13 minutes ago, Slice said: Did you commit latest sources? No, I'll do that after my lunch, within 30 minutes 1 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649320 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 All changes commited to r186 1 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649327 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 3 hours ago, Slice said: TN0P [sp78] (bytes 27 00) There where a big error I made importing from c code to swift, fixed in r187 (I hope) by using the result of the "decodeNumericValue()" function as it must have been already. Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649357 Share on other sites More sharing options...

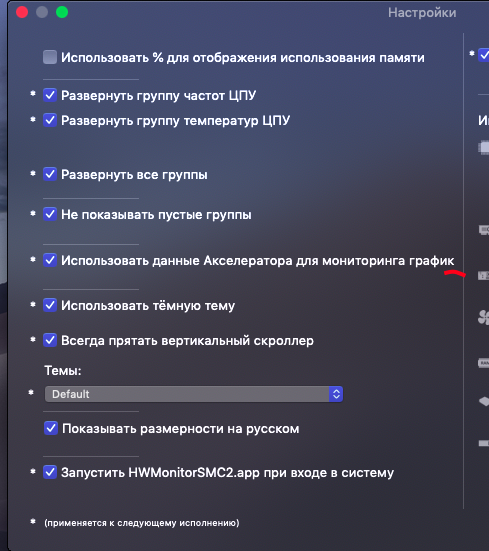

Andrey1970 Posted November 23, 2018 Share Posted November 23, 2018 @vector sigma Make here slightly more place. The last letter in the word "графики" was not located. Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649359 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 (edited) 14 minutes ago, Andrey1970 said: @vector sigma Make here slightly more place. The last letter in the word "графики" was not located. Spoiler I've already made it larger and tested it and I thought it was all right... but my Russian is bad Fixed in r188. Edited November 23, 2018 by vector sigma 1 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649361 Share on other sites More sharing options...

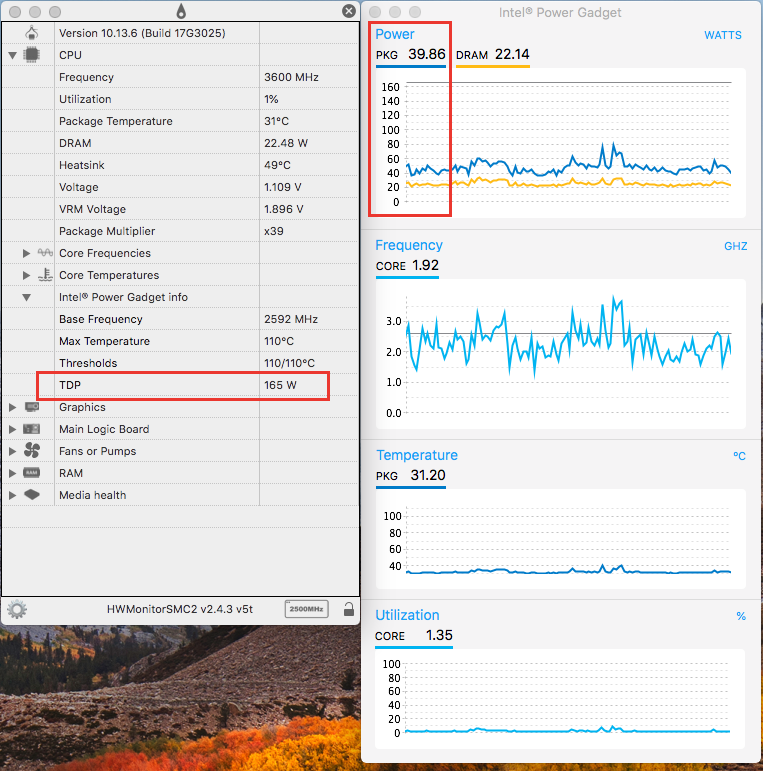

Guest Posted November 23, 2018 Share Posted November 23, 2018 hi @vector sigma Is it possible to have this value exposed dynamically as we have in Intel Power Gadget? thank you Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649366 Share on other sites More sharing options...
Andrey1970 Posted November 23, 2018 Share Posted November 23, 2018 34 minutes ago, fabiosun said: Is it possible to have this value exposed dynamically as we have in Intel Power Gadget? thank you TDP is a constant. TDP not PKG Power. PKG Power is in HWMonitorSMC2 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649368 Share on other sites More sharing options...

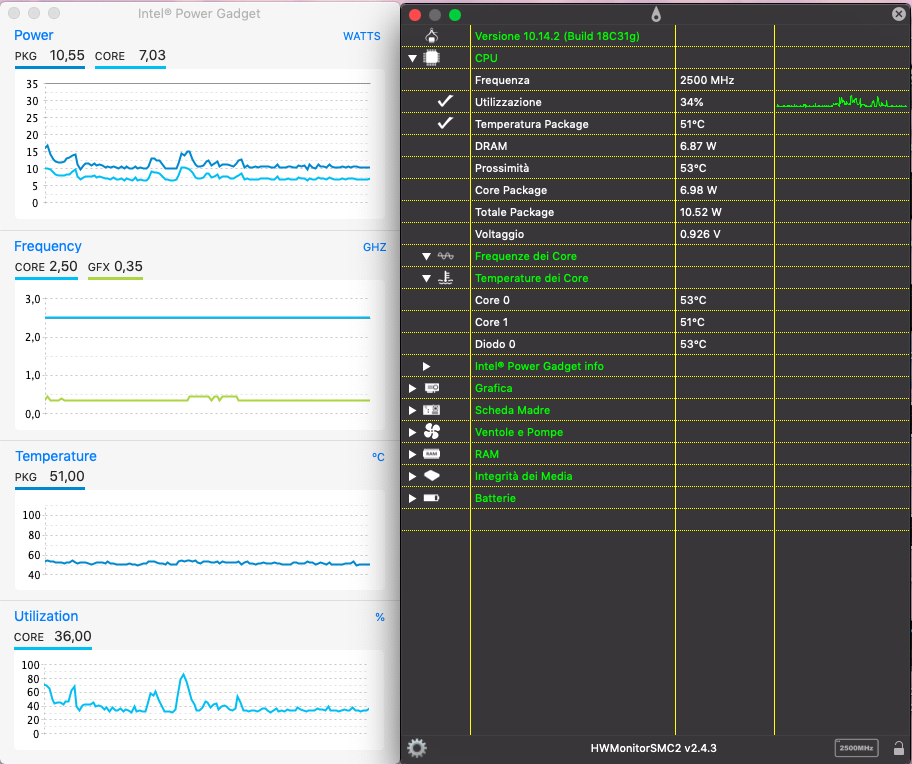

vector sigma Posted November 23, 2018 Share Posted November 23, 2018 (edited) 2 hours ago, fabiosun said: Is it possible to have this value exposed dynamically as we have in Intel Power Gadget? thank you Sorry but is not the same thing, TDP is static (meant as TDP base.. as design). What do you seek is "Totale Package" (Pakage Total): It is a good question for Intel why our apps show different things and or why same things are called differently. "Pakage Total" will work if you install VirtualSMC, but there is no way to get it from the IntelPowerGadget.framework as in the header there's no a public way to do that. IPG 3.5.5 vs HWMonitorSMC2 v2.4.3 (r188) Edited November 23, 2018 by vector sigma Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649369 Share on other sites More sharing options...

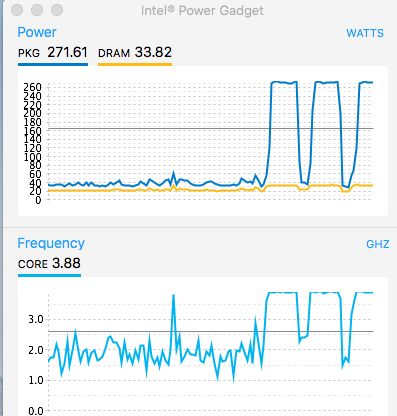

Guest Posted November 23, 2018 Share Posted November 23, 2018 1 minute ago, Andrey1970 said: TDP is a constant. TDP not PKG Power. PKG Power is in HWMonitorSMC2 No Andrey Take a look on flat line in my IPG graph (around 160 it is 165 (TDP for my CPU) and this could be greater under stress test) Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649370 Share on other sites More sharing options...
Andrey1970 Posted November 23, 2018 Share Posted November 23, 2018 1 hour ago, vector sigma said: Fixed in r188. Thanks, is good now. 1 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649371 Share on other sites More sharing options...
Guest Posted November 23, 2018 Share Posted November 23, 2018 (edited) 23 minutes ago, vector sigma said: Sorry but is not the same thing, TDP is static (meant as TDP max.. as design). What do you seek is "Core Package": It is a good question for Intel why our apps show different things and or why same things are called differently. "Core Package" will work if you install VirtualSMC, but there is no way to get it from the IntelPowerGadget.framework as in the header there's no a public way to do that. IPG 3.5.5 vs HWMonitorSMC2 v2.4.3 (r188) Thank you for your answer I am using for now fakesmc and its plugin sets because I have strange hang on my system with virtualsmc. Core package when I have used it does not reach higher wattage as I caould see in IPG graph..here I have to check better checked with virtualSMC Core PKG value is the same in both app Edited November 23, 2018 by Guest Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649372 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 5 minutes ago, fabiosun said: No Andrey Take a look on flat line in my IPG graph (around 160 it is 165 (TDP for my CPU) and this could be greater under stress test) Fabio, IPG place a gray line exactly at 165W to let you understand that this is the max as for me the max is 35W Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649373 Share on other sites More sharing options...
Guest Posted November 23, 2018 Share Posted November 23, 2018 1 minute ago, vector sigma said: Fabio, IPG place a gray line exactly at 165W to let you understand that this is the max No.. I do not think so Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649374 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 Just now, fabiosun said: No.. I do not think so Fabio, look better, the TDP is always 165 (gray line) Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649376 Share on other sites More sharing options...
Guest Posted November 23, 2018 Share Posted November 23, 2018 Just now, vector sigma said: Fabio, look better, the TDP is always 165 (gray line) I see and I understand your point but maybe I do not understand well relationship between TDP and Package power.. Back to my wish I was asking because PKG power (or TDP ) is important when you Overclock your cpu to find a right compromise between performance/stability I am trying to install virtualSMC set again to see if Power PKG is growing also in HWSMC2 Thank you for your time Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649377 Share on other sites More sharing options...

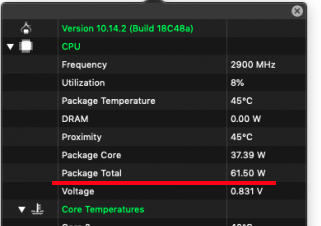

Guest Posted November 23, 2018 Share Posted November 23, 2018 ok @vector sigma, with VirtualSMC I see dynaminacally increase core package wattage (very useful for me) I would like to show you a little incongruent data in log: under CPU 18/36 is correct Under POWER I see CPUs available is 32. not important because in app I see all cores from 0 to 17 HWMonitorSMC2 v2.4.3 v5t MACHINE STATUS: CPU: Name: Intel(R) Core(TM) i9-7980XE CPU @ 2.60GHz Vendor: GenuineIntel Physical cores: 18 Logical cores: 36 Family: 6 Model: 0x55 Ext Model: 0x5 Ext Family: 0 Stepping: 4 Signature: 0x50654 Brand: 0 Features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 PCLMULQDQ DTES64 MON DSCPL VMX EST TM2 SSSE3 FMA CX16 TPR PDCM SSE4.1 SSE4.2 x2APIC MOVBE POPCNT AES PCID XSAVE OSXSAVE SEGLIM64 TSCTMR AVX1.0 RDRAND F16C Ext Features: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI Microcode version: 33554509 Thermal sensors: 1 Thermal APIC timer: 1 System: 32% User: 0% Idle: 66% Nice: 0% LPCB: IOName: pci8086,a2d2 name: 70 63 69 38 30 38 36 2c 61 32 64 32 00 device-id: d2 a2 00 00 vendor-id: 86 80 00 00 revision-id: 00 00 00 00 subsystem-id: 01 50 00 00 subsystem-vendor-id: 58 14 00 00 MEMORY: Physical size: 128.0GB Free: 118.32GB Wired: 5.18GB Active: 4.05GB Inactive: 440MB Compressed: 0MB SYSTEM: Model: iMacPro1,1 Sys name: Darwin OS Version: 10.13.6 Node name: fabios-iMac-Pro.lan Release: 17.7.0 Version: Darwin Kernel Version 17.7.0: Wed Oct 10 23:06:14 PDT 2018; root:xnu-4570.71.13~1/RELEASE_X86_64 Machine: x86_64 Uptime: 0d 0h 5m 40s Processes: 291 Threads: 1107 Load Average: [1.48, 1.12, 0.55] Mach Factor: [34.521, 34.44, 34.331] POWER: CPU Speed limit: 100.0% CPUs available: 32 Scheduler limit: 100.0% Thermal level: Not Published VIDEO CARD 1: Model: NVIDIA TITAN Xp COLLECTORS EDITION Vendor ID: de 10 00 00 (NVidia) Device ID: 02 1b 00 00 Revision ID: a1 00 00 00 Subsystem Vendor ID: de 10 00 00 Subsystem ID: 10 00 00 00 class-code: 00 00 03 00 IOName: display pcidebug: 193:0:0 built-in: 00 compatible: pci10de,123epci10de,1b02pciclass,030000SL05GFX0 acpi-path: IOACPIPlane:/_SB/PC02@0/BR2A@0/SL05@ffff hda-gfx: onboard-1 rm_board_number: 00 00 00 00 NVDA,noEFI: true NVArch: GP100 rom-revision: VBIOS 86.02.4c.00.01 NVCLASS: NVDA NVCAP: 05 00 00 00 00 00 ff ff ff ff 00 00 00 00 00 0e 00 00 00 00 pci-aspm-default: 0x0 VRAM,totalMB: ff 2f 00 00 device_type: NVDA,Parent NVDA,accel-loaded: 01 00 00 00 vbios-revision: 01 00 4c 02 86 vNVDA,Features: 00 08 00 00 IONVRAMProperty: true NVDAinitgl_created: yes IOPCIMSIMode true NVDAType: Web Additional Properties: AAPL,slot-name: 53 6c 6f 74 2d 31 00 AAPL,ndrv-dev: 1 Metal support: true Metal properties: Max Threads Per Thread group: width 1024, height 1024, depth 64 Max Thread group Memory Length: 49152 Recommended Max Working Set Size: 0x0 Depth 24 Stencil 8 Pixel Format: true Programmable Sample Positions: false Read-Write Texture: 1 Headless: false Is Low Power: false Removable: false Performance Statistics: hardwareWaitTime: 0 agprefTextureCreationCount: 68 Device Utilization %: 3 freeSurfaceSwapBufferWaitTime: 0 agpTextureCreationBytes: 0 stdTextureCreationBytes: 0 orphanedReusableSysMemoryCount: 62 gartCacheBytes: 33554432 gartMapInBytesPerSample: 15896576 surfaceWriteLockIdleWaitTime: 0 swapCompleteGLWaitTime: 0 vramLargestFreeBytes: 11287289856 finishAll2DWaitTime: 0 vramEvictionWaitTime: 0 dataBufferCount: 0 surfaceBufferPageOutBytes: 0 stdTextureCreationCount: 0 ioSurfacePageOutBytes: 0 iosurfaceTextureCreationCount: 1 ioSurfaceReadOutBytes: 0 orphanedNonReusableVidMemoryBytes: 0 agprefTextureCreationBytes: 2334720 oolTextureCreationBytes: 0 freeDataBufferWaitTime: 0 swapCompleteVideoWaitTime: 0 agpTextureCreationCount: 0 volatileSurfaceCount: 0 iosurfaceTextureCreationBytes: 458752 bufferFlipCount: 0 context2DCount: 6 GPU Core Utilization: 120000000 surfaceCopyInWaitTime: 0 swapBytesPerSample: 0 stdTexturePageInBytes: 0 finishGLWaitTime: 0 vramFreeBytes: 11703222272 gartSizeBytes: 45812985856 orphanedReusableVidMemoryBytes: 0 orphanedReusableVidMemoryHitRate: 2 surfaceTextureCreationCount: 0 surfaceCount: 8 textureReadOutBytes: 0 bufferSwapCount: 0 freeSurfaceBackingWaitTime: 0 hardwareSubmitWaitTime: 0 surfaceBufferPageInBytes: 0 vramUsedBytes: 1181351936 sysmemUsedBytes: 0 clientGLWaitTime: 0 finishCLWaitTime: 0 gartFreeBytes: 45761064960 finishVideoWaitTime: 0 inUseSysMemoryBytes: 880525312 orphanedNonReusableSysMemoryBytes: 0 orphanedReusableSysMemoryBytes: 315924480 surfaceBufferReadOutBytes: 0 finish2DWaitTime: 0 orphanedReusableSysMemoryHitRate: 2 contextVideoCount: 0 surfaceBufferTextureCreationCount: 0 orphanedReusableVidMemoryCount: 0 recoveryCount: 0 freeToAllocGPUAddressWaitTime: 0 oolTexturePageInBytes: 0 gartMapOutBytesPerSample: 14589952 gartUsedBytes: 51920896 texturePageOutBytes: 0 textureCount: 978 oolTextureCreationCount: 0 inUseVidMemoryBytes: 1196449792 GPU Memory Utilization: 100000000 contextGLCount: 2 orphanedNonReusableVidMemoryCount: 0 textureVolunteerUnloadBytes: 0 surfaceSetShapeIdleWaitTime: 0 dataBytesPerSample: 0 ioSurfacePageInBytes: 458752 contextCLCount: 2 swapComplete2DWaitTime: 0 surfaceCopyOutWaitTime: 0 orphanedNonReusableSysMemoryCount: 0 surfaceReadLockIdleWaitTime: 0 SCREEN 1: Framebuffer: 0x1B5611B5 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: f4 d3 05 00 Version: 01 04 Basic params b5 3c 22 78 9e Chroma info: 30 35 a7 55 4e a3 26 0f 50 54 Established: 21 08 00 Standard: 71 40 81 80 81 c0 a9 c0 d1 c0 81 00 01 01 01 01 Descriptor 1: 4d d0 00 a0 f0 70 3e 80 30 20 65 0c 58 54 21 00 00 1a Descriptor 2: 28 68 00 a0 f0 70 3e 80 08 90 65 0c 58 54 21 00 00 1a Descriptor 3: 00 00 00 fd 00 38 3d 1e 87 38 00 0a 20 20 20 20 20 20 Descriptor 4: 00 00 00 fc 00 4c 47 20 55 6c 74 72 61 20 48 44 0a 20 Extension: 01 Checksum: c8 Manufacturer: 1e6d (8=8) Model: 095b Serial Number: 381940 Resolution: 3840x2160 Made week 12 of 2017 EDID version: 1.4 Digital display Established Timings: 640×480 @ 60 Hz 800×600 @ 60 Hz 1024×768 @ 60 Hz Detailed mode (descriptor 1): Pixel Clock: 199.2MHz Horizontal Active: 3840 Horizontal Blanking: 160 Vertical Active: 2160 Vertical Blanking: 62 Horizontal Sync Offset: 48 Horizontal Sync Pulse: 32 Vertical Sync Offset: 54 Vertical Sync Pulse: 5 Interlaced: false Is preferred timing: true Detailed mode (descriptor 2): Pixel Clock: 103.44MHz Horizontal Active: 3840 Horizontal Blanking: 160 Vertical Active: 2160 Vertical Blanking: 62 Horizontal Sync Offset: 56 Horizontal Sync Pulse: 144 Vertical Sync Offset: 54 Vertical Sync Pulse: 5 Interlaced: false Is preferred timing: false Maximum image size: 600mm x 340mm Gamma: 2.20 Model: LG Ultra HD Checksum: 0xC8 (valid) EDID comes from EEPROM SCREEN 2: Framebuffer: 0x43301DE2 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: a3 33 00 00 Version: 01 03 Basic params 80 3c 22 78 2a Chroma info: ee d5 a3 56 50 9f 26 10 50 54 Established: bd 4b 00 Standard: d1 c0 81 80 95 0f 95 00 b3 00 81 c0 01 01 01 01 Descriptor 1: 02 3a 80 18 71 38 2d 40 58 2c 45 00 56 50 21 00 00 1e Descriptor 2: 00 00 00 ff 00 55 48 42 31 34 33 38 30 31 33 32 31 39 Descriptor 3: 00 00 00 fc 00 50 68 69 6c 69 70 73 20 32 37 38 47 34 Descriptor 4: 00 00 00 fd 00 18 4c 1a 53 17 00 0a 20 20 20 20 20 20 Extension: 01 Checksum: 21 Manufacturer: 410c (Philips 278) Model: b9c0 Serial Number: 13219 Resolution: 1920x1080 Made week 38 of 2014 EDID version: 1.3 Digital display Established Timings: 720×400 @ 70 Hz 640×480 @ 60 Hz 640×480 @ 67 Hz 640×480 @ 72 Hz 640×480 @ 75 Hz 800×600 @ 60 Hz 800×600 @ 75 Hz 1024×768 @ 60 Hz 1024×768 @ 75 Hz 1280×1024 @ 75 Hz Detailed mode (descriptor 1): Pixel Clock: 5.7MHz Horizontal Active: 1920 Horizontal Blanking: 280 Vertical Active: 1080 Vertical Blanking: 45 Horizontal Sync Offset: 88 Horizontal Sync Pulse: 44 Vertical Sync Offset: 4 Vertical Sync Pulse: 5 Interlaced: false Is preferred timing: true Maximum image size: 600mm x 340mm Gamma: 2.20 Model: LS Checksum: 0x21 (valid) EDID comes from EEPROM Serial ATA controller: Name: pci8086,a282 Vendor ID: 86 80 00 00 Device ID: 82 a2 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 58 14 00 00 Subsystem ID: 05 b0 00 00 class-code: 01 06 01 00 IOName: pci8086,a282 pcidebug: 0:23:0 built-in: 00 compatible: pci1458,b005pci8086,a282pciclass,010601SATA acpi-path: IOACPIPlane:/_SB/PCI0@0/SATA@170000 NVMe controller: Name: pci144d,a804 Vendor ID: 4d 14 00 00 Device ID: 04 a8 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 4d 14 00 00 Subsystem ID: 01 a8 00 00 class-code: 02 08 01 00 IOName: pci144d,a804 pcidebug: 2:0:0 built-in: 00 compatible: pci144d,a801pci144d,a804pciclass,010802PXSX acpi-path: IOACPIPlane:/_SB/PCI0@0/RP21@1b0004/PXSX@0 MEDIA: BSD Name: disk0 Product Name: Samsung SSD 960 PRO 1TB Product Revision Level: 2B6QCXP7 Medium Type: SSD Capacity: 1024.21 GB 1024209543168 bytes Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 36°C Life: 100% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 786 S.M.A.R.T. status: Ok BSD Name: disk1 Product Name: Samsung SSD 850 PRO 512GB Product Revision Level: EXM04B6Q Medium Type: SSD Capacity: 512.11 GB 512110190592 bytes Physical Interconnect: SATA Physical Interconnect Location: Internal Temperature: 33°C Life: 99% S.M.A.R.T. status: Ok BSD Name: disk2 Product Name: ST4000DM005-2DP166 Product Revision Level: 0001 Medium Type: HDD Capacity: 4000.79 GB 4000787030016 bytes Physical Interconnect: SATA Physical Interconnect Location: Internal Rotation Rate: 5980rpm Temperature: 30°C S.M.A.R.T. status: Ok BSD Name: disk3 Product Name: ST10000VX0004-1ZE101 Product Revision Level: AV01 Medium Type: HDD Capacity: 10000.83 GB 10000831348736 bytes Physical Interconnect: SATA Physical Interconnect Location: Internal Rotation Rate: 7200rpm Temperature: 36°C S.M.A.R.T. status: Ok BSD Name: disk4 Product Name: ST10000VX0004-1ZE101 Product Revision Level: AV01 Medium Type: HDD Capacity: 10000.83 GB 10000831348736 bytes Physical Interconnect: SATA Physical Interconnect Location: Internal Rotation Rate: 7200rpm Temperature: 34°C S.M.A.R.T. status: Ok BSD Name: disk5 Product Name: ST4000DM005-2DP166 Product Revision Level: 0001 Medium Type: HDD Capacity: 4000.79 GB 4000787030016 bytes Physical Interconnect: SATA Physical Interconnect Location: Internal Rotation Rate: 5980rpm Temperature: 31°C S.M.A.R.T. status: Ok USB 3.0 controller: Vendor ID: 86 80 00 00 Device ID: af a2 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 58 14 00 00 Subsystem ID: 07 50 00 00 class-code: 30 03 0c 00 IOName: pci8086,a2af pcidebug: 0:20:0 built-in: 00 compatible: pci1458,5007pci8086,a2afpciclass,0c0330XHCI acpi-path: IOACPIPlane:/_SB/PCI0@0/XHCI@140000 USB devices: Name: USB-PS/2 Optical Mouse Vendor: Logitech idProduct: c05027 idVendor: 46d27 Port Num.: 7 Bus Power Available: 250 Speed: 0 Device Speed: 0 bcdDevice: 10016 Serial Number: 0 non-removable: yes Name: USB Keyboard Vendor: idProduct: 170227 idVendor: 4d927 Port Num.: 6 Bus Power Available: 250 Speed: 0 Device Speed: 0 bcdDevice: 257 Serial Number: 0 non-removable: yes Name: 4-Port USB 2.0 Hub Vendor: Generic idProduct: 541127 idVendor: bda27 Port Num.: 5 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 291 Serial Number: 0 non-removable: yes Name: 4-Port USB 3.0 Hub Vendor: Generic idProduct: 41127 idVendor: bda27 Port Num.: 15 Bus Power Available: 450 Speed: 3 Device Speed: 3 bcdDevice: 291 Serial Number: 0 non-removable: yes Name: AppleUSBXHCI Root Hub Simulation Vendor: Apple Inc. idProduct: 800727 idVendor: 5ac27 Speed: 3 Device Speed: 3 Serial Number: 0 non-removable: yes LAN controller: Name: ethernet Vendor ID: 86 80 00 00 Device ID: b8 15 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 58 14 00 00 Subsystem ID: 00 e0 00 00 class-code: 00 00 02 00 IOName: ethernet pcidebug: 0:31:6 built-in: 00 compatible: pci1458,e000pci8086,15b8pciclass,020000GBE1 acpi-path: IOACPIPlane:/_SB/PCI0@0/GBE1@1f0006 WIFI controller: Name: pci8086,24fd Vendor ID: 86 80 00 00 Device ID: fd 24 00 00 Revision ID: 78 00 00 00 Subsystem Vendor ID: 86 80 00 00 Subsystem ID: 10 10 00 00 class-code: 00 80 02 00 IOName: pci8086,24fd pcidebug: 3:0:0 built-in: 00 compatible: pci8086,1010pci8086,24fdpciclass,028000PXSX acpi-path: IOACPIPlane:/_SB/PCI0@0/RP01@1c0000/PXSX@0 SMC DUMP: key: #KEY, size: 04, type: ui32, attr: 00, value: <00000074> key: $Num, size: 01, type: ui8 , attr: 00, value: <01> key: ACID, size: 08, type: ch8*, attr: 00, value: <babe3c45 c0031043> key: ALI0, size: 04, type: {ali, attr: 00, value: <06010200> key: ALRV, size: 02, type: ui16, attr: 00, value: <0001> key: ALV0, size: 10, type: {alv, attr: 00, value: <010103b7 00a30015 6af4> key: CLKH, size: 08, type: {clh, attr: 00, value: <00007080 00011940> key: CLKT, size: 04, type: ui32, attr: 00, value: <0000ffb9> key: EPCI, size: 04, type: flag, attr: 00, value: <0970f000> key: FNum, size: 01, type: ui8 , attr: 00, value: <03> key: LSOF, size: 01, type: flag, attr: 00, value: <01> key: LSSB, size: 02, type: {lso, attr: 00, value: <0101> key: LsNM, size: 01, type: ui8 , attr: 00, value: <01> key: LsbV, size: 05, type: {rev, attr: 00, value: <01040a00 06> key: MOST, size: 02, type: ui16, attr: 00, value: <8003> key: MSDW, size: 01, type: ui8 , attr: 00, value: <01> key: MSPS, size: 01, type: {msp, attr: 00, value: <00> key: MSSD, size: 01, type: si8 , attr: 00, value: <03> key: NATJ, size: 01, type: ui8 , attr: 00, value: <02> key: NTOK, size: 01, type: ui8 , attr: 00, value: <01> key: NVPR, size: 01, type: ui8 , attr: 00, value: <00> key: OSK0, size: 32, type: ch8*, attr: 00, value: <6f757268 61726477 6f726b62 79746865 7365776f 72647367 75617264 6564706c> key: OSK1, size: 32, type: ch8*, attr: 00, value: <65617365 646f6e74 73746561 6c286329 4170706c 65436f6d 70757465 72496e63> key: REV , size: 06, type: {rev, attr: 00, value: <02410f00 0001> key: RMde, size: 01, type: char, attr: 00, value: <41> key: RPlt, size: 08, type: ch8*, attr: 00, value: <6a313337 00000000> key: RBr , size: 08, type: ch8*, attr: 00, value: <6a313337 00356100> key: BEMB, size: 01, type: flag, attr: 00, value: <00> key: NATi, size: 02, type: ui16, attr: 00, value: <001e> key: TN0P, size: 02, type: sp78, attr: 00, value: <2400> key: Th0H, size: 02, type: sp78, attr: 00, value: <3100> key: TA0P, size: 02, type: sp78, attr: 00, value: <1a00> key: VS0C, size: 02, type: fp2e, attr: 00, value: <7958> key: VM0R, size: 02, type: fp2e, attr: 00, value: <828f> key: F0Ac, size: 02, type: fpe2, attr: 00, value: <0dec> key: F0Tg, size: 01, type: ui8 , attr: 00, value: <d0> key: F0St, size: 01, type: ui8 , attr: 00, value: <14> key: F0Ss, size: 01, type: ui8 , attr: 00, value: <00> key: F0Ft, size: 01, type: ui8 , attr: 00, value: <41> key: F0Pt, size: 01, type: ui8 , attr: 00, value: <46> key: F0Fo, size: 01, type: ui8 , attr: 00, value: <03> key: F0Ct, size: 01, type: ui8 , attr: 00, value: <1c> key: F1Ac, size: 02, type: fpe2, attr: 00, value: <0a08> key: F1Tg, size: 01, type: ui8 , attr: 00, value: <c0> key: F1St, size: 01, type: ui8 , attr: 00, value: <14> key: F1Ss, size: 01, type: ui8 , attr: 00, value: <00> key: F1Ft, size: 01, type: ui8 , attr: 00, value: <3c> key: F1Pt, size: 01, type: ui8 , attr: 00, value: <46> key: F1Fo, size: 01, type: ui8 , attr: 00, value: <03> key: F1Ct, size: 01, type: ui8 , attr: 00, value: <1c> key: F2Tg, size: 01, type: ui8 , attr: 00, value: <e0> key: F2St, size: 01, type: ui8 , attr: 00, value: <5a> key: F2Ss, size: 01, type: ui8 , attr: 00, value: <59> key: F2Ft, size: 01, type: ui8 , attr: 00, value: <64> key: F2Pt, size: 01, type: ui8 , attr: 00, value: <b2> key: F2Fo, size: 01, type: ui8 , attr: 00, value: <00> key: F2Ct, size: 01, type: ui8 , attr: 00, value: <7d> key: F2Ac, size: 02, type: fpe2, attr: 00, value: <0864> key: F3Tg, size: 01, type: ui8 , attr: 00, value: <02> key: F3St, size: 01, type: ui8 , attr: 00, value: <00> key: F3Ss, size: 01, type: ui8 , attr: 00, value: <00> key: F3Ft, size: 01, type: ui8 , attr: 00, value: <00> key: F3Pt, size: 01, type: ui8 , attr: 00, value: <00> key: F3Fo, size: 01, type: ui8 , attr: 00, value: <10> key: F3Ct, size: 01, type: ui8 , attr: 00, value: <ff> key: F4Tg, size: 01, type: ui8 , attr: 00, value: <30> key: F4St, size: 01, type: ui8 , attr: 00, value: <97> key: F4Ss, size: 01, type: ui8 , attr: 00, value: <40> key: F4Ft, size: 01, type: ui8 , attr: 00, value: <00> key: F4Pt, size: 01, type: ui8 , attr: 00, value: <00> key: F4Fo, size: 01, type: ui8 , attr: 00, value: <2b> key: F4Ct, size: 01, type: ui8 , attr: 00, value: <40> key: FMCL, size: 01, type: ui8 , attr: 00, value: <77> key: FMCR, size: 01, type: ui8 , attr: 00, value: <c7> key: TC0D, size: 02, type: sp78, attr: 00, value: <1e00> key: FRC0, size: 02, type: freq, attr: 00, value: <0a28> key: VC0C, size: 02, type: fp2e, attr: 00, value: <2f0a> key: TC1D, size: 02, type: sp78, attr: 00, value: <1d00> key: FRC1, size: 02, type: freq, attr: 00, value: <04b0> key: TC2D, size: 02, type: sp78, attr: 00, value: <1a00> key: FRC2, size: 02, type: freq, attr: 00, value: <04b0> key: TC3D, size: 02, type: sp78, attr: 00, value: <1a00> key: FRC3, size: 02, type: freq, attr: 00, value: <04b0> key: TC4D, size: 02, type: sp78, attr: 00, value: <1b00> key: FRC4, size: 02, type: freq, attr: 00, value: <04b0> key: TC5D, size: 02, type: sp78, attr: 00, value: <1c00> key: FRC5, size: 02, type: freq, attr: 00, value: <04b0> key: TC6D, size: 02, type: sp78, attr: 00, value: <1900> key: FRC6, size: 02, type: freq, attr: 00, value: <04b0> key: TC7D, size: 02, type: sp78, attr: 00, value: <1a00> key: FRC7, size: 02, type: freq, attr: 00, value: <04b0> key: TC8D, size: 02, type: sp78, attr: 00, value: <1d00> key: FRC8, size: 02, type: freq, attr: 00, value: <04b0> key: TC9D, size: 02, type: sp78, attr: 00, value: <1c00> key: FRC9, size: 02, type: freq, attr: 00, value: <04b0> key: TCAD, size: 02, type: sp78, attr: 00, value: <1d00> key: FRCA, size: 02, type: freq, attr: 00, value: <0a28> key: TCBD, size: 02, type: sp78, attr: 00, value: <1d00> key: FRCB, size: 02, type: freq, attr: 00, value: <04b0> key: TCCD, size: 02, type: sp78, attr: 00, value: <1a00> key: FRCC, size: 02, type: freq, attr: 00, value: <04b0> key: TCDD, size: 02, type: sp78, attr: 00, value: <1a00> key: FRCD, size: 02, type: freq, attr: 00, value: <04b0> key: TCED, size: 02, type: sp78, attr: 00, value: <1b00> key: FRCE, size: 02, type: freq, attr: 00, value: <04b0> key: TCFD, size: 02, type: sp78, attr: 00, value: <1c00> key: FRCF, size: 02, type: freq, attr: 00, value: <04b0> key: TCGD, size: 02, type: sp78, attr: 00, value: <1900> key: FRCG, size: 02, type: freq, attr: 00, value: <04b0> key: TCHD, size: 02, type: sp78, attr: 00, value: <1a00> key: FRCH, size: 02, type: freq, attr: 00, value: <04b0> key: MPkC, size: 02, type: ui16, attr: 00, value: <7800> key: TG0P, size: 02, type: sp78, attr: 00, value: <2900> key: QENA, size: 01, type: ui8 , attr: 00, value: <01> key: MSTS, size: 01, type: ui8 , attr: 00, value: <0d> key: MSPC, size: 01, type: ui8 , attr: 00, value: <0f> Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649381 Share on other sites More sharing options...
Andrey1970 Posted November 23, 2018 Share Posted November 23, 2018 36 minutes ago, vector sigma said: "Pakage Total" will work if you install VirtualSMC I at all did not know that these keys are not present in FakeSMC. It is necessary to ask @Slice, to add keys: CPU Package Core CPU Package GPU CPU Package Total Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649382 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 10 minutes ago, fabiosun said: Under POWER I see CPUs available is 32. OS APIs, they do what the kernel says to do. 1 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649384 Share on other sites More sharing options...
Guest Posted November 23, 2018 Share Posted November 23, 2018 Max Temperature and thresholds are not good in this case I think are influenced in a bad way from my multiplier overclock on bios (put manually at 39 instead of auto) In auto value I see correct values in that IPG tab Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649385 Share on other sites More sharing options...
Andrey1970 Posted November 23, 2018 Share Posted November 23, 2018 @vector sigma That there was no confusion, it is necessary to rename group "IPG info" in "Reference info". Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649386 Share on other sites More sharing options...
vector sigma Posted November 23, 2018 Share Posted November 23, 2018 11 minutes ago, Andrey1970 said: @vector sigma That there was no confusion, it is necessary to rename group "IPG info" in "Reference info". I have another idea: HWMonitorSMC2.app.zip 35 minutes ago, fabiosun said: Max Temperature and thresholds are not good in this case I think are influenced in a bad way from my multiplier overclock on bios (put manually at 39 instead of auto) In auto value I see correct values in that IPG tab Bro, they are as they are declared by Intel, nothing you can do. 2 Link to comment https://www.insanelymac.com/forum/topic/299861-hwsensors3/page/61/#findComment-2649387 Share on other sites More sharing options...
