[Tuto] QE_CI Exotic Patch via Clover

86 posts in this topic

Recommended Posts

-----------------------------

Mise à jour 12/07/2018

-----------------------------



La sortie de macOS 10.14 Beta m'oblige à mettre ce topic à jour. Plus de détails dans ce post.



Capture d’écran 2018-07-13 à 03.45.57.png






-----------------------------

Mise à jour 09/06/2017



-----------------------------

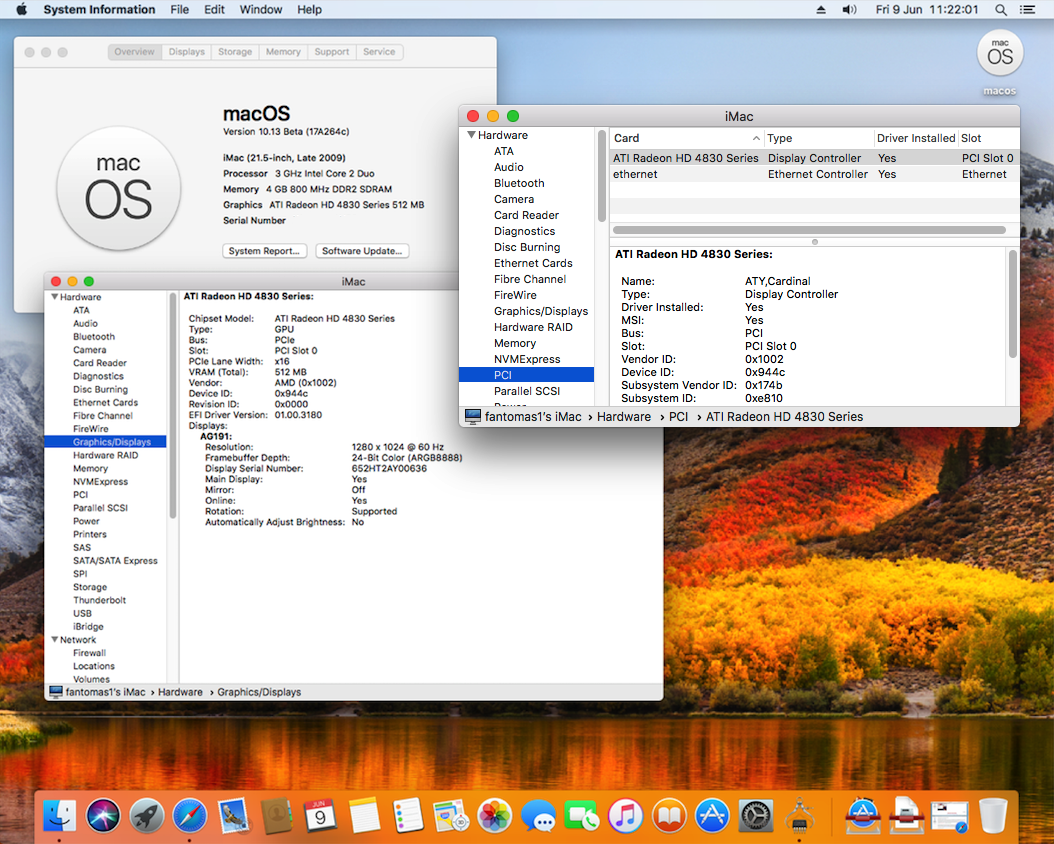

La sortie de macOS 10.13 Beta m'oblige à mettre ce topic à jour. Plus de détails dans ce post.











-----------------------------

Mise à jour 15/06/2016

-----------------------------

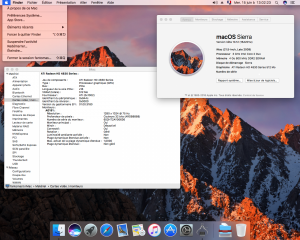

Une petite mise à jour du topic pour confirmer le bon fonctionnement du patch à la volé de Clover (r3561) avec macOS Sierra.











-----------------------------

Mise à jour 24/08/2015

-----------------------------



ok, très bien,



comme pour la HD6770, la nouvelle méthode du patch à la volé est de nouveau fonctionnel et avec les dernières versions de Clover.

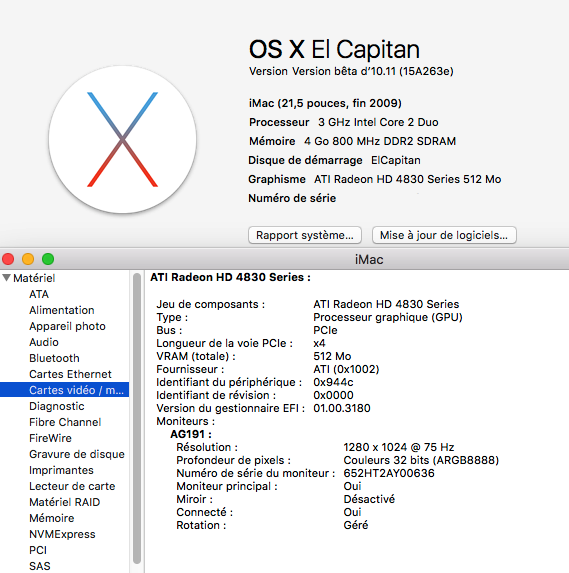

pour ma part, je suis sur El Capitan DB7 et Clover r3259



post-193719-0-12403300-1440445282_thumb.





par contre, je suis toujours obligé de m’aider de l’astuce avec FakeSMC pour que mes kexts soient toujours chargés, mais au moins cela marche.    :)









iMac:~ fantomas1$ kextstat |grep AMD

   50    2 0xffffff7f82254000 0x125000   0x125000   com.apple.kext.AMDSupport (1.3.6) 39F651CE-4D8C-3F07-AA1A-DA5E31560DB5

   51    0 0xffffff7f823bc000 0x17f000   0x17f000   com.apple.kext.AMD4800Controller (1.3.6) 5E857144-9C17-3942-BBD6-EA0BF7A16400

   65    0 0xffffff7f82387000 0x22000    0x22000    com.apple.kext.AMDFramebuffer (1.3.6) 56B10DD0-F2F5-352D-90CC-F21BA40DE828

iMac:~ fantomas1$ kextstat |grep ATI

   58    0 0xffffff7f8199d000 0x230000   0x230000   com.apple.ATIRadeonX2000 (10.0.0) 11CD5686-6CFF-3FD7-9D4C-6166FA4FA130

iMac:~ fantomas1$ ioreg |grep ATY

    | |   |   | +-o ATY,Cardinal@0

    | |   |   | | +-o ATY_Cardinal

    | |   |   | +-o ATY,Cardinal@1

    | |   |   | | +-o ATY_Cardinal

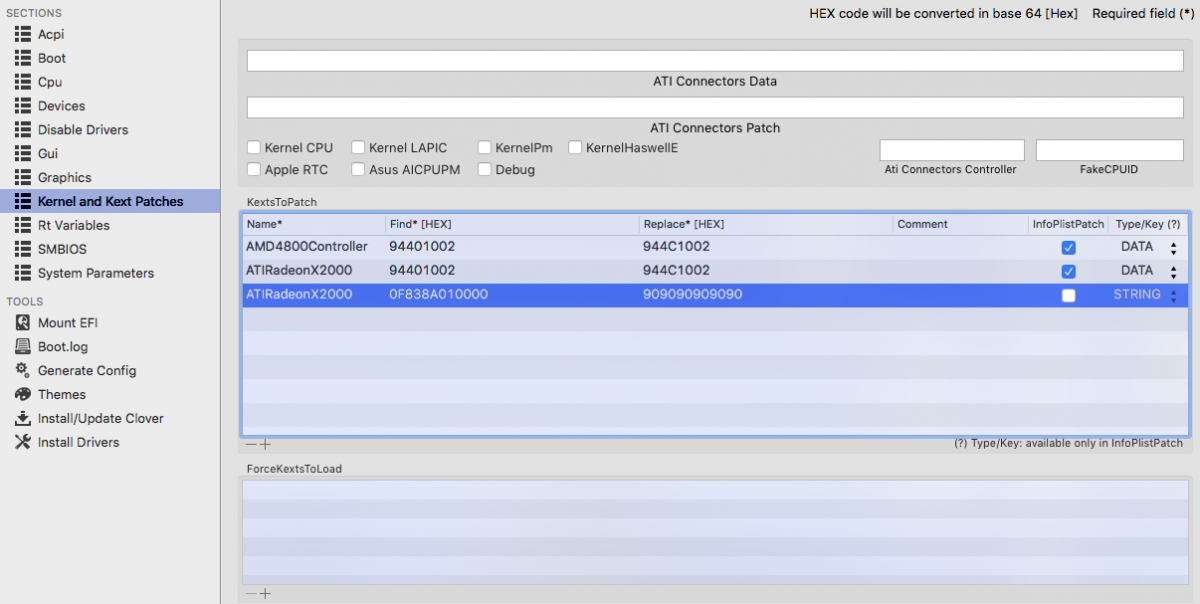

et pour config.plist, cela donne ça :



post-193719-0-74278400-1440445582_thumb.





ceci est juste un exemple avec ma HD4830, il va de soi que vous devez mettre Device-ID de votre carte graphique !!!












Salut à tou(te)s



Comme certain(e)s le savent, les cartes graphiques dites "Exotiques" ne sont pas supportés par le système d'exploitation d'Apple.

En sus d'ajouter l'identifient de la carte graphique (Device ID) dans l'Info.plist du ou des kexts concernés, il faut aussi interagir sur la partie "binaire" du kext par le biais du "patching".



Dans notre cas, les cartes graphiques exotiques sont les cartes AMD (anciennement ATI) de la série HD 48xx, et plus précisément les HD 4830, HD4850, HD4870x2 et HD4890.*



Donc le but est de faire fonctionner ces cartes graphiques de manière stable et fluide en activant QE_CI, chose nécessaire pour en profiter pleinement du système d'exploitation.



Juste avant de commencer, vous l'avez peut-être remarqué, la HD4870 n'est pas sur la liste suscitée et pour cause c'est que cette carte graphique est nativement supportée par le système d'exploitation d'Apple. Son Device ID est 0x94401002 que vous pouvez trouvé dans l'Info.plist des kexts concernés et c'est celui-ci que nous allons utiliser afin de le remplacer par le Device ID de notre carte graphique.



** Ce tuto est fait pour fonctionner sous OS X Mavericks, mais il doit fonctionner aussi avec les autres. La seule chose différente c'est l'adresse binaire à patcher.






Très bien, comme le titre le suggère, nous allons voir comment faire reconnaître ces cartes graphiques sous Clover et obtenir par la même un QE_CI activé et parfaitement fonctionnelle.



Je vais utiliser ma Sapphire HD4830 512 MB GDDR3 PCI-E (comme cobaye   :dev: ) pour ce test et qui a pour Device ID 0x944c1002.



Pour que ce test réussisse, nous allons donc utiliser ces 2 kexts, à savoir AMD4800Controller.kext (pour la partie QE) et ATIRadeonX2000.kext (pour la partie CI) et allons ajouter notre Device ID dans l'Info.plist. via le tweak "KernelAndKextPatches"



Donc les valeurs à entrer dans notre config.plist sont celle-ci :

<key>KernelAndKextPatches</key>
    <array>
        <dict>
            <key>Name</key>
            <string>AMD4800Controller</string>
            <key>InfoPlistPatch</key>
            <string>Yes</string>
            <key>Find</key>
            <string>0x94401002</string>
            <key>Replace</key>
            <string>0x944C1002</string>
        </dict>
        <dict>
            <key>Name</key>
            <string>ATIRadeonX2000</string>
            <key>InfoPlistPatch</key>
            <string>Yes</string>
            <key>Find</key>
            <string>0x94401002</string>
            <key>Replace</key>
            <string>0x944C1002</string>
        </dict>
    </array>

Comme vous pouvez le voir, la clé "InfoPlistPatch" sert à injecter notre Device ID "uniquement" dans Info.plist, sans y toucher à la partie "binaire" de nos kexts. La clé "Find" a pour fonction de trouver le Device ID que l'on veut remplacer par le notre en utilisant la clé "Replace".



Très bien, maintenant comme nous l'avons dit au début de ce tutoriel, ajouter notre Device ID n'est pas suffisant pour faire fonctionner pleinement notre carte graphique, il faut encore interagir sur la partie "binaire" de nos kexts. Dans notre cas, il va falloir agir uniquement sur un kext, çàd sur ATIRadeonX2000.kext et plus particulièrement sur ATIRadeonX2000.kext/Contents/MacOS/ATIRadeonX2000



Et pour cela, nous allons faire comme ceci :

<key>KextsToPatch</key>
<array>
<dict>
    <key>Name</key>
    <string>ATIRadeonX2000</string>
    <key>Find</key>
    <data>0F8394010000</data>
    <key>Replace</key>
    <data>909090909090</data>
</dict>
</array>

Là nous pouvons voir que la clé "InfoPlistPatch" n'est pas utilisée et donc ces valeurs n'auront aucun effet sur l'Info.plist mais agiront uniquement au niveau de la partie "binaire".



Et voici les valeurs en leur forme complète que vous devrez ajouter dans votre config.plist

<key>KernelAndKextPatches</key>
    <array>
        <dict>
            <key>Name</key>
            <string>AMD4800Controller</string>
            <key>InfoPlistPatch</key>
            <string>Yes</string>
            <key>Find</key>
            <string>0x94401002</string>
            <key>Replace</key>
            <string>0x944C1002</string>
        </dict>
        <dict>
            <key>Name</key>
            <string>ATIRadeonX2000</string>
            <key>InfoPlistPatch</key>
            <string>Yes</string>
            <key>Find</key>
            <string>0x94401002</string>
            <key>Replace</key>
            <string>0x944C1002</string>
        </dict>
        <dict>
            <key>Name</key>
            <string>ATIRadeonX2000</string>
            <key>Find</key>
            <data>0F8394010000</data>
            <key>Replace</key>
            <data>909090909090</data>
       </dict>
    </array>

Très bien, maintenant il ne nous reste plus qu'à autoriser l'injection des kexts, sans quoi le patch ne fonctionnera pas. Et nous allons le faire via le tweak "InjectKexts" comme ceci :

<key>SystemParameters</key>    --> clé principale
<dict>
      <key>InjectSystemID</key>
      <true/>
      <key>InjectKexts</key>   --> sous clé
      <string>Yes</string>
</dict>






Si certain(e)s d'entre vous préfèrent utiliser le logiciel "Clover Configurator" pour plus de facilité, voici comment entrer ces valeurs :

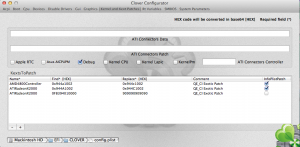

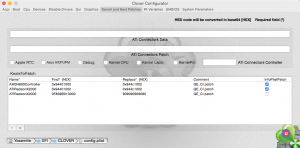

Allez sur l'onglet "Kernel And Kext Patches" et faites comme ceci :






*Ne faites pas attention sur le majuscule/minuscule, cela ne fait aucune différence

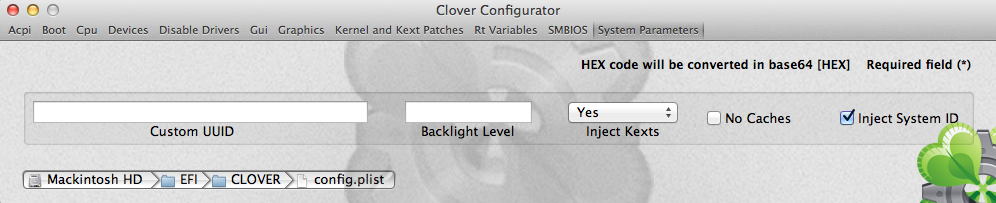

Et pour injecter les kexts, aller sur l'onglet "System Parameters" et mettez l'option Inject Kexts sur Yes comme ceci :








Voilà, vous n'avez plus qu'à enregistrer les ajustements, redémarrer votre pc et apprécier le résultat.






MAIS ... seulement voilà ... il y a un problème ...



Quoi ?



Initialement, les kexts ne sont pas présents dans le kernelcache à cause de "OSBundleRequired=Safe Boot" (ils ne sont pas chargés en local par défaut mais en mode sans échec) et donc le patchage "à la volé" (on the fly) ne fonctionnera pas.



Donc quoi, tout ça pour rien ?



Non, bien-sûr, voici l'astuce pour remédier à cela :



Dans un premier temps, il vous faut booter l'OS sans kernelcache. Si vous utiliser Clover Configurator, il vous suffit juste de cocher l'option "No Caches" dans l'onglet "System and Parameters" ou bien vous le faites directement dans votre config.plist :

<key>SystemParameters</key>
<dict>
      <key>InjectSystemID</key>
      <true/>
      <key>InjectKexts</key>
      <string>Yes</string>
      <key>NoCaches</key>
      <true/>
</dict>

Ceci aura donc pour effet de bloquer kernelcache et obliger boot.efi de charger le kernel et les kexts séparément. Clover et FSInject vont ensuite intercepter tous les chargements des kexts par boot.efi et changer "OSBundleRequired=Safe Boot" en "OSBundleRequired=Root" à la volé (on the fly) et forceront boot .efi à charger les kexts. Et ensuite dans un second temps, Clover va patcher l'Info.plist de ces deux kexts et la partie binaire de ATIRadeonX2000, kernel va les charger et ils seront rattachés à votre carte graphique.



Une fois ceci fait (donc les kexts utilisés), il vous suffit de faire sudo touch /System/Library/Extensions. Ceci créera un nouveau kernelcache qui cette fois-ci contiendra vos kexts utilisés. Ensuite il ne vous reste plus qu'à redémarrer normalement (en décochant l'option No Caches dans Clover Configurator) et le patch fonctionnera à merveille.






Oui, mais ... là aussi ...



Quoi encore ?



Seulement voilà, pour une raison ou une autre, il peut arriver que kernelcache se reconstruit tout seul et le patch "à la volé" ne fonctionne plus.



Alors je fais quoi moi en attendant ?



L'astuce la plus efficace pour le moment est d'injecter les infos de vos kexts à l'intérieur de l'Info.plist de FakeSMC.kext comme des IOKitPersonalities additionnels.



????Kézako????



Ces infos vous les trouverez dans l'Info.plist de ces 2 kexts, sous IOKitPersonalities. Les voici :



Pour AMD4800Controller.kext

<key>Controller</key>
<dict>
        <key>ATY,Cardinal</key>
        <dict>
                <key>aty_config</key>
                <dict>
                        <key>CFG_NO_PP</key>
                        <true/>
                </dict>
         </dict>
         <key>CFBundleIdentifier</key>
         <string>com.apple.kext.AMD4800Controller</string>
         <key>IOClass</key>
         <string>AMD4800Controller</string>
         <key>IOMatchCategory</key>
         <string>IOFramebuffer</string>
         <key>IOName</key>
         <string>AMD4800Controller</string>
         <key>IOPCIMatch</key>
         <string>0x94401002 0x944a1002</string>
         <key>IOProbeScore</key>
         <integer>65050</integer>
         <key>IOProviderClass</key>
         <string>IOPCIDevice</string>
         <key>aty_config</key>
         <dict>
                 <key>CFG_NO_PP</key>
                 <false/>
                 <key>CFG_PAA</key>
                 <integer>0</integer>
                 <key>CFG_USE_USCN</key>
                 <false/>
         </dict>
         <key>aty_properties</key>
         <dict>
                 <key>PP_GFXClockGatingEnabled</key>
                 <integer>1</integer>
         </dict>
</dict>

Et pour ATIRadeonX2000.kext

<key>ATIRadeonX2000</key>
<dict>
        <key>ATIEnableWideBlitSupport</key>
        <true/>
        <key>ATIUseTearingWideBlit</key>
        <false/>
        <key>CFBundleIdentifier</key>
        <string>com.apple.ATIRadeonX2000</string>
        <key>GpuDebugPolicy</key>
        <integer>0</integer>
        <key>IOCFPlugInTypes</key>
        <dict>
                <key>ACCF0000-0000-0000-0000-000a2789904e</key>
                <string>ATIRadeonX2000GA.plugin</string>
        </dict>
        <key>IOClass</key>
        <string>ATIRadeonX2000</string>
        <key>IODVDBundleName</key>
        <string>ATIRadeonX2000VADriver</string>
        <key>IOKitDebug</key>
        <integer>0</integer>
        <key>IOMatchCategory</key>
        <string>IOAccelerator</string>
        <key>IOPCIMatch</key>
        <string>0x94001002 0x94011002 0x94021002 0x94031002 0x95811002 0x95831002 0x95881002 0x94c81002 0x94c91002 0x95001002 0x95011002 0x95051002 0x95071002 0x95041002 0x95061002 0x95981002 0x94881002 0x95991002 0x95911002 0x95931002 0x94401002 0x94421002 0x944A1002 0x945A1002 0x94901002 0x949E1002 0x94801002 0x95401002 0x95411002 0x954E1002 0x954F1002 0x95521002 0x95531002 0x94a01002</string>
        <key>IOProviderClass</key>
        <string>IOPCIDevice</string>
        <key>IOSourceVersion</key>
        <string>8.24.11</string>
        <key>IOVARendererID</key>
        <integer>16908288</integer>
        <key>sensor-properties</key>
        <array>
                <dict>
                       <key>device_type</key>
                       <data>
                       Z3B1LXNlbnNvcg==
                       </data>
                       <key>location</key>
                       <string>GPU</string>
                       <key>name</key>
                       <string>gpu-sensor</string>
                       <key>polling-period</key>
                       <data>
                       AAAAAQAAAAA=
                       </data>
                       <key>reg</key>
                       <data>
                       AAAAAg==
                       </data>
                       <key>sample-period</key>
                       <data>
                       AAAAAACYmAA=
                       </data>
                       <key>sensor-id</key>
                       <data>
                       AAAABg==
                       </data>
                       <key>version</key>
                       <data>
                       AAAAAg==
                       </data>
                       <key>zone</key>
                       <data>
                       AAAAAg==
                       </data>
               </dict>
       </array
</dict>



Et voici donc l'Info.plist de FakeSMC.kext dans son intégrité, vous pouvez jeter un oeil, histoire de voir à quoi cela ressemble :



FakeSMC_Info.plist.zip



Et pour les moins casse-têtes, voici FakeSMC.kext modifié que j'utilise pour charger les 2 kexts :



FakeSMC.kext.zip





Voilà, avec ceci, vous n'aurez plus besoin de savoir si oui ou non les kexts sont dans le kernelcache.






Crédits attribués à :



netkas  pour son incontournable QE_CI Exotic patch (même s'il n'importe plus son support)



Slice  & co. pour leur bébé nommé Clover



dmazar  pour son astuce avec FakeSMC.kext   (pour plus d'info, voir ici)



duffs (rarement ici, plus sur le site de netkas) pour son astuce de comment patcher la partie binaire avec Clover, ce fût lors de la sortie de OS X Mavericks DP1



nyolc8  pour le support de QE_CI Exotic patch pour Mavericks



fantomas1  pour ......... pour ... quoi déjà ? Ah ben non ... non ... pour rien ...

Edited by fantomas1
topic mis à jour le 12/07/2018

Share this post


Link to post
Share on other sites
Advertisement

i tired but really that AMD4800controller doesn't load,,

even i can see them injecting

0:760  0:000  KextToPatch 1: ATIRadeonX2000 (QE CI PATCH) Info.plist patch, data len: 10
0:760  0:000  KextToPatch 2: AMD4800Controller (QE CI PATCH) Info.plist patch, data len: 10
0:760  0:000  KextToPatch 3: ATIRadeonX2000 (QE CI PATCH) Kext bin patch, data len: 6

but AMD4800Controller doesn't load actually ( using nocache=Yes)



maybe this is a problem

6:925  0:000  FSInjection: blocking caches, using kexts path: 'EFI\CLOVER\kexts\10.9'

Share this post


Link to post
Share on other sites

Yes that would be awesome if u can check my pc using teamviewer



some progress thanks to you


now AMD4800controller is loaded but AMDframebuffer is not loaded lol :)

Share this post


Link to post
Share on other sites

:)



Aller !! je relance le débat , hormis  Chameleon ou Clover , j'ai toujours le problème récurent du rafraichissement , étant motivé pour résoudre ce problème depuis 2010 !! la patience est une vertu parait-il ?! :D , j'en suis au  device id 0x94421002  écrit dans info.plist du AMDController4800.kext , il y a bien une solution quand même ?  cette 4850 1024 mérite que l'on se casse la tête non ?







* Intel ACPI Component Architecture
 * AML Disassembler version 20091214
 *
 * Disassembly of ./dsdt.aml, Sun Mar 30 03:31:54 2014
 *
 *
 * Original Table Header:
 *     Signature        "DSDT"
 *     Length           0x00004A26 (18982)
 *     Revision         0x01 **** ACPI 1.0, no 64-bit math support
 *     Checksum         0x0A
 *     OEM ID           "GBT   "
 *     OEM Table ID     "GBTUACPI"
 *     OEM Revision     0x00001000 (4096)
 *     Compiler ID      "INTL"
 *     Compiler Version 0x20120420 (538051616)
 */
DefinitionBlock ("./dsdt.aml", "DSDT", 1, "GBT   ", "GBTUACPI", 0x00001000)
{
    Scope (_PR)
    {
        Processor (CPU0, 0x00, 0x00000410, 0x06) {}
        Processor (CPU1, 0x01, 0x00000410, 0x06) {}
        Processor (CPU2, 0x02, 0x00000410, 0x06) {}
        Processor (CPU3, 0x03, 0x00000410, 0x06) {}
        Processor (CPU4, 0x04, 0x00000410, 0x06) {}
        Processor (CPU5, 0x05, 0x00000410, 0x06) {}
        Processor (CPU6, 0x06, 0x00000410, 0x06) {}
        Processor (CPU7, 0x07, 0x00000410, 0x06) {}
    }

    Name (_S0, Package (0x04)
    {
        Zero,
        Zero,
        Zero,
        Zero
    })
    Name (SS1, Package (0x04)
    {
        One,
        Zero,
        Zero,
        Zero
    })
    Name (_S3, Package (0x04)
    {
        0x05,
        Zero,
        Zero,
        Zero
    })
    Name (_S4, Package (0x04)
    {
        0x06,
        Zero,
        Zero,
        Zero
    })
    Name (_S5, Package (0x04)
    {
        0x07,
        Zero,
        Zero,
        Zero
    })
    Name (FLAG, Zero)
    Name (STAT, Zero)
    OperationRegion (SMOD, SystemMemory, 0x000FF840, One)
    Field (SMOD, ByteAcc, NoLock, Preserve)
    {
            ,   7,
        SUSF,   1
    }

    OperationRegion (LBOC, SystemMemory, 0x000FF820, 0x02)
    Field (LBOC, ByteAcc, NoLock, Preserve)
    {
        UBMC,   1,
                Offset (0x02)
    }

    OperationRegion (DEBG, SystemIO, 0x80, One)
    Field (DEBG, ByteAcc, NoLock, Preserve)
    {
        DBG1,   8
    }

    OperationRegion (RCRB, SystemMemory, 0xFED1C000, 0x4000)
    Field (RCRB, DWordAcc, Lock, Preserve)
    {
                Offset (0x3404),
            ,   7,
        HPTF,   1
    }

    OperationRegion (ELKM, SystemMemory, 0x000FFFEA, One)
    Field (ELKM, ByteAcc, NoLock, Preserve)
    {
            ,   1,
            ,   1,
        ELSO,   1,
            ,   1,
            ,   1,
            ,   1,
            ,   1
    }

    OperationRegion (EXTM, SystemMemory, 0x000FF830, 0x10)
    Field (EXTM, WordAcc, NoLock, Preserve)
    {
        ROM1,   16,
        RMS1,   16,
        ROM2,   16,
        RMS2,   16,
        ROM3,   16,
        RMS3,   16,
        AMEM,   32
    }

    OperationRegion (SMIC, SystemIO, 0xB2, One)
    Field (SMIC, ByteAcc, NoLock, Preserve)
    {
        SCP,    8
    }

    OperationRegion (TCOI, SystemIO, 0x0460, 0x08)
    Field (TCOI, WordAcc, NoLock, Preserve)
    {
                Offset (0x04),
            ,   9,
        SCIS,   1,
                Offset (0x06)
    }

    OperationRegion (GP2C, SystemIO, 0x042C, 0x02)
    Field (GP2C, ByteAcc, NoLock, Preserve)
    {
        G2C1,   8,
        G2C2,   8
    }

    OperationRegion (APMP, SystemIO, 0xB2, 0x02)
    Field (APMP, ByteAcc, NoLock, Preserve)
    {
        APMC,   8,
        APMD,   8
    }

    OperationRegion (AGPS, SystemIO, 0x0438, 0x04)
    Field (AGPS, ByteAcc, NoLock, Preserve)
    {
        GPSE,   16,
        GPSS,   16
    }

    OperationRegion (GPCN, SystemIO, 0x0442, One)
    Field (GPCN, ByteAcc, NoLock, Preserve)
    {
            ,   1,
        SWGC,   1,
                Offset (0x01)
    }

    Name (OSFX, One)
    Name (LINX, Zero)
    Name (AMAC, Zero)
    Name (OSFL, One)
    Method (STRC, 2, NotSerialized)
    {
        If (LNotEqual (SizeOf (Arg0), SizeOf (Arg1)))
        {
            Return (Zero)
        }

        Add (SizeOf (Arg0), One, Local0)
        Name (BUF0, Buffer (Local0) {})
        Name (BUF1, Buffer (Local0) {})
        Store (Arg0, BUF0)
        Store (Arg1, BUF1)
        While (Local0)
        {
            Decrement (Local0)
            If (LNotEqual (DerefOf (Index (BUF0, Local0)), DerefOf (Index (
                BUF1, Local0))))
            {
                Return (Zero)
            }
        }

        Return (One)
    }

    OperationRegion (INFO, SystemMemory, 0x000FF840, One)
    Field (INFO, ByteAcc, NoLock, Preserve)
    {
        KBDI,   1,
        RTCW,   1,
        PS2F,   1,
        IRFL,   2,
        DISE,   1,
        SSHU,   1
    }

    Scope (\)
    {
        Name (PICF, Zero)
        Method (_PIC, 1, NotSerialized)
        {
            Store (Arg0, PICF)
        }
    }

    Method (_PTS, 1, NotSerialized)
    {
        Or (Arg0, 0xF0, Local0)
        Store (Local0, DBG1)
        OSTP ()
        Or (Arg0, 0xF0, Local0)
        Store (Local0, DBG1)
        If (LEqual (Arg0, One)) {}
        If (LEqual (Arg0, 0x03)) {}
        If (LEqual (Arg0, 0x05))
        {
            Store (0x99, SMIP)
        }

        If (LEqual (Arg0, 0x04))
        {
            If (LNot (PICF))
            {
                Sleep (0x64)
            }
        }
    }

    Method (_WAK, 1, NotSerialized)
    {
        Store (0xFF, DBG1)
        If (LEqual (Arg0, 0x04))
        {
            If (LEqual (OSFL, One))
            {
                Store (0x56, SMIP)
            }

            If (LEqual (OSFL, 0x02))
            {
                Store (0x57, SMIP)
            }

            If (LEqual (OSFL, Zero))
            {
                Store (0x58, Local0)
                If (LEqual (OSFX, 0x03))
                {
                    Store (0x59, Local0)
                }

                If (LEqual (OSFX, 0x05))
                {
                    Store (0x5B, Local0)
                }

                If (LEqual (OSFX, 0x07))
                {
                    Store (0x5D, Local0)
                }

                Store (Local0, SMIP)
            }
        }

        If (LEqual (Arg0, One)) {}
        If (OSFL)
        {
            Notify (\_SB.PWRB, 0x02)
        }
        Else
        {
            If (LEqual (RTCW, Zero))
            {
                Notify (\_SB.PWRB, 0x02)
            }
        }
    }

    Scope (_SI)
    {
        Method (_MSG, 1, NotSerialized)
        {
            Store ("Local0", Local0)
        }

        Method (_SST, 1, NotSerialized)
        {
            Store ("Local0", Local0)
        }
    }

    Scope (_GPE)
    {
        Method (_L08, 0, NotSerialized)
        {
            Notify (\_SB.PCI0.PX40.UAR1, 0x02)
        }

        Method (_L06, 0, NotSerialized)
        {
            If (\_SB.PCI0.IGD0.GSSE)
            {
                \_SB.PCI0.IGD0.OPRN ()
            }
            Else
            {
                Store (One, SCIS)
            }
        }

        Method (_L0D, 0, NotSerialized)
        {
            Notify (\_SB.PCI0.USBE, 0x02)
            Notify (\_SB.PCI0.USE2, 0x02)
            Notify (\_SB.PWRB, 0x02)
            Notify (\_SB.PCI0.AZAL, 0x02)
        }

        Method (_L0B, 0, NotSerialized)
        {
            Notify (\_SB.PCI0.HUB0, 0x02)
        }

        Method (_L09, 0, NotSerialized)
        {
            Notify (\_SB.PCI0.PEX0, 0x02)
            Notify (\_SB.PCI0.PEX1, 0x02)
            Notify (\_SB.PCI0.PEX2, 0x02)
            Notify (\_SB.PCI0.PEX3, 0x02)
            Notify (\_SB.PCI0.PEX4, 0x02)
            Notify (\_SB.PCI0.PEX5, 0x02)
            Notify (\_SB.PCI0.PEX6, 0x02)
            Notify (\_SB.PCI0.PEX7, 0x02)
        }
    }

    Scope (_SB)
    {
        Device (PWRB)
        {
            Name (_HID, EisaId ("PNP0C0C"))
            Method (_STA, 0, NotSerialized)
            {
                Return (0x0B)
            }
        }

        Device (PCI0)
        {
            Name (_HID, EisaId ("PNP0A03"))
            Name (_ADR, Zero)
            Name (_UID, One)
            Name (_BBN, Zero)
            OperationRegion (MMDR, PCI_Config, 0x90, 0x30)
            Scope (\)
            {
                Field (\_SB.PCI0.MMDR, AnyAcc, NoLock, Preserve)
                {
                            Offset (0x08),
                            Offset (0x10),
                            Offset (0x18),
                            Offset (0x20),
                    SMBD,   32,
                    SMBG,   32,
                    TSMB,   32,
                    TLUD,   32
                }
            }

            Method (_S3D, 0, NotSerialized)
            {
                If (LEqual (OSFL, 0x02))
                {
                    Return (0x02)
                }
                Else
                {
                    Return (0x03)
                }
            }

            Method (_STA, 0, NotSerialized)
            {
                Return (0x0F)
            }

            Method (_CRS, 0, NotSerialized)
            {
                Name (BUF0, ResourceTemplate ()
                {
                    WordBusNumber (ResourceConsumer, MinNotFixed, MaxNotFixed, PosDecode,
                        0x0000,             // Granularity
                        0x0000,             // Range Minimum
                        0x003F,             // Range Maximum
                        0x0000,             // Translation Offset
                        0x0040,             // Length
                        ,, )
                    IO (Decode16,
                        0x0CF8,             // Range Minimum
                        0x0CF8,             // Range Maximum
                        0x01,               // Alignment
                        0x08,               // Length
                        )
                    WordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                        0x0000,             // Granularity
                        0x0000,             // Range Minimum
                        0x0CF7,             // Range Maximum
                        0x0000,             // Translation Offset
                        0x0CF8,             // Length
                        ,, , TypeStatic)
                    WordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                        0x0000,             // Granularity
                        0x0D00,             // Range Minimum
                        0xFFFF,             // Range Maximum
                        0x0000,             // Translation Offset
                        0xF300,             // Length
                        ,, , TypeStatic)
                    DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                        0x00000000,         // Granularity
                        0x000A0000,         // Range Minimum
                        0x000BFFFF,         // Range Maximum
                        0x00000000,         // Translation Offset
                        0x00020000,         // Length
                        ,, , AddressRangeMemory, TypeStatic)
                    DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                        0x00000000,         // Granularity
                        0x000C0000,         // Range Minimum
                        0x000DFFFF,         // Range Maximum
                        0x00000000,         // Translation Offset
                        0x00020000,         // Length
                        ,, , AddressRangeMemory, TypeStatic)
                    DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                        0x00000000,         // Granularity
                        0xFED40000,         // Range Minimum
                        0xFED44FFF,         // Range Maximum
                        0x00000000,         // Translation Offset
                        0x00005000,         // Length
                        ,, , AddressRangeMemory, TypeStatic)
                    DWordMemory (ResourceProducer, PosDecode, MinFixed, MaxFixed, Cacheable, ReadWrite,
                        0x00000000,         // Granularity
                        0x00100000,         // Range Minimum
                        0xFEBFFFFF,         // Range Maximum
                        0x00000000,         // Translation Offset
                        0xFEB00000,         // Length
                        ,, _Y00, AddressRangeMemory, TypeStatic)
                })
                CreateDWordField (BUF0, \_SB.PCI0._CRS._Y00._MIN, TCMM)
                CreateDWordField (BUF0, \_SB.PCI0._CRS._Y00._LEN, TOMM)
                Store (TLUD, TCMM)
                Subtract (0xFEC00000, TCMM, TOMM)
                Return (BUF0)
            }

            Name (PICM, Package (0x1F)
            {
                Package (0x04)
                {
                    0x0002FFFF,
                    Zero,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    One,
                    LNKB,
                    Zero
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    0x03,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    Zero,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    One,
                    LNKB,
                    Zero
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    0x03,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001BFFFF,
                    Zero,
                    LNK0,
                    Zero
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    Zero,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    One,
                    LNKB,
                    Zero
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    0x03,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    Zero,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    One,
                    LNKB,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x03,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    Zero,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    One,
                    LNKB,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x03,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    Zero,
                    LNK1,
                    Zero
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    One,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    0x03,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    One,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    One,
                    LNKD,
                    Zero
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    0x02,
                    LNKC,
                    Zero
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    Zero,
                    LNKA,
                    Zero
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    One,
                    LNKF,
                    Zero
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    0x02,
                    LNKC,
                    Zero
                }
            })
            Name (APIC, Package (0x23)
            {
                Package (0x04)
                {
                    0x0002FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x0002FFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x0016FFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001BFFFF,
                    Zero,
                    Zero,
                    0x16
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x0001FFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x0006FFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x0006FFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x0006FFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x0006FFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    One,
                    Zero,
                    0x11
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001CFFFF,
                    0x03,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    Zero,
                    Zero,
                    0x17
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001DFFFF,
                    0x03,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    One,
                    Zero,
                    0x13
                },

                Package (0x04)
                {
                    0x001FFFFF,
                    0x02,
                    Zero,
                    0x12
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    Zero,
                    Zero,
                    0x10
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    One,
                    Zero,
                    0x15
                },

                Package (0x04)
                {
                    0x001AFFFF,
                    0x02,
                    Zero,
                    0x12
                }
            })
            Method (_PRT, 0, NotSerialized)
            {
                If (LNot (PICF))
                {
                    Return (PICM)
                }
                Else
                {
                    Return (APIC)
                }
            }

            Device (IGD0)
            {
                Name (_ADR, 0x00020000)
                OperationRegion (IGDP, PCI_Config, 0x40, 0xC0)
                Field (IGDP, AnyAcc, NoLock, Preserve)
                {
                            Offset (0x12),
                        ,   1,
                    GIVD,   1,
                        ,   2,
                    GUMA,   3,
                            Offset (0x14),
                        ,   4,
                    GMFN,   1,
                            Offset (0x18),
                    SSRW,   32,
                            Offset (0xA4),
                    ASLE,   8,
                            Offset (0xA8),
                    GSSE,   1,
                    GSSB,   14,
                    GSES,   1,
                            Offset (0xB0),
                            Offset (0xB1),
                    CDVL,   5,
                            Offset (0xB2),
                            Offset (0xBC),
                    ASLS,   32
                }

                OperationRegion (IGDM, SystemMemory, 0xFFFF0000, 0x2040)
                Field (IGDM, AnyAcc, NoLock, Preserve)
                {
                    SIGN,   128,
                    SIZE,   32,
                    OVER,   32,
                    SVER,   256,
                    VVER,   128,
                    GVER,   128,
                    MBOX,   32,
                            Offset (0x100),
                    DRDY,   32,
                    CSTS,   32,
                    CEVT,   32,
                            Offset (0x120),
                    DIDL,   256,
                    CPDL,   256,
                    CADL,   256,
                    NADL,   256,
                    ASLP,   32,
                    TIDX,   32,
                    CHPD,   32,
                    CLID,   32,
                    CDCK,   32,
                    SXSW,   32,
                    EVTS,   32,
                    CNOT,   32,
                    NRDY,   32,
                            Offset (0x200),
                    SCIE,   1,
                    GEFC,   4,
                    GXFC,   3,
                    GESF,   8,
                            Offset (0x204),
                    PARM,   32,
                    DSLP,   32,
                            Offset (0x300),
                    ARDY,   32,
                    ASLC,   32,
                    TCHE,   32,
                    ALSI,   32,
                    BCLP,   32,
                    PFIT,   32,
                            Offset (0x400),
                    GVD1,   57344,
                    IBTT,   8,
                    IPAT,   8,
                    ITVF,   8,
                    ITVM,   8,
                    IPSC,   8,
                    IBLC,   8,
                    IBIA,   8,
                    ISSC,   8,
                    I409,   8,
                    I509,   8,
                    I609,   8,
                    I709,   8,
                    IDMM,   8,
                    IDMS,   8,
                    IF1E,   8,
                    GSMI,   8,
                    HVCO,   8,
                    LIDS,   8,
                    CGCS,   16
                }

                Name (DBTB, Package (0x11)
                {
                    Zero,
                    One,
                    0x02,
                    0x03,
                    0x04,
                    0x05,
                    0x06,
                    0x07,
                    0x08,
                    0x09,
                    0x0A,
                    0x10,
                    0x11,
                    0x12,
                    0x13,
                    0x14,
                    0xFF
                })
                Name (SUCC, One)
                Name (NVLD, 0x02)
                Name (CRIT, 0x04)
                Name (NCRT, 0x06)
                Method (OPRN, 0, Serialized)
                {
                    Method (GBDA, 0, Serialized)
                    {
                        If (LEqual (GESF, Zero))
                        {
                            Store (Zero, PARM)
                            Or (PARM, One, PARM)
                            Or (PARM, 0x08, PARM)
                            Or (PARM, 0x10, PARM)
                            Or (PARM, 0x20, PARM)
                            Or (PARM, 0x40, PARM)
                            Or (PARM, 0x0200, PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, One))
                        {
                            Store (0x0240, PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x04))
                        {
                            Name (LOOP, Zero)
                            And (PARM, 0xFFFFFF00, PARM)
                            Or (DerefOf (Index (DBTB, IBTT)), PARM, PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x05))
                        {
                            Store (IPSC, PARM)
                            Or (PARM, ShiftLeft (IPAT, 0x08), PARM)
                            Add (PARM, 0x0100, PARM)
                            Or (PARM, ShiftLeft (LIDS, 0x10), PARM)
                            Add (PARM, 0x00010000, PARM)
                            Or (PARM, ShiftLeft (IBIA, 0x14), PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x06))
                        {
                            Store (ITVF, PARM)
                            Or (PARM, ShiftLeft (ITVM, 0x04), PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x07))
                        {
                            Store (GIVD, PARM)
                            XOr (PARM, One, PARM)
                            Or (PARM, ShiftLeft (GMFN, One), PARM)
                            Or (PARM, 0x1800, PARM)
                            If (LEqual (IDMM, Zero))
                            {
                                Or (PARM, ShiftLeft (IDMS, 0x0D), PARM)
                            }

                            If (LOr (LEqual (IDMM, One), LEqual (IDMM, 0x03)))
                            {
                                Or (PARM, ShiftLeft (IDMS, 0x11), PARM)
                            }

                            Or (PARM, ShiftLeft (CGCS, 0x15), PARM)
                            Store (One, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x0A))
                        {
                            Store (Zero, PARM)
                            If (ISSC)
                            {
                                Or (0x03, PARM)
                            }

                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        Store (Zero, GESF)
                        Return (CRIT)
                    }

                    Method (SBCB, 0, Serialized)
                    {
                        If (LEqual (GESF, Zero))
                        {
                            Store (Zero, PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, One))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x03))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x04))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x05))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x06))
                        {
                            Store (And (PARM, 0x0F), ITVF)
                            Store (ShiftRight (And (PARM, 0xF0), 0x04), ITVM)
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x07))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x08))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x09))
                        {
                            And (PARM, 0xFF, IBTT)
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x0A))
                        {
                            And (PARM, 0xFF, IPSC)
                            If (And (ShiftRight (PARM, 0x08), 0xFF))
                            {
                                And (ShiftRight (PARM, 0x08), 0xFF, IPAT)
                                Decrement (IPAT)
                            }

                            And (ShiftRight (PARM, 0x14), 0x07, IBIA)
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x0B))
                        {
                            And (ShiftRight (PARM, One), One, IF1E)
                            If (And (PARM, 0x0001E000))
                            {
                                And (ShiftRight (PARM, 0x0D), 0x0F, IDMS)
                                Store (Zero, IDMM)
                            }
                            Else
                            {
                                And (ShiftRight (PARM, 0x11), 0x0F, IDMS)
                                Store (One, IDMM)
                            }

                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x10))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x11))
                        {
                            Store (ShiftLeft (LIDS, 0x08), PARM)
                            Add (PARM, 0x0100, PARM)
                            Store (Zero, GESF)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x12))
                        {
                            If (And (PARM, One))
                            {
                                If (LEqual (ShiftRight (PARM, One), One))
                                {
                                    Store (One, ISSC)
                                }
                                Else
                                {
                                    Store (Zero, GESF)
                                    Return (CRIT)
                                }
                            }
                            Else
                            {
                                Store (Zero, ISSC)
                            }

                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        If (LEqual (GESF, 0x13))
                        {
                            Store (Zero, GESF)
                            Store (Zero, PARM)
                            Return (SUCC)
                        }

                        Store (Zero, GESF)
                        Return (SUCC)
                    }

                    If (LEqual (GEFC, 0x04))
                    {
                        Store (GBDA (), GXFC)
                    }

                    If (LEqual (GEFC, 0x06))
                    {
                        Store (SBCB (), GXFC)
                    }

                    Store (PARM, SSRW)
                    Store (Zero, GEFC)
                    Store (One, SCIS)
                    Store (Zero, GSSE)
                    Store (Zero, SCIE)
                    Return (Zero)
                }
            }

            Device (IGD1)
            {
                Name (_ADR, 0x00020001)
            }

            Device (PEG0)
            {
                Name (_ADR, 0x00010000)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Name (PE00, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKD,
                        Zero
                    }
                })
                Name (AE00, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x13
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PE00)
                    }
                    Else
                    {
                        Return (AE00)
                    }
                }
            }

            Device (PEG1)
            {
                Name (_ADR, 0x00010001)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Name (PE01, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKA,
                        Zero
                    }
                })
                Name (AE01, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x10
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PE01)
                    }
                    Else
                    {
                        Return (AE01)
                    }
                }
            }

            Device (PEX0)
            {
                Name (_ADR, 0x001C0000)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC0, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKD,
                        Zero
                    }
                })
                Name (API0, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x13
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC0)
                    }
                    Else
                    {
                        Return (API0)
                    }
                }
            }

            Device (PEX1)
            {
                Name (_ADR, 0x001C0001)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC1, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKA,
                        Zero
                    }
                })
                Name (API1, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x10
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC1)
                    }
                    Else
                    {
                        Return (API1)
                    }
                }
            }

            Device (PEX2)
            {
                Name (_ADR, 0x001C0002)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC2, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKB,
                        Zero
                    }
                })
                Name (API2, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x11
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC2)
                    }
                    Else
                    {
                        Return (API2)
                    }
                }
            }

            Device (PEX3)
            {
                Name (_ADR, 0x001C0003)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC3, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKC,
                        Zero
                    }
                })
                Name (API3, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x12
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC3)
                    }
                    Else
                    {
                        Return (API3)
                    }
                }
            }

            Device (PEX4)
            {
                Name (_ADR, 0x001C0004)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC4, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKD,
                        Zero
                    }
                })
                Name (API4, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x13
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC4)
                    }
                    Else
                    {
                        Return (API4)
                    }
                }
            }

            Device (PEX5)
            {
                Name (_ADR, 0x001C0005)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC5, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKA,
                        Zero
                    }
                })
                Name (API5, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x10
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC5)
                    }
                    Else
                    {
                        Return (API5)
                    }
                }
            }

            Device (PEX6)
            {
                Name (_ADR, 0x001C0006)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC6, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKB,
                        Zero
                    }
                })
                Name (API6, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x11
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC6)
                    }
                    Else
                    {
                        Return (API6)
                    }
                }
            }

            Device (PEX7)
            {
                Name (_ADR, 0x001C0007)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x09,
                        0x05
                    })
                }

                Name (PIC7, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        LNKC,
                        Zero
                    }
                })
                Name (API7, Package (0x04)
                {
                    Package (0x04)
                    {
                        0xFFFF,
                        Zero,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        One,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x02,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0xFFFF,
                        0x03,
                        Zero,
                        0x12
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PIC7)
                    }
                    Else
                    {
                        Return (API7)
                    }
                }
            }

            Device (HUB0)
            {
                Name (_ADR, 0x001E0000)
                Method (_STA, 0, NotSerialized)
                {
                    Return (0x0F)
                }

                Name (PICM, Package (0x08)
                {
                    Package (0x04)
                    {
                        0x0004FFFF,
                        Zero,
                        LNKA,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0004FFFF,
                        One,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0004FFFF,
                        0x02,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0004FFFF,
                        0x03,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        Zero,
                        LNKB,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        One,
                        LNKC,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        0x02,
                        LNKD,
                        Zero
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        0x03,
                        LNKA,
                        Zero
                    }
                })
                Name (APIC, Package (0x08)
                {
                    Package (0x04)
                    {
                        0x0004FFFF,
                        Zero,
                        Zero,
                        0x10
                    },

                    Package (0x04)
                    {
                        0x0004FFFF,
                        One,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0x0004FFFF,
                        0x02,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0x0004FFFF,
                        0x03,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        Zero,
                        Zero,
                        0x11
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        One,
                        Zero,
                        0x12
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        0x02,
                        Zero,
                        0x13
                    },

                    Package (0x04)
                    {
                        0x0005FFFF,
                        0x03,
                        Zero,
                        0x10
                    }
                })
                Method (_PRT, 0, NotSerialized)
                {
                    If (LNot (PICF))
                    {
                        Return (PICM)
                    }
                    Else
                    {
                        Return (APIC)
                    }
                }

                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x0B,
                        0x05
                    })
                }
            }

            Device (PX40)
            {
                Name (_ADR, 0x001F0000)
                OperationRegion (PREV, PCI_Config, 0x08, One)
                Scope (\)
                {
                    Field (\_SB.PCI0.PX40.PREV, ByteAcc, NoLock, Preserve)
                    {
                        REV0,   8
                    }
                }

                OperationRegion (PIRQ, PCI_Config, 0x60, 0x04)
                Scope (\)
                {
                    Field (\_SB.PCI0.PX40.PIRQ, ByteAcc, NoLock, Preserve)
                    {
                        PIRA,   8,
                        PIRB,   8,
                        PIRC,   8,
                        PIRD,   8
                    }
                }

                OperationRegion (PIR2, PCI_Config, 0x68, 0x04)
                Scope (\)
                {
                    Field (\_SB.PCI0.PX40.PIR2, ByteAcc, NoLock, Preserve)
                    {
                        PIRE,   8,
                        PIRF,   8,
                        PIRG,   8,
                        PIRH,   8
                    }
                }

                OperationRegion (LPIO, PCI_Config, 0x80, 0x0E)
                Scope (\)
                {
                    Field (\_SB.PCI0.PX40.LPIO, ByteAcc, NoLock, Preserve)
                    {
                        UAIO,   8,
                        PRIO,   8,
                        LPE1,   8,
                        LPE2,   8,
                        GN1L,   8,
                        GN1H,   8,
                        GN2L,   8,
                        GN2H,   8
                    }

                    Method (DISD, 1, NotSerialized)
                    {
                        If (LEqual (Arg0, Zero))
                        {
                            And (LPE1, 0xFE, LPE1)
                        }

                        If (LEqual (Arg0, One))
                        {
                            And (LPE1, 0xFD, LPE1)
                        }

                        If (LEqual (Arg0, 0x02))
                        {
                            And (LPE1, 0xFB, LPE1)
                        }

                        If (LEqual (Arg0, 0x03))
                        {
                            And (LPE1, 0xF7, LPE1)
                        }

                        If (LEqual (Arg0, 0x04))
                        {
                            And (LPE2, 0xFC, LPE2)
                        }

                        If (LEqual (Arg0, 0x05))
                        {
                            And (LPE1, 0xDF, LPE1)
                        }

                        If (LEqual (Arg0, 0x06))
                        {
                            And (GN2L, 0xFE, GN2L)
                        }
                    }

                    Method (CKIO, 2, NotSerialized)
                    {
                        If (LEqual (Arg1, Zero))
                        {
                            Or (LPE1, One, LPE1)
                            And (UAIO, 0xF0, Local0)
                            If (LEqual (Arg0, 0x03F8))
                            {
                                Or (Local0, Zero, UAIO)
                            }

                            If (LEqual (Arg0, 0x02F8))
                            {
                                Or (Local0, One, UAIO)
                            }

                            If (LEqual (Arg0, 0x02E8))
                            {
                                Or (Local0, 0x05, UAIO)
                            }

                            If (LEqual (Arg0, 0x03E8))
                            {
                                Or (Local0, 0x07, UAIO)
                            }
                        }

                        If (LEqual (Arg1, One))
                        {
                            Or (LPE1, 0x02, LPE1)
                            And (UAIO, 0x0F, Local0)
                            If (LEqual (Arg0, 0x03F8))
                            {
                                Or (Local0, Zero, UAIO)
                            }

                            If (LEqual (Arg0, 0x02F8))
                            {
                                Or (Local0, 0x10, UAIO)
                            }

                            If (LEqual (Arg0, 0x02E8))
                            {
                                Or (Local0, 0x50, UAIO)
                            }

                            If (LEqual (Arg0, 0x03E8))
                            {
                                Or (Local0, 0x70, UAIO)
                            }
                        }

                        If (LEqual (Arg1, 0x02))
                        {
                            Or (LPE1, 0x04, LPE1)
                            And (PRIO, 0xFC, Local0)
                            If (LEqual (Arg0, 0x0378))
                            {
                                Or (Local0, Zero, PRIO)
                            }

                            If (LEqual (Arg0, 0x0278))
                            {
                                Or (Local0, One, PRIO)
                            }

                            If (LEqual (Arg0, 0x03BC))
                            {
                                Or (Local0, 0x02, PRIO)
                            }
                        }

                        If (LEqual (Arg1, 0x03))
                        {
                            Or (LPE1, 0x08, LPE1)
                        }

                        If (LEqual (Arg1, 0x04))
                        {
                            If (LEqual (Arg0, 0x0201))
                            {
                                Or (LPE2, One, LPE2)
                            }

                            If (LEqual (Arg0, 0x0209))
                            {
                                Or (LPE2, 0x02, LPE2)
                            }
                        }

                        If (LEqual (Arg1, 0x06))
                        {
                            If (LNotEqual (Arg0, 0xFFFF))
                            {
                                And (Arg0, 0xFF, Local0)
                                Or (Local0, One, GN2L)
                                ShiftRight (Arg0, 0x08, GN2H)
                            }
                            Else
                            {
                                Store (Zero, GN2H)
                                Store (Zero, GN2L)
                            }
                        }
                    }
                }

                Scope (\)
                {
                    Method (SLDM, 2, NotSerialized)
                    {
                    }
                }

                Scope (^^PCI0)
                {
                    Name (LUCD, Buffer (0x7D)
                    {
                        /* 0000 */    0x4C, 0x75, 0x63, 0x69, 0x64, 0x4C, 0x6F, 0x67,
                        /* 0008 */    0x69, 0x78, 0x00, 0x68, 0x00, 0x01, 0x00, 0x01,
                        /* 0010 */    0x00, 0x00, 0x00, 0x99, 0xCD, 0x35, 0x65, 0x37,
                        /* 0018 */    0x35, 0x36, 0x66, 0x30, 0x31, 0x36, 0x30, 0x64,
                        /* 0020 */    0x61, 0x36, 0x38, 0x31, 0x65, 0x32, 0x31, 0x61,
                        /* 0028 */    0x65, 0x32, 0x64, 0x62, 0x38, 0x66, 0x39, 0x32,
                        /* 0030 */    0x64, 0x31, 0x65, 0x64, 0x61, 0x63, 0x64, 0x38,
                        /* 0038 */    0x31, 0x35, 0x65, 0x61, 0x34, 0x36, 0x32, 0x35,
                        /* 0040 */    0x37, 0x62, 0x39, 0x36, 0x63, 0x37, 0x64, 0x61,
                        /* 0048 */    0x30, 0x32, 0x31, 0x35, 0x30, 0x32, 0x61, 0x39,
                        /* 0050 */    0x62, 0x35, 0x38, 0x37, 0x62, 0x30, 0x30, 0x30,
                        /* 0058 */    0x30, 0x32, 0x36, 0x45, 0x42, 0x63, 0x65, 0x64,
                        /* 0060 */    0x31, 0x36, 0x35, 0x31, 0x36, 0x33, 0x65, 0x35,
                        /* 0068 */    0x31, 0x65, 0x30, 0x36, 0x65, 0x30, 0x31, 0x64,
                        /* 0070 */    0x63, 0x34, 0x34, 0x63, 0x33, 0x35, 0x66, 0x65,
                        /* 0078 */    0x61, 0x33, 0x65, 0x61, 0x66
                    })
                }

                Scope (\)
                {
                    OperationRegion (SCPP, SystemIO, 0xB2, One)
                    Field (SCPP, ByteAcc, NoLock, Preserve)
                    {
                        SMIP,   8
                    }
                }

                Method (^_INI, 0, NotSerialized)
                {
                    If (STRC (_OS, "Microsoft Windows"))
                    {
                        Store (0x56, SMIP)
                    }
                    Else
                    {
                        If (STRC (_OS, "Microsoft Windows NT"))
                        {
                            If (CondRefOf (\_OSI, Local0))
                            {
                                Store (Zero, Local2)
                                If (_OSI ("Windows 2001"))
                                {
                                    Store (Zero, OSFL)
                                    Store (0x59, Local1)
                                    Store (0x03, OSFX)
                                    Store (One, Local2)
                                }

                                If (_OSI ("Windows 2006"))
                                {
                                    Store (Zero, OSFL)
                                    Store (0x5B, Local1)
                                    Store (0x05, OSFX)
                                    Store (One, Local2)
                                }

                                If (_OSI ("Windows 2009"))
                                {
                                    Store (Zero, OSFL)
                                    Store (0x5D, Local1)
                                    Store (0x07, OSFX)
                                    Store (One, Local2)
                                }

                                If (LNotEqual (Local2, Zero))
                                {
                                    Store (Local1, SMIP)
                                }
                            }
                            Else
                            {
                                Store (0x58, SMIP)
                                Store (Zero, OSFL)
                            }
                        }
                        Else
                        {
                            If (CondRefOf (\_OSI, Local0))
                            {
                                If (_OSI ("Linux"))
                                {
                                    Store (One, LINX)
                                }

                                If (_OSI ("Darwin"))
                                {
                                    Store (One, AMAC)
                                }
                            }

                            Store (0x57, SMIP)
                            Store (0x02, OSFL)
                        }
                    }
                }

                Scope (\)
                {
                    Method (OSTP, 0, NotSerialized)
                    {
                        If (LEqual (OSFL, One))
                        {
                            Store (0x56, SMIP)
                        }

                        If (LEqual (OSFL, 0x02))
                        {
                            Store (0x57, SMIP)
                        }

                        If (LEqual (OSFL, Zero))
                        {
                            Store (0x58, Local1)
                            If (LGreaterEqual (OSFX, 0x03))
                            {
                                Store (0x59, Local1)
                                If (LEqual (OSFX, 0x05))
                                {
                                    Store (0x5B, Local1)
                                }

                                If (LEqual (OSFX, 0x07))
                                {
                                    Store (0x5D, Local1)
                                }
                            }

                            Store (Local1, SMIP)
                        }
                    }
                }

                Device (SYSR)
                {
                    Name (_HID, EisaId ("PNP0C02"))
                    Name (_UID, One)
                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0010,             // Range Minimum
                            0x0010,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                        IO (Decode16,
                            0x0022,             // Range Minimum
                            0x0022,             // Range Maximum
                            0x01,               // Alignment
                            0x1E,               // Length
                            )
                        IO (Decode16,
                            0x0044,             // Range Minimum
                            0x0044,             // Range Maximum
                            0x01,               // Alignment
                            0x0A,               // Length
                            )
                        IO (Decode16,
                            0x0050,             // Range Minimum
                            0x0050,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                        IO (Decode16,
                            0x0062,             // Range Minimum
                            0x0062,             // Range Maximum
                            0x01,               // Alignment
                            0x02,               // Length
                            )
                        IO (Decode16,
                            0x0065,             // Range Minimum
                            0x0065,             // Range Maximum
                            0x01,               // Alignment
                            0x0B,               // Length
                            )
                        IO (Decode16,
                            0x0074,             // Range Minimum
                            0x0074,             // Range Maximum
                            0x01,               // Alignment
                            0x0C,               // Length
                            )
                        IO (Decode16,
                            0x0091,             // Range Minimum
                            0x0091,             // Range Maximum
                            0x01,               // Alignment
                            0x03,               // Length
                            )
                        IO (Decode16,
                            0x00A2,             // Range Minimum
                            0x00A2,             // Range Maximum
                            0x01,               // Alignment
                            0x1E,               // Length
                            )
                        IO (Decode16,
                            0x00E0,             // Range Minimum
                            0x00E0,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                        IO (Decode16,
                            0x04D0,             // Range Minimum
                            0x04D0,             // Range Maximum
                            0x01,               // Alignment
                            0x02,               // Length
                            )
                        IO (Decode16,
                            0x0290,             // Range Minimum
                            0x0290,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                        IO (Decode16,
                            0x0800,             // Range Minimum
                            0x0800,             // Range Maximum
                            0x01,               // Alignment
                            0x06,               // Length
                            )
                        IO (Decode16,
                            0x0290,             // Range Minimum
                            0x0290,             // Range Maximum
                            0x01,               // Alignment
                            0x05,               // Length
                            )
                        IO (Decode16,
                            0x0880,             // Range Minimum
                            0x0880,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                    })
                }

                Device (PIC)
                {
                    Name (_HID, EisaId ("PNP0000"))
                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0020,             // Range Minimum
                            0x0020,             // Range Maximum
                            0x01,               // Alignment
                            0x02,               // Length
                            )
                        IO (Decode16,
                            0x00A0,             // Range Minimum
                            0x00A0,             // Range Maximum
                            0x01,               // Alignment
                            0x02,               // Length
                            )
                        IRQNoFlags ()
                            {2}
                    })
                }

                Device (DMA1)
                {
                    Name (_HID, EisaId ("PNP0200"))
                    Name (_CRS, ResourceTemplate ()
                    {
                        DMA (Compatibility, BusMaster, Transfer8, )
                            {4}
                        IO (Decode16,
                            0x0000,             // Range Minimum
                            0x0000,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                        IO (Decode16,
                            0x0080,             // Range Minimum
                            0x0080,             // Range Maximum
                            0x01,               // Alignment
                            0x11,               // Length
                            )
                        IO (Decode16,
                            0x0094,             // Range Minimum
                            0x0094,             // Range Maximum
                            0x01,               // Alignment
                            0x0C,               // Length
                            )
                        IO (Decode16,
                            0x00C0,             // Range Minimum
                            0x00C0,             // Range Maximum
                            0x01,               // Alignment
                            0x20,               // Length
                            )
                    })
                }

                Device (TMR)
                {
                    Name (_HID, EisaId ("PNP0100"))
                    Name (ATT5, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0040,             // Range Minimum
                            0x0040,             // Range Maximum
                            0x00,               // Alignment
                            0x04,               // Length
                            )
                        IRQNoFlags ()
                            {0}
                    })
                    Name (ATT6, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0040,             // Range Minimum
                            0x0040,             // Range Maximum
                            0x00,               // Alignment
                            0x04,               // Length
                            )
                    })
                    Method (_CRS, 0, NotSerialized)
                    {
                        If (LGreaterEqual (OSFX, 0x03))
                        {
                            If (HPTF)
                            {
                                Return (ATT6)
                            }
                            Else
                            {
                                Return (ATT5)
                            }
                        }
                        Else
                        {
                            Return (ATT5)
                        }
                    }
                }

                Device (HPET)
                {
                    Name (_HID, EisaId ("PNP0103"))
                    Name (ATT3, ResourceTemplate ()
                    {
                        IRQNoFlags ()
                            {0}
                        IRQNoFlags ()
                            {8}
                        Memory32Fixed (ReadWrite,
                            0xFED00000,         // Address Base
                            0x00000400,         // Address Length
                            )
                    })
                    Name (ATT4, ResourceTemplate ()
                    {
                    })
                    Method (_STA, 0, NotSerialized)
                    {
                        If (LGreaterEqual (OSFX, 0x03))
                        {
                            If (HPTF)
                            {
                                Return (0x0F)
                            }
                            Else
                            {
                                Return (Zero)
                            }
                        }
                        Else
                        {
                            Return (Zero)
                        }
                    }

                    Method (_CRS, 0, NotSerialized)
                    {
                        If (LGreaterEqual (OSFX, 0x03))
                        {
                            If (HPTF)
                            {
                                Return (ATT3)
                            }
                            Else
                            {
                                Return (ATT4)
                            }
                        }
                        Else
                        {
                            Return (ATT4)
                        }
                    }
                }

                Device (RTC)
                {
                    Name (_HID, EisaId ("PNP0B00"))
                    Name (ATT0, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0070,             // Range Minimum
                            0x0070,             // Range Maximum
                            0x00,               // Alignment
                            0x04,               // Length
                            )
                        IRQNoFlags ()
                            {8}
                    })
                    Name (ATT1, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0070,             // Range Minimum
                            0x0070,             // Range Maximum
                            0x00,               // Alignment
                            0x04,               // Length
                            )
                    })
                    Name (ATT2, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0070,             // Range Minimum
                            0x0070,             // Range Maximum
                            0x00,               // Alignment
                            0x02,               // Length
                            )
                        IRQNoFlags ()
                            {8}
                    })
                    Name (ATT3, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0070,             // Range Minimum
                            0x0070,             // Range Maximum
                            0x00,               // Alignment
                            0x02,               // Length
                            )
                    })
                    Method (_CRS, 0, NotSerialized)
                    {
                        If (LGreaterEqual (OSFX, 0x03))
                        {
                            If (HPTF)
                            {
                                Return (ATT1)
                            }
                            Else
                            {
                                Return (ATT0)
                            }
                        }
                        Else
                        {
                            If (LEqual (AMAC, One))
                            {
                                Return (ATT2)
                            }

                            Return (ATT0)
                        }
                    }
                }

                Device (SPKR)
                {
                    Name (_HID, EisaId ("PNP0800"))
                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0061,             // Range Minimum
                            0x0061,             // Range Maximum
                            0x01,               // Alignment
                            0x01,               // Length
                            )
                    })
                }

                Device (COPR)
                {
                    Name (_HID, EisaId ("PNP0C04"))
                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x00F0,             // Range Minimum
                            0x00F0,             // Range Maximum
                            0x01,               // Alignment
                            0x10,               // Length
                            )
                        IRQNoFlags ()
                            {13}
                    })
                }

                Scope (\)
                {
                    OperationRegion (WIN1, SystemIO, 0x2E, 0x02)
                    Field (WIN1, ByteAcc, NoLock, Preserve)
                    {
                        INDP,   8,
                        DATP,   8
                    }

                    OperationRegion (GPIO, SystemIO, 0x0800, 0x05)
                    Field (GPIO, ByteAcc, NoLock, Preserve)
                    {
                        GO01,   8,
                        GO02,   8,
                        GO03,   8,
                        GO04,   8,
                        GO05,   8
                    }

                    IndexField (INDP, DATP, ByteAcc, NoLock, Preserve)
                    {
                                Offset (0x02),
                        CFG,    8,
                                Offset (0x07),
                        LDN,    8,
                                Offset (0x20),
                        IDHI,   8,
                        IDLO,   8,
                        POWC,   8,
                                Offset (0x30),
                        ACTR,   8,
                                Offset (0x60),
                        IOAH,   8,
                        IOAL,   8,
                        IO2H,   8,
                        IO2L,   8,
                                Offset (0x70),
                        INTR,   8,
                                Offset (0x72),
                        INT1,   8,
                                Offset (0x74),
                        DMCH,   8,
                                Offset (0xC0),
                        GP40,   8,
                                Offset (0xF0),
                        OPT1,   8,
                        OPT2,   8,
                        OPT3,   8,
                        OPT4,   8
                    }

                    Method (ENFG, 0, NotSerialized)
                    {
                        Store (0x87, INDP)
                        Store (One, INDP)
                        Store (0x55, INDP)
                        Store (0x55, INDP)
                    }

                    Method (EXFG, 0, NotSerialized)
                    {
                        Store (0x02, CFG)
                    }

                    Method (GSRG, 1, NotSerialized)
                    {
                        Store (Arg0, INDP)
                        Return (DATP)
                    }

                    Method (SSRG, 2, NotSerialized)
                    {
                        Store (Arg0, INDP)
                        Store (Arg1, DATP)
                    }
                }

                Device (FDC0)
                {
                    Name (_HID, EisaId ("PNP0700"))
                    Method (_STA, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (Zero, LDN)
                        If (ACTR)
                        {
                            EXFG ()
                            Return (0x0F)
                        }
                        Else
                        {
                            If (LOr (IOAH, IOAL))
                            {
                                EXFG ()
                                Return (0x0D)
                            }
                            Else
                            {
                                EXFG ()
                                Return (Zero)
                            }
                        }
                    }

                    Method (_DIS, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (Zero, LDN)
                        Store (Zero, ACTR)
                        SLDM (DMCH, 0x04)
                        EXFG ()
                        DISD (0x03)
                    }

                    Method (_CRS, 0, NotSerialized)
                    {
                        Name (BUF0, ResourceTemplate ()
                        {
                            IO (Decode16,
                                0x03F0,             // Range Minimum
                                0x03F0,             // Range Maximum
                                0x01,               // Alignment
                                0x06,               // Length
                                _Y01)
                            IO (Decode16,
                                0x03F7,             // Range Minimum
                                0x03F7,             // Range Maximum
                                0x01,               // Alignment
                                0x01,               // Length
                                )
                            IRQNoFlags ()
                                {6}
                            DMA (Compatibility, NotBusMaster, Transfer8, )
                                {2}
                        })
                        CreateByteField (BUF0, \_SB.PCI0.PX40.FDC0._CRS._Y01._MIN, IOLO)
                        CreateByteField (BUF0, 0x03, IOHI)
                        CreateByteField (BUF0, \_SB.PCI0.PX40.FDC0._CRS._Y01._MAX, IORL)
                        CreateByteField (BUF0, 0x05, IORH)
                        ENFG ()
                        EXFG ()
                        Return (BUF0)
                    }

                    Name (_PRS, ResourceTemplate ()
                    {
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x03F0,             // Range Minimum
                                0x03F0,             // Range Maximum
                                0x01,               // Alignment
                                0x06,               // Length
                                )
                            IO (Decode16,
                                0x03F7,             // Range Minimum
                                0x03F7,             // Range Maximum
                                0x01,               // Alignment
                                0x01,               // Length
                                )
                            IRQNoFlags ()
                                {6}
                            DMA (Compatibility, NotBusMaster, Transfer8, )
                                {2}
                        }
                        EndDependentFn ()
                    })
                    Method (_SRS, 1, NotSerialized)
                    {
                        CreateByteField (Arg0, 0x02, IOLO)
                        CreateByteField (Arg0, 0x03, IOHI)
                        CreateWordField (Arg0, 0x02, IOAD)
                        CreateWordField (Arg0, 0x19, IRQW)
                        CreateByteField (Arg0, 0x1C, DMAV)
                        ENFG ()
                        Store (Zero, LDN)
                        Store (One, ACTR)
                        SLDM (DMCH, DMCH)
                        CKIO (IOAD, 0x03)
                        EXFG ()
                    }
                }

                Device (UAR1)
                {
                    Name (_HID, EisaId ("PNP0501"))
                    Name (_UID, One)
                    Method (_STA, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (One, LDN)
                        If (ACTR)
                        {
                            EXFG ()
                            Return (0x0F)
                        }
                        Else
                        {
                            If (LOr (IOAH, IOAL))
                            {
                                EXFG ()
                                Return (0x0D)
                            }
                            Else
                            {
                                EXFG ()
                                Return (Zero)
                            }
                        }

                        EXFG ()
                    }

                    Method (_DIS, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (One, LDN)
                        Store (Zero, ACTR)
                        EXFG ()
                        DISD (Zero)
                    }

                    Method (_CRS, 0, NotSerialized)
                    {
                        Name (BUF1, ResourceTemplate ()
                        {
                            IO (Decode16,
                                0x0000,             // Range Minimum
                                0x0000,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                _Y02)
                            IRQNoFlags (_Y03)
                                {}
                        })
                        CreateByteField (BUF1, \_SB.PCI0.PX40.UAR1._CRS._Y02._MIN, IOLO)
                        CreateByteField (BUF1, 0x03, IOHI)
                        CreateByteField (BUF1, \_SB.PCI0.PX40.UAR1._CRS._Y02._MAX, IORL)
                        CreateByteField (BUF1, 0x05, IORH)
                        CreateWordField (BUF1, \_SB.PCI0.PX40.UAR1._CRS._Y03._INT, IRQW)
                        ENFG ()
                        Store (One, LDN)
                        Store (IOAL, IOLO)
                        Store (IOAL, IORL)
                        Store (IOAH, IOHI)
                        Store (IOAH, IORH)
                        Store (One, Local0)
                        ShiftLeft (Local0, INTR, IRQW)
                        EXFG ()
                        Return (BUF1)
                    }

                    Name (_PRS, ResourceTemplate ()
                    {
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x03F8,             // Range Minimum
                                0x03F8,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x02F8,             // Range Minimum
                                0x02F8,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x03E8,             // Range Minimum
                                0x03E8,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x02E8,             // Range Minimum
                                0x02E8,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        EndDependentFn ()
                    })
                    Method (_SRS, 1, NotSerialized)
                    {
                        CreateByteField (Arg0, 0x02, IOLO)
                        CreateByteField (Arg0, 0x03, IOHI)
                        CreateWordField (Arg0, 0x02, IOAD)
                        CreateWordField (Arg0, 0x09, IRQW)
                        ENFG ()
                        Store (One, LDN)
                        Store (One, ACTR)
                        Store (IOLO, IOAL)
                        Store (IOHI, IOAH)
                        FindSetRightBit (IRQW, Local0)
                        Subtract (Local0, One, INTR)
                        EXFG ()
                        CKIO (IOAD, Zero)
                    }

                    Method (_PRW, 0, NotSerialized)
                    {
                        If (SUSF)
                        {
                            Return (Package (0x02)
                            {
                                0x08,
                                0x03
                            })
                        }
                        Else
                        {
                            Return (Package (0x02)
                            {
                                0x08,
                                One
                            })
                        }
                    }

                    Method (_PSW, 1, NotSerialized)
                    {
                        If (Arg0)
                        {
                            Or (G2C2, One, G2C2)
                        }
                        Else
                        {
                            And (G2C2, 0xFE, G2C2)
                        }
                    }
                }

                Device (LPT1)
                {
                    Name (_HID, EisaId ("PNP0400"))
                    Method (_STA, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (0x03, LDN)
                        And (OPT1, 0x02, Local0)
                        If (LNotEqual (Local0, 0x02))
                        {
                            If (ACTR)
                            {
                                EXFG ()
                                Return (0x0F)
                            }
                            Else
                            {
                                If (LOr (IOAH, IOAL))
                                {
                                    EXFG ()
                                    Return (0x0D)
                                }
                                Else
                                {
                                    EXFG ()
                                    Return (Zero)
                                }
                            }
                        }
                        Else
                        {
                            EXFG ()
                            Return (Zero)
                        }
                    }

                    Method (_DIS, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (0x03, LDN)
                        Store (Zero, ACTR)
                        EXFG ()
                        DISD (0x02)
                    }

                    Method (_CRS, 0, NotSerialized)
                    {
                        Name (BUF5, ResourceTemplate ()
                        {
                            IO (Decode16,
                                0x0000,             // Range Minimum
                                0x0000,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                _Y04)
                            IRQNoFlags (_Y05)
                                {}
                        })
                        CreateByteField (BUF5, \_SB.PCI0.PX40.LPT1._CRS._Y04._MIN, IOLO)
                        CreateByteField (BUF5, 0x03, IOHI)
                        CreateByteField (BUF5, \_SB.PCI0.PX40.LPT1._CRS._Y04._MAX, IORL)
                        CreateByteField (BUF5, 0x05, IORH)
                        CreateByteField (BUF5, \_SB.PCI0.PX40.LPT1._CRS._Y04._LEN, IOLE)
                        CreateWordField (BUF5, \_SB.PCI0.PX40.LPT1._CRS._Y05._INT, IRQW)
                        ENFG ()
                        Store (0x03, LDN)
                        Store (IOAL, IOLO)
                        Store (IOLO, IORL)
                        Store (IOAH, IOHI)
                        Store (IOHI, IORH)
                        If (LEqual (IOLO, 0xBC))
                        {
                            Store (0x04, IOLE)
                        }
                        Else
                        {
                            Store (0x08, IOLE)
                        }

                        Store (One, Local0)
                        Store (INTR, Local5)
                        ShiftLeft (Local0, Local5, IRQW)
                        EXFG ()
                        Return (BUF5)
                    }

                    Name (_PRS, ResourceTemplate ()
                    {
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x0378,             // Range Minimum
                                0x0378,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x0278,             // Range Minimum
                                0x0278,             // Range Maximum
                                0x01,               // Alignment
                                0x08,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x03BC,             // Range Minimum
                                0x03BC,             // Range Maximum
                                0x01,               // Alignment
                                0x04,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                        }
                        EndDependentFn ()
                    })
                    Method (_SRS, 1, NotSerialized)
                    {
                        CreateByteField (Arg0, 0x02, IOLO)
                        CreateByteField (Arg0, 0x03, IOHI)
                        CreateWordField (Arg0, 0x02, IOAD)
                        CreateByteField (Arg0, 0x04, IORL)
                        CreateByteField (Arg0, 0x05, IORH)
                        CreateWordField (Arg0, 0x09, IRQW)
                        ENFG ()
                        Store (0x03, LDN)
                        Store (One, ACTR)
                        Store (IOLO, IOAL)
                        Store (IOHI, IOAH)
                        FindSetLeftBit (IRQW, Local0)
                        Subtract (Local0, One, Local0)
                        Store (Local0, INTR)
                        EXFG ()
                        CKIO (IOAD, 0x02)
                    }
                }

                Device (ECP1)
                {
                    Name (_HID, EisaId ("PNP0401"))
                    Method (_STA, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (0x03, LDN)
                        And (OPT1, 0x02, Local0)
                        If (LEqual (Local0, 0x02))
                        {
                            If (ACTR)
                            {
                                EXFG ()
                                Return (0x0F)
                            }
                            Else
                            {
                                If (LOr (IOAH, IOAL))
                                {
                                    EXFG ()
                                    Return (0x0D)
                                }
                                Else
                                {
                                    EXFG ()
                                    Return (Zero)
                                }
                            }
                        }
                        Else
                        {
                            EXFG ()
                            Return (Zero)
                        }
                    }

                    Method (_DIS, 0, NotSerialized)
                    {
                        ENFG ()
                        Store (0x03, LDN)
                        Store (Zero, ACTR)
                        SLDM (DMCH, 0x04)
                        EXFG ()
                        DISD (0x02)
                    }

                    Method (_CRS, 0, NotSerialized)
                    {
                        Name (BUF6, ResourceTemplate ()
                        {
                            IO (Decode16,
                                0x0000,             // Range Minimum
                                0x0000,             // Range Maximum
                                0x01,               // Alignment
                                0x04,               // Length
                                _Y06)
                            IO (Decode16,
                                0x0000,             // Range Minimum
                                0x0000,             // Range Maximum
                                0x01,               // Alignment
                                0x04,               // Length
                                _Y07)
                            IRQNoFlags (_Y08)
                                {}
                            DMA (Compatibility, NotBusMaster, Transfer8, _Y09)
                                {}
                        })
                        CreateByteField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y06._MIN, IOLO)
                        CreateByteField (BUF6, 0x03, IOHI)
                        CreateByteField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y06._MAX, IORL)
                        CreateByteField (BUF6, 0x05, IORH)
                        CreateByteField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y06._LEN, IOLE)
                        CreateByteField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y07._MIN, IOEL)
                        CreateByteField (BUF6, 0x0B, IOEH)
                        CreateByteField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y07._MAX, IOML)
                        CreateByteField (BUF6, 0x0D, IOMH)
                        CreateWordField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y08._INT, IRQW)
                        CreateByteField (BUF6, \_SB.PCI0.PX40.ECP1._CRS._Y09._DMA, DMAC)
                        ENFG ()
                        Store (0x03, LDN)
                        Store (IOAL, Local2)
                        Store (Local2, IOLO)
                        Store (IOAH, Local3)
                        Store (Local3, IOHI)
                        Or (Local3, 0x04, Local3)
                        Store (Local3, IOEH)
                        Store (Local3, IOMH)
                        Store (IOLO, IORL)
                        Store (IOLO, IOEL)
                        Store (IOLO, IOML)
                        Store (IOHI, IORH)
                        If (LEqual (IOLO, 0xBC))
                        {
                            Store (0x04, IOLE)
                        }
                        Else
                        {
                            Store (0x08, IOLE)
                        }

                        Store (One, Local0)
                        Store (INTR, Local5)
                        ShiftLeft (Local0, Local5, IRQW)
                        Store (One, Local0)
                        Store (DMCH, Local5)
                        ShiftLeft (Local0, Local5, DMAC)
                        EXFG ()
                        Return (BUF6)
                    }

                    Name (_PRS, ResourceTemplate ()
                    {
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x0378,             // Range Minimum
                                0x0378,             // Range Maximum
                                0x00,               // Alignment
                                0x08,               // Length
                                )
                            IO (Decode16,
                                0x0778,             // Range Minimum
                                0x0778,             // Range Maximum
                                0x00,               // Alignment
                                0x04,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                            DMA (Compatibility, NotBusMaster, Transfer8, )
                                {0,1,3}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x0278,             // Range Minimum
                                0x0278,             // Range Maximum
                                0x00,               // Alignment
                                0x08,               // Length
                                )
                            IO (Decode16,
                                0x0678,             // Range Minimum
                                0x0678,             // Range Maximum
                                0x00,               // Alignment
                                0x04,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                            DMA (Compatibility, NotBusMaster, Transfer8, )
                                {0,1,3}
                        }
                        StartDependentFnNoPri ()
                        {
                            IO (Decode16,
                                0x03BC,             // Range Minimum
                                0x03BC,             // Range Maximum
                                0x00,               // Alignment
                                0x04,               // Length
                                )
                            IO (Decode16,
                                0x07BC,             // Range Minimum
                                0x07BC,             // Range Maximum
                                0x00,               // Alignment
                                0x04,               // Length
                                )
                            IRQNoFlags ()
                                {3,4,5,7,9,10,11,12}
                            DMA (Compatibility, NotBusMaster, Transfer8, )
                                {0,1,3}
                        }
                        EndDependentFn ()
                    })
                    Method (_SRS, 1, NotSerialized)
                    {
                        CreateByteField (Arg0, 0x02, IOLO)
                        CreateByteField (Arg0, 0x03, IOHI)
                        CreateWordField (Arg0, 0x02, IOAD)
                        CreateWordField (Arg0, 0x11, IRQW)
                        CreateByteField (Arg0, 0x14, DMAC)
                        ENFG ()
                        Store (0x03, LDN)
                        Store (One, ACTR)
                        Store (IOLO, IOAL)
                        Store (IOHI, IOAH)
                        FindSetLeftBit (IRQW, Local0)
                        Subtract (Local0, One, Local0)
                        Store (Local0, INTR)
                        FindSetLeftBit (DMAC, Local1)
                        Store (DMCH, Local0)
                        Subtract (Local1, One, DMCH)
                        SLDM (Local0, DMCH)
                        EXFG ()
                        CKIO (IOAD, 0x02)
                    }
                }

                OperationRegion (KBCT, SystemIO, 0x60, 0x05)
                Field (KBCT, ByteAcc, NoLock, Preserve)
                {
                    P060,   8,
                            Offset (0x04),
                    P064,   8
                }

                Device (PS2M)
                {
                    Name (_HID, EisaId ("PNP0F13"))
                    Method (_STA, 0, NotSerialized)
                    {
                        If (LEqual (PS2F, Zero))
                        {
                            Return (0x0F)
                        }
                        Else
                        {
                            Return (Zero)
                        }
                    }

                    Method (_CRS, 0, NotSerialized)
                    {
                        Name (BUF1, ResourceTemplate ()
                        {
                            IRQNoFlags ()
                                {12}
                        })
                        Name (BUF2, ResourceTemplate ()
                        {
                            IO (Decode16,
                                0x0060,             // Range Minimum
                                0x0060,             // Range Maximum
                                0x01,               // Alignment
                                0x01,               // Length
                                )
                            IO (Decode16,
                                0x0064,             // Range Minimum
                                0x0064,             // Range Maximum
                                0x01,               // Alignment
                                0x01,               // Length
                                )
                            IRQNoFlags ()
                                {12}
                        })
                        If (LEqual (KBDI, One))
                        {
                            If (LEqual (OSFL, 0x02))
                            {
                                Return (BUF1)
                            }

                            If (LEqual (OSFL, One))
                            {
                                Return (BUF1)
                            }
                            Else
                            {
                                Return (BUF2)
                            }
                        }
                        Else
                        {
                            Return (BUF1)
                        }
                    }
                }

                Device (PS2K)
                {
                    Name (_HID, EisaId ("PNP0303"))
                    Method (_STA, 0, NotSerialized)
                    {
                        If (LEqual (KBDI, One))
                        {
                            Return (Zero)
                        }
                        Else
                        {
                            Return (0x0F)
                        }
                    }

                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0060,             // Range Minimum
                            0x0060,             // Range Maximum
                            0x01,               // Alignment
                            0x01,               // Length
                            )
                        IO (Decode16,
                            0x0064,             // Range Minimum
                            0x0064,             // Range Maximum
                            0x01,               // Alignment
                            0x01,               // Length
                            )
                        IRQNoFlags ()
                            {1}
                    })
                }

                Device (PSMR)
                {
                    Name (_HID, EisaId ("PNP0C02"))
                    Name (_UID, 0x03)
                    Method (_STA, 0, NotSerialized)
                    {
                        If (LEqual (KBDI, Zero))
                        {
                            Return (Zero)
                        }

                        If (LEqual (PS2F, Zero))
                        {
                            If (LEqual (OSFL, 0x02))
                            {
                                Return (0x0F)
                            }

                            If (LEqual (OSFL, One))
                            {
                                Return (0x0F)
                            }

                            Return (Zero)
                        }

                        Return (Zero)
                    }

                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x0060,             // Range Minimum
                            0x0060,             // Range Maximum
                            0x01,               // Alignment
                            0x01,               // Length
                            )
                        IO (Decode16,
                            0x0064,             // Range Minimum
                            0x0064,             // Range Maximum
                            0x01,               // Alignment
                            0x01,               // Length
                            )
                    })
                }

                Scope (\_SB.PCI0.PX40)
                {
                    OperationRegion (CCCC, SystemMemory, 0x000FE2BC, 0x05)
                    Field (CCCC, ByteAcc, NoLock, Preserve)
                    {
                        PPRQ,   8,
                        PPLO,   8,
                        PPRP,   8,
                        PPOR,   8,
                        TPRS,   8
                    }

                    OperationRegion (CMO2, SystemIO, 0x72, 0x73)
                    Field (CMO2, ByteAcc, NoLock, Preserve)
                    {
                        IND2,   8,
                        DAT2,   8
                    }

                    IndexField (IND2, DAT2, ByteAcc, NoLock, Preserve)
                    {
                                Offset (0xA7),
                        PRQC,   4
                    }

                    OperationRegion (TPMI, SystemMemory, 0x000FFFEA, One)
                    Field (TPMI, ByteAcc, NoLock, Preserve)
                    {
                            ,   3,
                        TPME,   1
                    }

                    Device (TPM)
                    {
                        Name (_HID, EisaId ("IFX0102"))
                        Name (_CID, EisaId ("PNP0C31"))
                        Method (_STA, 0, NotSerialized)
                        {
                            If (TPME)
                            {
                                Return (0x0F)
                            }
                            Else
                            {
                                Return (Zero)
                            }
                        }

                        Name (_CRS, ResourceTemplate ()
                        {
                            Memory32Fixed (ReadWrite,
                                0xFED40000,         // Address Base
                                0x00005000,         // Address Length
                                )
                            IO (Decode16,
                                0x004E,             // Range Minimum
                                0x004E,             // Range Maximum
                                0x01,               // Alignment
                                0x02,               // Length
                                )
                            IO (Decode16,
                                0x4700,             // Range Minimum
                                0x4700,             // Range Maximum
                                0x01,               // Alignment
                                0x0C,               // Length
                                )
                        })
                        Method (UCMP, 2, NotSerialized)
                        {
                            If (LNotEqual (0x10, SizeOf (Arg0)))
                            {
                                Return (Zero)
                            }

                            If (LNotEqual (0x10, SizeOf (Arg1)))
                            {
                                Return (Zero)
                            }

                            Store (Zero, Local0)
                            While (LLess (Local0, 0x10))
                            {
                                If (LNotEqual (DerefOf (Index (Arg0, Local0)), DerefOf (Index (
                                    Arg1, Local0))))
                                {
                                    Return (Zero)
                                }

                                Increment (Local0)
                            }

                            Return (One)
                        }

                        Method (_DSM, 4, Serialized)
                        {
                            If (LEqual (UCMP (Arg0, Buffer (0x10)
                                        {
                                            /* 0000 */    0xA6, 0xFA, 0xDD, 0x3D, 0x1B, 0x36, 0xB4, 0x4E,
                                            /* 0008 */    0xA4, 0x24, 0x8D, 0x10, 0x08, 0x9D, 0x16, 0x53
                                        }), One))
                            {
                                If (LEqual (Arg2, Zero))
                                {
                                    Return (Buffer (One)
                                    {
                                        0x7F
                                    })
                                }

                                If (LEqual (Arg2, One))
                                {
                                    If (LEqual (SizeOf (Arg3), Zero))
                                    {
                                        Return (Buffer (0x04)
                                        {
                                            "1.0"
                                        })
                                    }

                                    Return (One)
                                }

                                If (LEqual (Arg2, 0x02))
                                {
                                    If (LNotEqual (TPRS, Zero))
                                    {
                                        If (LEqual (DerefOf (Index (Arg3, Zero)), Zero))
                                        {
                                            Store (0xF0, SCP)
                                            Store (Zero, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), One))
                                        {
                                            Store (0xF0, SCP)
                                            Store (One, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x02))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x02, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x03))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x03, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x04))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x04, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x05))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x05, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x06))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x06, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x07))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x07, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x08))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x08, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x09))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x09, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x0A))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x0A, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x0B))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x0B, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x0C))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x0C, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (One)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x0D))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x0D, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (One)
                                        }

                                        If (LEqual (DerefOf (Index (Arg3, Zero)), 0x0E))
                                        {
                                            Store (0xF0, SCP)
                                            Store (0x0E, PPRQ)
                                            Store (0xF1, SCP)
                                            Return (Zero)
                                        }

                                        Return (One)
                                    }

                                    Return (One)
                                }

                                If (LEqual (Arg2, 0x03))
                                {
                                    Name (TMP1, Package (0x02)
                                    {
                                        Zero,
                                        Ones
                                    })
                                    Store (PPRQ, Index (TMP1, One))
                                    Return (TMP1)
                                }

                                If (LEqual (Arg2, 0x04))
                                {
                                    Return (One)
                                }

                                If (LEqual (Arg2, 0x05))
                                {
                                    Name (TMP2, Package (0x03)
                                    {
                                        Zero,
                                        Ones,
                                        Ones
                                    })
                                    Store (PPLO, Index (TMP2, One))
                                    If (LOr (LOr (LGreater (PPLO, 0x0E), LEqual (PPLO, 0x0C)), LEqual (
                                        PPLO, 0x0D)))
                                    {
                                        Store (0xFFFFFFF1, Index (TMP2, 0x02))
                                        Return (TMP2)
                                    }

                                    If (LEqual (PPRP, 0xFF))
                                    {
                                        Store (0xFFFFFFF1, Index (TMP2, 0x02))
                                        Return (TMP2)
                                    }

                                    If (PPOR)
                                    {
                                        Store (0xFFFFFFF0, Index (TMP2, 0x02))
                                        Return (TMP2)
                                    }

                                    Store (PPRP, Index (TMP2, 0x02))
                                    Return (TMP2)
                                }

                                If (LEqual (Arg2, 0x06))
                                {
                                    CreateByteField (Arg3, 0x04, LAN0)
                                    CreateByteField (Arg3, 0x05, LAN1)
                                    If (LOr (LEqual (LAN0, 0x65), LEqual (LAN0, 0x45)))
                                    {
                                        If (LOr (LEqual (LAN1, 0x6E), LEqual (LAN1, 0x4E)))
                                        {
                                            Return (Zero)
                                        }
                                    }

                                    Return (One)
                                }

                                Return (One)
                            }

                            Return (Buffer (One)
                            {
                                0x00
                            })
                        }
                    }
                }

                Device (PMIO)
                {
                    Name (_HID, EisaId ("PNP0C02"))
                    Name (_UID, 0x02)
                    Method (_CRS, 0, NotSerialized)
                    {
                        Name (BUF0, ResourceTemplate ()
                        {
                            IO (Decode16,
                                0x0400,             // Range Minimum
                                0x0400,             // Range Maximum
                                0x01,               // Alignment
                                0xD0,               // Length
                                )
                            IO (Decode16,
                                0x04D2,             // Range Minimum
                                0x04D2,             // Range Maximum
                                0x01,               // Alignment
                                0x2E,               // Length
                                )
                        })
                        Return (BUF0)
                    }
                }

                OperationRegion (CDPR, SystemIO, 0x1800, 0x01FF)
                Field (CDPR, ByteAcc, NoLock, Preserve)
                {
                    BCLK,   8,
                            Offset (0x10),
                    VCC1,   8,
                            Offset (0x12),
                    VDDI,   8,
                            Offset (0x14),
                    VTTC,   8,
                            Offset (0x16),
                    V15C,   8,
                            Offset (0x18),
                    V18C,   8,
                            Offset (0x1A),
                    VSAC,   8,
                            Offset (0x1C),
                    AXGC,   8,
                            Offset (0x1E),
                    VIDC,   8,
                            Offset (0x20),
                            Offset (0xC0),
                    VCCB,   32,
                    VCCS,   16,
                            Offset (0xC8),
                    VDDB,   32,
                    VDDS,   16,
                            Offset (0xD0),
                    VTTB,   32,
                    VTTS,   16,
                            Offset (0xD8),
                    V15B,   32,
                    V15S,   16,
                            Offset (0xE0),
                    V18B,   32,
                    V18S,   16,
                            Offset (0xE8),
                    VSAB,   32,
                    VSAS,   16,
                            Offset (0xF0),
                    AXGB,   32,
                    AXGS,   16,
                            Offset (0xF8),
                    VIDB,   32,
                    VIDS,   16,
                            Offset (0x100),
                            Offset (0x1C0),
                    CTMP,   8,
                            Offset (0x1C3)
                }

                Device (PTMD)
                {
                    Name (_HID, EisaId ("ICD0001"))
                    Name (_CID, EisaId ("PNP0C02"))
                    Name (IVER, 0x10000001)
                    Name (_STA, 0xFF)
                    Name (_CRS, ResourceTemplate ()
                    {
                        IO (Decode16,
                            0x1000,             // Range Minimum
                            0x1000,             // Range Maximum
                            0x01,               // Alignment
                            0x80,               // Length
                            )
                        IO (Decode16,
                            0x1080,             // Range Minimum
                            0x1080,             // Range Maximum
                            0x01,               // Alignment
                            0x80,               // Length
                            )
                        IO (Decode16,
                            0x1100,             // Range Minimum
                            0x1100,             // Range Maximum
                            0x01,               // Alignment
                            0x80,               // Length
                            )
                        IO (Decode16,
                            0x1180,             // Range Minimum
                            0x1180,             // Range Maximum
                            0x01,               // Alignment
                            0x80,               // Length
                            )
                    })
                    Name (TMPV, Package (0x04)
                    {
                        One,
                        0x02,
                        Zero,
                        Zero
                    })
                    Name (VLTV, Package (0x10)
                    {
                        0x09,
                        0x05,
                        Zero,
                        Zero,
                        0x0E,
                        0x06,
                        Zero,
                        Zero,
                        0x13,
                        0x07,
                        Zero,
                        Zero,
                        0x11,
                        0x08,
                        Zero,
                        Zero
                    })
                    Name (RPMV, Package (0x00) {})
                    Name (RDVL, Package (0x02)
                    {
                        Zero,
                        Zero
                    })
                    Method (CDRD, 2, Serialized)
                    {
                        While (One)
                        {
                            Name (_T_0, Zero)
                            Store (Arg0, _T_0)
                            If (LEqual (_T_0, One))
                            {
                                While (One)
                                {
                                    Name (_T_1, Zero)
                                    Store (Arg1, _T_1)
                                    If (LEqual (_T_1, Zero))
                                    {
                                        Store (VCC1, Index (RDVL, One))
                                    }
                                    Else
                                    {
                                        If (LEqual (_T_1, 0x04))
                                        {
                                            Store (VDDI, Index (RDVL, One))
                                        }
                                        Else
                                        {
                                            If (LEqual (_T_1, 0x07))
                                            {
                                                Store (VSAC, Index (RDVL, One))
                                            }
                                            Else
                                            {
                                                If (LEqual (_T_1, 0x08))
                                                {
                                                    Store (VIDC, Index (RDVL, One))
                                                }
                                                Else
                                                {
                                                    If (LEqual (_T_1, 0x09))
                                                    {
                                                        Store (V15C, Index (RDVL, One))
                                                    }
                                                    Else
                                                    {
                                                        If (LEqual (_T_1, 0x0A))
                                                        {
                                                            Store (V18C, Index (RDVL, One))
                                                        }
                                                        Else
                                                        {
                                                            Store (One, Index (RDVL, Zero))
                                                        }
                                                    }
                                                }
                                            }
                                        }
                                    }

                                    Break
                                }
                            }
                            Else
                            {
                                If (LEqual (_T_0, 0x02))
                                {
                                    While (One)
                                    {
                                        Name (_T_2, Zero)
                                        Store (Arg1, _T_2)
                                        If (LEqual (_T_2, Zero))
                                        {
                                            Store (BCLK, Index (RDVL, One))
                                        }
                                        Else
                                        {
                                            Store (One, Index (RDVL, Zero))
                                        }

                                        Break
                                    }
                                }
                                Else
                                {
                                    Store (One, Index (RDVL, Zero))
                                }
                            }

                            Break
                        }

                        Return (RDVL)
                    }

                    Method (CDWR, 3, Serialized)
                    {
                        While (One)
                        {
                            Name (_T_0, Zero)
                            Store (Arg0, _T_0)
                            If (LEqual (_T_0, One))
                            {
                                While (One)
                                {
                                    Name (_T_1, Zero)
                                    Store (Arg1, _T_1)
                                    If (LEqual (_T_1, Zero))
                                    {
                                        Store (Arg2, DBG1)
                                        Store (Arg2, VCC1)
                                    }
                                    Else
                                    {
                                        If (LEqual (_T_1, 0x04))
                                        {
                                            Store (Arg2, DBG1)
                                            Store (Arg2, VDDI)
                                        }
                                        Else
                                        {
                                            If (LEqual (_T_1, 0x07))
                                            {
                                                Store (Arg2, DBG1)
                                                Store (Arg2, VSAC)
                                            }
                                            Else
                                            {
                                                If (LEqual (_T_1, 0x08))
                                                {
                                                    Store (Arg2, DBG1)
                                                    Store (Arg2, VIDC)
                                                }
                                                Else
                                                {
                                                    If (LEqual (_T_1, 0x09))
                                                    {
                                                        Store (Arg2, DBG1)
                                                        Store (Arg2, V15C)
                                                    }
                                                    Else
                                                    {
                                                        If (LEqual (_T_1, 0x0A))
                                                        {
                                                            Store (Arg2, V18C)
                                                        }
                                                        Else
                                                        {
                                                            Return (One)
                                                        }
                                                    }
                                                }
                                            }
                                        }
                                    }

                                    Break
                                }
                            }
                            Else
                            {
                                If (LEqual (_T_0, 0x02))
                                {
                                    While (One)
                                    {
                                        Name (_T_2, Zero)
                                        Store (Arg1, _T_2)
                                        If (LEqual (_T_2, Zero))
                                        {
                                            Store (Arg2, DBG1)
                                            Store (Arg2, BCLK)
                                        }
                                        Else
                                        {
                                            Return (One)
                                        }

                                        Break
                                    }
                                }
                                Else
                                {
                                    Return (One)
                                }
                            }

                            Break
                        }

                        Return (Zero)
                    }

                    Method (TSDD, 0, NotSerialized)
                    {
                        Name (TMPC, Zero)
                        Return (TMPV)
                    }

                    Method (VSDD, 0, NotSerialized)
                    {
                        Name (VLTC, Zero)
                        Return (VLTV)
                    }

                    Method (FSDD, 0, NotSerialized)
                    {
                        Name (RPMC, Zero)
                        Return (RPMV)
                    }

                    Method (SDSP, 0, NotSerialized)
                    {
                        Return (0x0A)
                    }
                }
            }

            Device (USBE)
            {
                Name (_ADR, 0x001D0000)
                Device (RHUB)
                {
                    Name (_ADR, Zero)
                    Device (PRT1)
                    {
                        Name (_ADR, One)
                        Name (_UPC, Package (0x04)
                        {
                            0xFF,
                            Zero,
                            Zero,
                            Zero
                        })
                        Name (_PLD, Package (0x10)
                        {
                            0x81,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            0x30,
                            0x1C,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero
                        })
                    }
                }

                Method (_S3D, 0, NotSerialized)
                {
                    If (LEqual (OSFL, 0x02))
                    {
                        Return (0x02)
                    }

                    Return (0x03)
                }

                Name (_PRW, Package (0x02)
                {
                    0x0D,
                    0x03
                })
            }

            Device (USE2)
            {
                Name (_ADR, 0x001A0000)
                Device (RHUB)
                {
                    Name (_ADR, Zero)
                    Device (PRT1)
                    {
                        Name (_ADR, One)
                        Name (_UPC, Package (0x04)
                        {
                            0xFF,
                            Zero,
                            Zero,
                            Zero
                        })
                        Name (_PLD, Package (0x10)
                        {
                            0x81,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            0x30,
                            0x1C,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero,
                            Zero
                        })
                    }
                }

                Method (_S3D, 0, NotSerialized)
                {
                    If (LEqual (OSFL, 0x02))
                    {
                        Return (0x02)
                    }

                    Return (0x03)
                }

                Name (_PRW, Package (0x02)
                {
                    0x0D,
                    0x03
                })
            }

            Device (IDE1)
            {
                Name (_ADR, 0x001F0002)
                OperationRegion (PCI, PCI_Config, 0x40, 0x20)
                Field (PCI, DWordAcc, NoLock, Preserve)
                {
                    ITM0,   16,
                    ITM1,   16,
                    SIT0,   4,
                    SIT1,   4,
                            Offset (0x08),
                    UDC0,   2,
                    UDC1,   2,
                            Offset (0x0A),
                    UDT0,   8,
                    UDT1,   8,
                            Offset (0x14),
                    ICF0,   2,
                    ICF1,   2,
                        ,   6,
                    WPPE,   1,
                        ,   1,
                    FAS0,   2,
                    FAS1,   2
                }

                Device (PRIM)
                {
                    Name (_ADR, Zero)
                    Method (_GTM, 0, NotSerialized)
                    {
                        Store (GTM (ITM0, SIT0, UDC0, UDT0, ICF0, FAS0), Local0)
                        Return (Local0)
                    }

                    Method (_STM, 3, NotSerialized)
                    {
                        Store (STM (Arg0, Arg1, Arg2), Local0)
                        CreateDWordField (Local0, Zero, ITM)
                        CreateDWordField (Local0, 0x04, SIT)
                        CreateDWordField (Local0, 0x08, UDC)
                        CreateDWordField (Local0, 0x0C, UDT)
                        CreateDWordField (Local0, 0x10, ICF)
                        CreateDWordField (Local0, 0x14, FAS)
                        Store (UDC, UDC0)
                        Store (UDT, UDT0)
                        Store (ICF, ICF0)
                        Store (FAS, FAS0)
                    }

                    Device (DRV0)
                    {
                        Name (_ADR, Zero)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF0 (ITM0, SIT0, UDC0, UDT0, ICF0, H15F, FAS0), Local0)
                            Return (Local0)
                        }
                    }

                    Device (DRV1)
                    {
                        Name (_ADR, One)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF1 (ITM0, SIT0, UDC0, UDT0, ICF0, H15F, FAS0), Local0)
                            Return (Local0)
                        }
                    }
                }

                Device (SECD)
                {
                    Name (_ADR, One)
                    Method (_GTM, 0, NotSerialized)
                    {
                        Store (GTM (ITM1, SIT1, UDC1, UDT1, ICF1, FAS1), Local0)
                        Return (Local0)
                    }

                    Method (_STM, 3, NotSerialized)
                    {
                        Store (STM (Arg0, Arg1, Arg2), Local0)
                        CreateDWordField (Local0, Zero, ITM)
                        CreateDWordField (Local0, 0x04, SIT)
                        CreateDWordField (Local0, 0x08, UDC)
                        CreateDWordField (Local0, 0x0C, UDT)
                        CreateDWordField (Local0, 0x10, ICF)
                        CreateDWordField (Local0, 0x14, FAS)
                        Store (UDC, UDC1)
                        Store (UDT, UDT1)
                        Store (ICF, ICF1)
                        Store (FAS, FAS1)
                    }

                    Device (DRV0)
                    {
                        Name (_ADR, Zero)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF0 (ITM1, SIT1, UDC1, UDT1, ICF1, H15F, FAS1), Local0)
                            Return (Local0)
                        }
                    }

                    Device (DRV1)
                    {
                        Name (_ADR, One)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF1 (ITM1, SIT1, UDC1, UDT1, ICF1, H15F, FAS1), Local0)
                            Return (Local0)
                        }
                    }
                }
            }

            Device (IDE2)
            {
                Name (_ADR, 0x001F0005)
                OperationRegion (PCI, PCI_Config, 0x40, 0x20)
                Field (PCI, DWordAcc, NoLock, Preserve)
                {
                    ITM0,   16,
                    ITM1,   16,
                    SIT0,   4,
                    SIT1,   4,
                            Offset (0x08),
                    UDC0,   1,
                        ,   1,
                    UDC1,   1,
                            Offset (0x0A),
                    UDT0,   8,
                    UDT1,   8,
                            Offset (0x14),
                    ICF0,   2,
                    ICF1,   2,
                        ,   6,
                    WPPE,   1,
                        ,   1,
                    FAS0,   2,
                    FAS1,   2
                }

                Device (PRIM)
                {
                    Name (_ADR, Zero)
                    Method (_GTM, 0, NotSerialized)
                    {
                        Store (GTM (ITM0, SIT0, UDC0, UDT0, ICF0, FAS0), Local0)
                        Return (Local0)
                    }

                    Method (_STM, 3, NotSerialized)
                    {
                        Store (STM (Arg0, Arg1, Arg2), Local0)
                        CreateDWordField (Local0, Zero, ITM)
                        CreateDWordField (Local0, 0x04, SIT)
                        CreateDWordField (Local0, 0x08, UDC)
                        CreateDWordField (Local0, 0x0C, UDT)
                        CreateDWordField (Local0, 0x10, ICF)
                        CreateDWordField (Local0, 0x14, FAS)
                        Store (UDC, UDC0)
                        Store (UDT, UDT0)
                        Store (ICF, ICF0)
                        Store (FAS, FAS0)
                    }

                    Device (DRV0)
                    {
                        Name (_ADR, Zero)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF0 (ITM0, SIT0, UDC0, UDT0, ICF0, H15F, FAS0), Local0)
                            Return (Local0)
                        }
                    }

                    Device (DRV1)
                    {
                        Name (_ADR, One)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF1 (ITM0, SIT0, UDC0, UDT0, ICF0, H15F, FAS0), Local0)
                            Return (Local0)
                        }
                    }
                }

                Device (SECD)
                {
                    Name (_ADR, One)
                    Method (_GTM, 0, NotSerialized)
                    {
                        Store (GTM (ITM1, SIT1, UDC1, UDT1, ICF1, FAS1), Local0)
                        Return (Local0)
                    }

                    Method (_STM, 3, NotSerialized)
                    {
                        Store (STM (Arg0, Arg1, Arg2), Local0)
                        CreateDWordField (Local0, Zero, ITM)
                        CreateDWordField (Local0, 0x04, SIT)
                        CreateDWordField (Local0, 0x08, UDC)
                        CreateDWordField (Local0, 0x0C, UDT)
                        CreateDWordField (Local0, 0x10, ICF)
                        CreateDWordField (Local0, 0x14, FAS)
                        Store (UDC, UDC1)
                        Store (UDT, UDT1)
                        Store (ICF, ICF1)
                        Store (FAS, FAS1)
                    }

                    Device (DRV0)
                    {
                        Name (_ADR, Zero)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF0 (ITM1, SIT1, UDC1, UDT1, ICF1, H15F, FAS1), Local0)
                            Return (Local0)
                        }
                    }

                    Device (DRV1)
                    {
                        Name (_ADR, One)
                        Name (H15F, Zero)
                        Method (_GTF, 0, NotSerialized)
                        {
                            Store (GTF1 (ITM1, SIT1, UDC1, UDT1, ICF1, H15F, FAS1), Local0)
                            Return (Local0)
                        }
                    }
                }
            }

            Method (GTM, 6, NotSerialized)
            {
                Store (Buffer (0x14) {}, Local0)
                CreateDWordField (Local0, Zero, PIO0)
                CreateDWordField (Local0, 0x04, DMA0)
                CreateDWordField (Local0, 0x08, PIO1)
                CreateDWordField (Local0, 0x0C, DMA1)
                CreateDWordField (Local0, 0x10, FLAG)
                Store (0x10, FLAG)
                If (LOr (And (Arg0, 0x08), LNot (And (Arg0, One
                    ))))
                {
                    Store (0x0384, PIO0)
                }
                Else
                {
                    Add (ShiftRight (And (Arg0, 0x0300), 0x08), ShiftRight (And (
                        Arg0, 0x3000), 0x0C), Local1)
                    Multiply (Subtract (0x09, Local1), 0x1E, PIO0)
                }

                If (LOr (LAnd (Arg0, 0x4000), LAnd (Arg2, One)))
                {
                    If (LOr (And (Arg0, 0x80), LNot (And (Arg0, 0x10
                        ))))
                    {
                        Store (0x0384, PIO1)
                    }
                    Else
                    {
                        Add (And (Arg1, 0x03), ShiftRight (And (Arg1, 0x0C),
                            0x02), Local1)
                        Multiply (Subtract (0x09, Local1), 0x1E, PIO1)
                    }
                }
                Else
                {
                    Store (PIO0, PIO1)
                }

                If (And (Arg2, One))
                {
                    Subtract (0x04, And (Arg3, 0x03), Local1)
                    If (And (Arg5, One))
                    {
                        Store (0x14, DMA0)
                    }
                    Else
                    {
                        If (And (Arg4, One))
                        {
                            Multiply (Local1, 0x0F, DMA0)
                        }
                        Else
                        {
                            Multiply (Local1, 0x1E, DMA0)
                        }
                    }
                }
                Else
                {
                    Store (PIO0, DMA0)
                }

                If (LOr (LAnd (Arg0, 0x4000), LAnd (Arg2, One)))
                {
                    If (And (Arg2, 0x02))
                    {
                        Subtract (0x04, ShiftRight (And (Arg3, 0x30), 0x04), Local1)
                        If (And (Arg5, 0x02))
                        {
                            Store (0x14, DMA1)
                        }
                        Else
                        {
                            If (And (Arg4, 0x02))
                            {
                                Multiply (Local1, 0x0F, DMA1)
                            }
                            Else
                            {
                                Multiply (Local1, 0x1E, DMA1)
                            }
                        }
                    }
                    Else
                    {
                        Store (PIO1, DMA1)
                    }
                }
                Else
                {
                    Store (DMA0, DMA1)
                }

                Store (Zero, FLAG)
                If (And (Arg0, One))
                {
                    Or (FLAG, 0x10, FLAG)
                }

                If (And (Arg2, One))
                {
                    Or (FLAG, One, FLAG)
                }

                If (And (Arg0, 0x02))
                {
                    Or (FLAG, 0x02, FLAG)
                }

                If (And (Arg2, 0x02))
                {
                    Or (FLAG, 0x04, FLAG)
                }

                If (And (Arg0, 0x20))
                {
                    Or (FLAG, 0x08, FLAG)
                }

                Return (Local0)
            }

            Method (STM, 3, NotSerialized)
            {
                Store (Buffer (0x18) {}, Local7)
                CreateDWordField (Local7, Zero, ITM)
                CreateDWordField (Local7, 0x04, SIT)
                CreateDWordField (Local7, 0x08, UDC)
                CreateDWordField (Local7, 0x0C, UDT)
                CreateDWordField (Local7, 0x10, ICF)
                CreateDWordField (Local7, 0x14, FAS)
                CreateDWordField (Arg0, Zero, PIO0)
                CreateDWordField (Arg0, 0x04, DMA0)
                CreateDWordField (Arg0, 0x08, PIO1)
                CreateDWordField (Arg0, 0x0C, DMA1)
                CreateDWordField (Arg0, 0x10, FLAG)
                Store (FLAG, Local4)
                Store (0x8000, Local0)
                If (And (Local4, 0x02))
                {
                    Or (Local0, 0x07, Local0)
                }

                If (And (Local4, 0x08))
                {
                    Or (Local0, 0x4000, Local0)
                    Or (Local0, 0x70, Local0)
                }

                If (LAnd (LLess (DMA0, PIO0), LNot (And (Local4, One))))
                {
                    Or (Local0, 0x08, Local0)
                }

                If (LAnd (LLess (DMA1, PIO1), LNot (And (Local4, 0x04))))
                {
                    Or (Local0, 0x80, Local0)
                }

                If (PIO0)
                {
                    If (LLess (PIO0, 0x0384))
                    {
                        Or (Local0, One, Local0)
                    }
                }

                If (PIO1)
                {
                    If (LLess (PIO1, 0x0384))
                    {
                        Or (Local0, 0x10, Local0)
                    }
                }

                If (And (Local4, One))
                {
                    Store (PIO0, Local1)
                }
                Else
                {
                    Store (DMA0, Local1)
                }

                If (Local1)
                {
                    If (LLessEqual (Local1, 0x78))
                    {
                        Or (Local0, 0x2300, Local0)
                    }
                    Else
                    {
                        If (LLessEqual (Local1, 0xB4))
                        {
                            Or (Local0, 0x2100, Local0)
                        }
                        Else
                        {
                            If (LLessEqual (Local1, 0xF0))
                            {
                                Or (Local0, 0x1000, Local0)
                            }
                        }
                    }
                }

                Store (Local0, ITM)
                Store (Zero, Local0)
                If (And (Local4, 0x04))
                {
                    Store (PIO1, Local1)
                }
                Else
                {
                    Store (DMA1, Local1)
                }

                If (Local1)
                {
                    If (LLessEqual (Local1, 0x78))
                    {
                        Store (0x0B, Local0)
                    }
                    Else
                    {
                        If (LLessEqual (Local1, 0xB4))
                        {
                            Store (0x09, Local0)
                        }
                        Else
                        {
                            If (LLessEqual (Local1, 0xF0))
                            {
                                Store (0x04, Local0)
                            }
                        }
                    }
                }

                Store (Local0, SIT)
                Store (Zero, Local0)
                If (And (Local4, One))
                {
                    Or (Local0, One, Local0)
                }

                If (And (Local4, 0x04))
                {
                    Or (Local0, 0x02, Local0)
                }

                Store (Local0, UDC)
                Store (Zero, Local0)
                If (And (Local4, One))
                {
                    If (LEqual (DMA0, 0x14))
                    {
                        Store (One, Local0)
                    }
                    Else
                    {
                        If (LLess (DMA0, 0x3C))
                        {
                            Divide (DMA0, 0x0F, , Local1)
                        }
                        Else
                        {
                            Divide (DMA0, 0x1E, , Local1)
                        }

                        Subtract (0x04, Local1, Local0)
                    }
                }

                If (And (Local4, 0x04))
                {
                    If (LEqual (DMA1, 0x14))
                    {
                        Store (One, Local1)
                    }
                    Else
                    {
                        If (LLess (DMA1, 0x3C))
                        {
                            Divide (DMA1, 0x0F, , Local1)
                        }
                        Else
                        {
                            Divide (DMA1, 0x1E, , Local1)
                        }

                        Subtract (0x04, Local1, Local1)
                    }

                    ShiftLeft (Local1, 0x04, Local1)
                    Or (Local0, Local1, Local0)
                }

                Store (Local0, UDT)
                Store (Zero, Local0)
                If (DMA0)
                {
                    If (LGreater (DMA0, 0x14))
                    {
                        If (LLess (DMA0, 0x3C))
                        {
                            Or (Local0, One, Local0)
                        }
                    }
                }

                If (DMA1)
                {
                    If (LGreater (DMA1, 0x14))
                    {
                        If (LLess (DMA1, 0x3C))
                        {
                            Or (Local0, 0x02, Local0)
                        }
                    }
                }

                Store (Local0, ICF)
                Store (Zero, Local0)
                If (LEqual (DMA0, 0x14))
                {
                    Or (Local0, One, Local0)
                }

                If (LEqual (DMA1, 0x14))
                {
                    Or (Local0, 0x02, Local0)
                }

                Store (Local0, FAS)
                Return (Local7)
            }

            Method (H15P, 1, NotSerialized)
            {
                Name (BUFF, Buffer (0x08)
                {
                    /* 0000 */    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
                })
                Store (Arg0, Local0)
                Store (BUFF, Local1)
                Concatenate (Local0, Local1, Local7)
                CreateWordField (Local7, 0x02, CYL)
                CreateWordField (Local7, 0x06, HEAD)
                CreateWordField (Local7, 0x0C, SPT)
                If (LAnd (LGreaterEqual (HEAD, 0x10), LGreaterEqual (CYL, 0x2000)))
                {
                    Return (SPT)
                }
                Else
                {
                    Return (Zero)
                }
            }

            Method (GTF0, 7, NotSerialized)
            {
                Store (Buffer (0x07)
                    {
                        0x03, 0x00, 0x00, 0x00, 0x00, 0xA0, 0xEF
                    }, Local7)
                CreateByteField (Local7, One, MODE)
                If (And (Arg2, One))
                {
                    And (Arg3, 0x03, Local0)
                    If (And (Arg6, One))
                    {
                        Add (Local0, 0x04, Local0)
                    }
                    Else
                    {
                        If (And (Arg4, One))
                        {
                            Add (Local0, 0x02, Local0)
                        }
                    }

                    Or (Local0, 0x40, MODE)
                }
                Else
                {
                    Add (ShiftRight (And (Arg0, 0x0300), 0x08), ShiftRight (And (
                        Arg0, 0x3000), 0x0C), Local0)
                    If (LGreaterEqual (Local0, 0x05))
                    {
                        Store (0x22, MODE)
                    }
                    Else
                    {
                        If (LGreaterEqual (Local0, 0x03))
                        {
                            Store (0x21, MODE)
                        }
                        Else
                        {
                            Store (0x20, MODE)
                        }
                    }
                }

                Concatenate (Local7, Local7, Local6)
                If (LOr (And (Arg0, 0x08), LNot (And (Arg0, One
                    ))))
                {
                    If (And (Arg0, 0x02))
                    {
                        Store (Zero, MODE)
                    }
                    Else
                    {
                        Store (One, MODE)
                    }
                }
                Else
                {
                    Add (ShiftRight (And (Arg0, 0x0300), 0x08), ShiftRight (And (
                        Arg0, 0x3000), 0x0C), Local0)
                    If (LGreaterEqual (Local0, 0x05))
                    {
                        Store (0x0C, MODE)
                    }
                    Else
                    {
                        If (LGreaterEqual (Local0, 0x03))
                        {
                            Store (0x0B, MODE)
                        }
                        Else
                        {
                            Store (0x0A, MODE)
                        }
                    }
                }

                Concatenate (Local6, Local7, Local5)
                If (Arg5)
                {
                    Store (Buffer (0x07)
                        {
                            0x00, 0x00, 0x00, 0x00, 0x00, 0xAE, 0x91
                        }, Local4)
                    CreateByteField (Local4, One, SPT)
                    Store (Arg5, SPT)
                    Concatenate (Local5, Local4, Local6)
                    Return (Local6)
                }
                Else
                {
                    Return (Local5)
                }
            }

            Method (GTF1, 7, NotSerialized)
            {
                Store (Buffer (0x07)
                    {
                        0x03, 0x00, 0x00, 0x00, 0x00, 0xB0, 0xEF
                    }, Local7)
                CreateByteField (Local7, One, MODE)
                If (And (Arg2, 0x02))
                {
                    ShiftRight (And (Arg3, 0x30), 0x04, Local0)
                    If (And (Arg6, 0x02))
                    {
                        Add (Local0, 0x04, Local0)
                    }
                    Else
                    {
                        If (And (Arg4, 0x02))
                        {
                            Add (Local0, 0x02, Local0)
                        }
                    }

                    Or (Local0, 0x40, MODE)
                }
                Else
                {
                    Add (ShiftRight (And (Arg1, 0x03), 0x02), And (Arg1,
                        0x0C), Local0)
                    If (LGreaterEqual (Local0, 0x05))
                    {
                        Store (0x22, MODE)
                    }
                    Else
                    {
                        If (LGreaterEqual (Local0, 0x03))
                        {
                            Store (0x21, MODE)
                        }
                        Else
                        {
                            Store (0x20, MODE)
                        }
                    }
                }

                Concatenate (Local7, Local7, Local6)
                If (LOr (And (Arg0, 0x80), LNot (And (Arg0, 0x10
                    ))))
                {
                    If (And (Arg0, 0x20))
                    {
                        Store (Zero, MODE)
                    }
                    Else
                    {
                        Store (One, MODE)
                    }
                }
                Else
                {
                    Add (ShiftRight (And (Arg1, 0x03), 0x02), And (Arg1,
                        0x0C), Local0)
                    If (LGreaterEqual (Local0, 0x05))
                    {
                        Store (0x0C, MODE)
                    }
                    Else
                    {
                        If (LGreaterEqual (Local0, 0x03))
                        {
                            Store (0x0B, MODE)
                        }
                        Else
                        {
                            Store (0x0A, MODE)
                        }
                    }
                }

                Concatenate (Local6, Local7, Local5)
                If (Arg5)
                {
                    Store (Buffer (0x07)
                        {
                            0x00, 0x00, 0x00, 0x00, 0x00, 0xBE, 0x91
                        }, Local4)
                    CreateByteField (Local4, One, SPT)
                    Store (Arg5, SPT)
                    Concatenate (Local5, Local4, Local6)
                    Return (Local6)
                }
                Else
                {
                    Return (Local5)
                }
            }

            Device (PX43)
            {
                Name (_ADR, 0x001F0003)
                OperationRegion (PBAS, PCI_Config, 0x20, 0x02)
                Field (PBAS, ByteAcc, NoLock, Preserve)
                {
                    BAS0,   16
                }

                Method (SMBB, 0, NotSerialized)
                {
                    And (BAS0, 0xFFFE, Local0)
                    Return (Local0)
                }
            }

            Device (AZAL)
            {
                Name (_ADR, 0x001B0000)
                Method (_PRW, 0, NotSerialized)
                {
                    Return (Package (0x02)
                    {
                        0x0D,
                        0x05
                    })
                }
            }

            Name (BUFA, ResourceTemplate ()
            {
                IRQ (Level, ActiveLow, Shared, )
                    {3,4,5,6,7,9,10,11,12,14,15}
            })
            Name (BUFB, ResourceTemplate ()
            {
                IRQ (Level, ActiveLow, Shared, )
                    {}
            })
            CreateWordField (BUFB, One, IRQV)
            Device (LNKA)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, One)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRA, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRA, 0x80, PIRA)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRA, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRA)
                }
            }

            Device (LNKB)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x02)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRB, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRB, 0x80, PIRB)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRB, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRB)
                }
            }

            Device (LNKC)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x03)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRC, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRC, 0x80, PIRC)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRC, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRC)
                }
            }

            Device (LNKD)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x04)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRD, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRD, 0x80, PIRD)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRD, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRD)
                }
            }

            Device (LNKE)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x05)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRE, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRE, 0x80, PIRE)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRE, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRE)
                }
            }

            Device (LNKF)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x06)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRF, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRF, 0x80, PIRF)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRF, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRF)
                }
            }

            Device (LNK0)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x07)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRG, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRG, 0x80, PIRG)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRG, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRG)
                }
            }

            Device (LNK1)
            {
                Name (_HID, EisaId ("PNP0C0F"))
                Name (_UID, 0x08)
                Method (_STA, 0, NotSerialized)
                {
                    And (PIRH, 0x80, Local0)
                    If (LEqual (Local0, 0x80))
                    {
                        Return (0x09)
                    }
                    Else
                    {
                        Return (0x0B)
                    }
                }

                Method (_PRS, 0, NotSerialized)
                {
                    Return (BUFA)
                }

                Method (_DIS, 0, NotSerialized)
                {
                    Or (PIRH, 0x80, PIRH)
                }

                Method (_CRS, 0, NotSerialized)
                {
                    And (PIRH, 0x0F, Local0)
                    ShiftLeft (One, Local0, IRQV)
                    Return (BUFB)
                }

                Method (_SRS, 1, NotSerialized)
                {
                    CreateWordField (Arg0, One, IRQ1)
                    FindSetRightBit (IRQ1, Local0)
                    Decrement (Local0)
                    Store (Local0, PIRH)
                }
            }

            Method (_PRW, 0, NotSerialized)
            {
                Return (Package (0x02)
                {
                    0x0B,
                    0x05
                })
            }

            Device (CWDT)
            {
                Name (_HID, EisaId ("INT3F0D"))
                Name (_CID, EisaId ("PNP0C02"))
                Name (BUF0, ResourceTemplate ()
                {
                    IO (Decode16,
                        0x0454,             // Range Minimum
                        0x0454,             // Range Maximum
                        0x04,               // Alignment
                        0x04,               // Length
                        )
                })
                Method (_STA, 0, Serialized)
                {
                    Return (0x0F)
                }

                Method (_CRS, 0, Serialized)
                {
                    Return (BUF0)
                }
            }
        }

        Device (MEM)
        {
            Name (_HID, EisaId ("PNP0C01"))
            Method (_CRS, 0, NotSerialized)
            {
                Name (BUF0, ResourceTemplate ()
                {
                    Memory32Fixed (ReadWrite,
                        0x000F0000,         // Address Base
                        0x00004000,         // Address Length
                        _Y0B)
                    Memory32Fixed (ReadWrite,
                        0x000F4000,         // Address Base
                        0x00004000,         // Address Length
                        _Y0C)
                    Memory32Fixed (ReadWrite,
                        0x000F8000,         // Address Base
                        0x00004000,         // Address Length
                        _Y0D)
                    Memory32Fixed (ReadWrite,
                        0x000FC000,         // Address Base
                        0x00004000,         // Address Length
                        _Y0E)
                    Memory32Fixed (ReadWrite,
                        0x00000000,         // Address Base
                        0x00060000,         // Address Length
                        _Y0A)
                    Memory32Fixed (ReadWrite,
                        0x00000000,         // Address Base
                        0x000A0000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0x00100000,         // Address Base
                        0x00000000,         // Address Length
                        _Y11)
                    Memory32Fixed (ReadWrite,
                        0x00000000,         // Address Base
                        0x00000000,         // Address Length
                        _Y12)
                    Memory32Fixed (ReadWrite,
                        0xFEC00000,         // Address Base
                        0x00001000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0xFED10000,         // Address Base
                        0x0000E000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0xFED20000,         // Address Base
                        0x00070000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0xFEE00000,         // Address Base
                        0x00001000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0xFFB00000,         // Address Base
                        0x00080000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0xFFF00000,         // Address Base
                        0x00100000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0x000E0000,         // Address Base
                        0x00010000,         // Address Length
                        _Y0F)
                    Memory32Fixed (ReadWrite,
                        0x20000000,         // Address Base
                        0x00200000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0x40000000,         // Address Base
                        0x00100000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0xFFF00000,         // Address Base
                        0x00010000,         // Address Length
                        _Y10)
                })
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0A._BAS, ACMM)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0B._BAS, RMA1)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0B._LEN, RSS1)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0C._BAS, RMA2)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0C._LEN, RSS2)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0D._BAS, RMA3)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0D._LEN, RSS3)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0E._BAS, RMA4)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0E._LEN, RSS4)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0F._BAS, ERMA)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y0F._LEN, ERMS)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y10._BAS, ISMB)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y10._LEN, ISMS)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y11._LEN, EXTM)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y12._BAS, USMA)
                CreateDWordField (BUF0, \_SB.MEM._CRS._Y12._LEN, USMS)
                Add (AMEM, 0x00060000, USMA)
                Add (USMS, 0x00020000, USMS)
                Subtract (AMEM, 0x00100000, EXTM)
                If (LNotEqual (ROM1, Zero))
                {
                    Store (RMA1, RMA2)
                    ShiftLeft (ROM1, 0x08, Local0)
                    Store (Local0, RMA1)
                    ShiftLeft (RMS1, 0x08, Local0)
                    Store (Local0, RSS1)
                    Store (0x8000, RSS2)
                }

                If (LNotEqual (ROM2, Zero))
                {
                    Store (RMA2, RMA3)
                    ShiftLeft (ROM2, 0x08, Local0)
                    Store (Local0, RMA2)
                    ShiftLeft (RMS2, 0x08, Local0)
                    Store (Local0, RSS2)
                    Store (0xC000, RSS3)
                }

                If (LNotEqual (ROM3, Zero))
                {
                    Store (RMA3, RMA4)
                    ShiftLeft (ROM3, 0x08, Local0)
                    Store (Local0, RMA3)
                    ShiftLeft (RMS3, 0x08, Local0)
                    Store (Local0, RSS3)
                    Store (0x00010000, RSS4)
                }

                Store (ERMA, Local1)
                If (LGreater (RMA1, 0x000D0000))
                {
                    If (LLess (RMA1, 0x000F0000))
                    {
                        Add (RMA1, RSS1, Local0)
                        If (LGreater (Local0, 0x000E0000))
                        {
                            If (LGreater (Local0, Local1))
                            {
                                Store (Local0, Local1)
                            }
                        }
                    }
                }

                If (LGreater (RMA2, 0x000D0000))
                {
                    If (LLess (RMA2, 0x000F0000))
                    {
                        Add (RMA2, RSS2, Local0)
                        If (LGreater (Local0, 0x000E0000))
                        {
                            If (LGreater (Local0, Local1))
                            {
                                Store (Local0, Local1)
                            }
                        }
                    }
                }

                If (LGreater (RMA3, 0x000D0000))
                {
                    If (LLess (RMA3, 0x000F0000))
                    {
                        Add (RMA3, RSS3, Local0)
                        If (LGreater (Local0, 0x000E0000))
                        {
                            If (LGreater (Local0, Local1))
                            {
                                Store (Local0, Local1)
                            }
                        }
                    }
                }

                If (LGreater (Local1, ERMA))
                {
                    Subtract (Local1, ERMA, Local0)
                    If (LLessEqual (Local0, 0x00010000))
                    {
                        Store (Local1, ERMA)
                        Subtract (0x00010000, Local0, ERMS)
                    }
                }

                Store (TSMB, ISMB)
                Subtract (TLUD, TSMB, ISMS)
                Store (AMEM, ACMM)
                Return (BUF0)
            }
        }

        Device (FWH)
        {
            Name (_HID, EisaId ("INT0800"))
            Method (_CRS, 0, NotSerialized)
            {
                Name (FWH0, ResourceTemplate ()
                {
                    Memory32Fixed (ReadWrite,
                        0xFFB80000,         // Address Base
                        0x00080000,         // Address Length
                        )
                })
                Return (FWH0)
            }
        }

        Device (PCI0.EXPL)
        {
            Name (_HID, EisaId ("PNP0C02"))
            Name (_UID, 0x04)
            Method (_CRS, 0, NotSerialized)
            {
                Name (BUF0, ResourceTemplate ()
                {
                    Memory32Fixed (ReadWrite,
                        0xF4000000,         // Address Base
                        0x04000000,         // Address Length
                        )
                })
                Return (BUF0)
            }
        }
    }
}

Edited by gils83

Share this post


Link to post
Share on other sites

--------------------------------

mise à jour du 06/06/2014

--------------------------------



l'injection des kexts à la volé fonctionne très bien sous OS X Yosemite 10.10 DP1, avec les dernières versions de Clover



voici le QE_CI Exotic patch pour les HD 48xx series

<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Name</key>
<string>AMD4800Controller</string>
<key>Find</key>
<string>0x94401002</string>
<key>Replace</key>
<string>0x944c1002</string>
<key>Comment</key>
<string>QE_CI patch</string>
<key>InfoPlistPatch</key>
<true/>
</dict>
<dict>
<key>Name</key>
<string>ATIRadeonX2000</string>
<key>Find</key>
<string>0x94401002</string>
<key>Replace</key>
<string>0x944c1002</string>
<key>Comment</key>
<string>QE_CI patch</string>
<key>InfoPlistPatch</key>
<true/>
</dict>
<dict>
<key>Name</key>
<string>ATIRadeonX2000</string>
<key>Find</key>
<data>
D4ObAQAA
</data>
<key>Replace</key>
<data>
kJCQkJCQ
</data>
<key>Comment</key>
<string>QE_CI patch</string>
</dict>
</array>
</dict>

et voici le patch via Clover Configurator








;)

Share this post


Link to post
Share on other sites

it never wanna work with my ati4850  system id 0x94421002



and no cache command doesn't with Yosemite , clover stuck in 10 seconds something line.





i edit ati4800controller plist and then i copy it , but i would like if i do all by clover in case when update Yosemite

Share this post


Link to post
Share on other sites

Hi,

For OS X 10.8 and 10.9 my graphics card HD4850 (9442 1002) run VGA BIOS appended to the DSDT.

Unfortunately, the new system Yosemite it does not work.

I tried the method described above, but unfortunately it does not want to.

Clover - 2703

config.plist --> klik

There is a solution to this problem?

Share this post


Link to post
Share on other sites

hi



the common problem is that the kexts are not loaded



you can check it with kext wizard



do you tried the trick with FakeSMC (injecting the informations of your kexts inside the Info. plist as additional IOKitPersonalities)?

Share this post


Link to post
Share on other sites

Yes, I tried to trick IOKitPersonalities, unfortunately, does not work.   :(

But it is a success.
Install QE_CI Exotic patch OS X Yosemite_10.10_DP1 to /S/L/E plus Chameleon 2380
However, the future is worth to find a solution by Clover…..

Share this post


Link to post
Share on other sites

as a second solution, I was going to suggest you the QE_CI Exotic patch



glad that it works for you



but don't give up



the Clover solution is really great & easy    ;)

Share this post


Link to post
Share on other sites

--------------------------------

mise à jour du 17/06/2014

--------------------------------



l'injection des kexts à la volé fonctionne très bien sous OS X Yosemite 10.10 DP2, avec les dernières versions de Clover



QE_CI Exotic patch pour les HD 48xx series reste le même que pour la DP1, le voici

<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Name</key>
<string>AMD4800Controller</string>
<key>Find</key>
<string>0x94401002</string>
<key>Replace</key>
<string>0x944c1002</string>
<key>Comment</key>
<string>QE_CI patch</string>
<key>InfoPlistPatch</key>
<true/>
</dict>
<dict>
<key>Name</key>
<string>ATIRadeonX2000</string>
<key>Find</key>
<string>0x94401002</string>
<key>Replace</key>
<string>0x944c1002</string>
<key>Comment</key>
<string>QE_CI patch</string>
<key>InfoPlistPatch</key>
<true/>
</dict>
<dict>
<key>Name</key>
<string>ATIRadeonX2000</string>
<key>Find</key>
<data>
D4ObAQAA
</data>
<key>Replace</key>
<data>
kJCQkJCQ
</data>
<key>Comment</key>
<string>QE_CI patch</string>
</dict>
</array>
</dict>

et voici ce même patch via Clover Configurator








;)

Share this post


Link to post
Share on other sites

--------------------------------

mise à jour du 17/06/2014

--------------------------------



l'injection des kexts à la volé fonctionne très bien sous OS X Yosemite 10.10 DP2, avec les dernières versions de Clover



QE_CI Exotic patch pour les HD 48xx series reste le même que pour la DP1, le voici

<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Name</key>
<string>AMD4800Controller</string>
<key>Find</key>
<string>0x94401002</string>
<key>Replace</key>
<string>0x944c1002</string>
<key>Comment</key>
<string>QE_CI patch</string>
<key>InfoPlistPatch</key>
<true/>
</dict>
<dict>
<key>Name</key>
<string>ATIRadeonX2000</string>
<key>Find</key>
<string>0x94401002</string>
<key>Replace</key>
<string>0x944c1002</string>
<key>Comment</key>
<string>QE_CI patch</string>
<key>InfoPlistPatch</key>
<true/>
</dict>
<dict>
<key>Name</key>
<string>ATIRadeonX2000</string>
<key>Find</key>
<data>
D4ObAQAA
</data>
<key>Replace</key>
<data>
kJCQkJCQ
</data>
<key>Comment</key>
<string>QE_CI patch</string>
</dict>
</array>
</dict>

et voici ce même patch via Clover Configurator








;)



Hey fantomas1,

thanks for your work.



One question: do I have to put the script in the EFI\CLOVER\config.plist?



Thanks!

Share this post


Link to post
Share on other sites

I put it in the config.plist and I correctly see it even in the clover configurator, but still no QE/CI just a 1280x1024 resolution and a very lag system... any advices?

BTW I got an ATI 4890 (that I correctly see in system information)



Thanks again.



Nevermind, I finally did it!

I think the problem was I had the npci=0x2000 flag. Once I removed it it worked!

Thanks again, it also works with the OS X 10.10 (14A261i) update I just installed!

Edited by Blame73

Share this post


Link to post
Share on other sites

:)



je ne sais pas pour ma Sapphire HD 4850 1024 (vga/dvi/Hdmi) sur Yosemite , je l'ai vendu et contant de m'en être débarrassé , j'ai remarqué que les plugin gpu fakesmc (hw monitor) me posaient de gros problèmes d'écran noir aléatoire sur ma HD 6670 1024 et le gel d'écran  sur ma hd 5450 512 , depuis que j'ai viré ces satanés plugin gpu du fakesmc (tant pis pour la température) , je n'ai plus aucun problème , la HD 4670 supporte sans problème .



voir aussi avec GraphicsInjector=No FBConfig=Eulemur (Clover) drapeau indispensable pour ma HD 5450 ;)

Share this post


Link to post
Share on other sites



@ Blame73






I'm glad



just the last thing, tell me what it says when you tape this command in Terminal

ioreg grep ATY



I'll tell you in 5 minutes, I'm on my ML partition now 'cause I was checking performances.

I got half the performance on Yosemite (on OpenCL OceanWave and LuxMark_v2) than I have on ML. Is it normal?

Share this post


Link to post
Share on other sites

maybe, maybe not



it's why I need to see if the right framebuffer is loaded



ioreg |grep ATY



Here it is:

Davides-iMac:~ davide$ ioreg |grep ATY
    | |   |   | +-o ATY,MotMot@0  <class AtiFbStub, id 0x1000002ea, registered, matched, active, busy 0 (3 ms), retain 8>
    | |   |   | | +-o ATY_MotMot  <class AMDFramebuffer, id 0x1000002ec, registered, matched, active, busy 0 (2 ms), retain 18>
    | |   |   | +-o ATY,MotMot@1  <class AtiFbStub, id 0x1000002eb, registered, matched, active, busy 0 (0 ms), retain 8>
    | |   |   | | +-o ATY_MotMot  <class AMDFramebuffer, id 0x1000002f2, registered, matched, active, busy 0 (0 ms), retain 15>

Share this post


Link to post
Share on other sites

ok



I think MotMot has poor performance in Yosemite



change it to Cardinal, tell me if it's a little better



in my case, with my hd4830, I saw better performance with Cardinal



changing  framebuffer to Cardinal, some users have resolved their problem with dual display  ;)

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Gorec
      Hi.
      I apologize in advance if I didn't post in the right category and if my title and description aren't specific enough :c

      My config in a nutshell:
      CPU: i7 5820k GPU: MSI GTX 1060 3GB RAM: 16 GB MOBO: MSI X99 SLI PLUS I attached RunMe output with all the details of my built.

      Some background:
      I have my Hackintosh for about half a year. That time I managed to make it works and fix major issues, but some of them left unresolved since then and I ignored them until now.
      I use my Hackintosh for Adobe projects (PR, AE, PS, IL, AU and a lot more) - most of them connected with video editing of course browsing with Chrome and other small tasks.

      Problems:
      Random restarts - this is the biggest one. I'm starting to work on bigger and bigger projects and at this time I think I can't allow this to happen that often. In the past, they happened like once a day or a couple of times a week. However, now it's just frustrating when it happens even 5 or more times a day. I've tried to observe and find out what can be the cause but I haven't managed to find any connections. I thought it happens when Premiere or another app is using GPU, but I haven't seen increased usage when it restarts. I think that it can be connected with GPU, memory or PSU or... meh, anything else. I don't have resources to check if it'll work with other components. There should be some fix for this. I will really appreciate any help with this :c Restart instead of shutdown & sleep doesn't work. I've tried to look through some Google results for this and tried many solutions (as you can see in attached Clover folder), but I think the right one for many of these issues is to make my own DSDT. Glitches, freezes and other things while encoding a video. It happens very often when I try to do this. Maybe it is an issue with GPU or (hopefully) only with GPU drivers which can be fixed with some patch. Today my headphones stopped working. I have a multi-output device configured in the Audio MIDI Setup app which includes my headphones (HyperX Cloud via USB) and Soundflowerbed virtual audio device for capturing system audio. Today while I was trying (like 15 times) to encode a video in Media Encoder in the background and watch video on YouTube I stopped hearing anything from my system. Of course, it restarted a couple of times as always, but even this didn't solve this. If I plug them directly with mini jack (not via USB Soundcard which was in the box and which I always used) in the front IO or the back I only hear some loud noise It takes EX-Fat formatted volumes a few minutes to mount after each restart. I found a workaround to format it with NTFS since I have Tuxera installed and I will reformat these volumes when I will find time for this, but maybe there is some fix for this. GPU is a little bit hot. HW Monitor shows it is only 45-55 degrees, but for my hand is a little bit hot, idk. Also related to GPU - glitch after POST but before entering Clover boot menu. It is a black screen with little white squared glitches for a few seconds. Maybe it indicates the GPU drivers are loading, but maybe it shouldn't be like this. And if I can ask about that - I can't make all applications hide on startup. I, obviously, have "Hide" checkbox checked on every login item in settings, but it doesn't work, none of the apps is hidden in the dock. Is there a way to fix this? Also a small but annoying problem - I can't turn off permanently Mojave update notification (since I tried to install it, and I had to reverse to High Sierra because I had a black screen and I didn't have time for repairing all of them. Tags are not working in Finder - every time I tag a file or folder and make a change in it (for example save a text file) the tag disappears.
      So, with knowing all of that, is there a way to make a proper DSDT file for my Hackintosh? I tried to look through some guides on how to make it but I think I reached my abilities to understand how Mac OS works and what all of these things are, so I'm asking you guys politely, would someone like to help me? At least with these random restarts? :/
      I really begin to think that I'm a newbie in configuring all of that Clover things - even after what I managed to do with my PC. Help me, pleease... :c

      If you have any questions post it below, I will really appreciate any help <3
      Send me MBP-Gorec.home.zip
    • By rtke333
      Acer Aspire V15 V5-591G - Mojave 10.14.4

      (Note: mine is 55TU version, but the bootpack will work fine with another versions of 591G, for example: V5-591G-71K2, -764Z, -59PU, etc.)
      Specifications:
      - Motherboard: USOPP_SLS (Skylake-H PCH)
      - BIOS:Insyde Corp. v 1.15
      - CPU:Intel Core i5-6300HQ 2.3 GHz (Skylake)
      - GPU: NVIDIA GeForce GTX 950M 2 GB (Optimus) & Intel HD Graphics 530
      - RAM:SK hynix 4 GB DDR4 (Later I bought + KINGSTON 4 GB) 2133 MHz
      - WiFi + Bluetooth:Qualcomm Atheros QCNFA344A 5 GHz (Later -> Broadcom BRCM94352Z M.2 5 GHz WiFi + 4.0 Bluetooth)
      - Audio:Realtek HD Audio: ALC 255
      - Ethernet: Realtek RTL8168/8111
      - Card Reader:Realtek USB 2.0 Card Reader (USB2.0-CRW)
      - Webcam:HD Webcam
      - HDD:TOSHIBA MQ01ACF032 320 GB HDD
      - SSD:SPCC M.2 230 GB SSD
      - Display:1366x768 (15.6", Matte)
      - Battery: 6 cell 56Wh / 5040mAh
      - Connectors:
      1x SD Card Reader 2x USB 3.0 (1x USB Charging), 1x USB 2.0 1x VGA 1x HDMI 1x 3.5mm microphone/audio combined jack connector 1x Ethernet (Rj-45) - Keyboard & Touchpad:Multi-Touch & Multi-gestures ELAN 501 Touchpad, Backlight Keyboard.
      Working:
      - Wi-Fi (with BCM94352Z)
      - Bluetooth hand-off (With BCM94352Z)
      -Full Graphics enabled on HD 530: ig-platform-id: 0x191b0000 (HD 530 Mobile)
      - Display: if default colour profile is corrupted (blue is not actual blue but purplish) Use "Rec. ITU-R BT. 709-5" Color Profile (System Pref. -> Displays -> Color)
      -HDMI & VGA Outputs: AppleGraphicsDevicePolicy.kext Clover patch
      - Audio (ALC 255):(Internal Speakers, Internal Microphone, Headphone jack with AppleALC, ALCPlugFix -> layout-id=17)
      - Ethernet Realtek 8168/8111: RealtekRTL8111.kext
      - App Store, Messages, FaceTime, Siri, iCloud(native)
      - Integrated webcam(native)
      - 3.0 USB (native)
      - Touchpad and Keyboard(ELAN501): Fn keys are good, the weird thing is the Brightness key. On my keyboard it's Pause Break:Br-up, Fn+F12:Br-dwn-> To fix this try Karabiner (VoodoPS2Controller.kext), - for gestures try SmartTouchpad drivers
      - Battery info:Install ACPIBatteryManager.kext with Kext Utility or other installer.
      - Sleep Mode
      - SSD with TRIM enabled (to enable trim, open Terminal and write "sudo trimforce enable")
      Not working:
      - Original Wi-Fi (Qualcomm Atheros QCNFA344A):  unsupported, you need switch to BCM94352Z or just use a mini usb wifi dongle.
      - NVIDIA GeForce GTX 950M: Optimus not supported.
      - Card Reader: Unsupported -> Can't really fix because I don't have any SD Card at the moment, maybe can be fixed by adding Prod & Ven IDs to AppleStorageDevices.kext, I never used it anyway. name: "USB2.0-CRW" Prod ID: "0x0129" Ven ID: "0x0bda  (Realtek Semiconductor Corp.)"
      For Wi-Fi:
      - 1st method:You can choose an external USB wifi dongle (I used TP-Link Archer T1U (5GHz support), TP-Link has official macOS drivers, you just need to install it
      -2nd and I think the best method:Replace your M.2 Qualcomm Card with a compatible BCM94352Zcard (you will have hand-off Bluetooth too), just install the kexts (enabled with BrcmFirmwareData.kext, BrcmPatchRAM2.kext, FakePCIID.kext, FakePCIID_Broadcom_WiFi.kext, they're all in my attached zip). You could buy this card from ebay, aliexpress, or amazon

      Issues:
      - None
      BIOS Settings:
      - BIOS version 1.15 (irrelevant)
      - Secure Boot: Disabled
      - Touchpad: Advanced
      - Boot mode:UEFI
      Getting ready for Installation:
      - Download the install zip (bootpack & postinstall): Click here -> acer_aspire_v591g_installfiles.zip
      Installation:
      - Create an installer with any method you know (- Mac: createinstallmedia - Windows: Transmac, Vmware, Win32diskimager)
      - Copy my Clover folder to the USB's EFI folder
      - Boot with the Installer USB
      - If you stuck in boot, reboot and in the Clover bootloader select "config_debug.cfg" -> you'll have more informations about the freeze

      Please open the README.rtf in my install zip for more informations about the USB Installer & Post installation!
      If you have a single RAM and getting panic at boot, then you need to edit the "config.plist" with these (SMBIOS->after "Version 1.0"):
      ->Edit "Frequency" and "Size" to match your RAM values
      <key>Version</key> <string>1.0</string> <key>Memory</key> <dict> <key>Channels</key> <integer>1</integer> <key>SlotCount</key> <integer>1</integer> <key>Modules</key> <array> <dict> <key>Slot</key> <integer>0</integer> <key>Size</key> <integer>8192</integer> <key>Frequency</key> <integer>2133</integer> <key>Type</key> <string>DDR4</string> </dict> </array> </dict> </dict>
      PowerManagement  fix:
      Set HWPEnable=YES in Clover (already set), CPUFloor to "700", Frequency to "2300" and "3200"(Normal and Turbo, if you have i7-6700HQ version then it should be "2600", "3500") and "FrequencyVectors" from "0x0d000000" to "0x07000000" in "S/L/E/IOPlatformPluginFamily.kext/Contents/PlugIns/X86PlatformPlugin.kext/Contents/Resources/Mac-A5C67F76ED83108C.plist", MSR _xcpm_idle Patch to KernelToPatch in Clover (If you have High Sierra, change "MatchOS" to 10.13):

      <key>KernelToPatch</key> <array> <dict> <key>Comment</key> <string>MSR 0xE2 _xcpm_idle instant reboot(c) Pike R. Alpha</string> <key>Disabled</key> <false/> <key>Find</key> <data> ILniAAAADzA= </data> <key>MatchOS</key> <string>10.14</string> <key>Replace</key> <data> ILniAAAAkJA= </data> </dict> </array> Reboot, and it's 800MHz in idle state, same on Windows.



      Before updating to a new version of Mojave please update kexts (and clover if necessary) to newer versions to avoid kernel panics.
      Generate a serial number with Clover Configurator.app (open up your config.plist with CC then -> SMBIOS -> Serial Number -> Generate New)
      Mojave & Windows 10 Dual-Boot:
      Dual-boot clean install (on one drive), UEFI Only:

       Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it doesn't matter what you choose), 1 for Mac),   Install Mac, boot with your USB, mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder (if there is no folder), copy the CLOVER folder I attached to the EFI folder, restart,  Boot into your Win installer, Format the partition you created for Win, install.   Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:  bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi       5.  You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      Dual-boot with Windows installed first (on one drive), UEFI Only:
      If you already have Windows and you don't want to lose all your data there is a hope:
      I created a video from this restore method: [Hackintosh] Dual-Boot High Sierra & Windows - when Windows already installed - no data waste - UEFI
      You need bootable Mac Installer and a full system restore image (link is in my video's description).
      (You may see errors if your EFI partition is not 200 MB)
       Boot into your Windows, resize your partition or create one for Mac.  Boot into your Mac installer and in Disk Utility format the partition you created.  Restore from image: select your full system restore image.  When it's finished restoring you just need to restart, then boot to the system with your usb.  When you successfully booted to Mac desktop, mount your EFI partition (use terminal or an EFI mounter app), open EFI, you will see there is a Microsoft folder already (don't touch that!). Copy my CLOVER folder to the EFI folder then Restart.  Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:  bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi       7.  You're done! You can select your old Windows and your new macOS!
      (Only tried with Windows 8/8.1/10. I don't know Windows 7,etc.)

      IF YOU GETTING ERRORS DURING MAC RESTORE:
      - Make sure you have partitions in GPT
      - Windows using 100 MB EFI and will annoy the Mac restore. Don't worry, just ignore the errors.

      IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      - Make sure you have GPT partitions, and GPT (UEFI) installer, also disconnect all external storage drives (except the installer USB)

      IF YOU USED RESTORE METHOD THEN CAN'T MOUNT YOUR EFI PARTITION (No EFI partition found):
      - It's because your EFI is not 200 MB or not an "Apple" original EFI,  but do not worry, try another EFI mounter, or mount from terminal (I used EFI mounter v3: Getting errors, but you can mount and use without problem)
      - You also could "mount" the EFI from Windows:
      1st method: open cmd in administrator mode and type:
      diskpart
      list vol (Now select the "System" volume,(FAT 32) For example I select 4)
      sel vol 4
      list part(Select System type partition, for example 2)
      sel part 2
      assign letter=b(This will "mount" your EFI partition)
      Open Explorer++ or TotalCommander in administrator mode to manage EFI
      remove letter=b (This will "unmount" your EFI)
      2nd method: open cmd in administrator mode and type:
      mountvol b: /s (This will mount your EFI)
      Open Explorer++ or TotalCommander in administrator mode to manage EFI
      mountvol b: /d (This will unmount your EFI)
      Thanks to all OSXLatitude members for helping me out! (Jake Lo, Hervé, Bronxteck, black.dragon74)!
      Notes:
      2019.03.30: Fixed USB 3.0 ports, fixed Bluetooth crashes after sleep -> updated bootpack
      2019.03.28: Updated to 10.14.4. Unexpected crashes while updating to 10.14.4 -> fixed by updating Clover to the latest (v4910) version. Bluetooth crashes appeared -> fixed by downgraded Brcm*.kexts. Updated bootpack.
      2019.02.24: Bluetooth crashes after sleep -> fixed, updated bootpack.
      2019.02.22: Updated to 10.14.3. Fixed HDMI Audio by installing "FakePCIID_Intel_HDMI_Audio.kext" -> fixed freezing during boot. Fixed brightness levels by installing "AppleBacklightFixup.kext". Also updated bootpack & postinstall zip down in attachments.
      2019.01.21: Removed FakeSMC.kext, SMCHelper-64.efi, replaced by VirtualSMC.kext, VirtualSMC.efi because I got random freezes when booting system (kextd stall[0], (120s): 'AppleACPICPU' -> CPU is at 100%, fans are spinning fast), also updated bootpack in the attachments "acer_aspire_v591g-55tu_clover.zip"-> Freeze continued, brought back FakeSMC, deleted VirtualSMC (caused BT crashes).
      2019.01.18: HDMI Audio is fixed, I didn't do anything HDMI Audio is not fixed, sometimes it worked but most likely not. (no idea why)
      2018.12.09: Updated to 10.14.2 -> did without any complication
      2018.11.28: Fixed combo-jack garbage sound output by installing ALCPlugFix and CodecCommander.kext
      2018.11.01: Updated to 10.14.1 -> HDMI & VGA ports are gone again. -> Fixed by "AppleIntelSKLGraphicsFramebuffer.kext" rollback from 10.14.
      2018.09.28: Updated to Mojave 10.14 -> Fixed HDMI & VGA Outputs by adding "AppleGraphicsDevicePolicy.kext" patches to config.plist, HDMI audio not working
    • By ciriousjoker
      TLDR:
      I'm trying to boot MacOS on a Chromebook without UEFI. I'm stuck at getting the bootloader (Chameleon/Clover) to work.
      My setup / context:
      I have an Acer Chromebook Spin 13.
      Available ports:
      2 x USB-C 1 x USB-A 3.0 MicroSD Slot No USB A 2.0 (I've read that Clover has problems with USB 3.0) Firmware:
      There's no UEFI firmware available and by default, it doesn't even allow booting anything other than ChromeOS. Thanks to MrChromebox (big shoutouts!), I flashed a custom legacy bios that allows me to boot anything linux related. This bios is flashed into the RW_LEGACY section of the existing bootloader (coreboot afaik) and doesn't have any configuration options. If I have to change a setting, I could try compiling his bios payload myself with the specific setting enabled.
      What I've tried so far:
      Chameleon attempts:
      Only selected setting was "Install chameleon on the chosen path", rest was unselected.

      1 - Install chameleon first without restoring the basesystem:
      Output:
      > boot0: GPT
      > boot0: done
      (hangs; pressing power button once shuts down
      Chameleon installation log is attached as "Chameleon_Installer_Log_BEFORE".

      2 - Install Chameleon after restoring the base system:
      Output:
      > boot0: GPT
      > boot0: GPT
      > boot0: doneboot1: /boot       <- Exactly like that, no line break in between
      (hangs; pressing power button once shuts down)

      I haven't been able to reproduce #2 after wiping the drive and doing the same thing again. Subsequent attempts have resulted in either #1 of either Chameleon or Clover.
      Chameleon installation log is attached as "Chameleon_Installer_Log_AFTER".

      Clover attempts:
      I tried multiple settings and configurations, but all of them boiled down to either one of these.

      1 - Doesn't do anything, just hangs at "Booting from usb..."
      2 - Boots into the blue/grey mode as shown in the attached images.
      According to MrChromebox, this could be an old Tianocore DUET It doesn't detect anything (cpu frequency, ram, partitions or disks)
      I've read pretty much every article, github readme and other types of documentation for coreboot, tianocore, clover, chameleon and MrChromebox' rw_legacy payloads and right now, I'm totally clueless as to what to try next...

      A few questions that came up:
      Why does chameleon hang? What is it looking for, /boot was clearly written to the disk by the Chameleon installer? What exactly is the blue/grey image? According to MrChromebox, it could be Tianocore DUET Where does it come from? Clover? The mainboard itself? Why does the blue/grey thing not detect my processor frequency or any partitions/drives? Can I use some sort of DUET bootloader to chainload Clover?
      If you guys could answer any of them or if you have any other guesses or information as to what's happening, I'd be really happy!
      Chameleon_Installer_Log_BEFORE.txt
      Chameleon_Installer_Log_AFTER.txt





    • By outdoormagic
      Short Version:
      I have two drives with the exact same EFI folder (and I can boot into Clover from either one), shouldn't I be able to boot into MacOS from either one?

      More Detail:
      I've done a few hacks so far and this never happened. (Gigabyte z370 / 8700k / Vega, Asus z390 / i5-9600k / 1080). Now, I'm setting up a ThinkPad X1 Gen 6. (Yes, I do expect problems on laptops, but that's not the question).

      Mojave 10.14.4 now boots from the internal SSD. So far, so good. Here's the problem.

      I installed Mojave on a USB drive (for backup / rescue) and copied the entire EFI partition of my boot drive to the EFI partition on the USB drive. So... I should be able to boot from the USB drive, right? Wrong. Ran Clover installer on the USB itself. Same outcome.

      With F12, I can boot from the USB into Clover and select the OS on the USB. The boot sequence hangs on End Random Seed, but before the usual '++++++++' line.
      So, boot into Clover on internal boot drive, then select OS on USB. Same thing.

      Read the forums, I saw the posts about AptioMemoryFix, so I tried the various other drivers on the USB. No go.

      I haven't found the solution yet to the USB boot issue, but what puzzles me is that if I have two drives with the exact same EFI folder (and I can boot into Clover from either one), shouldn't I be able to boot into MacOS from either one?


    • By fusion71au
      Clover r4914 ISO compiled with GCC and minimal config.plist compatible for use in VMWare Workstation.

      Tested with unlocked Workstation 15 running OSX 10.9 -->10.14 guest in Windows X64 host.

      Installation
      1. Download and unzip "EFI_Clover_r4914 for VMware.zip". Mount Clover-v2.4k-4914-X64.iso by double clicking on it.
      2. Mount your VM's EFI System Partition eg in terminal
      sudo diskutil mount disk0s1   3. Copy EFI folder from step 1 into the EFI partition
      4. Shutdown the VM, add bios.bootDelay = "3000" to your VM's vmx file
      5. Reboot your VM, press <F2> to access the VMware Boot Manager and add CLOVERX64.efi to the boot menu.

      Substitute your own unique and valid MLB and ROM variables in the /EFI/CLOVER/config.plist (Rt Variables section) to activate iMessage/Facetime on your VM.
×
