Hi guys, this thread is to show you a new and open source app, created by me, that I called TINU:
The name means: TINU Is Not #####, the U refers to a popular software that is used to create macOS hackintosh installers (that for good reasons is banned on this forum), but the aim of the name is to explain that this app is a totally different thing from that software and works in a totally different way.
This app basically is a graphical interface for the createinstallmedia executable that is inside the macOS and Mac OS X installer apps, it is capable to create a bootable installer completely vanilla like what you do using the command line method, and also this method is recommended by apple itself. In addition to this, this app provvides you simplicity and flexybility, and lets you to avoid most of the tedious steps or problems of other simlar apps.
TINU allows you to create easily a bootable macOS installer without messing around with command line stuff and without using disk utility, all you need to do is use the app and then install your bootloader of choiche on the usb (or just leave it as is if you want to use it on a real Mac).
- Simple-to-use UI that allows you to easily start the bootable macOS installer creation process.
- It can work with every macOS installer app that has the createinstallmedia executable inside its resources folder (including also beta and newly released installers).
- You can use any erasable volume that is at least 7 GB of size (if the volume's drive is not in GUID format, TINU will re-format it accordingly).
- Can work with the Mac OS recovery system, so you can create a bootable macOS installer from the macOS installer itself or from the macOS recovery partition, and you can use TINU to install macOS, too.
- 100% clean: The bootable macOS installers created with this tool are vanilla, just as if you created them using the command line "createinstallmedia" method in Terminal.
- Open Source: You can verify what this program does on your computer and you can create your own version by downloading and playing with the source code.
- Does not require any special preparations. Just open the program, make sure you have a USB drive plugged in and have a macOS installer app on your disk.
- No need to use Disk Utility. TINU can format your drive or partition for you.
- Integrated EFI partition mounter tool.
- Works using the latest versions of macOS and will also support newer Mac installers out of the box without requiring an update.
- Offers advanced features to customize your bootable macOS installer.
Features that are planned for future versions:
- Support for other languages, at least Italian.
(To sugegst a new feature please contact me on github)
- A computer that runs Mac OS X Yosemite or a more recent version (Mac OS X El Capitan is required to use TINU in a macOS recovery or installer).
- A drive or a free partition (on a drive which already supports GUID) of least 7 GB that you want to turn into a macOS/Mac OS X installer.
- A copy of a macOS/Mac OS X installer app (Maveriks or newer versions are supported) in the /Applications folder or in the root of any storage drive on your machine (excepted the drive or volume you want to turn into your macOS install media).
Frequently asked questions:
Thread (english) on insanelymac.com:
Thread (italian) on insanelymac.com:
Thread (english-german) on hackintosh-forum.de:
Post on Reddit:
Facebook hackintosh help and beta testing (Italian only):
Contact me (project creator):
- Insanelymac.com profile: http://www.insanelymac.com/forum/user/1390153-itztravelintime/
- email: firstname.lastname@example.org
- This software is under GNU GPL v3 license so any new branch/mod/third party release must be open source and under the same license.
- We (the project creator and othe people involved with active developmment) assume no responsibility for any use of this app and this source code, and also for any kind of hardware and software damage to any computer and any device or peripheral that may come from this app or source code during it's use and outside it's usage
- We do not guarantee support to you, this is only an open source project, not a product released by a company!
- This project is born only for educational and demonstrative purposes, it's not intended to be used for commercial purposes and it will never be.
- This is a no-profit project, born only to let people to create macOS install medias in a more simple way and also to learn how to create this kind of apps.
- Apple for macos and installer apps and scripts
- People that helped me a lot:
Francesco Perchiazzi, Nicola Tomarelli, Roberto Sciortino, Raffaele Sonnessa, Ermanno Nicoletti, Tommaso Dimatore, Michele Vitiello Bonaventura, Massimiliano Faralli, Davide Dessì, Giorgio Dall'Aglio, Peter Paul Chato.
- Special thanks to Italian Hackintosh group!! for help (https://www.facebook.com/groups/Italia.hackintosh/?fref=ts)
- Thomas Tempelmann for help with the UI
- Pietro Caruso (ITzTravelInTime) for creating, maintaing and developing this project

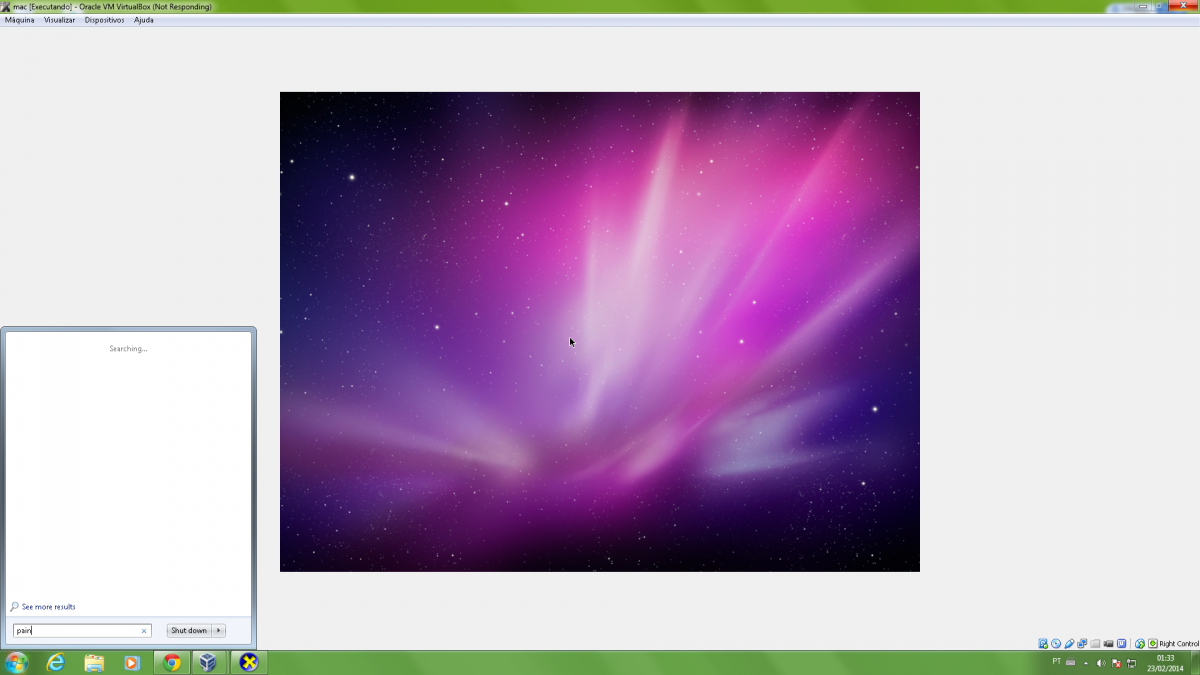

Here are also some screenshots inside this spoiler tab
Hi @chris1111 i have a tenda w311ma usb wireless adapter , i wanted to make it work with my catalina hackintosh so i installed the driver from the official site , the Rt2870driver.kext file and your wireless panel utility but i have a problem : The software dosent always connect to the acess points and when it does , and everything seems to be ok (even in network section of the system preferences ) when i go to safari for example it tells me that im not connected . I tried to connect the pc to my phone using hotspot , same problem in the pc it shows connected to network but in the phone the pc doesnt appear in the list of the connected devices . What to do ? Please help me !
Trying to get Hardware Acceleration working on my Hackintosh (HEVC Support) however I am such a noob, OpenCore is very new to me and would love some support.
I have included screenshots and the EFI that is currently working on my System, I have USB 2 & 3.0 all working, however, the only thing I can fault is my GPU not being hardware acceleration enabled.
Final Cut Pro X - Recognises GPU
VideoProc - Doesn't recognise anything.
(I am running the latest version of OpenCore 0.5.9)
Things I've tried: I tried following the post https://www.tonymacx86.com/threads/catalina-10-15-2-update-lost-hevc-h265-acceleration.288563/ - No Luck
I have also tried: https://forums.macrumors.com/threads/activate-amd-hardware-acceleration.2180095/page-53?post=28255048#post-28255048 - No luck either!
My friend online tells me I shouldn't need such Kext as he has the same build as me but when I load his EFI on my system it boots with no USB 2 or 3.0 (I'm keeping his EFI off here as I've uploaded mine.)
Please note: I appreciate all (any) pieces of advice and please do bear in mind that I am a noob and may need whatever you say simplifying as I can get easily confused.
Radeon RX 580 8 GB graphics card on macOS High Sierra (as of 10.13.6), Mojave and Catalina on the P55-USB3 board: excellent performance with acceleration (Metal) OOB, no need for drivers (kexts), with 3 drawbacks, one has to do with the boot of the operating system (a solution is proposed), another with the number of rear connectors enabled (a solution is proposed) and another that only affects to one phase of the Mojave or Catalina installation (without clear solution for now).
I have placed the XFX AMD Radeon RX-580 P8DFD6 8GB Triple X Edition GDDR5, 256BIT, DVI + HDMI + 3DP graphics card on a 10 year old motherboard (Gigabyte P55-USB3) in order to update the hackintosh to 10.14 Mojave and 10.15 Catalina because the card that I have used in past years, Nvidia Geforce GTX 750 1GB, has stopped working after 10.13.6 High Sierra since this was the last version for which Nvidia published the alternate web drivers that were necessary for the card to work well with graphic acceleration.
The new RX 580 card needs considerably more space than the old one although it fits perfectly in an ATX case, and requires an additional power connector. It has 2 big fans that most of the time are stopped, at least in my case. In macOS it works perfectly, even with Metal acceleration, without additional drivers and without extra settings in Clover. But it has drawbacks that I comment below.
Alterations during startup
During the boot of the operating system, when the screen goes from the basic driver to the AMD driver, 2 artifacts appear randomly, they are very short in duration (from one to a few seconds):
Very short flashing white screen that may or may not be accompanied by purple lines The fans runs for a few seconds (the noise is clearly audible). This behavior is solved with the installation of 2 kexts, Lilu and WhateverGreen. Lilu is an extension created by acidantheraand vit9696 among others whose function is to help to patch kexts, processes and libraries during macOS boot. It is accompanied by specific plugins for the task required, for example WhateverGreen that injects necessary patches for certain AMD, Intel and Nvidia graphics cards. It is mandatory to have both extensions together, one of them separately does not correct the problem.
I have installed Lilu 1.4.4 and WhateverGreen 1.3.9 in the EFI/CLOVER/kexts/Other folder of the EFI partition and artifacts have disappeared. Remember that these 2 extensions are not necessary for the card to work properly, if you tolerate those very brief distortions of the screen or the noise of the fans running for a few seconds, you can live without Lilu and WhateverGreen.
Note: authors recommend that when using Lilu and WhateverGreen with Radeon cards, NO graphic settings have to be added to Clover (Inject ATI, etc.).
Note: these alterations, especially the brief white screen and less frequently purple lines and fan noise, are also seen in Windows and some real Macs with the same card.
Alteration during macOS installation
Boot from USB > Clover menu > Install macOS from Install macOS Catalina > screen works fine
Boot from USB > Clover menu > Install macOS from MacintoshHD > black screen
Booting from USB > Clover menu > Boot macOS from MacintoshHD > screen works fine.
In the first and third stages, screen works fine. In the second stage the screen goes black although the installation continues. The user has nothing to do at this moment so you can leave the PC working until the Clover menu is shown again, the screen is recovered, the initial account options can be configured and you can enter into the newly installed system with correct resolution and acceleration.
This behavior is not corrected even by placing Lilu and WhateverGreen into the USB device. At least in my case I have not found a solution for it. Yo can install macOS perfectly with that drawback of not seeing how it progresses during the second phase of the installation.
Only 2 connectors of the 5 available work
This card has 3 Display Port (DP) ports, 1 HDMI port and 1 DVI port. In my case, only 2 DP work, those that are further from the HDMI connector. It is enough if you use a single monitor or 2 monitors that can be connected by DP. But if you want to have 3 or more connected devices or some of them only have HDMI, it is necessary to enable the 5 connectors or at least 4 of them since the DVI is obsolete and does not allow resolutions as high as DP and HDMI.
User foxbox has proposed a solution in a thread titled [Solved] Sapphire RX 580 Nitro + SE | black screen on HDMI and DVI. Must inject from Clover a modification to the Orinoco framebuffer (which is used in the RX 580 card) so that the 5 connectors lack a fixedly assigned address and, instead, receive it dynamically. This change is made from the KextsToPatch section of Clover. Read the post from foxbox.
This has to be accompanied by 3 changes in the Graphics section of Clover: Orinoco in FB Name / Inject ATI / 5 in Video Ports. I have tested this solution in macOS Catalina and it effectively enables the 5 ports of the card but, since I only use 1 monitor, I have removed it and I am with Lilu and WhateverGreen.
Hello, and thank you for your help!
Ever since installing my new Sapphire Radeon Pulse RX580, I've been having issues with audio freezing up for the whole system- seemingly the coreaudiod process crashing / my USB audio interface not working. It feels random but seems to correlate with playing youtube videos, streaming audio in Finder, playing sound files from chat clients like Telegram/Discord and such. The system otherwise works as normal, with only audio related functions breaking. Sometimes instead of a full freeze / crash, the sample rate of audio will just drop significantly, causing a lot of aliasing.
I followed this guide here, though it is outdated and some KEXTs have been merged with WhateverGreen. The shikigva=4 & -rad4200 boot arguments weren't available in WhateverGreen so I didn't add any boot arguments.
My issue was not fixed by this. I also learned that USBInjectAll hadn't been given a custom SSDT and so I made one, which I have included at the end of this post. I also disabled the 15 port patch which had been left on. My USB ports now show up properly (though I've excluded my mobo's type-c port to meet the 15 port limit). My audio issues still have not been fixed, though.
On High Sierra, the crash was irrecoverable- opening sound in system prefs just froze up, and I have to reset the system to get audio back. In Catalina, I seem to be able to choose a different audio device then go back to my external interface to reset the driver and get sound back.
Thank you for any help / ideas you can offer!
UPDATE: Issue still persists. I'm now using a USBPorts.kext created by Hackintool and have updated my list of current kexts below.
