Haswell Speedstep Problem

[ijwcomp]

Hi,



I have a problem with my Speedstep not working on my rig as follows:



ASUS Gryphon Z87

Intel i3 4330 3.5GHz

16GB RAM 1333MHz

SSD, 3xHDD



HWMonitor reports 3.5GHz.



I use Clover, config.plist attached (as a txt).



cat /var/log/system.log | grep "AICPUPMI:" returns:

Dec 15 22:27:22 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 35 ]



Sleep works fine.



Thanks,

config.txt

[artur_pt]

hello



i think this is wrong



SSDT

DropOem



unless u use a custom ssdt...



good hack

[ijwcomp]

I've tried with



<key>SSDT</key>

<dict>

<key>DropOem</key>

<false/>



and nothing in my ACPI folder.



Also



<key>SSDT</key>

<dict>

<key>DropOem</key>

<true/>

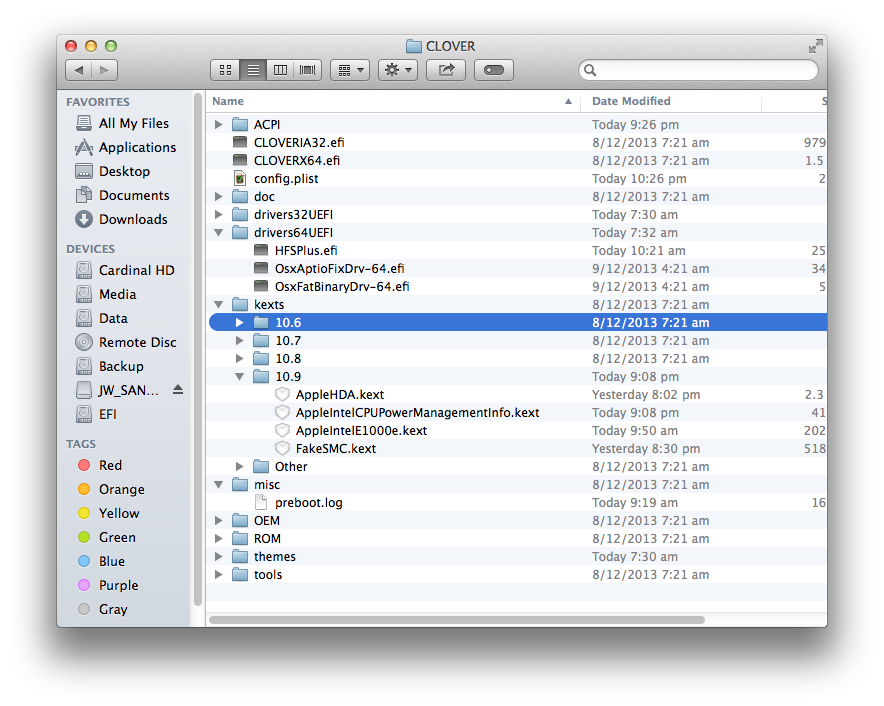

with a SSDT.aml in the ACPI/patched folder. (attached)



I've generated the SSDT with ssdtPRGen.sh.



Both have no difference.



Edit: (More information)

Using the SSDT generated by ssdtPRGen.sh



sudo dmesg | grep XCPM returns

XCPM: registered

IOPPF: XPCM mode



Verbose Boot Log:

http://pastebin.com/Txier9tU



cat /var/log/system.log | grep "AICPUPMI:" returns:

Dec 15 22:27:22 localhost kernel[0]: AICPUPMI: CPU P-States [ 8 35 ]





HWMonitor says 800MHz, but after 1s, changes to 3.5GHz.



SSDT section of Clover's config.plist says:

<key>SSDT</key>

<dict>

<key>DropOem</key>

<true/>

<key>Generate</key>

<dict>

<key>CStates</key>

<false/>

<key>PStates</key>

<false/>

</dict>

<key>MinMultiplier</key>

<integer>7</integer>

<key>PLimitDict</key>

<integer>0</integer>

</dict>

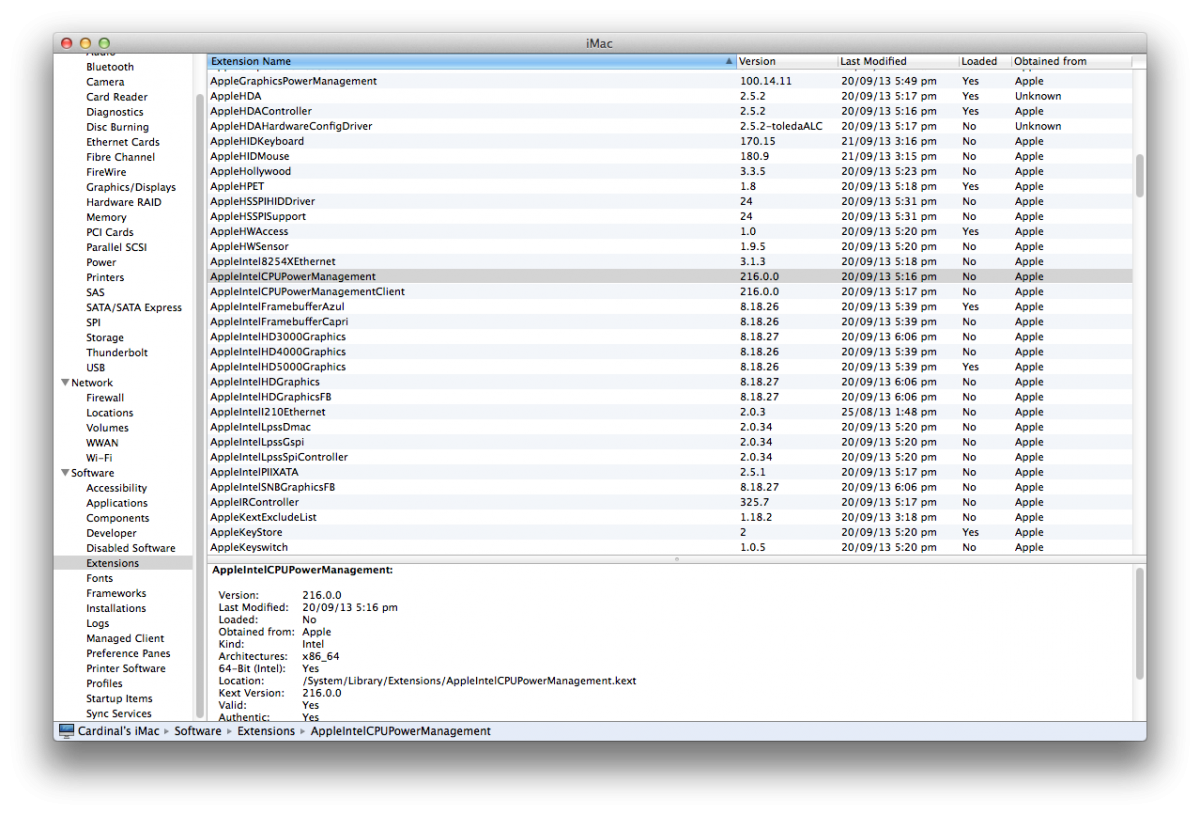

AppleIntelCPUPowerManagement.kext does not seem to load. (see screenshot attached)

SSDT.zip
