Ajuda placa Gigabyte GA-B75M-D3H

33 posts in this topic

Recommended Posts

Boa noite a todos mudei minha estacao para essa placa ainda nao tenho o teclao configurado por isso a falta do acentos, mais esse nao e o problema gostaria de solicitar uma ajuda para ter as funcoes funcionando no meu hack novo o sistema ja esta funcionando so que nao possuo dsdt ainda da mesma placa pois pelo que pesquisei por ela ser UEFI nao precisaria de DSDT nao sei se e certo isso, o que tenho na minha EXtra e isso



Extrab76md3h.zip



fiz a instalacao com o pen do myhack e instalei apenas as kext comuns mais acho que a instalacao do myhack colocou a null la pois nao tenho mais essa kext e meso assim ela carrega, fiz minha tabela SSDT no app MACAISL foi gerado sem erros e colocada na extra e pelo que vi no HWSensor os states ent'ao funcionando pelo menos 2






Gostaria de saber o que devo fazer ou editar para ter  Sleep e Gerenciamento de energia correto j[a que aparentemente seria mais facil com essa config, na bios esta padrao Sata AHCI e tudo no padrao UEFI







Share this post


Link to post
Share on other sites
Advertisement

olá



o myhack instala uma kext , k tem a nullcpu entre outras vê o k ele instalou, ou pode estar numa extensions.mkext



sobre o uefi tens de usar Clover



chameleon so faz boot em modo legacy



bom hack

Share this post


Link to post
Share on other sites

Grande artur blz irmao, cara nunca instalei o clover tem algum pkg ou dmg dele??? como faço essa instalação devo alterar alguma coisa no processo de instalação ou o clover ja faz tudo? e e verdade que não preciso de DSDT nessa placa so usar o SSDT para gerenciamento?

Share this post


Link to post
Share on other sites

olá



sobre clover tens de ler sobre ele...



http://sourceforge.net/projects/cloverefiboot/?source=navbar



Multi boot em UEFI com Clover



     Clover v.2 Instructions



http://clover-wiki.zetam.org/Content



tenta instalar numa pen para testar e depois quando tiver 100% instalas no hd



bom hack

Share this post


Link to post
Share on other sites

Bem artur com o clover naáo consigo agora to tentando instalar com o myhack 3.2 b8 e nao rola fez a instal;ao mais nao inicia depois fica travado depois que reconhece o hd mesmo utilizando -v -f PCIRootUID=0

Share this post


Link to post
Share on other sites

sim e ja testei on e off

, qual seria a melhor forma de instalar essa placa para ter tudo funcionando no ML

o myhack e o mais indicado eu baixei um dvd pronto no Olarila com clover mais boota e não entra na instalação carrega ate aparece a tela cinza antes de escolher o idioma e para ali,na bios so mudeia a sata ahci e o boot para uefi and legay

Share this post


Link to post
Share on other sites

Novidades artur consegui fazer a instalação com o usb criado a partir do dvd que baixei la do olarila, agora ele para no reconhecimento das usbs algo do tipo appleusbeih alguma coisa eu bati uma foto vou postar assim que der ta no celular

Share this post


Link to post
Share on other sites

boas nova artur,achei aparentemente o problema, atualizei a bios para a f14 e o sistema subiu com a pen que fiz do dvd de instala;'ao do 10.8.4 feita la no olarila, e um dvd puro ja atualizado, logo apos instalei o cloover na maquina para ter os arquivos de boot e copiei a pasta EFI substituindo a do hd pela da pen ta subindo e parece que tenho algum gerenciamento pois deu sleep e voltou instalei agora a fake pra ter os sensores pois nao tinha peguei no oxs86 agora tenho que aprender a alterar o config do clover pois e diferente e vi que subindo -v tem erros nos states mais nao sei onde vejo o log para te mandar


instalei a rede realteck e uma applehda 887 para o som e agora a fakesms so essas 3 ate agora o resto ta pelo clover


PS: Fakes ok subiu normal agora tenho uma atualização do firmware do thunderbold que nao instala fica la o tempo todo pedindo pra atualizar mais minha maquina nao tem o thunder como tirar ela de la pois demora pakas para reiniciar e desligar pois tenta instalar toda vez que mando desligar e reiniciar, os erros de states ainda sao apresentados no modo -v mais nao sei como tem enviar pois nao acho o log do clover

Share this post


Link to post
Share on other sites

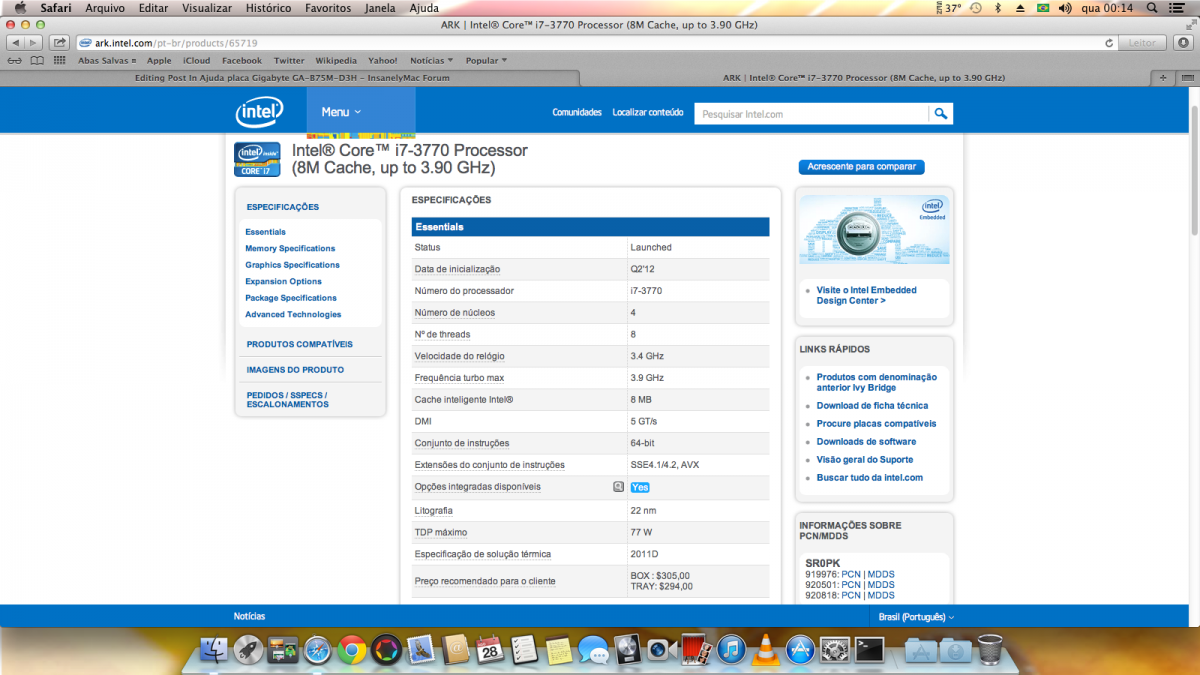

O cpu reconhece como 4 core sendo que ele e quad com mais 4 virtuais  no windows ele ereconhece como 8 tenho que fazer alguma altera;áo ou e assim mesmo?

Share this post


Link to post
Share on other sites

Artur tem como vc me fazer um favor ve se tem algo para acertar no meu hack rodei o comando no terminal e ele me voltou isso



PMAP: PCID enabled

PMAP: Supervisor Mode Execute Protection enabled

Darwin Kernel Version 12.4.0: Wed May  1 17:57:12 PDT 2013; root:xnu-2050.24.15~1/RELEASE_X86_64

vm_page_bootstrap: 3904972 free pages and 256564 wired pages

kext submap [0xffffff7f80737000 - 0xffffff8000000000], kernel text [0xffffff8000200000 - 0xffffff8000737000]

zone leak detection enabled

standard timeslicing quantum is 10000 us

standard background quantum is 2500 us

mig_table_max_displ = 74

TSC Deadline Timer supported and enabled

corecrypto kext started!

Running kernel space in FIPS MODE

Plist hmac value is    735d392b68241ef173d81097b1c8ce9ba283521626d1c973ac376838c466757d

Computed hmac value is 735d392b68241ef173d81097b1c8ce9ba283521626d1c973ac376838c466757d

corecrypto.kext FIPS integrity POST test passed!

corecrypto.kext FIPS AES CBC POST test passed!

corecrypto.kext FIPS TDES CBC POST test passed!

corecrypto.kext FIPS AES ECB AESNI POST test passed!

corecrypto.kext FIPS AES XTS AESNI POST test passed!

corecrypto.kext FIPS SHA POST test passed!

corecrypto.kext FIPS HMAC POST test passed!

corecrypto.kext FIPS ECDSA POST test passed!

corecrypto.kext FIPS DRBG POST test passed!

corecrypto.kext FIPS POST passed!

AppleACPICPU: ProcessorId=1 LocalApicId=0 Enabled

AppleACPICPU: ProcessorId=2 LocalApicId=2 Enabled

AppleACPICPU: ProcessorId=3 LocalApicId=4 Enabled

AppleACPICPU: ProcessorId=4 LocalApicId=6 Enabled

AppleACPICPU: ProcessorId=5 LocalApicId=1 Enabled

AppleACPICPU: ProcessorId=6 LocalApicId=3 Enabled

AppleACPICPU: ProcessorId=7 LocalApicId=5 Enabled

AppleACPICPU: ProcessorId=8 LocalApicId=7 Enabled

calling mpo_policy_init for TMSafetyNet

Security policy loaded: Safety net for Time Machine (TMSafetyNet)

calling mpo_policy_init for Sandbox

Security policy loaded: Seatbelt sandbox policy (Sandbox)

calling mpo_policy_init for Quarantine

Security policy loaded: Quarantine policy (Quarantine)

Copyright © 1982, 1986, 1989, 1991, 1993

The Regents of the University of California. All rights reserved.



MAC Framework successfully initialized

using 16384 buffer headers and 10240 cluster IO buffer headers

IOAPIC: Version 0x20 Vectors 64:87

ACPI: System State [s0 S3 S4 S5]

PFM64 (36 cpu) 0xf80000000, 0x80000000

AppleIntelCPUPowerManagement: Turbo Ratios 3455

AppleIntelCPUPowerManagement: (built 18:11:47 May  1 2013) initialization complete

HWSensors Project Copyright 2013 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.

waitForSystemMapper

Backtrace 0xffffff802505204f 0xffffff8025051bc9 0xffffff8025051b30 0xffffff7fa61c0a59 0xffffff7fa61c0715 0xffffff80250311bc 0xffffff802502d400

      Kernel Extensions in backtrace:

         org.netkas.driver.FakeSMC(489.0)[ED06D2B1-5774-3369-8C97-3C152578ED19]@0xffffff7fa61bc000->0xffffff7fa61ccfff

            dependency: com.apple.iokit.IOACPIFamily(1.4)[A35915E8-C1B0-3C0F-81DF-5515BC9002FC]@0xffffff7fa5d5e000

[ PCI configuration begin ]

FakeSMCDevice: 15 preconfigured keys added

FakeSMCDevice: 5 keys exported by Clover EFI

SMC: successfully initialized

CPUSensors: CPU family 0x6, model 0x3a, stepping 0x9, cores 4, threads 8, TJmax 105

CPUSensors: setting platform to d8

mbinit: done [128 MB total pool size, (85/42) split]

Pthread support ABORTS when sync kernel primitives misused

rooting via boot-uuid from /chosen: 956D247C-EBF8-356A-A787-4AA3D5637F00

Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>

com.apple.AppleFSCompressionTypeZlib kmod start

com.apple.AppleFSCompressionTypeDataless kmod start

com.apple.AppleFSCompressionTypeZlib load succeeded

com.apple.AppleFSCompressionTypeDataless load succeeded

AppleIntelCPUPowerManagementClient: ready

PCI configuration changed (bridge=1 device=0 cardbus=0)

[ PCI configuration end, bridges 5 devices 12 ]

HDAEnabler: Copyright © 2008 by Kabyl

HDAEnabler: 05/05/2008 Added SP-Audio support by Taruga

HDAEnabler: 03/07/2009 Compiled for 32/64-bit by Taruga

SuperIODevice: found ITE IT8728F on port=0x2e address=0xa30

IT87xxSensors: started

GeForceSensors (pci1@0): chipset: G96 (NV96) bios: 62.94.73.00

GeForceSensors (pci1@0): started

Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SAT0@1F,2/AppleIntelPchSeriesAHCI/PRT0@0/IOAHCIDevice@0/AppleAHCIDiskDriver/IOAHCIBlockStorageDevice/IOBlockStorageDriver/SAMSUNG HD502IJ Media/IOGUIDPartitionScheme/Sem T\M-C\M--tulo 1@2

BSD root: disk0s2, major 1, minor 2

Kernel is LP64

HDAEnabler: Copyright © 2008 by Kabyl

NVDAStartup: Official

Previous Shutdown Cause: 5

[broadcomBluetoothHCIControllerUSBTransport][start] -- completed

NVDANV50HAL loaded and registered

HDAEnabler: 05/05/2008 Added SP-Audio support by Taruga

HDAEnabler: 03/07/2009 Compiled for 32/64-bit by Taruga

Waiting for DSMOS...

macx_swapon SUCCESS

DSMOS has arrived

[iOBluetoothHCIController][staticBluetoothHCIControllerTransportShowsUp] -- Received Bluetooth Controller register service notification

[iOBluetoothHCIController][start] -- completed

AppleRTL8169Ethernet: Ethernet address 90:2b:34:f3:18:98

X86PlatformPlugin::setRingTable - No ring table found!

X86PlatformPlugin::configResourceHandler - Failed to set ring table!

[iOBluetoothHCIController::setConfigState] calling registerService

[sendHCIRequestFormatted] ### ERROR: [0xFD08] (Broadcom VSC -- Change LNA Gain Coex sECI) -- Send request failed (err = 0x0001 (kBluetoothHCIErrorUnknownHCICommand))

[AGPM Controller] unknownPlatform

NTFS driver 3.10 [Flags: R/W].

NTFS volume name Reservado pelo Sistema, version 3.1.

NTFS volume name , version 3.1.

NTFS-fs warning (device /dev/disk1s2, pid 109): ntfs_system_inodes_get(): Windows is hibernated.  Will not be able to remount read-write.  Run chkdsk.

NTFS volume name Filmes, version 3.1.

NTFS volume name Musicas, version 3.1.

NTFS volume name Videos, version 3.1.

NTFS volume name Games, version 3.1.

NTFS volume name Works, version 3.1.

NTFS volume name Dados, version 3.1.

NTFS volume name Programas, version 3.1.

CODE SIGNING: cs_invalid_page(0x1000): p=227[ksadmin] clearing CS_VALID

CODE SIGNING: cs_invalid_page(0x1000): p=244[ksadmin] clearing CS_VALID

CODE SIGNING: cs_invalid_page(0x1000): p=260[GoogleSoftwareUp] clearing CS_VALID

considerRebuildOfPrelinkedKernel com.apple.driver.AppleGraphicsControl triggered rebuild

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

CODE SIGNING: cs_invalid_page(0x1000): p=579[ksadmin] clearing CS_VALID

CODE SIGNING: cs_invalid_page(0x1000): p=583[ksadmin] clearing CS_VALID

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

         0 [Time 1376094886] [Message Wake reason: GLAN EHC2 PXSX (Network)

RTC: PowerByCalendarDate setting ignored

Previous Sleep Cause: 5

The USB device HubDevice (Port 1 of Hub at 0x1a000000) may have caused a wake by issuing a remote wakeup (2)

The USB device DELL USB Keyboard (Port 6 of Hub at 0x1a100000) may have caused a wake by issuing a remote wakeup (3)

HID tickle 235 ms

Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -548590969600, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0

Sound assertion in AppleHDAController at line 5097

Sound assertion in AppleHDAController at line 5098

Sound assertion in AppleHDAController at line 8276

Sandbox: xpcd(202) deny ipc-posix-shm-read-data /tmp/com.apple.csseed.75

CODE SIGNING: cs_invalid_page(0x1000): p=633[GoogleSoftwareUp] clearing CS_VALID

NTFS volume name Expansion Drive, version 3.1.

Share this post


Link to post
Share on other sites

Olá camarada.

O cpu reconhece como 4 core sendo que ele e quad com mais 4 virtuais  no windows ele ereconhece como 8 tenho que fazer alguma altera;áo ou e assim mesmo?

Isso é normal. O mac só msotra os cores reais, os theads ficam em oculto.

Mas ele usa tanto os cores como os theads.



Desculpa por não ajudar no Clover só tenho experiência no Chameleon. Só passei para te esclarecer isso.

Creio que o artur deve estar um pouco ocupado esses dias. Uma pena, pois ele é quem entende no momento no fórum português mais acerca do Clover.

Share this post


Link to post
Share on other sites

opa que issso obrigado pela ajuda ela sempre e bem vinda, que bom que esta certo, eu mandei por artur pq sempre e ele que salva ainda mais agora que to usando o clover, e pq vi algumas msg de erro e queria saber se e preocupante mais obrigado assim mesmo, vou esperar se mais alguem souber do clover aparecer, senao vou ter que me aventurar no forum gringo daqui abç

Share this post


Link to post
Share on other sites

olá



quanto ao cpu



AppleACPICPU: ProcessorId=1 LocalApicId=0 Enabled

AppleACPICPU: ProcessorId=2 LocalApicId=2 Enabled

AppleACPICPU: ProcessorId=3 LocalApicId=4 Enabled

AppleACPICPU: ProcessorId=4 LocalApicId=6 Enabled

AppleACPICPU: ProcessorId=5 LocalApicId=1 Enabled

AppleACPICPU: ProcessorId=6 LocalApicId=3 Enabled

AppleACPICPU: ProcessorId=7 LocalApicId=5 Enabled

AppleACPICPU: ProcessorId=8 LocalApicId=7 Enabled



depois tens muitas msg da applehda - sound assertion



tenta usar outra... uma + atual



[iOBluetoothHCIController::setConfigState] calling registerService

[sendHCIRequestFormatted] ### ERROR: [0xFD08] (Broadcom VSC -- Change LNA Gain Coex sECI) -- Send request failed (err = 0x0001 (kBluetoothHCIErrorUnknownHCICommand))



aqui possivelmente também tens problemas



quanto ao clover os log são gerados pelos scripts que devem ser instalados pelo instalador do clover... e podes vê-los pela console do sistema



tão em Clover



O clover tenta ir por partes.. no config estão várias seções .. CPU, Graficos e por ai alem



ve neste link o k faz cada comando.. e testes e + testes



http://clover-wiki.zetam.org/Contents



tenta começar a eliminar as msg e debruçar no clover sobre os problemas que te pareça que a tua config tenha.. e sobre a tua bios



bom hack

Share this post


Link to post
Share on other sites

fala ai artur nao achei muita coisa de como acertar as coisas entao peguei o clover configurator,  a parte do smbios ja fiz agora a parte do cpu nao entendi e fiquei meio cabreiro de colocar coisa errada





na tela tem os campos CPU Frequency MHz que no meu caso acho que seria 3400 velocidade normal do cpu a de turbo e  3900 mais nao tem essa opicao dentro co clover configurator entao seria 3400 mesmo eu acho



Bus Speed KHz esse eu nao sei quanto e o DMI do CPU e 5000 mais nao sei se e isso



QPI nao sei o que entao nao tenho valores

Processor Type e o codigo o processador que a Apple da eu nao sei onde achar caso tenha mais alguma informacao para me dar ou indicar eu tirei os dados desse site da intel

http://ark.intel.com/pt-br/products/65719

quanto aos outros erros que mencionei ainda nao vi quero resolver primeiro o cpu e ir por partes e mais uma vez obrigado

Share this post


Link to post
Share on other sites

olá



com a config.plist minima tenta fazer o boot



quando conseguires fazer o boot corre este script



que vai gerar um config.plist e é nesse k tens de mexer...



http://olarila.com/forum/download/file.php?id=3686

cd ~/Downloads/GetCloverConfig
./genconfig >config.plist

bom hack

Share this post


Link to post
Share on other sites

artur rodei o script gerou esse ai, com base no que estava subindo deixei dessa forma e alterei o valor do cpu para 3400 que e o valor correto dele agora acho que tem coisa errada ainda pois ola essa tela e normal esses valores



Arquivar.zip

arquivos para analisa com base nessa informação



na pagina fala que o dmi e 5 gt/s e detro do sobre fala isso



Velocidade de Conexão do Processador: 400 MT/s esta certo isso?



os valores estao certo no config.plist, dessa forma ta subindo com tudo ok so essas informações que acho que tem algo errado pois o cpu estava marcando 3.39 dai eu coloquei 3400 na  config e ele passou a aparecer 3.4 esse cpu tem turbo por isso ta acionado dentro da config ele vai ate 3.9

Share this post


Link to post
Share on other sites

olá



ali unico valor k tens de mexer é no QPI = 5000



5GT



de resto me parece bem



e veres no sobre o meu mac + info de memória se está tudo bem..



e testares se o sistema está estável



depois veres o acpi



e gerares os states



tem uma chave para gerar os states nos ivy...



bom hack

Share this post


Link to post
Share on other sites

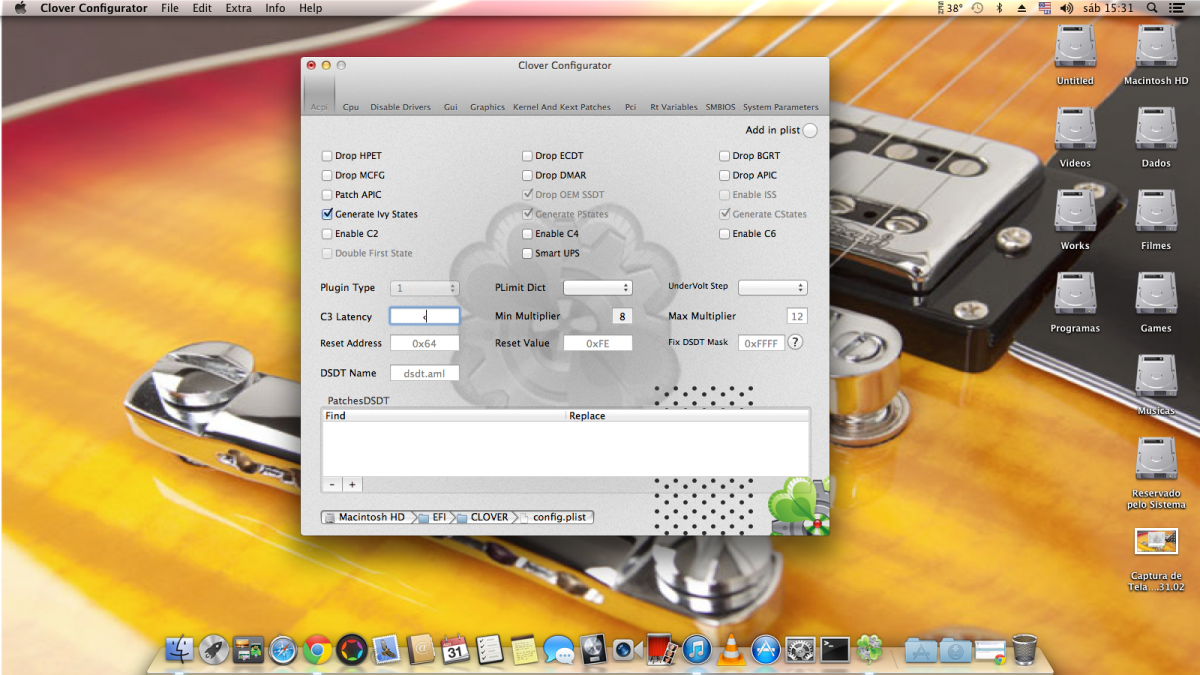

achei a chave no clover configurator mais ao marcar ela aparece outras coisas marcadas






marquei e reinicei subiu como saber agora se ta ok?


Ficou mais lento apos ativar isso olha o ds



PMAP: PCID enabled
PMAP: Supervisor Mode Execute Protection enabled
Darwin Kernel Version 12.4.0: Wed May  1 17:57:12 PDT 2013; root:xnu-2050.24.15~1/RELEASE_X86_64
vm_page_bootstrap: 4016536 free pages and 145000 wired pages
kext submap [0xffffff7f80737000 - 0xffffff8000000000], kernel text [0xffffff8000200000 - 0xffffff8000737000]
zone leak detection enabled
standard timeslicing quantum is 10000 us
standard background quantum is 2500 us
mig_table_max_displ = 74
TSC Deadline Timer supported and enabled
corecrypto kext started!
Running kernel space in FIPS MODE
Plist hmac value is    735d392b68241ef173d81097b1c8ce9ba283521626d1c973ac376838c466757d
Computed hmac value is 735d392b68241ef173d81097b1c8ce9ba283521626d1c973ac376838c466757d
corecrypto.kext FIPS integrity POST test passed!
corecrypto.kext FIPS AES CBC POST test passed!
corecrypto.kext FIPS TDES CBC POST test passed!
corecrypto.kext FIPS AES ECB AESNI POST test passed!
corecrypto.kext FIPS AES XTS AESNI POST test passed!
corecrypto.kext FIPS SHA POST test passed!
corecrypto.kext FIPS HMAC POST test passed!
corecrypto.kext FIPS ECDSA POST test passed!
corecrypto.kext FIPS DRBG POST test passed!
corecrypto.kext FIPS POST passed!
AppleACPICPU: ProcessorId=1 LocalApicId=0 Enabled
AppleACPICPU: ProcessorId=2 LocalApicId=2 Enabled
AppleACPICPU: ProcessorId=3 LocalApicId=4 Enabled
AppleACPICPU: ProcessorId=4 LocalApicId=6 Enabled
AppleACPICPU: ProcessorId=5 LocalApicId=1 Enabled
AppleACPICPU: ProcessorId=6 LocalApicId=3 Enabled
AppleACPICPU: ProcessorId=7 LocalApicId=5 Enabled
AppleACPICPU: ProcessorId=8 LocalApicId=7 Enabled
calling mpo_policy_init for TMSafetyNet
Security policy loaded: Safety net for Time Machine (TMSafetyNet)
calling mpo_policy_init for Sandbox
Security policy loaded: Seatbelt sandbox policy (Sandbox)
calling mpo_policy_init for Quarantine
Security policy loaded: Quarantine policy (Quarantine)
Copyright © 1982, 1986, 1989, 1991, 1993
The Regents of the University of California. All rights reserved.

MAC Framework successfully initialized
using 16384 buffer headers and 10240 cluster IO buffer headers
IOAPIC: Version 0x20 Vectors 64:87
ACPI: System State [s0 S3 S4 S5]
AppleIntelCPUPowerManagement: Turbo Ratios 3455PFM64 (36 cpu) 0xf80000000, 0x80000000
[ PCI configuration begin ]

AppleIntelCPUPowerManagement: (built 18:11:47 May  1 2013) initialization complete
HWSensors Project Copyright 2013 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.
FakeSMCDevice: 15 preconfigured keys added
FakeSMCDevice: 5 keys exported by Clover EFI
SMC: successfully initialized
CPUSensors: CPU family 0x6, model 0x3a, stepping 0x9, cores 4, threads 8, TJmax 105
CPUSensors: setting platform to d8
PCI configuration changed (bridge=1 device=0 cardbus=0)
[ PCI configuration end, bridges 5 devices 12 ]
mbinit: done [128 MB total pool size, (85/42) split]HDAEnabler: Copyright © 2008 by Kabyl
HDAEnabler: 05/05/2008 Added SP-Audio support by Taruga
HDAEnabler: 03/07/2009 Compiled for 32/64-bit by Taruga

Pthread support ABORTS when sync kernel primitives misused
rooting via boot-uuid from /chosen: 956D247C-EBF8-356A-A787-4AA3D5637F00
com.apple.AppleFSCompressionTypeZlib kmod start
com.apple.AppleFSCompressionTypeDataless kmod start
com.apple.AppleFSCompressionTypeZlib load succeeded
com.apple.AppleFSCompressionTypeDataless load succeeded
AppleIntelCPUPowerManagementClient: ready
SuperIODevice: found ITE IT8728F on port=0x2e address=0xa30
IT87xxSensors: started
Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
GeForceSensors (pci1@0): chipset: G96 (NV96) bios: 62.94.73.00
GeForceSensors (pci1@0): started
Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SAT0@1F,2/AppleIntelPchSeriesAHCI/PRT0@0/IOAHCIDevice@0/AppleAHCIDiskDriver/IOAHCIBlockStorageDevice/IOBlockStorageDriver/SAMSUNG HD502IJ Media/IOGUIDPartitionScheme/Sem T\M-C\M--tulo 1@2
BSD root: disk0s2, major 1, minor 2
Kernel is LP64
HDAEnabler: Copyright © 2008 by Kabyl
NVDAStartup: Official
Previous Shutdown Cause: 5
[broadcomBluetoothHCIControllerUSBTransport][start] -- completed
NVDANV50HAL loaded and registered
DSMOS has arrived
[iOBluetoothHCIController][staticBluetoothHCIControllerTransportShowsUp] -- Received Bluetooth Controller register service notification
[iOBluetoothHCIController][start] -- completed
X86PlatformPlugin::setRingTable - No ring table found!
X86PlatformPlugin::configResourceHandler - Failed to set ring table!
Failed to find sleep policy for this platform! Disabling deep sleep.
X86PlatformShim::sendStepper - Stepper dictionary from plist is NULL!
X86PlatformShim::start - Failed to send stepper
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
[iOBluetoothHCIController::setConfigState] calling registerService
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
NTFS driver 3.10 [Flags: R/W].
NTFS volume name Reservado pelo Sistema, version 3.1.
HDAEnabler: 05/05/2008 Added SP-Audio support by Taruga
HDAEnabler: 03/07/2009 Compiled for 32/64-bit by Taruga
NTFS volume name , version 3.1.
NTFS-fs warning (device /dev/disk1s2, pid 39): ntfs_system_inodes_get(): Windows is hibernated.  Will not be able to remount read-write.  Run chkdsk.
NTFS volume name Filmes, version 3.1.
NTFS volume name Musicas, version 3.1.
NTFS volume name Videos, version 3.1.
NTFS volume name Games, version 3.1.
NTFS volume name Programas, version 3.1.
NTFS volume name Works, version 3.1.
NTFS volume name Dados, version 3.1.
AppleRTL8169Ethernet: Ethernet address 90:2b:34:f3:18:98
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
Standby delay is not specified! Defaulting to 0x1068
ErP Timer is not specified! Defaulting to 0x3840
macx_swapon SUCCESS
Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -549064493056, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0
Sound assertion in AppleHDAController at line 5097
Sound assertion in AppleHDAController at line 5098
Sound assertion in AppleHDAController at line 8276
CODE SIGNING: cs_invalid_page(0x1000): p=247[ksadmin] clearing CS_VALID
CODE SIGNING: cs_invalid_page(0x1000): p=255[ksadmin] clearing CS_VALID
CODE SIGNING: cs_invalid_page(0x1000): p=271[GoogleSoftwareUp] clearing CS_VALID
Sound assertion - Command/Response TIMED OUT and ( kRequestStateMatch == fCodecRequest->state = 2 ), fCodecRequest->command->codec: -549064493056, fCodecRequest->command->verb: 0xFFF, fPoweredDown: 0
Sound assertion in AppleHDAController at line 5097
Sound assertion in AppleHDAController at line 5098
Sound assertion in AppleHDAController at line 8276
localhost:~ Danilo$

#

Name

Processor

Frequency

Cores

Platform

Architecture

Bits

Score

2279100

iMac12,2

Intel Core i7-3770

3400

4

Mac OS X

x86

64

14086

2279092

iMac12,2

Intel Core i7-3770

3400

4

Mac OS X

x86

64

3228

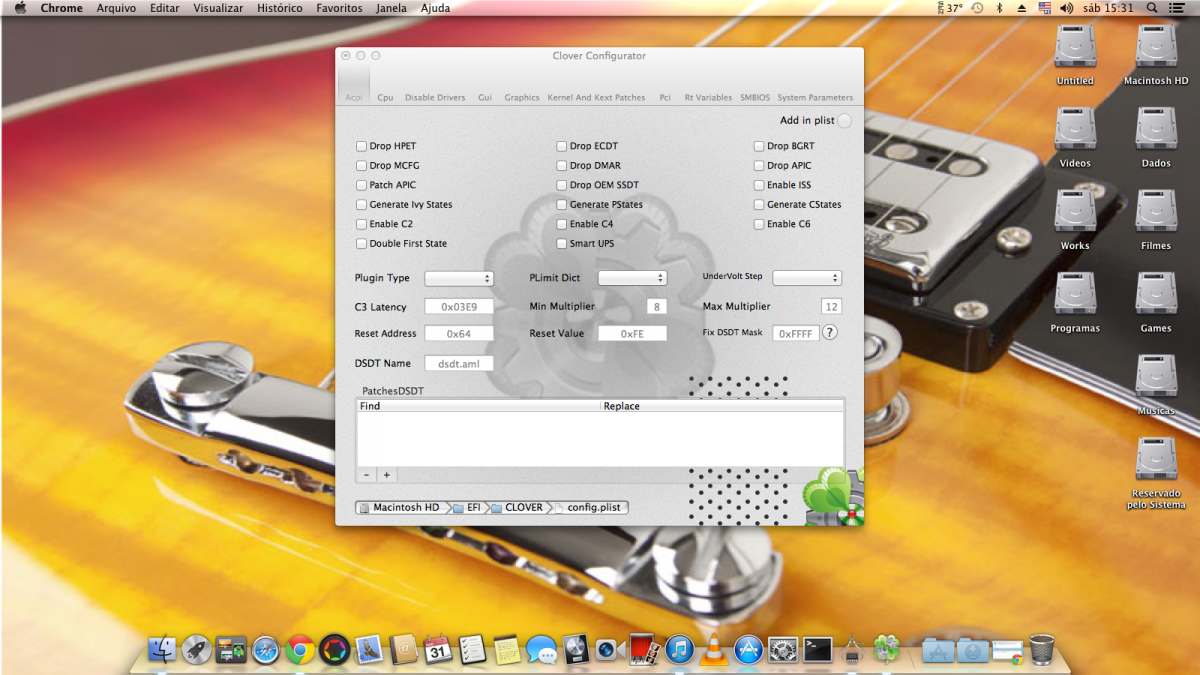

o primeiro e com so os p e c states ligados e o segundo e com o ivy states legado

Share this post


Link to post
Share on other sites

olá



tá ai alguma coisa mal..



teu smbios n devia ser imac12,2 isso é 1 sandy bridge



devia ser 13,1 ou 13,2



os ivy states devia funcionar



tens de testar  .. tás a usar ssdt ?  tens de testar com e sem



clover acho k não precisa ele vai buscar as tabelas de ssdt e faz o patch auto a elas



devia ser qualquer coisa do genero



ivystates=yes



dropssdt=no



mas isso so testando ai na máquina



bom hack

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
