[SUCCESS] Laptop Asus K45A CORE I5 3210M HD4000

[mendietinha]





System Specs:

CPUS: Intel I5 3210M (2 Cores - 4 Threads 2.5~3.1)
RAM: 6GB DDR3 1333

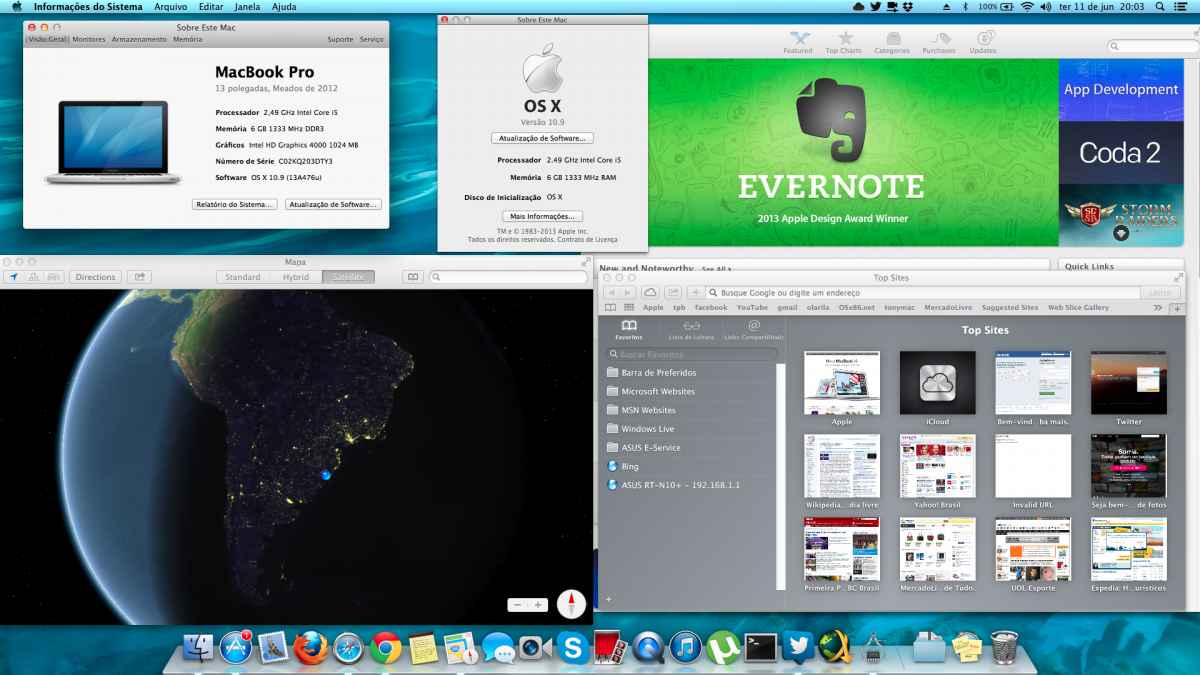

VGA: Intel HD 4000 (Full QE CI) with 1024mb of vram!?
Kexts Voodoohda, RealtekRTL81xx, PS2 for elan trackpad
Latest Chameleon Bootloader, Extra Folder Mountain Lion
Installation via USB to USB, after restore the usb install to the MBR Partition Table until the mbr patch cames out.

[tuanpekoe]

@Mendietinha: Do you have an MBR patch ?

I have a notebook same as you : K45A- vx229

[mendietinha]

@Mendietinha: Do you have an MBR patch ?

I have a notebook same as you : K45A- vx229





nope :/



i prepare the regular pendrive and install in a 16gb pendrive. after that i boot into my system and restore the pendrive with the system installed in a partition previously created.

[tuanpekoe]

nope :/



i prepare the regular pendrive and install in a 16gb pendrive. after that i boot into my system and restore the pendrive with the system installed in a partition previously created.

You used Disk Utility to restore ?

[mendietinha]

yes.

[mendietinha]

for those who need the patched AppleIntelCPUPowerManagement for power management:



AppleIntelCPUPowerManagement.kext.zip

[tuanpekoe]

for those who need the patched AppleIntelCPUPowerManagement for power management:



AppleIntelCPUPowerManagement.kext.zip

Thanks for your kext. Did you patch it by AICPMPatch ?

[mendietinha]

Thanks for your kext. Did you patch it by AICPMPatch ?

yes i did.



worked perfectly. but i had to use the ml installation in order to work...

[joe2108]

can you attach your smbios.plist and org.chameleon.Boot.plist





* how you enable your intelhd4000?

[mendietinha]

sure.



i use a string. here is what you ask, with the string included.



Arquivar.zip





[joe2108]

sure.



i use a string. here is what you ask, with the string included.



Arquivar.zip

thank,



still no load to the desktop on 10.9 but on 10.8 it's load properly.. hmmm

by the way the efistring same as mine



your proc same as mine.. do you using SSDT ? maybe this the solution





Update : -x [only can reach desktop using safe mode]

[mendietinha]

remember that the graphicsenabler is NO when using a string.

[joe2108]

remember that the graphicsenabler is NO when using a string.

Yes I did..



oke now i can reach desktop on normal boo "sometimes"t, but no QE/CI "Display 64 MB ....."

[mendietinha]

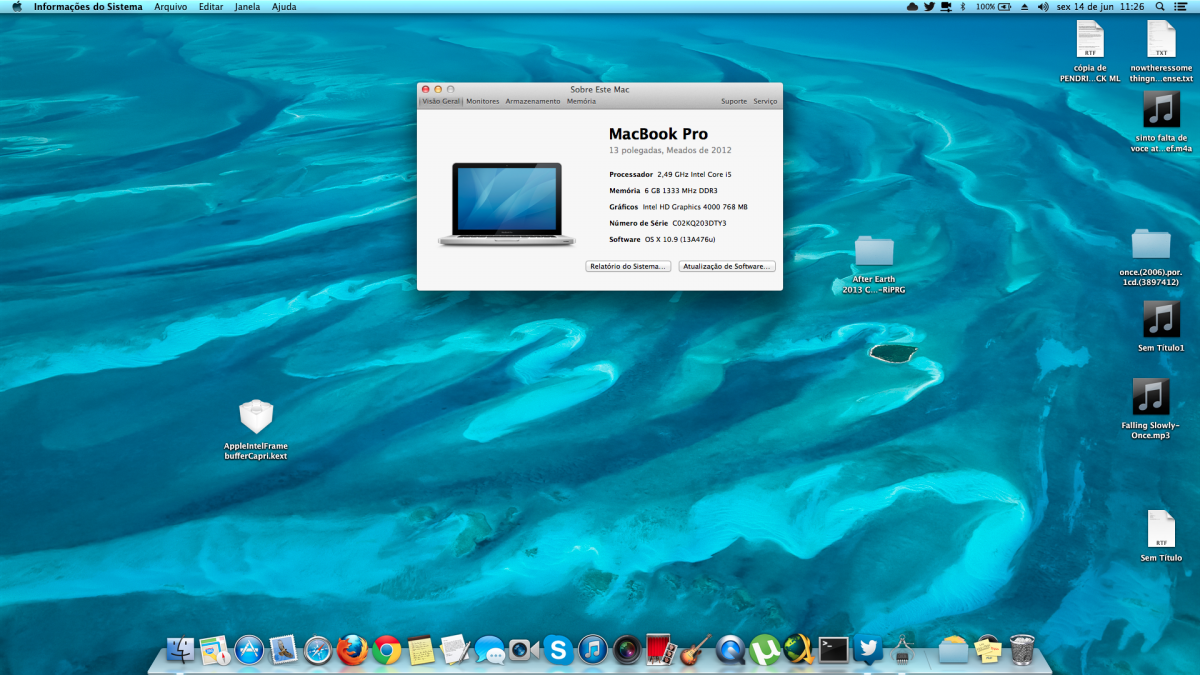

really strange. here it`s 1024mb now...



check the installation, if there are no wrong flags, use -f too...



try with no string, -f and ge=yes

[kpkp]

really strange. here it`s 1024mb now...

It is set so in the driver, i have no idea why they did so, but all notebooks seem to be set to 1GB VRAM now.

For ML i made a script that let you assign the VRAM you want, but is not tested on 10.9 yet, if you wonna try let me know.

[mendietinha]

It is set so in the driver, i have no idea why they did so, but all notebooks seem to be set to 1GB VRAM now.

For ML i made a script that let you assign the VRAM you want, but is not tested on 10.9 yet, if you wonna try let me know.

sure thing.



let me test it

[kpkp]

sure thing.



let me test it

sudo perl -pi -e 's|\x00.{1}\x10\x07\x00\x00\x10\x07|\x00\x??\x10\x07\x00\x00\x10\x07|g' ~/Desktop/AppleIntelFramebufferCapri.kext/Contents/MacOS/AppleIntelFramebufferCapri

Change the ?? with the red number bellow to set the desired amount of VRAM:

10 = 256MB of RAM

18 = 384MB of RAM

20 = 512MB of RAM

30 = 768MB of RAM

40 = 1024MB of RAM



1. copy AppleIntelFramebufferCapri.kext to the desktop and make a backup of it

2. run the script in the terminal (dont forget to fill in the ??)

3. install the kext, rebuild caches (i would suggest kext wizard)

4. restart pray and let me know how it went

[mendietinha]

all good, my friend!



it works!



[ejsbr]

"mendietinha", o wireless está funcionando normalmente? algum dispositivo não funcionou ou funciona inadequadamente?

[alientech]

How can I get my battery and touchpad (ElanV4) work?

My old battery kext and touchpad kext are not work.

[Kaya80]

Sorry guys, i've the same configuration as yours, i5 3210m with HD4000, and the only thing that doesn't work in my Maverick is just the Graphic Card, i removed intel kext during installation, and i don't know what kext i need in S/L/E to get my card working, i'm never been able to get full QE/CI neither in ML, cause noone give me a hand to solve this.....can you help me please to understand exactly what kext i need and what i've to do???Sorry, but i'm desperate, that's my config:



X55C-SX030D

i5 3210m

HD4000

6gb ram

Ar9285

Elan V4



All works except from my HD4000





help me please

[carbo178]

Sorry guys, i've the same configuration as yours, i5 3210m with HD4000, and the only thing that doesn't work in my Maverick is just the Graphic Card, i removed intel kext during installation, and i don't know what kext i need in S/L/E to get my card working, i'm never been able to get full QE/CI neither in ML, cause noone give me a hand to solve this.....can you help me please to understand exactly what kext i need and what i've to do???Sorry, but i'm desperate, that's my config:



X55C-SX030D

i5 3210m

HD4000

6gb ram

Ar9285

Elan V4



All works except from my HD4000





help me please

Se vuoi provare... penso ci siano tutti

http://cl.ly/1L2m3E1b263y

[Kaya80]

Se vuoi provare... penso ci siano tutti

http://cl.ly/1L2m3E1b263y

Grazie infinite, provo subito e ti aggiorno..sono gli originali o patchti, inoltre devo installarli tutti??Ci sono anche quelli non x HD4000

Uso Chameleon 2283, GraphicsEnabler=No, SMBios MacPro 9.2,va bene così???

[carbo178]

Consiglio Enoch, in teoria con GE=Yes.

Forse si deve iniettare il corretto ig-platform in ocbp

[Kaya80]

ma  che faccio con i kext che mi hai postato??Li installo tutti o no??poi ricostruisco i permessi riavvio e provo Enoch??
