Lion GM + ALC889a = not Working


Manuel Garcia
 Share

10 posts in this topic

Recommended Posts

Anybody working ALC889a on Lion GM??



Using this method -> ALC889A, Gigabyte (Intel)

* I got sound under Lion DP4.



Am I wrong?



My System build by Lion installation via USB stick using Chameleon, Update Lion GM method.

Thank you , JEDI MASTERS!!



DSDT Auto-Patcher + Chameleon RC5

Gigabyte GA-P35-DS3R Rev.1.0

Intel Core2Quad Q8400

ELSA GLADIAC GTS 250 1GB

Link to comment
Share on other sites

I have audio working fine. I took the DSDT from my original Snow leopard installation and put it into my lion installation in the /Extra folder and they have a ALC889A Lion GM Applehda.kext floating around. Just added the new applehda in to s/l/e and it worked. Maybe u just need the lion gm applehda

Link to comment
Share on other sites

put in S/L/E

AppleHDA.kext.zip

after

double click in kext utility and Wait

you need a HDEF in DSDT



Hi everyone,

Thank you for reply and advices.



I noticed that a big mistake...

As written by teacher MaLd0n ->>> "double click in kext utility"

I forgot to do this :ninja:



Now, working fine under Lion GM.

I am shameful in the beginner's screw-up :unsure:



I wish to express my gratitude for yours advice.



Thank you, fallchild and MaLd0n.

Link to comment
Share on other sites

I copied the AppleHDA.kext from 10.6.7 (1.9.9f12) they broke the support for 889a in 10.6.8) and it works, but i get a kernel panic when using Skype or other voice chat, no problem listening to music whatsoever.



Is i've downloaded this kext, i'll give it a go ...hopefully no more panic.



I don't have HDEF, i use the enabler in S/L/E

Link to comment
Share on other sites

hda GM lion, hda version 2.1.1



put in S/L/E two kexts, repair permissions.



add your dsdt hdef.



is my code, i don't now if is compatible whit all gigabytes motherboards.



   Device (HDEF)
		{
			Name (_ADR, 0x001B0000)
			Method (_PRW, 0, NotSerialized)
			{
				Return (Package (0x02)
				{
					0x0D,
					0x05
				})
			}

			Method (_DSM, 4, NotSerialized)
			{
				Store (Package (0x0A)
					{
						"built-in",
						Buffer (One)
						{
							0x01
						},

						"codec-id",
						Buffer (0x04)
						{
							0x85, 0x08, 0xEC, 0x10
						},

						"layout-id",
						Buffer (0x04)
						{
							0x75, 0x03, 0x00, 0x00
						},

						"device-type",
						Buffer (0x10)
						{
							"Realtek ALC889A"
						},

						"PinConfigurations",
						Buffer (0x28)
						{
							/* 0000 */	0x10, 0x90, 0xA1, 0x01, 0x20, 0x90, 0xA1, 0x02,
							/* 0008 */	0x80, 0x30, 0x81, 0x01, 0x90, 0x40, 0x21, 0x02,
							/* 0010 */	0x30, 0x40, 0x11, 0x01, 0x40, 0x40, 0x01, 0x01,
							/* 0018 */	0x50, 0x60, 0x01, 0x01, 0x60, 0x20, 0x01, 0x01,
							/* 0020 */	0x70, 0x61, 0x4B, 0x01, 0xA0, 0x01, 0xCB, 0x01
						}
					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)
			}
		}

Archivo_comprimido.zip


Link to comment
Share on other sites

  • 1 month later...
put in S/L/E

AppleHDA.kext.zip

after

double click in kext utility and Wait

you need a HDEF in DSDT

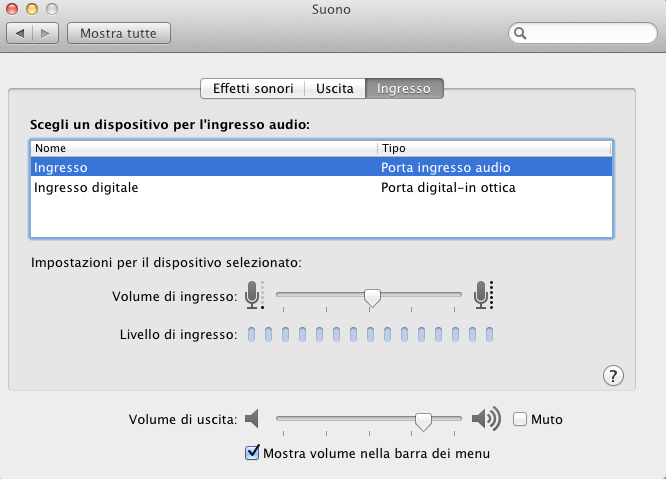

using HDEF AutoPatcher and your kext on my board (GA-p35-ds4) I obtain audio out, but no microphone.



In Snow Leopard I have the same piece of DSDT of Derty and everything works fine (up to 10.6.6) using a vanilla AppleHDA. If I use the same snippet of DSDT on Lion with your kext audio out works, but still no microphone.



Any suggestion?



thanks in advance
