Mac OS X v10.6.7 Update for iMac (Early 2011)

mitch_de · May 5, 2011

http://support.apple.com/kb/DL1383

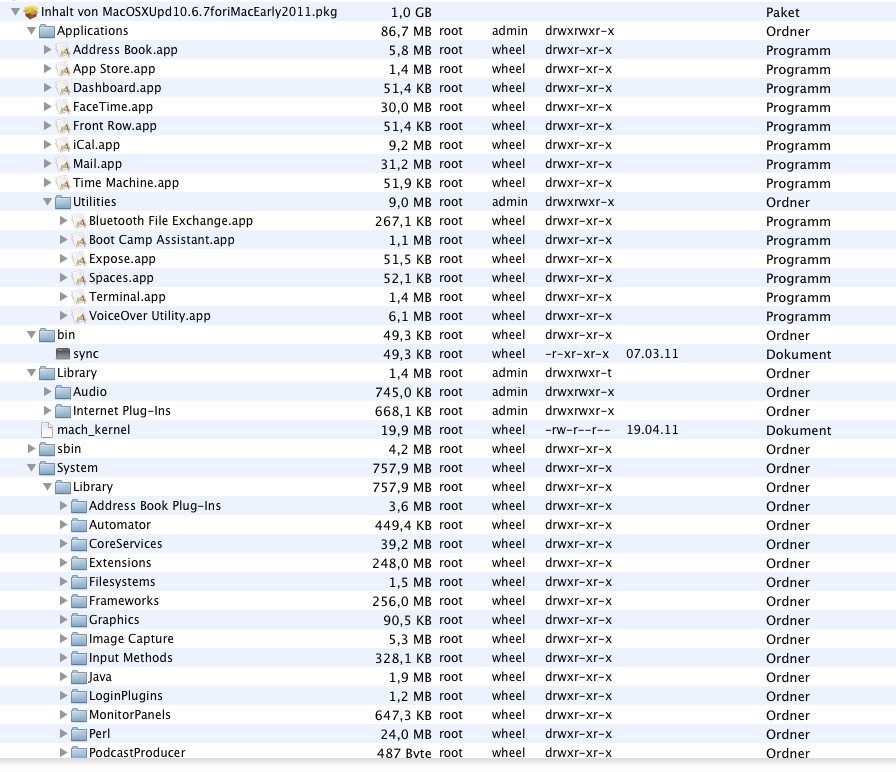

I looked in the 400MB Dl and there is a lot of new driver updated + also new kernel in.

Its for 10.6.7 and may be usefull for hackintoshs with ATI / NVIDIA also.

OpenCL AMD(ATI) updatded.

Near all ATI/NVIDIA updated - also the FermiHal10 within that update. ( Normally extra Nvidia 4000 Quadro driver install)

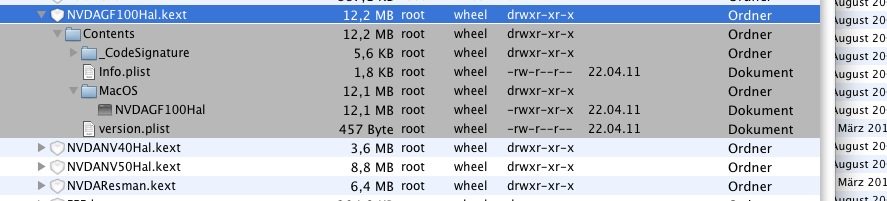

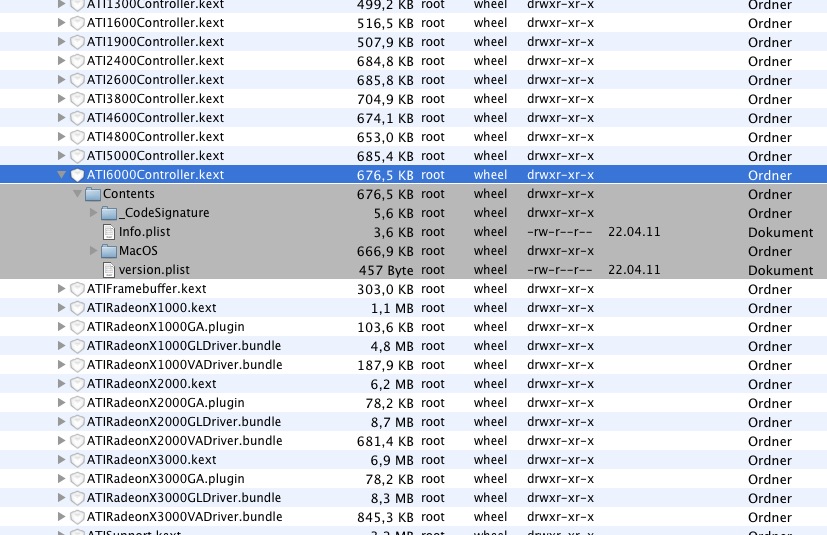

New: ATI6000.kext, FermiHal driver (normaly extra Dl from nvidia)

OpenGL updated.

Its called for iMac 2011 (Sandy Bridge) but, as in the past also updates aktual OS X with some newer drivers , which will came up with next OS X version (10.6.8) .

You can use pacifist to check / look in for stuff you may want to extract. But, some may depend - like Frameworks OpenCL+OpenGL+ GPU drivers = update all 3 if you want to update GPU drivers.

This update again an typical Apple crazy named update:

called iMac 2011 early only, but has many things within, like Fermi10HAL drivers, NO iMAC will ever need

I would name that intermediate Update - its between upcoming 10.6.8 and 10.6.7 - for Sandy Bridge (with ATI6000) an must, for others usefull.

382jsl881 · May 5, 2011

Have you compared it to the other 10.6.7 Sandy Bridge Update?

mitch_de · May 5, 2011

No, i dont know other Sandy Bridge update. This new ist huge (1GB gets updated).

i am back after the update

My System: C2D, Nvidia 9600GT, 10,6,7

Cloned my working 10,6,7 for save

Updated complete (from / of pacifist / install) with new iMac 2011 update.

All working, including updated Mail , new Kernel etc.

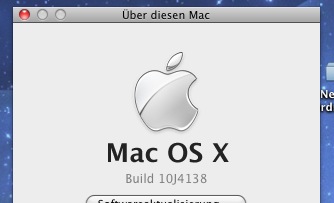

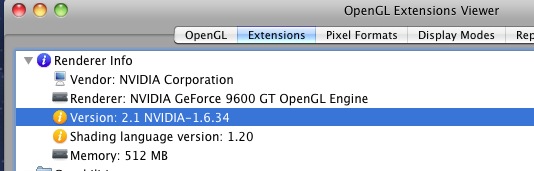

Screenshoot shows new Kernel build + new Nvidia driver version

^Andy^ · May 5, 2011

No, i dont know other Sandy Bridge update. This new ist huge (1GB gets updated).
i am back after the update

My System: C2D, Nvidia 9600GT, 10,6,7

Cloned my working 10,6,7 for save

Updated complete (from / of pacifist / install) with new iMac 2011 update.

All working, including updated Mail , new Kernel etc.

Screenshoot shows new Kernel build + new Nvidia driver version

Any chance you could list the framebuffer personalities from the new ATI5000 and ATI6000 controllers?

HFW · May 5, 2011

I'd avoid it... just installed with Pacifist and got a KP (AirportAtheros21.kext), replaced with old version of Atheros21, KP, replace with old version of IO80211Family.kext, can boot now but SystemUIServer crashes ><

Audio stopped working too (ALC889A).

Going to try reinstalling 10.6.7. Can't cause any more problems then this update xD

And yes, I knew this could happen. Got Time Machine backups if it comes to it...

ricola · May 5, 2011

Any chance you could list the framebuffer personalities from the new ATI5000 and ATI6000 controllers?

5000 :

Hoolock

Langur

Orangutan

Zonalis

6000 :

Gibba

Lotus

Muskgrass

ATI_Imac_2011_10.6.7.zip

mitch_de · May 5, 2011

I lost CUDA funktion with that update and some OpenCL probs (NV 9600GT). No other problems.

So most interersting for such users, which have major probs with ATI 6xxx or Nvidia Fermi.

Glad other users (no probs) should wait for next real update 10.6.8.

EDIT: Netkas has an solution for the lost CUDA:

To get CUDA back, execute this command in terminal:

cp /Library/Frameworks/CUDA.framework/Versions/A/Libraries/libcuda_256.01.10.dylib /Library/Frameworks/CUDA.framework/Versions/A/Libraries/libcuda_256.02.05.dylib

rawmassen · May 5, 2011

Nice. What are you using in smbios for:

<key>SMfamily</key>

<key>SMproductname</key>

<key>SMboardproduct</key>

<key>SMserial</key>

Geting KP, pretty sure it's related to this being MBP 8,1.

doof · May 5, 2011

Connector table for new ati

Kext ATI1300Controller
Personality: Caretta
ConnectorInfo count in decimal: 1
Effective address for ConnectorInfo table in hex: 1f154
Disk offset in decimal 377996
0000000    00  02  00  00  14  00  00  00  00  00  00  00  10  01  02  01
0000010
Prep Store instruction: 0001ab65	movl	$0x0001f154,0x0c(%eax)
Count instruction: 0001ab61	movb	$0x01,0x03(0.000000e+00ax)
Personality: Sphyrna
ConnectorInfo count in decimal: 1
Effective address for ConnectorInfo table in hex: 1f194
Disk offset in decimal 378060
0000000    04  00  00  00  14  00  00  00  00  00  00  00  10  10  01  01
0000010
Prep Store instruction: 0001abab	movl	$0x0001f194,0x0c(%eax)
Count instruction: 0001aba7	movb	$0x01,0x03(0.000000e+00ax)
Kext ATI1600Controller
Personality: Wormy
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 21220
Disk offset in decimal 394584
0000000    02  00  00  00  40  00  00  00  29  00  00  00  00  01  00  03
0000010    04  00  00  00  16  00  00  00  00  00  00  00  00  10  01  01
0000020
Prep Store instruction: 0001c2d7	addl	$0x00021220,%eax
Count instruction: 0001c2ab	movb	%al,0x03(0.000000e+00bx)
Kext ATI1900Controller
Personality: Alopias
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 20340
Disk offset in decimal 386680
0000000    00  02  00  00  14  00  00  00  00  00  00  00  00  01  02  01
0000010    04  00  00  00  16  00  00  00  00  00  00  00  00  10  01  02
0000020
Prep Store instruction: 0001bce6	addl	$0x00020340,%eax
Count instruction: 0001bcbd	movb	$0x02,0x03(0.000000e+00cx)
Kext ATI2400Controller
Personality: Iago
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 27840
Disk offset in decimal 506744
0000000    02  00  00  00  40  00  00  00  09  00  00  00  00  01  00  12
0000010    00  10  00  00  16  00  00  00  c4  00  00  00  10  00  01  11
0000020
Prep Store instruction: 0001e6d0	addl	$0x00027840,%eax
Count instruction: 0001e6c5	movb	$0x02,0x03(0.000000e+00cx)
Kext ATI2600Controller
Personality: Hypoprion
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 278a0
Disk offset in decimal 506840
0000000    02  00  00  00  40  00  00  00  09  00  00  00  00  01  00  12
0000010    00  10  00  00  16  00  00  00  c4  00  00  00  10  00  01  11
0000020
Prep Store instruction: 0001e6d0	addl	$0x000278a0,%eax
Count instruction: 0001e6c5	movb	$0x02,0x03(0.000000e+00cx)
Personality: Lamna
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 278c0
Disk offset in decimal 506872
0000000    00  02  00  00  14  00  00  00  80  00  00  00  00  01  02  11
0000010    04  00  00  00  16  00  00  00  80  00  00  00  00  10  01  12
0000020
Prep Store instruction: 0001e6fe	addl	$0x000278c0,%eax
Count instruction: 0001e6f3	movb	$0x02,0x03(0.000000e+00cx)
Kext ATI3800Controller
Personality: Megalodon
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 283e0
Disk offset in decimal 522008
0000000    00  02  00  00  14  00  00  00  00  00  00  00  00  01  02  11
0000010    04  00  00  00  16  00  00  00  00  00  00  00  00  10  01  12
0000020    80  00  00  00  02  00  00  00  04  00  00  00  00  10  00  00
0000030
Prep Store instruction: 0001ee54	addl	$0x000283e0,%eax
Count instruction: 0001ee49	movb	$0x03,0x03(0.000000e+00cx)
Personality: Triakis
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 28420
Disk offset in decimal 522072
0000000    00  02  00  00  14  00  00  00  00  00  00  00  00  01  02  11
0000010    04  00  00  00  16  00  00  00  00  00  00  00  00  10  01  12
0000020
Prep Store instruction: 0001ee96	addl	$0x00028420,%eax
Count instruction: 0001ee8b	movb	$0x02,0x03(0.000000e+00cx)
Kext ATI4600Controller
Personality: Flicker
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 26300
Disk offset in decimal 501304
0000000    00  04  00  00  00  04  00  00  00  01  00  00  02  01  03  05
0000010    00  04  00  00  00  04  00  00  00  01  00  00  01  00  02  02
0000020    00  02  00  00  14  02  00  00  00  01  00  00  00  10  01  04
0000030
Prep Store instruction: 0001dde8	addl	$0x00026300,%eax
Count instruction: 0001dddd	movb	$0x03,0x03(0.000000e+00cx)
Personality: Gliff
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 26340
Disk offset in decimal 501368
0000000    02  00  00  00  40  00  00  00  09  01  00  00  02  01  00  03
0000010    02  00  00  00  00  01  00  00  09  01  00  00  20  01  02  02
0000020    00  04  00  00  04  06  00  00  00  01  00  00  10  00  01  01
0000030
Prep Store instruction: 0001de35	addl	$0x00026340,%eax
Count instruction: 0001de0b	movb	$0x03,0x03(0.000000e+00cx)
Personality: Shrike
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 263a0
Disk offset in decimal 501464
0000000    02  00  00  00  40  00  00  00  09  01  00  00  02  01  00  03
0000010    02  00  00  00  00  01  00  00  09  01  00  00  20  01  02  02
0000020    00  04  00  00  04  03  00  00  00  01  00  00  10  00  01  01
0000030
Prep Store instruction: 0001de78	addl	$0x000263a0,%eax
Count instruction: 0001de6d	movb	$0x03,0x03(0.000000e+00cx)
Kext ATI4800Controller
Personality: Cardinal
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 25160
Disk offset in decimal 484504
0000000    00  02  00  00  14  02  00  00  00  01  00  00  01  01  01  04
0000010    04  00  00  00  14  02  00  00  00  01  00  00  00  10  02  03
0000020
Prep Store instruction: 0001cfc8	addl	$0x00025160,%eax
Count instruction: 0001cfbd	movb	$0x02,0x03(0.000000e+00cx)
Personality: MotMot
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 25180
Disk offset in decimal 484536
0000000    00  04  00  00  04  01  00  00  00  01  00  00  10  00  02  03
0000010    04  00  00  00  14  02  00  00  00  01  00  00  01  11  01  04
0000020
Prep Store instruction: 0001cff6	addl	$0x00025180,%eax
Count instruction: 0001cfeb	movb	$0x02,0x03(0.000000e+00cx)
Personality: Quail
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 251a0
Disk offset in decimal 484568
0000000    02  00  00  00  40  00  00  00  09  01  00  00  22  01  00  07
0000010    02  00  00  00  00  01  00  00  09  01  00  00  20  01  03  04
0000020    00  04  00  00  04  03  00  00  00  01  00  00  10  00  02  03
0000030
Prep Store instruction: 0001d024	addl	$0x000251a0,%eax
Count instruction: 0001d019	movb	$0x03,0x03(0.000000e+00cx)
Kext ATI5000Controller
Personality: Douc
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 27f20
Disk offset in decimal 512600
0000000    02  00  00  00  00  05  00  00  09  03  00  00  21  03  02  02
0000010    00  04  00  00  04  02  00  00  00  03  00  00  11  02  01  01
0000020
Prep Store instruction: 0001d3dd	addl	$0x00027f20,%eax
Count instruction: 0001d3b3	movb	$0x02,0x03(0.000000e+00cx)
Personality: Langur
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 27f40
Disk offset in decimal 512632
0000000    00  04  00  00  04  06  00  00  00  01  00  00  21  03  04  02
0000010    00  04  00  00  04  06  00  00  00  01  00  00  11  02  01  01
0000020    04  00  00  00  14  02  00  00  00  01  00  00  02  04  05  03
0000030
Prep Store instruction: 0001d40c	addl	$0x00027f40,%eax
Count instruction: 0001d401	movb	$0x03,0x03(0.000000e+00cx)
Personality: Uakari
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 27f80
Disk offset in decimal 512696
0000000    00  04  00  00  00  04  00  00  00  71  00  00  12  04  04  01
0000010    04  00  00  00  14  00  00  00  00  71  00  00  01  12  01  03
0000020    00  02  00  00  14  00  00  00  00  71  00  00  00  00  06  05
0000030    00  08  00  00  00  02  00  00  00  71  00  00  22  05  05  04
0000040
Prep Store instruction: 0001d43a	addl	$0x00027f80,%eax
Count instruction: 0001d42f	movb	$0x04,0x03(0.000000e+00cx)
Personality: Zonalis
ConnectorInfo count in decimal: 6
Effective address for ConnectorInfo table in hex: 27fc0
Disk offset in decimal 512760
0000000    00  04  00  00  04  06  00  00  00  71  00  00  20  01  06  06
0000010    00  04  00  00  04  06  00  00  00  71  00  00  10  00  05  05
0000020    00  04  00  00  04  06  00  00  00  71  00  00  21  03  02  04
0000030    00  04  00  00  04  06  00  00  00  71  00  00  11  02  01  03
0000040    00  04  00  00  04  06  00  00  00  71  00  00  22  05  04  02
0000050    00  04  00  00  04  06  00  00  00  71  00  00  12  04  03  01
0000060
Prep Store instruction: 0001d468	addl	$0x00027fc0,%eax
Count instruction: 0001d45d	movb	$0x06,0x03(0.000000e+00cx)
Personality: Alouatta
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 28020
Disk offset in decimal 512856
0000000    02  00  00  00  00  01  00  00  09  01  00  00  12  04  03  03
0000010    00  04  00  00  04  06  00  00  00  71  00  00  11  02  01  01
0000020    00  04  00  00  04  06  00  00  00  71  00  00  21  03  02  02
0000030    00  04  00  00  04  06  00  00  00  71  00  00  22  05  04  04
0000040
Prep Store instruction: 0001d4aa	addl	$0x00028020,%eax
Count instruction: 0001d49f	movb	$0x04,0x03(0.000000e+00cx)
Personality: Hoolock
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 28060
Disk offset in decimal 512920
0000000    00  04  00  00  04  06  00  00  00  01  00  00  21  03  05  01
0000010    00  04  00  00  04  06  00  00  00  01  00  00  11  02  04  02
0000020    04  00  00  00  14  02  00  00  00  01  00  00  02  04  01  03
0000030
Prep Store instruction: 0001d4d8	addl	$0x00028060,%eax
Count instruction: 0001d4cd	movb	$0x03,0x03(0.000000e+00cx)
Personality: Vervet
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 280a0
Disk offset in decimal 512984
0000000    00  04  00  00  00  04  00  00  00  71  00  00  12  04  04  02
0000010    04  00  00  00  14  00  00  00  00  71  00  00  01  12  01  04
0000020    00  02  00  00  14  00  00  00  00  71  00  00  00  00  06  03
0000030    00  08  00  00  00  02  00  00  00  71  00  00  22  05  05  01
0000040
Prep Store instruction: 0001d506	addl	$0x000280a0,%eax
Count instruction: 0001d4fb	movb	$0x04,0x03(0.000000e+00cx)
Personality: Baboon
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 280e0
Disk offset in decimal 513048
0000000    04  00  00  00  14  00  00  00  00  01  00  00  01  02  01  03
0000010    00  08  00  00  00  02  00  00  00  71  00  00  22  05  02  01
0000020    10  00  00  00  10  00  00  00  00  01  00  00  00  10  00  02
0000030
Prep Store instruction: 0001d534	addl	$0x000280e0,%eax
Count instruction: 0001d529	movb	$0x03,0x03(0.000000e+00cx)
Personality: Eulemur
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 28120
Disk offset in decimal 513112
0000000    04  00  00  00  14  00  00  00  00  01  00  00  01  02  01  04
0000010    00  08  00  00  00  02  00  00  00  71  00  00  12  04  04  02
0000020    10  00  00  00  10  00  00  00  00  00  00  00  00  10  00  01
0000030
Prep Store instruction: 0001d562	addl	$0x00028120,%eax
Count instruction: 0001d557	movb	$0x03,0x03(0.000000e+00cx)
Personality: Galago
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 28180
Disk offset in decimal 513208
0000000    02  00  00  00  00  01  00  00  09  03  00  00  21  03  02  02
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Prep Store instruction: 0001d5af	addl	$0x00028180,%eax
Count instruction: 0001d585	movb	$0x02,0x03(0.000000e+00cx)
Personality: Colobus
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 281c0
Disk offset in decimal 513272
0000000    02  00  00  00  00  01  00  00  09  03  00  00  21  03  02  02
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Prep Store instruction: 0001d5fd	addl	$0x000281c0,%eax
Count instruction: 0001d5d3	movb	$0x02,0x03(0.000000e+00cx)
Personality: Mangabey
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 28200
Disk offset in decimal 513336
0000000    02  00  00  00  40  00  00  00  09  01  00  00  00  00  00  03
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Prep Store instruction: 000200d5	addl	$0x00028200,%eax
Count instruction: 000200ab	movb	$0x02,0x03(0.000000e+00cx)
Personality: Nomascus
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 28240
Disk offset in decimal 513400
0000000    02  00  00  00  40  00  00  00  09  01  00  00  00  00  00  05
0000010    02  00  00  00  00  01  00  00  09  03  00  00  12  04  03  03
0000020    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000030    00  04  00  00  04  07  00  00  00  73  00  00  21  03  02  02
0000040
Prep Store instruction: 00020123	addl	$0x00028240,%eax
Count instruction: 000200f9	movb	$0x04,0x03(0.000000e+00cx)
Personality: Orangutan
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 282a0
Disk offset in decimal 513496
0000000    02  00  00  00  40  00  00  00  09  01  00  00  00  00  00  05
0000010    00  04  00  00  04  06  00  00  00  73  00  00  11  02  01  01
0000020
Prep Store instruction: 00020171	addl	$0x000282a0,%eax
Count instruction: 00020147	movb	$0x02,0x03(0.000000e+00cx)
Kext ATI6000Controller
Personality: Pithecia
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 27580
Disk offset in decimal 502012
0000000    00  04  00  00  04  03  00  00  00  01  00  00  21  03  02  04
0000010    04  00  00  00  14  02  00  00  00  01  00  00  00  00  04  03
0000020    10  00  00  00  10  00  00  00  00  01  00  00  00  00  00  01
0000030
Prep Store instruction: 0001c0e4	addl	$0x00027580,%eax
Count instruction: 0001c0d3	movb	$0x03,0x03(0.000000e+00cx)
Personality: Bulrushes
ConnectorInfo count in decimal: 6
Effective address for ConnectorInfo table in hex: 275c0
Disk offset in decimal 502076
0000000    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000010    00  04  00  00  04  03  00  00  00  01  00  00  21  03  02  02
0000020    00  04  00  00  04  03  00  00  00  01  00  00  12  04  03  03
0000030    00  04  00  00  04  03  00  00  00  01  00  00  22  05  04  04
0000040    00  04  00  00  04  03  00  00  00  01  00  00  10  00  05  05
0000050    00  04  00  00  04  03  00  00  00  01  00  00  20  01  06  06
0000060
Prep Store instruction: 0001c118	addl	$0x000275c0,%eax
Count instruction: 0001c107	movb	$0x06,0x03(0.000000e+00cx)
Personality: Cattail
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 27620
Disk offset in decimal 502172
0000000    02  00  00  00  40  00  00  00  29  05  00  00  00  00  00  05
0000010    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  01  00  00  12  04  03  03
0000040
Prep Store instruction: 0001c150	addl	$0x00027620,%eax
Count instruction: 0001c13b	movb	$0x04,0x03(0.000000e+00cx)
Personality: Hydrilla
ConnectorInfo count in decimal: 5
Effective address for ConnectorInfo table in hex: 27660
Disk offset in decimal 502236
0000000    02  00  00  00  00  01  00  00  09  01  00  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  00  00  10  00  04  05
0000020    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000030    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000040    00  04  00  00  00  01  00  00  00  01  00  00  22  05  05  04
0000050
Prep Store instruction: 0001c184	addl	$0x00027660,%eax
Count instruction: 0001c173	movb	$0x05,0x03(0.000000e+00cx)
Personality: Duckweed
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 276c0
Disk offset in decimal 502332
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  04  01
0000010    00  04  00  00  04  03  00  00  00  01  00  00  22  05  05  02
0000020    00  08  00  00  04  02  00  00  00  01  00  00  11  02  03  04
0000030    00  02  00  00  04  02  00  00  00  01  00  00  00  00  06  05
0000040
Prep Store instruction: 0001c1b8	addl	$0x000276c0,%eax
Count instruction: 0001c1a7	movb	$0x04,0x03(0.000000e+00cx)
Personality: Fanwort
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 27700
Disk offset in decimal 502396
0000000    02  00  00  00  40  00  00  00  29  05  00  00  00  00  00  04
0000010    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000020    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  01  00  00  12  04  03  03
0000040
Prep Store instruction: 0001d85d	addl	$0x00027700,%eax
Count instruction: 0001d82d	movb	$0x04,0x03(0.000000e+00cx)
Personality: Elodea
ConnectorInfo count in decimal: 5
Effective address for ConnectorInfo table in hex: 27740
Disk offset in decimal 502460
0000000    02  00  00  00  00  01  00  00  09  01  00  00  12  04  03  03
0000010    00  04  00  00  04  03  00  00  00  01  00  00  10  00  05  05
0000020    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000030    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000040    00  04  00  00  00  01  00  00  00  01  00  00  22  05  04  04
0000050
Prep Store instruction: 0001e548	addl	$0x00027740,%eax
Count instruction: 0001e537	movb	$0x05,0x03(0.000000e+00cx)
Personality: Kudzu
ConnectorInfo count in decimal: 2
Effective address for ConnectorInfo table in hex: 277a0
Disk offset in decimal 502556
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  03  03
0000010    00  08  00  00  04  02  00  00  00  01  00  00  11  02  01  01
0000020
Prep Store instruction: 0001e650	addl	$0x000277a0,%eax
Count instruction: 0001e63f	movb	$0x02,0x03(0.000000e+00cx)
Personality: Gibba
ConnectorInfo count in decimal: 5
Effective address for ConnectorInfo table in hex: 277c0
Disk offset in decimal 502588
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  05  01
0000010    00  04  00  00  04  03  00  00  00  01  00  00  22  05  04  02
0000020    00  08  00  00  04  02  00  00  00  01  00  00  11  02  06  04
0000030    00  02  00  00  04  02  00  00  00  01  00  00  00  00  03  05
0000040    04  00  00  00  04  02  00  00  00  01  00  00  11  02  01  03
0000050
Prep Store instruction: 0001e684	addl	$0x000277c0,%eax
Count instruction: 0001e673	movb	$0x05,0x03(0.000000e+00cx)
Personality: Lotus
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 27820
Disk offset in decimal 502684
0000000    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000010    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000020    00  08  00  00  04  02  00  00  00  01  00  00  22  05  04  04
0000030
Prep Store instruction: 0001f368	addl	$0x00027820,%eax
Count instruction: 0001f357	movb	$0x03,0x03(0.000000e+00cx)
Personality: Ipomoea
ConnectorInfo count in decimal: 3
Effective address for ConnectorInfo table in hex: 27860
Disk offset in decimal 502748
0000000    00  04  00  00  04  03  00  00  00  01  00  00  12  04  01  05
0000010    00  08  00  00  04  02  00  00  00  01  00  00  11  02  04  03
0000020    10  00  00  00  10  00  00  00  00  01  00  00  00  00  00  02
0000030
Prep Store instruction: 0001f39c	addl	$0x00027860,%eax
Count instruction: 0001f38b	movb	$0x03,0x03(0.000000e+00cx)
Personality: Muskgrass
ConnectorInfo count in decimal: 4
Effective address for ConnectorInfo table in hex: 278a0
Disk offset in decimal 502812
0000000    00  04  00  00  04  03  00  00  00  01  00  00  11  02  01  01
0000010    00  08  00  00  04  02  00  00  00  01  00  00  12  04  03  03
0000020    00  04  00  00  00  01  00  00  00  01  00  00  21  03  02  02
0000030    00  04  00  00  00  01  00  00  00  01  00  00  22  05  04  04
0000040
Prep Store instruction: 0001fd22	addl	$0x000278a0,%eax
Count instruction: 0001fd11	movb	$0x04,0x03(0.000000e+00cx)

atlee · May 5, 2011

very nice indeed will have to look into these

buoo · May 5, 2011

We can't say "nullCPUPM goodbye" yet

Mac OS X v10.6.7 Update for iMac (Early 2011)

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
