[Solved] Dell Truemobile 1490 on iAtkos 10.5.4 HP 6000 pavilion.

krrr · September 27, 2008

Ok I got this Dell-Truemobile from hongkong via Ebay, then i found out there is no AppleAirPortBrcm4311.kext .

So i download pacifist and browsed iAtkos dvd, found it. so i copied it to my desktop then by finder placed it at System/Library/Extensions/IO80211Family.kext/Contents/PlugIns/ .

Now using plisteditor , opened info.plist .i It already has by Device id.

					<key>APRoamTrigger</key>
					<integer>-91</integer>
					<key>CFBundleIdentifier</key>
					<string>com.apple.driver.AirPortBrcm43xx</string>
					<key>IOClass</key>
					<string>AirPort_Brcm43xx</string>
					<key>IOMatchCategory</key>
					<string>IODefaultMatchCategory</string>
					<key>IONameMatch</key>
					<array>
							<string>pci106b,4e</string>
							<string>pci14e4,4311</string>
							<string>pci14e4,4312</string>
							<string>pci14e4,4313</string>
							<string>pci14e4,4318</string>
							<string>pci14e4,4319</string>
							<string>pci14e4,431a</string>
							<string>pci14e4,4320</string>
							<string>pci14e4,4324</string>
							<string>pci14e4,4325</string>
							<string>pci14e4,4328</string>
							<string>pci14e4,432b</string>
							<string>pci14e4,432c</string>
							<string>pci14e4,432d</string>
					</array>
					<key>IOProviderClass</key>
					<string>IOPCIDevice</string>

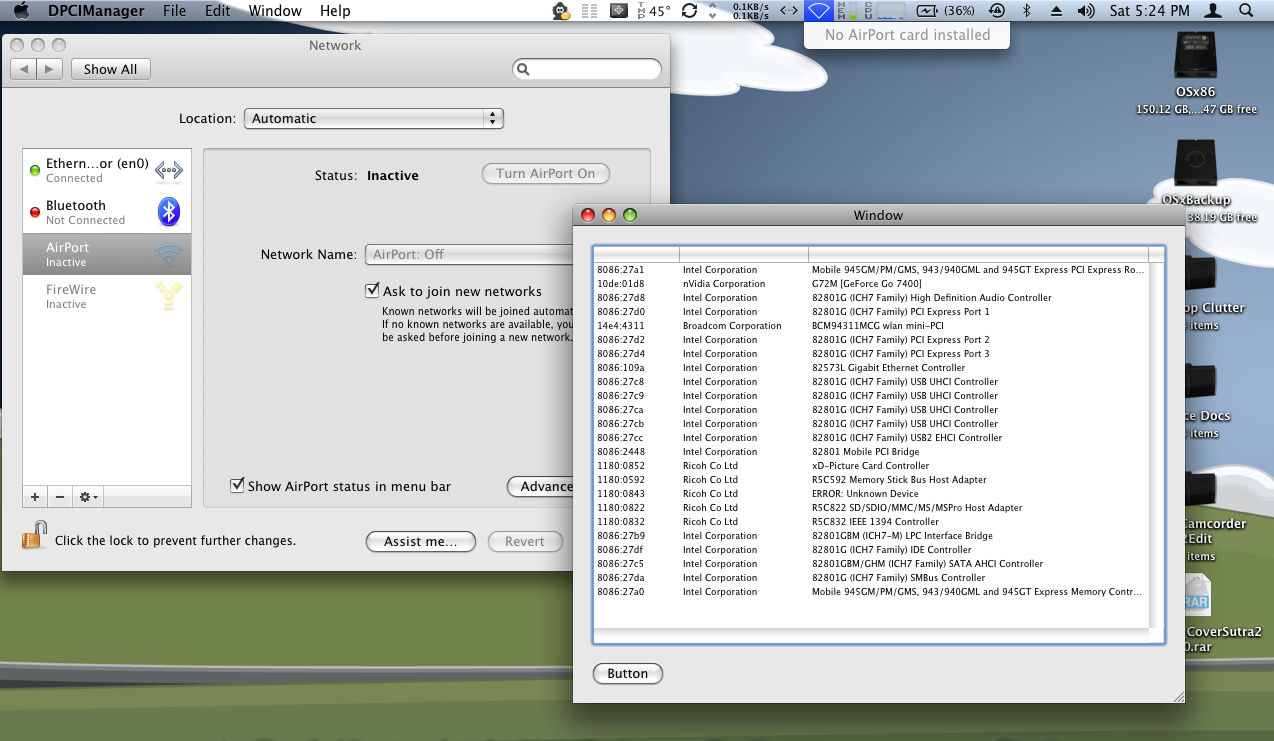

so i repaired permissions using osx86tools and rebooted. still nothing.

HELLPPPPPPP :blink:

=======================================

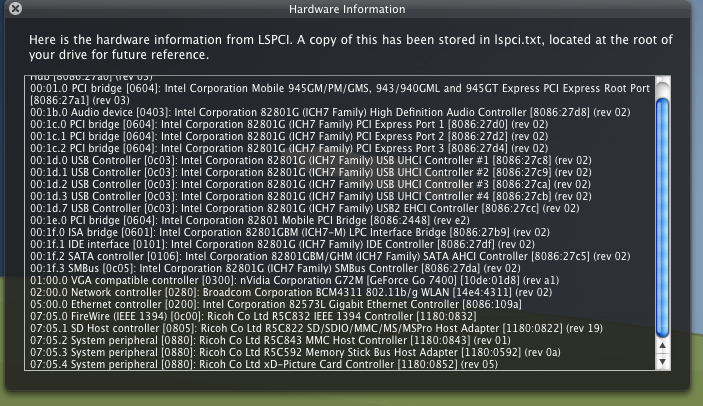

lspci -vvnn



02:00.0 Network controller [0280]: Broadcom Corporation BCM4311 802.11b/g WLAN [14e4:4311] (rev 02)
Subsystem: Hewlett-Packard Company BCM4311 802.11b/g Wireless LAN Controller [103c:1374]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at d8000000 (64-bit, non-prefetchable)
Capabilities: [40] Power Management version 3
	Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
	Status: D0 PME-Enable- DSel=0 DScale=2 PME-
Capabilities: [58] Vendor Specific Information <?>
Capabilities: [e8] Message Signalled Interrupts: Mask- 64bit+ Queue=0/0 Enable-
	Address: 00000000fee00000  Data: 4097
Capabilities: [d0] Express (v1) Endpoint, MSI 00
	DevCap:	MaxPayload 128 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
		ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
	DevCtl:	Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
		RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
		MaxPayload 128 bytes, MaxReadReq 128 bytes
	DevSta:	CorrErr+ UncorrErr+ FatalErr- UnsuppReq+ AuxPwr- TransPend-
	LnkCap:	Port #0, Speed 2.5GT/s, Width x1, ASPM L0s, Latency L0 <4us, L1 <64us
		ClockPM- Suprise+ LLActRep- BwNot-
	LnkCtl:	ASPM L0s Enabled; RCB 64 bytes Disabled- Retrain- CommClk+
		ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
	LnkSta:	Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
Capabilities: [100] #14e4

=======================================

krrr · September 28, 2008

in my haste i i forgot the iAtkos dvd is 10.5.2 and I am running 10.5.4 , so fetching AppleAirPortBrcm4311.kext from dvd was bad idea (using pacifist).

krrrs:~ krrr$ sudo kextload -vt /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext
Password:
kextload: kext /System/Library/Extensions/Apple02Audio.kext is not valid
kextload: kext /System/Library/Extensions/AppleBlower.kext is not valid
kextload: kext /System/Library/Extensions/AppleCore99NVRAM.kext is not valid
kextload: kext /System/Library/Extensions/AppleCPUThermo.kext is not valid
kextload: kext /System/Library/Extensions/AppleDallasDriver.kext is not valid
kextload: kext /System/Library/Extensions/AppleFCU.kext is not valid
kextload: kext /System/Library/Extensions/AppleFlashNVRAM.kext is not valid
kextload: kext /System/Library/Extensions/AppleI2SModemFamily.kext is not valid
kextload: kext /System/Library/Extensions/AppleK2SATA.kext is not valid
kextload: kext /System/Library/Extensions/AppleK2SATARoot.kext is not valid
kextload: kext /System/Library/Extensions/AppleKauaiATA.kext is not valid
kextload: kext /System/Library/Extensions/AppleKiwiATA.kext is not valid
kextload: kext /System/Library/Extensions/AppleKiwiRoot.kext is not valid
kextload: kext /System/Library/Extensions/AppleLM87.kext is not valid
kextload: kext /System/Library/Extensions/AppleMacRiscPCI.kext is not valid
kextload: kext /System/Library/Extensions/AppleMPIC.kext is not valid
kextload: kext /System/Library/Extensions/AppleOnboardAudio.kext is not valid
kextload: kext /System/Library/Extensions/ApplePMU.kext is not valid
kextload: kext /System/Library/Extensions/AppleSMU.kext is not valid
kextload: kext /System/Library/Extensions/AppleSPU.kext is not valid
kextload: kext /System/Library/Extensions/AppleVIA.kext is not valid
kextload: kext /System/Library/Extensions/AppleVSP.kext is not valid
kextload: kext /System/Library/Extensions/ATTOExpressPCIPlus.kext is not valid
kextload: kext /System/Library/Extensions/AudioDeviceTreeUpdater.kext is not valid
kextload: kext /System/Library/Extensions/CM4040.kext is not valid
kextload: kext /System/Library/Extensions/CMD646Root.kext is not valid
kextload: kext /System/Library/Extensions/CRYPTOCardPCCard.kext is not valid
kextload: kext /System/Library/Extensions/IOADBFamily.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CControllerPMU.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CControllerPPC.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CControllerSMU.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CDeviceFCU.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CFamily.kext is not valid
kextload: kext /System/Library/Extensions/KeyLargoATA.kext is not valid
kextload: kext /System/Library/Extensions/LSIUltra320.kext is not valid
kextload: kext /System/Library/Extensions/MegaRAID.kext is not valid
kextload: kext /System/Library/Extensions/SCR24X_Apple_Driver.kext is not valid
kextload: kext /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleGMACEthernet.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleRS574Serial.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleSCCSerial.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleVerizonSupport.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleVerizonSupportKicker.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/InternalUSBModem.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/MotorolaSM56K.kext is not valid
kextload: resolving dependencies for kernel extensions with validation and authentication failures
kernel extension /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext has problems:
Missing dependencies:
{
"com.apple.iokit.IO80211Family" =
	"A valid compatible version of this dependency cannot be found"
}

krrrs:~ krrr$

This has completely messed up, the wifi card isnt getting detected obviously.

So now. I am going to do the 10.5.5 update as it has AppleAirPortBrcm4311.kext update too and should bring whole system in-line.

Stay tuned

rnb5500 · September 28, 2008

^^I agree as well. If after you update to 10.5.5 and still can't get it to work, then the problem is most likely with IOPCIFamily.kext.

krrr · September 28, 2008

Thanks for the replies guys

i am not sure i want to do update 10.5.5 i dont see positive results of update anywhere.

Where is Chun-Nan download latest file for leopard ? i only see tiger http://forum.insanelymac.com/index.php?showtopic=81048

rnb5500 · September 28, 2008

Here is the link for Chun-Nan's Leopard IOPCIFAMILY.kext: http://forum.insanelymac.com/index.php?act...st&id=34679

Updating to 10.5.5 shouldn't be to bad. In fact, other than having to re-edit the plist of the new Brcm4311.kext it installed, it didn't cause me any problems. Just be sure to back up, especially your extensions folder as you might have to reinstall or re-edit kexts you've previously patched to get your H/W working.

quinielascom · September 28, 2008

let me to attach the file ....

IOPCIFamily.kext.zip

Install in /System/Library/Extensions with kext helper or with commmand line

regards.

I apologize for my first post in this threat, i not see that the language is not spanish.

krrr · September 28, 2008

my head is {censored}ed. i just cant understand which way to go. i see at uphuck.ggrn.de that , there is a safe way to upgrade to 10.5.5 using some chamelon boot etc... i dont know will upgrading this will fix my IOPCIFAMILY or not.

i also downloaded massive 10.5.4 comboupdate dmg , extracted AppleAirPortBrcm4311 and installed it *Using pacifist* , rebooted with -f STILL no wifi detection . why mee goddd why meeee

Nick14 · September 28, 2008

Is the card turned on in and does the bios allow the card

krrr · September 28, 2008

Is the card turned on in and does the bios allow the card

how exactly should i check that ? i dont get any 104 error anywhere, when do you get it? i can see the broadcom miniwlan in DPCI manager.

and did u see my output i pasted here for lspci -vvnn . shows HP chip, i am confused on that one too.

krrr · September 29, 2008

NOTE TO MOD: Kindly mark the title as [solved]

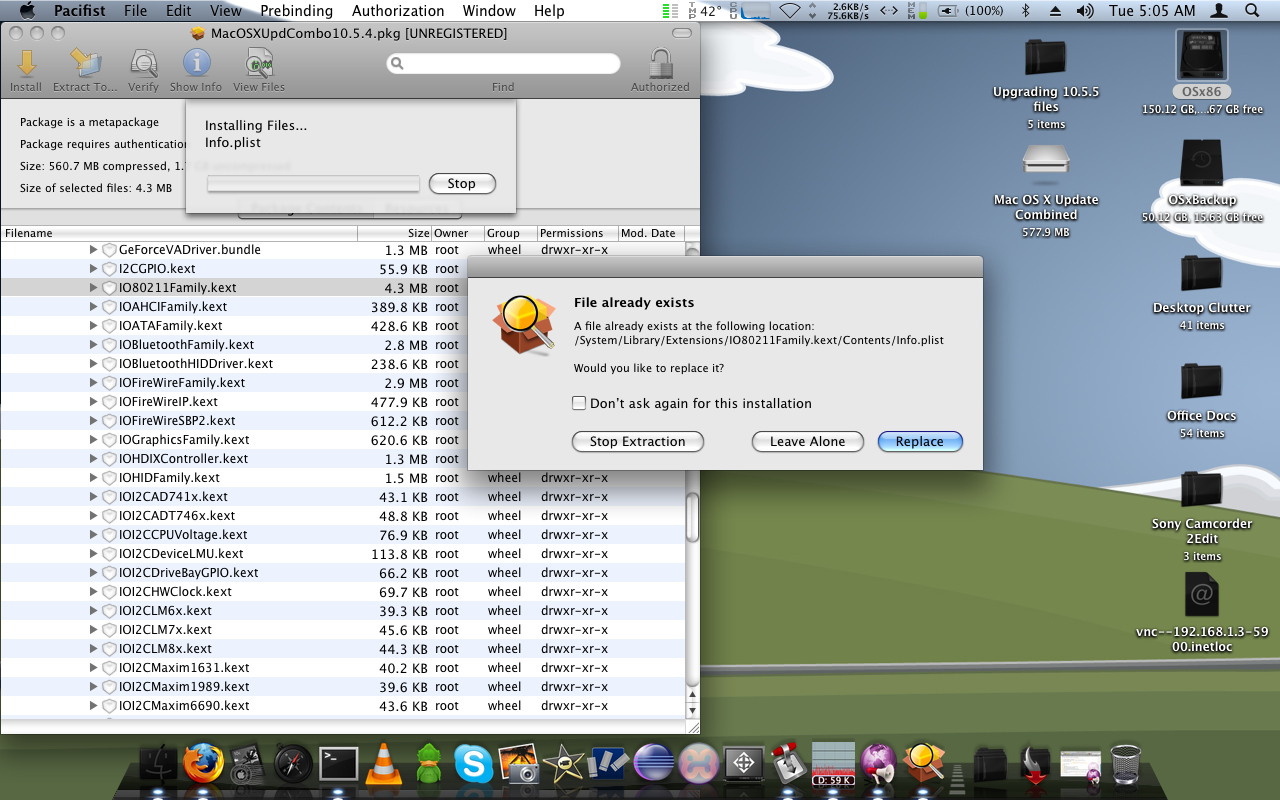

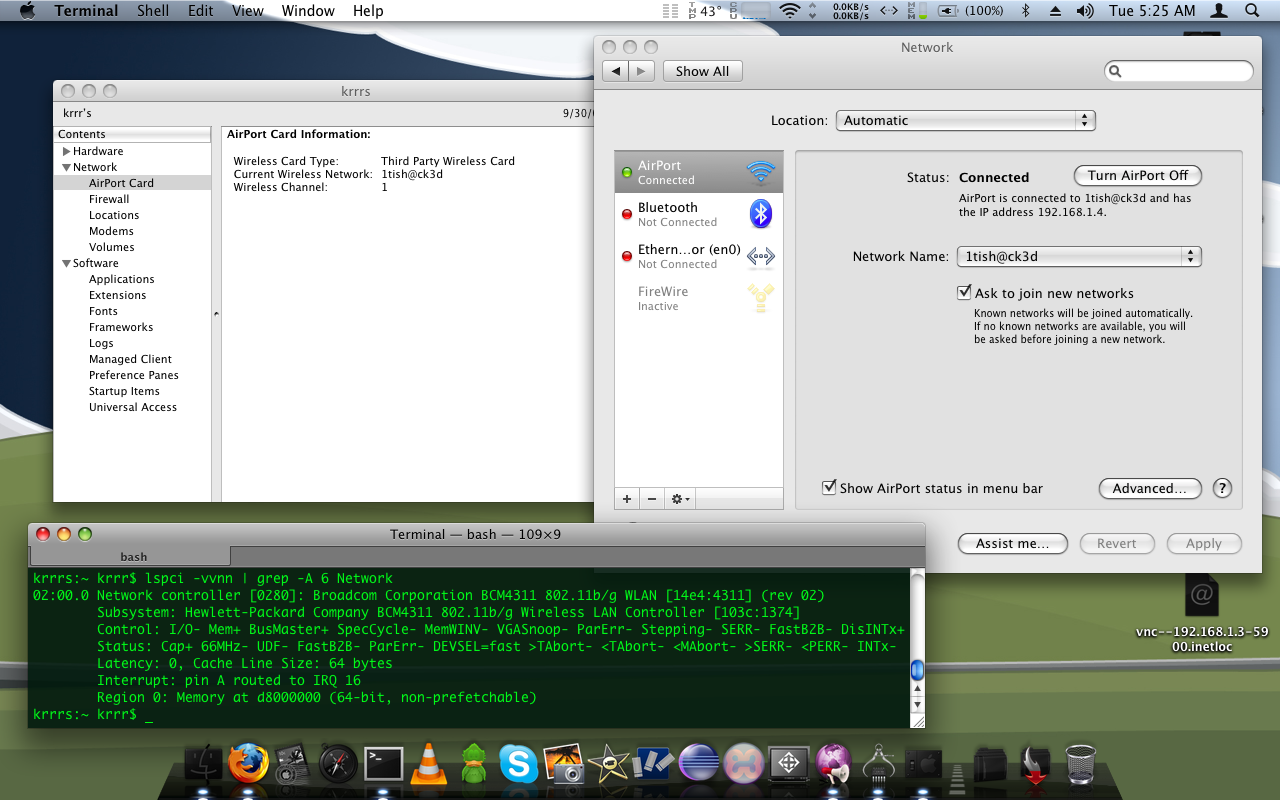

well i did this as seen in screenshot and Boom , got fixed

I am still puzzled why didnt i even require to hack the bios for whitelist i screwed up files here (copying broadcom file from 10.5.3 iAtkos on 10.5.4 machine) in panic/anger/haste.

Thanks everyone folks, specially Buildsmart who told me what Exactly i screwed up :>

krrrs:~ krrr$ sudo kextload -vt /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext
Password:
kextload: kext /System/Library/Extensions/Apple02Audio.kext is not valid
kextload: kext /System/Library/Extensions/AppleBlower.kext is not valid
kextload: kext /System/Library/Extensions/AppleCore99NVRAM.kext is not valid
kextload: kext /System/Library/Extensions/AppleCPUThermo.kext is not valid
kextload: kext /System/Library/Extensions/AppleDallasDriver.kext is not valid
kextload: kext /System/Library/Extensions/AppleFCU.kext is not valid
kextload: kext /System/Library/Extensions/AppleFlashNVRAM.kext is not valid
kextload: kext /System/Library/Extensions/AppleI2SModemFamily.kext is not valid
kextload: kext /System/Library/Extensions/AppleK2SATA.kext is not valid
kextload: kext /System/Library/Extensions/AppleK2SATARoot.kext is not valid
kextload: kext /System/Library/Extensions/AppleKauaiATA.kext is not valid
kextload: kext /System/Library/Extensions/AppleKiwiATA.kext is not valid
kextload: kext /System/Library/Extensions/AppleKiwiRoot.kext is not valid
kextload: kext /System/Library/Extensions/AppleLM87.kext is not valid
kextload: kext /System/Library/Extensions/AppleMacRiscPCI.kext is not valid
kextload: kext /System/Library/Extensions/AppleMPIC.kext is not valid
kextload: kext /System/Library/Extensions/AppleOnboardAudio.kext is not valid
kextload: kext /System/Library/Extensions/ApplePMU.kext is not valid
kextload: kext /System/Library/Extensions/AppleSMU.kext is not valid
kextload: kext /System/Library/Extensions/AppleSPU.kext is not valid
kextload: kext /System/Library/Extensions/AppleVIA.kext is not valid
kextload: kext /System/Library/Extensions/AppleVSP.kext is not valid
kextload: kext /System/Library/Extensions/ATTOExpressPCIPlus.kext is not valid
kextload: kext /System/Library/Extensions/AudioDeviceTreeUpdater.kext is not valid
kextload: kext /System/Library/Extensions/CM4040.kext is not valid
kextload: kext /System/Library/Extensions/CMD646Root.kext is not valid
kextload: kext /System/Library/Extensions/CRYPTOCardPCCard.kext is not valid
kextload: kext /System/Library/Extensions/IOADBFamily.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CControllerPMU.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CControllerPPC.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CControllerSMU.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CDeviceFCU.kext is not valid
kextload: kext /System/Library/Extensions/IOI2CFamily.kext is not valid
kextload: kext /System/Library/Extensions/KeyLargoATA.kext is not valid
kextload: kext /System/Library/Extensions/LSIUltra320.kext is not valid
kextload: kext /System/Library/Extensions/MegaRAID.kext is not valid
kextload: kext /System/Library/Extensions/SCR24X_Apple_Driver.kext is not valid
kextload: kext /System/Library/Extensions/IONetworkingFamily.kext/Contents/PlugIns/AppleGMACEthernet.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleRS574Serial.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleSCCSerial.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleVerizonSupport.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/AppleVerizonSupportKicker.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/InternalUSBModem.kext is not valid
kextload: kext /System/Library/Extensions/IOSerialFamily.kext/Contents/PlugIns/MotorolaSM56K.kext is not valid
kextload: resolving dependencies for kernel extensions with validation and authentication failures
kextload: extension /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext appears to be loadable
kextload: loading extension /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext
kextload: extension /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext is already loaded
krrrs:~ krrr$

t.arnfeld · October 24, 2008

Hey,

I have the exact same wireless card as you and i have a compaq preasario c701ea...

I am dual booting iAtkos 2.0i (Apple 10.5.2) with windows xp and i have the wireless and everything going great on the windows side but i need the wireless working on the mac side...

Could you help me please.. I am not that experianced with iatkos but a step by step guide or a link to where i can sort this out would be absolutly fantastic!!!!!!!!!!!!

Thanks so much.. :censored2:

krrr · October 24, 2008

@arnfeld,

What does the below command outputs?

sudo kextload -vt /System/Library/Extensions/IO80211Family.kext/Contents/Plugins/AppleAirPortBrcm4311.kext

sireg · October 29, 2008

YES!!! I finally got my Dell Truemobile 1390 rev3 working. My problem was the IOPCIFAMILY.kext. Here is the whole story.

I had intel 3945 abg, i bought a dell truemobile 1390, and swaped it. But I couldn't get it to work, i spend whole two days working on it. what I ended up doing is I installed Iatkos v4.1i, then I downloaded the 10.5.4 update from apple website, just like kkk guy has the screenshots for a couple of posts before this one, and I am not sure whether that had any effect on it, my card still wasn't recognized.

Then I downloaded the Chun-Nan's Leopard IOPCIFAMILY.kext from post 6, and installed it using Kext helper. I rebooted, and my wireless card was detected.

I hope this helped someone.

My specs are.

Fujitsu lifebook A6020

Intel core 2 duo

2gb ram

Thank you all, for all the posts.

I attached my IOPCIFAMILY.kext and my IO80211FAMILY.kext in a zipped archieve. If you're a nob, I recomend using a program called Kext Helper to install kexts, it's very easy to use. All you do is drag your kext there, input your password, and press install.

http://forum.insanelymac.com/index.php?act...st&id=37288

Archive.zip

benos · October 30, 2008

YES!!! I finally got my Dell Truemobile 1390 rev3 working. My problem was the IOPCIFAMILY.kext. Here is the whole story.

I had intel 3945 abg, i bought a dell truemobile 1390, and swaped it. But I couldn't get it to work, i spend whole two days working on it. what I ended up doing is I installed Iatkos v4.1i, then I downloaded the 10.5.4 update from apple website, just like kkk guy has the screenshots for a couple of posts before this one, and I am not sure whether that had any effect on it, my card still wasn't recognized.

Then I downloaded the Chun-Nan's Leopard IOPCIFAMILY.kext from post 6, and installed it using Kext helper. I rebooted, and my wireless card was detected.

I hope this helped someone.

My specs are.

Fujitsu lifebook A6020

Intel core 2 duo

2gb ram

Thank you all, for all the posts.

I attached my IOPCIFAMILY.kext and my IO80211FAMILY.kext in a zipped archieve. If you're a nob, I recomend using a program called Kext Helper to install kexts, it's very easy to use. All you do is drag your kext there, input your password, and press install.

http://forum.insanelymac.com/index.php?act...st&id=37288

Hey Sireg,

I have the same card as you and krrr but it is rev01, i ran the kextload command and it said my IONetworkingFamily is not compatible, would you be able to upload that kext as well? That would be awesome if you could.

Thanks,

-Benos.

-------------------------------------------------------------

EDIT:

I ended up installing iatkosv4i back over the top of my previous install, and since I changed the ID on my card in linux it was detected straight away.

Thanks for the info guys, it was helpful.

Cheers,

-Benos.

[Solved] Dell Truemobile 1490 on iAtkos 10.5.4 HP 6000 pavilion.

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
