Installing macOS High Sierra on VMware Workstation 12.5.7

high sierra macos 12.5.7

  • Please log in to reply
18 replies to this topic

#1
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts

I had posted a note earlier with little feedback so I thought I would post HOW TO INSTALL High Sierra on VMware Workstation 12.5.7



It is much easier than the complicated scripts that I have seen.



Assuming that you have a functioning macOS system:



1) On your existing macOS, go to the App Store and download the High Sierra installer.  Some people have reported that a stub installer is only downloaded although this has not happened to me. If it happens to you, follow the instructions on this page:  http://osxdaily.com/...erra-installer/



2) The easy way to create a bootable USB is to use Install Disk Creator. It has been updated for High Sierra:  https://macdaddy.io/...l-disk-creator/



     OR,



      Using a Terminal window, you could use the command:



      sudo /Applications/Install\ macOS\ High\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/MyVolume



       Note:  Replace "MyVolume" with the name of the macOS volume of your USB key



3) Create a new Virtual Machine in VMware Workstation. Select "Apple Mac OS X" as the Guest O/S and "macOS 10.12" as the version.
    Select the default for all other options (although I prefer to have the virtual disk as one single file)



4)  Edit the newly created VMX file and append the two following lines:



      smc.version = 0

      sata0:0.virtualSSD = "0"

5) Start your VM, and attach your USB key to the VM so that VMware can boot the installer.  Proceed with a normal installation of macOS. Use Disk Utility to format the new virtual disk as a "Mac OS Extended (Journaled)"   DO NOT SELECT APFS as your volume type.

6) Install High Sierra using all normal defaults.

7) Install the VMware Tools from VMware Workstation 14.  There is new support for HiDPI displays which is great.

8) After a sucessful install, shutdown your macOS VM and edit the VMX file.  Now change the virtualSSD value to a "1":

    sata0:0.virtualSSD = "1"


The reason why you cannot install High Sierra in VMware Workstation 12 is that (in my understanding, someone may correct me), in the second phase of the install, the installer reformats the volume to APFS which Workstation 12 cannot boot from properly.  But forcing macOS to think it is an HD disk and not SSD allows a proper install. Then changing it back allows macOS to see its virtual drive as an SSD and will not attempt to reformat it to APFS.

If anyone has additional comments, please feel free to correct me or add.








#2
Florestan

Florestan

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts

Hi

Would this method work with Workstation Player?

Thanks



#3
jassker

jassker

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts

Not working for me, i can't see my disk (sata or scsi) in installation or disk management, any with the same problem?



#4
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts

Not working for me, i can't see my disk (sata or scsi) in installation or disk management, any with the same problem?



When you start Disk Utility, look on the upper left and change the View option from Show Only Volumes to Show All Devices.  If the virtual disk does not show up, exit Disk Utility and then restart it.  I don't know why, but I have seen this where it doesn't seem to detect the drives upon initial load.


Hi

Would this method work with Workstation Player?

Thanks



I don't know. I never use Player but you should try it and report back...



#5
jassker

jassker

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts

Now it's working, then when finish install, now not start  :( block on the bios blue screen.....



PD. How can i install vmware tools? i have .exe for vmware workstation 14 (contains vmware tools), but...



Thanks for your help,



#6
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts

Now it's working, then when finish install, now not start  :( block on the bios blue screen.....



PD. How can i install vmware tools? i have .exe for vmware workstation 14 (contains vmware tools), but...



Thanks for your help,



If you are stopping on the EFI boot screen which shows that the boot path is "Unsuccessful", then you did not disable the virtual SSD properly.  Look at your VMX file and check the type of disk used.  The sample I showed above is the default where the VMware virtual disk is a SATA drive and mounted as the first drive. Therefore the line below properly disables the virtual SSD emulation in the virtual machine.



sata0:0.virtualSSD = "0"



If you still have problems, please ATTACH (DO NOT POST) the VMX file for your virtual machine.



#7
Cybernut

Cybernut

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

Just a thank you to pjg61. Followed your steps and it worked like a charm.



#8
celletti

celletti

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts
  • Gender:Male

Just for the record, I had a similar problem updating from Sierra to High Sierra on Workstation 11.1.4 (OS wouldn't boot after the last restart). Setting sata0:0.virtualSSD = "0" before updating solved the problem.



Thanks.



#9
Dolsey

Dolsey

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

When you start Disk Utility, look on the upper left and change the View option from Show Only Volumes to Show All Devices.  If the virtual disk does not show up, exit Disk Utility and then restart it.  I don't know why, but I have seen this where it doesn't seem to detect the drives upon initial load.




I don't know. I never use Player but you should try it and report back...

Thank You!  I've been pulling my hair out trying to get it to see the Virtual Disk.



#10
milligator

milligator

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
  • Gender:Male

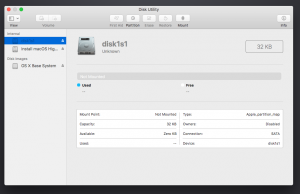

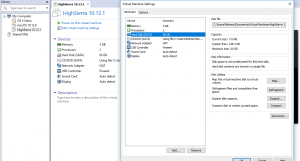

I crated an ISO file from the High Sierra 10.13.1 and when I try to install the OS, can not see the HDD in the Disk Utility. I have tested on both VMWare 12.5 and VMWare 14.

I have not seen such a thing before. Any Idea?

Attached File  Untitled.png   80.13KB   1 downloads

Attached File  Untitled2.png   51.23KB   1 downloads



#11
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
Exit Disk Utility and select it again. Your new virtual disk will appear

#12
milligator

milligator

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
  • Gender:Male

Exit Disk Utility and select it again. Your new virtual disk will appear

I did it multiple times but nothing happened.

Since i am installing through ISO file I did not add sata0:0.virtualSSD = "0"



#13
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
On the top left, “View” change it to show Devices. Then you will see your Virtual Disk

#14
milligator

milligator

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
  • Gender:Male

On the top left, “View” change it to show Devices. Then you will see your Virtual Disk



It is solved. Many many thanks  :thumbsup_anim:

I have installed previous versions many times but the disk was visible in all of them. I spent about 4 to 5 hours. you saved me



#15
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
It is a very weird bug which can make you rip your hair out. Plus the fact that by default, Disk Utility shows only Volumes by default. Just a bad combination. Glad it worked out

#16
milligator

milligator

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
  • Gender:Male

Is there any way to update old version to new version with just double clicking the High Sierra.app on VMWare?

I tested it on 10.12.6 to 10.13 but It lost the boot.



#17
pjg61

pjg61

    InsanelyMac Protégé

  • Members
  • Pip
  • 28 posts
You need to insert the line as shown on top to prevent the installer from seeing your Disk as an SSD. When High Sierra installs, if it sees an SSD, it will default to converting the disk to APFS which is not supported on Workstation 12. Once you are upgraded to High Sierra, you can remove the line and High Sierra will see the disk as an SSD but won’t auto convert it to APFS.

#18
milligator

milligator

    InsanelyMac Protégé

  • Members
  • Pip
  • 23 posts
  • Gender:Male

My track-pad works with single tap as click and two finger tap as right mouse button on VMWare. How can I enable track-pad multi finger scroll up and down gestures?



#19
Cybernut

Cybernut

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

My track-pad works with single tap as click and two finger tap as right mouse button on VMWare. How can I enable track-pad multi finger scroll up and down gestures?



Please don't post unrelated questions from what's posted in the original post of the thread.
