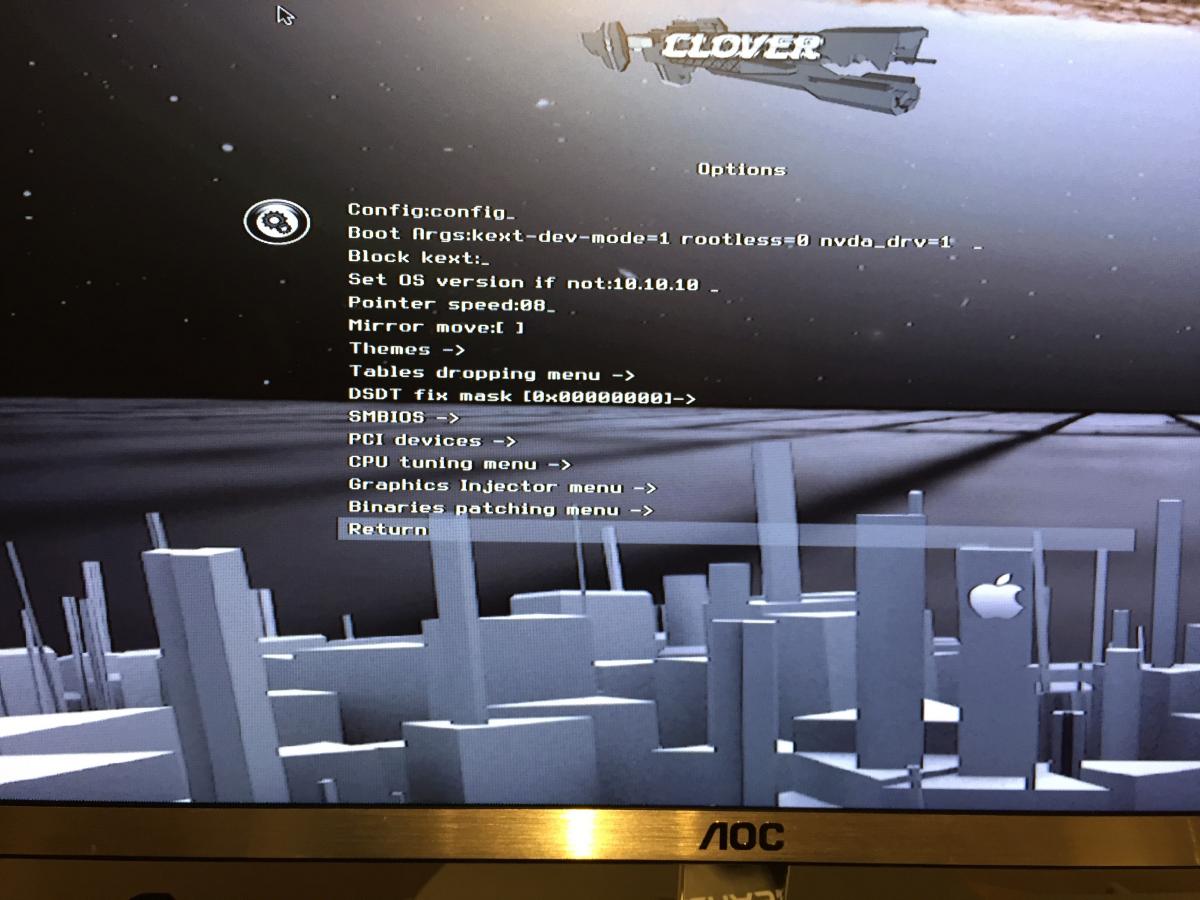

bobble999 Posted May 30, 2016 Share Posted May 30, 2016 Hi folks, After a pointer, as I've stupidly tried to upgrade 10.11.4->10.11.5 and its screwed my hack..... My specs are as my sig below and I'd previously had a fully working hack, thanks to the help of Chris111 back in February. I've even tried to rebuild again from scratch with a new usb, but both my usb from the previous build and the new one (using the installer v7 from Chris) won't work. On the "new" usb installer, I've disabled all of the dsdt entries and used the boot args as per my first screenshot. I keep kitting a kp just before the 2nd screenshot, and despite trying a few different args (e.g. nv_enabler=1) I am stuck. Could one of you guys possibly help please? Link to comment Share on other sites More sharing options...
fariel23 Posted May 30, 2016 Share Posted May 30, 2016 you should delete the IOBluetoothFamily.kext Link to comment Share on other sites More sharing options...

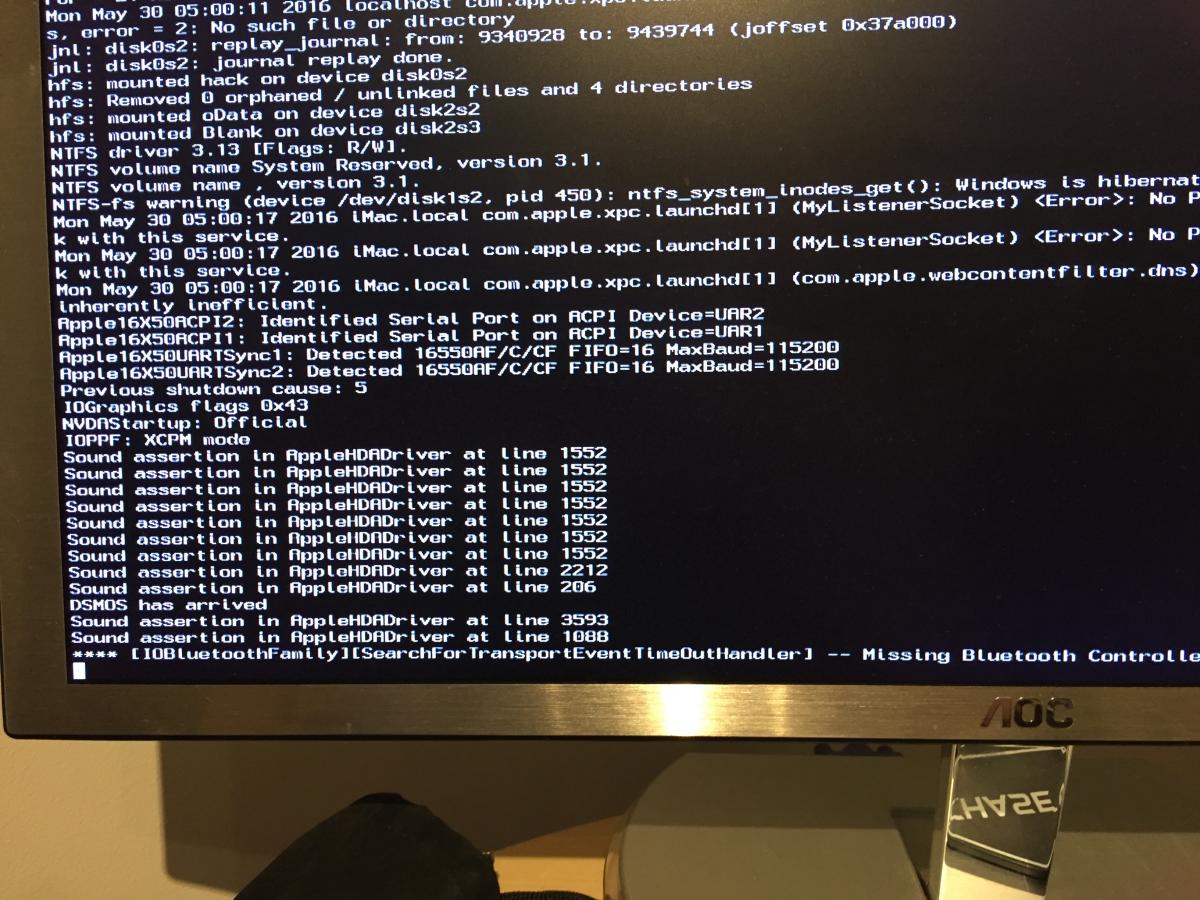

bobble999 Posted May 30, 2016 Author Share Posted May 30, 2016 Delete it from the installer usb, you mean? Also, for completeness here is the screenshot from booting "normally" after the 10.11.5 upgrade, showing the error Link to comment Share on other sites More sharing options...
artur_pt Posted May 30, 2016 Share Posted May 30, 2016 hello try to use osxaptiofixdrv2.efi if u get to boot .. should update ur nvidia web drivers good hack Link to comment Share on other sites More sharing options...
bobble999 Posted May 30, 2016 Author Share Posted May 30, 2016 hello try to use osxaptiofixdrv2.efi if u get to boot .. should update ur nvidia web drivers good hack thanks for this -where or how can i install it? onto my original usb installer?? or is there i way i can get it onto the HDD that is currently not booting using CLI somehow??? Link to comment Share on other sites More sharing options...
Gen4ig Posted May 30, 2016 Share Posted May 30, 2016 I m not see loading FakeSMC... chek it. And key "InjectKext=YES"? You are used clover configurator for edited config.plist? Link to comment Share on other sites More sharing options...
C.Frio Posted May 30, 2016 Share Posted May 30, 2016 hi... if other previous tests do not give results.. talking about your first post..(.before the tip to delete IOBluet..) ..if you can boot on safe mode (-x)..remove the appleHDA.kext from s/l/e on pen drive.. did you have patched AppleHDA before? and disable serial and parallel port at bios.. c.frio Link to comment Share on other sites More sharing options...

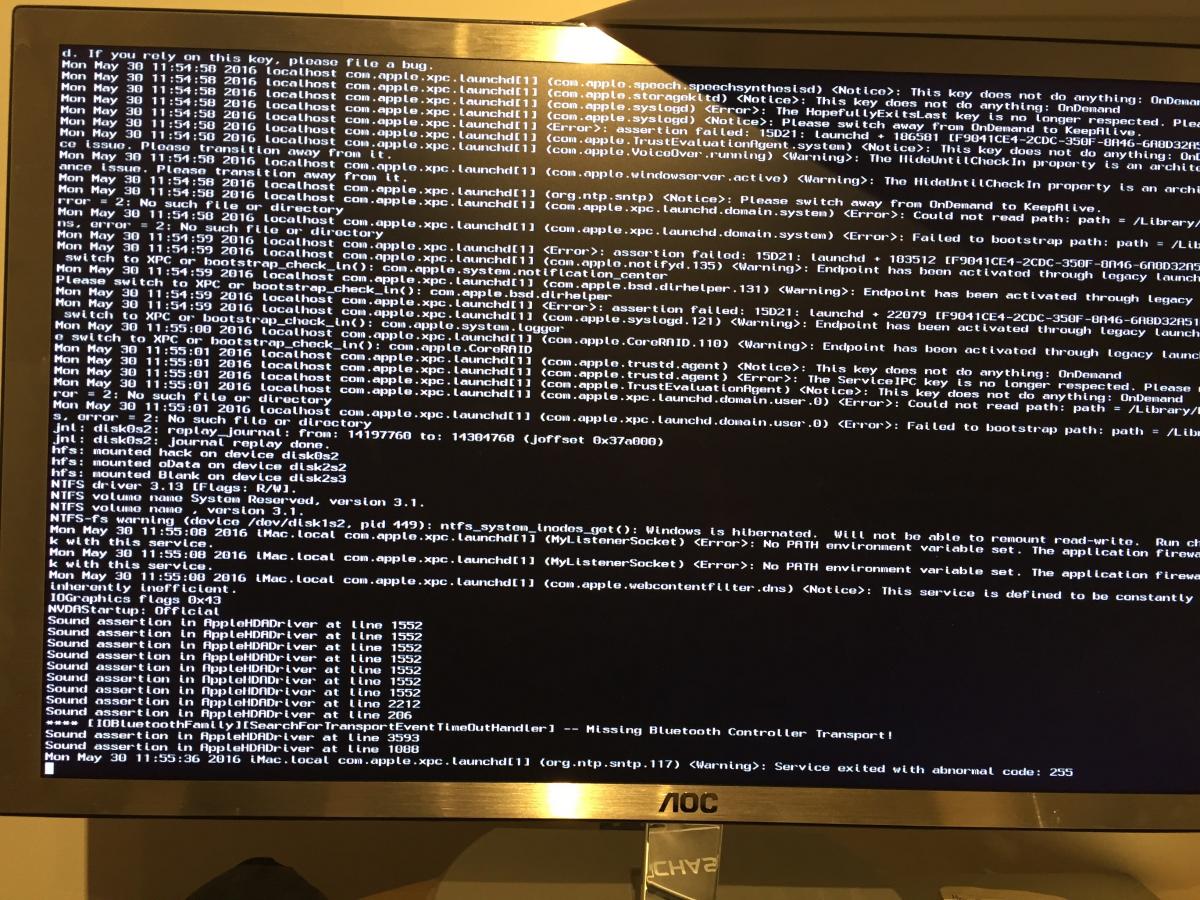

bobble999 Posted May 30, 2016 Author Share Posted May 30, 2016 I decided to start again with the installer to avoid any confusion or conflicts, so followed your suggestion above (havent deleted IOBluetooth yet). Its still rebooting after the IOBluetooth attempt (2nd pic in the OP). Shall I delete this from the thumb drive also?? hi... if other previous tests do not give results.. talking about your first post..(.before the tip to delete IOBluet..) ..if you can boot on safe mode (-x)..remove the appleHDA.kext from s/l/e on pen drive.. did you have patched AppleHDA before? and disable serial and parallel port at bios.. c.frio I decided to start again with the installer to avoid any confusion or conflicts, so followed your suggestion above - also deleted the IOBluetooth. Its gotten a little further, but with or without -x flag, i get the same kp - as per the screenshot attached Link to comment Share on other sites More sharing options...
C.Frio Posted May 30, 2016 Share Posted May 30, 2016 hi... do you have any audio kext on your pen? and I sugest ,you keep the IOBlueth... one... only remove the appleHDA... did you try to boot with "inject kext"too? did you try the @arthur-pt suggestion? c.frio 1 Link to comment Share on other sites More sharing options...
chris1111 Posted May 30, 2016 Share Posted May 30, 2016 You can try this config.plist Boot only verbose mode with Original Installer OS X ( All Kext inside ) let me see the boot picture after Link to comment Share on other sites More sharing options...
bobble999 Posted May 30, 2016 Author Share Posted May 30, 2016 hi... do you have any audio kext on your pen? and I sugest ,you keep the IOBlueth... one... only remove the appleHDA... did you try to boot with "inject kext"too? did you try the @arthur-pt suggestion? c.frio No Audio kexts created a brand new usb drive using Chris111's USB installer. i'll put back the bluetooth family kext..... didnt try arthur suggestion as i didnt want to try too many things at one. where can i find the osxaptiofixdrv2.efi? You can try this config.plist Boot only verbose mode with Original Installer OS X ( All Kext inside ) let me see the boot picture after will try this first after replacing the IOBluetoothfamily.kext - unless you think i should also replace osxaptiofix-drv.efi with osxaptiofixdrv2.efi?.... Link to comment Share on other sites More sharing options...
chris1111 Posted May 30, 2016 Share Posted May 30, 2016 will try this first after replacing the IOBluetoothfamily.kext - unless you think i should also replace osxaptiofix-drv.efi with osxaptiofixdrv2.efi?.... Yes for the first try Link to comment Share on other sites More sharing options...

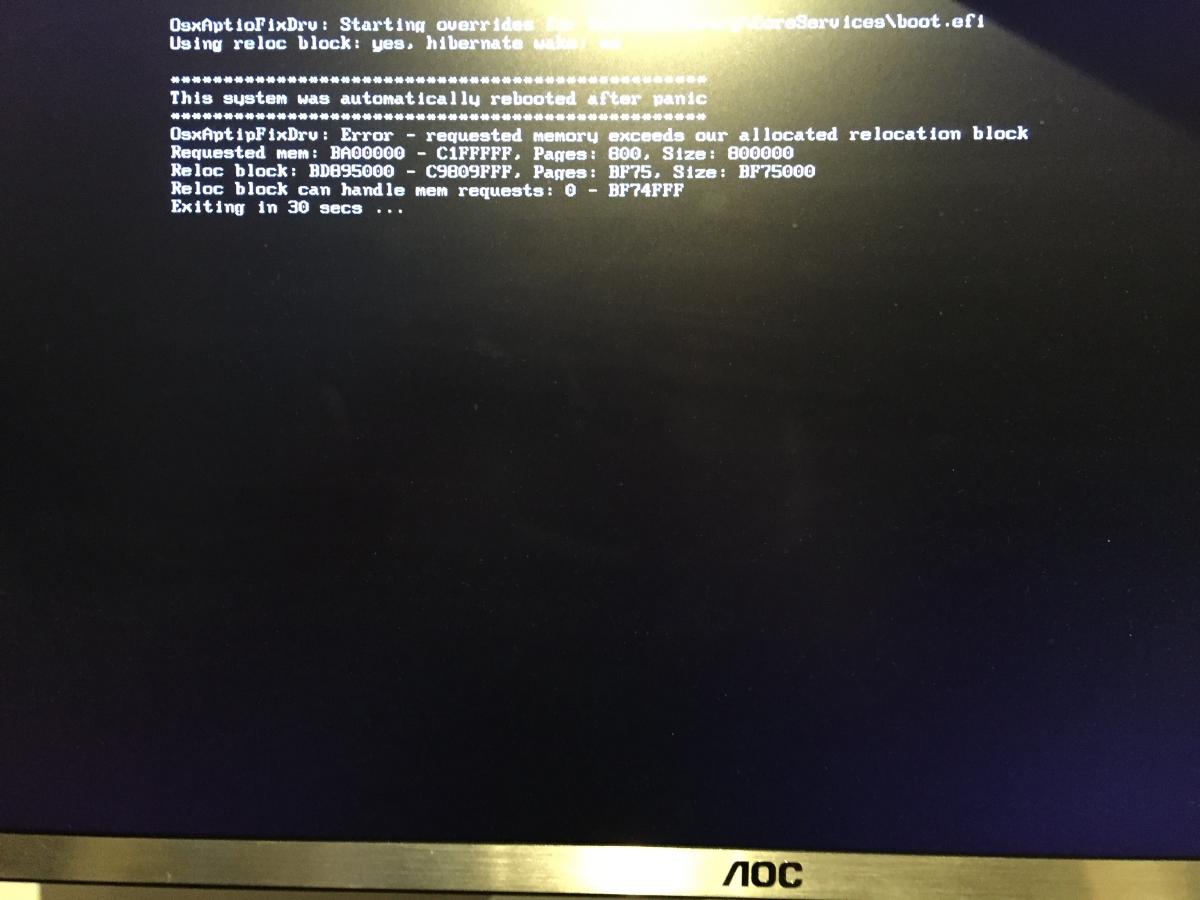

artur_pt Posted May 31, 2016 Share Posted May 31, 2016 hello man replace the ioaptifixdrv.efi is a know issue .. in the update .. where u find it in clover installer .. how u get the other ? is that why i don't like the user friend installer .. u install something and don't know how u get there .. i only see 1º pic after update and what is showing u have problems with that efi driver.. https://clover-wiki.zetam.org/What-is-what good hack 1 Link to comment Share on other sites More sharing options...
bobble999 Posted May 31, 2016 Author Share Posted May 31, 2016 i only see 1º pic after update and what is showing u have problems with that efi driver.. https://clover-wiki.zetam.org/What-is-what good hack I'm going to try that next - all other suggestions not working. I hear you regarding the user-friendly installer. I've always done the usb manually before, but was lazy on the last build - i pay the price now! Is it possible for me just to replace osxaptiofixdrv.efi with osxaptiofixdrv2.efi on the pen drive already created? If so, where can i find the osxaptiofixdrv2.efi? Thanks again for the help so far! Link to comment Share on other sites More sharing options...
chris1111 Posted May 31, 2016 Share Posted May 31, 2016 I hear you regarding the user-friendly installer. I've always done the usb manually before, but was lazy on the last build - i pay the price now! This is nothing to do with the Installation, its a Major update of OS X and you have done this Update without any plan, a backup anything ! Whether you use an install or a manual method, the result would have been the same Too easy to put the blame on the installer The simple program you use has a lot to install successfully on this forum and still works very well. That the user of your Mac, no one can control . Do you really think thats not append of the Manuel installation? 1 Link to comment Share on other sites More sharing options...
bobble999 Posted May 31, 2016 Author Share Posted May 31, 2016 Chris - not a criticism of your installer, but a criticism of me being lazy I'll take the update remark on the chin though - first time I've done that too, without backup etc. I have way less time these days, so found the installer very helpful - but I am clearly missing some important stuff out from not keeping up to date with developments in OS X and the small details to make it work with clover Don't take this personally - I appreciate the work of you and all of the guys! Oh - and I still have that crappy z97 mobo, which probably isn't helping!! 1 Link to comment Share on other sites More sharing options...

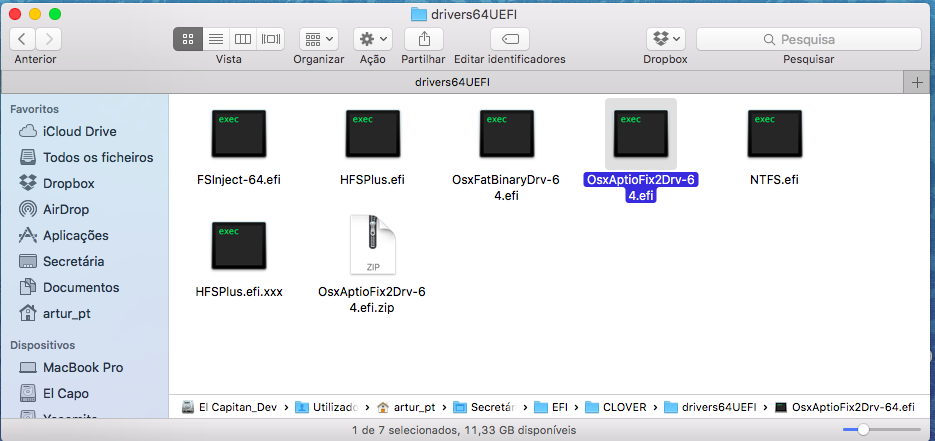

artur_pt Posted June 1, 2016 Share Posted June 1, 2016 hello again man .. u get other version of the efi driver in clover pkg installer like i say .. i like chris work .. but is to easy .. really u don't know what u install before .. anyway u have here .. and u can try to boot in the usb installer OsxAptioFix2Drv-64.efi.zip the path remember i show u .. in my desk .. u should find it in the usb good hack 1 Link to comment Share on other sites More sharing options...
Needy Posted June 1, 2016 Share Posted June 1, 2016 Hello there, In addition to what everyone has recommended, disable SIP completely, set Csr active config to 0x67. The problem with your normal boot, memory allocation, is caused by SIP. Best of luck. 2 Link to comment Share on other sites More sharing options...
bobble999 Posted June 1, 2016 Author Share Posted June 1, 2016 Thanks to all for the extra suggestions. Just to add to the comedy, my crappy mobo will now not recognise the USB drive as a UEFI boot device! I've used both Chris's installer and I also did a manual build of a USB drive for good measure - including replacing OsxAptioFixDrv-64.efi with OsxAptioFix2Drv-64.efi as suggested. New mobo ordered, will start again with a (hopefully) better luck when it arrives..... 1 Link to comment Share on other sites More sharing options...
