Subby Posted March 16, 2016 Share Posted March 16, 2016 Hi i am running (well trying to run) 10.10 Yosemite on my think pad, i have clover installed but it does not boot from that clover, i have a install USB that has a custom clover on it and she will boot from that! i have attached a IOReg file and an extracted DSDT in the hope that someone here can help me! at present when it does boot i have limited graphics (4MB) and no HDMI any help most welcome!!! i will do my best to answer any questions! thanks in advance!! Subz System DSDT.zip Subjects MacBook Air.zip Link to comment Share on other sites More sharing options...
Allan Posted March 17, 2016 Share Posted March 17, 2016 Post your hardware specs. Link to comment Share on other sites More sharing options...
artur_pt Posted March 17, 2016 Share Posted March 17, 2016 hello if u want test this one DSDT.aml.zip just remember if u are using clover now u have a patched dsdt so .. disable any clover dsdt fix good hack Link to comment Share on other sites More sharing options...

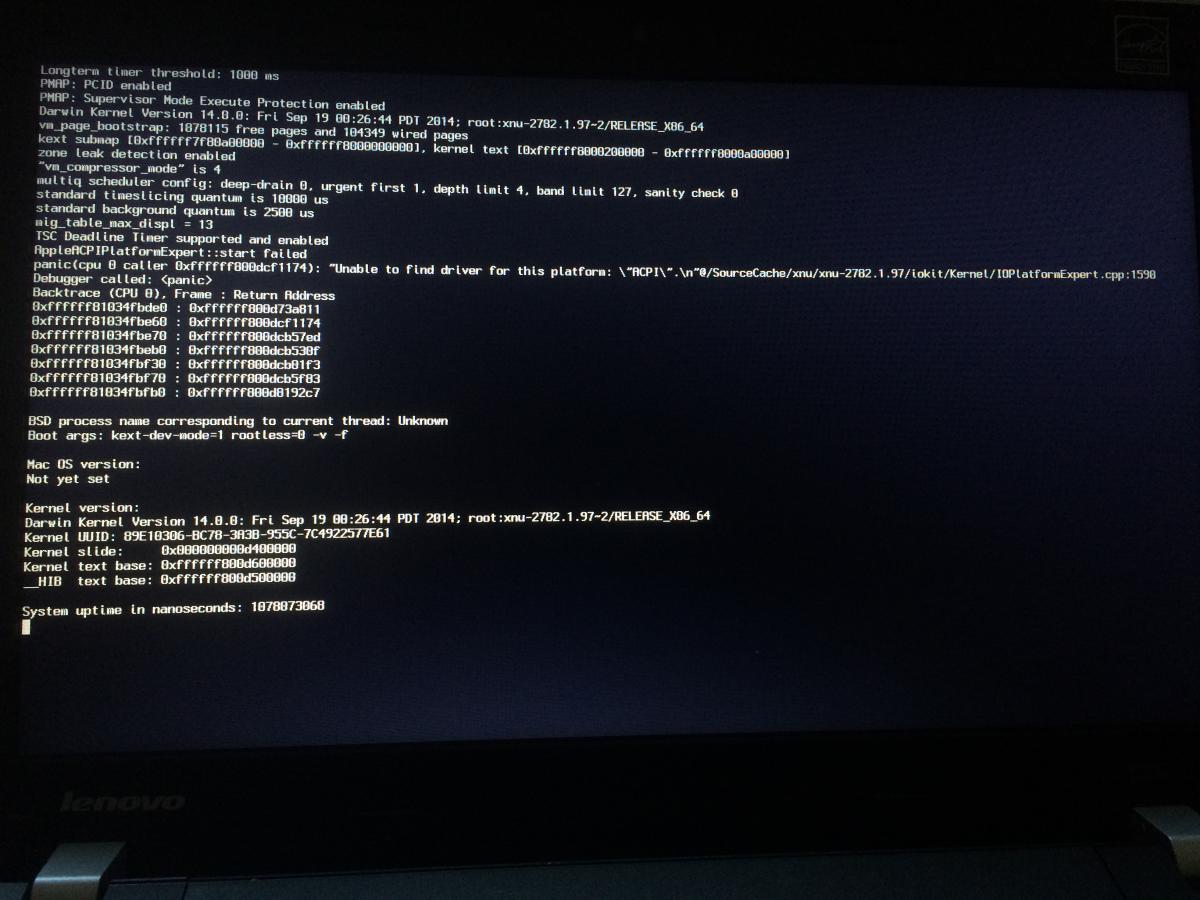

Subby Posted March 17, 2016 Author Share Posted March 17, 2016 Post your hardware specs. Sorry, i thought the IOReg file was the best way to do that! according to Windows its: CPU= i3-3110M @2.40GHz RAM=8GB Graphics=Intel HD Graphics 4000 LCD=1366x768 Hope that is of some use? Subz hello if u want test this one DSDT.aml.zip just remember if u are using clover now u have a patched dsdt so .. disable any clover dsdt fix good hack Hi, Thanks! i am quite novice in Clover but i did try (Options/DSDT fix mask/ [then unchecked all the options in there] to "disable any clover dsdt fix") not sure if that was right? with this dsdt in the patched folder i get a BSD hang (i have attached my clover config.plist and a high rez pick the the hang information i tried also removing the boot flags kext-dev-mode=1 & Rootless=0 any help most welcome!! Subz config.zip Link to comment Share on other sites More sharing options...
artur_pt Posted March 17, 2016 Share Posted March 17, 2016 hello man where u get that config ? config.plist.zip try with this one and give a very hard read here .. https://clover-wiki.zetam.org/Configuration#Config.plist-structure only insert in efi/clover/acpi/patched ur patched dsdt .. not more files good hack Link to comment Share on other sites More sharing options...

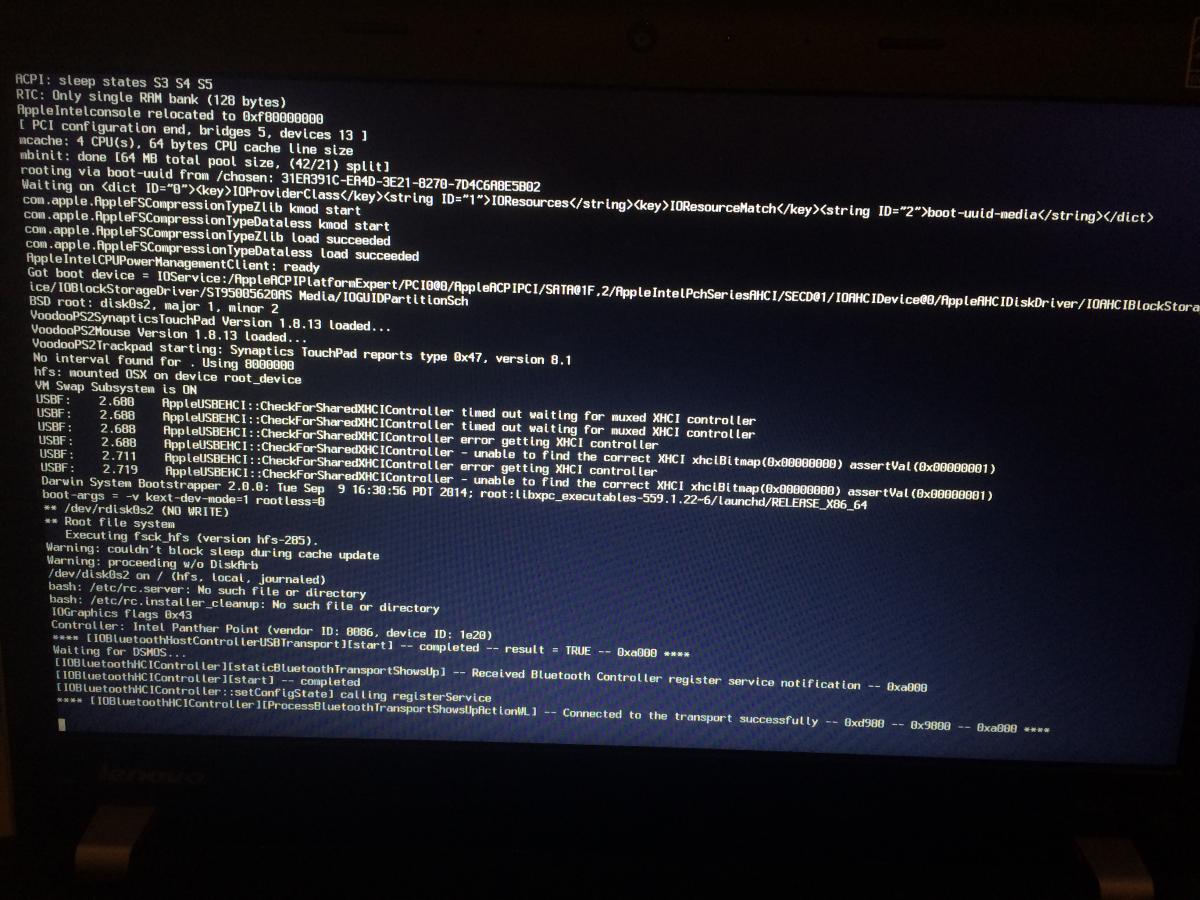

Subby Posted March 17, 2016 Author Share Posted March 17, 2016 hello man where u get that config ? config.plist.zip try with this one and give a very hard read here .. https://clover-wiki.zetam.org/Configuration#Config.plist-structure only insert in efi/clover/acpi/patched ur patched dsdt .. not more files good hack Hi, that was just there like that from the clover install? with this updated config.plist it does not crash on boot, it gets to the part where the GUI normally loads and just waits there? i have attached a high rez pic again. any tips at this stage? could it be EDID related maybe? i have tried booting with hdmi attached! thank you for your time and help Subz Link to comment Share on other sites More sharing options...
artur_pt Posted March 17, 2016 Share Posted March 17, 2016 hello is this yosemite boot ? now is graphics related ... in dsdt i set this ig-platform-id 0x0166003 is the usual one for the 1366x768 try another starting with 0x0166 for notebook Graphics and only boot with laptop lcd good hack Link to comment Share on other sites More sharing options...

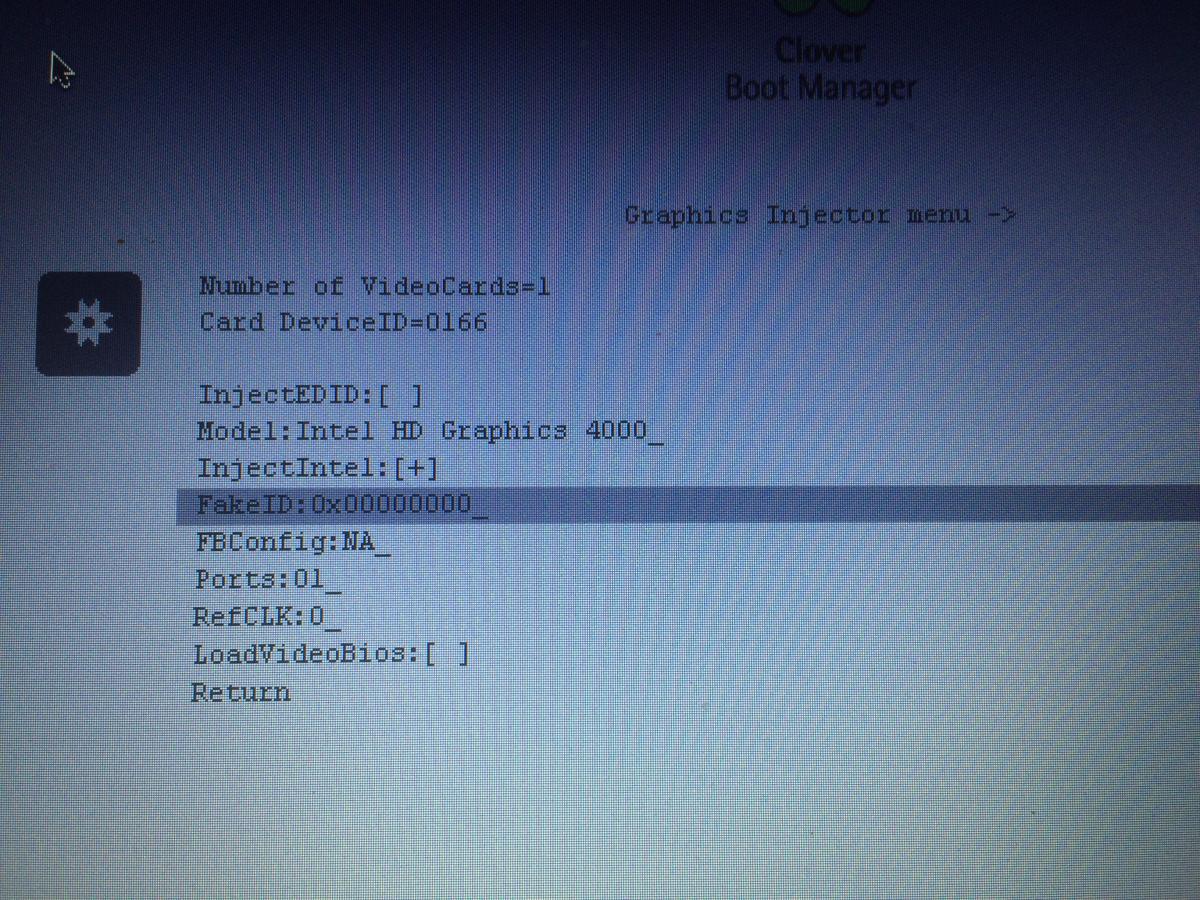

Subby Posted March 17, 2016 Author Share Posted March 17, 2016 hello is this yosemite boot ? now is graphics related ... in dsdt i set this ig-platform-id 0x0166003 is the usual one for the 1366x768 try another starting with 0x0166 for notebook Graphics and only boot with laptop lcd good hack Hi, in graphic injector menu in options fake ID was set to 0x0000000 i have tried messing with that (0x01660001,2,3,4,5) with no luck! i did try editing the actual config.plist but i could not find "ig-platform-id" or even "0x0166" any tips? thanks for all the help! Subz Link to comment Share on other sites More sharing options...
artur_pt Posted March 17, 2016 Share Posted March 17, 2016 hello so edit the config.plist .. and insert the key in graphics section good hack Link to comment Share on other sites More sharing options...

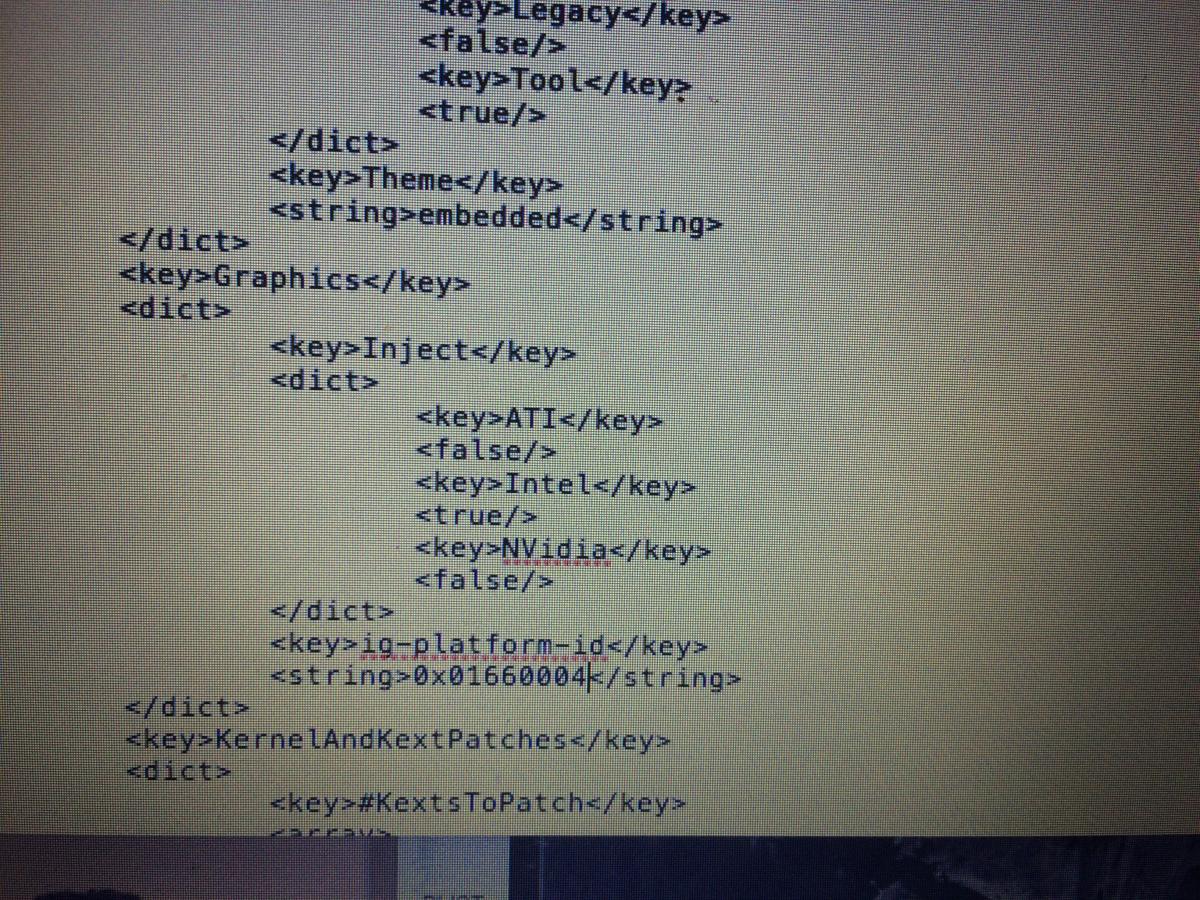

Subby Posted March 18, 2016 Author Share Posted March 18, 2016 hello so edit the config.plist .. and insert the key in graphics section good hack Hi, thanks for that! had lots of fun trying to add keys to the config.plist (attached pic to check i did it correctly?) i tried 1-4 but its still hanging at the last stage and not showing the GUI (i can hear its still working in the background) anything else i can try? Subz Link to comment Share on other sites More sharing options...
artur_pt Posted March 18, 2016 Share Posted March 18, 2016 hello that is right see here other possible key http://olarila.com/forum/viewtopic.php?f=28&t=3111 try 8,9,a,b good hack Link to comment Share on other sites More sharing options...
Subby Posted March 18, 2016 Author Share Posted March 18, 2016 hello that is right see here other possible key http://olarila.com/forum/viewtopic.php?f=28&t=3111 try 8,9,a,b good hack Hi Same results with all of those? should i add "<key>DualLink</key> <integer>0</integer>" to the string? i looked through that thread but it looked a bit out of my league is there more info i should get from booting in to Win7? is there anything in the IOReg file that can help us? thanks again for the help! this is fun! Subz Link to comment Share on other sites More sharing options...
Subby Posted March 18, 2016 Author Share Posted March 18, 2016 or is it just looking like i should give up on this laptop? i hope not this is fun!! Subz Link to comment Share on other sites More sharing options...
artur_pt Posted March 18, 2016 Share Posted March 18, 2016 hello test this other dsdt with the config.plist i sendo to u before DSDT.aml.zip good hack Link to comment Share on other sites More sharing options...
Subby Posted March 18, 2016 Author Share Posted March 18, 2016 hello test this other dsdt with the config.plist i sendo to u before DSDT.aml.zip good hack Still the same problem! But Thanks! Link to comment Share on other sites More sharing options...
artur_pt Posted March 19, 2016 Share Posted March 19, 2016 hello try to injectedid Graphics try also with macbookpro9,1 smbios that should boot with 0x01660003 good hack Link to comment Share on other sites More sharing options...
Subby Posted March 19, 2016 Author Share Posted March 19, 2016 hello try to injectedid Graphics try also with macbookpro9,1 smbios that should boot with 0x01660003 good hack Hi and thanks again! in clover boot options i tried injectedid & smbios macbookpro9,1 both with no luck! i did get this info from EDID manager in windows Time: 13:26:29 Date: 19 March 2016 EDID Manager Version: 1.0.0.14 ___________________________________________________________________ Block 0 (EDID Base Block), Bytes 0 - 127, 128 BYTES OF EDID CODE: 0 1 2 3 4 5 6 7 8 9 000 | 00 FF FF FF FF FF FF 00 30 AE 010 | 90 40 00 00 00 00 00 15 01 03 020 | 80 1D 10 78 EA B6 95 93 58 56 030 | 92 29 1F 50 54 00 00 00 01 01 040 | 01 01 01 01 01 01 01 01 01 01 050 | 01 01 01 01 2E 1D 56 E0 50 00 060 | 0F 30 30 20 25 00 25 A5 10 00 070 | 00 19 2E 1D 56 FF 50 00 99 30 080 | 30 20 25 00 25 A5 10 00 00 19 090 | 00 00 00 0F 00 8C 09 32 8C 09 100 | 32 14 09 00 4C A3 4A 30 00 00 110 | 00 FE 00 4C 54 4E 31 33 33 41 120 | 54 32 30 36 30 32 00 48 (8-9) ID Manufacture Name : LEN (10-11) ID Product Code : 4090 (12-15) ID Serial Number : 0 (16) Week of Manufacture : 0 (17) Year of Manufacture : 2011 (18) EDID Version Number : 1 (19) EDID Revision Number: 3 (20) Video Input Definition : Digital (21) Maximum Horizontal Image Size: 29 cm (22) Maximum Vertical Image Size : 16 cm (23) Display Gamma : 2.20 (24) Power Management and Supported Feature(s): Standby, Suspend, Active Off/Very Low Power, RGB Color, Non-sRGB, Preferred Timing Mode (25-34) Color Characteristics Red Chromaticity : Rx = 0.572 Ry = 0.347 Green Chromaticity : Gx = 0.337 Gy = 0.572 Blue Chromaticity : Bx = 0.158 By = 0.118 Default White Point: Wx = 0.313 Wy = 0.329 (35) Established Timings I (Not Used) (36) Established Timings II (Not Used) (37) Manufacturer's Timings (Not Used) (38-53) Standard Timings (Not Used) (54-71) Detailed Descriptor #1: Preferred Detailed Timing (1366x768 @ 60Hz) Pixel Clock : 74.7 MHz Horizontal Image Size : 293 mm Vertical Image Size : 165 mm Refresh Mode : Non-interlaced Normal Display, No Stereo Horizontal: Active Time : 1366 Pixels Blanking Time : 224 Pixels Sync Offset : 48 Pixels Sync Pulse Width: 32 Pixels Border : 0 Pixels Frequency : 46 kHz Vertical: Active Time : 768 Lines Blanking Time : 15 Lines Sync Offset : 2 Lines Sync Pulse Width: 5 Lines Border : 0 Lines Digital Separate, Horizontal Polarity (-), Vertical Polarity (-) Modeline: "1366x768" 74.700 1366 1414 1446 1590 768 770 775 783 -hsync -vsync (72-89) Detailed Descriptor #2: Detailed Timing (1366x768 @ 50Hz) Pixel Clock : 74.7 MHz Horizontal Image Size : 293 mm Vertical Image Size : 165 mm Refresh Mode : Non-interlaced Normal Display, No Stereo Horizontal: Active Time : 1366 Pixels Blanking Time : 255 Pixels Sync Offset : 48 Pixels Sync Pulse Width: 32 Pixels Border : 0 Pixels Frequency : 46 kHz Vertical: Active Time : 768 Lines Blanking Time : 153 Lines Sync Offset : 2 Lines Sync Pulse Width: 5 Lines Border : 0 Lines Digital Separate, Horizontal Polarity (-), Vertical Polarity (-) Modeline: "1366x768" 74.700 1366 1414 1446 1621 768 770 775 921 -hsync -vsync (90-107) Detailed Descriptor #3: Defined by Manufacturer (108-125) Detailed Descriptor #4: ASCII String Data ASCII String Descriptor: LTN133AT20602 (126-127) Extension Flag and Checksum Extension Block(s) : 0 Checksum Value : 72 ___________________________________________________________________ System Information Summary: Processor : Intel(R) Core(TM) i3-3110M CPU @ 2.40GHz Operating System : Microsoft Windows 7 Professional OS Version : 6.1.7601 Service Pack : 1.0 Video Controler: Device ID : VideoController1 Name : Intel(R) HD Graphics 4000 Adapter Compatibility: Intel Corporation Video Processor : Intel(R) HD Graphics Family Video RAM : 2.06 GB (2,214,592,512 Bytes) Availability : Running or Full Power Driver Version : 8.15.10.2778 PNP Device ID : PCI\VEN_8086&DEV_0166&SUBSYS_500617AA&REV_09\3&11583659&0&10 Resolution : 1366x768 Max Refresh Rate : 60 Hz Min Refresh Rate : 50 Hz Current Refresh Rate : 50 Hz Current Scan Mode : None-Interlaced Status : OK will this be any help to us? Subz Link to comment Share on other sites More sharing options...
artur_pt Posted March 20, 2016 Share Posted March 20, 2016 hello nothing works .. i don't have any clue about the issue .. none ig-platform-id works .. what i can say .. hack os x is 99 % of reading, googling, persistency and 1 % of luck u have compatible hardware.. what is strange is none of platform-id works.. and without the right one .. will never work check ur bios and see if any setup there is not related with graphics good hack Link to comment Share on other sites More sharing options...
Subby Posted March 20, 2016 Author Share Posted March 20, 2016 Well thanks for all your help!!! If I do manage to crack it i will post back to this thread!! Thanks again!! Subz Link to comment Share on other sites More sharing options...
