The Volume control and wifi card is not working

HP DV6 DV6-2155ee 2155 DV6-2155 Broadcom 4322AG 43XX 43xx 2155ee

  • Please log in to reply
31 replies to this topic

#1
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
Hi
I have install Mac OS X Lion on to my HP DV6-2155ee while back.
I have tested everything. The sound control is not working (eg the volume stay at max), the audio jack port is not working and the wifi card is not working.

First, the sound stay very loud i try to adjust the volume by slider but it just stay the same and i can't mute it.

Second, both of the audio jack port is not working and i don't know what to do.

Third, the wifi card is not working because it is switched on on the the startup. I believe it is the same wifi card that apple use on some of their laptop. I hear of a method to fix it call 20 pin method but i don't know how to do it.

Model: HP Pavilion dv6-2155ee
CPU: Intel® Core™ i5-540M Processor (3M Cache, 2.53 GHz)
RAM: 4GB DDR3
GFX card: GeForce GT 230M, 1GB PCI-E
Sound: IDT 92HD75B3 @ Intel Ibex Peak PCH - High Definition Audio Controller [111D-7603]
Ethernet: Realtek RTL8168D/8111D PCI-E Gigabit [10EC-8168]
Wireless: Broadcom 43224AG 802.11a/b/g/draft-n [14E4-4353]

Here some extra info
http://www.insanelym...ee#entry1553664

Edited by eep357, 11 October 2012 - 11:43 PM.
Merged with duplicate wifi topic


#2
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
Using VoodooHDA or patched AppleHDA? For network your can try this one I upload, Just switched device IDs to make it use 4322 plugin instead of the 4331 plugin. If it don't work, switch back to old one and post output from kextstat

Attached Files



#3
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
It a voodooHDA 2.2 and what do you mean by kextstat

#4
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
in terminal type:
kextstat

network work?

#5
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
the wifi is not working.

Index Refs Address Size Wired Name (Version) <Linked Against>
1 59 0xffffff809e82b000 0x683c 0x683c com.apple.kpi.bsd (11.4.2)
2 6 0xffffff800eba6000 0x3d0 0x3d0 com.apple.kpi.dsep (11.4.2)
3 84 0xffffff809e847000 0x1b9d8 0x1b9d8 com.apple.kpi.iokit (11.4.2)
4 89 0xffffff809e863000 0x9b54 0x9b54 com.apple.kpi.libkern (11.4.2)
5 75 0xffffff800e913000 0x88c 0x88c com.apple.kpi.mach (11.4.2)
6 32 0xffffff809e832000 0x49b4 0x49b4 com.apple.kpi.private (11.4.2)
7 53 0xffffff809e86d000 0x229c 0x229c com.apple.kpi.unsupported (11.4.2)
8 17 0xffffff7f80736000 0x7000 0x7000 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3>
9 20 0xffffff7f8073d000 0x33000 0x33000 com.apple.iokit.IOPCIFamily (9.9.9) <7 6 5 4 3>
10 2 0xffffff7f80770000 0x55000 0x55000 com.apple.driver.AppleACPIPlatform (9.9.9) <9 8 7 6 5 4 3>
11 0 0xffffff7f807c5000 0x2000 0x2000 es.osx86.driver.EvOreboot (1.0.3) <4 3>
12 0 0xffffff7f807c9000 0x2000 0x2000 org.tgwbd.driver.NullCPUPowerManagement (1.0.0d2) <7 4 3>
13 0 0xffffff7f807cd000 0x29000 0x29000 com.apple.driver.AppleIntelCPUPowerManagement (195.0.0) <7 6 5 4 3 1>
14 1 0xffffff7f807f7000 0xc000 0xc000 com.apple.driver.AppleKeyStore (28.18) <7 6 5 4 3 1>
15 1 0xffffff7f80803000 0x7000 0x7000 org.netkas.FakeSMC (3.1.0) <8 7 5 4 3>
16 0 0xffffff7f8080a000 0x4000 0x4000 org.mozodojo.IntelCPUMonitor (1.0) <15 7 5 4 3>
17 8 0xffffff7f8080f000 0x25000 0x25000 com.apple.iokit.IOStorageFamily (1.7.2) <7 6 5 4 3 1>
18 0 0xffffff7f80834000 0x19000 0x19000 com.apple.driver.DiskImages (331.7) <17 7 6 5 4 3 1>
19 0 0xffffff7f8084d000 0x8000 0x8000 com.apple.nke.applicationfirewall (3.2.30) <7 6 5 4 3 1>
20 2 0xffffff7f80857000 0x4000 0x4000 com.apple.kext.AppleMatch (1.0.0d1) <4 1>
21 1 0xffffff7f8085b000 0x11000 0x11000 com.apple.security.sandbox (177.8) <20 7 6 5 4 3 2 1>
22 0 0xffffff7f8086c000 0x6000 0x6000 com.apple.security.quarantine (1.4) <21 20 7 6 5 4 2 1>
23 0 0xffffff7f80873000 0x2000 0x2000 com.apple.security.TMSafetyNet (8) <7 6 5 4 2 1>
24 0 0xffffff7f80876000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.6) <4 3>
25 0 0xffffff7f8087a000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (1.9) <7 4 3>
26 4 0xffffff7f8087f000 0x6b000 0x6b000 com.apple.iokit.IOHIDFamily (1.7.1) <14 7 6 5 4 3 2 1>
27 0 0xffffff7f808ea000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (9.9.9) <26 10 8 7 6 5 4 3 1>
28 7 0xffffff7f808f0000 0x56000 0x56000 com.apple.iokit.IOUSBFamily (5.1.0) <9 7 5 4 3 1>
29 0 0xffffff7f80946000 0x18000 0x18000 com.apple.driver.AppleUSBEHCI (5.1.0) <28 9 7 5 4 3 1>
30 0 0xffffff7f80967000 0x3000 0x3000 com.yourcompany.driver.AppleACPIPS2Nub (1.0.0d1) <8 7 5 4 3 1>
31 0 0xffffff7f8096c000 0x8000 0x8000 com.apple.driver.ApplePS2Controller (1.1.5) <7 5 4 3 1>
32 0 0xffffff7f80974000 0x3000 0x3000 com.apple.iokit.IOUSBUserClient (5.0.0) <28 7 5 4 3 1>
33 0 0xffffff7f80977000 0x14000 0x14000 com.apple.driver.AppleUSBHub (5.1.0) <28 5 4 3 1>
34 1 0xffffff7f8098f000 0x4000 0x4000 com.apple.driver.AppleEFIRuntime (1.6.1) <7 6 5 4 3>
35 0 0xffffff7f80993000 0x7000 0x7000 com.apple.driver.AppleEFINVRAM (1.6.1) <34 7 6 5 4 3>
36 3 0xffffff7f8099c000 0xc000 0xc000 com.apple.iokit.IOAHCIFamily (2.0.8) <5 4 3 1>
37 0 0xffffff7f809a8000 0x18000 0x18000 com.apple.driver.AppleAHCIPort (2.3.1) <36 9 5 4 3 1>
38 0 0xffffff7f809c7000 0x3000 0x3000 com.apple.driver.AppleHPET (1.7) <8 7 5 4 3>
39 5 0xffffff7f809cb000 0x29000 0x29000 com.apple.iokit.IONetworkingFamily (2.1) <7 6 5 4 3 1>
40 1 0xffffff7f809f4000 0x33000 0x33000 com.apple.iokit.IO80211Family (420.3) <39 7 6 5 4 3 1>
41 0 0xffffff7f80a27000 0x1f1000 0x1f1000 com.apple.driver.AirPort.Brcm4331 (561.7.22) <40 39 9 7 5 4 3 1>
42 2 0xffffff7f80c47000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
43 0 0xffffff7f80c4b000 0x6000 0x6000 com.apple.driver.AppleACPIEC (9.9.9) <42 10 8 5 4 3>
44 0 0xffffff7f80c53000 0x8000 0x8000 com.apple.driver.AppleRTC (1.5) <8 5 4 3 1>
46 0 0xffffff7f8095e000 0x5000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1>
47 0 0xffffff7f809c0000 0x5000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1>
48 0 0xffffff7f80c18000 0x9000 0x9000 com.apple.BootCache (33) <7 6 5 4 3 1>
49 2 0xffffff7f80c5f000 0x75000 0x75000 com.apple.iokit.IOFireWireFamily (4.4.8) <5 4 3 1>
50 0 0xffffff7f80cd4000 0x28000 0x28000 com.apple.driver.AppleFWOHCI (4.9.0) <49 9 7 6 5 4 3 1>
51 1 0xffffff7f80c21000 0x6000 0x6000 com.apple.driver.AppleUSBComposite (5.0.0) <28 4 3 1>
52 0 0xffffff7f80c27000 0x6000 0x6000 com.apple.driver.AppleUSBMergeNub (5.1.0) <51 28 4 3 1>
53 0 0xffffff7f80cfc000 0x15000 0x15000 com.apple.iokit.IOAHCIBlockStorage (2.1.0) <36 17 5 4 3 1>
54 3 0xffffff7f80d11000 0x2b000 0x2b000 com.apple.iokit.IOSCSIArchitectureModelFamily (3.2.1) <5 4 3 1>
55 0 0xffffff7f80c2d000 0x9000 0x9000 com.apple.iokit.IOAHCISerialATAPI (2.0.3) <54 36 5 4 3 1>
56 0 0xffffff7f80963000 0x4000 0x4000 com.Apple.driver.PS2Keyboard (1.1.0) <26 5 4 3>
57 0 0xffffff7f8098b000 0x3000 0x3000 com.apple.driver.XsanFilter (404) <17 5 4 3 1>
58 0 0xffffff7f80d3c000 0x34000 0x34000 com.lnx2mac.driver.RealtekRTL81xx (0.0.90) <39 9 5 4 3 1>
59 3 0xffffff7f80c36000 0xd000 0xd000 com.apple.iokit.IOCDStorageFamily (1.7.1) <17 5 4 3 1>
60 2 0xffffff7f80d70000 0xb000 0xb000 com.apple.iokit.IODVDStorageFamily (1.7.1) <59 17 5 4 3 1>
61 1 0xffffff7f80d7b000 0xa000 0xa000 com.apple.iokit.IOBDStorageFamily (1.7) <60 59 17 5 4 3 1>
62 0 0xffffff7f80d85000 0x1a000 0x1a000 com.apple.iokit.IOSCSIMultimediaCommandsDevice (3.2.1) <61 60 59 54 17 5 4 3 1>
63 0 0xffffff7f80d9f000 0x7000 0x7000 com.apple.iokit.SCSITaskUserClient (3.2.1) <54 17 5 4 3 1>
65 0 0xffffff7f80da6000 0x8000 0x8000 com.apple.iokit.IOUSBHIDDriver (5.0.0) <28 26 5 4 3 1>
66 1 0xffffff7f80dae000 0x77000 0x77000 com.apple.iokit.IOBluetoothFamily (4.0.8f17) <7 5 4 3 1>
67 0 0xffffff7f80e25000 0xb000 0xb000 com.apple.driver.AppleUSBBluetoothHCIController (4.0.8f17) <66 28 7 5 4 3>
68 2 0xffffff7f80e30000 0x5000 0x5000 com.apple.kext.triggers (1.0) <7 6 5 4 3 1>
69 0 0xffffff7f80e35000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) <68 7 6 5 4 3 1>
70 8 0xffffff7f80e3e000 0x39000 0x39000 com.apple.iokit.IOGraphicsFamily (2.3.4) <9 7 5 4 3>
71 5 0xffffff7f80e77000 0x12000 0x12000 com.apple.iokit.IONDRVSupport (2.3.4) <70 9 7 5 4 3>
72 2 0xffffff7f80e89000 0x2fc000 0x2fc000 com.apple.NVDAResman (7.3.2) <71 70 9 5 4 3 1>
74 0 0xffffff7f814ae000 0xd000 0xd000 com.Apple.driver.PS2Trackpad (1.1.0) <26 5 4 3>
76 4 0xffffff7f814be000 0x7000 0x7000 com.apple.driver.IOPlatformPluginFamily (5.1.1d6) <8 7 6 5 4 3>
77 1 0xffffff7f814c5000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (5.0.0d8) <76 8 7 6 5 4 3>
78 2 0xffffff7f814d7000 0xe000 0xe000 com.apple.driver.AppleSMC (3.1.3d10) <8 7 5 4 3>
79 0 0xffffff7f814e5000 0xf000 0xf000 com.apple.driver.ACPI_SMC_PlatformPlugin (5.0.0d8) <78 77 76 9 8 7 6 5 4 3>
80 1 0xffffff7f814f4000 0x3000 0x3000 com.apple.driver.AppleGraphicsControl (3.1.33) <71 70 9 8 7 5 4 3 1>
81 0 0xffffff7f814f7000 0xc000 0xc000 com.apple.driver.ApplePolicyControl (3.1.33) <80 71 70 9 8 7 5 4 3 1>
82 0 0xffffff7f81503000 0xd000 0xd000 com.apple.iokit.IOFireWireIP (2.2.5) <49 39 5 4 3 1>
83 0 0xffffff7f81510000 0x3000 0x3000 com.apple.driver.AppleSMCPDRC (5.0.0d8) <76 9 6 4 3>
84 0 0xffffff7f81513000 0x6000 0x6000 com.superhai.driver.VoodooBattery (1.3.3) <8 5 4 3>
87 0 0xffffff7f81820000 0x323000 0x323000 com.apple.nvidia.nv50hal (7.3.2) <72 9 4 3>
88 0 0xffffff7f81b43000 0x11000 0x11000 com.apple.driver.AGPM (100.12.75) <76 71 70 9 5 4 3>
90 0 0xffffff7f81b5d000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <78 7 4 3 1>
91 0 0xffffff7f81b62000 0xc3000 0xc3000 com.apple.GeForce (7.3.2) <72 71 70 9 7 6 5 4 3 1>
92 1 0xffffff7f81c25000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (10.0.5) <7 6 5 4 3 1>
93 0 0xffffff7f81c33000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (4.0.8f17) <92 7 5 4 3 1>
95 0 0xffffff7f81c43000 0x12000 0x12000 com.apple.iokit.IOSurface (80.0.2) <7 5 4 3 1>
96 1 0xffffff7f81c55000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.10d0) <42 9 8 5 4 3>
97 0 0xffffff7f81c63000 0xc000 0xc000 com.apple.driver.AppleMCCSControl (1.0.33) <96 70 9 8 7 5 4 3 1>
98 0 0xffffff7f81c6f000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.0d1) <39 6 5 4 3 1>
99 0 0xffffff7f81c75000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.5.9) <70 9 8 7 5 4 3 1>
100 0 0xffffff7f81c7a000 0x4000 0x4000 com.evosx86.driver.lspcidrv (1.0) <4 3>
101 2 0xffffff7f81c7e000 0x57000 0x57000 com.apple.filesystems.ntfs (3.10.1) <7 6 5 4 1>
102 1 0xffffff7f81cd5000 0xc000 0xc000 com.apple.filesystems.msdosfs (1.7.1) <7 5 4 1>
103 0 0xffffff7f81ce1000 0x5000 0x5000 com.apple.driver.AppleHWSensor (1.9.5d0) <5 4 3>
104 0 0xffffff7f81185000 0x35000 0x35000 com.apple.filesystems.smbfs (1.7.2) <68 7 6 5 4 3 1>

#6
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
see here for sound fixes VoodooHDA - common problems

start here for wifi http://www.insanelym...nd#entry1735846

#7
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
After rebranding, will a wifi card work on window 7?

#8
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
yes, but I'm no rebranding expert as mine is original Apple card. LatinMcG would be the person to know best.

#9
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
What about the 20 pin method? I still don't get how i could tape the wifi card.

#10
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff

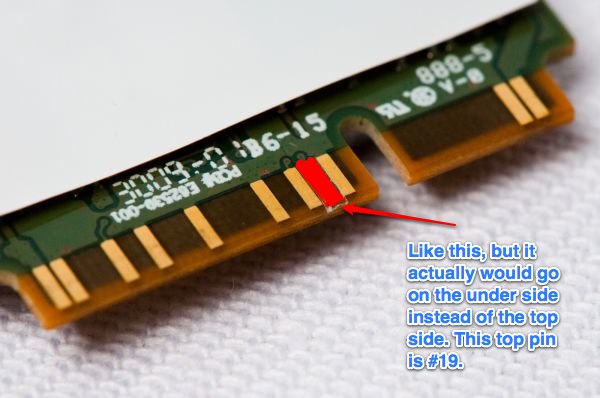

i think you use a very tiny piece of tape to cover up the 20th pin on the card where it plugs into the mother board, so that that pin does not make a connection to the mother board socket's pin. Never done it or looked into how to do, just my assumption based on the couple references I've heard made to 20 pin method.

#11
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
It sound risky it might damage the card. I found another way of fixing my wifi card. I have to make a dsdt.aml file but i don't know how to make one. i tried lot of guild but just don't get it. Can u help me?

#12
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
where is the info you found on enabling via DSDT?

#13
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
Sorry i miss read some blog. The dsdt only help the wifi range. Do u have any luck on finding a fix?

#14
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
i have just update Mac OS X Lion to the newest version(10.7.5). Including all the software of Mac OS X.

#15
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
See post I just made here Atheros AR5007 on Compaq and do same thing/ download file I posted and get more detailed info on wifi

#16
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
I need AirPortBrcm43224.kext but i can't find it in google. Nice piece of info on finding kext. Thx :thumbsup_anim:

#17
eep357

eep357

    Triple Platinum

  • Retired
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
post out put for wifi from
lspci -vvnn
there's different versions of that device

#18
pokenguyen

pokenguyen

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 473 posts
  • Gender:Male

post out put for wifi from

lspci -vvnn
there's different versions of that device

I have the same card and here is the output:
24:00.0 Network controller [0280]: Broadcom Corporation Unknown device [14e4:4353] (rev 01)
    Subsystem: Hewlett-Packard Company Unknown device [103c:1509]
    Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
    Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
    Latency: 0, Cache Line Size: 64 bytes
    Interrupt: pin A routed to IRQ 19
    Region 0: Memory at d4500000 (64-bit, non-prefetchable)
    Capabilities: [40] Power Management version 3
        Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
        Status: D0 PME-Enable- DSel=0 DScale=2 PME-
    Capabilities: [58] Vendor Specific Information <?>
    Capabilities: [48] Message Signalled Interrupts: Mask- 64bit+ Queue=0/0 Enable-
        Address: 00000000fee00000  Data: 4098
    Capabilities: [d0] Express (v1) Endpoint, MSI 00
        DevCap:    MaxPayload 128 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
            ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
        DevCtl:    Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
            RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
            MaxPayload 128 bytes, MaxReadReq 128 bytes
        DevSta:    CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend-
        LnkCap:    Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Latency L0 <4us, L1 <64us
            ClockPM+ Suprise- LLActRep+ BwNot-
        LnkCtl:    ASPM L1 Enabled; RCB 64 bytes Disabled- Retrain- CommClk+
            ExtSynch- ClockPM+ AutWidDis- BWInt- AutBWInt-
        LnkSta:    Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt- ABWMgmt-
    Capabilities: [100] #14e4
    Capabilities: [435] #40



#19
mac.hp.pc

mac.hp.pc

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts
Have u got it working on mac pokenguyen? Do u have a HP laptop ? If u got i working can u tell me.

eep357 i got the data for my wifi card and i need version 426.36.1

02:00.0 Network controller [0280]: Broadcom Corporation Unknown device [14e4:4353] (rev 01)
Subsystem: Hewlett-Packard Company Unknown device [103c:1510]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at da100000 (64-bit, non-prefetchable)
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 PME-Enable- DSel=0 DScale=2 PME-
Capabilities: [58] Vendor Specific Information <?>
Capabilities: [48] Message Signalled Interrupts: Mask- 64bit+ Queue=0/0 Enable-
Address: 00000000fee00000 Data: 4095
Capabilities: [d0] Express (v1) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr+ UncorrErr- FatalErr- UnsuppReq+ AuxPwr+ TransPend-
LnkCap: Port #0, Speed 2.5GT/s, Width x1, ASPM L0s L1, Latency L0 <4us, L1 <64us
ClockPM+ Suprise- LLActRep+ BwNot-
LnkCtl: ASPM L1 Enabled; RCB 64 bytes Disabled- Retrain- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 2.5GT/s, Width x1, TrErr- Train- SlotClk+ DLActive+ BWMgmt- ABWMgmt-
Capabilities: [100] #14e4
Capabilities: [435] #40




here my audio

00:1b.0 Audio device [0403]: Intel Corporation Ibex Peak High Definition Audio [8086:3b56] (rev 05)
Subsystem: Hewlett-Packard Company Unknown device [103c:3659]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 22
Region 0: Memory at db100000 (64-bit, non-prefetchable)
Capabilities: [50] Power Management version 2
Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [60] Message Signalled Interrupts: Mask- 64bit+ Queue=0/0 Enable+
Address: 00000000fee00000 Data: 4090
Capabilities: [70] Express (v1) Root Complex Integrated Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset+
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend-
LnkCap: Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us
ClockPM- Suprise- LLActRep- BwNot-
LnkCtl: ASPM Disabled; Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
Capabilities: [100] #8086

#20
pokenguyen

pokenguyen

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 473 posts
  • Gender:Male
I can't get this card working. Try many kexts and nothing works. I edited Info.plist files to make Broadcom43224 kext loading instead of Broacom4311, but I don't see any wireless device. What I've done so far is adding some cosmetic fixes to DSDT to show info on System Info. Now I'm using a USB Wifi Adapter, but I still prefer internal card. I'm going to try tapping 20 pin, pray for me :hammer: . It seems very simple, just take out the card, cut a small tap and use it to cover the 20th pin on card, so that it can't connect to laptop.

P/S: My laptop is on signature.





Also tagged with one or more of these keywords: HP, DV6, DV6-2155ee, 2155, DV6-2155, Broadcom, 4322AG, 43XX, 43xx, 2155ee


0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

© 2014 InsanelyMac  |   News  |   Forum  |   Downloads  |   OSx86 Wiki  |   Mac Netbook  |   PHP hosting by CatN  |   Designed by Ed Gain  |   Logo by irfan  |   Privacy Policy
