Kernel panic in snow leopard (AMD)

kp kernel panic amd snow leopard

  • Please log in to reply
15 replies to this topic

#1
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
Hi all. I installed snow leopard 10.6 retail to my pc (specs in signature) using the nawcom's cd 0.3.2, selecting only the legacy kernel, AppleAtiAta and VoodooHDA, plus the language ect.

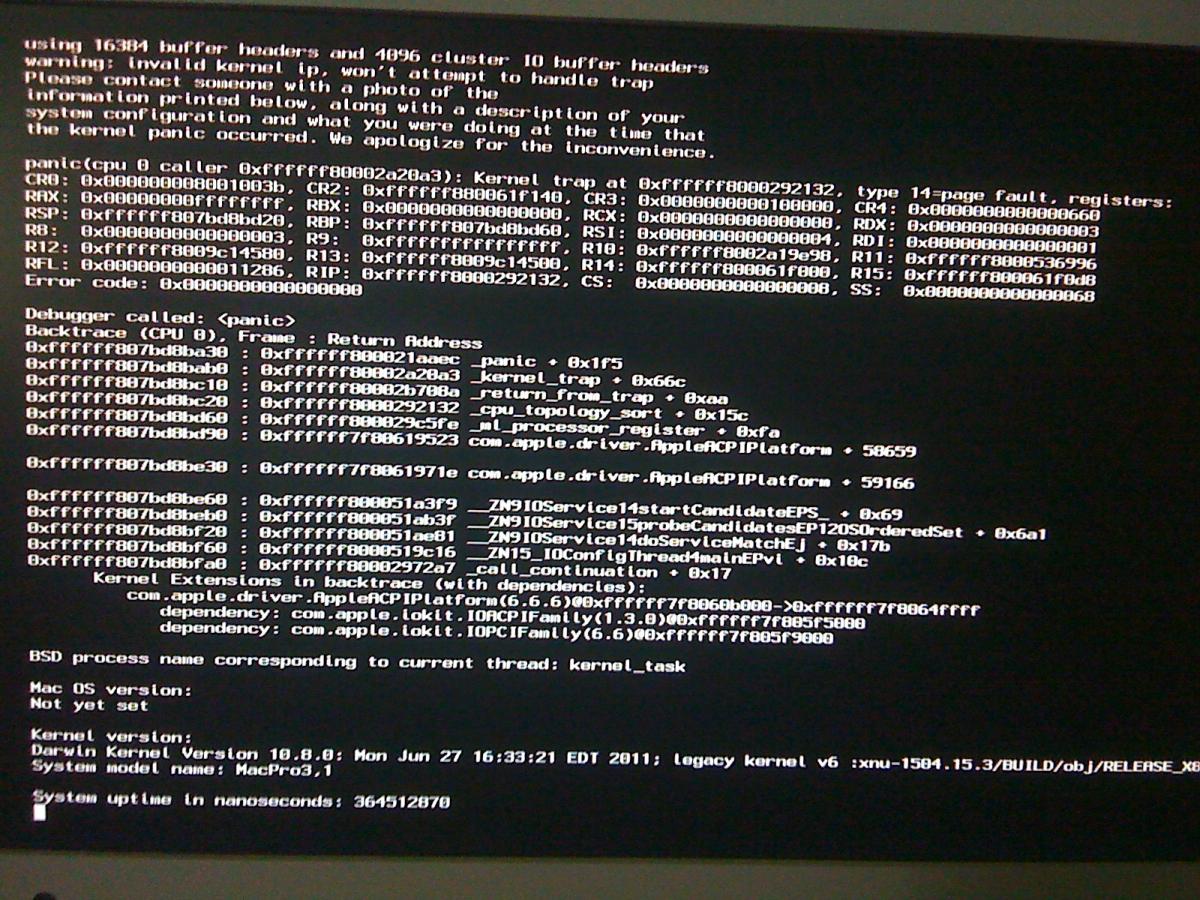

Everything gone right, then i installed chameleon (the last vers.) to hdd, but snow leo wasn't able to boot. Only with nawcom's cd i could access to the OS; so I did the combo update to 10.6.8 and I installed the legacy kernel 10.6.8 v2 by nawcom. Still not booting, even with -x -f flags. I only have a kernel panic. Here it is:

Attached File  IMG_0264.JPG   1.06MB   96 downloads

Can you help me? : ( what could i do?
(it's my first real attempt to install snow leo distro to my pc)
Thanks in advance :)

edit: i'll try to extract kexts from the boot cd to see if with them the os boots..

#2
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

Hi all. I installed snow leopard 10.6 retail to my pc (specs in signature) using the nawcom's cd 0.3.2, selecting only the legacy kernel, AppleAtiAta and VoodooHDA, plus the language ect.
Everything gone right, then i installed chameleon (the last vers.) to hdd, but snow leo wasn't able to boot. Only with nawcom's cd i could access to the OS; so I did the combo update to 10.6.8 and I installed the legacy kernel 10.6.8 v2 by nawcom. Still not booting, even with -x -f flags. I only have a kernel panic. Here it is:

Can you help me? : ( what could i do?
(it's my first real attempt to install snow leo distro to my pc)
Thanks in advance :)

edit: i'll try to extract kexts from the boot cd to see if with them the os boots..


Boot using the CD and install this kext using kext wizard or similar program and repair permissions. Reboot off HDD and it should boot,

Attached File  AppleACPIPlatform.kext.zip   406.81KB   180 downloads

#3
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
I can't believe it! it works!! I booted up twice just to see if it was real! ahahahah
Well, i had to reinstall the os. this time i also repaired the permissions after updating to 10.6.8 and after installing the kernel. i also tried another kernel, the legacy_kernel-10.8.0.v2
What made it work this time? maybe the kext? maybe the kernel.
what that kext does?

anyway. thank you a lot!
now i have to install kexts for vga, ram etc. I'll write here if i'm having any other problem :) thank you again

#4
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.
Just rolled the kext back to an older version. Had to do it for my system aswell. Enjoy your hackintosh :)

#5
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
i write here again for not starting a new topic..
I have another problem that i cannot solve! :wallbash: this time is VoodooHDA, i think. When i listen to anything, i hear audio interferences, and a little delay, every 5/7 seconds. it's so annoying. I've already checked "Use SSE2" in VoodooHDA control panel, and changed the output frequency audio to 48000 hz in midi audio settings.
Does anybody knows how to solve this? :worried_anim:

#6
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.
What make / model is your sound card?

#7
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
it's a realtek 889a

EDIT: anyway, i'm trying to update to lion, so... maybe with lion audio works fine ahah : D no... well i will see

#8
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

it's a realtek 889a

EDIT: anyway, i'm trying to update to lion, so... maybe with lion audio works fine ahah : D no... well i will see


Try using an older version of VoodooHDA or a modded AppleHDA kext

Lion won't work fully on AMD. There are kernels for it but most are not stable enough to be used as a main System.

#9
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
yeah, i googled around and you're right...
for audio, do i have to use both o just one of them?

#10
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

yeah, i googled around and you're right...
for audio, do i have to use both o just one of them?


Only use one of them

#11
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
HDEF for ALC889a and this two kexts: for me work in 10.6 10.7 10.8


Device (HDEF)
{
Name (_ADR, 0x001B0000)
Method (_PRW, 0, NotSerialized)
{
Return (Package (0x02)
{
0x0D,
0x05
})
}

Method (_DSM, 4, NotSerialized)
{
Store (Package (0x0A)
{
"built-in",
Buffer (One)
{
0x01
},

"codec-id",
Buffer (0x04)
{
0x85, 0x08, 0xEC, 0x10
},

"layout-id",
Buffer (0x04)
{
0x75, 0x03, 0x00, 0x00
},

"device-type",
Buffer (0x10)
{
"Realtek ALC889A"
},

"PinConfigurations",
Buffer (0x30)
{
/* 0000 */ 0x10, 0x40, 0x11, 0x01, 0x20, 0x10, 0x01, 0x01,
/* 0008 */ 0x30, 0x60, 0x01, 0x01, 0x80, 0x20, 0x01, 0x01,
/* 0010 */ 0x40, 0x90, 0xA1, 0x90, 0x50, 0x90, 0x81, 0x02,
/* 0018 */ 0x60, 0x30, 0x81, 0x01, 0x70, 0x40, 0x21, 0x02,
/* 0020 */ 0xF0, 0x61, 0x33, 0x59, 0x01, 0xE6, 0x05, 0x40,
/* 0028 */ 0x90, 0x61, 0x4B, 0x01, 0xA0, 0x01, 0xCB, 0x01
}
}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
}


Attached File  ALC885_889a.kext.zip   2.6KB   11 downloads

Attached File  AppleHDA.kext.zip   1.64MB   17 downloads

#12
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
thank you for helping me! :superman:

but, as a noob, i don't know what to do... maybe edit the dsdt.aml file and insert those lines? well, i don't have created a dsdt.aml file yet, but if i extract mine, when i search "HDEF" inside it, i don't have any result : ( ----> edit: same thing when i search for hdac, azad, azal and azalia or sbx00
where should i insert the lines?
i could try the fix in dsdt editor, it seems to be one for my sound card ---> edit: fix doesn't work, i can't apply it


edit: i attach my dsdt so, if you could take a look... : (

editeditedit: omg with this voodoohda neither guitar pro works D':


i see that in dsdt file i have several pce device, called "Device PCE#", wich # is a nuber or letter... but which of those is my sound card...?

Attached Files



#13
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
uppete
i still don't get trough the problem.. i also tried to patch the voodoohda.kext but it doesn't do anything

#14
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
uuuppp : (

#15
Matt35

Matt35

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 250 posts
  • Gender:Male
  • Location:France
What kind of smbios.plist do you have ? Sometimes it's what causes the problem...

#16
Bob_

Bob_

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Italy, Canelli (AT)
  • Interests:Technology and music.
ehm... it's located in /Extra, right? I don't have any smbios.plist file ò__ò

EDIT: well, this doesn't matter anymore, i'm buying new mobo and processor (intel) to run mountain lion as it should run. so.. nothing. i hope this post will be useful for other people. if someone have trouble to get work snow leopard on this mobo, write me, i'll help you as much as i can. thank you all for the support you gave me, see you in 10.8 section : P
