No battery is available


  • Please log in to reply
13 replies to this topic

#1
mathq

mathq

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 208 posts
  • Gender:Male
  • Location:Quebec
Hello everyone! I succeeded installing Lion to my desktop computer. I then made a DMG image of my partition so that I could transfer it to my laptop. (the trackpad and USBs didn't work during the installation, so I was not able to make the installation directly from the laptop)

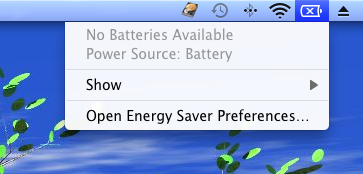

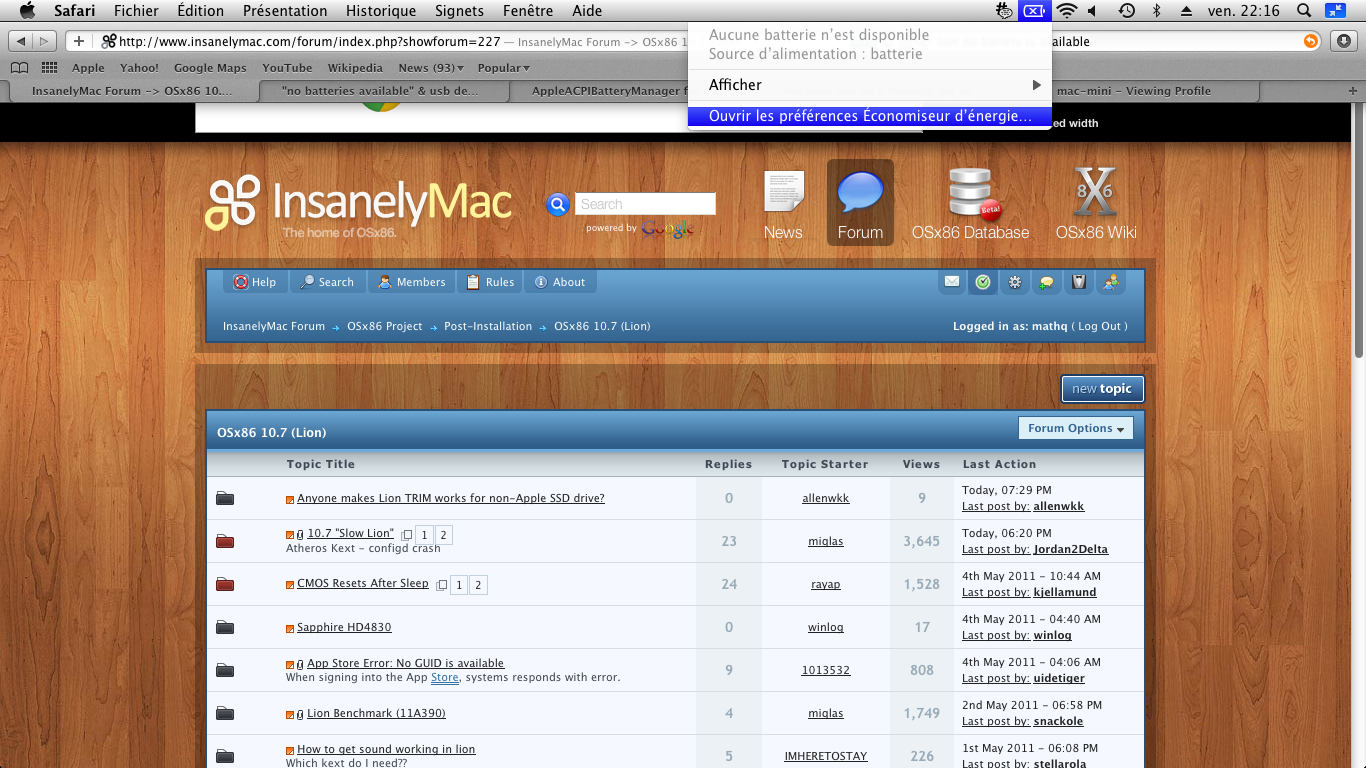

But, I'm experiencing some problems with the battery. As you could see on the screenshot, there's the battery icon, and there's an X in it. It says: "No battery is available", "Power Source: battery".

Thanks for any help,
xmath279
Attached File  Capture_d_____cran_2011_05_06____22.16.39.png   612.35KB   765 downloads

EDIT: The temporary solution is to take AppleACPIPlatform.kext from 10.6.7

Link for 10.6.7 AppleACPIPlatform.kext AppleACPIPlatform.kext.zip

EDIT 2: Here is the solution: Thanks to bcc9

#2
sparkythewondersquid

sparkythewondersquid

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 209 posts
  • Gender:Male
  • Location:Chouteau, Montana
Same thing here guess we just have to wait till voodoo Battery gets updated

Attached Files



#3
oldnapalm

oldnapalm

    InsanelyMac V.I.P.

  • Moderators
  • 6,840 posts
  • Gender:Male
  • Location:Brazil
Same problem here (and everywhere, I guess)
kernel[0]: Voodoo[0xFFFFFF7F80882B6B]            poll:  267: Let's message battery 1kernel[0]: Voodoo[0xFFFFFF7F808879DA]         message:  450: Battery 1: Type: 00092BA9 Provider: VoodooBatteryControllerkernel[0]: Voodoo[0xFFFFFF7F8088745E]          update:  474: Battery 1: First time initializationkernel[0]: Voodoo[0xFFFFFF7F808874C2]          update:  479: Battery 1: Full update of battery is requestedkernel[0]: Voodoo[0xFFFFFF7F80887552]          update:  481: Battery 1: Device status is 1fkernel[0]: Voodoo[0xFFFFFF7F80887640]          update:  491: Battery 1: Connectedkernel[0]: Voodoo[0xFFFFFF7F80884FE4]     information:  548: Battery 1: Information is updatingkernel[0]: Voodoo[0xFFFFFF7F80885BE9]     information:  648: Battery 1: ERROR: No battery information presentkernel[0]: Voodoo[0xFFFFFF7F80886047]     information:  675: Battery 1: Committing changeskernel[0]: Voodoo[0xFFFFFF7F80882E8A]     requestPoll:  235: Increasing poll status to 56
It fails evaluating object _BIF (battery information)
if (kIOReturnSuccess == ACPIDevice->evaluateObject("_BIF", &acpi)) {


#4
oldnapalm

oldnapalm

    InsanelyMac V.I.P.

  • Moderators
  • 6,840 posts
  • Gender:Male
  • Location:Brazil
You can try this version of AppleACPIBatteryManager.kext
Attached File  AppleACPIBatteryManager.kext.zip   36.39KB   644 downloads
It works fine in some laptops.

From
http://netbook-insta...IBatteryManager

Thanks Jiban for compiling on Xcode for Lion.

#5
mathq

mathq

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 208 posts
  • Gender:Male
  • Location:Quebec

You can try this version of AppleACPIBatteryManager.kext
Attached File  AppleACPIBatteryManager.kext.zip   36.39KB   644 downloads
It works fine in some laptops.

From
http://netbook-insta...IBatteryManager

Thanks Jiban for compiling on Xcode for Lion.


That's what I'm using for Snow Leopard, but no luck on Lion ;(.

#6
miqlas

miqlas

    InsanelyMac Protégé

  • Members
  • PipPip
  • 78 posts
VoodooBattery x86/64 Lion build
Tested: Don't Works!!!!

Warings:
VoodooBattery/VoodooBattery.h
No previous prototype for 'UInt32 GetValueFromArray(OSArray*, UInt8)'
No previous prototype for 'OSSymbol* GetSymbolFromArray(OSArray*, UInt8)'
No previous prototype for 'UInt32 GetValueFromArray(OSArray*, UInt8)'
No previous prototype for 'OSSymbol* GetSymbolFromArray(OSArray*, UInt8)'

$kextlibs VoodooBattery.kext
For all architectures:
com.apple.iokit.IOACPIFamily = 1.4
com.apple.kpi.iokit = 11.0
com.apple.kpi.libkern = 11.0
com.apple.kpi.mach = 11.0

$file VoodooBattery.kext/Contents/MacOS/VoodooBattery
VoodooBattery: Mach-O universal binary with 2 architectures
VoodooBattery (for architecture x86_64): Mach-O 64-bit kext bundle x86_64
VoodooBattery (for architecture i386): Mach-O object i386



DOWNLOAD
Debug: Attached File  VoodooBattery_1.3.3_x86_x64_debug_20110609_miqlas.kext.zip   53.96KB   68 downloads
Release: Attached File  VoodooBattery_1.3.3_x86_x64_release_lion_20110609_miqlas.kext.zip   38.04KB   249 downloads / Link fixed
DOWNLOAD

Feel free to report back! :(

Update: Tested!
I got:

Voodoo[0xFFFFFF7F81721359] probe: 55: Score: 0 Provider: IOResources
Voodoo[0xFFFFFF7F817201F0] probe: 331: Score: 0 Provider: BAT0
VoodooBattery 1.3 © 2008-10 Superhai, All Rights Reserved. Jun 9 2011 19:23:19 DEBUG 64 bit
Voodoo[0xFFFFFF7F81722952] start: 81: Provider: IOResources
Voodoo[0xFFFFFF7F81721DB8] start: 350: Battery N/A: Provider: BAT0
Voodoo[0xFFFFFF7F81720C9B] batteryReport: 201: Battery 1 (0xffffff800ed38200) called in: VoodooBatteryDevice
Voodoo[0xFFFFFF7F81722064] start: 376: BAT0: Received battery index 1
Voodoo[0xFFFFFF7F8172210B] start: 380: BAT0: We create and attach our powersource
Voodoo[0xFFFFFF7F81722224] start: 384: BAT0: Powersource initialized
Voodoo[0xFFFFFF7F817222E4] start: 386: BAT0: Powersource attached
Voodoo[0xFFFFFF7F817223A4] start: 388: BAT0: Powersource started


But: There is an x in the BatteryMeter icon, and it says there is "No Battery". Sometimes i got this in SL too (because i have buggy DSDT), please, test it, maybe you have more luck.

Attached Files



#7
oldnapalm

oldnapalm

    InsanelyMac V.I.P.

  • Moderators
  • 6,840 posts
  • Gender:Male
  • Location:Brazil
For some reason ACPIDevice->evaluateObject("_BIF", &acpi) in VoodooBatteryDevice::information returns kIOReturnError in Lion, while in Snow Leopard it returns kIOReturnSuccess.

Strangely in AppleACPIBatteryManager::getBatteryBIF the same method fProvider->evaluateObject("_BIF", &batteryBIF) returns success in both Lion and Snow.

#8
miqlas

miqlas

    InsanelyMac Protégé

  • Members
  • PipPip
  • 78 posts
I'm not sure, where is the bug, can You tell me, where get you the Info about the _BIF section? You started the OSX with debug kernel flag?
I'm tested the Lion DP4 with AppleACPIBatteryManager and with the VoodooBattery kext. None of them works for me. Maybe the ACPI handling changed in the Lion? I don't think so...

Dear oldnapalm, if i can help, feel free to contact me, i have 64bit Lion with Dev Tools installed (XCode). I have a little buggy Battery section in my DSDT (Sometimes the VoodoooBattery have an x in the battery icon on the menubar, but i can fix it with an sleep-wake cycle. (I can't found the problem). AppleACPIBatteryManager thinks i have 2 battery bay (no, i have only 1) in SL. Maybe it attached to wrong ACPI device...

If You need, i can attach my whole dmesg log from Lion.

#9
miqlas

miqlas

    InsanelyMac Protégé

  • Members
  • PipPip
  • 78 posts
AppleACPIBatteryManager (i386/x64 LION build)
NOT TESTED YET, PLEASE, REPORT BACK!
Binary : Attached File  AppleACPIBatteryManager_x86_x64_LION_20110618_miqlas.kext.zip   31.9KB   219 downloads
Sources : Attached File  AppleACPIBatteryManager_sources.zip   495.25KB   65 downloads

#10
oldnapalm

oldnapalm

    InsanelyMac V.I.P.

  • Moderators
  • 6,840 posts
  • Gender:Male
  • Location:Brazil
As mentioned here battery kexts work fine using AppleACPIPlatform from SL.

#11
Pndo1

Pndo1

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
Thanks! My battery wasn't showing before I restored the AppleACPIPlatform.kext from my 10.6.7 install. Now I don't have to listen for a little beeping to tell me that my battery is almost dead. I was going to try this, but I was afraid that I would ruin my Lion install because my friend had some problems with his AppleACPIPlatform.kext on his machine. Thanks Again!

#12
tamorgen

tamorgen

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 130 posts
  • Gender:Male
  • Location:Maryland
Using the 10.6.7 Apple kext is working for me on the App store release of Lion. Now everything is working as with 10.6.8 Snow Leopard. Loving Lion!

#13
mosman

mosman

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
The following VoodooBattery fix works great for me in all builds of Lion, including 10.7.1 and 10.7.2 -

http://www.kexts.com...do=file&id=1384

#14
juanerson

juanerson

    InsanelyMac Legend

  • Local Moderators
  • 1,450 posts
  • Gender:Male
  • Location:Tru, Venezuela
The real fix for Lion can be implemented in DSDT (thanks to bcc9)... just worked perfect on my hackbook HP. Good Luck.
