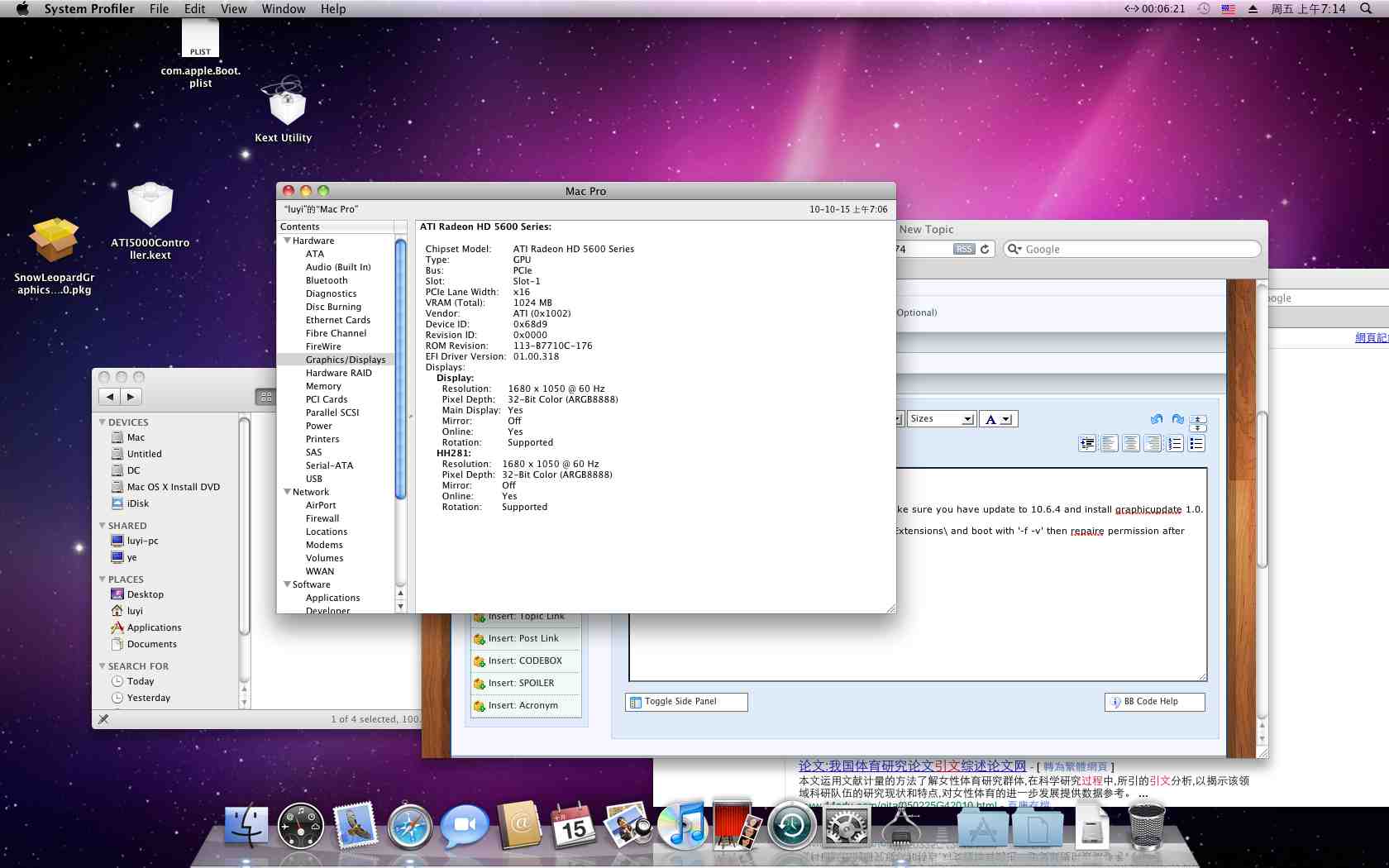

131 Posted October 15, 2010 Share Posted October 15, 2010 1. Some days ago, i got my asus hd5670 work. 2. Now, i get hd5570 work also. Boot with boothink, and snow leopard retail version, make sure you have update to 10.6.4 and install graphicupdate 1.0. place the ATY_int.kext to c:\darwin\system\Library SL\Extensions\ and boot with '-f -v' then repaire permission after you start up.(5570 hard id is 0x68d9) Also, you can install this kext by other tools. just need one kexts after install the graphicupdate1.0. Thanks to netkas and David. That's ok, have a good day! BTW: for my base system is AMD X3 435 +785G, SO I CAN NOT TEST FOR IF IT IS WORK UNDER 64 BIT. ATY_Init.kext.zip Link to comment Share on other sites More sharing options...
131 Posted October 15, 2010 Author Share Posted October 15, 2010 Such a good night! Link to comment Share on other sites More sharing options...
pivy Posted October 16, 2010 Share Posted October 16, 2010 hi! sorry if i am OT but how did you get your 5670 work?? i'm trying hard but with no success... Link to comment Share on other sites More sharing options...
131 Posted October 16, 2010 Author Share Posted October 16, 2010 hi! sorry if i am OT but how did you get your 5670 work?? i'm trying hard but with no success... you can search by hd5670, you need the driver from the post by netkas, it's name is hd5500/5600/5700... good luck! Link to comment Share on other sites More sharing options...
FKA Posted October 16, 2010 Share Posted October 16, 2010 you can search by hd5670, you need the driver from the post by netkas, it's name is hd5500/5600/5700... good luck! or you could use Kablys boot file and GraphicsEnabler=Yes http://www.insanelymac.com/forum/index.php...=231768&hl= 64bit solution Link to comment Share on other sites More sharing options...
pivy Posted October 16, 2010 Share Posted October 16, 2010 thanks a lot guys! My problem is that i am very noob at this so after each try i must reinstall osx and this is a little bit frustrating... lol Link to comment Share on other sites More sharing options...
FKA Posted October 16, 2010 Share Posted October 16, 2010 thanks a lot guys! My problem is that i am very noob at this so after each try i must reinstall osx and this is a little bit frustrating... lol please download and burn to disk the [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] ATI 5xxx-3 image from here to recover boot from this disk as it has support for ati5770 D Link to comment Share on other sites More sharing options...
131 Posted October 17, 2010 Author Share Posted October 17, 2010 please download and burn to disk the [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] ATI 5xxx-3 image from here to recover boot from this disk as it has support for ati5770 D How much about your XFX HD5570 1GB DDR5? Link to comment Share on other sites More sharing options...
FKA Posted October 17, 2010 Share Posted October 17, 2010 How much about your XFX HD5570 1GB DDR5? doh misread! Link to comment Share on other sites More sharing options...
FKA Posted October 17, 2010 Share Posted October 17, 2010 doh misread! either way you should ask for 5570 support on kabyls thread! Link to comment Share on other sites More sharing options...
onemanstrash Posted October 24, 2010 Share Posted October 24, 2010 1. Some days ago, i got my asus hd5670 work.2. Now, i get hd5570 work also. Boot with boothink, and snow leopard retail version, make sure you have update to 10.6.4 and install graphicupdate 1.0. place the ATY_int.kext to c:\darwin\system\Library SL\Extensions\ and boot with '-f -v' then repaire permission after you start up.(5570 hard id is 0x68d9) Also, you can install this kext by other tools. just need one kexts after install the graphicupdate1.0. Thanks to netkas and David. That's ok, have a good day! BTW: for my base system is AMD X3 435 +785G, SO I CAN NOT TEST FOR IF IT IS WORK UNDER 64 BIT. I'm happy to hear about your success. I too have the XFX 5670. I've gotten it running but with no qe/ci. Could you state how you got your 5670 running with qe/ci? Link to comment Share on other sites More sharing options...
DaviDemon Posted October 24, 2010 Share Posted October 24, 2010 Use the search button! Haha, if you have some sort of knowledge, you wouldn't need to beg in every thread. :/ I have my Gigabyte 5670 running with DVI and VGA, no HDMI support yet. Full resolution and QE/CI. Now see that button at the top that says "search"? Click it. Link to comment Share on other sites More sharing options...
onemanstrash Posted October 24, 2010 Share Posted October 24, 2010 Use the search button!Haha, if you have some sort of knowledge, you wouldn't need to beg in every thread. :/ I have my Gigabyte 5670 running with DVI and VGA, no HDMI support yet. Full resolution and QE/CI. Now see that button at the top that says "search"? Click it. Davi you helped me in another thread and i thnanked you. I didn't get the same results that you got. So i'm asking someone else their method. It's really simple. I have tried various methods and if you want know what they are i'll tell you. I'm not begging just asking. I searched using google 5670+ site:insanelymac.com for all the results. I then searched for every occurance of the 5670 within each page of all the results so go easy bro i'm doing my homework before asking. You are lucky your's worked. Not all makes are the same and not all ports always work. As i recall you have a vga adapter on dvi. I only have one dvi port and and hdmi port. It is a slightly different set than yours. Link to comment Share on other sites More sharing options...
DaviDemon Posted October 24, 2010 Share Posted October 24, 2010 Yeah sorry, I shouldn't have gone mad. Lol. HDMI doesn't work for me. :/ Link to comment Share on other sites More sharing options...
yassersh2001 Posted October 27, 2010 Share Posted October 27, 2010 plz can u help me with my xfx ati5570 1gb ddr3 i have pc with the following asus p7p55d-e lx core i3 530 2 gb ram DDr 3 1333 2 hd 500 sata 2 mac osx 10.6.3 itakos s3 ver2 and upgrade to 10.6.4 combo update installed graphics update 1.0 now i make all steps but no successes this massage appear when use -v ATY_Init: Card 0x68d9 was not posted i have add my id to ati5000 (0x68d9) and change the frame buffer to Vervet after a lot of try no panic no black screen 1 time successes to read the card as 5600 but no QE /CI or res and max memory was 256 mb Link to comment Share on other sites More sharing options...
131 Posted December 3, 2010 Author Share Posted December 3, 2010 plz can u help me with my xfx ati5570 1gb ddr3 i have pc with the following asus p7p55d-e lx core i3 530 2 gb ram DDr 3 1333 2 hd 500 sata 2 mac osx 10.6.3 itakos s3 ver2 and upgrade to 10.6.4 combo update installed graphics update 1.0 now i make all steps but no successes this massage appear when use -v ATY_Init: Card 0x68d9 was not posted i have add my id to ati5000 (0x68d9) and change the frame buffer to Vervet after a lot of try no panic no black screen 1 time successes to read the card as 5600 but no QE /CI or res and max memory was 256 mb Sorry for late. I am busy for my new shop in suzhou. After you install the kext, you need boot with -s and input fsck -f -y for repair disk permission, i got the same problem as you before fix disk permission, after that, i got it work. Link to comment Share on other sites More sharing options...
ivokik Posted December 5, 2010 Share Posted December 5, 2010 1. Some days ago, i got my asus hd5670 work.2. Now, i get hd5570 work also. Boot with boothink, and snow leopard retail version, make sure you have update to 10.6.4 and install graphicupdate 1.0. place the ATY_int.kext to c:\darwin\system\Library SL\Extensions\ and boot with '-f -v' then repaire permission after you start up.(5570 hard id is 0x68d9) Also, you can install this kext by other tools. just need one kexts after install the graphicupdate1.0. Thanks to netkas and David. That's ok, have a good day! BTW: for my base system is AMD X3 435 +785G, SO I CAN NOT TEST FOR IF IT IS WORK UNDER 64 BIT. what do I do with (5570 hard id is 0x68d9) my HD5570 got the same ID, but where do I need to put it? Thanks in advance Ivo Link to comment Share on other sites More sharing options...

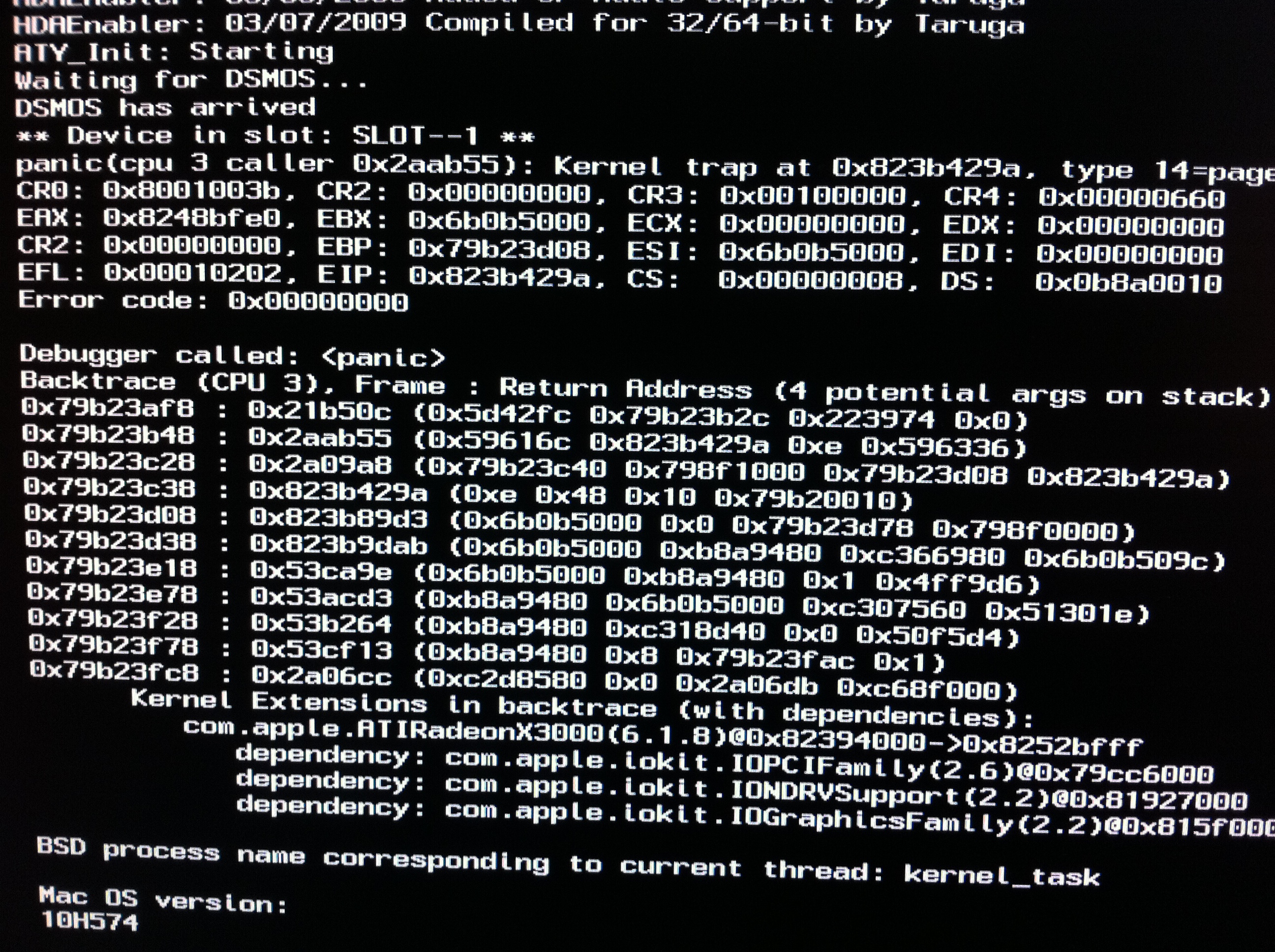

ivokik Posted December 6, 2010 Share Posted December 6, 2010 1. Some days ago, i got my asus hd5670 work. 2. Now, i get hd5570 work also. Boot with boothink, and snow leopard retail version, make sure you have update to 10.6.4 and install graphicupdate 1.0. place the ATY_int.kext to c:\darwin\system\Library SL\Extensions\ and boot with '-f -v' then repaire permission after you start up.(5570 hard id is 0x68d9) I did all you said beside the place where i need to give the right ID, but where and how do I do that? I got kernel panic... gr. Ivo Link to comment Share on other sites More sharing options...
tanguy_k Posted December 15, 2010 Share Posted December 15, 2010 Hi, This is interesting, I have an Asus 5570 (EAH5570 SILENT/DI/1GD2) http://www.asus.com/product.aspx?P_ID=Ngyh...&templete=2 that I try to make run with QE/CI without luck for now. Which HD5570 do you have? Which outputs do work? did you try the VGA output? (I use the VGA output) Link to comment Share on other sites More sharing options...
tanguy_k Posted December 19, 2010 Share Posted December 19, 2010 Hi, This is interesting, I have an Asus 5570 (EAH5570 SILENT/DI/1GD2) http://www.asus.com/product.aspx?P_ID=Ngyh...&templete=2 that I try to make run with QE/CI without luck for now. Which HD5570 do you have? Which outputs do work? did you try the VGA output? (I use the VGA output) It's working now, see http://www.insanelymac.com/forum/index.php...t&p=1604877 Link to comment Share on other sites More sharing options...
m600kf Posted January 3, 2011 Share Posted January 3, 2011 Sorry for late. I am busy for my new shop in suzhou. After you install the kext, you need boot with -s and input fsck -f -y for repair disk permission, i got the same problem as you before fix disk permission, after that, i got it work. thank u,i got it work。 snow leopard just recognized 5600series before i tried -s,and i input exit。Then,done(SAPPHIRE 5570) Link to comment Share on other sites More sharing options...
m600kf Posted January 3, 2011 Share Posted January 3, 2011 thank u first,it works with qe/ci through hdmi。 x3 435 770c45 SAPPHIRE 5570 1G 5570g3.tiff Link to comment Share on other sites More sharing options...
LifeOnRice Posted March 2, 2011 Share Posted March 2, 2011 any other framebuffers working on hd 5570 other than eulemur? i am encountering sleep problems, no 16:9 resolutions( only 4:3) currently using VGA, i was hoping if any other fb that would work on DVI output... help pls Link to comment Share on other sites More sharing options...
himac59 Posted January 29, 2013 Share Posted January 29, 2013 Thanks to your org.chameleon.Boot.plist i got the Ati HD 5570 3D club Card id 68d9 to work. The 5570 with id 68D9 is not so easy to make Out of Box work as the 68D8 or 68BE With 10.8.2 on a ASRock Z77M motherboard and i3-3225M with HD4000 and with original Ati drivers 10.8.2, i changed nothing about the drivers onboard video HD4000 already worked, Bios 64Mb shared memory - onboard video and Chimera bootloader 1.11.1 from Tonymac it was recognized as HD4000 with 512Mb i got the smbios.plis configured as Macmini6,2 this for my motherboard with CPU i3-3225M with HD4000 do this with Chameleon Wizard with a similar Apple CPU config so it depends on your CPU how to config OpenGL in AMD Radeon HD 5570 / OS X 10.8.2 Link to comment Share on other sites More sharing options...
cdoublejj Posted January 30, 2014 Share Posted January 30, 2014 1. Some days ago, i got my asus hd5670 work. 2. Now, i get hd5570 work also. Boot with boothink, and snow leopard retail version, make sure you have update to 10.6.4 and install graphicupdate 1.0. place the ATY_int.kext to c:\darwin\system\Library SL\Extensions\ and boot with '-f -v' then repaire permission after you start up.(5570 hard id is 0x68d9) Also, you can install this kext by other tools. just need one kexts after install the graphicupdate1.0. Thanks to netkas and David. That's ok, have a good day! BTW: for my base system is AMD X3 435 +785G, SO I CAN NOT TEST FOR IF IT IS WORK UNDER 64 BIT. so is OP sayign it is 64bit only? (i need 32bit) Link to comment Share on other sites More sharing options...
