Heed help with ASUS PRIME B860M-A & Intel Core Ultra 5 245K & Radeon RX 6700 XT

[Andriy B.]

Hello!



Is anyone have luck with B860M chipset?

Bacause I stuck after OpenCore loads from usb, i select image from usb and see on screen logo with loading progress.. but it stuck around middle...



60:465 00:017 AAPL: #[EB.BST.FBS|KSSZ] 0
60:483 00:018 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m
60:503 00:019 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
60:524 00:021 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j160ap.im4m">
60:545 00:021 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
60:571 00:025 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
60:590 00:018 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
60:609 00:019 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
60:624 00:015 OCSMC: SmcReadValue Key 4D535463 Size 1
60:640 00:015 OCSMC: SmcReadValue Key 4D534163 Size 2
60:659 00:018 AAPL: #[EB|LOG:DT] 2025-02-09T15:30:49
60:679 00:019 AAPL: #[EB|LOG:EXITBS:START] 2025-02-09T15:30:49





Thanks!

opencore-2025-02-09-152948.txt EFI.zip

[MaLd0n]

Disable VT-d and secure boot, if need disable IGPU too.

[LockDown]

Fixed mine by toggling RebuildAppleMemory

[Andriy B.]

5 hours ago, LockDown said:

Fixed mine by toggling RebuildAppleMemory

Can you please attach EFI please?

[Andriy B.]

5 hours ago, LockDown said:

Fixed mine by toggling RebuildAppleMemory



RebuildAppleMemory - do not helps (checked with true/false )

Vt-d  - disabled

IGPU - disabled

Secure boot - disabled



but still with same error





Can you please attach EFI please?

[iaihc]

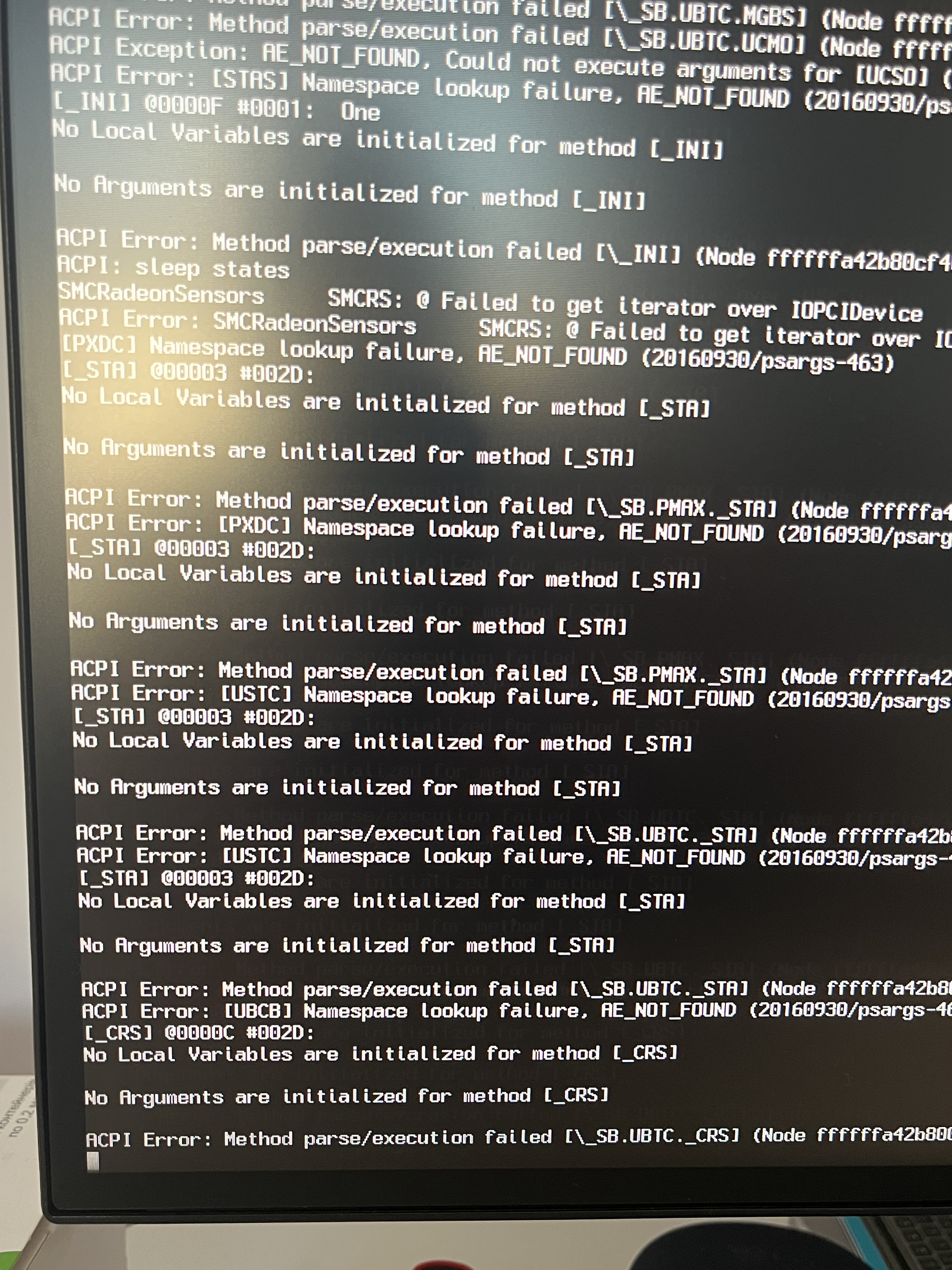

Please extract the DSDT file from your motherboard BIOS and debug these error codes.

PXDC

USTC

UBCB



[LockDown]

4 hours ago, Andriy B. said:

but still with same error

Your're not getting the same error anymore. You are now having another issue

[Andriy B.]

3 hours ago, iaihc said:

Please extract the DSDT file from your motherboard BIOS and debug these error codes.

PXDC

USTC

UBCB



Hello! any instructions how I can do this?

[strangeron]

7 hours ago, Andriy B. said:

but still with same error

The error you get is different.

You cannot install with NootRX.kext. Complete the installation with WhateverGreen.kext and then replace it with NootRX.kext. Disable the BT kext until the end of the installation. Why is dGPU disabled? (DeviceProperties) Try SecureBootModel-Disable. And I think there is no need for OpenUsbKbDxe.efi.

[Andriy B.]

On 2/21/2025 at 4:36 PM, strangeron said:

The error you get is different.

You cannot install with NootRX.kext. Complete the installation with WhateverGreen.kext and then replace it with NootRX.kext. Disable the BT kext until the end of the installation. Why is dGPU disabled? (DeviceProperties) Try SecureBootModel-Disable. And I think there is no need for OpenUsbKbDxe.efi.

Hello!



When I  replace NootRX.kext to WhateverGreen.kext, removed dGPU, SecureBootModel-Disable & removed OpenUsbKbDxe.efi - it do not moved  to chose image from usb  (see attached screen). same thing was when I move back OpenUsbKbDxe.efi.





Also it Still on this part and i do not have ideas (





33:816 00:036 OCAK: 64-bit MiscPwrMgmtRel Sequoia replace count - 3
33:822 00:005 OCAK: [OK] Success XcpmExtraMsrs patch
33:840 00:017 OCAK: 64-bit PanicKextDump replace count - 1
33:846 00:005 OCAK: [OK] Patch success kext dump
33:852 00:005 OCAK: [OK] Patch success CPUID release
33:857 00:005 OCAK: 64-bit PowerStateTimeout replace count - 0
33:863 00:005 OCAK: No inline power state patch - Not Found, trying fallback
33:879 00:015 OCAK: 64-bit PowerStateTimeout replace count - 1
33:885 00:006 OCAK: [OK] Patch success power state
33:891 00:006 OCAK: [OK] Found jettisoning fileset
33:897 00:006 OCAK: 64-bit Set core count to thread count replace count - 2
33:903 00:005 OCAK: Patching MSR 35h to 000E000E - Success
33:913 00:009 OCAK: BusFreq = 99657142Hz, BusFCvtt2n = 43097435967, BusFCvtn2t = 428024165
33:919 00:006 OCAK: TscFreq = 4185600000Hz, TscFCvtt2n = 1026129418, TscFCvtn2t = 17977015130
33:926 00:006 OCAK: 64-bit ProvideCurrentCpuInfoZeroMsrThreadCoreCount replace count - 2
33:952 00:026 OC: Prelinked injection CPUFriendDataProvider.kext (CPUFriendDataProvider.kext) - Success
33:958 00:006 OC: Prelinked injection CPUFriendDataProvider.kext v1.0.0
33:975 00:016 OCAK: Local relocs 689 on FFFFFF8003F29000
33:982 00:006 OC: Prelinked injection Lilu.kext (Lilu.kext) - Success
33:988 00:005 OC: Prelinked injection Lilu.kext v1.7.1
33:994 00:006 OCAK: Patching invalid size 15FF4 with 193B000 for com.apple.iokit.IONetworkingFamily
34:003 00:008 OCAK: Patching invalid size 34000 with 16D9000 for com.apple.iokit.IOPCIFamily
34:014 00:010 OCAK: Local relocs 443 on FFFFFF8003F58000
34:020 00:006 OC: Prelinked injection LucyRTL8125Ethernet.kext (LucyRTL8125Ethernet.kext) - Success
34:026 00:005 OC: Prelinked injection LucyRTL8125Ethernet.kext v1.2.0
34:034 00:008 OCAK: Local relocs 625 on FFFFFF8003F91000
34:041 00:006 OC: Prelinked injection NVMeFix.kext (NVMeFix.kext) - Success
34:047 00:005 OC: Prelinked injection NVMeFix.kext v1.1.2
34:056 00:008 OCAK: Local relocs 315 on FFFFFF8003F9E000
34:062 00:006 OC: Prelinked injection RestrictEvents.kext (RestrictEvents.kext) - Success
34:068 00:005 OC: Prelinked injection RestrictEvents.kext v1.1.5
34:078 00:010 OCAK: Local relocs 1269 on FFFFFF8003FAB000
34:086 00:008 OC: Prelinked injection SmallTreeIntel8259x.kext (SmallTreeIntel8259x.kext) - Success
34:092 00:005 OC: Prelinked injection SmallTreeIntel8259x.kext v3.8.6
34:098 00:006 OCAK: Patching invalid size 2000 with 1B54000 for com.apple.iokit.IOACPIFamily
34:108 00:009 OCAK: Local relocs 515 on FFFFFF8003FEA000
34:115 00:007 OC: Prelinked injection VirtualSMC.kext (VirtualSMC.kext) - Success
34:121 00:005 OC: Prelinked injection VirtualSMC.kext v1.3.4
34:132 00:011 OCAK: Local relocs 5905 on FFFFFF8004004000
34:154 00:021 OC: Prelinked injection AppleALC.kext (AppleALC.kext) - Success
34:160 00:005 OC: Prelinked injection AppleALC.kext v1.9.3
34:168 00:007 OCAK: Local relocs 314 on FFFFFF80041CB000
34:174 00:006 OC: Prelinked injection BlueToolFixup.kext (BlueToolFixup.kext) - Success
34:180 00:005 OC: Prelinked injection BlueToolFixup.kext v2.6.9
34:189 00:008 OCAK: Local relocs 611 on FFFFFF80041D6000
34:195 00:006 OC: Prelinked injection CPUFriend.kext (CPUFriend.kext) - Success
34:201 00:005 OC: Prelinked injection CPUFriend.kext v1.2.9
34:209 00:007 OCAK: Symbol __ZN9IOService19_RESERVEDIOService0Ev has 0-value
34:215 00:005 OCAK: Symbol __ZN9IOService19_RESERVEDIOService1Ev has 0-value
34:221 00:005 OCAK: Local relocs 304 on FFFFFF80041E1000
34:227 00:006 OC: Prelinked injection CpuTopologyRebuild.kext (CpuTopologyRebuild.kext) - Success
34:233 00:005 OC: Prelinked injection CpuTopologyRebuild.kext v1.1.0
34:242 00:008 OCAK: Local relocs 325 on FFFFFF80041E8000
34:248 00:006 OC: Prelinked injection SMCProcessor.kext (SMCProcessor.kext) - Success
34:254 00:005 OC: Prelinked injection SMCProcessor.kext v1.3.4
34:261 00:006 OCAK: Patching invalid size DFE0 with 10BA000 for com.apple.kec.Libm
34:269 00:008 OCAK: Local relocs 378 on FFFFFF80041F7000
34:276 00:006 OC: Prelinked injection SMCRadeonSensors.kext (SMCRadeonSensors.kext) - Success
34:282 00:005 OC: Prelinked injection SMCRadeonSensors.kext v2.3.0
34:290 00:008 OCAK: Local relocs 2593 on FFFFFF8004204000
34:303 00:012 OC: Prelinked injection SMCSuperIO.kext (SMCSuperIO.kext) - Success
34:309 00:005 OC: Prelinked injection SMCSuperIO.kext v1.3.4
34:315 00:006 OC: Prelinked injection Legacy_USB3.kext (Legacy_USB3.kext) - Success
34:321 00:005 OC: Prelinked injection Legacy_USB3.kext v1.0
34:331 00:009 OCAK: Local relocs 1922 on FFFFFF8004227000
34:340 00:008 OC: Prelinked injection WhateverGreen.kext (WhateverGreen.kext) - Success
34:346 00:005 OC: Prelinked injection WhateverGreen.kext v1.6.8
34:352 00:006 OC: Prelink size 68853760 kext offset 65179648 reserved 3674112
34:358 00:005 OCAK: KC TEXT is 65536 bytes with 61800 Mach-O headers need 1096
34:389 00:031 OCAK: Failed to pk find com.apple.driver.AppleIntelCPUPowerManagement - Not Found
34:395 00:005 OCAK: [OK] Skipping PatchAppleCpuPmCfgLock on NULL Patcher on kernel version 240300
34:401 00:005 OCAK: 64-bit AppleIoMapper replace count - 1
34:407 00:005 OCAK: [OK] Patch success com.apple.iokit.IOPCIFamily AppleIoMapper
34:420 00:013 OCAK: Failed to pk find com.apple.driver.AppleIntelCPUPowerManagement - Not Found
34:426 00:005 OCAK: [OK] Skipping dummy AppleIntelCPUPowerManagement patch on 240300
34:487 00:061 OC: Prelinked status - Success
34:591 00:104 AAPL: #[EB.LD.LKFS|-?] Ok(0)
34:598 00:006 AAPL: #[EB.LD.LKC|-?] Ok(0)
34:606 00:007 AAPL: #[EB|BST:REV1]
34:612 00:006 AAPL: #[EB|CSR:IN] 0x00000040
34:619 00:006 AAPL: #[EB|CSR:OUT] 0x00000040
34:627 00:007 AAPL: #[EB.BST.FBS|+]
34:633 00:006 AAPL: #[EB.BST.FBS|ADSZ] 0
34:639 00:006 AAPL: #[EB.BST.FBS|KSSZ] 0
34:646 00:006 AAPL: #[EB|SB:SBGMFNS] j160ap.im4m
34:653 00:006 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
34:660 00:007 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j160ap.im4m">
34:667 00:007 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
34:678 00:011 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
34:685 00:006 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
34:692 00:006 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
34:698 00:005 OCSMC: SmcReadValue Key 4D535463 Size 1
34:704 00:005 OCSMC: SmcReadValue Key 4D534163 Size 2
34:711 00:007 AAPL: #[EB|LOG:DT] 2025-02-23T11:14:04
34:718 00:007 AAPL: #[EB|LOG:EXITBS:START] 2025-02-23T11:14:04





opencore-2025-02-23-111329.txt

[Andriy B.]

Hello!



Any ideas how to run it?

[MaLd0n]

2 hours ago, Andriy B. said:

Any ideas how to run it?

Disable VT-d and secure boot, if need disable IGPU too.

EFI PRIME B860M-A.zip

-Delete old EFI folder and paste new then empty trash. Don't use merge files.
-Don't use Drag and Drop into EFI partition. Use Copy/Paste instead.
-Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen.

[Andriy B.]

On 3/2/2025 at 12:31 AM, MaLd0n said:

Disable VT-d and secure boot, if need disable IGPU too.

EFI PRIME B860M-A.zip

-Delete old EFI folder and paste new then empty trash. Don't use merge files.
-Don't use Drag and Drop into EFI partition. Use Copy/Paste instead.
-Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen.



Hello MaLd0n!

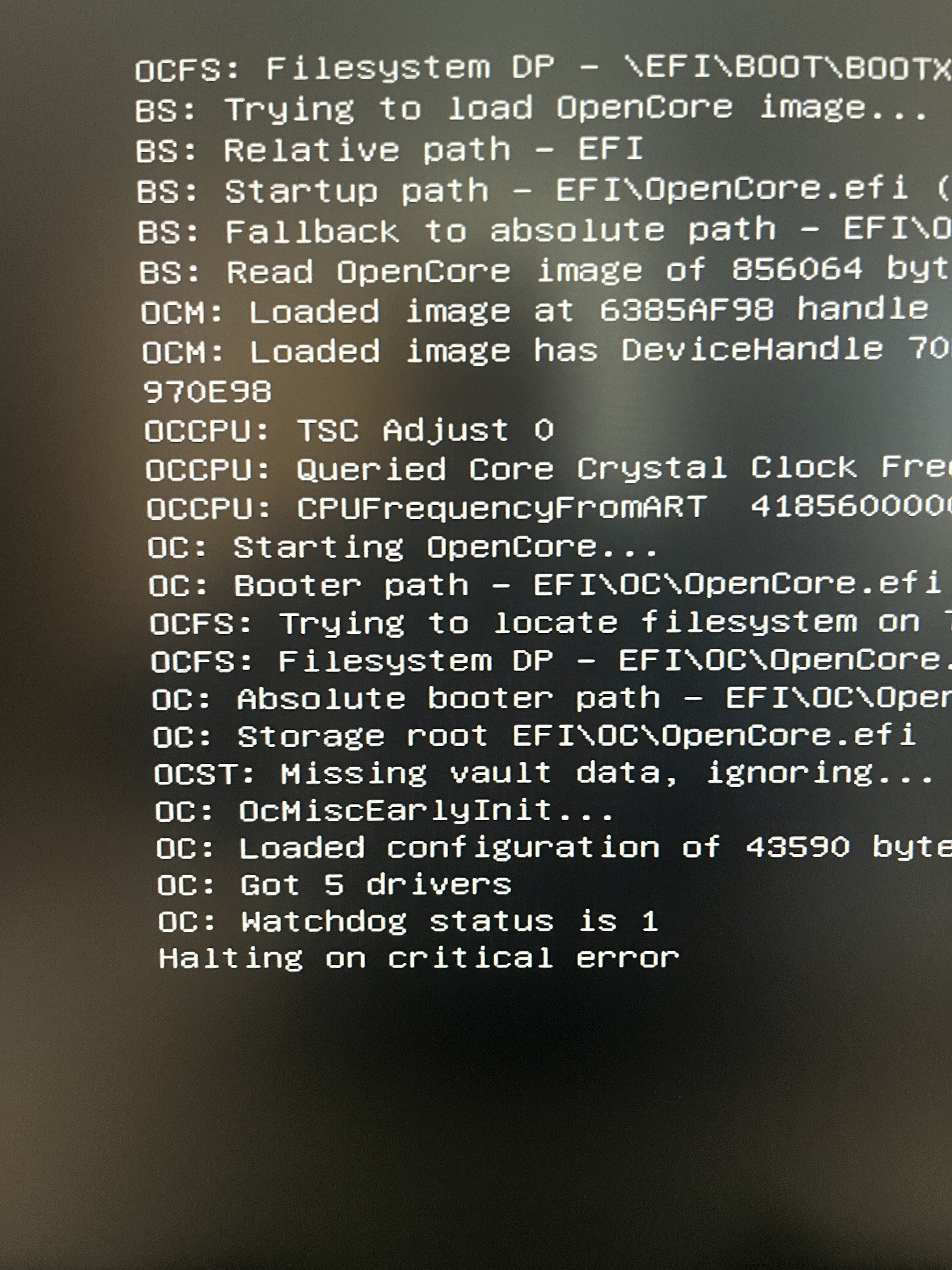

Thank you, I got booted and got page with start installation, but system do not see ethernet and WIFi, i saw LucyRTL8125Ethernet.kext but looks it not work correctly.... can you please help with this?



[Andriy B.]

On 3/2/2025 at 12:31 AM, MaLd0n said:

Disable VT-d and secure boot, if need disable IGPU too.

EFI PRIME B860M-A.zip

-Delete old EFI folder and paste new then empty trash. Don't use merge files.
-Don't use Drag and Drop into EFI partition. Use Copy/Paste instead.
-Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen.



Hello MaLd0n!

Thank you, I got booted and got page with start installation, but system do not see ethernet and WIFi, i saw LucyRTL8125Ethernet.kext but looks it not work correctly.... can you please help with this?



[MaLd0n]

Some lan card dont work. Use one USB WIFI for now like t2u nano

If u need connection to installer, use offline installer.

[Andriy B.]

4 hours ago, MaLd0n said:

Some lan card dont work. Use one USB WIFI for now like t2u nano

If u need connection to installer, use offline installer.

Hello!



I already wait on some simple RTL8111C, hope this be supported (i saw kext for it). Also can you provide bit more details about offline install?

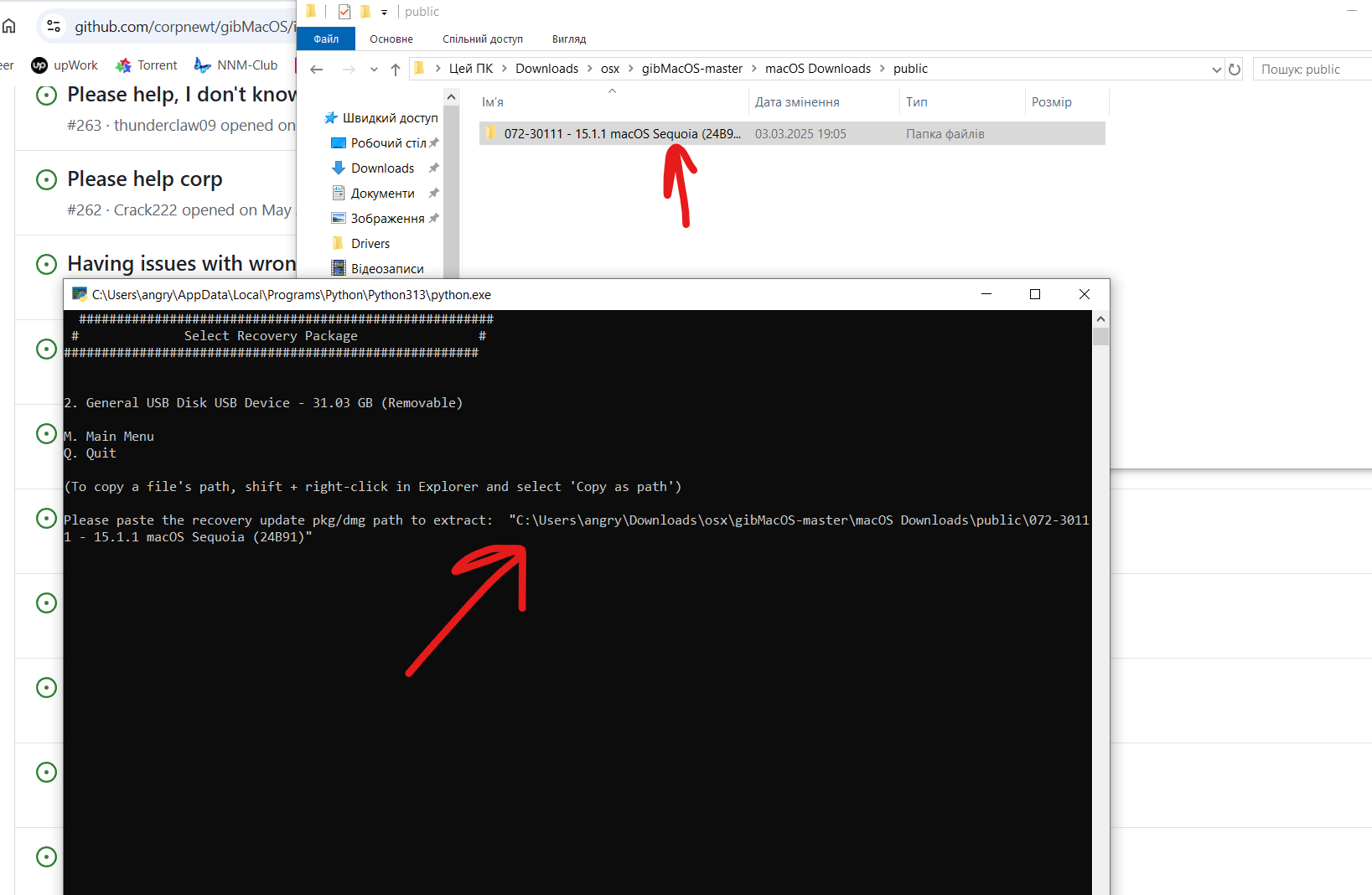

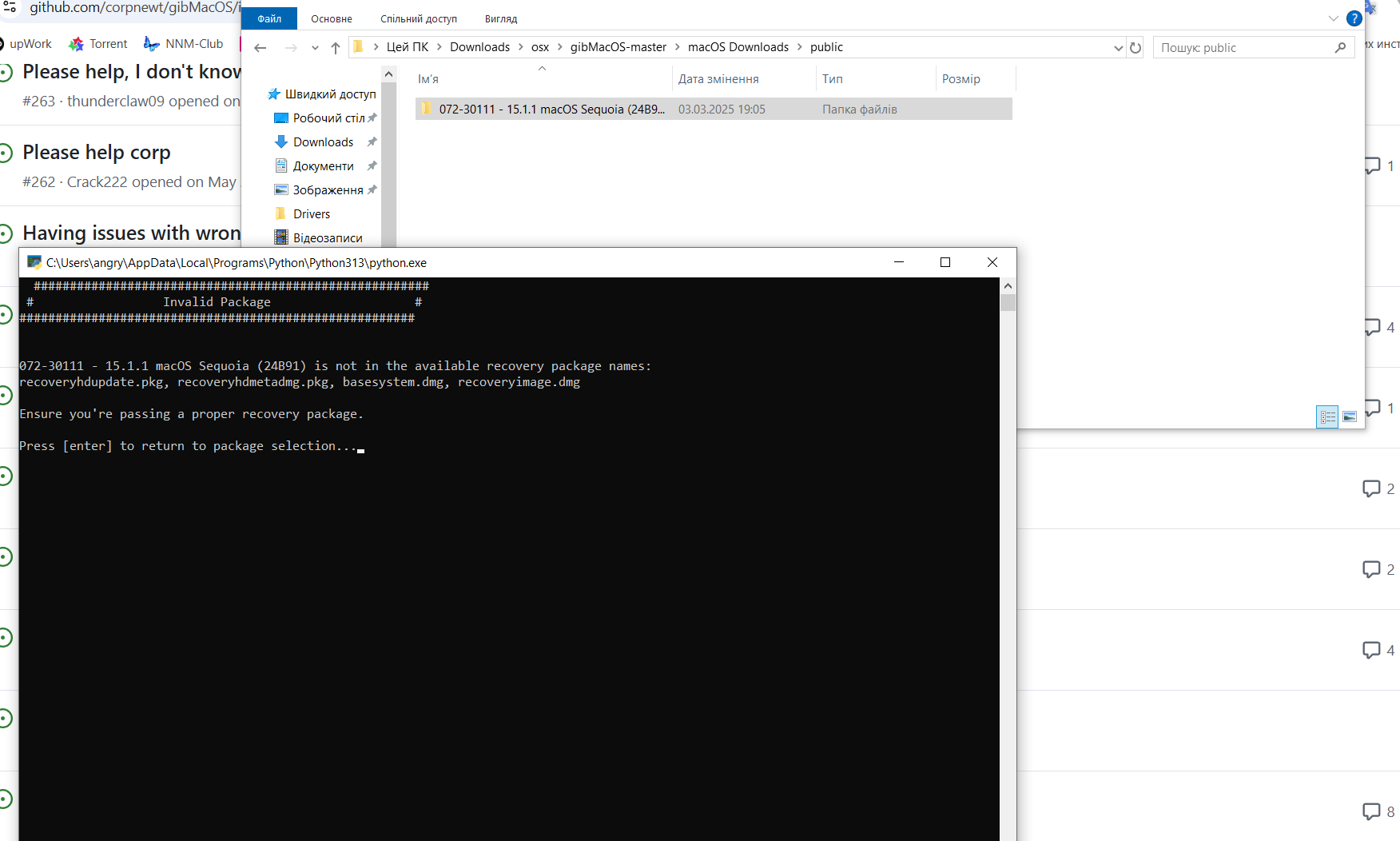

UPD: i try going over gibMacOS scrypt, but do not ge luck to create full install image

Edited March 3, 2025 by Andriy B.

[carlo_67]

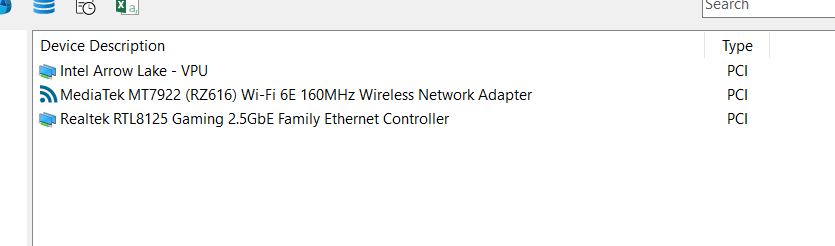

you should see the device id and vendor of your network card Realtek RTL8125?

[Andriy B.]

18 hours ago, MaLd0n said:

Some lan card dont work. Use one USB WIFI for now like t2u nano

If u need connection to installer, use offline installer.



Hello!

So, in this moment i found way to pull full image, and looks system is up (still need make post install things, load without usb etc).

[Andriy B.]

Hello!



Still no luck with ethernet card.. set RTL8111C but it do not works (i removed LucyRTL8125Ethernet kext and use RealtekRTL8111 kext ) any ideas how to make it live?

system.log launchd.log

[Andriy B.]

Hello again )



Network is working with RTL8111C, still with Bluetooth... any point where i can try handle with?

[Andriy B.]

Hello!



Still do not run Bluetooth & WIFi ((   can any help with?



Thanks!

[MaLd0n]

4 hours ago, Andriy B. said:

Still do not run Bluetooth & WIFi ((   can any help with?

What card?

[Andriy B.]

Hello  MaLdOn!

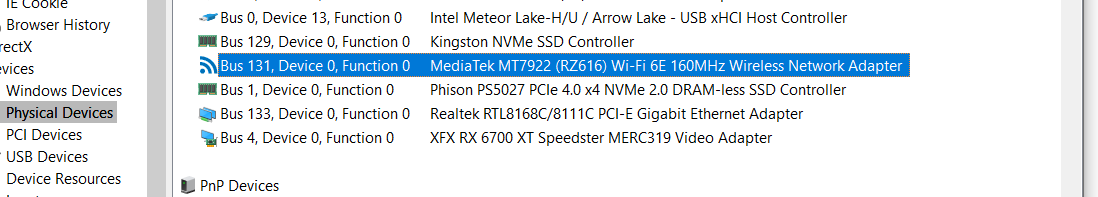

MediaTek MT7922 (RZ616) Wi-Fi 6E 160MHz Wireless Network Adapter    PCI

[MaLd0n]

No support for this

[Andriy B.]

Hello @MaLd0n!



Maybe any suggestion with USB stick Bluetooth to use?  Or Maybe WiFi+Bluetooth PCIe card you suggest?





Regards.
