ALC1150 not working on macOS Ventura - X99

NeXtor

By NeXtor,
in AppleALC

 Share
15 posts in this topic

Recommended Posts

NeXtor
NeXtor
Posted
Posted

Hello everyone. I can't get the sound card to be recognized with VT-D enabled.
You will say, turn it off.
The problem is precisely this. By deactivating VT-D the system no longer recognizes the blackmagic intensity pro 4k card, I notice a drop in performance, with any layout-id the sound does not come out of the green connector but from one of the other connectors (depending on the layout-id), the low frequencies are low emphasized (unlike MS Win) and the audio is out of sync.
I tried various methods to patch HPET, to disable it, I tried various versions of AppleALC and tested all layouts compatible with the sound card but without success.

I also tried with VoodooHDA but that didn't work either.
I don't know what to do anymore. Help me. Thank you.



I attach the PC configuration, the bios configuration, the efi folder and the IORegistry report.



PC CONFIGURATION:

CPU: Intel i7-6950X Broadwell-E
RAM: 32GB DDR4
Mainboard: ASUS RAMPAGE V EDITION 10
Audio: Realtek ALC1150
Video Card: AMD RADEON VII - PCI-E slot #1
Blackmagic Intensity PRO 4K - PCI-E slot #2
ASUS Hyper M.2 x16 Gen 4, with an SSD NVME SN850P 2TB inside - PCI-E slot #4
10Gtek 10GbE Intel 82599EN Compatible Intel X520-DA1(Intel E10G42BTDA) - PCI-E slot #6
SSD NVME SN750 2TB - slot NVME



BIOS CONFIGURATION:

Ai Overclock Tuner: Manual
CPU Strap: Auto
PLL selection: Auto
Filter PLL: Auto
BCLK Frequency: 100
Initial BCLK Freqiency: Auto
Asus Multicore Enhancement: Auto
CPU Core Ratio: Sync All Core
1-Core Ratio Limit: 42
Avx Instruction Core Ratio Negative Offset: Auto
Min CPU Cache Ratio: Auto
Max CPU Cache Ratio: 36
Internal PLL Overvoltage: Disable
BCLK Frequency : DRAM Frequency Ratio: Auto
DRAM Frequency: DDR4-3200MHz
Xtreme Tweaking: Disabled
TPU: Keep Current Settings
EPU Power Saving Mode: Disabled
CPU Spread Spectrum: Disabled
BCLK Recovery: Enabled

DRAM Timing Control:
- DRAM Training: Auto
- DRAM SPD Write: Enabled

Internal CPU Power Management:
- Enhanced Intel SpeedStep Technology: Enabled
- Turbo Mode: Enabled

CPU Configuration:
- Hyper-Threading [All]: Enabled
- Intel Adaptive Thermal Monitor: Enabled
- Limit CPUID Maximum: Disabled
- Execute Disable Bit: Enabled
- Intel Virtualization Technology: Enabled
- Hardware Prefetcher: Enabled
- Adjacent Cache Line Prefetcher: Enabled
- Boot performance mode: Max performance
- Maximum CPU Core Temperature: Auto

CPU Power Management Configuration:
- enhanced Intel Soeedstep Technology: Enabled
- Turbo mode: Enabled
- CPU c-state: Enabled
	- enhanced c1 state: Enabled
	- cpu c3 report: Disabled
	- cpu c6 report: Enabled
- Packaging c state Limit: c0/c1 state

PCH Configuration/ PCI Express Configuration:
- PCIEX4_1 Speed: Gen2

PCH Storage Configuration:
- Hyper kit mode: Disabled
- SATA controller 1 mode selection: AHCI
- Support aggressive link power management: Disabled
- SATA controller 2 mode selection: AHCI
- Support aggressive link power management: Disabled

System agent Configuration
- DMI Configuration
	- DMI GEN2: Enabled
- NB PCI-E Configuration:
	- PCIEX16/X8_1 Link Speed: Auto
	- PCIEX8_2 Link Speed: Auto
	- PCIEX16/X8_3 Link Speed: Auto
	- PCIEX8_4 Link Speed: Auto
- Intel VT for Directed I/O (VT-D): Enabled
- MCTP: Disabled
- ACS Control: Disabled

USB Configuration:
- Intel xHCI Mode: Enabled
- EHCI Legacy Support: Enabled
- xHCI Hand-off: Enabled
- EHCI Hand-off: Enabled

Platform misc configuration:
- SA DMI ASPM: Disabled
- PEG ASPM Support: Disabled
- PCH DMI ASPM: Disabled
- ASPM Support: Disabled

Onboard devices configuration:
- HD Audio Controller: Enabled
- 4-Way Configuration: auto
- PCIEX4_1 and front USB3_34/ Back USB3.1_EC1_EA2 port configuration: auto
- Asmedia USB 3.1 Controller: Enabled
- Asmedia USB 3.1 battery charging support: Disabled
- Aura Lighting Effects (onboard led): On
- Aura Lighting effects: Default
- Bluetooth controller: Enabled
- Wi-fi controller: Enabled
- Intel Lan1 controller: Enabled
- Intel lan2 controller: Enabled

APM Configuration:
- ErP ready: Disabled
- Restore ad power loss: power off
- Power on by pci-e/pci: Disabled
- Power on by rtc: Disabled

Fast boot: Disabled
Direct key (DRCT): Enabled
Int19 trap response: immediate
Above 4G decoding: Enabled
CSM: Disabled
Secure boot OS Type: Other OS



https://www.mediafire.com/file/holj0qdk0cawj6e/Send_me_Gabrieles-iMac-Pro.zip/file

  • Like 1
MaLd0n
MaLd0n
Posted
Posted

TEST this EFI folder

-Delete old EFI folder and paste new then empty trash. Don't use merge files.
-Don't use Drag and Drop into EFI partition. Use Copy/Paste instead.
-Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen.

If boot is fine save one ioreg https://olarila.com/files/Utils/IORegistryExplorer.app.zip

Slice
Slice
Posted
Posted
On 12/20/2024 at 1:30 AM, NeXtor said:



App returns "no audio codec detected!!"

I had analogues problem in my X79 system.

Resolved by

Above 4G decoding: Disabled

This is strange and has no explanation but confirmed by other users.

NeXtor
NeXtor
Posted
  • Author
Posted

I'm doing some tests with the two MaLd0n' EFIs.
With VT-D ON and 4G decoding ON, no audio and no Intensity Pro 4K.
With VT-D ON and 4G decoding OFF, no audio and no Intensity Pro 4K, but the first EFI won't boot the system.
With VT-D OFF and 4G decoding ON, audio ok, synchronized with the video, all high and low audio frequencies excellent, but still no Intensity Pro 4K.
With this smbios and VT-D off the PC performance seems good (compared to iMacPro1,1).

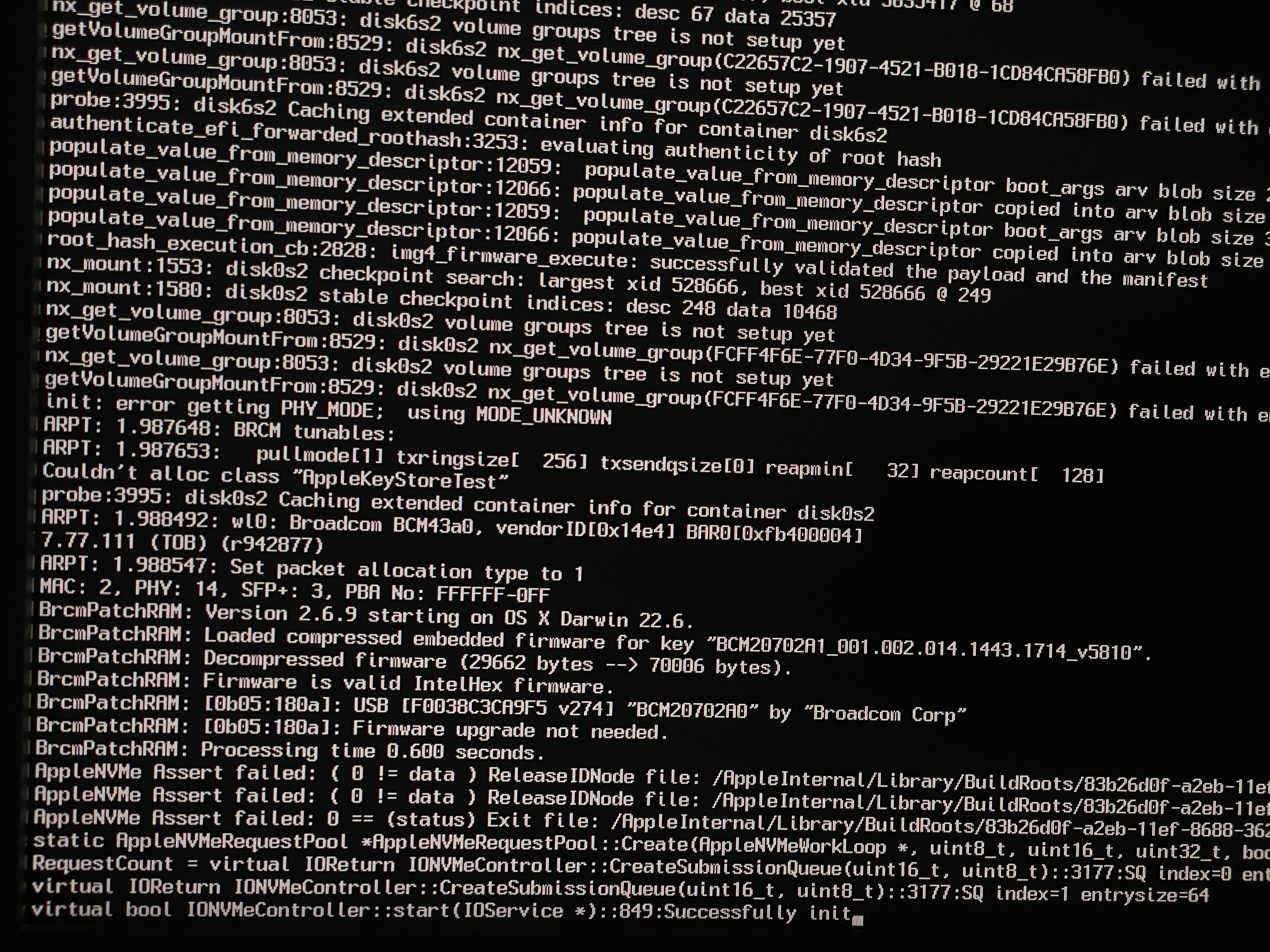

With both EFIs at the first boot the system freezes during loading, almost always like in the attached photo, then it restarts and starts.


NeXtor
NeXtor
Posted
  • Author
Posted (edited)

I installed old blackmagic drivers and now the intensity pro 4k card works.

With the new driverkits I had to have vt-d active, however with the .kext version the card works even with vt-d deactivated.

Now what do you recommend for the definitive efi folder? You told me I had to use the last efi folder to carry out the tests... should I go back to the efi022 folder?

Edited by NeXtor
  • 3 weeks later...
NeXtor
NeXtor
Posted
  • Author
Posted
On 12/27/2024 at 5:39 PM, Slice said:

You should edit DMAR.aml table and then VT-d set to ON.

VT-d problems in macOS

from the first configuration that I attached you can see that the reserved memory regions are no longer present in the DMAR table and the audio did not work anyway.

Unless you're referring to some other modification to the DMAR table, but from the link you shared I don't see anything different... am I wrong?
