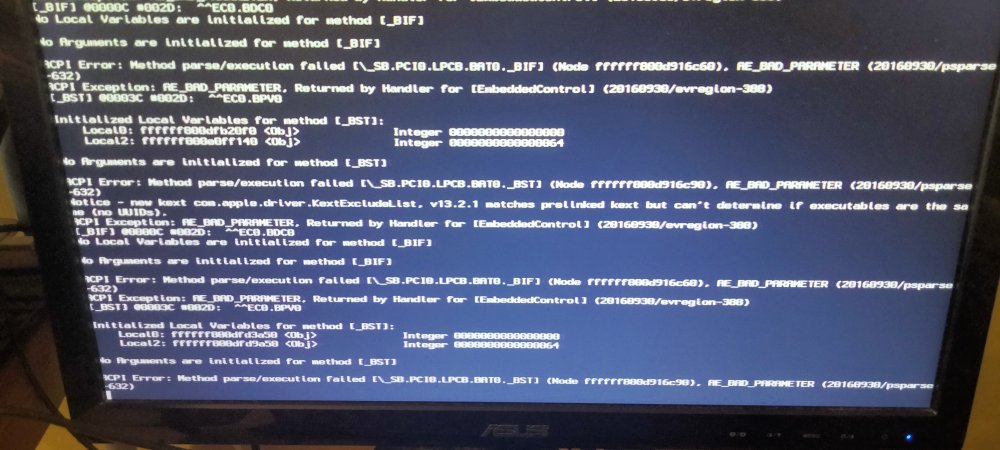

Xflash2006 Posted February 16, 2024 Share Posted February 16, 2024 (edited) Hi, I have a laptop with a broken built-in screen. The macOS installer launches extremely slowly due to ACPI errors, and once it launches, the external screen turns off. Can anyone help me solve these problems? I attach the EFI folder and the photo of the ACPI errors during startup. Laptop: Acer Aspire 5742G CPU: Intel i3 380M GPU: Integrated + NVIDIA GT 540M External Screen: Connected via HDMI port EFI.zip Edited February 16, 2024 by Xflash2006 Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/ Share on other sites More sharing options...
Baio77 Posted February 17, 2024 Share Posted February 17, 2024 (edited) https://github.com/Baio1977/HP-630-CPU-Arrandale-Bios-Legacy- For graphics and Kext take inspiration from this configuration. Arrandale for internal graphics do not need IDs or spoofs , for NVIDIA you need DGPU spoof instead, it would be better to use a specific SSDT. I'm looking for information Use the ACPI and Kext that I attach ACPI.zip Kexts.zip Edited February 17, 2024 by Baio77 Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817026 Share on other sites More sharing options...
Slice Posted February 17, 2024 Share Posted February 17, 2024 It's a pity I may propose that HDMI port in internally connected to Nvidia chip. You can check this in Windows, it can show. And consequently you should stay with ElCapitan to have Nvidia Fermi working. 1 Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817029 Share on other sites More sharing options...
Baio77 Posted February 17, 2024 Share Posted February 17, 2024 I remember having 1 similar PC with NVIDIA GPU, I used EL Capitan as Slice says. I also had some SSDT patches, but I can't find those patches anymore. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817031 Share on other sites More sharing options...
cankiulascmnfye Posted February 17, 2024 Share Posted February 17, 2024 Looks like bad battery patching (Device path points to "BAT0" = Battery0). Disable the patched DSDT Verify that this Laptop does not have a working EC detected by macOS. If it does have a functional EC, disable SSDT-EC.aml. You can use SSDTTime to figure this out Add ECEnabler.kext to get the battery status working Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817033 Share on other sites More sharing options...
Xflash2006 Posted February 17, 2024 Author Share Posted February 17, 2024 2 hours ago, Baio77 said: https://github.com/Baio1977/HP-630-CPU-Arrandale-Bios-Legacy- For graphics and Kext take inspiration from this configuration. Arrandale for internal graphics do not need IDs or spoofs , for NVIDIA you need DGPU spoof instead, it would be better to use a specific SSDT. I'm looking for information Use the ACPI and Kext that I attach ACPI.zip 5.65 kB · 1 download Kexts.zip 3.64 MB · 2 downloads The problems persist. 1 hour ago, Slice said: It's a pity I may propose that HDMI port in internally connected to Nvidia chip. You can check this in Windows, it can show. And consequently you should stay with ElCapitan to have Nvidia Fermi working. It tells me that it is located on Intel HD Graphics. 23 minutes ago, cankiulascmnfye said: Looks like bad battery patching (Device path points to "BAT0" = Battery0). Disable the patched DSDT Verify that this Laptop does not have a working EC detected by macOS. If it does have a functional EC, disable SSDT-EC.aml. You can use SSDTTime to figure this out Add ECEnabler.kext to get the battery status working The battery issue also remains with ECEnabler.kext and SSDT-EC dumped by SSDTTime. I attach the photo of the errors that the WhateverGreen and Lilu kexts generate. I only noticed it when I disconnected the battery. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817034 Share on other sites More sharing options...
cankiulascmnfye Posted February 17, 2024 Share Posted February 17, 2024 SSDTTime doesn't "dump" SSDTs, it generates them based on analyzing the unpatched DSDT. Which macOS are you trying to install? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817035 Share on other sites More sharing options...
Xflash2006 Posted February 17, 2024 Author Share Posted February 17, 2024 5 minutes ago, cankiulascmnfye said: SSDTTime doesn't "dump" SSDTs, it generates them based on analyzing the unpatched DSDT. Which macOS are you trying to install? High Sierra, should I try El Capitan? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817036 Share on other sites More sharing options...
Slice Posted February 17, 2024 Share Posted February 17, 2024 44 minutes ago, Xflash2006 said: High Sierra, should I try El Capitan? It depends on your wish for Nvidia to work. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817041 Share on other sites More sharing options...
Xflash2006 Posted February 17, 2024 Author Share Posted February 17, 2024 2 minutes ago, Slice said: It depends on your wish for Nvidia to work. But is it impossible to make it work on High Sierra? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817042 Share on other sites More sharing options...
Slice Posted February 17, 2024 Share Posted February 17, 2024 Yes, impossible. AFAIK it is Fermi which works good in ElCapitan and hardly in Sierra but not up. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817043 Share on other sites More sharing options...
Xflash2006 Posted February 17, 2024 Author Share Posted February 17, 2024 (edited) Just now, Slice said: Yes, impossible. AFAIK it is Fermi which works good in ElCapitan and hardly in Sierra but not up. I'll try El Capitan. The problem is that from Windows I can't get the ACPI path of the GPU for the spoof. I have to try from a live of Ubuntu. Edited February 17, 2024 by Xflash2006 Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817044 Share on other sites More sharing options...
Slice Posted February 17, 2024 Share Posted February 17, 2024 Some guide tells you to make a spoof? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817046 Share on other sites More sharing options...

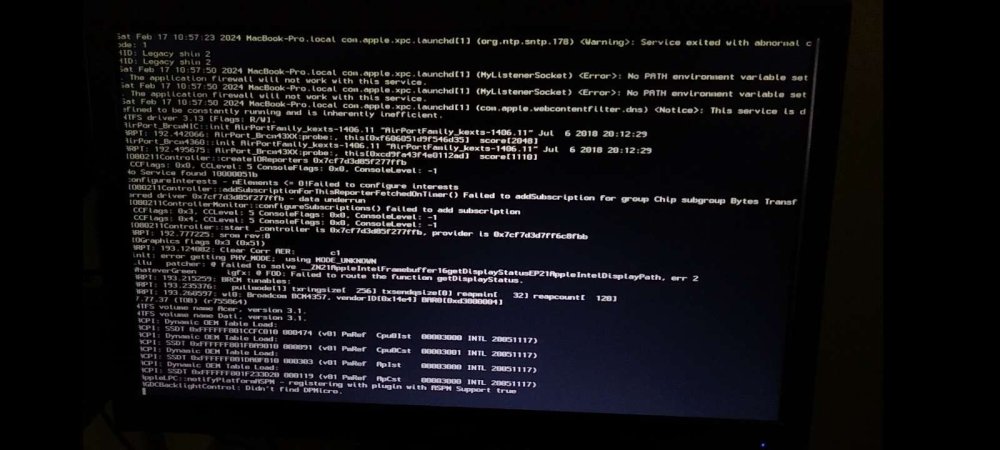

Xflash2006 Posted February 17, 2024 Author Share Posted February 17, 2024 (edited) 6 hours ago, Baio77 said: https://github.com/Baio1977/HP-630-CPU-Arrandale-Bios-Legacy- For graphics and Kext take inspiration from this configuration. Arrandale for internal graphics do not need IDs or spoofs , for NVIDIA you need DGPU spoof instead, it would be better to use a specific SSDT. This. As ACPI path it gives me this: \_SB_.PCI0.P0P2.VGA_ UPDATE: On El Capitan the problems with the battery are no longer present, those with the monitor remain. What should I do to make the external monitor work? EFI.zip Edited February 17, 2024 by Xflash2006 Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817048 Share on other sites More sharing options...
Xflash2006 Posted February 17, 2024 Author Share Posted February 17, 2024 I don't know if it could be useful, I attach the output of the intel_reg dump command intel_reg_dump.txt Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817056 Share on other sites More sharing options...
Slice Posted February 18, 2024 Share Posted February 18, 2024 Attach dump by this tool IORegistryExplorer2.app.zip Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817070 Share on other sites More sharing options...
Xflash2006 Posted February 18, 2024 Author Share Posted February 18, 2024 3 hours ago, Slice said: Attach dump by this tool IORegistryExplorer2.app.zip 260.17 kB · 1 download My laptop screen is broken, how do I install macOS if the HDMI port is disabled as soon as the installer starts. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817075 Share on other sites More sharing options...
Slice Posted February 18, 2024 Share Posted February 18, 2024 Then you should find a guide how to make internal screen or HDMI working. [GUIDE] 1st Generation Intel HD Graphics QE/CI You have no success with Opencore+WhateverGreen? Consider to try Clover. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817077 Share on other sites More sharing options...
Xflash2006 Posted February 18, 2024 Author Share Posted February 18, 2024 5 minutes ago, Slice said: Then you should find a guide how to make internal screen or HDMI working. [GUIDE] 1st Generation Intel HD Graphics QE/CI You have no success with Opencore+WhateverGreen? Consider to try Clover. Could https://dortania.github.io/OpenCore-Post-Install/gpu-patching/intel-patching/busid.html#mapping-without-macos solve the problem? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817078 Share on other sites More sharing options...
Slice Posted February 18, 2024 Share Posted February 18, 2024 I don't know this way. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817079 Share on other sites More sharing options...
Xflash2006 Posted March 2, 2024 Author Share Posted March 2, 2024 (edited) I can't install El Capitan or Sierra because my main laptop's CPU is not supported and so I installed High Sierra using my main laptop and enabled screen sharing to connect via VNC. I attach EFI and IORegistry. IOReg.zip EFI.zip Edited March 2, 2024 by Xflash2006 Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817556 Share on other sites More sharing options...
Xflash2006 Posted March 3, 2024 Author Share Posted March 3, 2024 22 hours ago, Xflash2006 said: I can't install El Capitan or Sierra because my main laptop's CPU is not supported and so I installed High Sierra using my main laptop and enabled screen sharing to connect via VNC. I attach EFI and IORegistry. IOReg.zip 465.43 kB · 0 downloads EFI.zip 4.3 MB · 0 downloads Could anyone help me solve the problem? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817588 Share on other sites More sharing options...
Slice Posted March 4, 2024 Share Posted March 4, 2024 i3-380 was supported since Snow Leopard. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817607 Share on other sites More sharing options...
Xflash2006 Posted March 4, 2024 Author Share Posted March 4, 2024 2 hours ago, Slice said: i3-380 was supported since Snow Leopard. And I have High Sierra installed so it's supported. Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817611 Share on other sites More sharing options...
Xflash2006 Posted March 5, 2024 Author Share Posted March 5, 2024 So is it possible to make the HDMI port work or not? Link to comment https://www.insanelymac.com/forum/topic/358751-slow-startup-due-to-acpi-errors-and-black-external-screen/#findComment-2817680 Share on other sites More sharing options...
