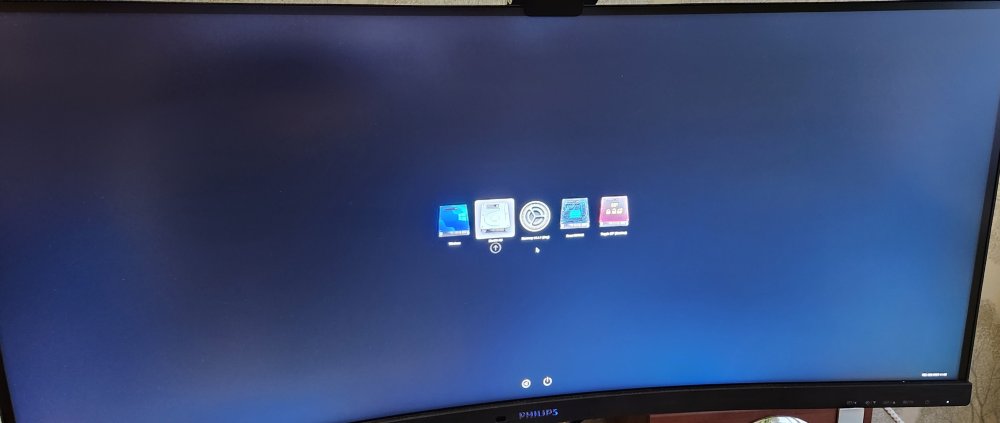

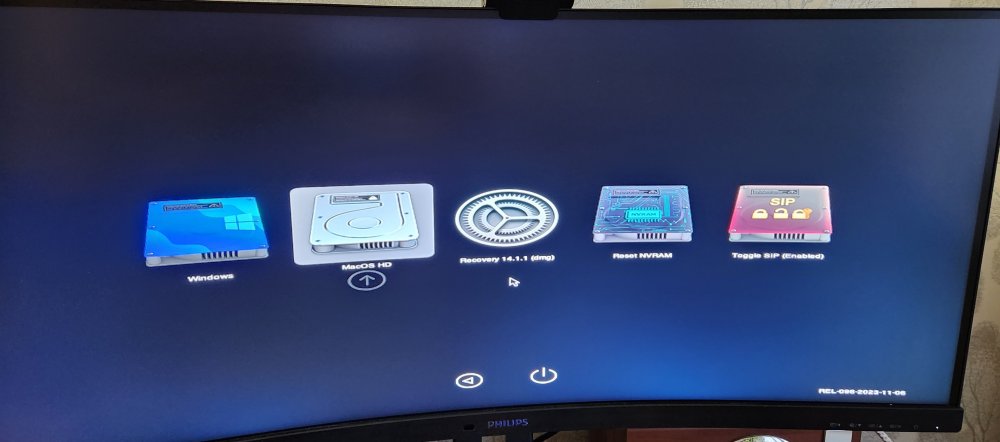

andreew75 Posted November 12, 2023 Share Posted November 12, 2023 Hello friends,I have a cosmetic issue when booting Opencore.Every time you boot Opencore, there are huge icons in the picker menu (image 1), while the system does not boot, but goes into reboot and only then the picker becomes normal (image 2). During any reboot, the picker always has normal icons, and after shutdown the computer and start after some time, the picker again has huge icons.Bios has been updated to the latest version. I have attached my EFI folder.I would be grateful for any advice.Asus Tuf Gaming Z590 PlusIntel Core I7-11700KAMD Radeon RX6600 Pulse config.plist.zip 1 Link to comment Share on other sites More sharing options...
eSaF Posted November 12, 2023 Share Posted November 12, 2023 Hi, this could be a setting in the BIOS. I think it is CSM, it needs to be either Enable or Disable. Forgive me if I am wrong, hopefully someone will correct my assumption and point you in the right direction. Good luck. 3 1 Link to comment Share on other sites More sharing options...
andreew75 Posted November 12, 2023 Author Share Posted November 12, 2023 eSaF, Thanks for the good advice! This seems to fix it with CSM enabled, but I need a few days to see how stable it is. 1 Link to comment Share on other sites More sharing options...
miliuco Posted November 12, 2023 Share Posted November 12, 2023 (edited) @eSaF @andreew75 CSM must be disabled in most cases to be able to work fine with macOS on UEFI PCs. CSM is a legacy mode not supported by default in UEFI Hacks. Can you boot macOS with CSM enabled? Edited November 12, 2023 by miliuco 2 Link to comment Share on other sites More sharing options...
andreew75 Posted November 13, 2023 Author Share Posted November 13, 2023 (edited) 12 hours ago, miliuco said: Can you boot macOS with CSM enabled? Yes, I can boot MacOS with CSM enabled on UEFI only mode. Now this solved my problem stated above Spoiler Edited November 13, 2023 by andreew75 2 Link to comment Share on other sites More sharing options...
miliuco Posted November 13, 2023 Share Posted November 13, 2023 @andreew75 I can't boot macOS with CSM enabled. Even NVRAM must be cleared and BIOS must be reset to be able to boot again. Link to comment Share on other sites More sharing options...
eSaF Posted November 13, 2023 Share Posted November 13, 2023 41 minutes ago, miliuco said: @andreew75 I can't boot macOS with CSM enabled. Even NVRAM must be cleared and BIOS must be reset to be able to boot again. Hi Bro, I don't know how much this info will help but on my MSI Z490, this is the setting in the BIOS. BIOS CSM/UEFI Mode=UEFI. With this explanation side Note: On Board Graphics VBIOS is not supported in CSM Mode. "The BIOS CSM/UEFI Mode Setting in the BIOS will be changed to UEFI. Hope it makes some sense in some way, my old brain translates it as 'gobble-de-gook'. 1 Link to comment Share on other sites More sharing options...
miliuco Posted November 13, 2023 Share Posted November 13, 2023 @eSaF Your old brain works perfectly 😉 OpenCore Dortania's guide recommended disabling CSM in BIOS. CSM is supposed to be a legacy setting that older motherboards have and was the way to boot Windows 7. Its alternative is UEFI. However I see that some systems can (or even need to) boot with CSM enabled. This is not my case since with CSM activated macOS does not boot. You have BIOS CSM/UEFI Mode=UEFI, my understanding is that CSM is disabled and UEFI is enabled. 1 1 Link to comment Share on other sites More sharing options...
Slice Posted November 14, 2023 Share Posted November 14, 2023 I can boot my first computer with or without CSM enabled in BIOS and see no differences. I just see more options in F12 boot choose menu. There is a question about starting Sonoma after legacy boot. I still not tested this. 2 Link to comment Share on other sites More sharing options...
RobertX Posted February 13 Share Posted February 13 ...a little late to the subject...but, while in bios I enabled CSM (after always having it disabled) reboot and get various screen resolutions thru the boot process...ie: low res for bios, 1920x1080p@60 for Clover and apple boot screen ...then 3840x2180p@60 at login screen...I only mention this because Clover boot menu used to be 7xxx X2160p, a strange resolution any how...Slice said he saw no difference...this is one difference, for me(perhaps Csm enabled allows bios to read legacy vbios of gfx card) ...as to why I Enabled CSM, it was to check if any change with my video card(RX 570 8GB.) ...still testing Link to comment Share on other sites More sharing options...
