[Help] Stucked at SMCSuperIO ssio: @ detected device ITE IT8688E

[zeos_ar]

Hi

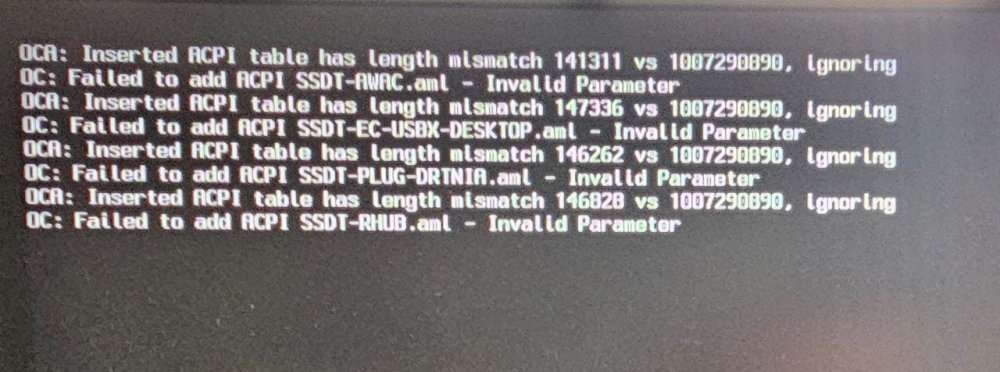

I also got some ACPI error  before the menu to select install, adding it for context but it goes through it.

Setup:
Mother: gigabyte z490-UD
Micro: i7 10700
Video : RX 6900 XT



Edited June 16, 2023 by fantomas
It is so hard to say Hello ?

[Cyberdevs]

Take a look at this:



[zeos_ar]

should I use ventura?



I tried with that EFI but I get this error instead:



87:213 00:056 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 1
87:356 00:142 OCAK: 64-bit RemoveUsbLimitIoP1 part 2 replace count - 1
87:412 00:056 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 2
87:558 00:146 OCAK: Patching invalid size 4E000 with E24000 for com.apple.driver.usb.AppleUSBXHCI
87:705 00:147 OCAK: 64-bit RemoveUsbLimitV2 replace count - 1
87:761 00:056 OCAK: [OK] Patch success com.apple.driver.usb.AppleUSBXHCI
87:904 00:142 OCAK: Patching invalid size 2A000 with DCD000 for com.apple.driver.usb.AppleUSBXHCIPCI
88:052 00:148 OCAK: [OK] Skipping legacy port patch AppleUSBXHCIPCI on 200600
88:108 00:056 OCAK: 64-bit AppleIoMapper replace count - 1
88:255 00:146 OCAK: [OK] Patch success com.apple.iokit.IOPCIFamily AppleIoMapper
88:529 00:273 OC: Prelinked status - Success
89:292 00:763 AAPL: #[EB|SB:P] 0x1
89:433 00:141 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
89:489 00:056 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m
89:630 00:140 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m"> <"0">
89:865 00:235 OCI4: Verifying digest 48 (657072BA) override 1 48 (657072BA)
90:623 00:757 OCI4: Matching override 658698D6 with 658698D6 - success
90:764 00:140 AAPL: #[EB|SB:MKRN]
90:916 00:152 AAPL: #[EB.LD.LKFS|-?] Ok(0)
90:972 00:056 AAPL: #[EB.LD.LKC|-?] Ok(0)
91:110 00:137 AAPL: #[EB|FWFM] 0x00000008FF9FFF3F
91:259 00:149 AAPL: #[EB|FWFT] 0x00000008FD8FF53E
91:315 00:056 AAPL: #[EB|BST:REV1]
91:453 00:137 AAPL: #[EB|CSR:OUT] 0x00000040
91:595 00:142 AAPL: #[EB.BST.FBS|+]
91:656 00:060 AAPL: #[EB.BST.FBS|ADSZ] 0
91:806 00:149 AAPL: #[EB.BST.FBS|KSSZ] 0
91:862 00:056 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m
92:001 00:139 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
92:141 00:139 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m">
92:197 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
92:336 00:139 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
92:481 00:145 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
92:537 00:055 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
92:673 00:135 OCSMC: SmcReadValue Key 4D535463 Size 1
92:817 00:144 OCSMC: SmcReadValue Key 4D534163 Size 2
92:873 00:056 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0
93:011 00:137 AAPL: #[EB|LOG:DT] 2023-06-16T13:14:37
93:156 00:144 AAPL: #[EB|LOG:EXITBS:START] 2023-06-16T13:14:37



[Cyberdevs]

5 hours ago, zeos_ar said:

should I use ventura?



I tried with that EFI but I get this error instead:

Is CFGLock disabled in BIOS? have you set the BIOS properly?

[cankiulascmnfye]

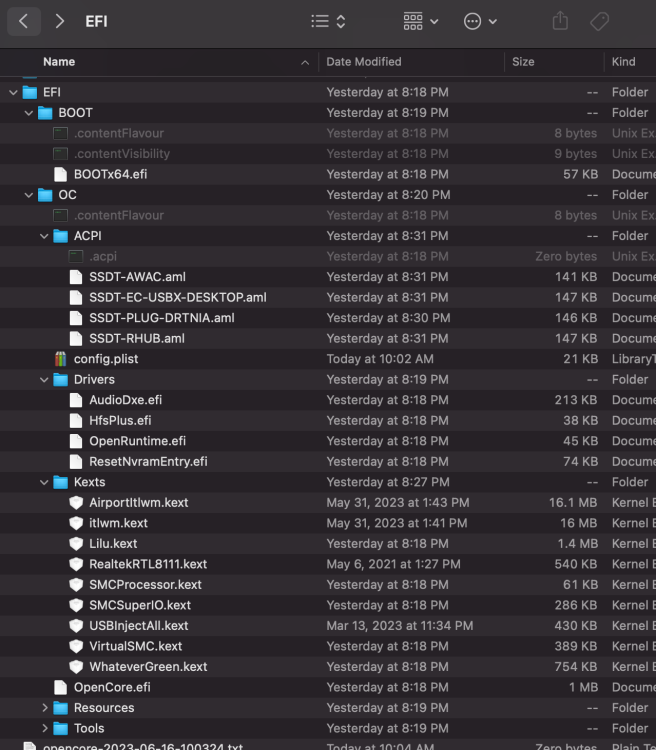

@zeos_ar Uhm, 140+ kilobytes for ACPI tables like these is waaaaaaay too much. AWAC is about 70… bytes… delete them get fresh ones from opencore install package

Edited June 16, 2023 by cankiulascmnfye

[zeos_ar]

2 hours ago, cankiulascmnfye said:

@zeos_ar Uhm, 140+ kilobytes for ACPI tables like these is waaaaaaay too much. AWAC is about 70… bytes… delete them get fresh ones from opencore install package

Downloaded https://github.com/dortania/Getting-Started-With-ACPI/blob/master/extra-files/compiled/SSDT-AWAC.aml and its 146kb



2 hours ago, Cyberdevs said:

Is CFGLock disabled in BIOS? have you set the BIOS properly?

Yup, the only option that I couldn't find on my bios is Vd-x

[zeos_ar]

@cankiulascmnfye I anyway downloaded it again and actually I got progress, BUT now I get this:


79:586 00:126 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash">
79:630 00:043 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF
79:766 00:135 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH
79:809 00:043 OCSMC: SmcReadValue Key 4D535463 Size 1
79:938 00:129 OCSMC: SmcReadValue Key 4D534163 Size 2
79:981 00:043 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0
80:115 00:133 AAPL: #[EB|LOG:DT] 2023-06-16T19:56:42
80:159 00:043 AAPL: #[EB|LOG:EXITBS:START] 2023-06-16T19:56:42

[cankiulascmnfye]

Please uee the ACPI files that come with the OpenCorePKG! Located under Docs/AcpiSamples!



The AWAC SSDT is 70 bytes in size, not 146 kb. Whatever your system does when downloadung these files, it's wrong.



Next:

- Create an OC Snapshot of your config using ProperTree

- Check your config for errors online: https://sanitychecker.ocutils.me/

- Try again

- If the issue does not diappear, refer to the Troubleshooting guide: https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/extended/kernel-issues.html#stuck-on-eb-log-exitbs-start





[zeos_ar]

Thanks, I was able to install everything:  I'm sharing my EFI for others just in case
https://github.com/zeitos/I7-10700-GigabyteZ490UD-Radeon6900XT

Wifi works with HeliPort, not with native wifi
