aben Posted April 15, 2023 Share Posted April 15, 2023 Just noticed OpenCore’s current master actually contains a kernel-sanity-check in place for legacy AICPUPM kexts against Ventura kernel (interesting, but why? likely due to performance concerns around Ventura’s legacy compatibilities?), which now explains why AppleCpuPmCfgLock quirk (to deal with locked CFG/MSR) has been reportedly skipping the patch when attempting to force-inject end-of-life AICPUPM kexts along with Ventura kernel in OC, leading to kernel panic in hacks attempting to load non-XCPM in Ventura (*Monterey and earlier ok). (Again - non-XCPM support was never a problem for real MacPro6,1 unit running *Ventura that has same CPU chipset as OP, because its mobo is not restricted by locked MSR 0xE2 register, the system allows legacy AICPUPM to attach natively to CPU without relying on quirk from OC/Clover) I believe the quirk (to deal with MSR 0xE2 lock) should work just fine in Clover as well for PCs/laptops - suggest OP to test: recompiled OpenCore binary with legacy check redacted (GH users can also just fork OC from master, make changes and simply initiate pre-bundled workflows for quicker binary grabs from GitHub Actions (Artifacts)) Clover (+ patches from OCLP) if they’re looking for non-XCPM in Ventura. 1 Quote Link to comment Share on other sites More sharing options...
rbeltran Posted April 18, 2023 Author Share Posted April 18, 2023 On 4/14/2023 at 1:44 PM, anerik70 said: If you have Windows I can help you to patch your BIOS Hi @anerik70 thanks for your offer, i can install Win10. I'm sorry i'm new at Insanelymac, how can i contact you directly to do this? Quote Link to comment Share on other sites More sharing options...
anerik70 Posted April 18, 2023 Share Posted April 18, 2023 46 minutes ago, rbeltran said: Hi @anerik70 thanks for your offer, i can install Win10. I'm sorry i'm new at Insanelymac, how can i contact you directly to do this? Let's do this over here. Quote Link to comment Share on other sites More sharing options...
anerik70 Posted April 18, 2023 Share Posted April 18, 2023 Let`s start: Download file attached. Extract. Open cmd as admin. cd to the folder FPT_X79_DOS Do a bios backup with this Command: fptw64 -d backup.bin. Report here the process with image captures and the file backup.bin FPT_X79_DOS.zip Quote Link to comment Share on other sites More sharing options...
aben Posted April 21, 2023 Share Posted April 21, 2023 (edited) @rbeltran Hi - you can actually opt to skip unlocking MSR 0xE2 register the hard way (which involves BIOS payload extraction, then find and modify MSR/CFG variable via shell command, eg. GRUB). As detailed above, part of your issue is that recent OpenCore's release binaries has a kernel/OS check which blocks legacy-power-management kexts (AICPUPM) from being patched for the locked MSR 0xE2 bypass in Ventura (quirk: AppleCpuPmCfgLock), which is why you're having trouble getting your Ivy-Bridge CPU to run in non-XCPM mode in Ventura. Assuming that your machine is currently running Ventura with OpenCore, I've attached below recompiled OpenCore binaries (with check removed), and legacy-power-management kexts, which you can use to successfully force non-XCPM power-management mode for your Ivy-Bridge CPU in Ventura. Before you proceed, remember to create backups of your current EFI config targeted for Ventura, then follow the steps below: Copy/replace OpenCore.efi, OpenRuntime.efi and BOOTx64.efi binaries (from EFI.zip attached below to your EFI) Add legacy-power-management kexts: AppleIntelCPUPowerManagement.kext + AppleIntelCPUPowerManagementClient.kext (also included in same EFI.zip below) to Kexts folder; also remember to include them to your kexts list in config.plist (under Kernel->Add) Once booted, you can confirm if the patch was successful by checking your CPU objects in ioreg; they should attach to ACPI_SMC_PlatformPlugin. Test and post your results. Good luck! N.B: Next OpenCore release 0.9.2 will be shipping with the above detailed kernel-check redacted, so legacy kexts AICPUPM can be conveniently injected/loaded successfully in macOS 13 for machines with locked MSR/CFG. EFI.zip Edited April 21, 2023 by aben Upload files 2 1 Quote Link to comment Share on other sites More sharing options...

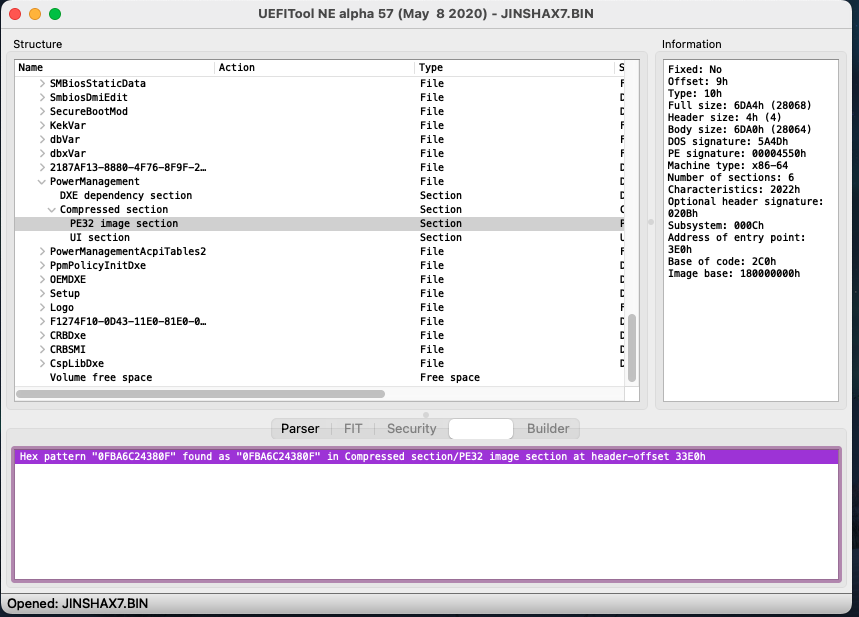

rbeltran Posted April 24, 2023 Author Share Posted April 24, 2023 On 4/18/2023 at 7:31 PM, anerik70 said: Let`s start: Download file attached. Extract. Open cmd as admin. cd to the folder FPT_X79_DOS Do a bios backup with this Command: fptw64 -d backup.bin. Report here the process with image captures and the file backup.bin FPT_X79_DOS.zip 510.88 kB · 0 downloads Ok @anerik70, i already made this with AFUDOS instead of FPT and with this guide, but there's no "CFG Lock" on my bios. By the way i have attached my bios dump. I hope there's another way to patch my bios to unlock CFG. JINSHAX7.BIN Quote Link to comment Share on other sites More sharing options...
anerik70 Posted April 25, 2023 Share Posted April 25, 2023 (edited) 1 hour ago, rbeltran said: Ok @anerik70, i already made this with AFUDOS instead of FPT and with this guide, but there's no "CFG Lock" on my bios. By the way i have attached my bios dump. I hope there's another way to patch my bios to unlock CFG. JINSHAX7.BIN 4.5 MB · 0 downloads I need you do the process with FPT to get the entire bios (about 8mb). La mía tampoco tiene CFG Lock pero el valor está allí. Edited April 25, 2023 by anerik70 Quote Link to comment Share on other sites More sharing options...

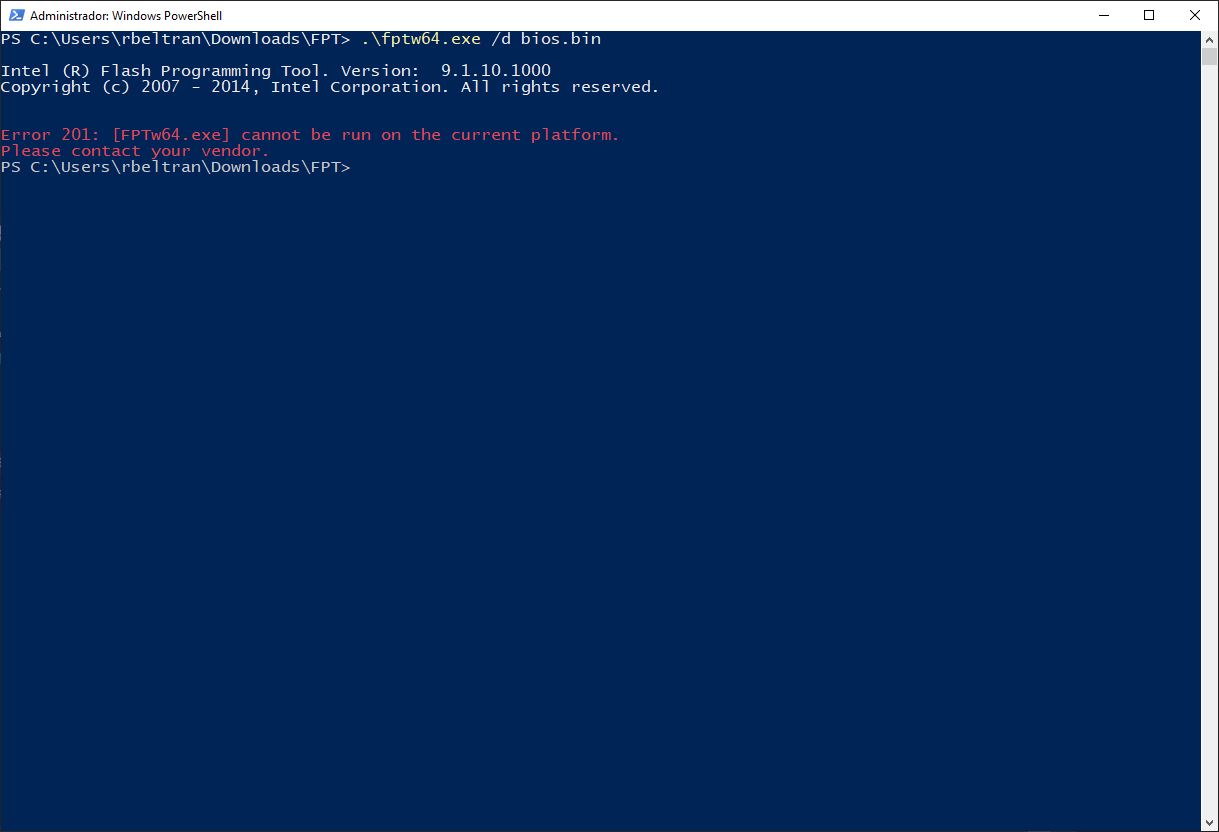

rbeltran Posted April 25, 2023 Author Share Posted April 25, 2023 4 hours ago, anerik70 said: I need you do the process with FPT to get the entire bios (about 8mb). La mía tampoco tiene CFG Lock pero el valor está allí. FPT gives me this "error 201", i tried from windows 10 CMD, Powershell, and with a flash drive with DOS, FreeDOS, all of them with the same error. It seems that my motherboard works only with AFUDOS. I'm using this method FPT from windows 10. (En los comentarios del link indica que, si no sirve FPT, lo más probable es que solo funcione con AFUDOS) Quote Link to comment Share on other sites More sharing options...
anerik70 Posted April 25, 2023 Share Posted April 25, 2023 (edited) 8 hours ago, rbeltran said: FPT gives me this "error 201", i tried from windows 10 CMD, Powershell, and with a flash drive with DOS, FreeDOS, all of them with the same error. It seems that my motherboard works only with AFUDOS. I'm using this method FPT from windows 10. (En los comentarios del link indica que, si no sirve FPT, lo más probable es que solo funcione con AFUDOS) If you are on 32bit use fpt -d backup.bin Edited April 25, 2023 by anerik70 Quote Link to comment Share on other sites More sharing options...
rbeltran Posted April 25, 2023 Author Share Posted April 25, 2023 9 hours ago, anerik70 said: If you are on 32bit use fpt -d backup.bin It's Windows10 64bit, nevertheless, i've tryed with FPT 32bit, 64bit, DOS and EFI version, and all of them give me the same error. On 4/21/2023 at 7:25 AM, aben said: @rbeltran Hi - you can actually opt to skip unlocking MSR 0xE2 register the hard way (which involves BIOS payload extraction, then find and modify MSR/CFG variable via shell command, eg. GRUB). As detailed above, part of your issue is that recent OpenCore's release binaries has a kernel/OS check which blocks legacy-power-management kexts (AICPUPM) from being patched for the locked MSR 0xE2 bypass in Ventura (quirk: AppleCpuPmCfgLock), which is why you're having trouble getting your Ivy-Bridge CPU to run in non-XCPM mode in Ventura. Assuming that your machine is currently running Ventura with OpenCore, I've attached below recompiled OpenCore binaries (with check removed), and legacy-power-management kexts, which you can use to successfully force non-XCPM power-management mode for your Ivy-Bridge CPU in Ventura. Before you proceed, remember to create backups of your current EFI config targeted for Ventura, then follow the steps below: Copy/replace OpenCore.efi, OpenRuntime.efi and BOOTx64.efi binaries (from EFI.zip attached below to your EFI) Add legacy-power-management kexts: AppleIntelCPUPowerManagement.kext + AppleIntelCPUPowerManagementClient.kext (also included in same EFI.zip below) to Kexts folder; also remember to include them to your kexts list in config.plist (under Kernel->Add) Once booted, you can confirm if the patch was successful by checking your CPU objects in ioreg; they should attach to ACPI_SMC_PlatformPlugin. Test and post your results. Good luck! N.B: Next OpenCore release 0.9.2 will be shipping with the above detailed kernel-check redacted, so legacy kexts AICPUPM can be conveniently injected/loaded successfully in macOS 13 for machines with locked MSR/CFG. EFI.zip 456.47 kB · 3 downloads Hi @aben i'm installing Ventura again to test with your files, thanks by the way. Quote Link to comment Share on other sites More sharing options...

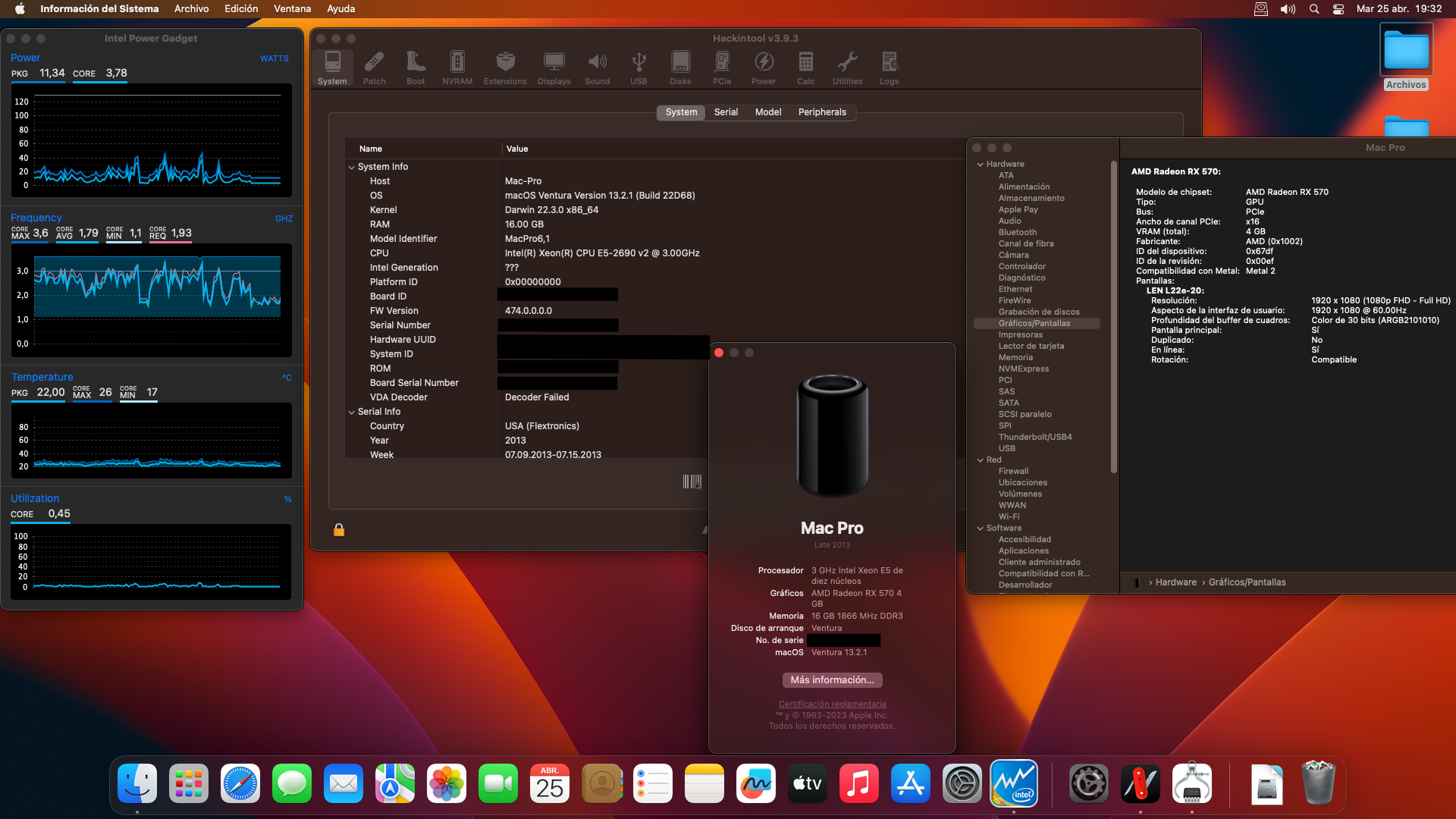

rbeltran Posted April 26, 2023 Author Share Posted April 26, 2023 4 hours ago, rbeltran said: It's Windows10 64bit, nevertheless, i've tryed with FPT 32bit, 64bit, DOS and EFI version, and all of them give me the same error. Hi @aben i'm installing Ventura again to test with your files, thanks by the way. @aben turbo boost it's now working normal with the files you gave to me, thank you very much for your help. 2 Quote Link to comment Share on other sites More sharing options...
aben Posted April 26, 2023 Share Posted April 26, 2023 @rbeltran You’re welcome! Glad to see it worked out Quote Link to comment Share on other sites More sharing options...
anerik70 Posted April 26, 2023 Share Posted April 26, 2023 8 hours ago, rbeltran said: @aben turbo boost it's now working normal with the files you gave to me, thank you very much for your help. Try MacPro 7.1 smbios Quote Link to comment Share on other sites More sharing options...
rbeltran Posted May 4, 2023 Author Share Posted May 4, 2023 On 4/26/2023 at 8:01 AM, anerik70 said: Try MacPro 7.1 smbios Hi @anerik70, i already use 7.1 only to install the system, but i can't tell if there are any changes between 6.1 and 7.1 in the performance of the system. I'll do some benchmark test to see if there are some differences between them. Quote Link to comment Share on other sites More sharing options...
anerik70 Posted May 4, 2023 Share Posted May 4, 2023 3 hours ago, rbeltran said: Hi @anerik70, i already use 7.1 only to install the system, but i can't tell if there are any changes between 6.1 and 7.1 in the performance of the system. I'll do some benchmark test to see if there are some differences between them. VDA decoder is fully working Quote Link to comment Share on other sites More sharing options...
morganinhaaax Posted May 11, 2023 Share Posted May 11, 2023 On 4/21/2023 at 8:25 AM, aben said: @rbeltran Hi - you can actually opt to skip unlocking MSR 0xE2 register the hard way (which involves BIOS payload extraction, then find and modify MSR/CFG variable via shell command, eg. GRUB). As detailed above, part of your issue is that recent OpenCore's release binaries has a kernel/OS check which blocks legacy-power-management kexts (AICPUPM) from being patched for the locked MSR 0xE2 bypass in Ventura (quirk: AppleCpuPmCfgLock), which is why you're having trouble getting your Ivy-Bridge CPU to run in non-XCPM mode in Ventura. Assuming that your machine is currently running Ventura with OpenCore, I've attached below recompiled OpenCore binaries (with check removed), and legacy-power-management kexts, which you can use to successfully force non-XCPM power-management mode for your Ivy-Bridge CPU in Ventura. Before you proceed, remember to create backups of your current EFI config targeted for Ventura, then follow the steps below: Copy/replace OpenCore.efi, OpenRuntime.efi and BOOTx64.efi binaries (from EFI.zip attached below to your EFI) Add legacy-power-management kexts: AppleIntelCPUPowerManagement.kext + AppleIntelCPUPowerManagementClient.kext (also included in same EFI.zip below) to Kexts folder; also remember to include them to your kexts list in config.plist (under Kernel->Add) Once booted, you can confirm if the patch was successful by checking your CPU objects in ioreg; they should attach to ACPI_SMC_PlatformPlugin. Test and post your results. Good luck! N.B: Next OpenCore release 0.9.2 will be shipping with the above detailed kernel-check redacted, so legacy kexts AICPUPM can be conveniently injected/loaded successfully in macOS 13 for machines with locked MSR/CFG. EFI.zip 456.47 kB · 5 downloads Hello sir, would this work for the i7-3720QM ivy-bridge on Ventura or no? Quote Link to comment Share on other sites More sharing options...
aben Posted May 11, 2023 Share Posted May 11, 2023 @morganinhaaax Hi - most of the information detailed above applies to improving power management support for legacy CPUs (pre-Haswell) on Ventura, so yes! should work for the i7-3720QM as well. Feel free to use both legacy power-management kexts (AICPUPM) uploaded in my post. However, for the OpenCore binaries, I would suggest you grab the more latest release binaries from the OpenCore repository on GitHub, given that ver. 0.9.2 was just released earlier this week which includes relevant support for legacy CPUs on Ventura. 1 Quote Link to comment Share on other sites More sharing options...
morganinhaaax Posted May 11, 2023 Share Posted May 11, 2023 5 hours ago, aben said: @morganinhaaax Hi - most of the information detailed above applies to improving power management support for legacy CPUs (pre-Haswell) on Ventura, so yes! should work for the i7-3720QM as well. Feel free to use both legacy power-management kexts (AICPUPM) uploaded in my post. However, for the OpenCore binaries, I would suggest you grab the more latest release binaries from the OpenCore repository on GitHub, given that ver. 0.9.2 was just released earlier this week which includes relevant support for legacy CPUs on Ventura. Hello, i have tested with your files and works fine!! Very thanks sir. 2 Quote Link to comment Share on other sites More sharing options...
rubah ganteng Posted October 24, 2023 Share Posted October 24, 2023 (edited) On 4/15/2023 at 1:36 AM, anerik70 said: Chinese Atermiter X79G006 Xeon E5-2630 v2 IvyBridge -EP (MSR 0xE2 unlocked Easy using FPT commands under Windows) Fully PM. RX 470 I have Sabertooth x79•E5-1650v2•RX560 succes with Monterey 99%, i try Ventura & Sonoma can Boot to install, fail on last reboot 😩 I hope some one can help me thanks 🙏 Edited October 24, 2023 by rubah ganteng Quote Link to comment Share on other sites More sharing options...
mrmacdi2 Posted October 24, 2023 Share Posted October 24, 2023 On 3/26/2023 at 4:18 AM, rbeltran said: Still not haven't luck with this, the same happens in Monterey, it starts at 3rd or 4rd attempt, then when it boots the system works fine. (just Monterey with PM, on Ventura i still can't found how to make PM available). I'm sorry but i just delete the Ventura disk, i'll install again to continue with the tests, by now i'm attashing the files of Monterey boot and system, soon i'll share the Ventura files. 2023-03-25 (Boot) Monterey E5-2690v2 - jingsha x79M-S.txt 128 kB · 12 downloads 2023-03-25 (System) Monterey E5-2690v2 - jingsha x79M-S.txt 973.1 kB · 12 downloads How did you get macos boot log? It's different from what I get via log util. Quote Link to comment Share on other sites More sharing options...

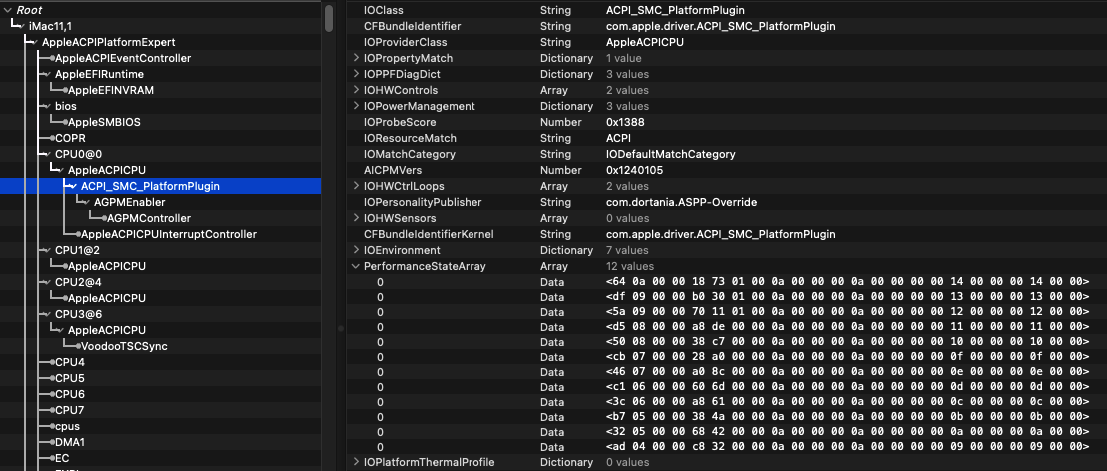

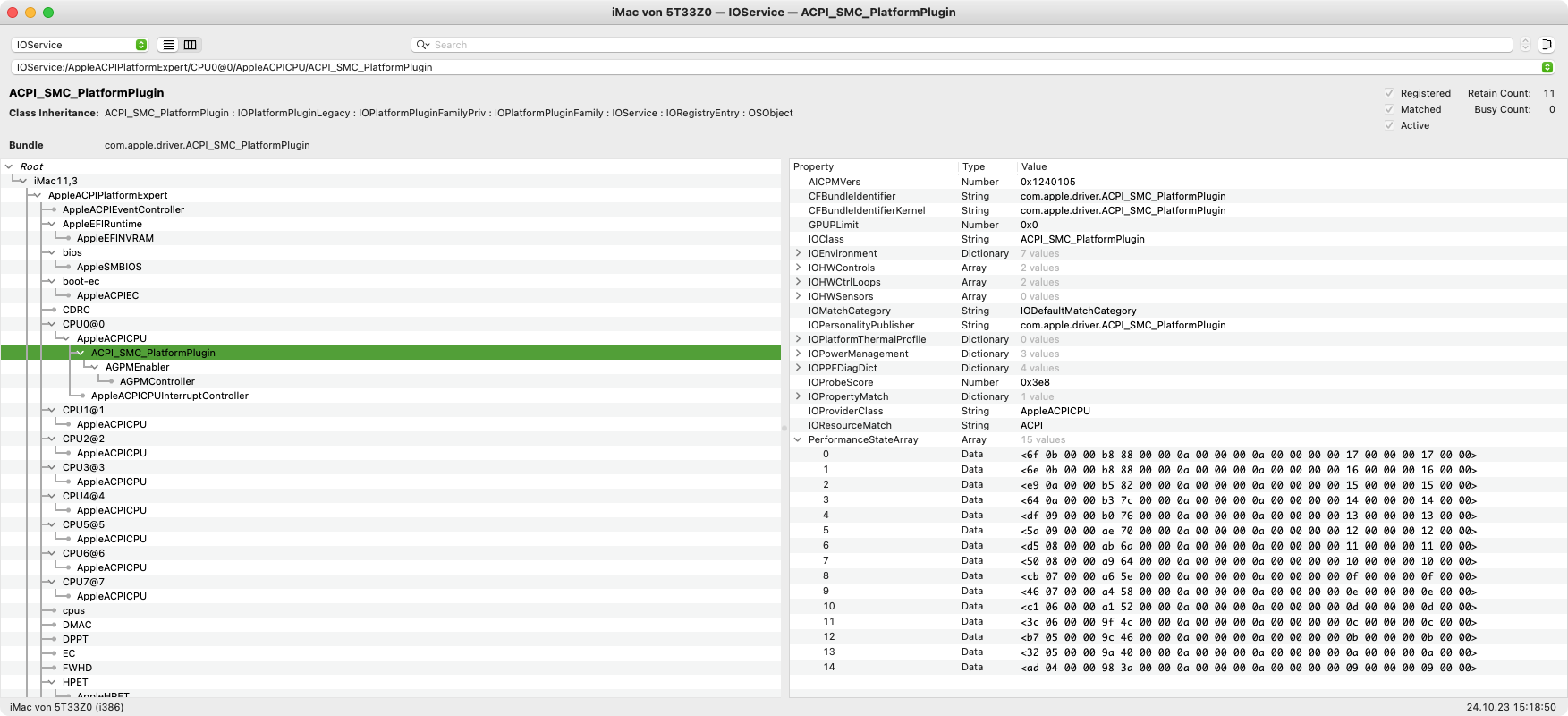

mrmacdi2 Posted October 24, 2023 Share Posted October 24, 2023 (edited) On 4/21/2023 at 2:25 PM, aben said: Once booted, you can confirm if the patch was successful by checking your CPU objects in ioreg; they should attach to ACPI_SMC_PlatformPlugin. I have overclocked Lynnfield CPU (3.6Ghz, stock 2.66Ghz) and PM works in very strange way: I have only the lowest multiplier x9 and the highest x20/21, no states in between. Also all cores adjust freq at the same time, so no cores with high and low freq mixed: Spoiler Low: High: The same behaviour when CPU runs at stock freq: 2.66Ghz. Additionally I use ASPP-Override.kext (prioritizes plugin-type 0 over plugin-type 1), DummyPowerManagement is off in OpenCore. My MB with Bios, so no CFG Lock: Quote 00:913 00:125 OCCPU: EIST CFG Lock 0 OC Log for CPU: Spoiler 00:663 00:124 OCCPU: Found Intel(R) Core(TM) i5 CPU 750 @ 2.67GHz 00:787 00:124 OCCPU: Signature 106E5 Stepping 5 Model 1E Family 6 Type 0 ExtModel 1 ExtFamily 0 uCode 4 CPUID MAX (B/80000008) 00:913 00:125 OCCPU: EIST CFG Lock 0 01:036 00:123 OCCPU: Timer address is 408 from LPC 01:160 00:123 OCCPU: Failed to get FSBFrequency data using Apple Platform Info - Not Found 01:385 00:225 OCCPU: Intel TSC: 3600001148Hz, 3600MHz; FSB: 180000057Hz, 180MHz; MaxBusRatio: 20 01:512 00:126 OCCPU: Detected Apple Processor Type: 06 -> 0602 01:637 00:125 OCCPU: CPUFrequencyFromTSC 3600001148Hz 3600MHz 01:761 00:124 OCCPU: CPUFrequency 3600001148Hz 3600MHz 01:885 00:124 OCCPU: FSBFrequency 180000057Hz 180MHz 02:009 00:124 OCCPU: Pkg 1 Cores 4 Threads 4 IOReg: Spoiler Edited October 24, 2023 by mrmacdi2 Quote Link to comment Share on other sites More sharing options...
cankiulascmnfye Posted October 24, 2023 Share Posted October 24, 2023 I've noticed that for older CPU's IORegistryExplorer 2.1 works better. For P-States, for example, it lists the entries in a numbered fashion (and not just as entry "0"): 1 Quote Link to comment Share on other sites More sharing options...
